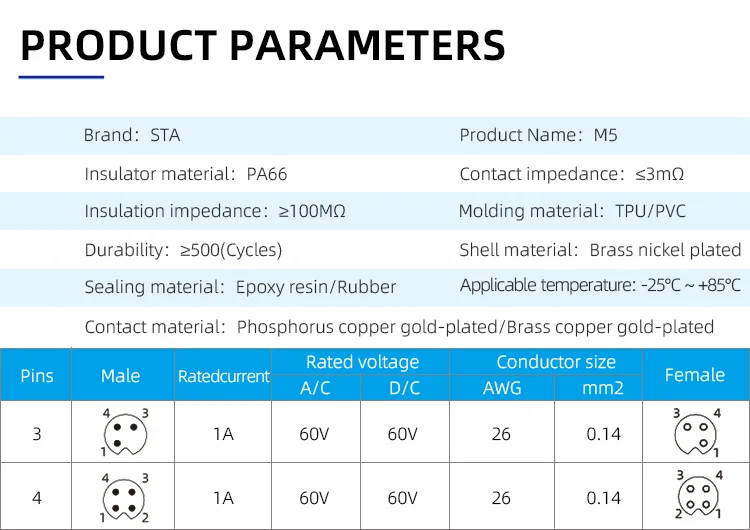

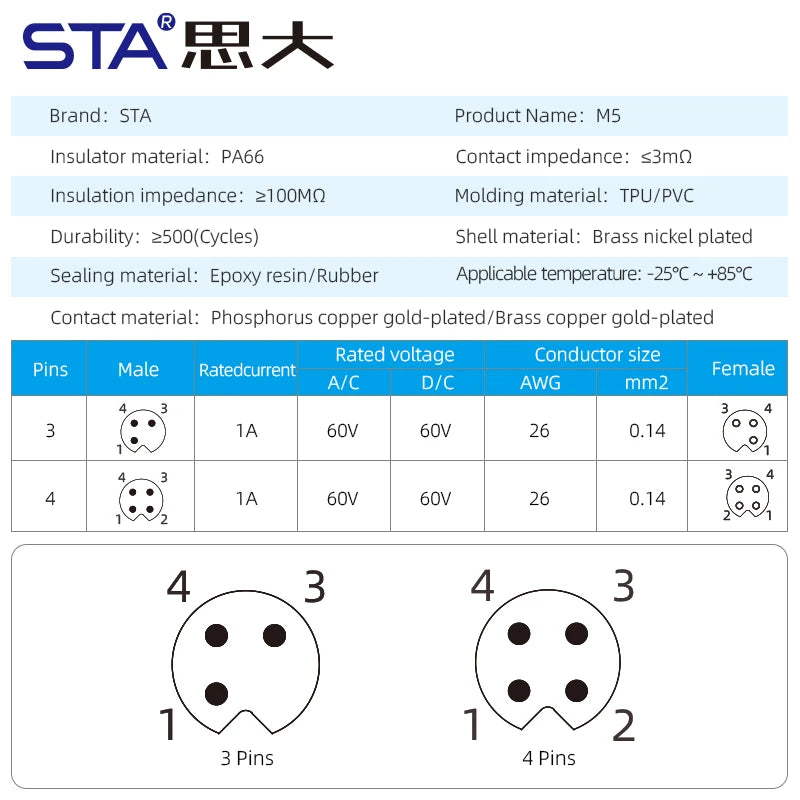

SPECIFICATIONS

Applicable temperature: -25℃~+85℃

Brand Name: STA

Certification: CE,RoHS,UL,weee

Choice: yes

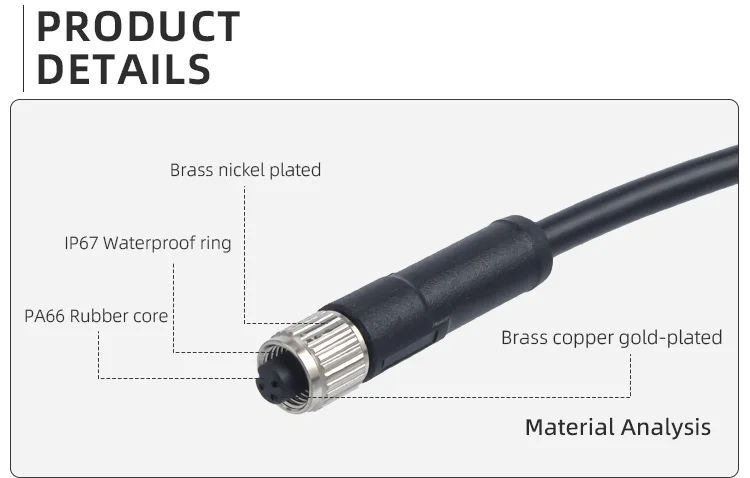

Contact material: Brass copper gold-plated

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Insulator material: PA66

Model Number: M5 Plug Cable

Molding material: TPU/PVC

Origin: Mainland China

Pins number: 3pins,4Pins

Sealing material: Epoxy resin/Rubber

Standard: IEC 61076-2 -105

Voltage: 48V

Waterproof grade: IP67

semi_Choice: yes

电压: 1V 2V 4V 5V 12V 12V 等 或自定义

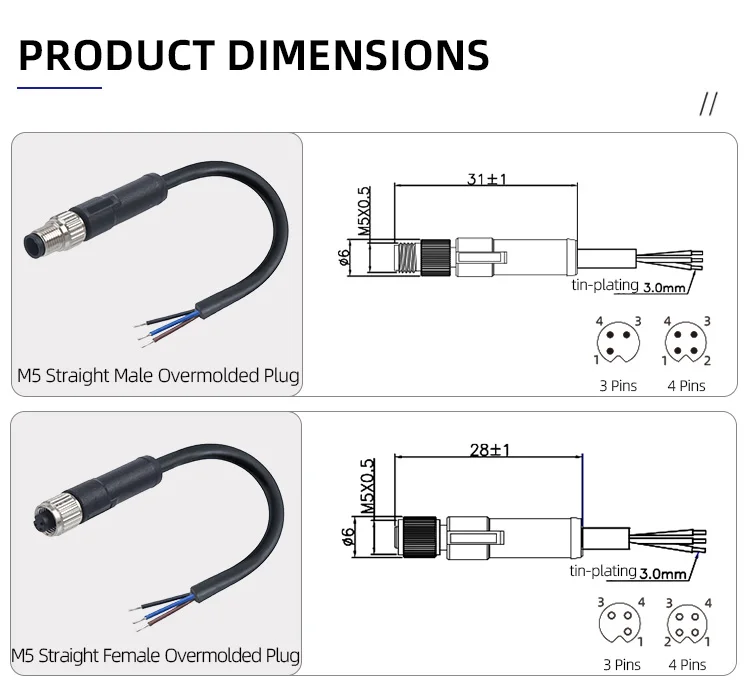

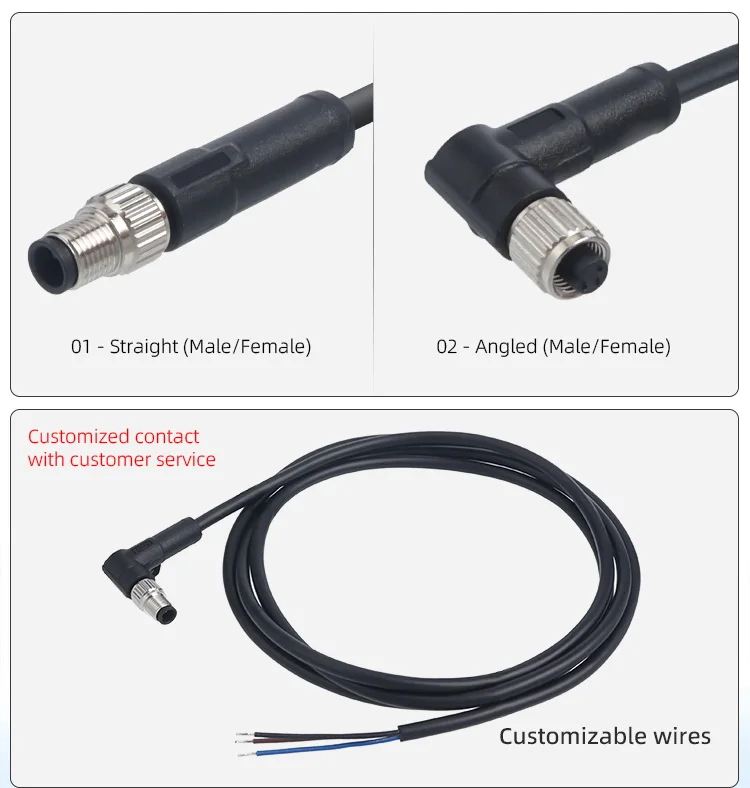

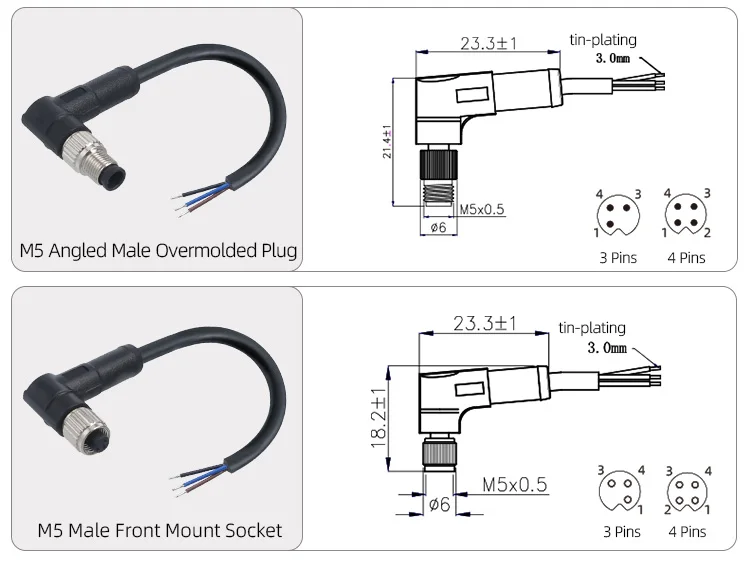

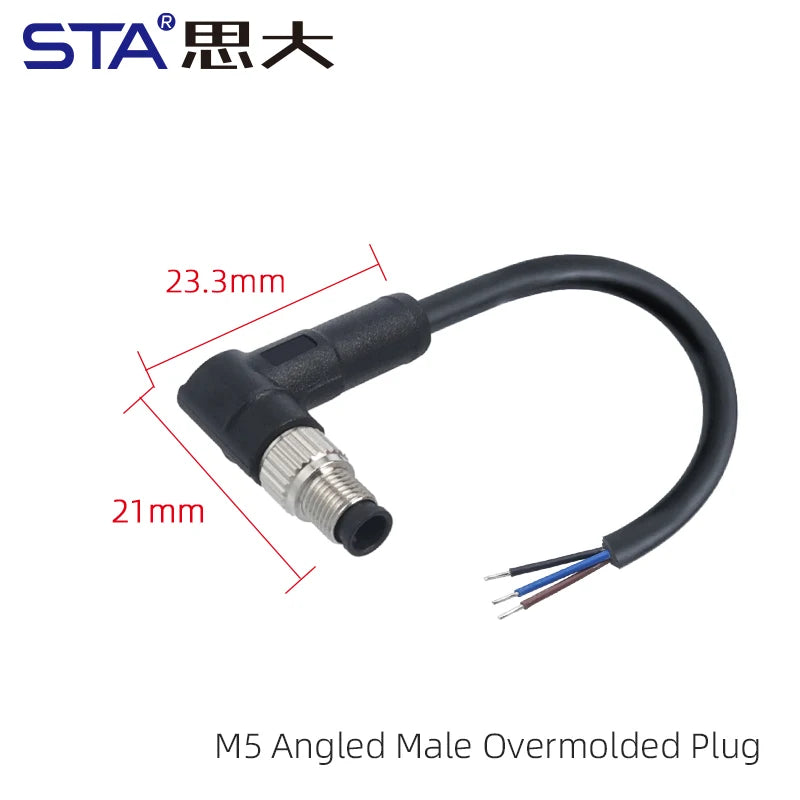

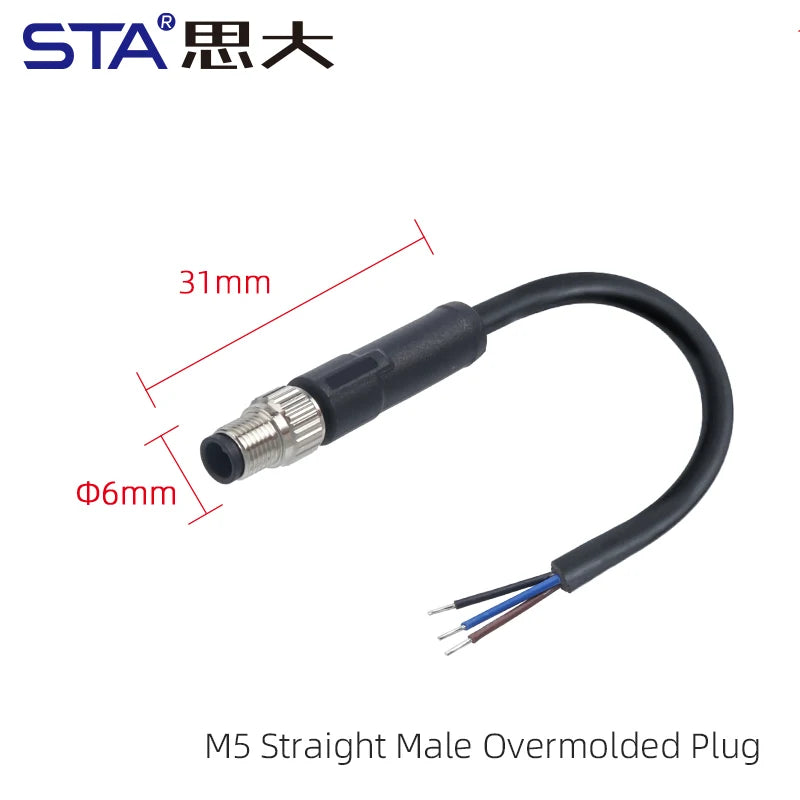

M5 Straight / Angled Overmolded Plug 3 4 pins Waterproof Connector

1. Compact Design with High Durability

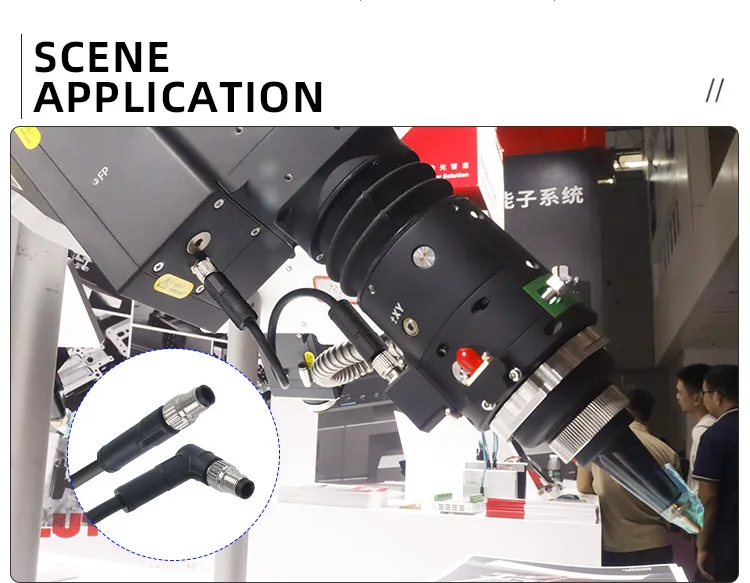

The M5 molded connector is engineered with a small form factor, suitable for confined spaces in industrial automation systems. The molded housing enhances durability and prevents cable strain, ensuring long-term stability.

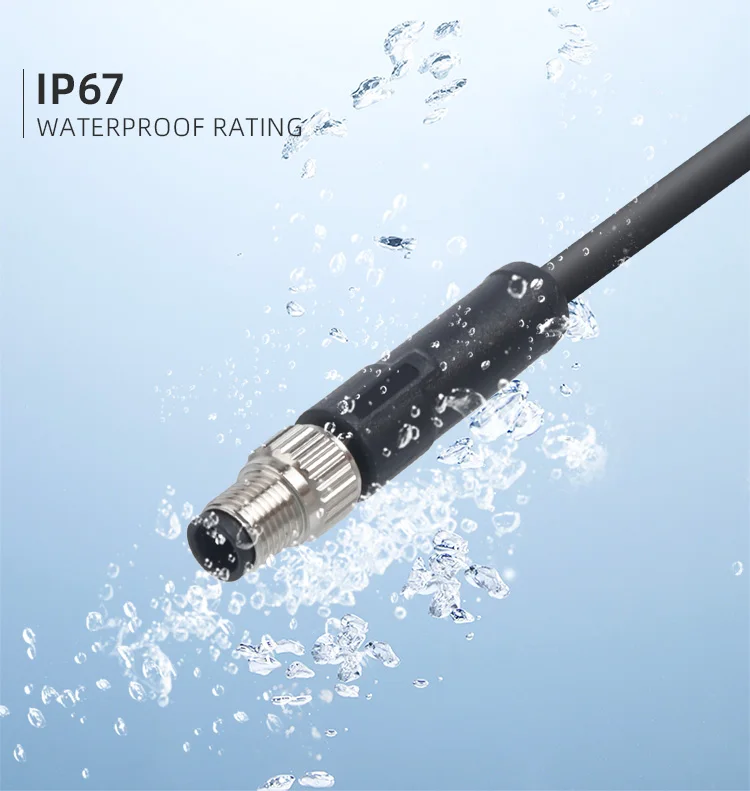

2. Superior Waterproof Performance (IP67 Rated)

With an IP67 waterproof rating, this connector provides complete protection against dust and moisture, maintaining signal reliability in outdoor or wet conditions.

3. Excellent Signal Transmission

Gold-plated contacts ensure low contact resistance (<10mΩ) and high conductivity, reducing signal loss for sensor cable connectors used in precision equipment.

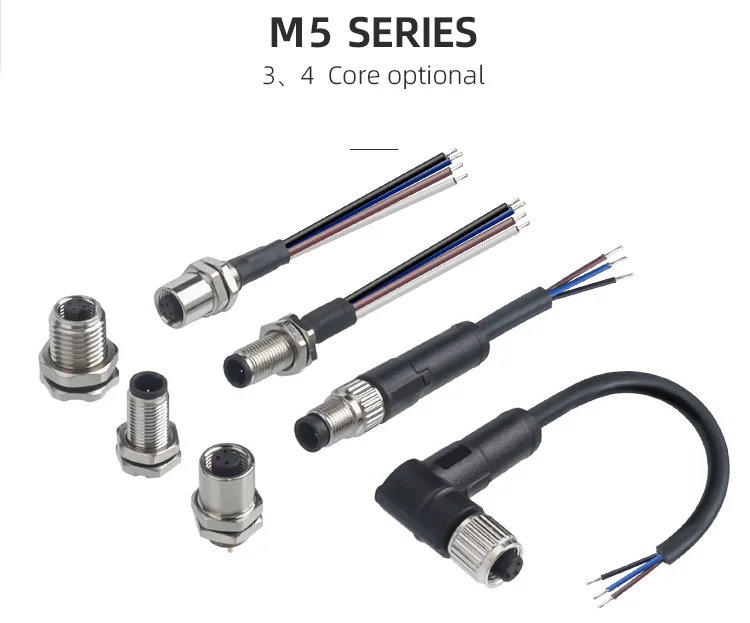

4. Customizable Cable and Pin Options

Available with 3-pin or 4-pin layouts and customizable cable lengths (0.5m–10m), the M5 connector cable meets the diverse needs of industrial and automation applications.

5. Reliable Connection for Harsh Environments

Made from high-strength TPU/PVC materials, it resists oil, vibration, and chemical exposure, making it a dependable choice for factory automation connectors.
