SPECIFICATIONS

Battery Included: no

Brand Name: M5Stack

High-concerned chemical: none

Model Number: M119

Origin: Mainland China

Typical Application Fields: Internet of Things (IoT)

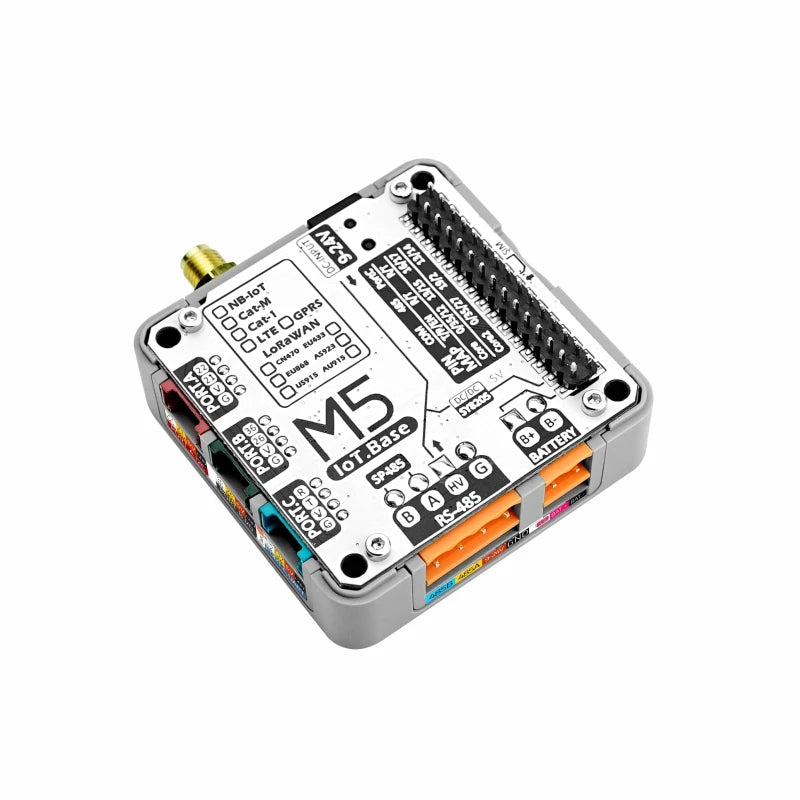

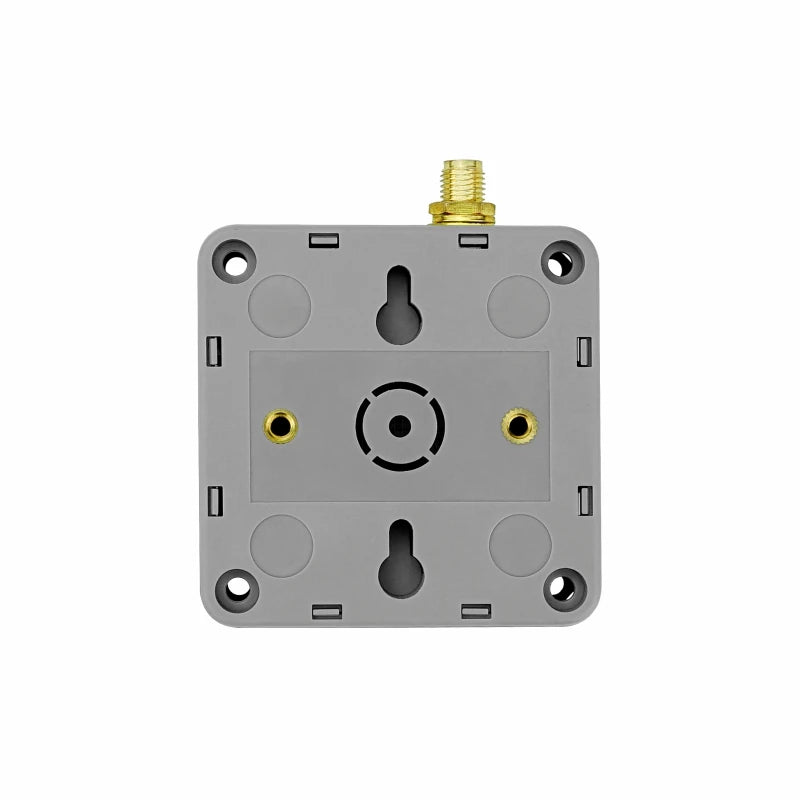

IoT BASE Cat-M is a functional base designed for IoT data transmission. The internal 'SIM7080G' module supports both 'CAT-M' and 'NB-IoT' modes with global coverage. This functional base includes I2C + UART + GPIO + RS485 + Battery-power ports, with rich expansion options. As well to support common industrial protocols such as Modbus. Suitable for remote control, remote monitoring, remote medical applications.

Product Features

*Module Solution: SIM7080G
*Cat-M & NB-IoT modes with Global Coverage
*UART interface/ AT command control
*Global version/ multi-band support
*Card slot: MicroSIM
*Antenna: external SMA antenna
*Module certifications: Softbank-Telec-RoHS-REACH-JATE-Docomo-KDDI-RCM-CE(RED)-GCF
*Deutsche Telekom-FCC-PTCRB-AT&T-Verizon/T-Mobile-US Cellular-IC

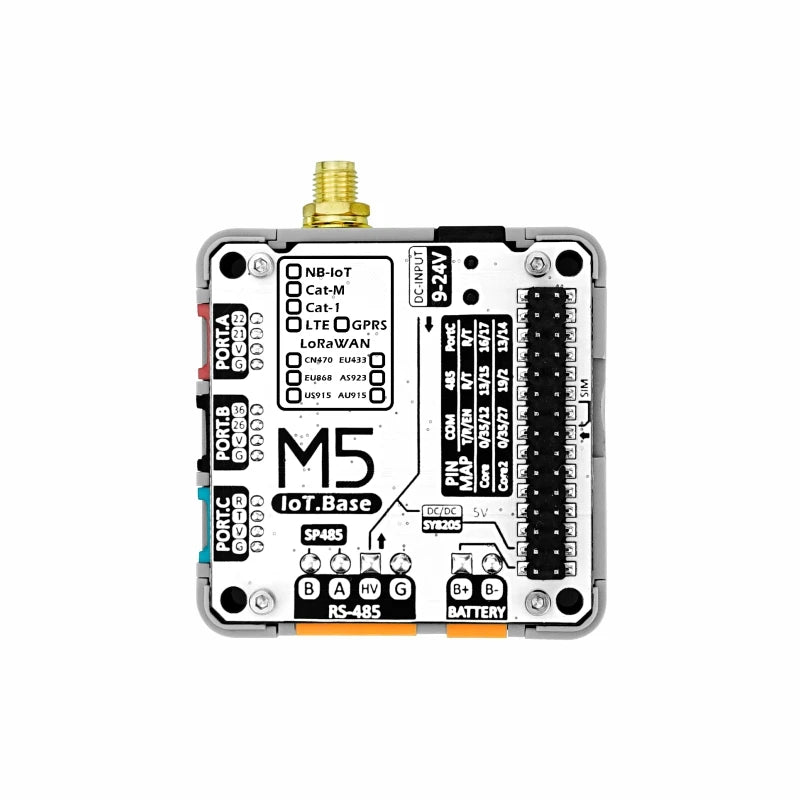

*IoT Base expansion ports:
----1x PWR485 (RS485 + DC12V INPUT)
----1x DC power jack
----1x I2C
----1x GPIO
----1x UART
----1x Battery Expansion Interface

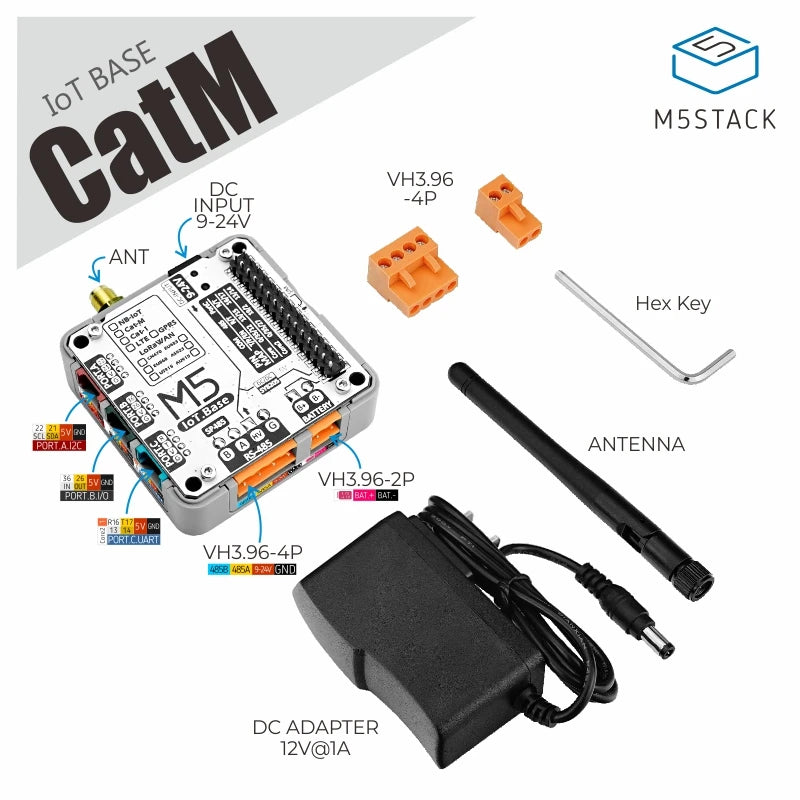

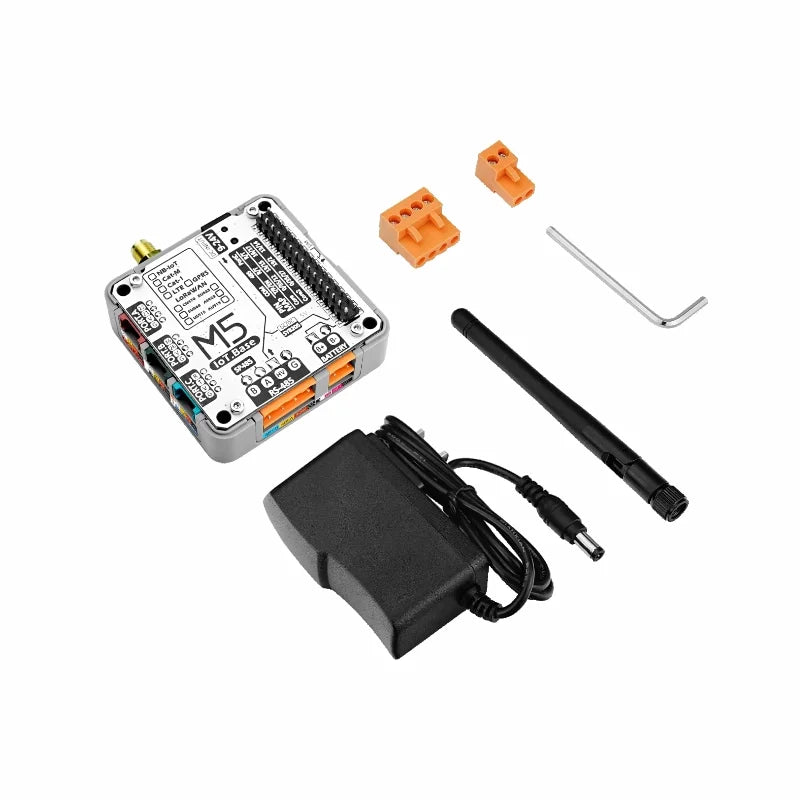

Include

1x IoT BASE Cat-M
1x SMA Antenna
1x 12V DC Power Adapter
1x VH-3.96-2P terminal
1x VH-3.96-4P terminal
1x Guide rail mount base plate
2x M3*28 Screws
1x M3 Hex key

Application

Remote Control/Data Collection
Data transmission
