M5Stack StickC Plus2 RF 2-in-1 Module, Supports Both CC1101 and NRF24 Functionalities. Compatible with 2.4GHz and 433MHz Frequen

M5Stack StickC Plus2 RF 2-in-1 Module, Supports Both CC1101 and NRF24 Functionalities. Compatible with 2.4GHz and 433MHz Frequen

$156.29

$156.29 $0.00

Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: DKXBE

Choice: yes

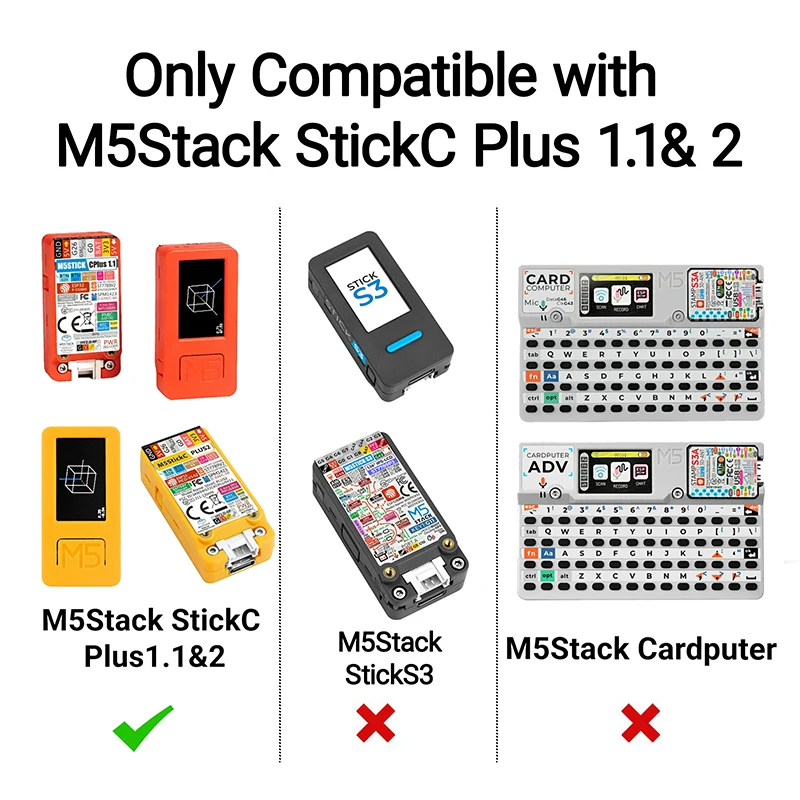

Compatible With: M5Stack StickC PLUS

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

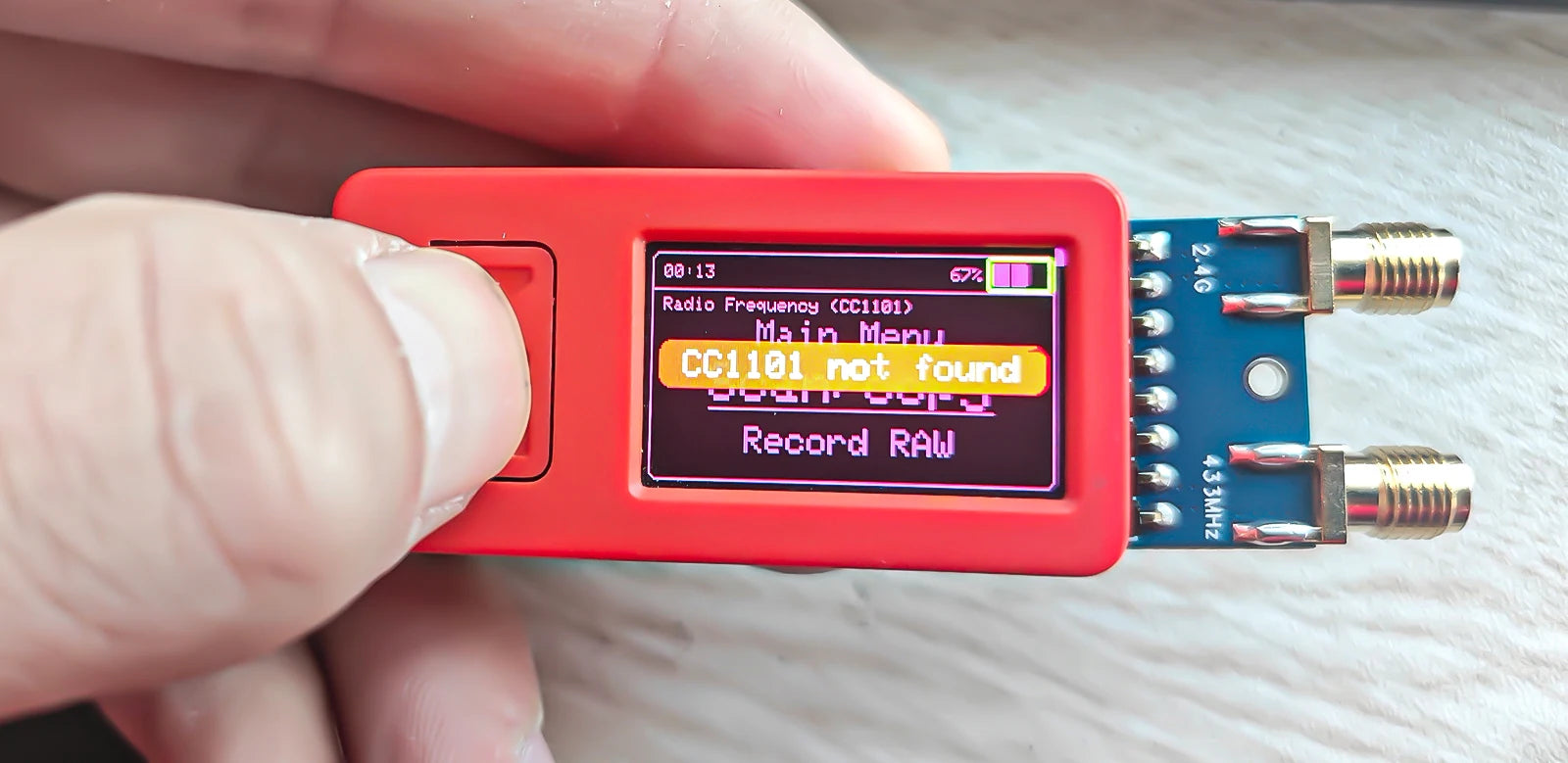

Explanation for “Module Not Found” Issue

Root Cause:
The Bruce v1.13 official release firmware reworked the SPI driver logic. On the M5StickC Plus 1.1, this causes a conflict between the screen signal and the external module, and the initialization timing is too fast, leading to hardware detection failure.

Solution:
Based on extensive testing, the latest Beta firmware (v1.14 and later iterations) includes a dedicated timing fix for this issue and can fully resolve the module recognition problem.

Recommendation:
Please do not use the v1.13 official release. Be sure to flash the latest Beta version to ensure stable and reliable RF performance.

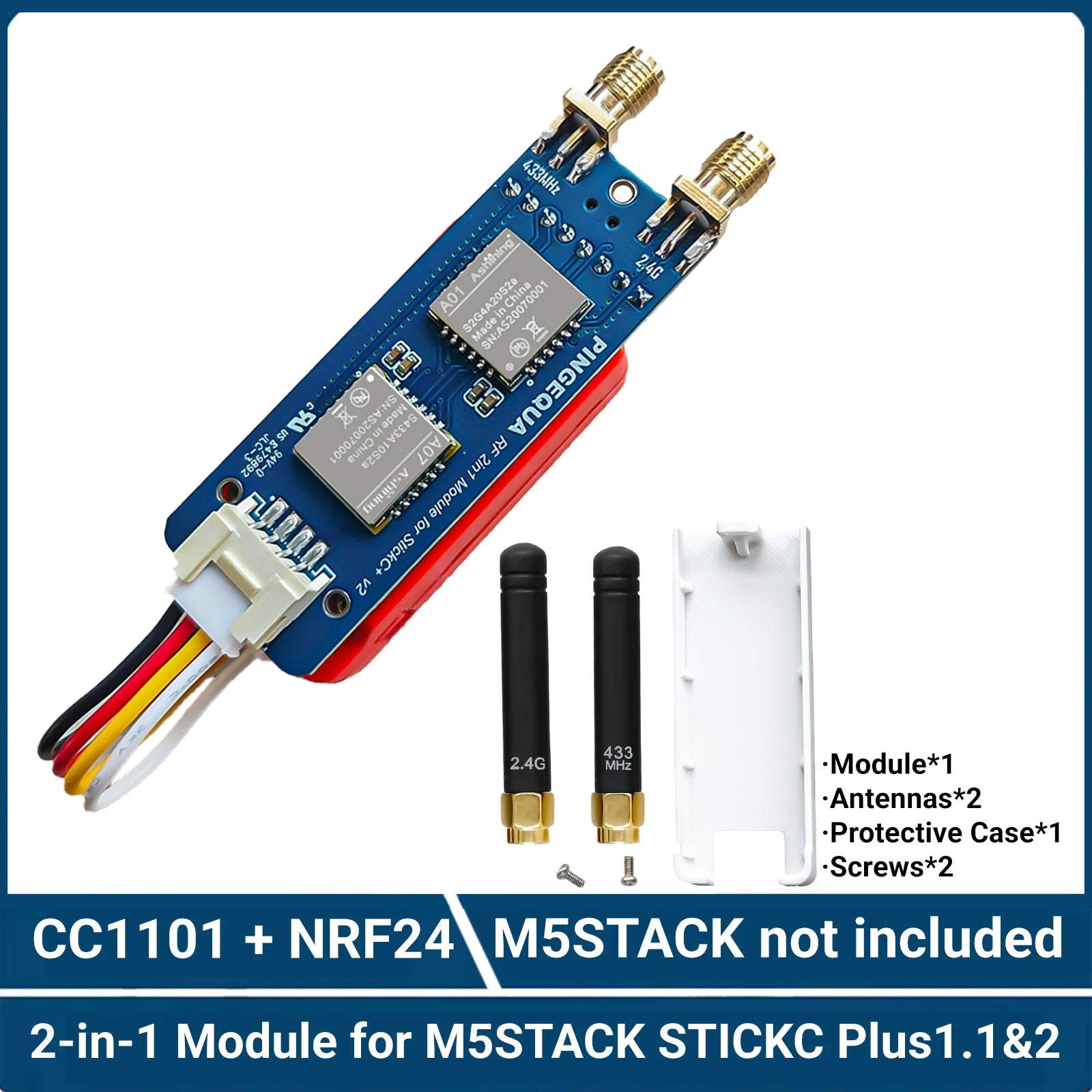

For M5STACK STICKC PLUS RF MODULE

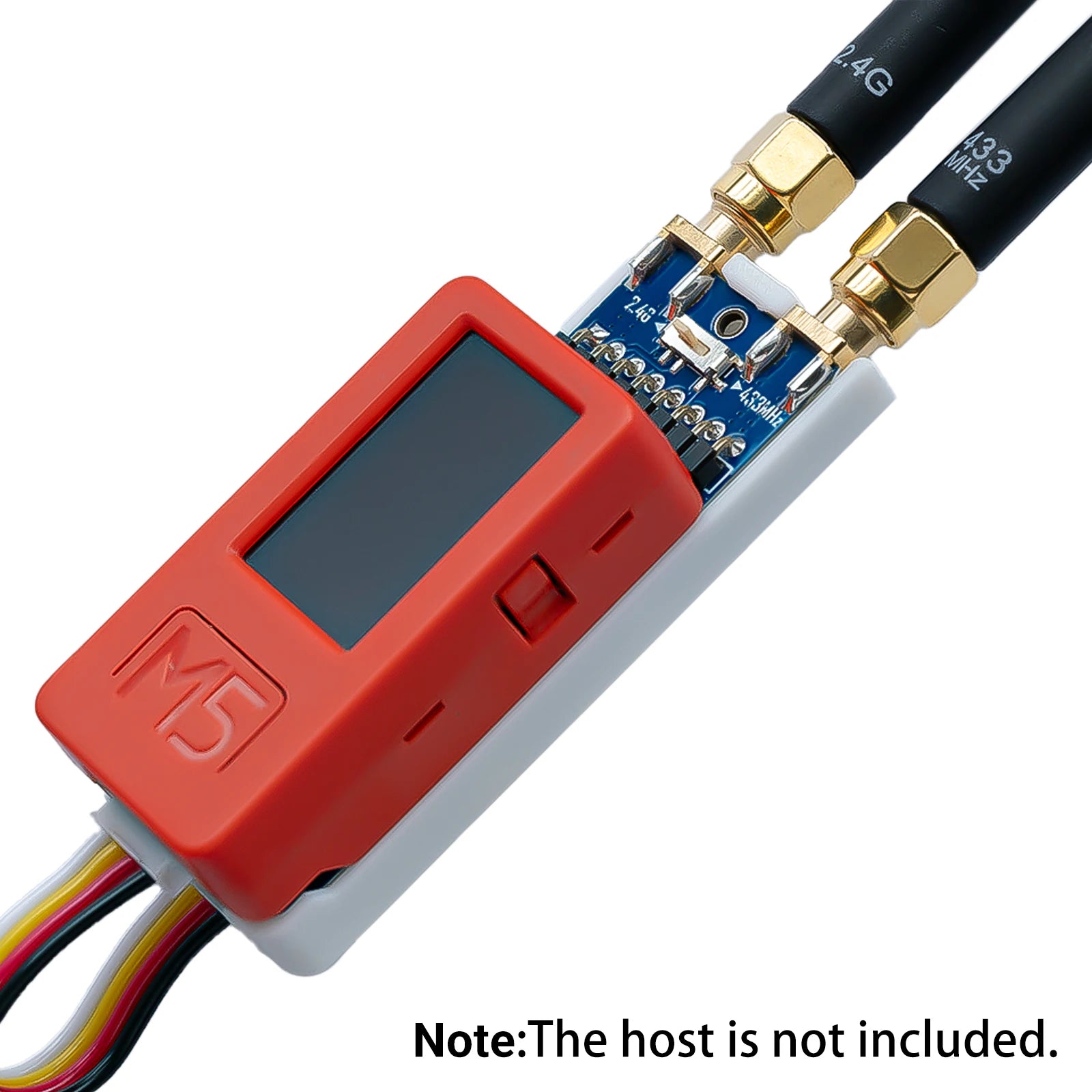

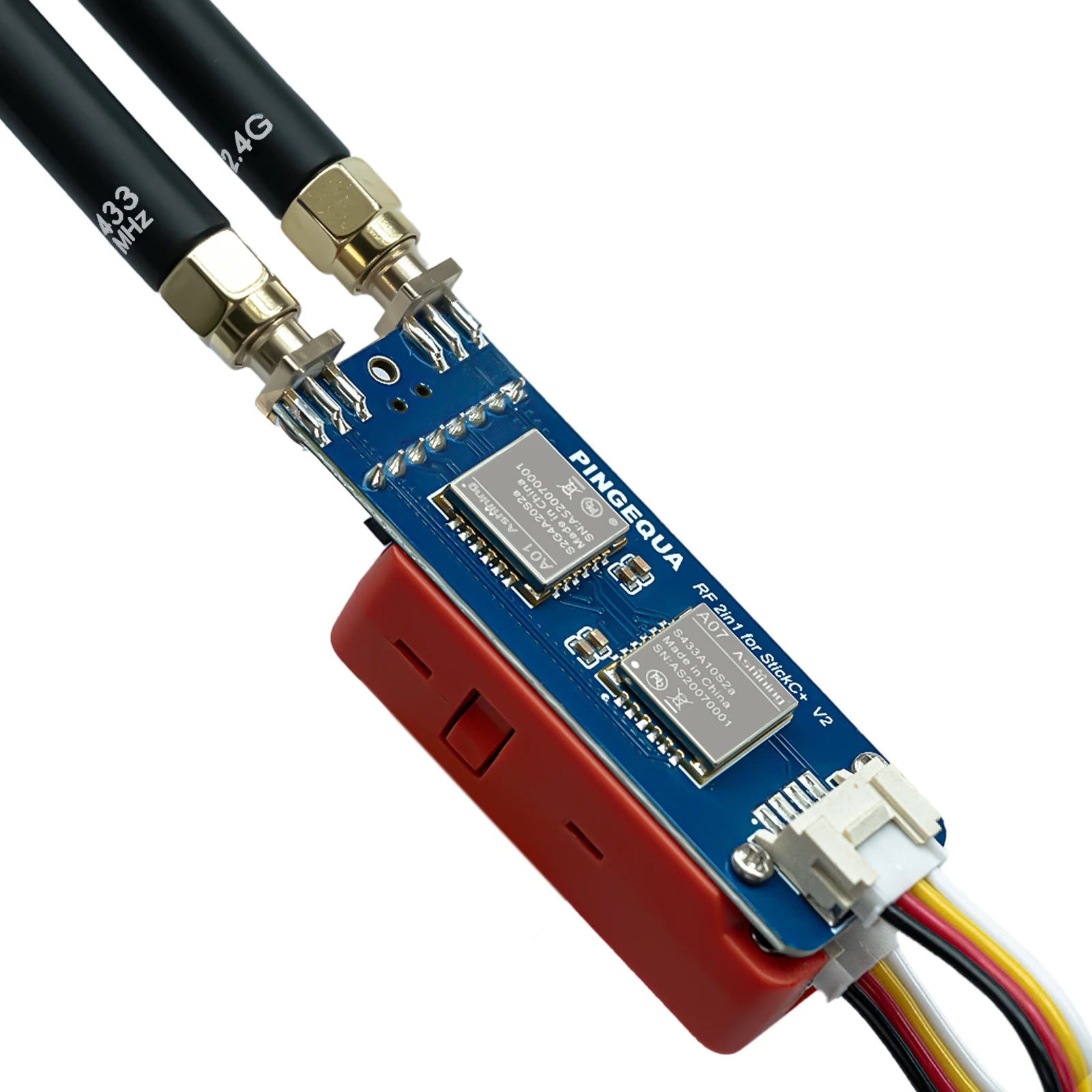

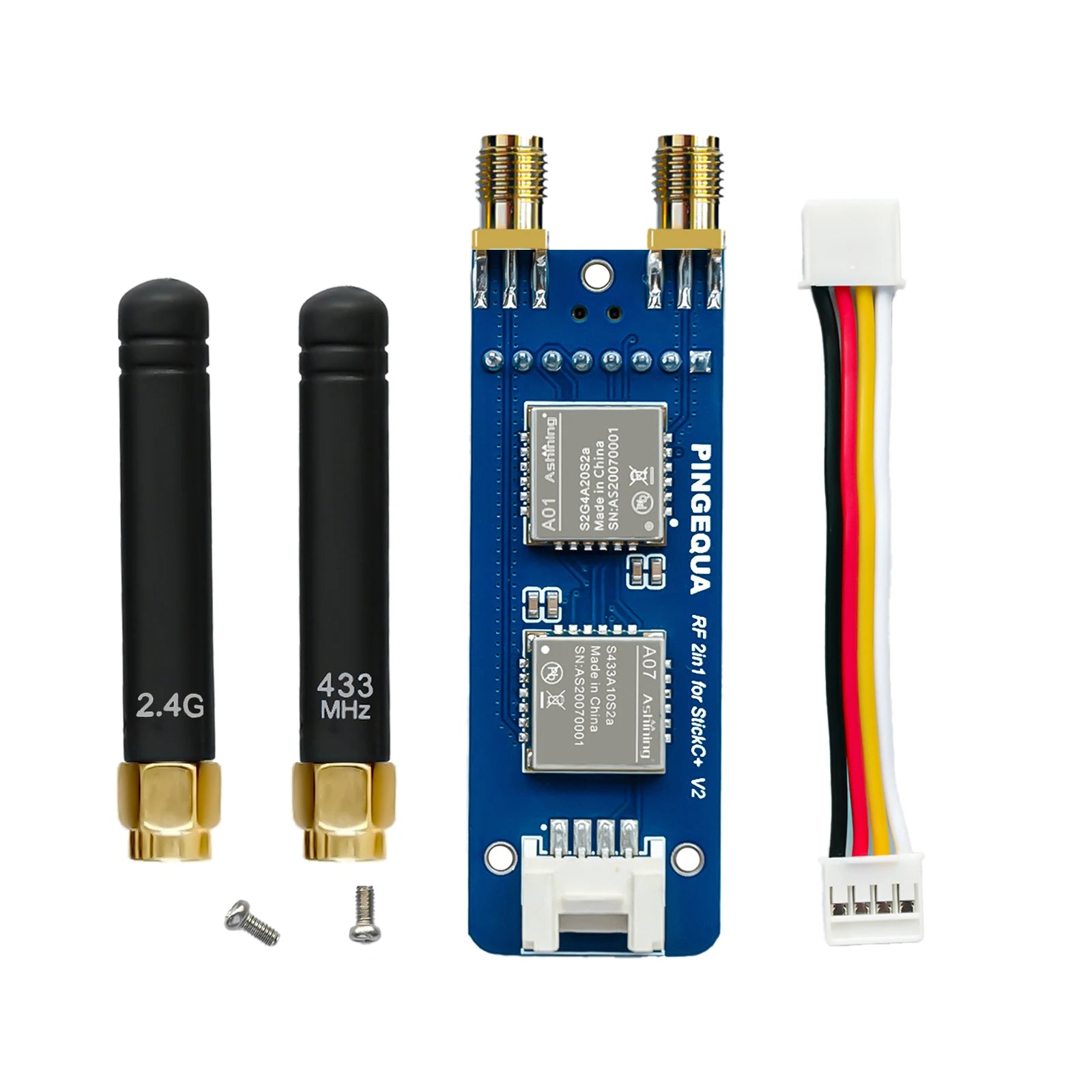

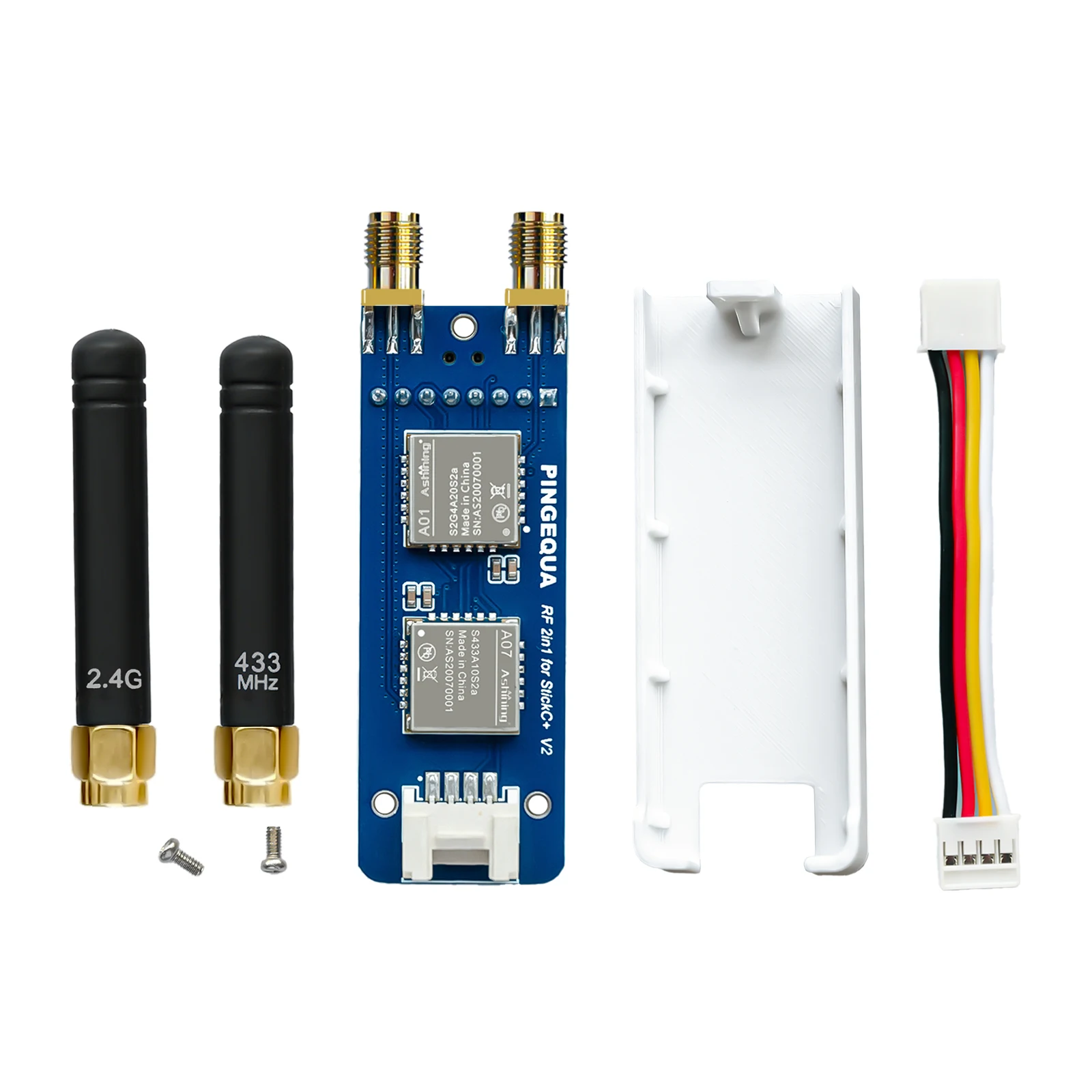

This dual-mode RF development board is specially designed for the M5Stack StickC Plus, integrating both A01-S2G4A00S2A (2.4GHz NRF24) and A07-S433A10S2A (433MHz CC1101) modules. Fully compatible with Bruce firmware, it features a plug-and-play design and supports both short-range and long-range wireless communication, making it ideal for IoT, wireless control, and RF development projects.

📌 Installation Notice (Important)

To ensure the module works properly, please make sure to connect both interfaces:

Grove port

GPIO pin header

The module will not be detected or function correctly unless both connections are properly attached.

📽 An installation video is included in the product description. Please follow the steps in the video.

If you have any questions, feel free to contact us. We’re always here to help.

Key Features:

✅ Dual-module design: Supports both NRF24 (2.4GHz) and CC1101 (433MHz) communication

✅ Tailored for M5Stack StickC Plus, plug-and-play

✅ Bruce firmware compatible, no complex setup required

✅ High-performance RF communication for reliable data transmission

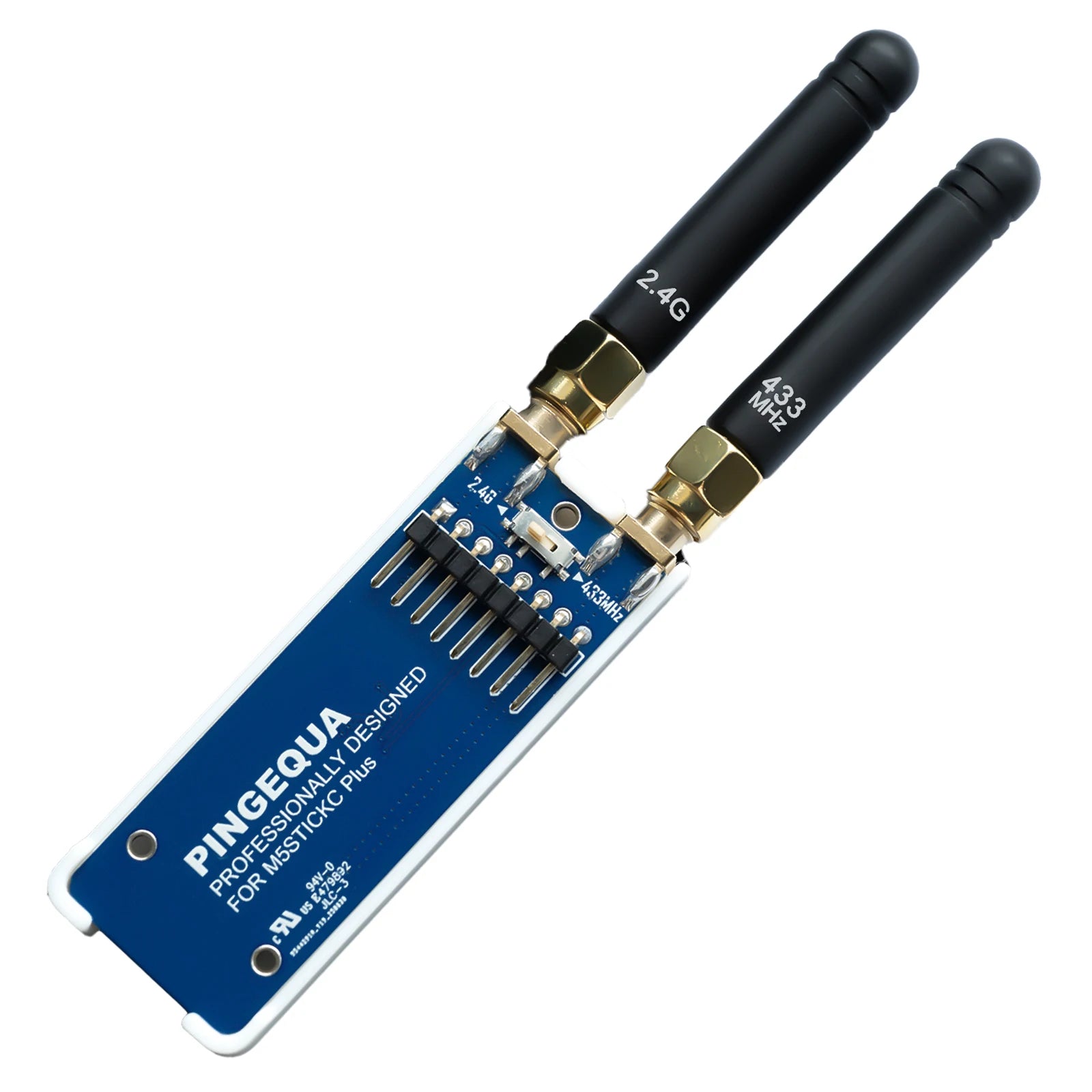

✅ Physical switch for easy module selection

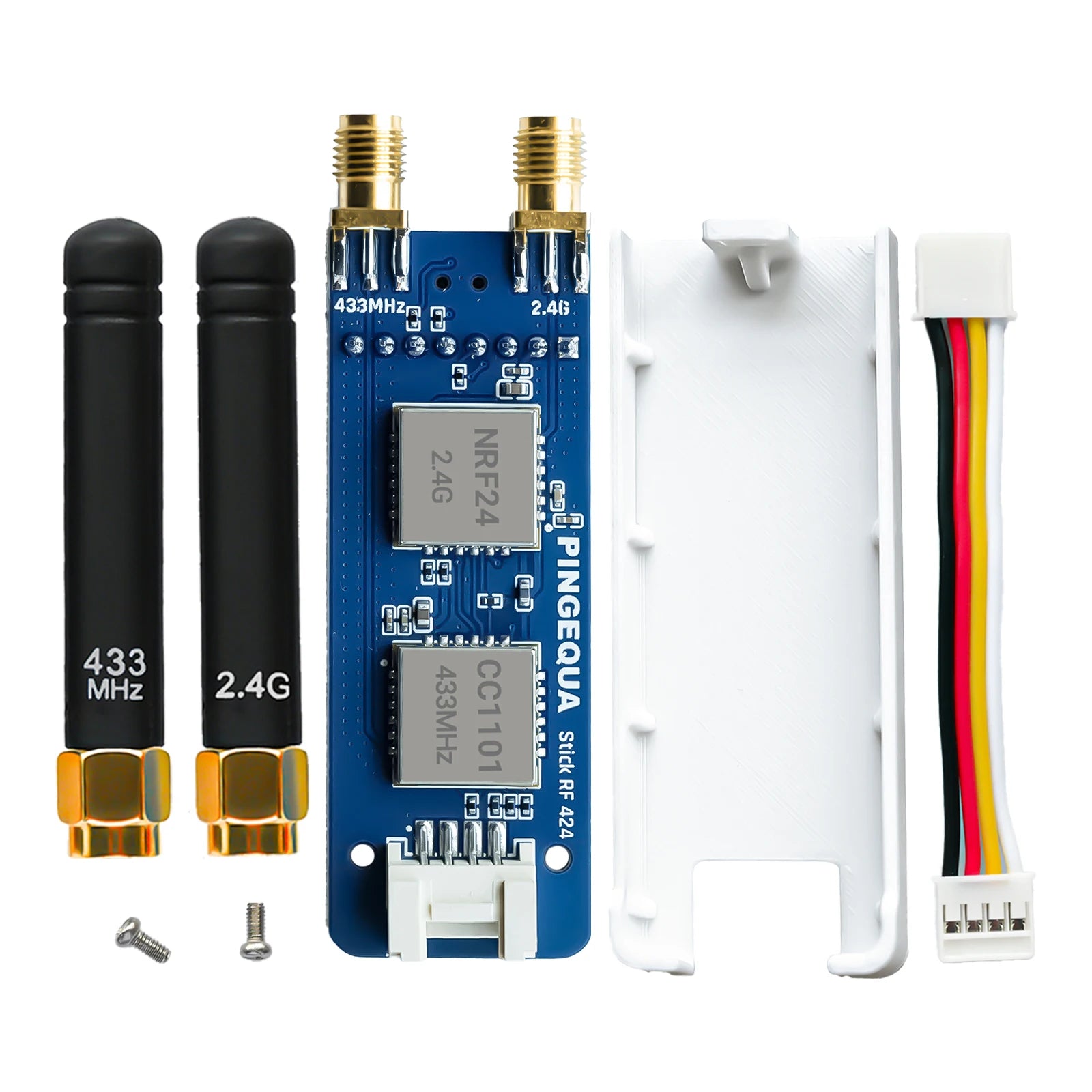

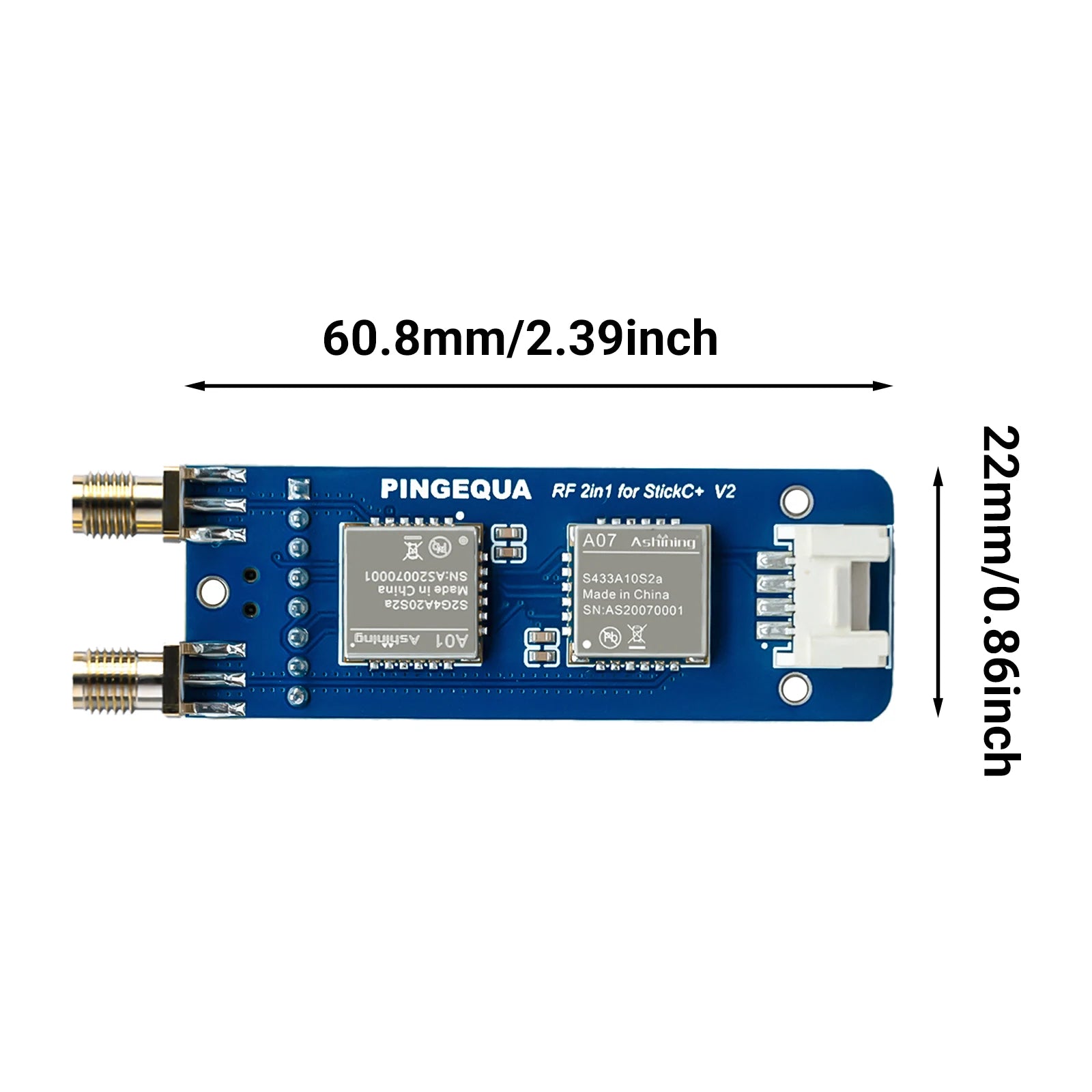

Module Details:

2.4GHz NRF24 Module (A01-S2G4A00S2A): Stable, high-speed short-range wireless communication

433MHz CC1101 Module (A07-S433A10S2A): Low-power, long-range RF transmission

Reliable performance with optimized signal layout and power design

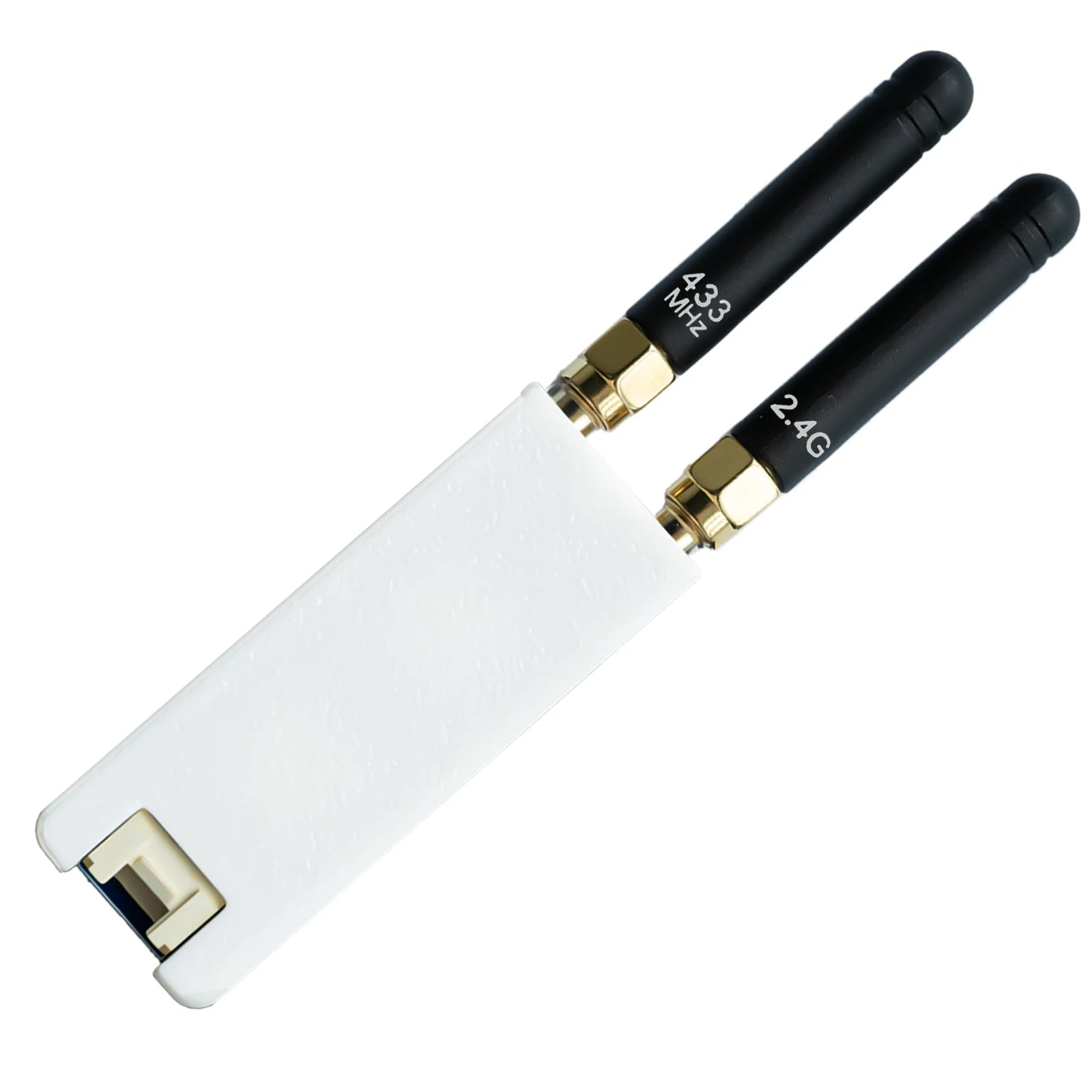

3D Printed Case (Optionally Available)

Usage Instructions

1. Flash Bruce Firmware (First-Time Setup)

To use this board with StickC Plus, first flash the Bruce firmware:

Go to the official flasher: https://bruce.computer/flasher

Follow the instructions to select the correct device (StickC Plus v1.1/v2) and complete the flashing process

2. Hardware Connection

Connect the RF board to the M5Stack StickC Plus using the Grove cable or GPIO jumper wires

The GPIO pinout is pre-configured and compatible with Bruce firmware

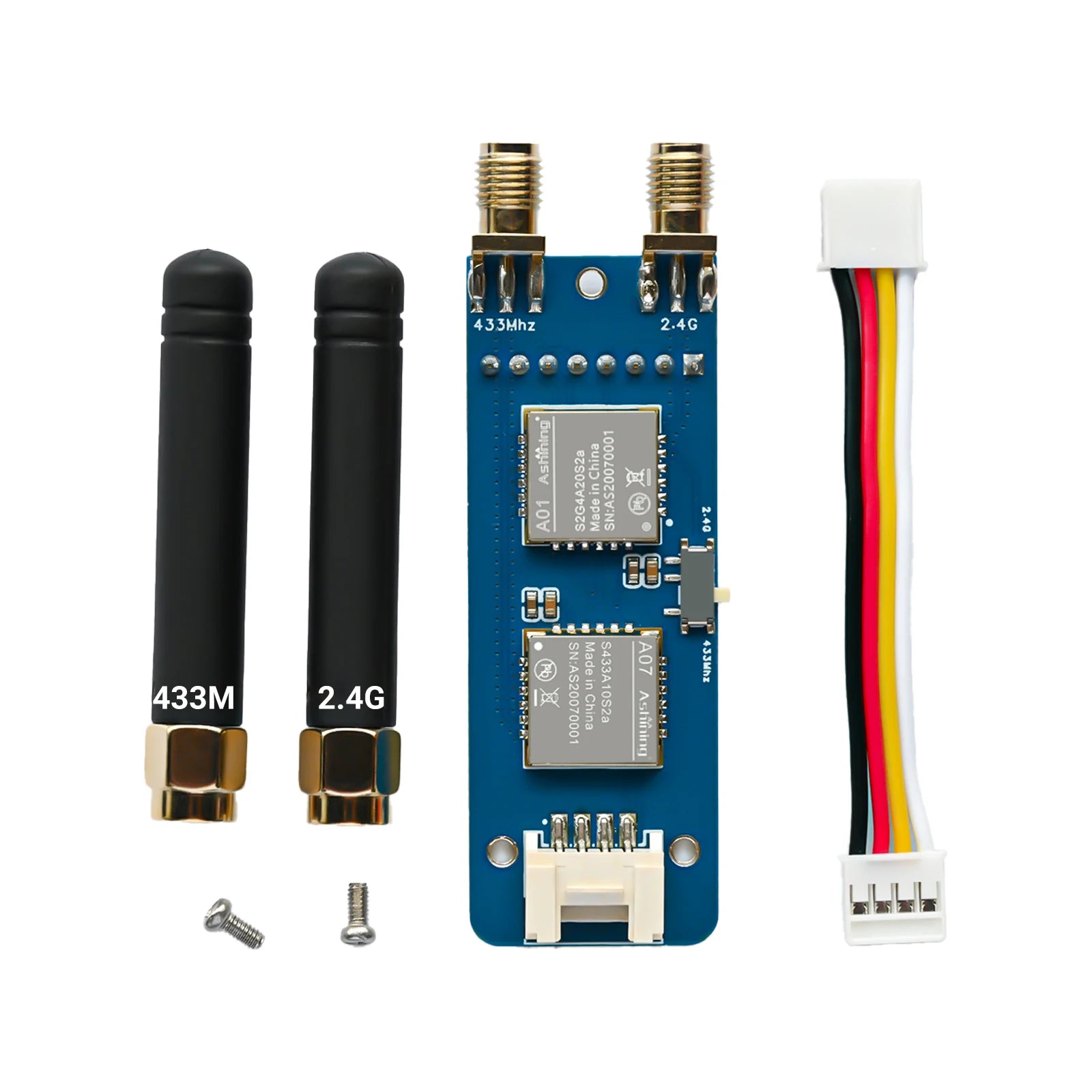

3. Switching Between Modules

This board includes a physical switch to toggle between the two RF modules:

To use the CC1101 (433MHz) module:

1. Toggle the switch to the 433MHz (CC1101) position

2. Navigate in the firmware: RF → CONFIG → RF MODULE

3. Select: CC1101 (legacy)

To use the NRF24 (2.4GHz) module:

1. Toggle the switch to the 2.4GHz (NRF24) position

2. Navigate in the firmware: NRF24 → CONFIG → Pins

3. Select: NRF24 (legacy)

4. Additional Documentation

For more advanced configuration and documentation, please refer to the official Bruce firmware Wiki:
🔗 https://github.com/pr3y/Bruce/wiki/
