SPECIFICATIONS

Brand Name: NONE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Highlight 1: Ebike motor cable

Highlight 2: Ebike display cable

Highlight 3: Ebike thumb throttle cable

Highlight 4: Ebike brake sensor cable

Highlight 5: Ebike brake level cable

Highlight 6: Ebike headlight cable

Highlight 7: Ebike taillight cable

Highlight 8: Ebike gear sensor cable

Model Number: M6 M8

Origin: Mainland China

Voltage: 5 V 12 V 20 V 30 V

semi_Choice: yes

type 3: 2PIN 3PIN 4PIN 5PIN 6PIN

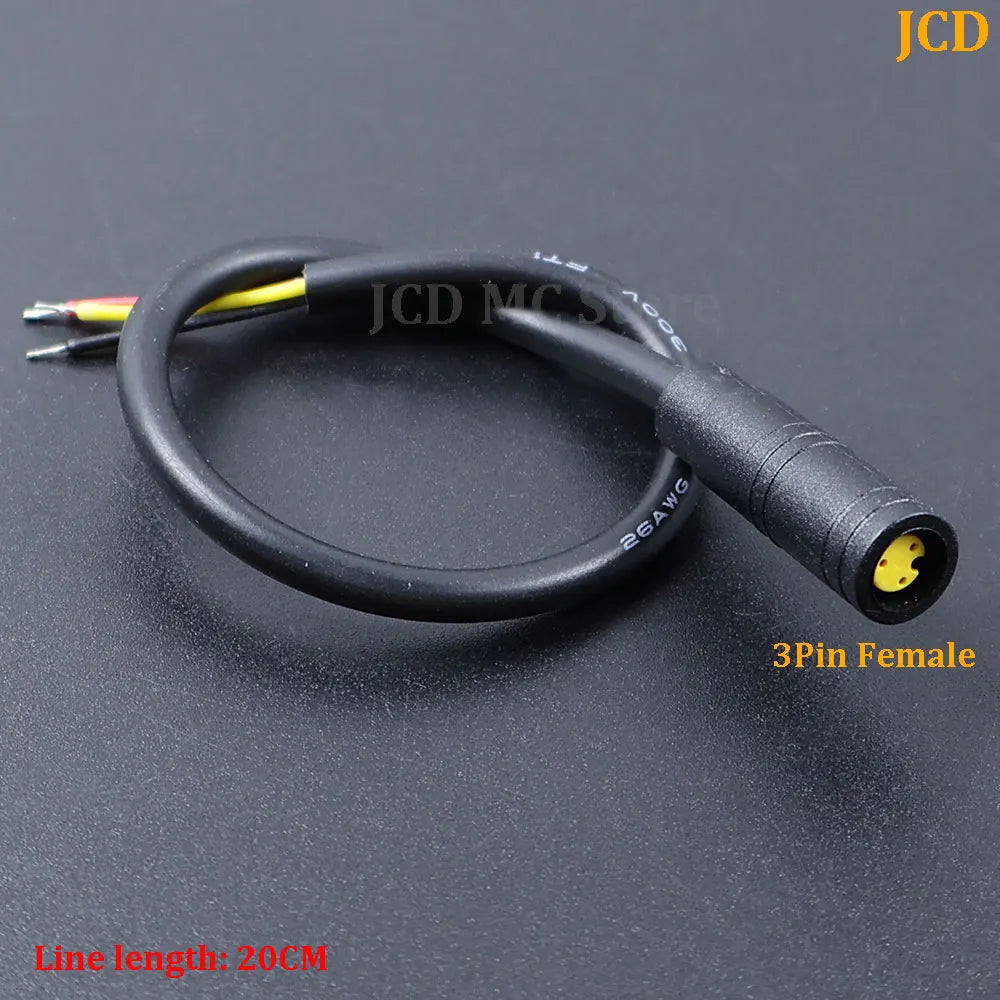

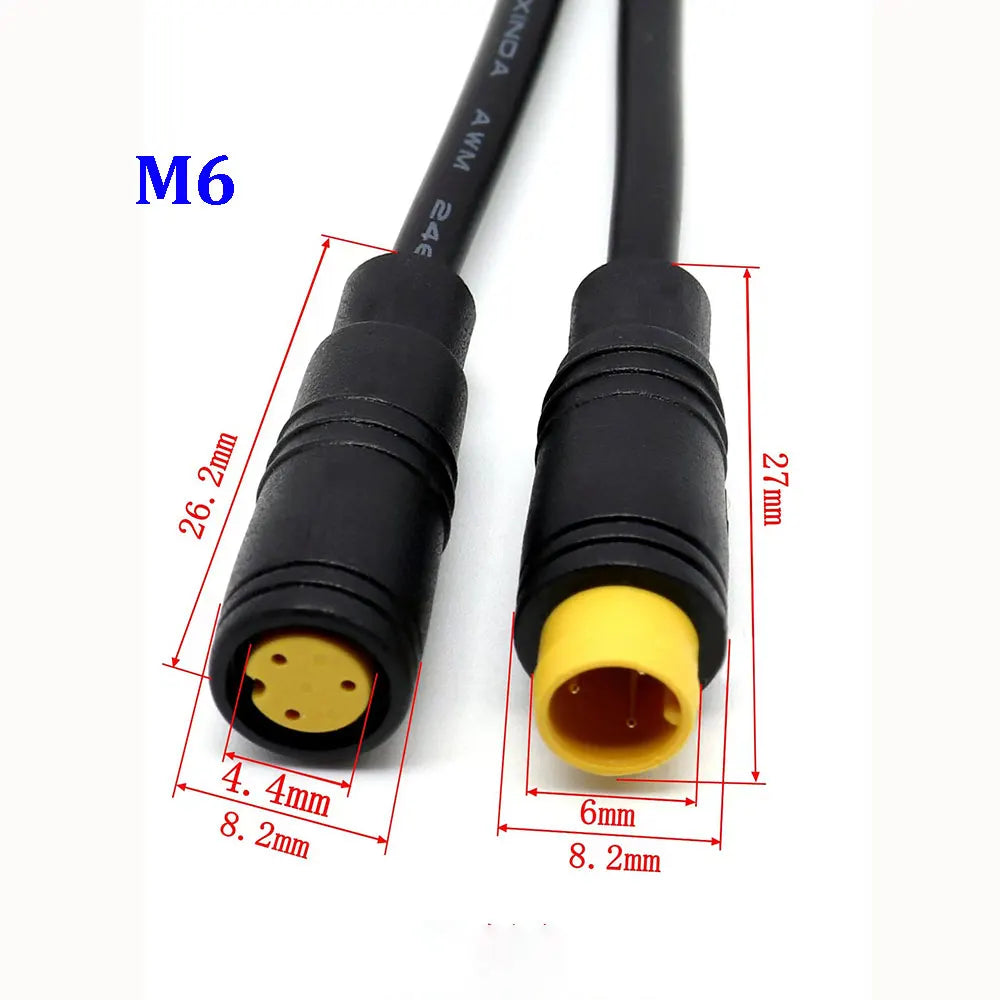

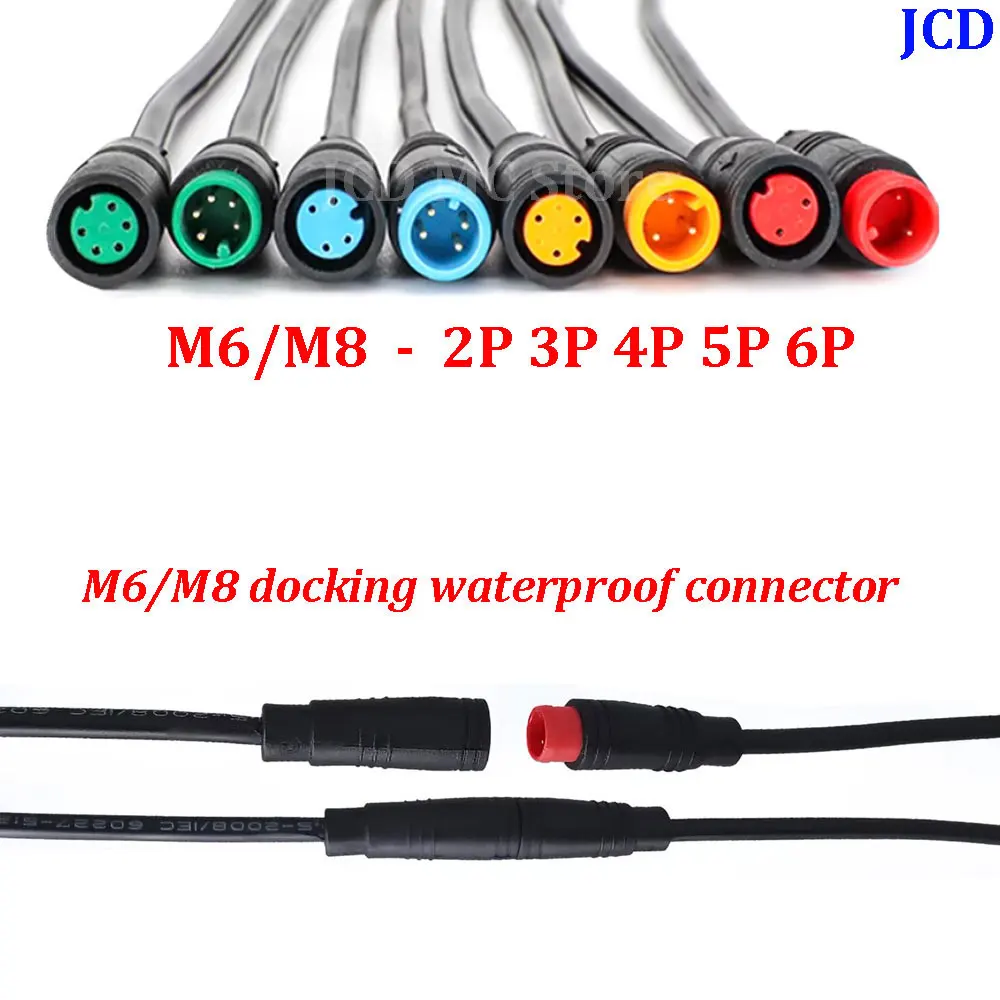

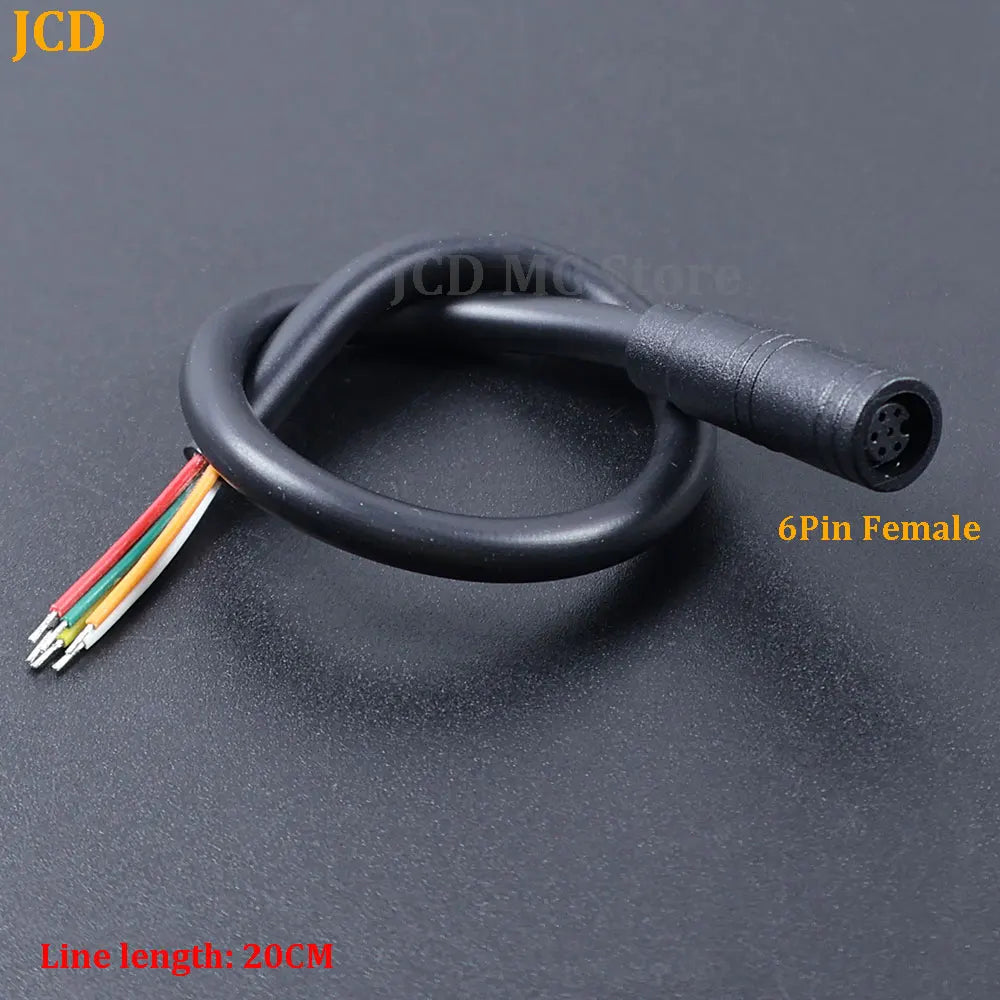

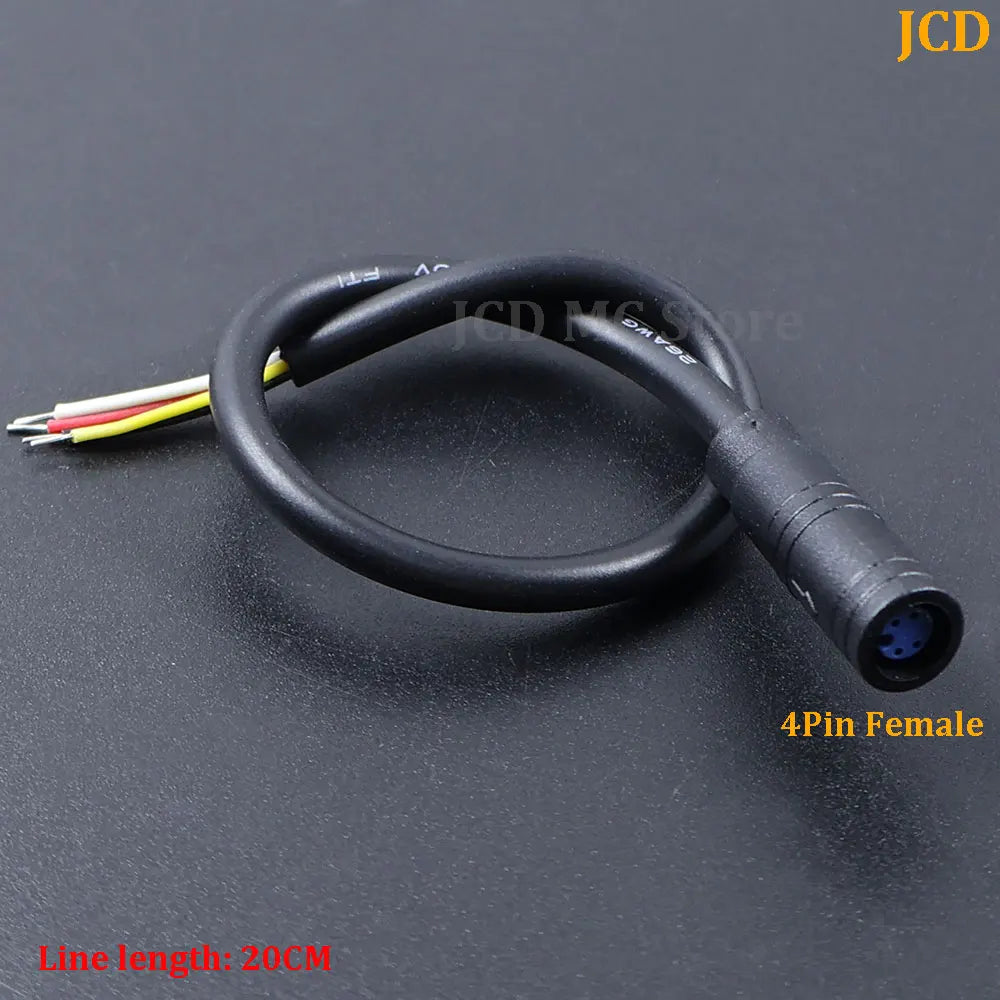

M8/M6 waterproof line parameters

Exterior: PVC

Voltage resistance: 350V

Rated current: 1A

Rated voltage: 0V-48V

Conductor: Pure copper with tin plating

Insulation:<80MQ

Conducting impedance: ≤ 20MQ

Temperature adaptation: -10-80

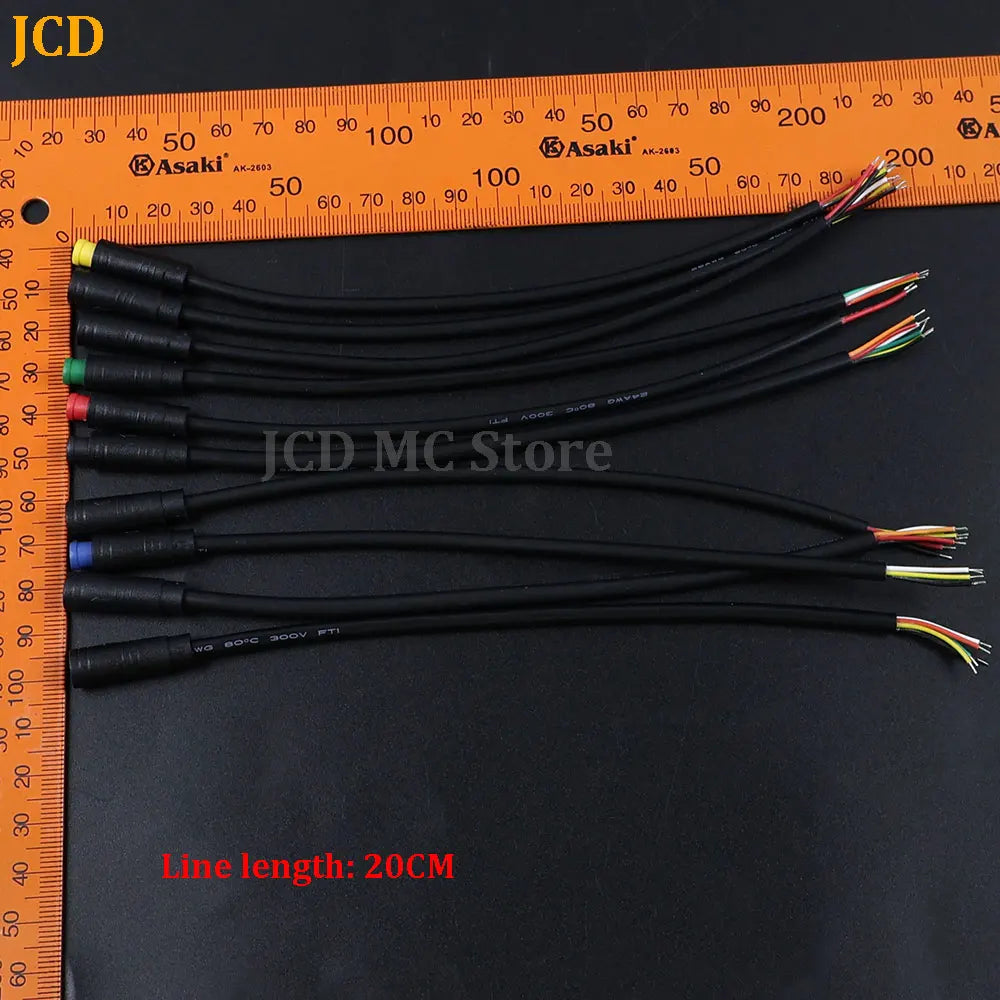

Length: 20CM

Number of cores: 2/3/4/5/6Pin

Waterproof rating: IP65

High Compatibility:This 2/3/4/5/8/9 pin extension cable is compatible with various electric bikes, including Bafang and Govee.

Durable Made: Made with high-quality materials, our cable ensures a reliable connection for your e-bike. 🔧✨

Enhanced Functionality:Connect lights, displays, brakes, motors, and throttles with our well-designed connectors for a more enjoyable ride.

Please note when placing an order:

1. Manual measurement, please allow for a 1.3mm error, thank you.

2.Due to differences between different displays, images may not reflect the actual color of objects. Therefore, please be aware that color range differences may occur in physical products. We guarantee that the style is the same as shown in the photo. Product images are for reference only!
