SPECIFICATIONS

Brand Name: SignalPlus

Gain(dB): 10

High-concerned chemical: none

Impedance: 50

Number of channels: 1

Origin: Mainland China

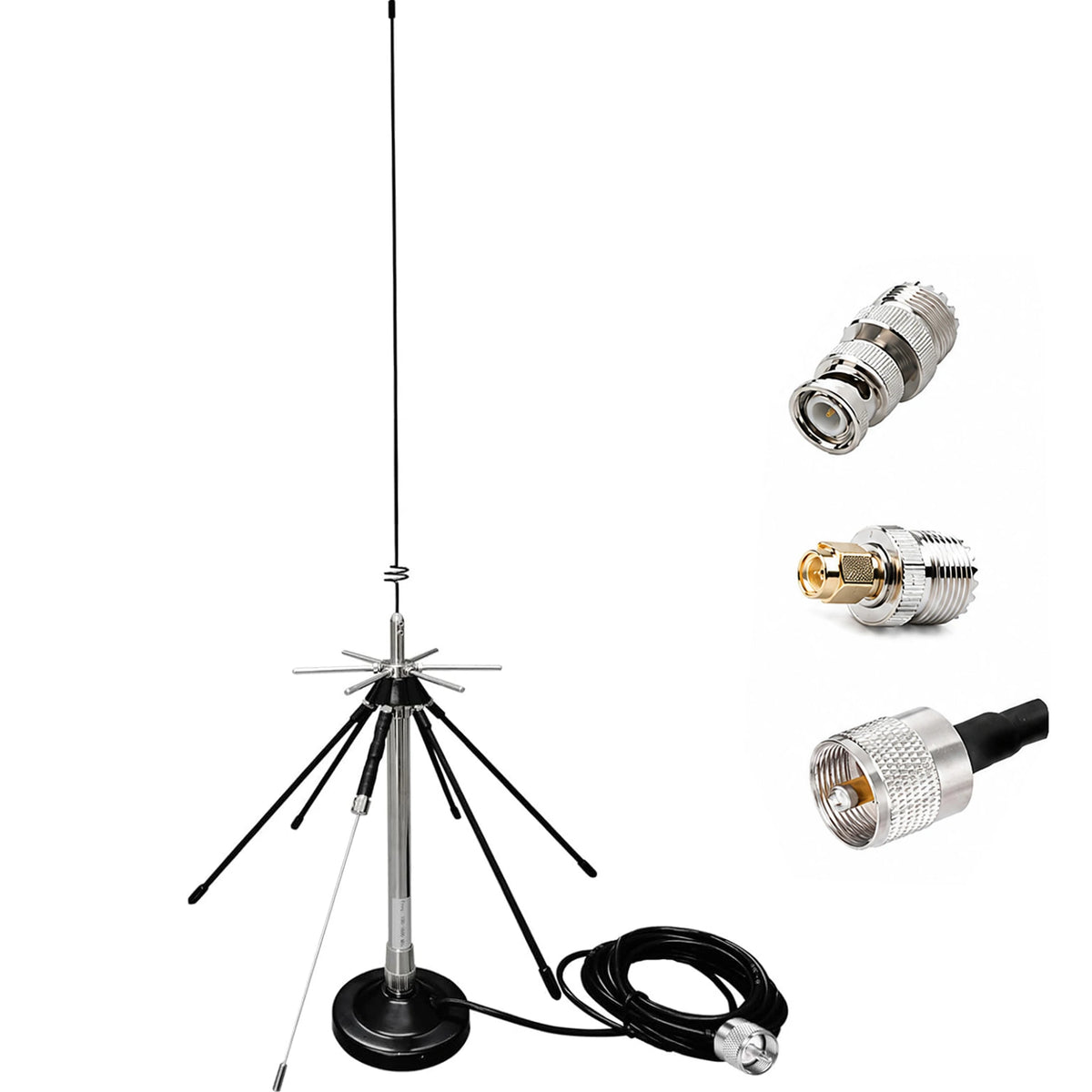

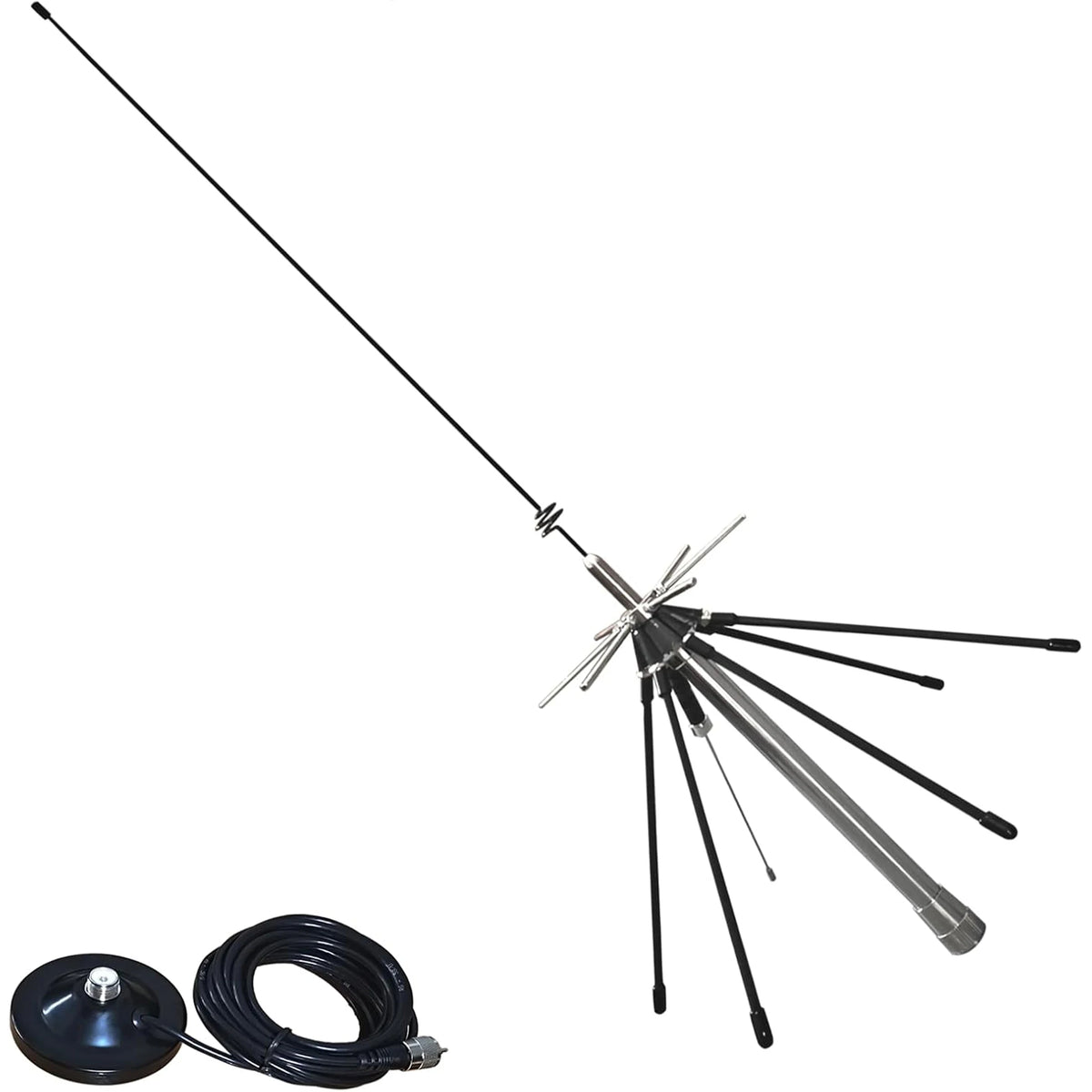

Type: Ultra-wideband omnidirectional police scanner antenna.
Receiver frequency range: 100-1600MHz.
Transmitter frequency range: 144/430/1200MHz.
Gain: 2.15dBi (144/1200MHz), 3.4dBi (430MHz).
Power: 50W (FM).
Impedance: 50Ω.
VSWR: <1.5 (amateur band).
Height: Approx. 70cm.
Maximum diameter: Approx. 23cm.
Weight: Approx. 350g.
Interface: SO239 male.
Form type: 1/2λ (144MHz), 5/8λ (430MHz).
Magnetic Base of diameter：9.5cm.
Cable Length: 5meters.
Connector of cable: UHF/ SO239 male Adapter: BNC male to SO239 female adapter, SMA male to SO239 female adapter.

Long Cable Length

The 5m cable provides ample reach, enhancing the antenna's functionality in different environments.

Durable Construction

Crafted by SignalPlus, known for high-quality products, ensuring durability and longevity.

Broad Frequency Range

Operating from 100-1600MHz, this antenna covers a wide spectrum, ideal for various communication needs.

Versatile Mounting Options

Equipped with UHF SMA BNC mount, it's compatible with police scanners, GMRS, 2m 70cm mobile VHF UHF, Lora, ADSB, offering versatility.

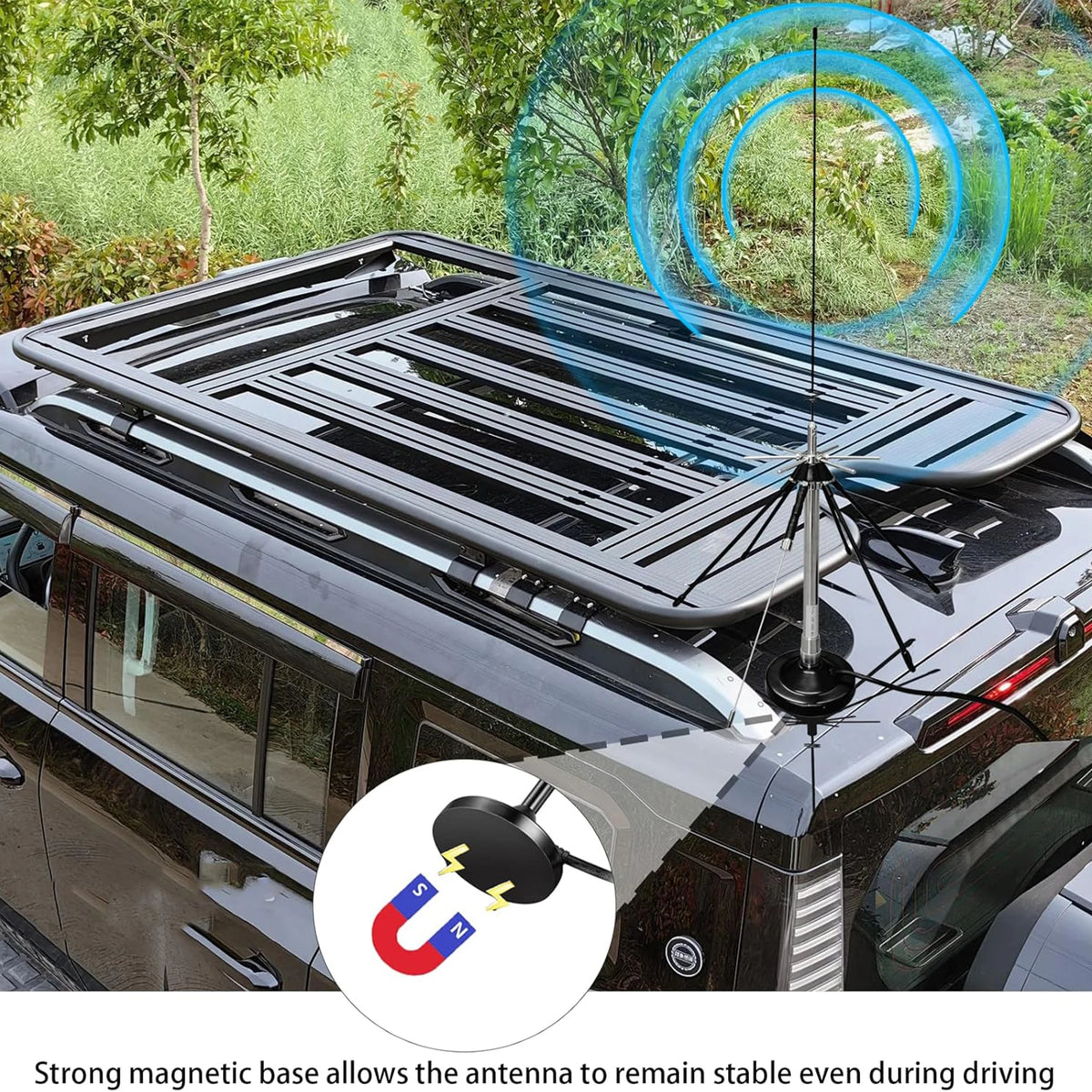

Magnetic Base

The magnetic desktop base allows for easy installation and adjustment, perfect for on-the-go use.
