SPECIFICATIONS

Brand Name: HTORBGA

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Type: Switch

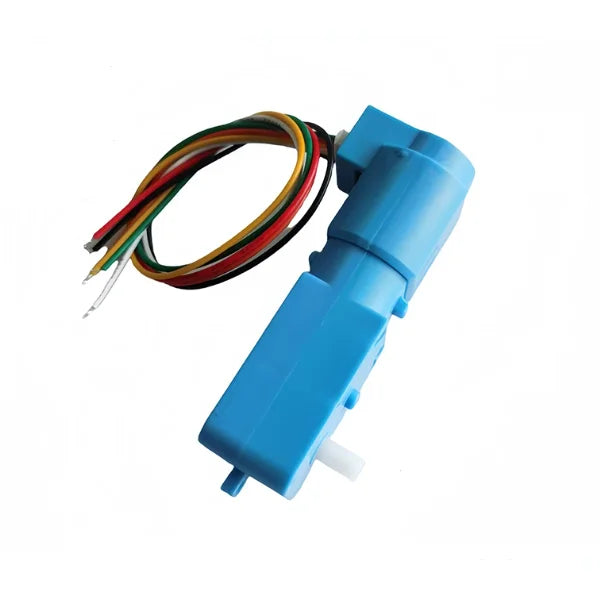

Kind reminder: The motor interface is a PH2.0 6P interface. If you do not have a dedicated cable, please purchase it together from our store; The length of the motor is slightly longer than that of a regular TT motor, which is due to the addition of a magnetic encoder at the rear of the motor. Please refer to the motor size diagram to see if it conforms to the installation of your vehicle chassis. We will not inform you separately!!

Wiring instructions:

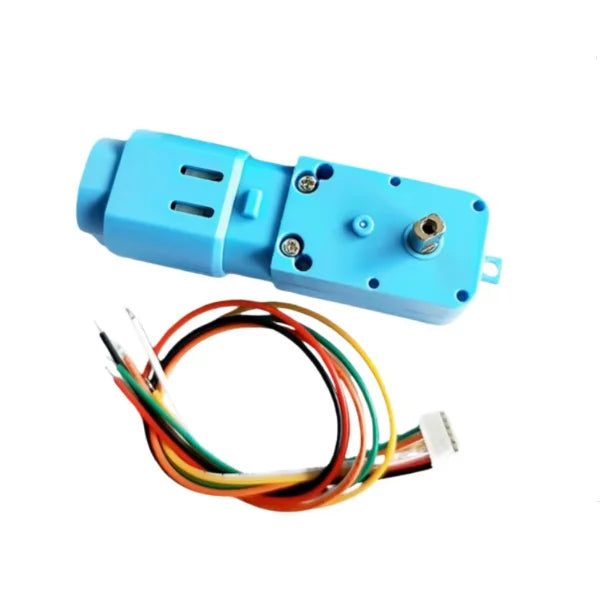

As shown in the product interface diagram above, M+and M - are motor drive signals (used to connect to the motor drive module); VCC and GND are the power supply interfaces for the motor encoder (compatible with both 3.3V and 5V voltages), and pins A and B are connected to the microcontroller I/O port (used for the microcontroller to read encoder signals). Attention, please! Do not connect the power supply and AB pin of the encoder to the motor drive signal end incorrectly, otherwise it will burn out the magnetic encoder! The magnetic encoder is burnt out, the manufacturer does not guarantee it!

Installation size reminder: Due to the long length of this motor, it is temporarily not suitable for installing the acrylic and PCB four-wheel drive intelligent car chassis produced by our company. The two wheel drive and aluminum alloy chassis are compatible for use.
