Manufacturer 16MP Autofocus Kamera Module With M12 No-Distortion Lens On SONY IMX298 Image Sensor AF Wide Angle USB Board Camera
cmos / 2.8mm / China Mainland
$219.00
Sale price
$219.00
Regular price
$0.00
Skip to product information
Manufacturer 16MP Autofocus Kamera Module With M12 No-Distortion Lens On SONY IMX298 Image Sensor AF Wide Angle USB Board Camera
$219.00
Sale price
$219.00
Regular price
$0.00
Description
SPECIFICATIONS
App name: Other
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS
Color: black
Color Night Vision: Yes
Connectivity: Closed System/CCTV Wired
Customized Size: Support
Dimensions (L x W x D)(mm): 28(D)*28(L)*8(H)
FPS 1: 4656x3496 at10fps
FPS 2: 2320x1744 at30fps
High Definition: 12.0 Megapixels
High-concerned chemical: none
IP Rating: Other
IR Distance(m): 0M
Installation: Embedded
Internal Storage: None
Keyword: Autofocus Kamera
Lens (mm): 2.8mm
Lens Quantity: Single Lens
Max MP: 16MP
Megapixels: 9MP
Microphone: Built in
Minimum Illumination(Lux): 0.5lux
Model Number: AFM058
Origin: Mainland China
Power Consumption(W): 1.2W
Power Supply: Normal
Power Supply(V): 5V
Rechargeable Battery Capability: Other
SDK: Available
Sensor: CMOS
Sensor Brand: Sony
Smart home platform: NONE
Special Features: Vandal-proof
Style: Mini Camera
Supported Mobile Systems: Windows Mobile
Supported Operating Systems: No
TF Card: None
Tech: Auto Focus Lens
Type: USB Camera Module
Video Compression Format: MJPEG
Viewing Angle : 75°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: NONE
Zoom type: none
is_customized: Yes

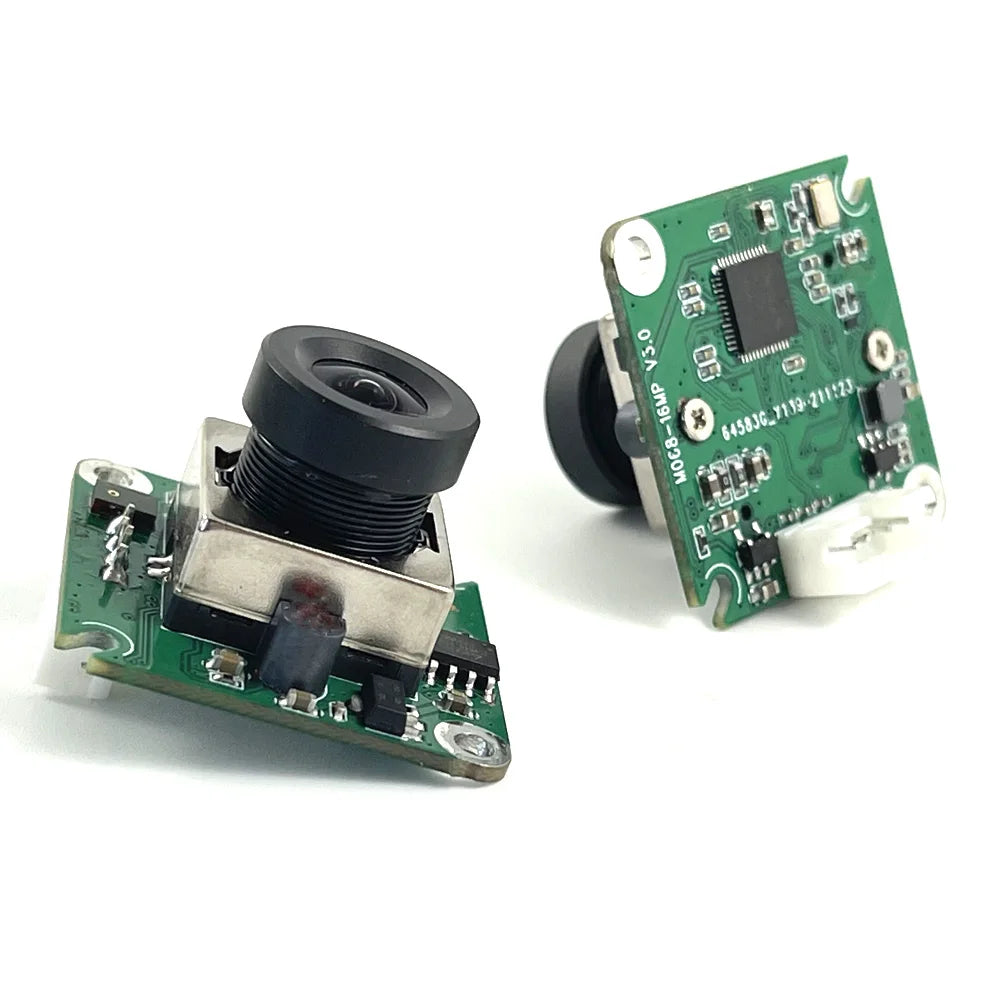

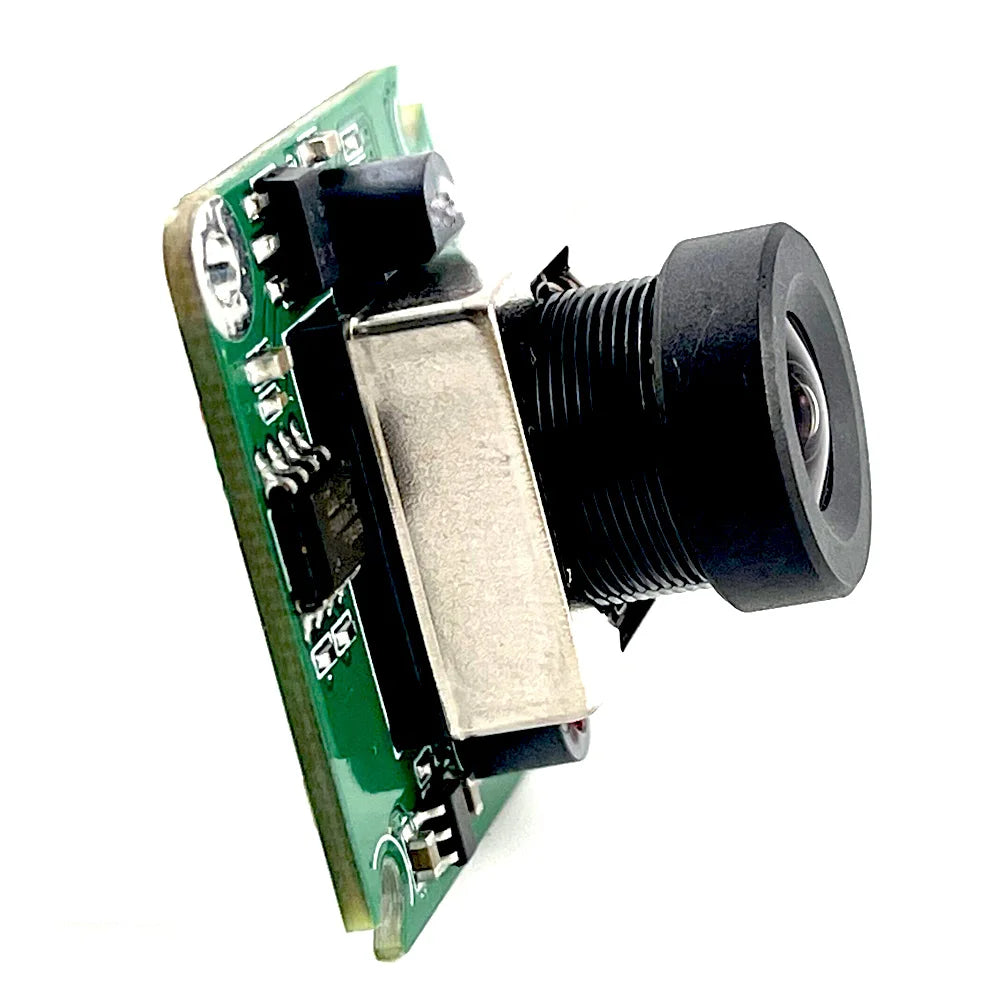

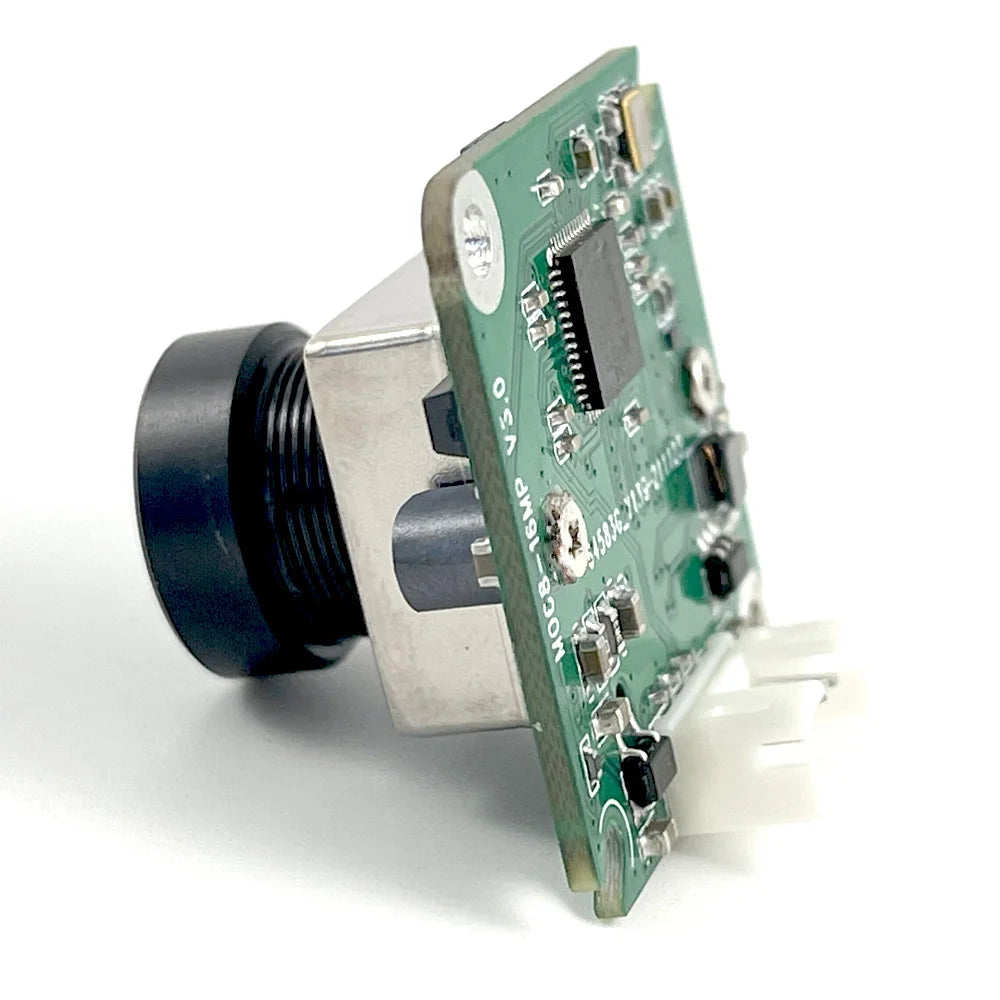

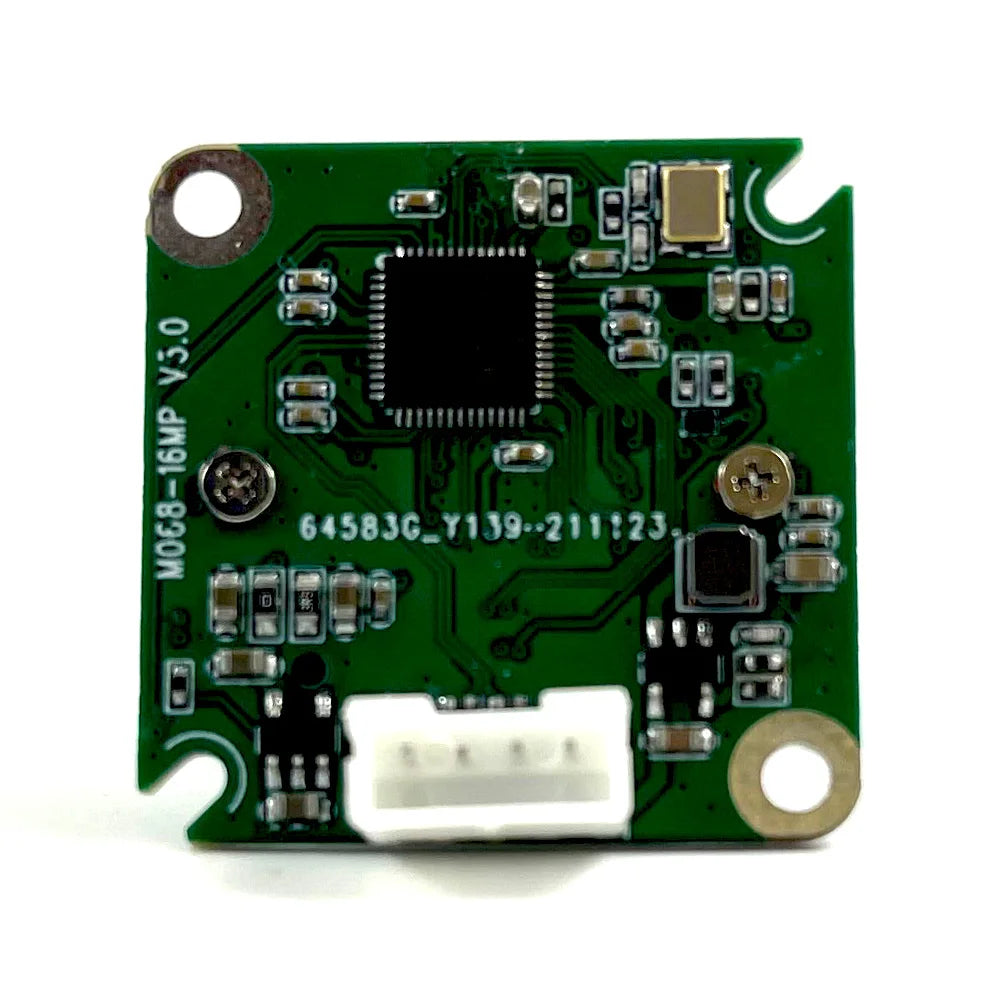

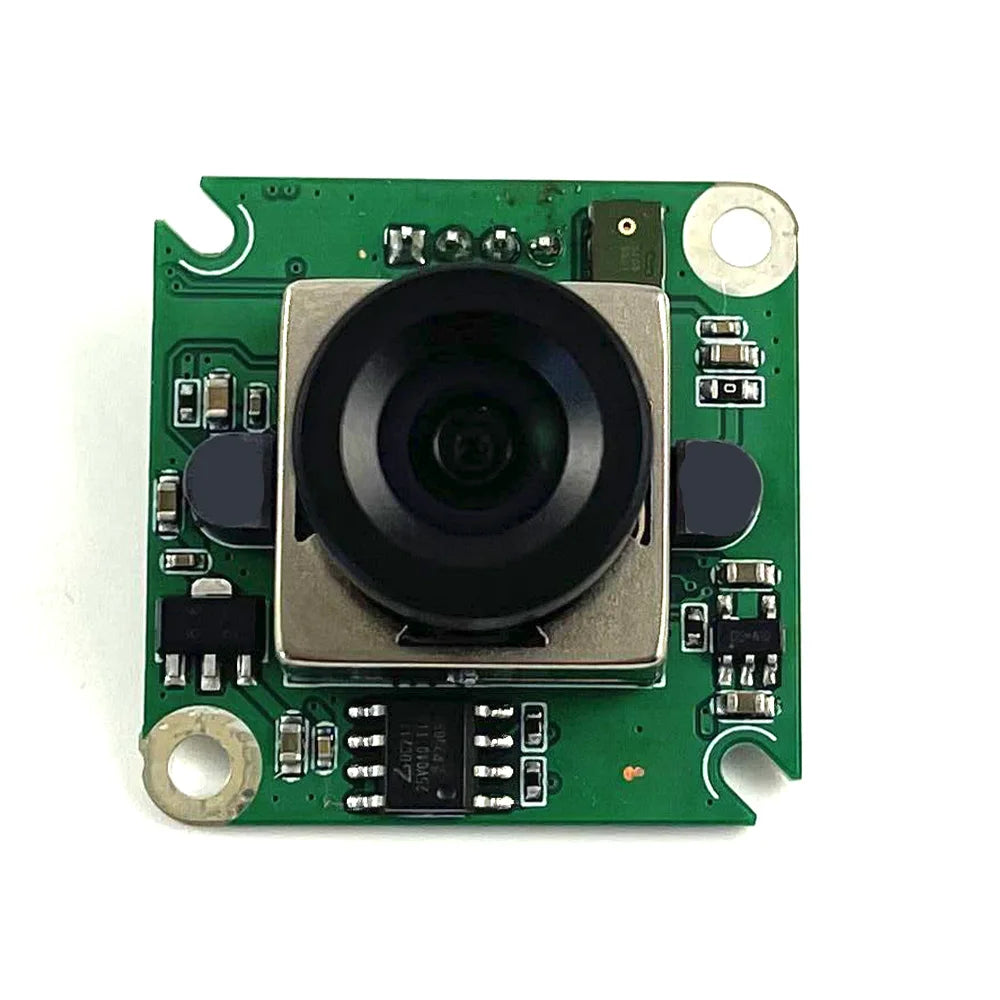

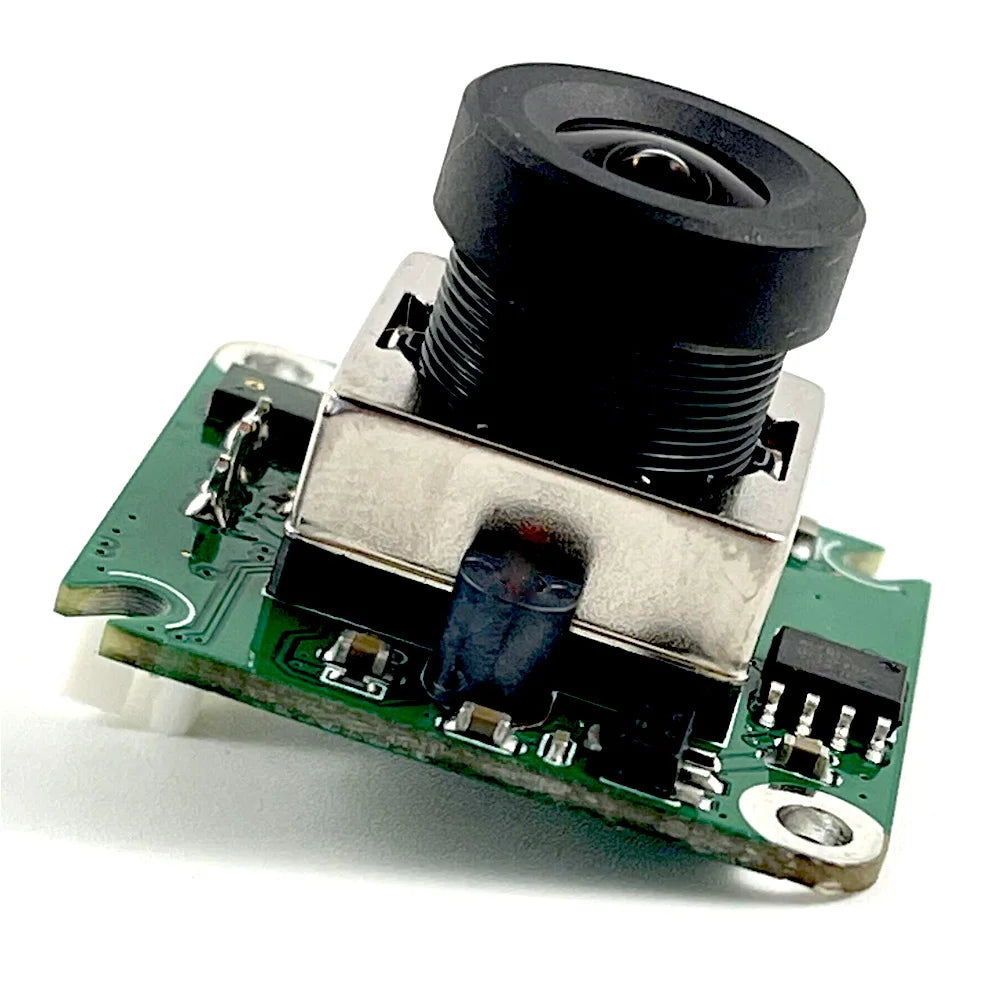

16MP Autofocus Kamera Module With M12 No-Distortion Lens On SONY IMX298 Image Sensor AF Wide Angle USB Board Camera
This is an 16 megapixels driver-free camera of USB port with up to 4656x3496 resolution. Based on the Sony IMX298 CMOS sensor, it supports autofocus, plug, and play, offering 16K HD photos and video. Compatible with multiple systems like Windows, iOS, Android, and Linux, this camera module comes with a digital microphone that captures the sound of 5 meters around the camera when recording video. The design of the USB port also makes it easier to use with you
Specification
Working system |
OTG Compatible Android advice,Over Android 4.3 supported |
APP |
USB OTG Camera or camerafi or USB camera |
Sensor |
1/2.8" CMOS imx298 |
Power |
OTG |
Image pixels |
16.0MP |
Image Format |
YUV/MJPG |
Audio |
embedded microphone,sound & video recording |
Data Format |
4656x3496/4208x3120/4000x3000/3264x2448/2592x1944/2320x1744/2304x1728/2048x1536/1920x1080/1600x1200/1280x960/1280x720 |
Frame rate |
4656x3496 at10fps/4208x3120 at10fps/4000x3000 at 10fps/3264x2448 at 10fps/2592x1944 at10fps/2320x1744 at30fps/2304x1728 at30fps/2048x1536 at30fps/1920x1080 at30fps /1600x1200at30fps/1280x960at30fps/1280x720at30fps |
Camera control |
auto/manually/saturation/contrast/acutance |
AF Range |
5CM to +∞ |
White balance |
automatically |
Exposure |
Average brightness |
Sleep model current |
<10mA |
Working current |
5V 240mA |
Measure |
28x28mm |

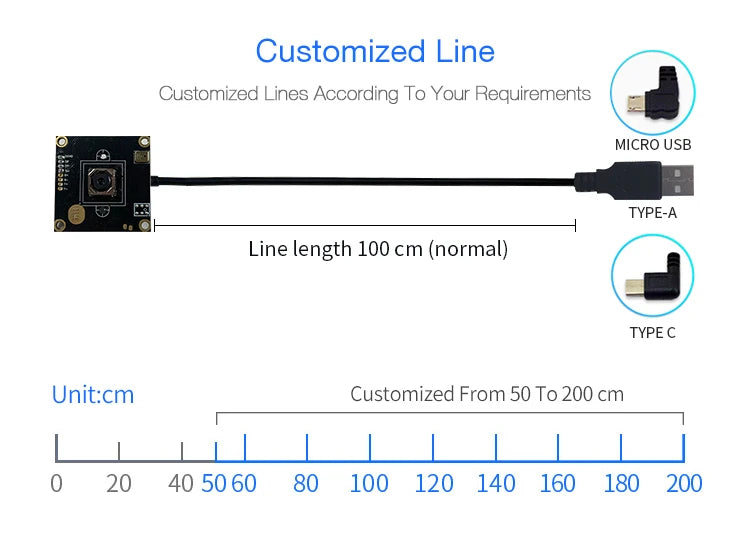

Cable length |
80CM or Customized |
Plug |
Micro USB or Type - C or Type - A |
Storage Temperature |
-30C to 80C |
Working Temperature |
-20C to 70C |
Lens |
96 degree view angle,16.0MP Non-interchangeable |

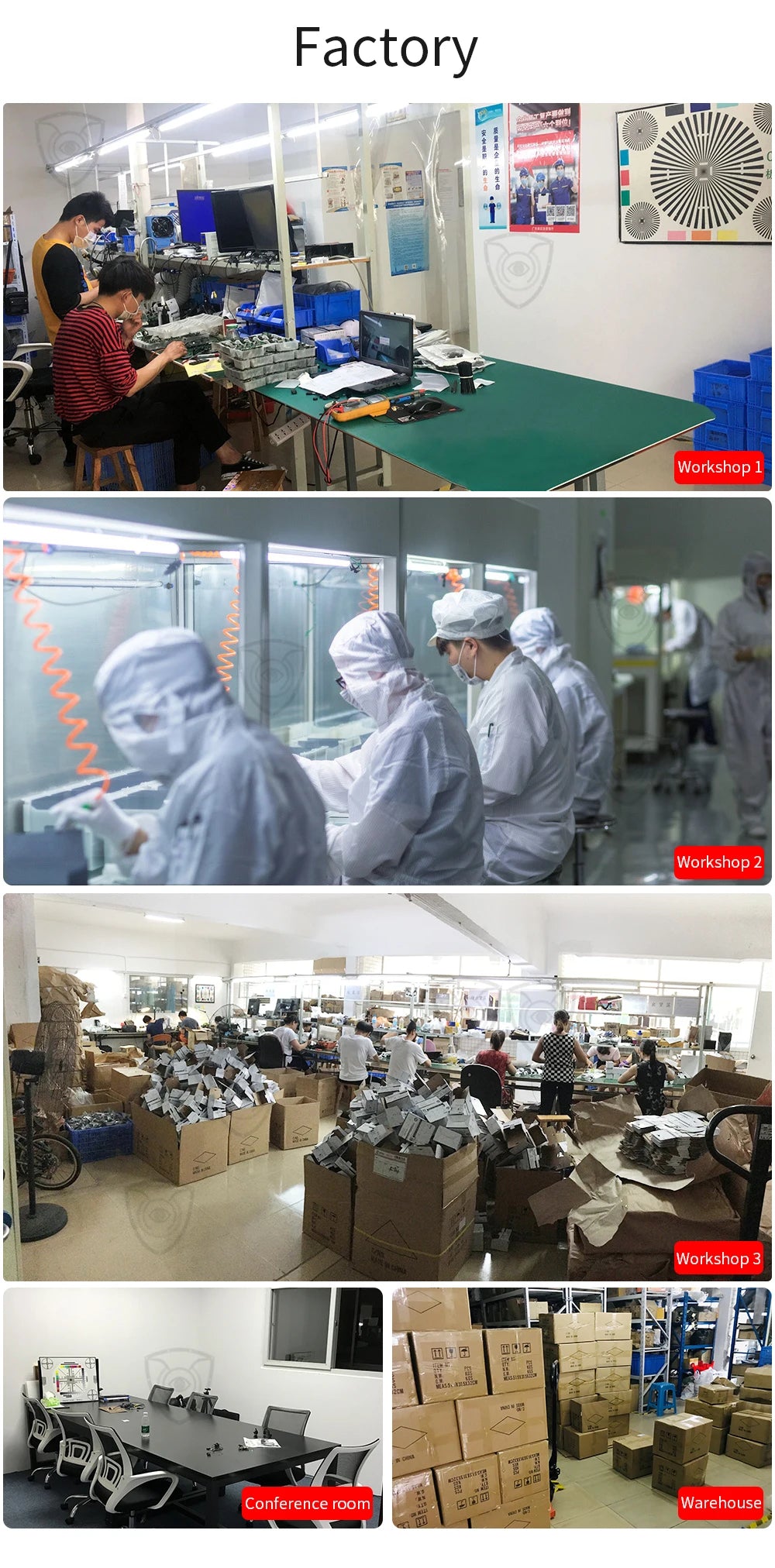

Manufacturer Overview
1).Shenzhen Yushida Technology CO.,LTD(GETG CO.,Limited) in 2006 Shenzhen China,with convenient transportation.
a professional OEM/ODM manufactory,with international quality standards.several senior R & D engineers in
our company for over ten years.
2).Developing and selling broadcast lipstick camera , portable DVR, 3D VR stereo camera, autofocus uvc camera ,
IR night vision body camera, USB board camera, miniature 3G-SDI camera , external camera for android device ,
zoom 3g / hdsdi camera , Ear-buds camera, portable DVR .we can constom most of showing products
if customers need different specifications.
3).Most of our products have CE, FCC and RoHS certificates. The quality is strictly controlled by our QC & QA
departments. Therefore, customers don't worry about the quality and after-sales service when they place
orders.Our company is not only a supplier but also your reliable business partner.
