SPECIFICATIONS

Application: Computer

Brand Name: WC

Condition: New

Dissipation Power: 1

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: 1

Type: Voltage Regulator

is_customized: Yes

1.Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference.
2.This protuct does everything for you, and can be easily interfaced with any microcontroller,
even one without an analog input.

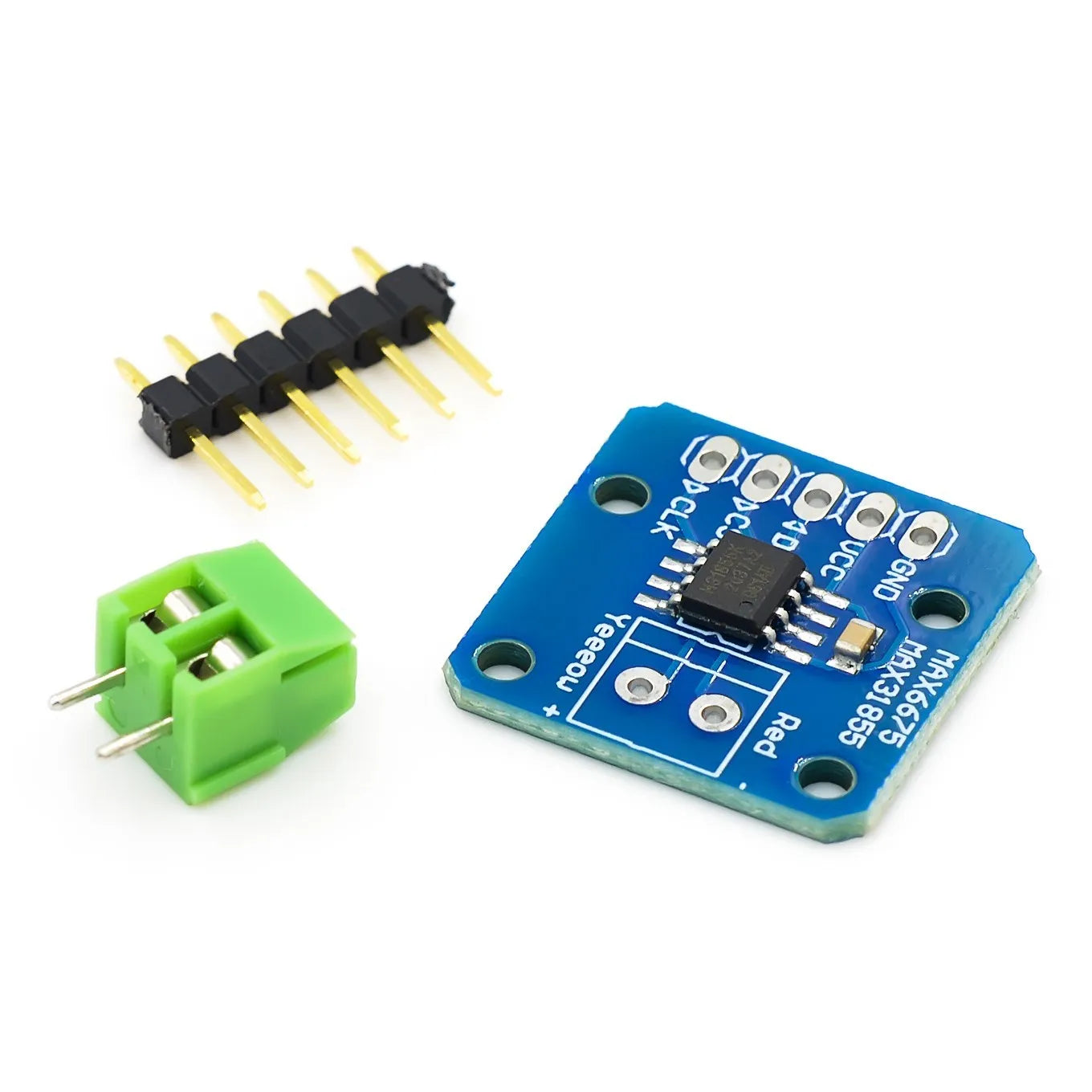

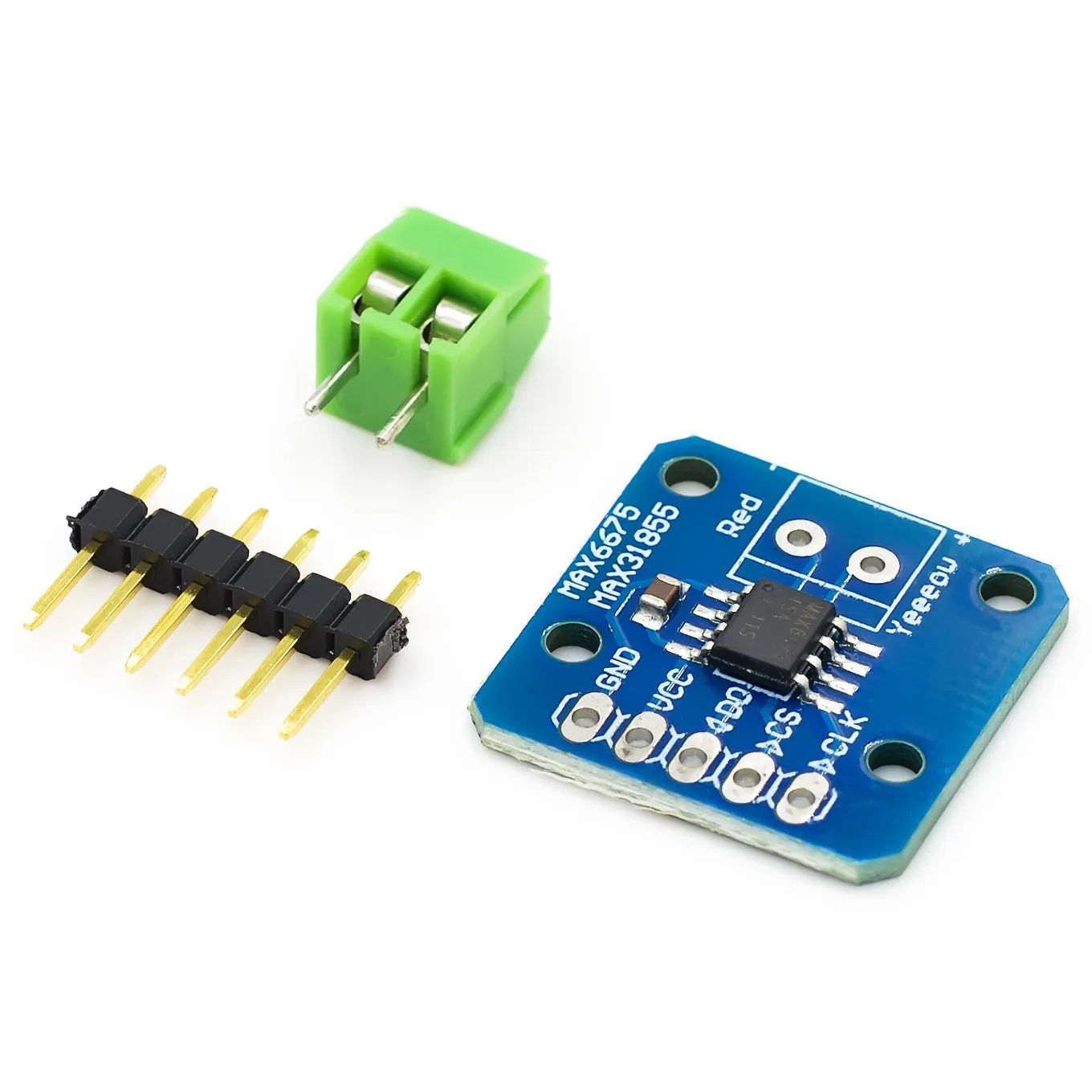

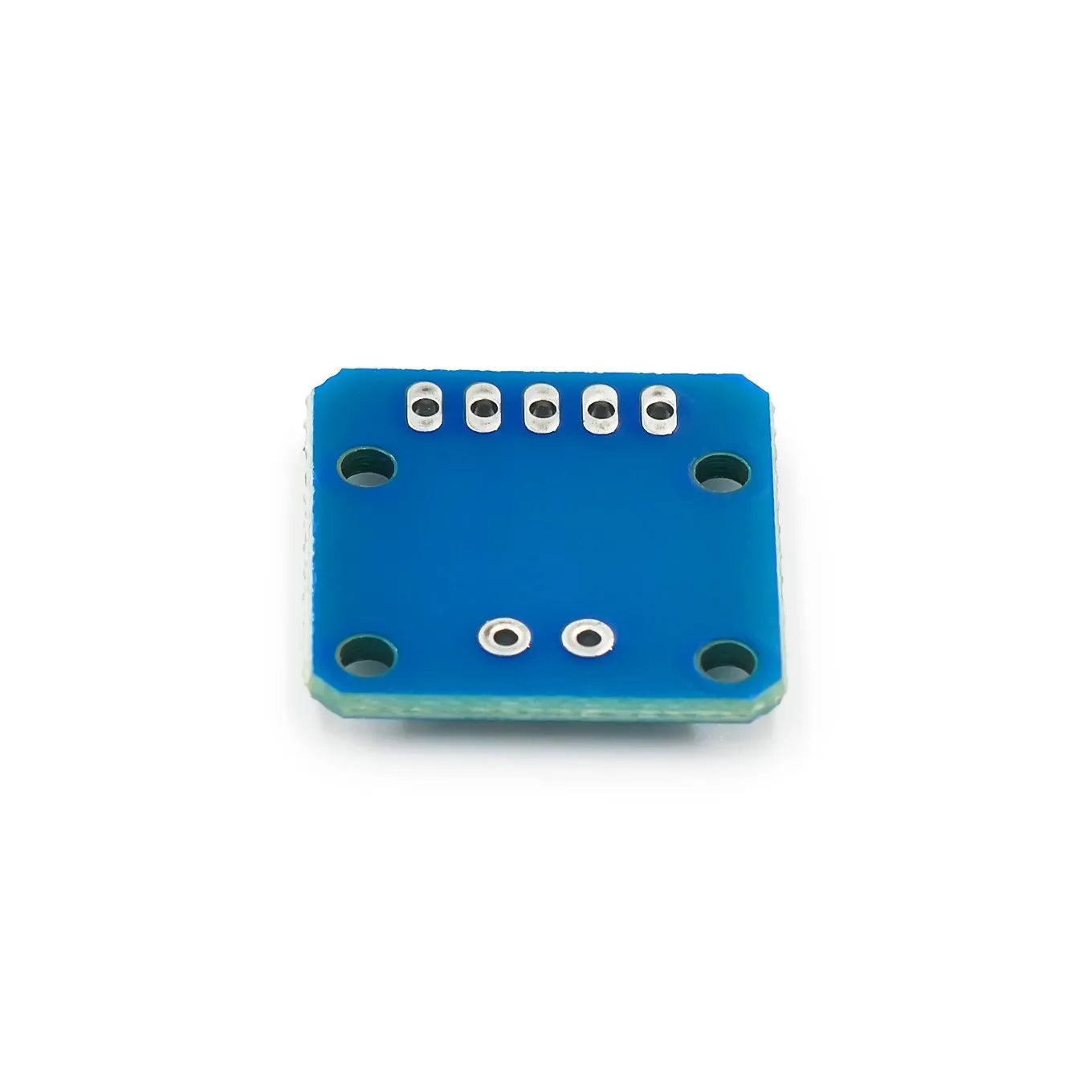

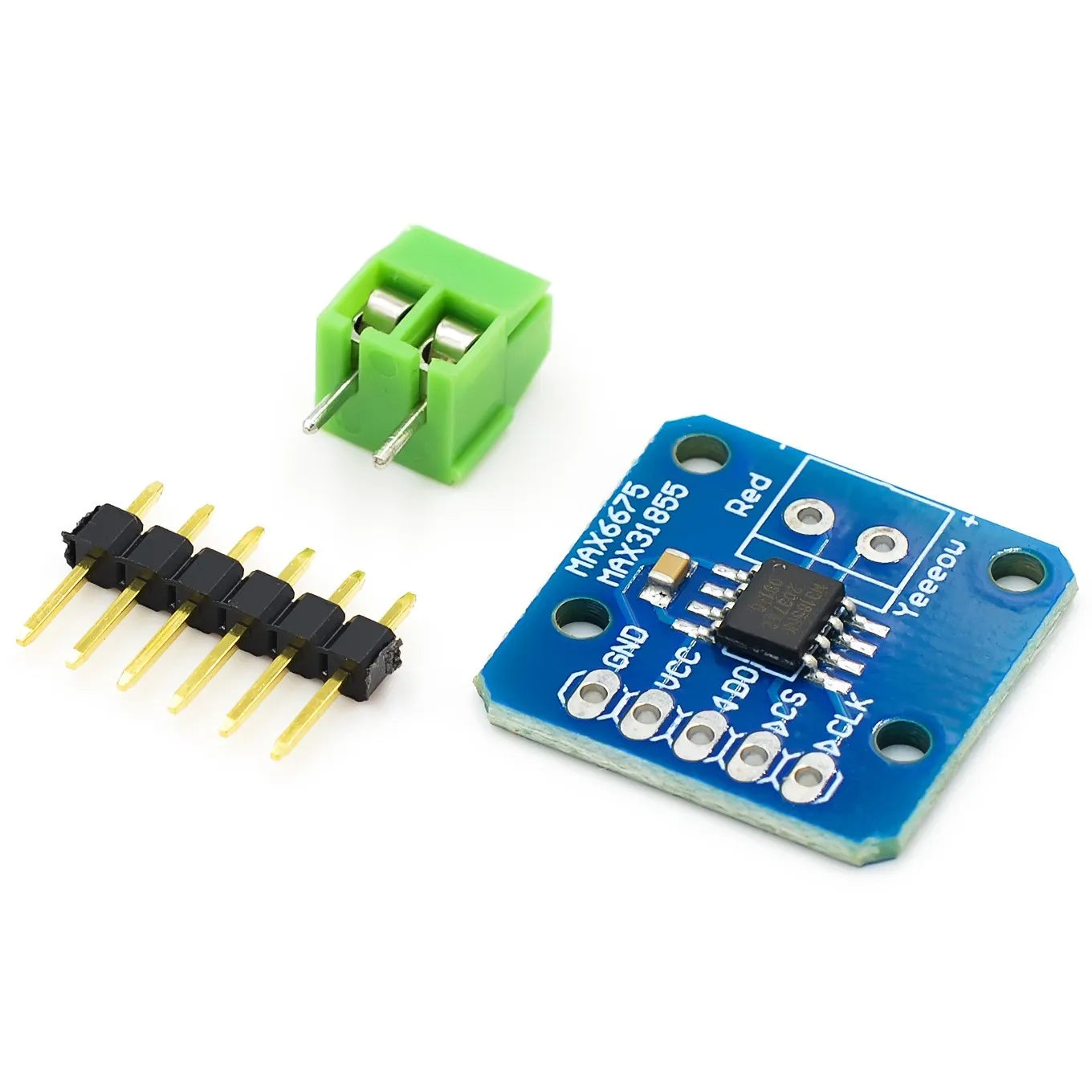

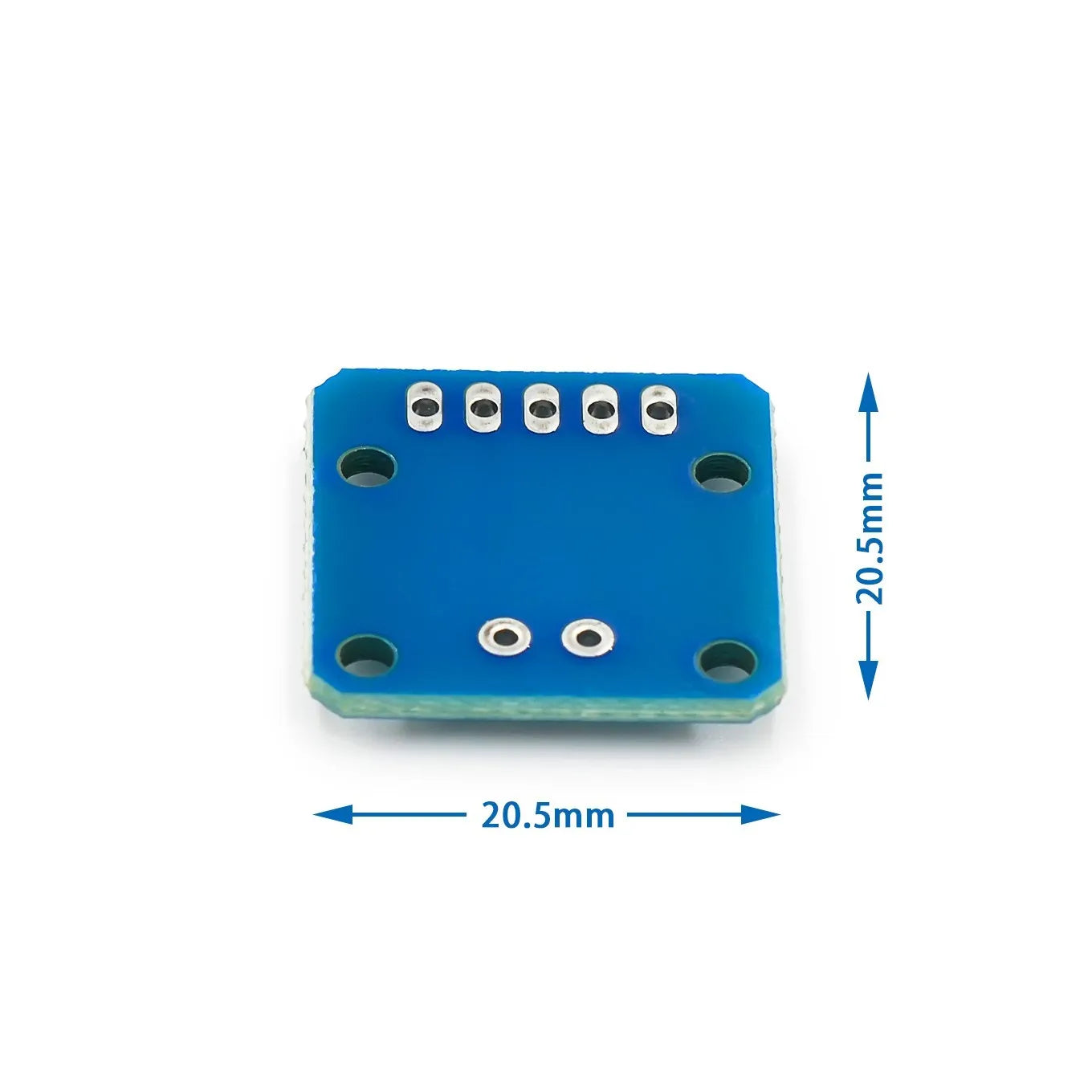

3.This breakout board has the chip itself, a 3.3V regulator with 10uF bypass capacitors and level shifting circuitry,

4.Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any
breadboard or perfboard).

Description

1. measurement temperature range: minus 200 degrees Celsius to 1350 degrees Celsius above zero
2. SPI interfaces, high-speed transmission
3. the input voltage is 3-5v DC
4. direct digital output temperature value, no amplifiers, no ADC
5. 14-bit resolution, 0.25 degree temperature accuracy

Note

1.Works with any K type thermocouple
2 K thermocouples have about ±2°C to ±6°C accuracy
4.Internal temperature reading
5.3 to 5v power supply and logic level compliant!
6.SPI data output requires any 3 digital I/O pins.
