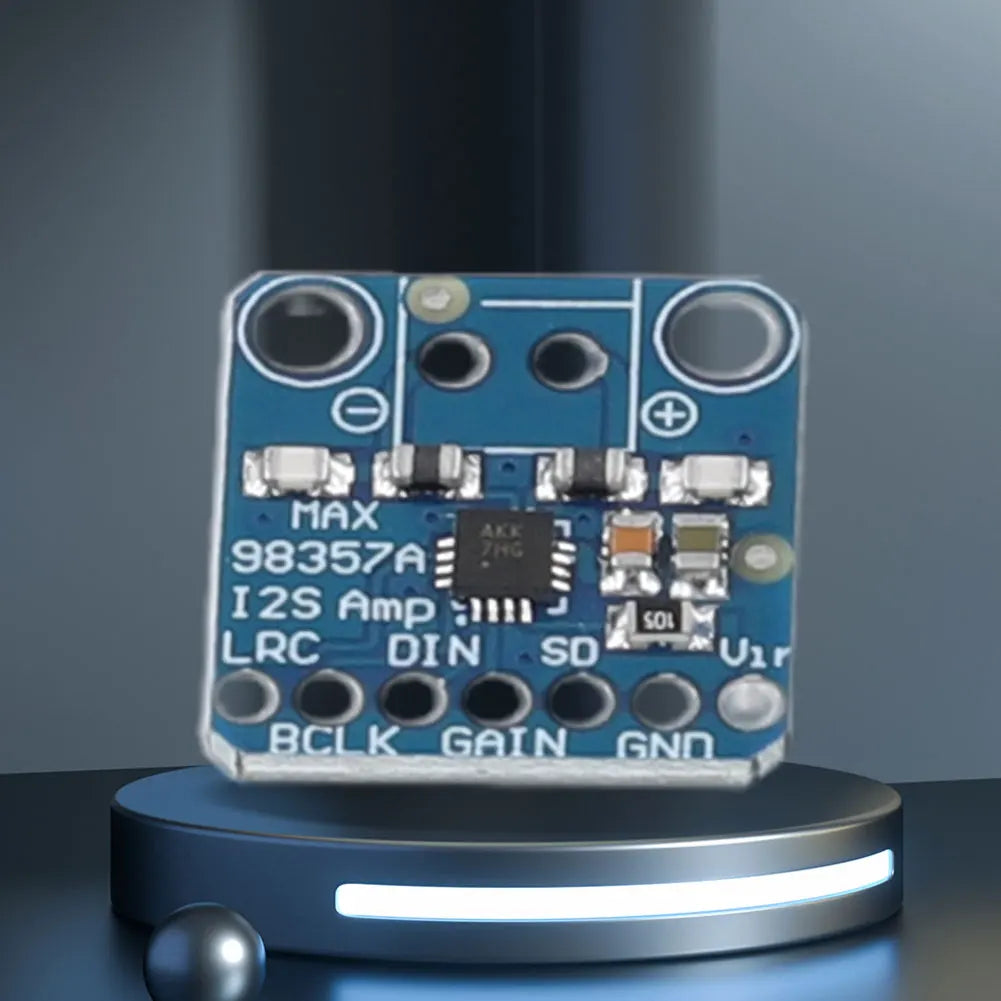

MAX98357 Amplifier Breakout Interface DAC Decoder MAX98357A Class D Filterless Amplifier Breakout Audio Board I2S 3W for Audio
Features:
1. Efficient Class D Amplifier: The MAX98357A amplifier breakout interface DAC decoder provides powerful audio amplification with low power consumption and minimal heat generation, making it an optimal solution for both stationary and mobile projects requiring direct speaker connection.
2. Seamless I2S Interface: Utilizing an I2S interface for communication with microcontrollers or digital audio devices, the MAX98357A amplifier filterless audio board offers pristine and accurate sound reproduction, ensuring high-fidelity audio output for an immersive listening experience.
3. Minimal External Components: Designed to minimize the need for external components, the MAX98357A filterless audio amplifier module reduces the complexity and cost of external circuitry, allowing for straightforward integration into a variety of audio systems without compromising on quality or functionality.
4. Powerful Drive Capability: With its output drive capability, the MAX98357A amplifier decoder module can handle a wide range of speaker impedances, providing up to 3.2W of power on a 4Ω speaker under 5V supply, which is suitable for an assortment of audio applications.
5. Integrated Protective Features: The filterless amplifier breakout audio board includes a suite of protective features such as overtemperature protection and short-circuit protection, safeguarding the chip and connected devices from accidental damage, thereby ensuring extended durability and reliability.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Description:
I2S Digital Audio Amplifier Board for Raspberry Pi. receives digital audio through the I2S interface, converts it to an analog output signal, and amplifies it for direct speaker connection. It combines an I2S D/A converter and an audio amplifier on one board. The small stereo amplifier module is powerful, delivering up to 3.2 W on 4 Ω impedance speakers. the class D amplifier can be operated from 2.7 V to 5.5 V. The amplifier can also be used as an audio amplifier. Due to the amplifier's rate, the module is particularly suitable for mobile and battery-powered projects.The I2S audio input supports both 3.3 V and 5 V levels. The gain can be set to the following values using the gain input: 3 dB, 6 dB, 9 dB, 12 dB and 15 dB.
By default, the stereo signal (L + R) is mixed to form the output signal. Resistors can be used to change the behavior so that only L or R is output.
Characteristics:
Output 3.2 W at 10% THD, speaker impedance 4 Ω, power supply 5 V
2.7-5.5 V operating voltage
77 dB PSRR at 1 kHz
Selectable Gain: 3 dB, 6 dB, 9 dB, 12 dB, 15 dB

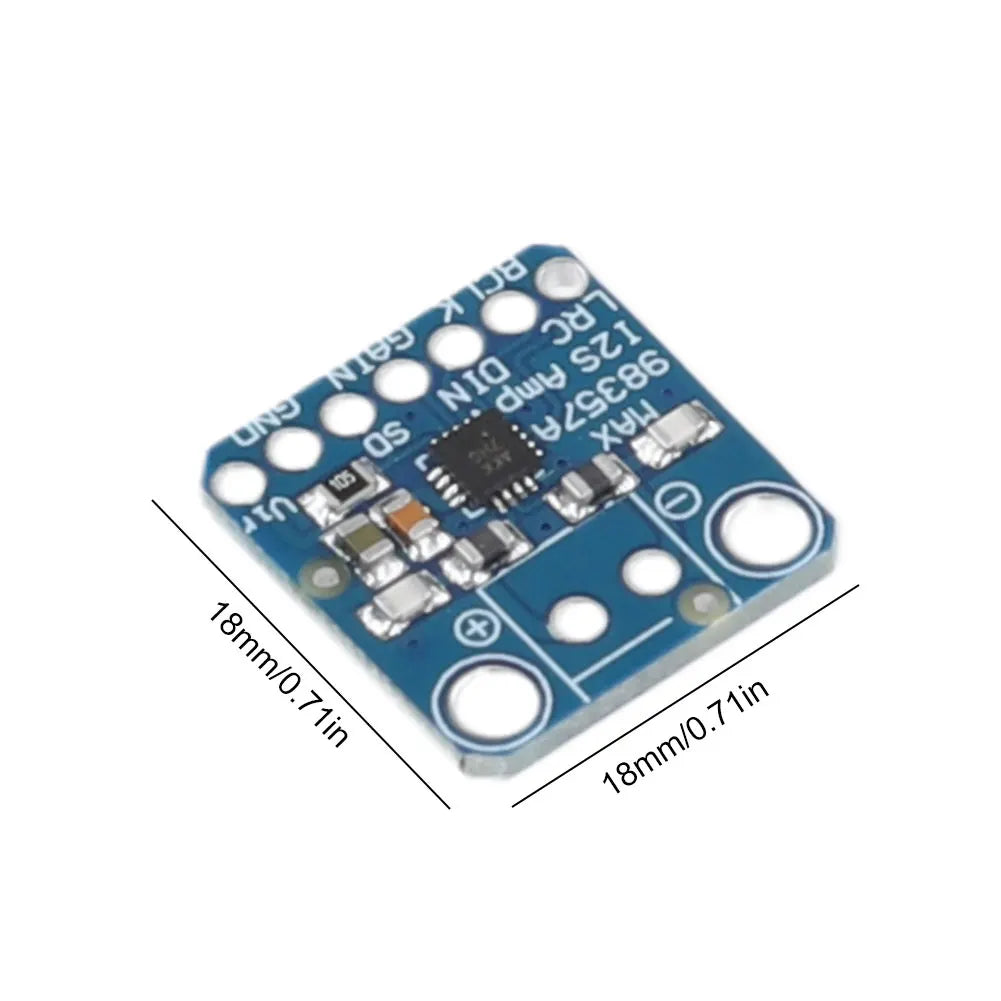

Product Size: 18.00x18.00x3.00mm/0.71x0.71x0.12inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

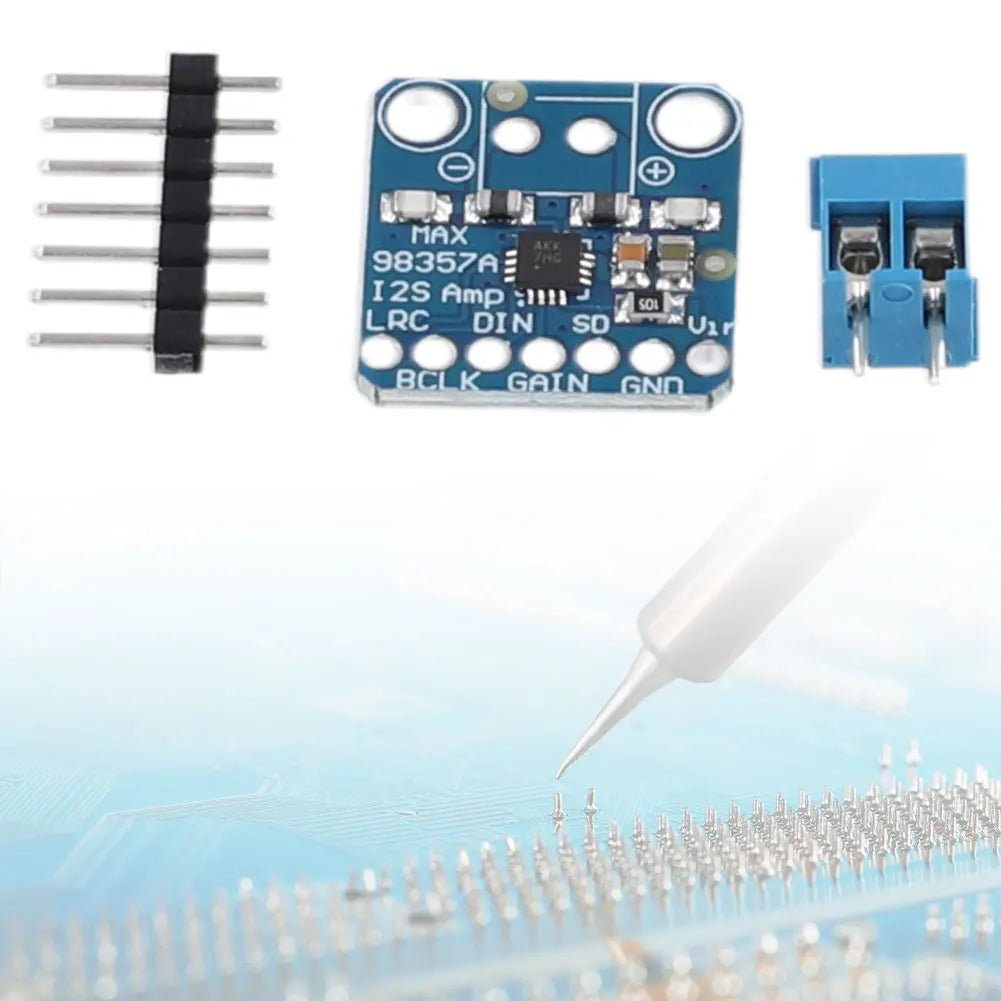

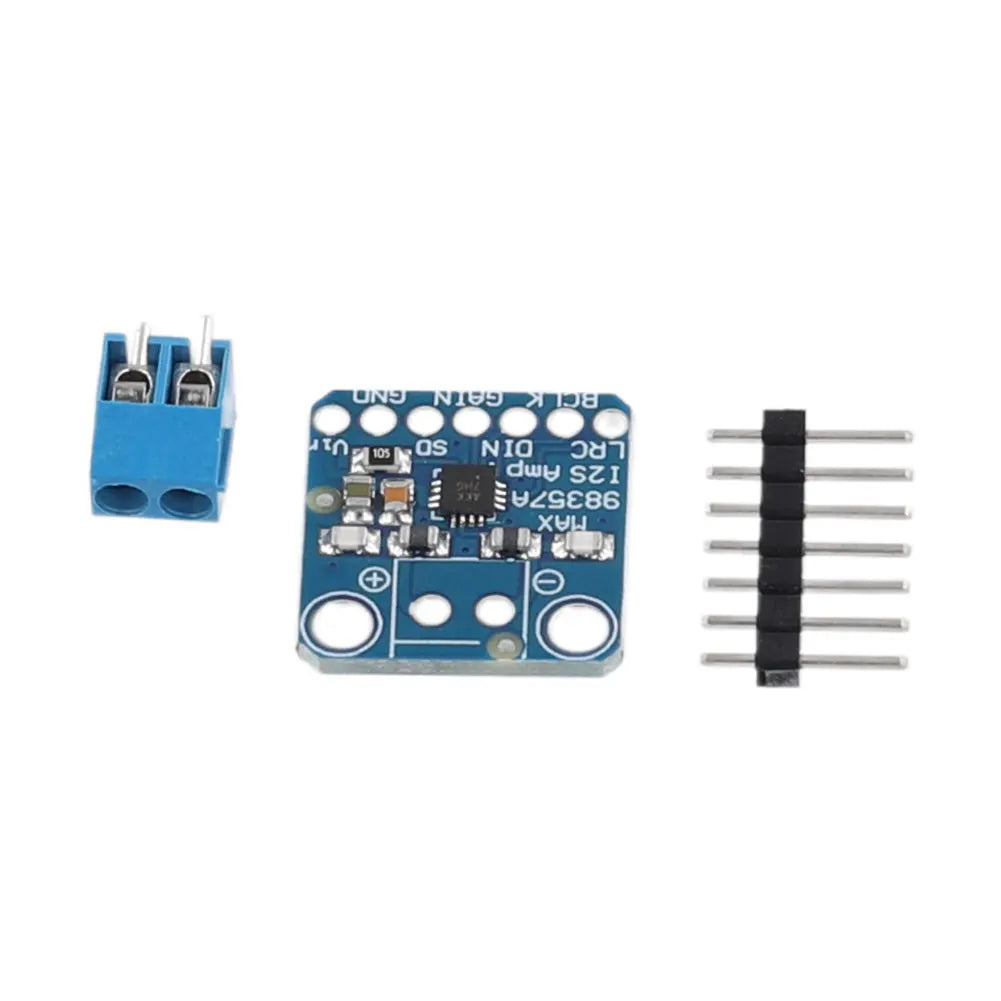

1*Amplifier Breakout Interface DAC Decoder
