Description

SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: W

High-concerned chemical: none

Operating Temperature: -40-80

Origin: Mainland China

Supply Voltage: 3.3V/5V

Type: Voltage Regulator

Product Overview:

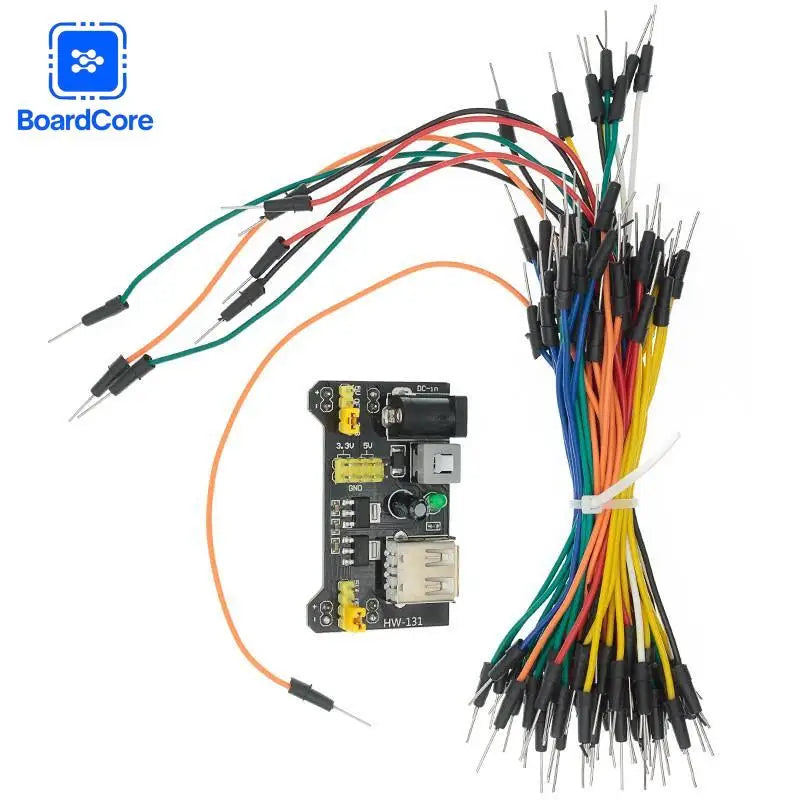

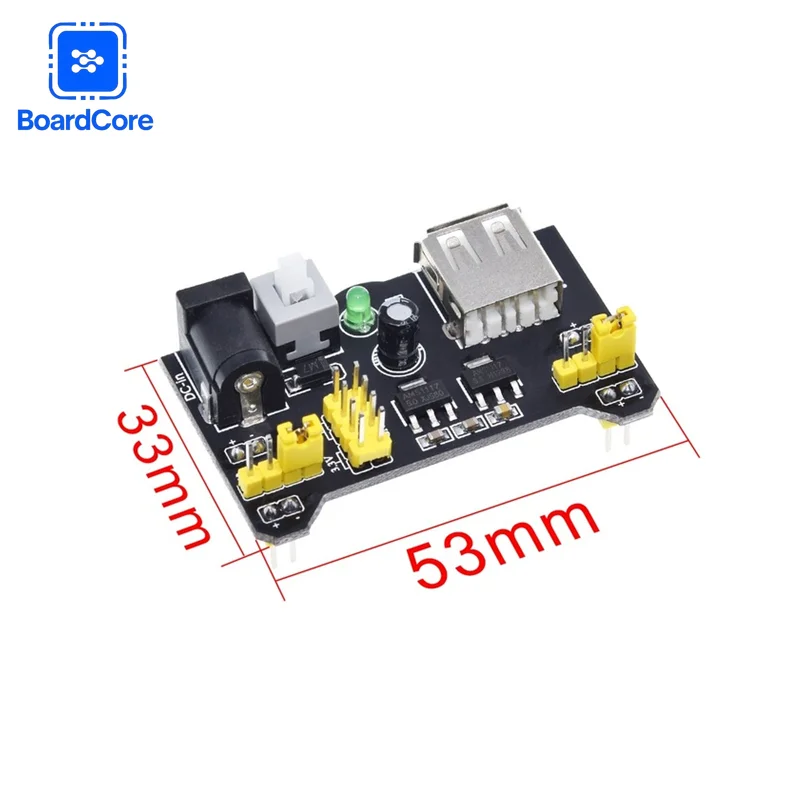

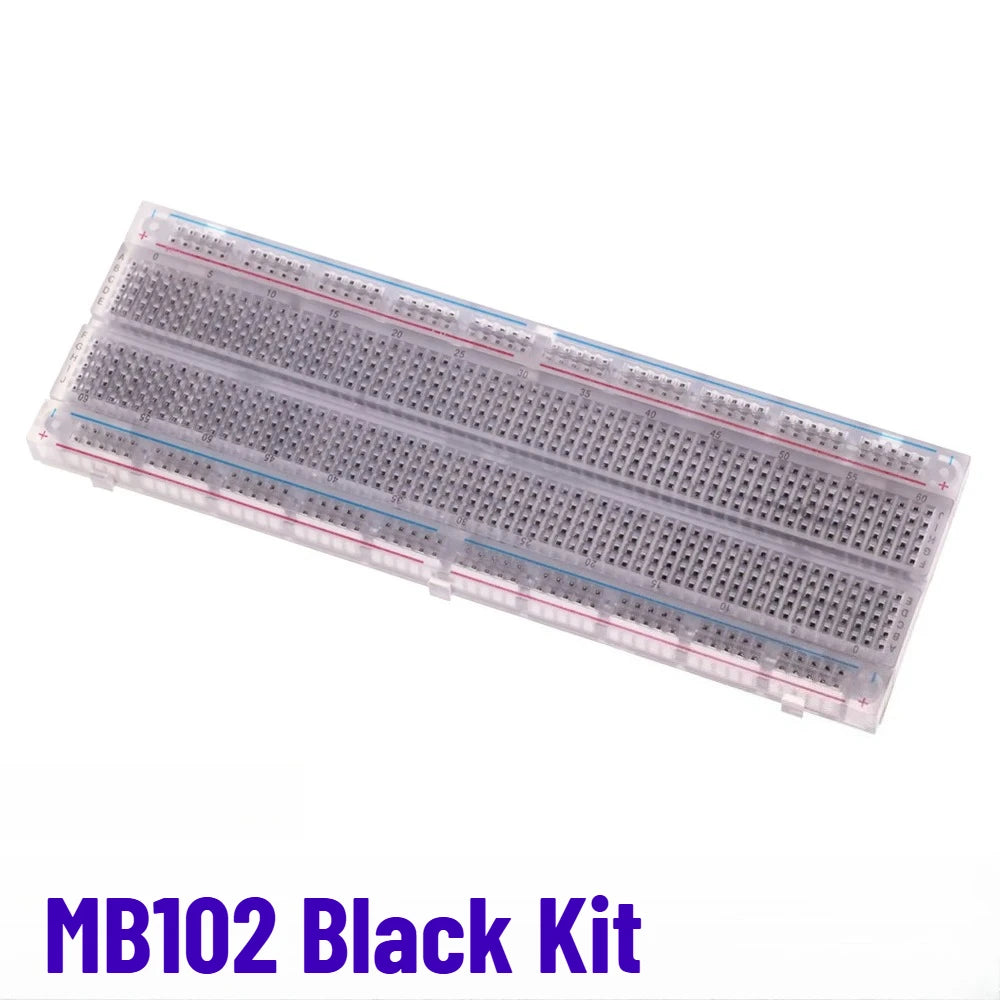

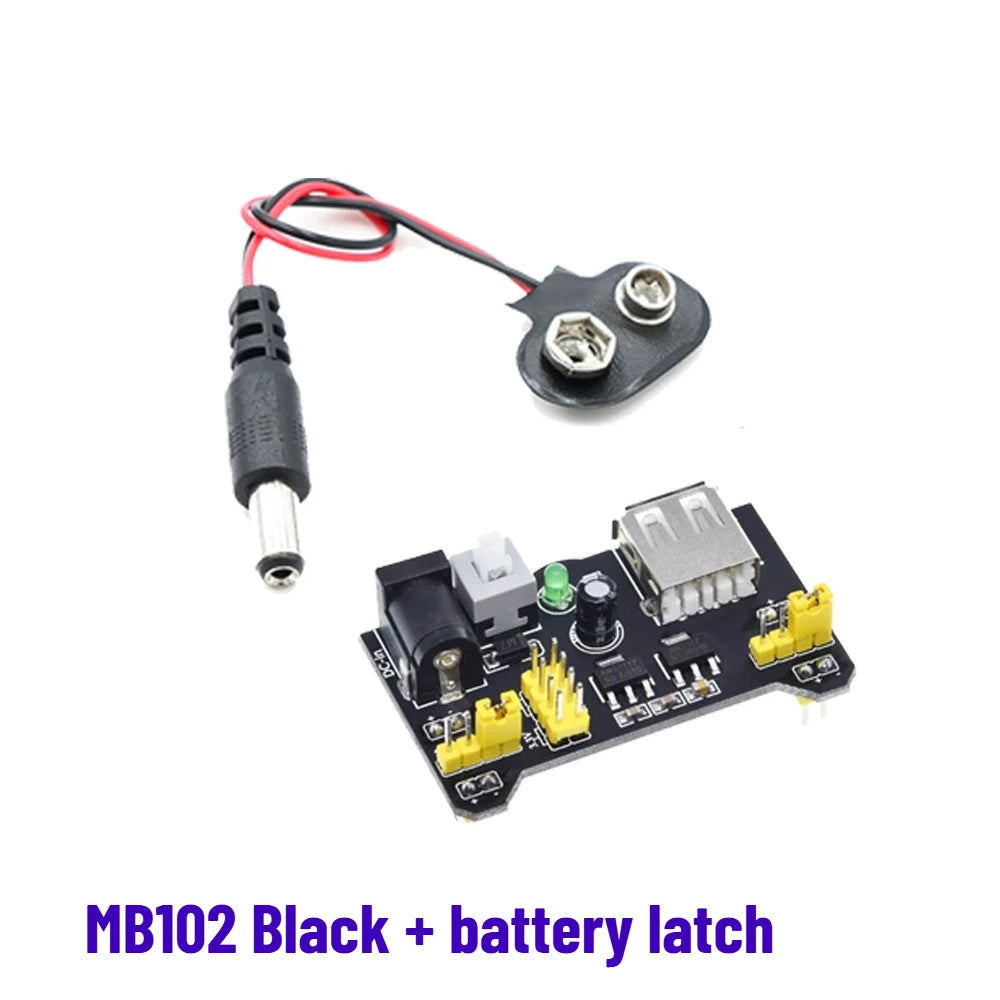

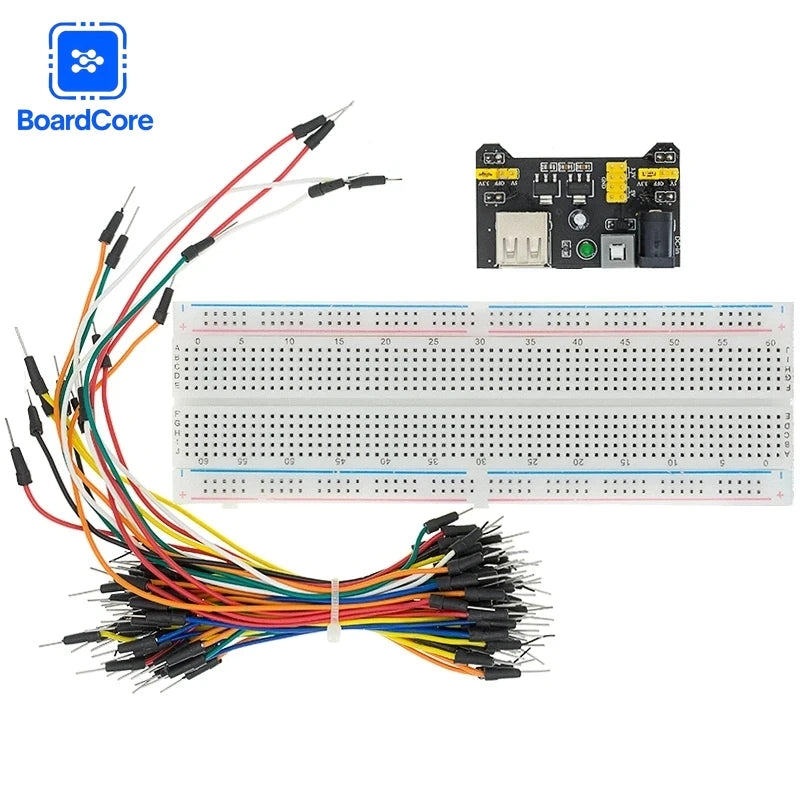

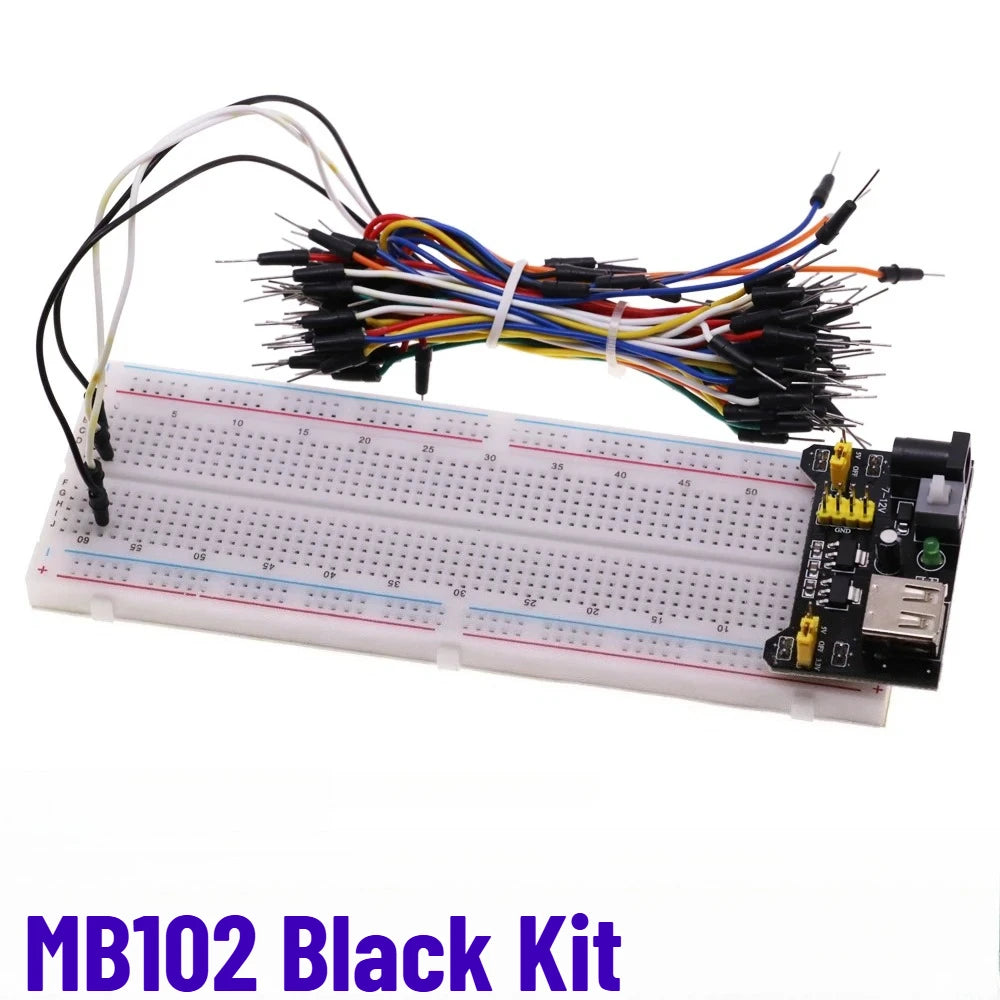

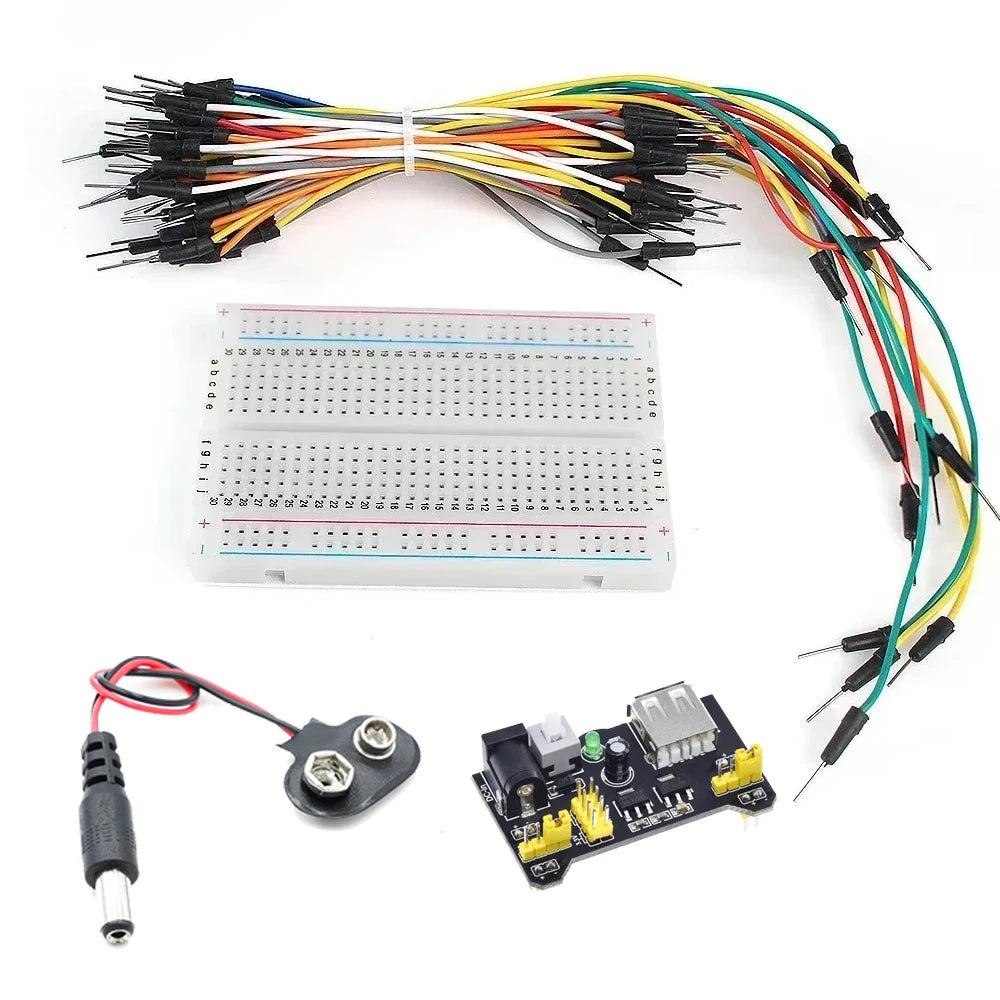

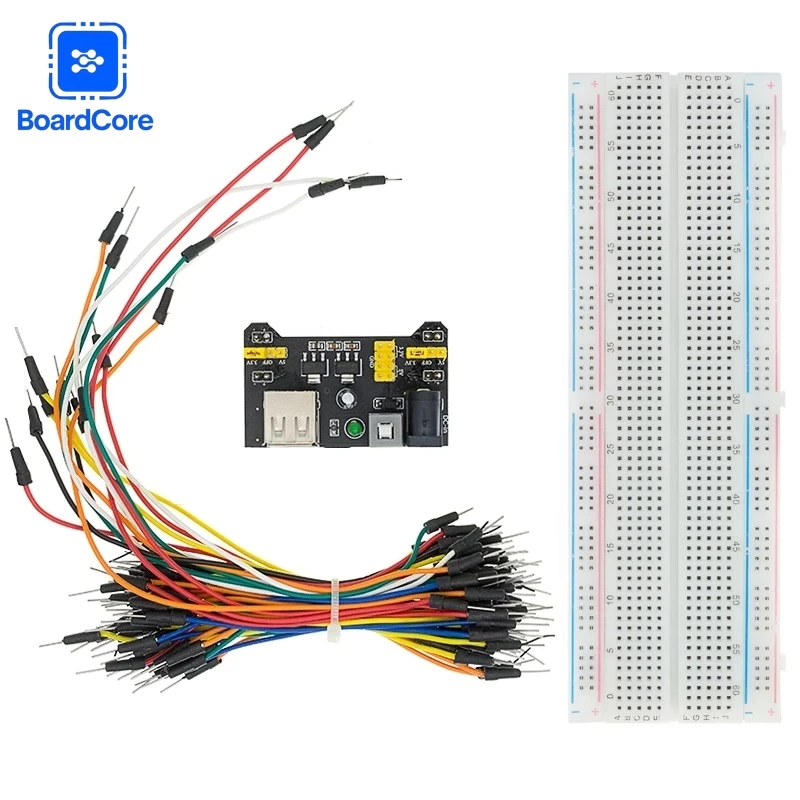

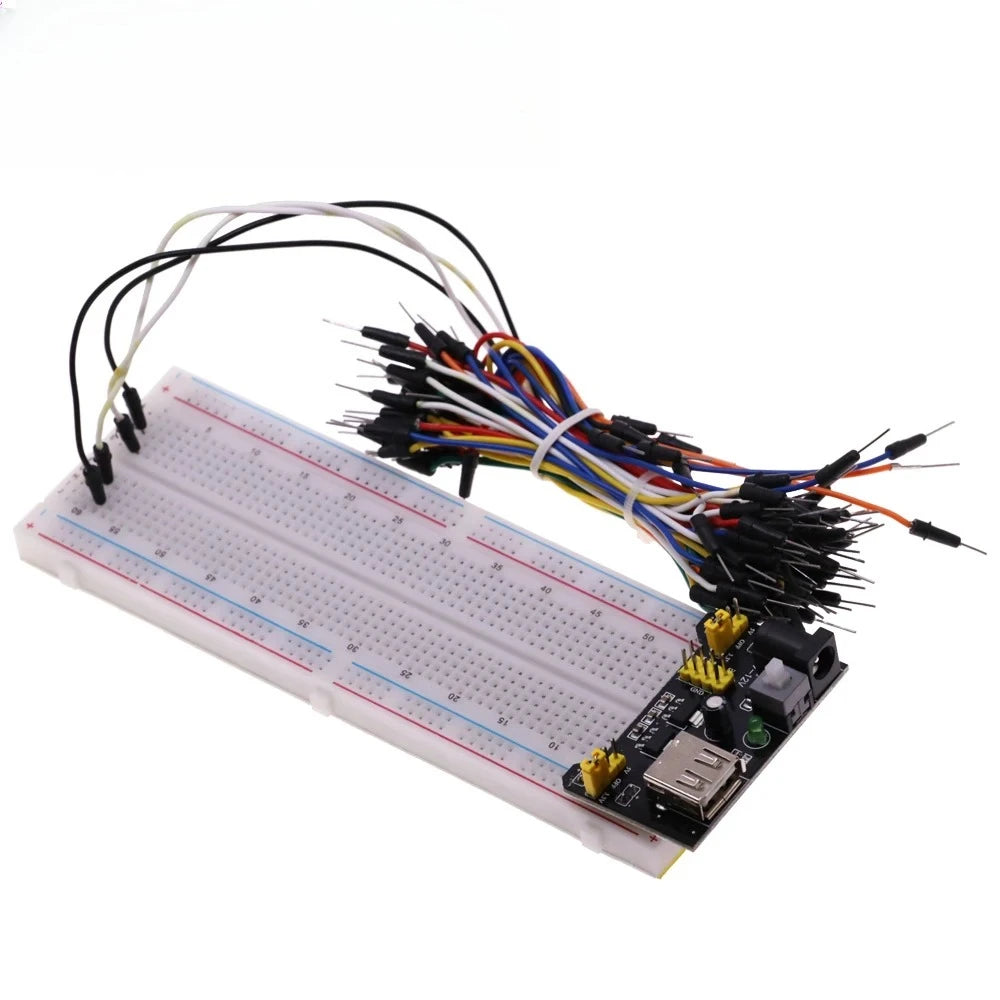

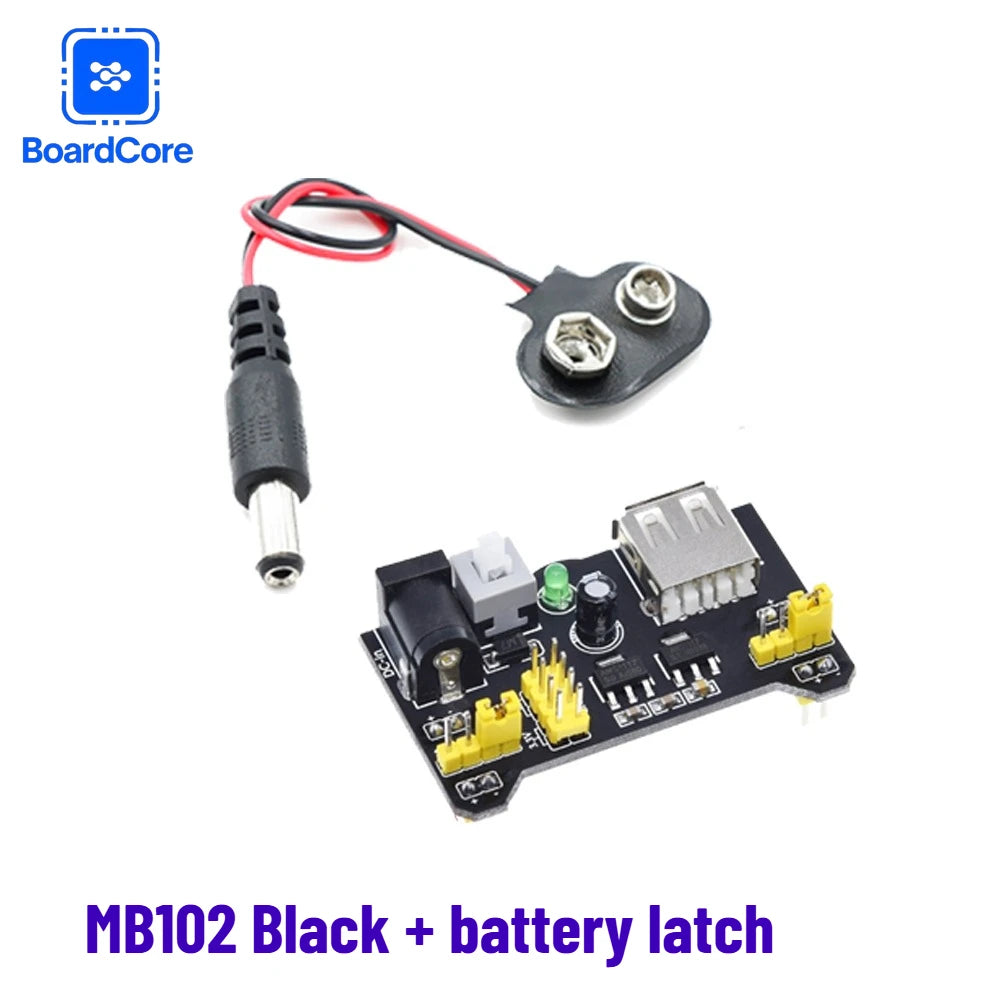

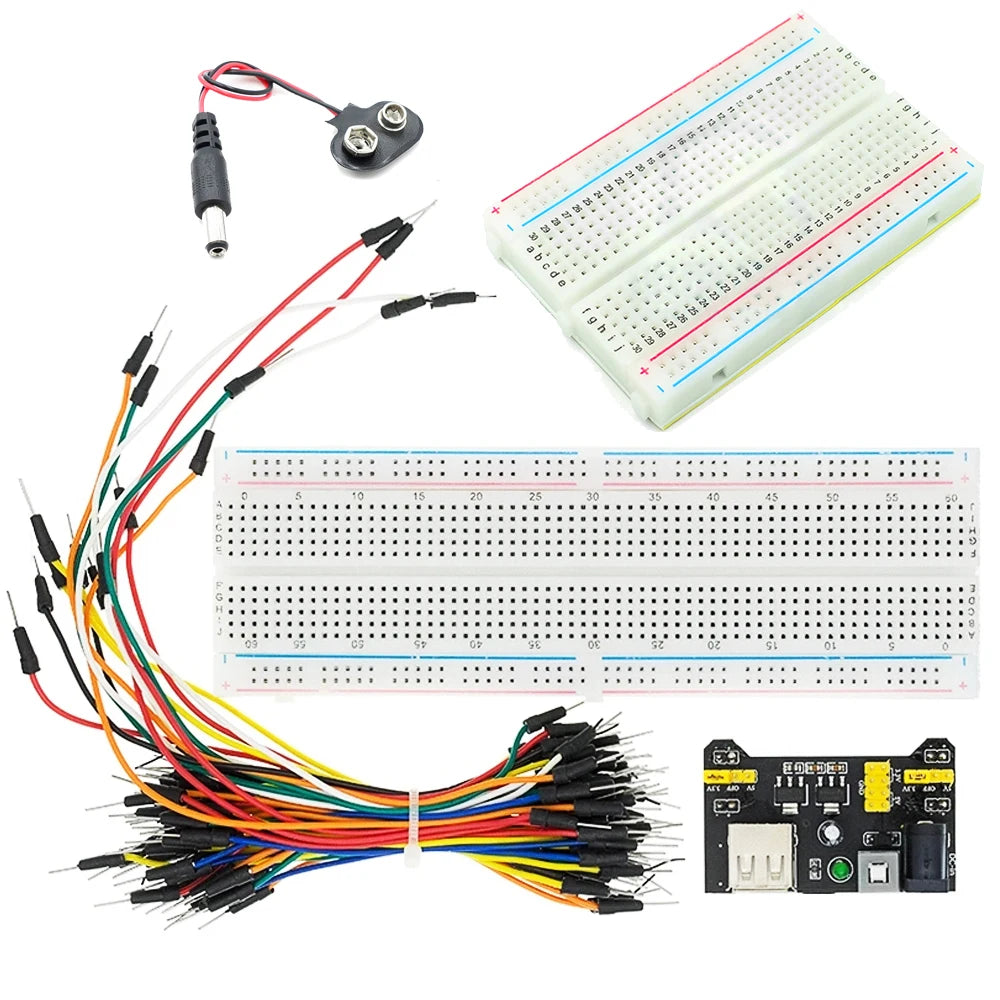

1. Breadboard-specific power module, compatible with 5V and 3.3V, suitable for MB102 breadboards

2. Input voltage: 6.5-12V (DC) or USB power supply

3. Output voltage: 3.3V or 5V selectable via jumper cap

4. Maximum output current: <700mA

5. Dual independent control channels, switchable to 0V, 3.3V, or 5V

6. On-board dual 3.3V/5V DC output pins with latching switch indicator lights

7. Regulator chip: 1117-5.0/1117-3.3V Usage instructions/precautions:

a. Module input range: 6.5V–12V. Inputting 5V will not yield 5V output, as the regulator chip requires a voltage difference between input and output to function

b. When operating solely on 3.3V, the 5V output will deliver a stable 3.3V voltage.

Module Applications:

Microcontroller power expansion, electronic building blocks, smart vehicles, Arduino robotics power extensions, etc. Simple and practical, facilitating your experiments and designs. The product is intuitive to use.

Notes:
1. The module accepts 6.5V-12V input. If 5V is supplied, it will not output 5V. The voltage regulator chip requires a voltage difference between input and output to function.
2. When operating solely at 3.3V, the 5V output will deliver a stable 3.3V voltage.

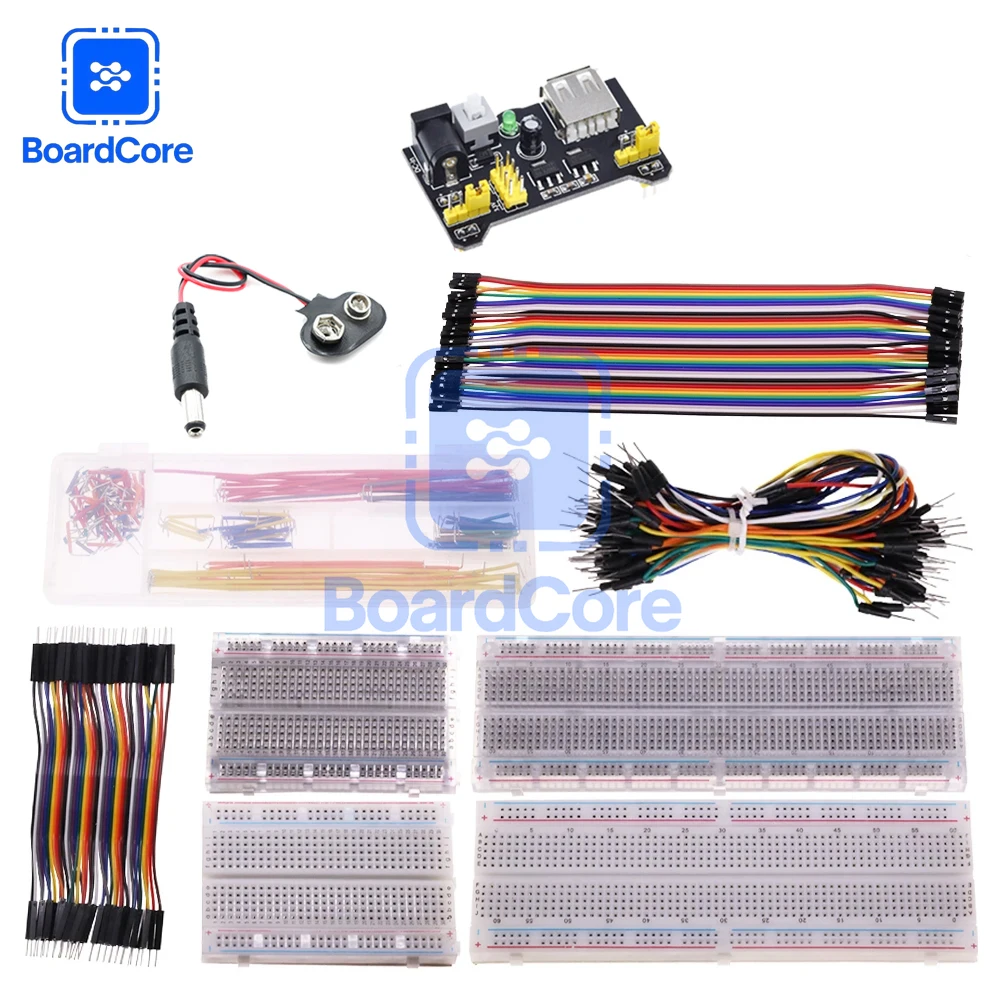

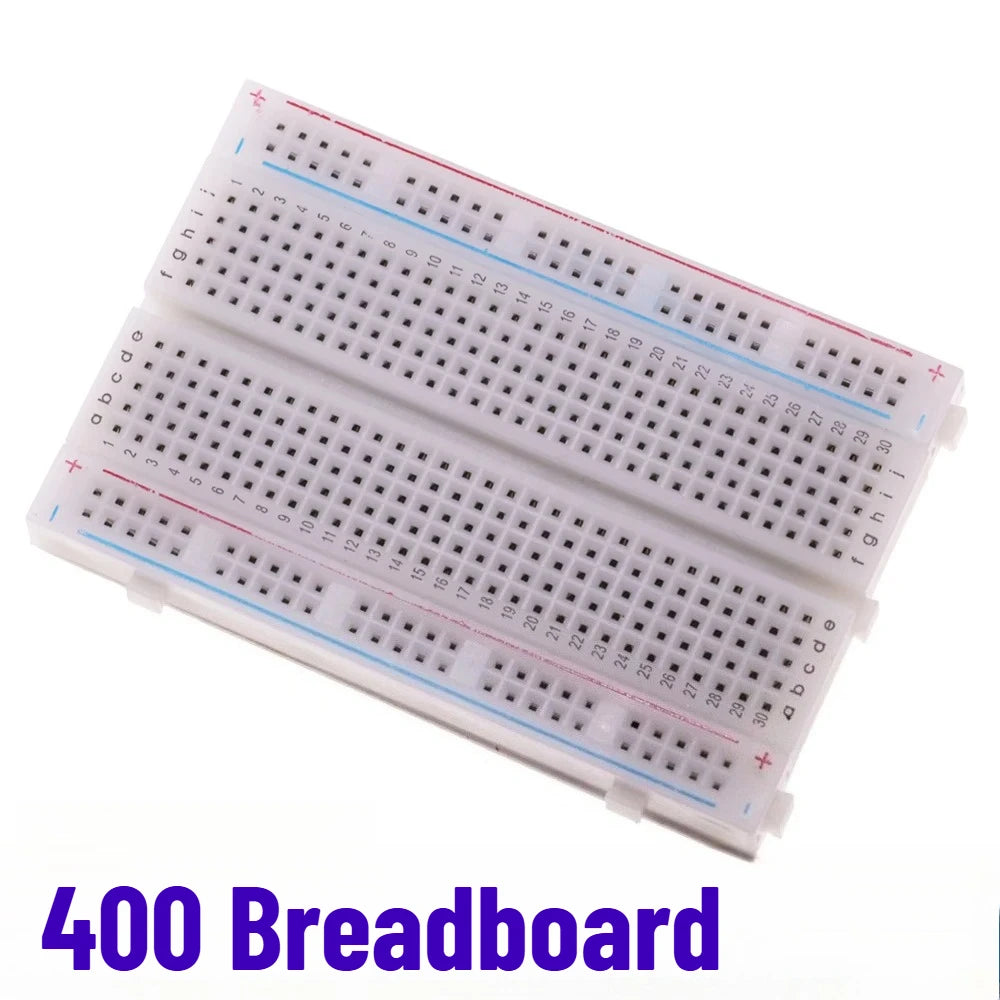

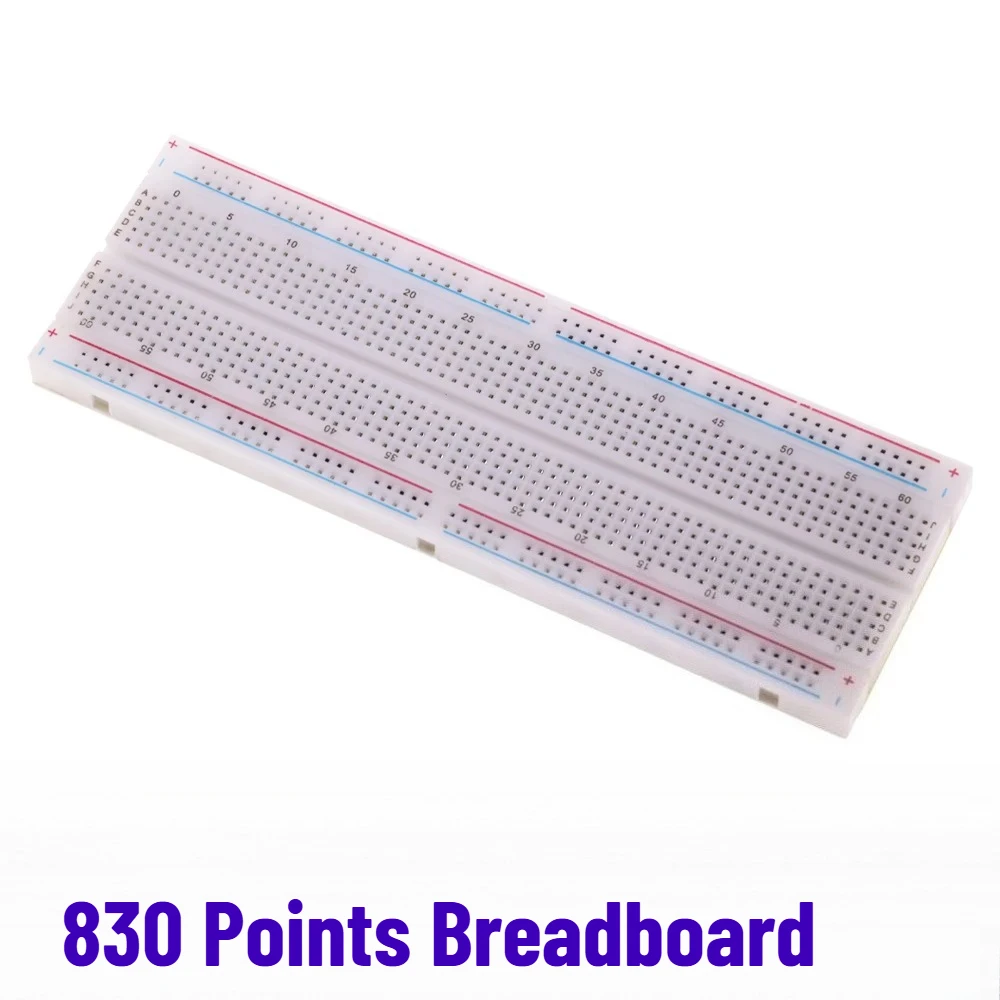

Breadboard Connection Cables:

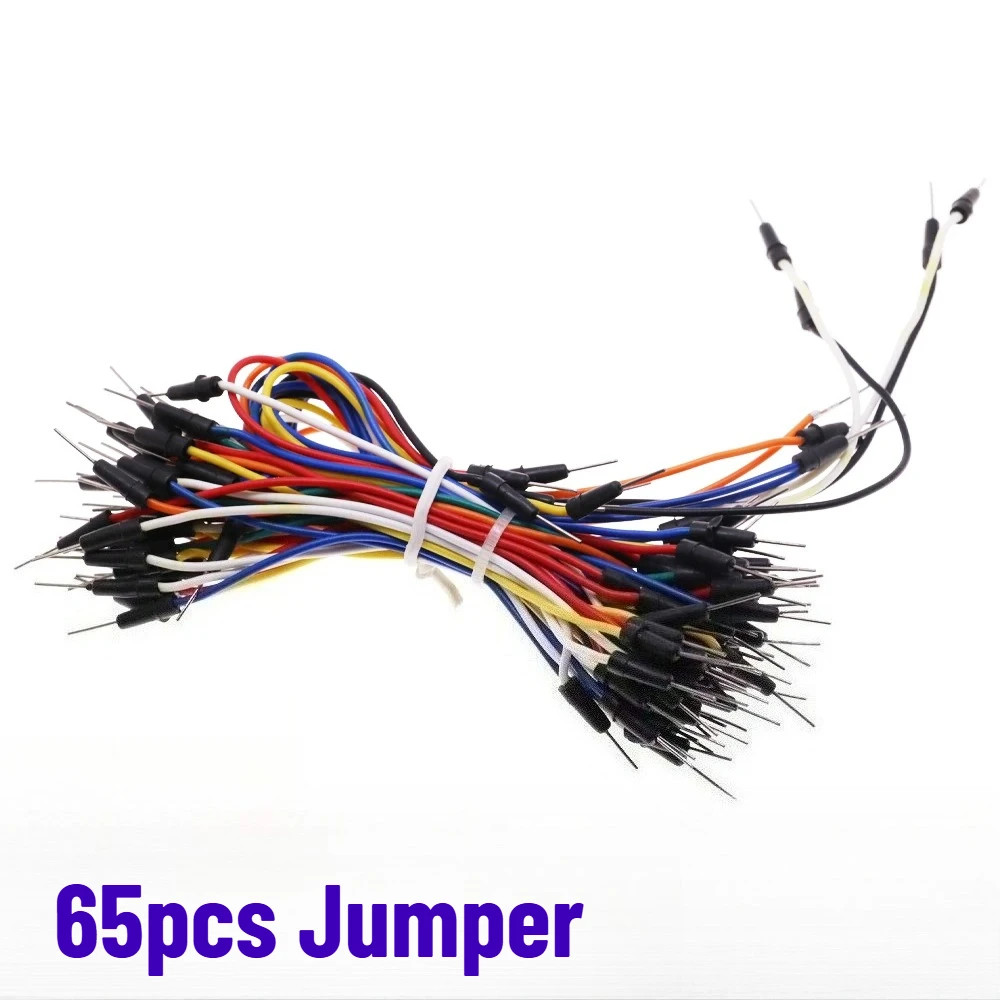

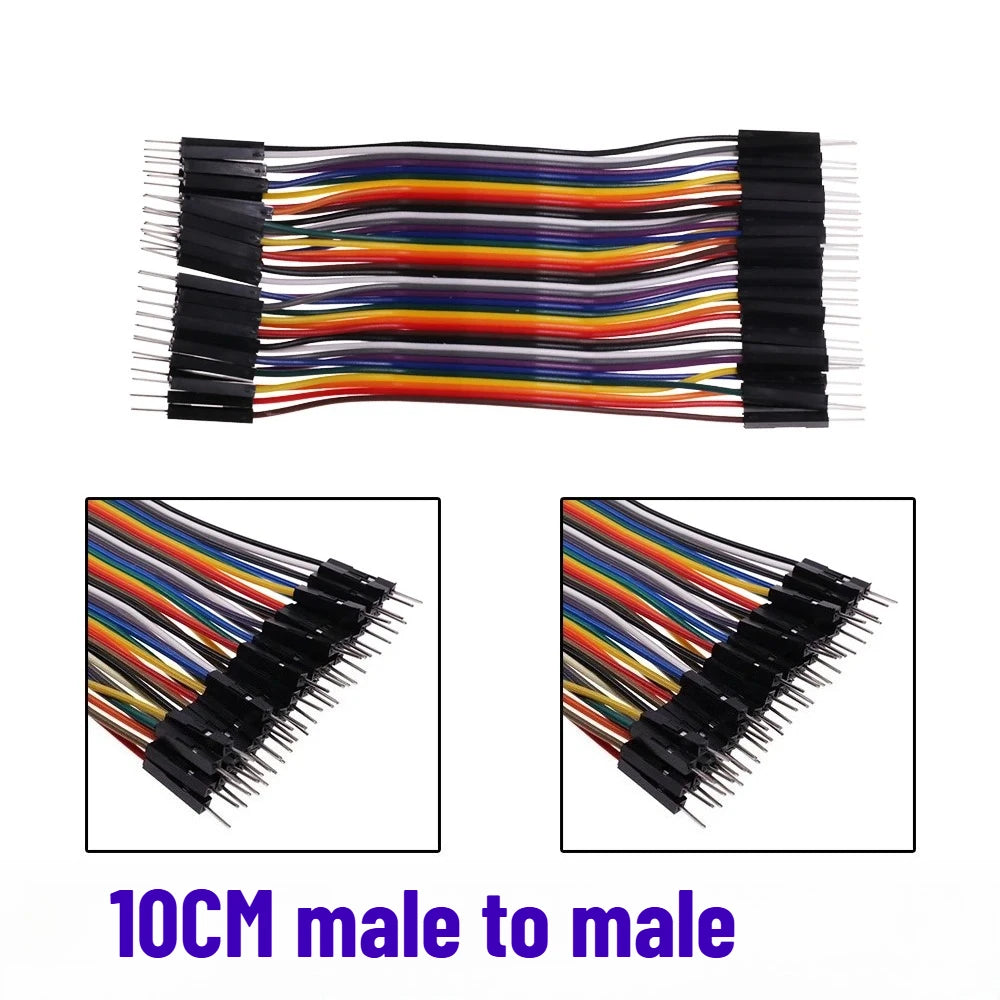

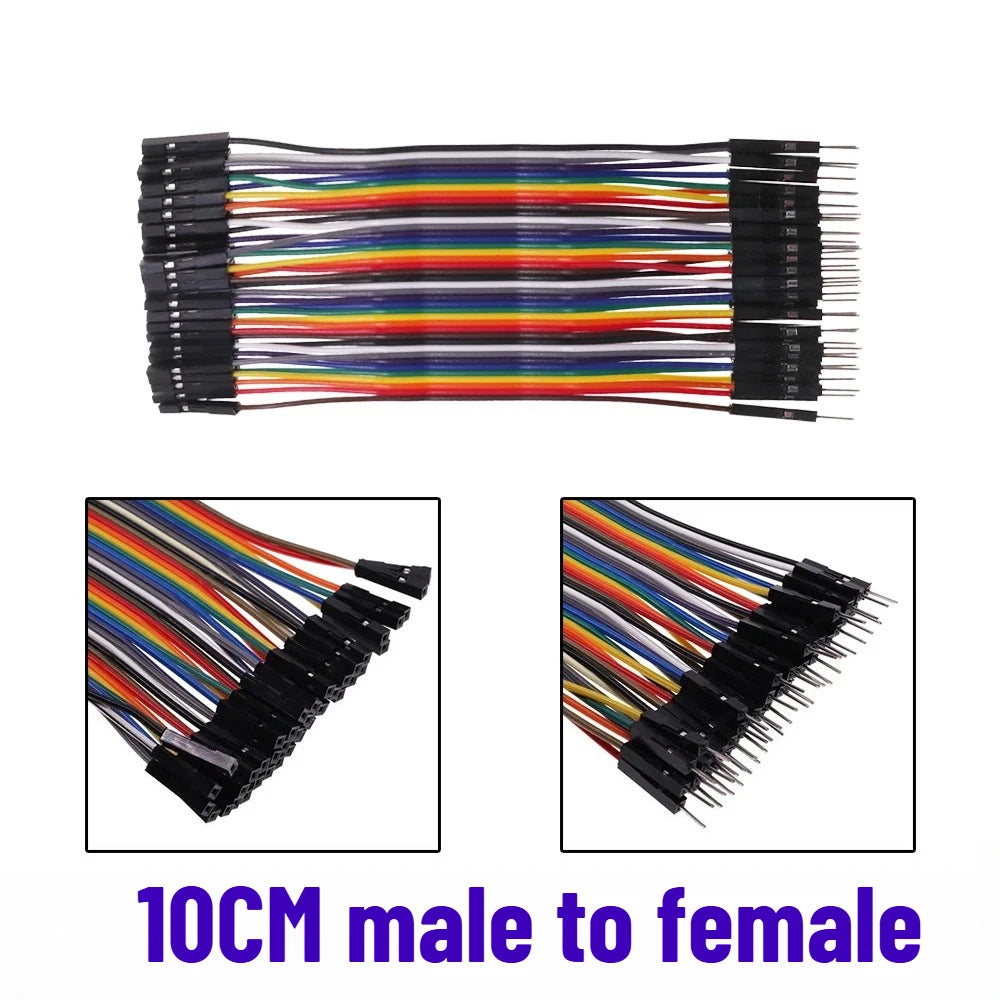

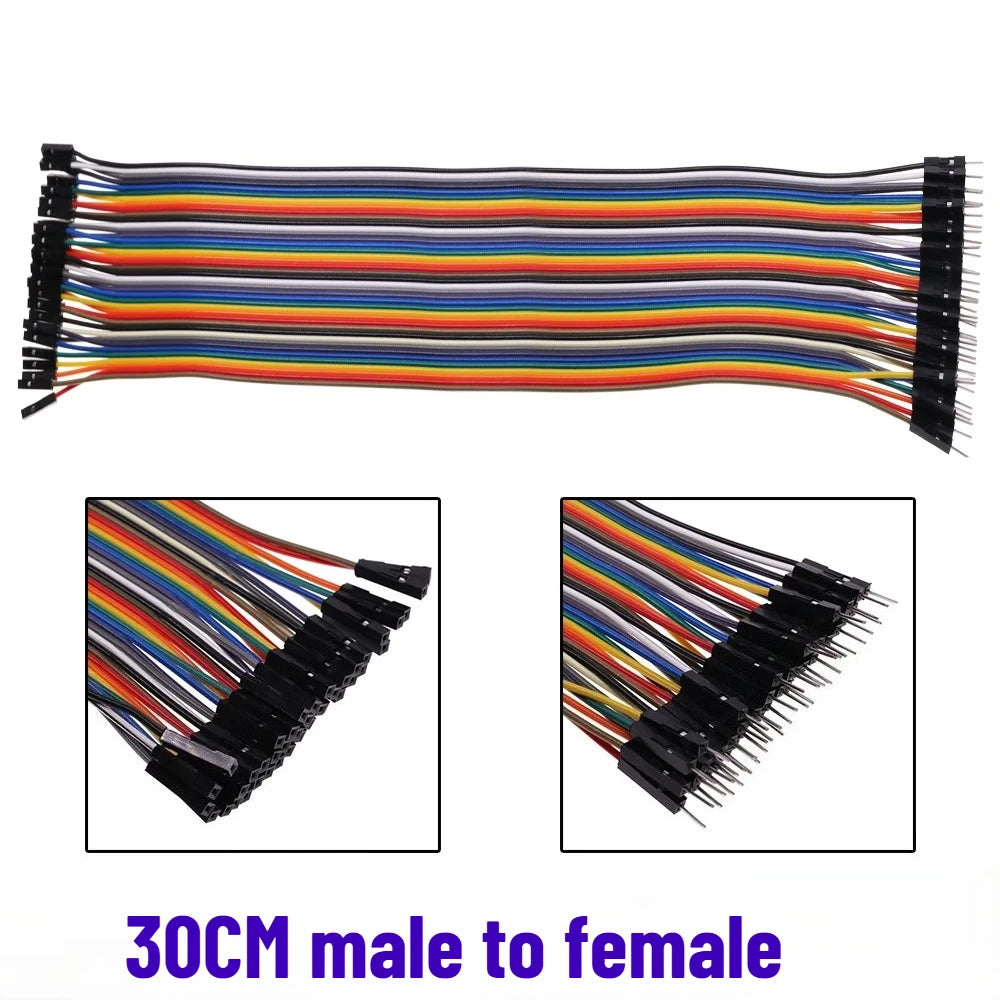

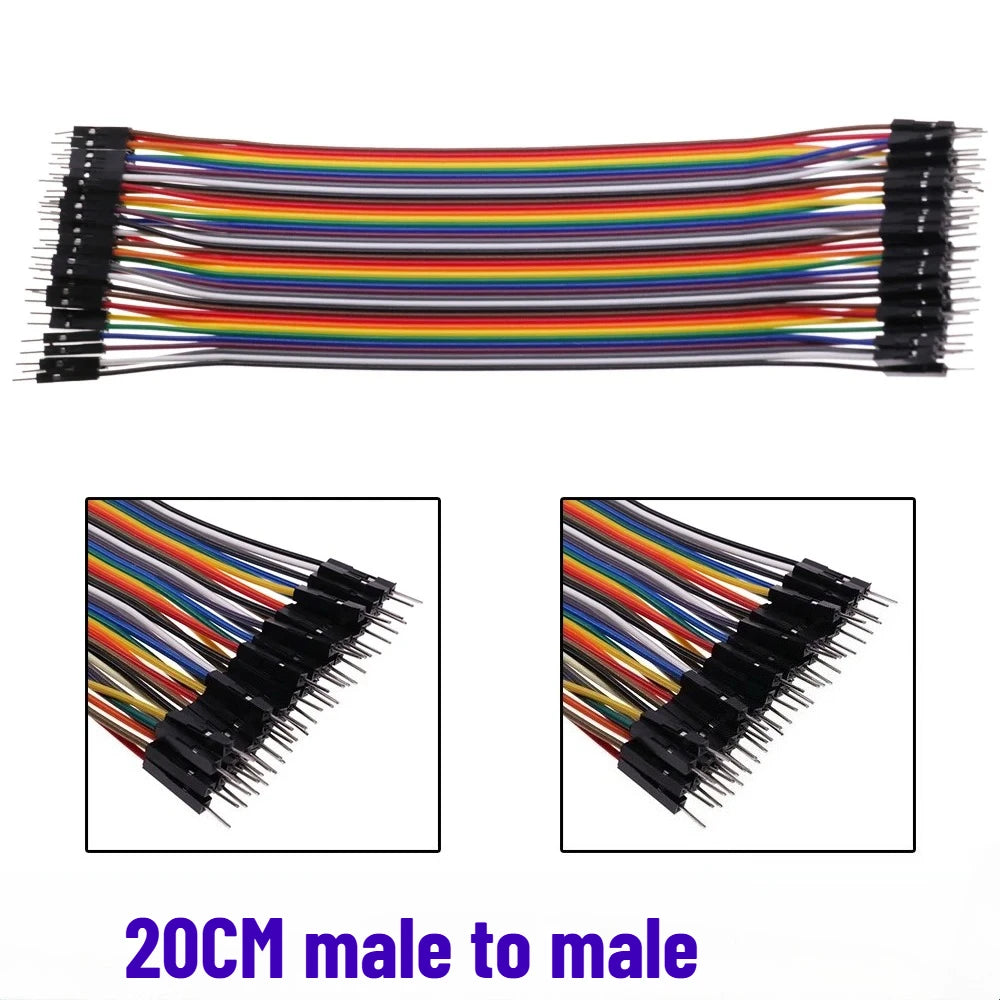

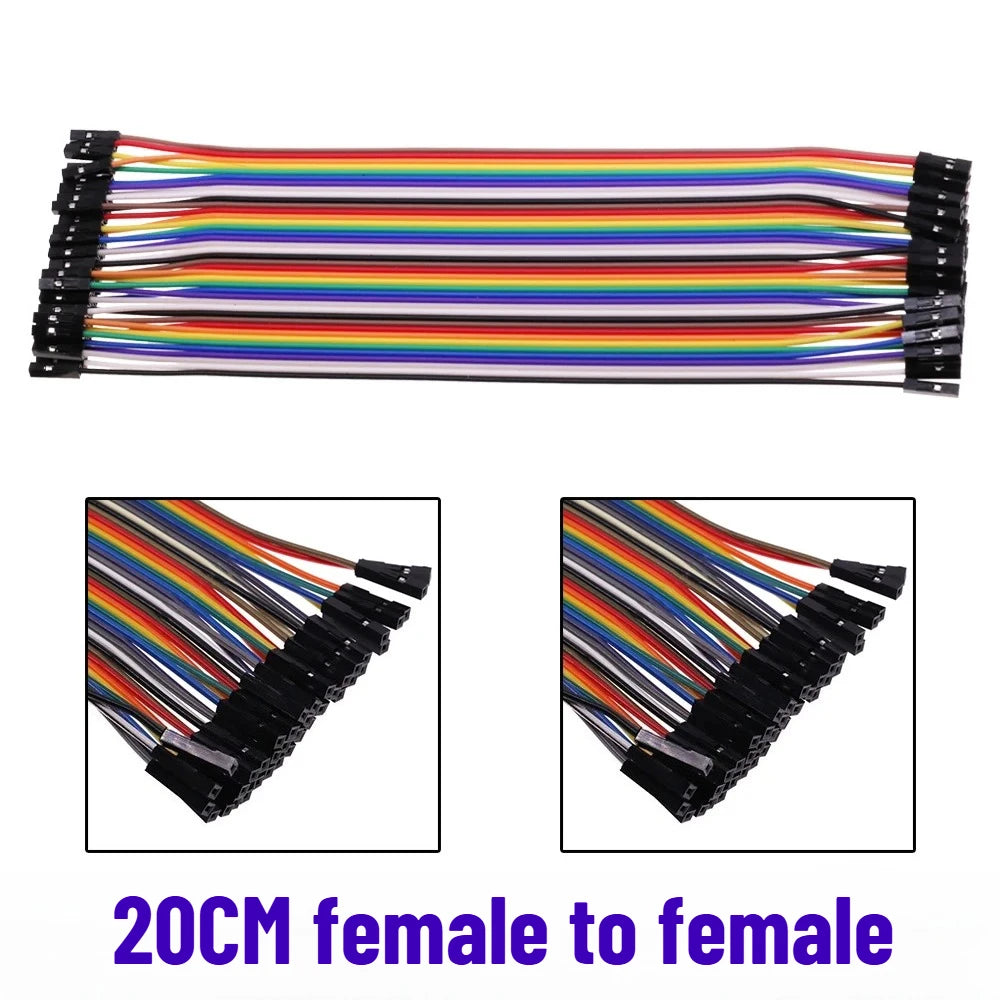

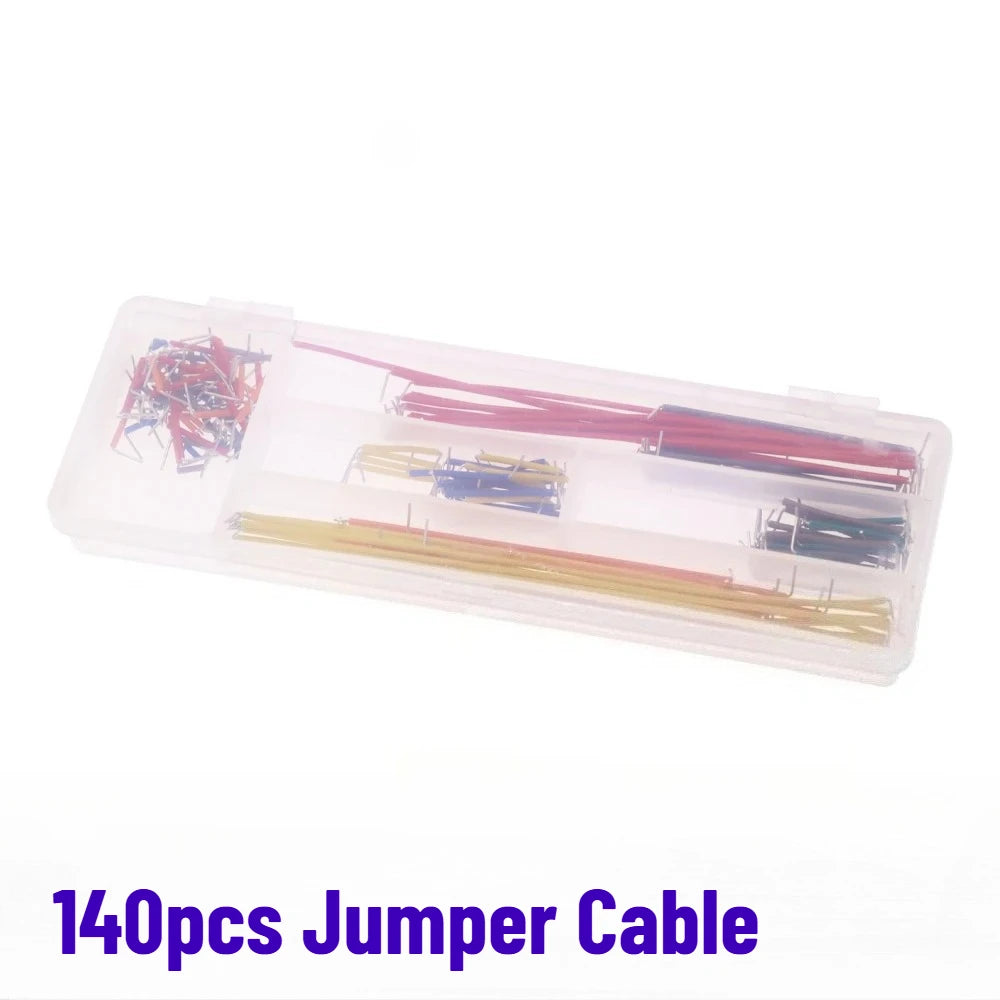

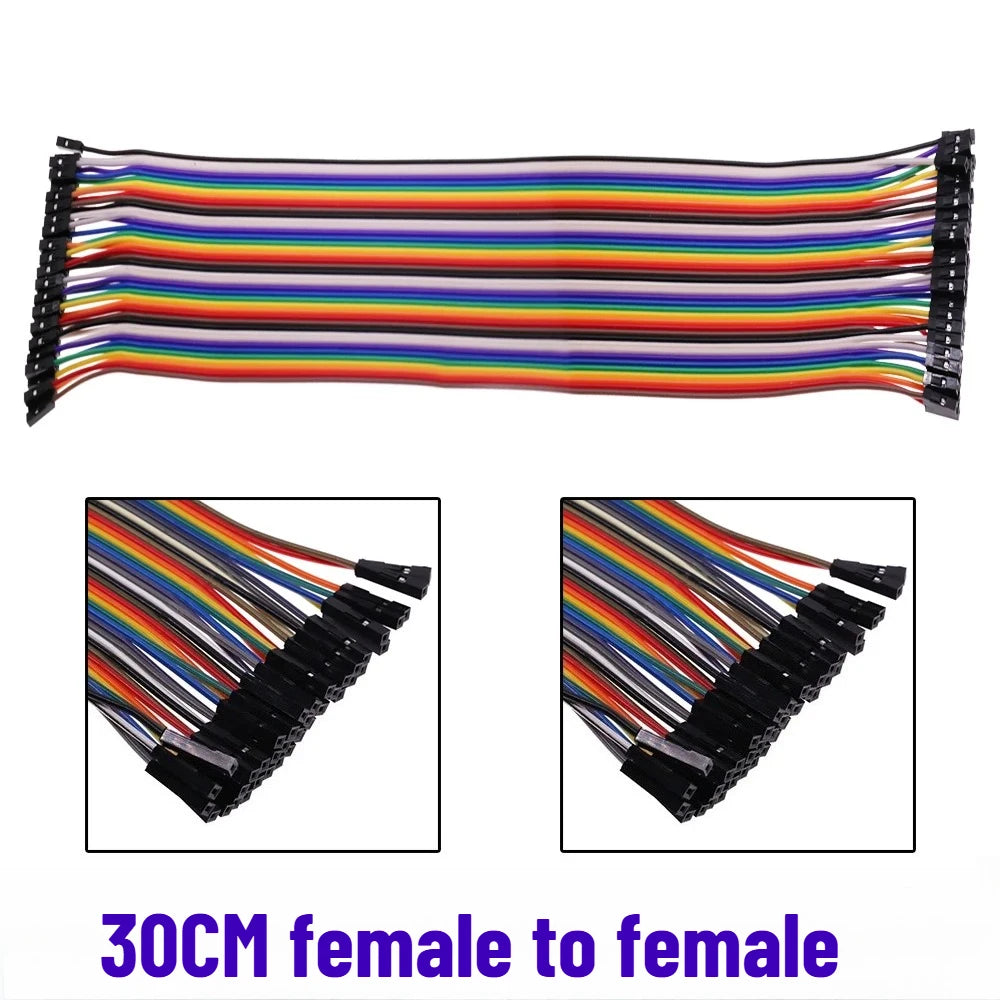

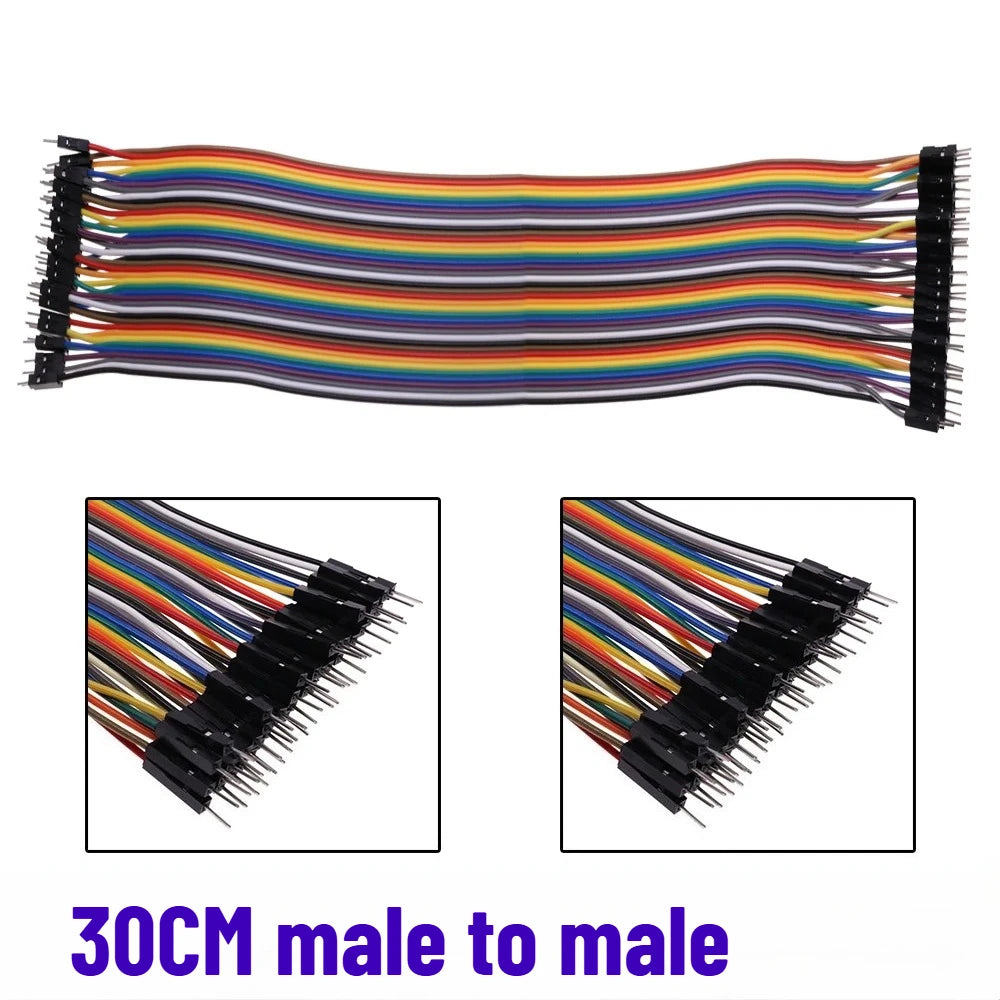

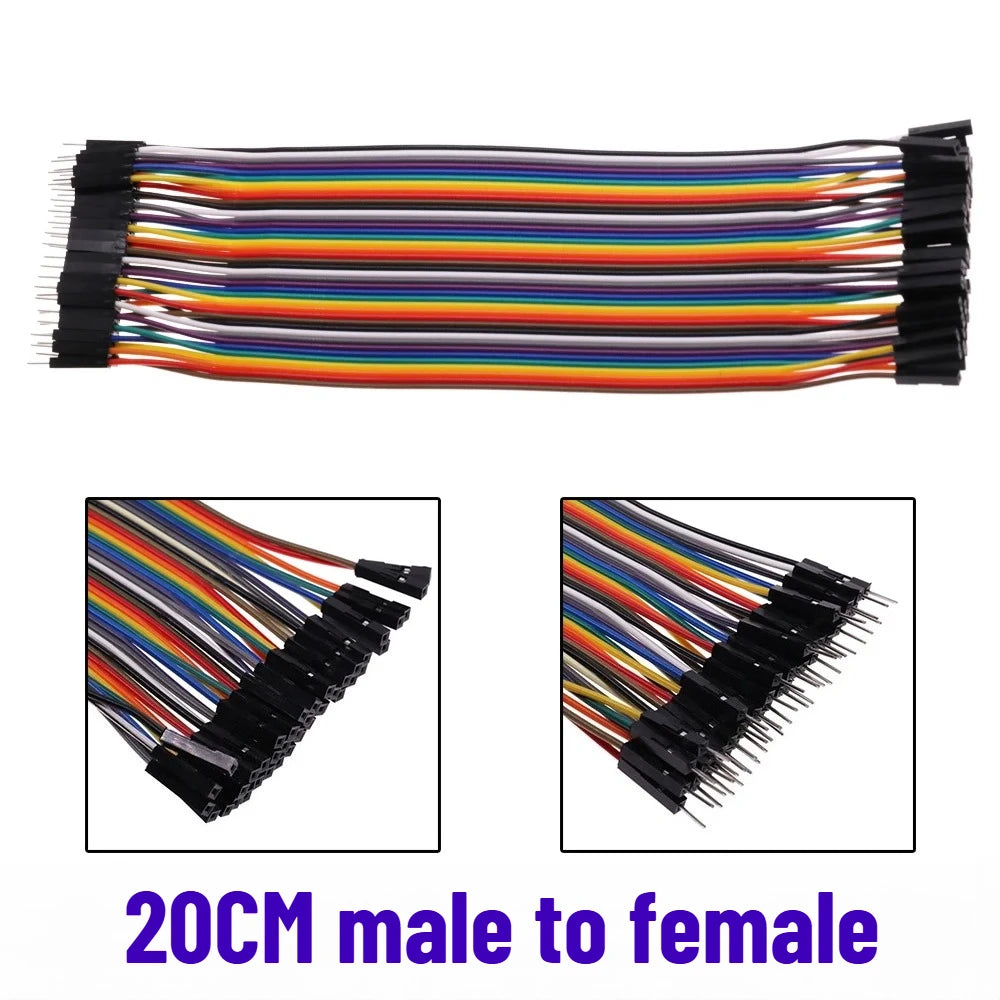

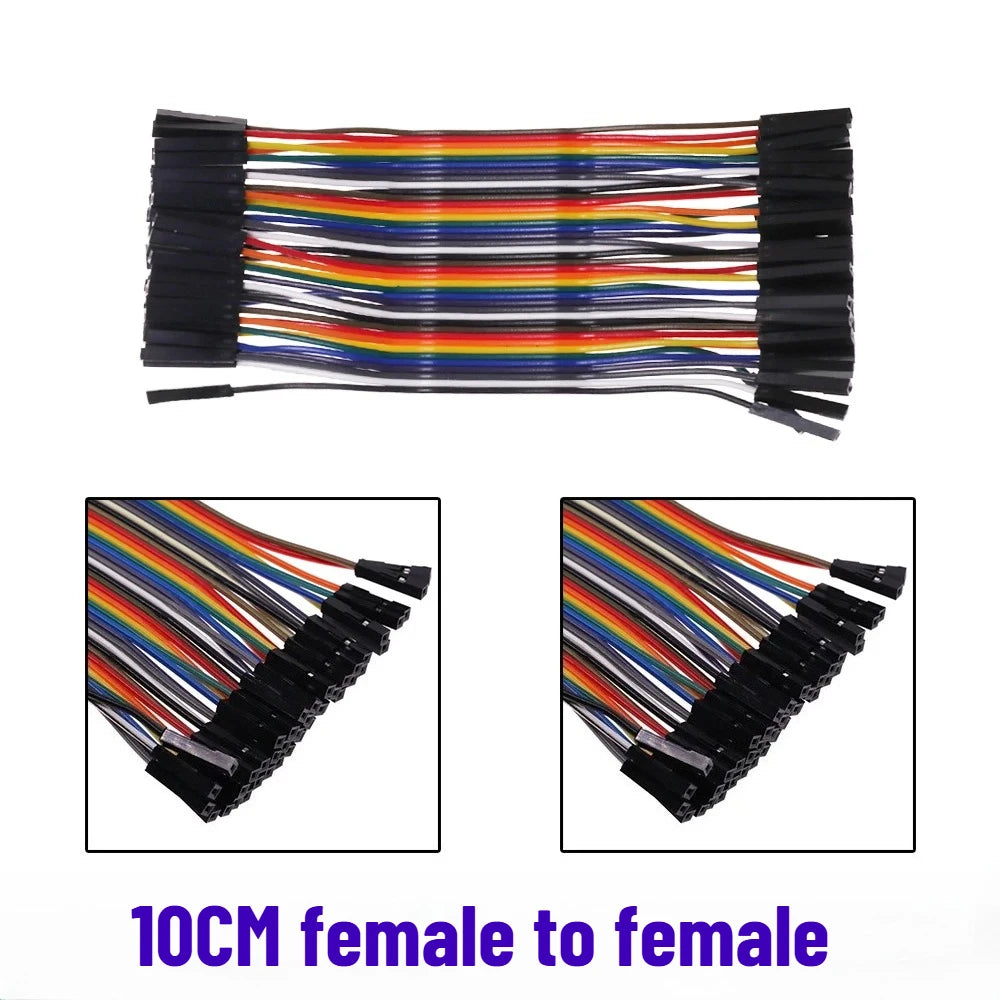

Breadboard jumper wires (bundle of 65 pieces) and DuPont cables (10cm, 20cm, 30cm lengths) available.
Product Features:
Premium materials, corrosion-resistant, high conductivity, precision craftsmanship, solderless design, convenient for debugging.
