SPECIFICATIONS

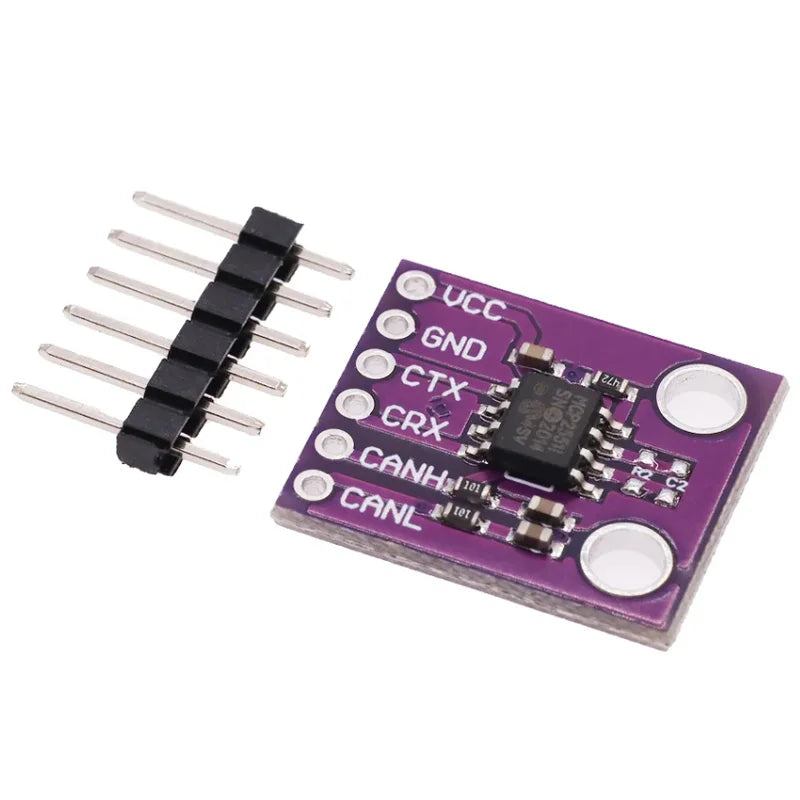

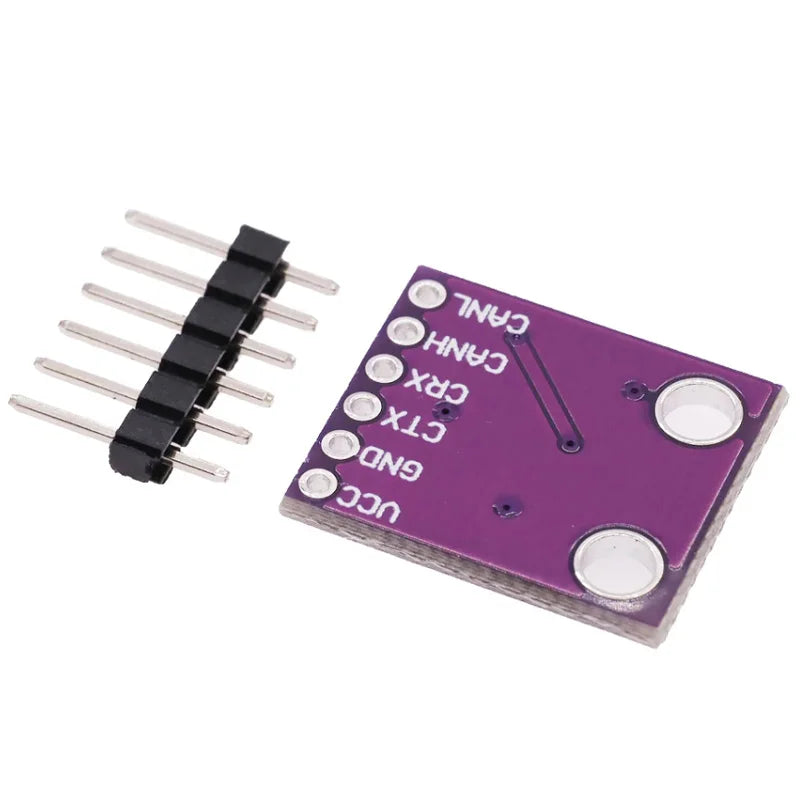

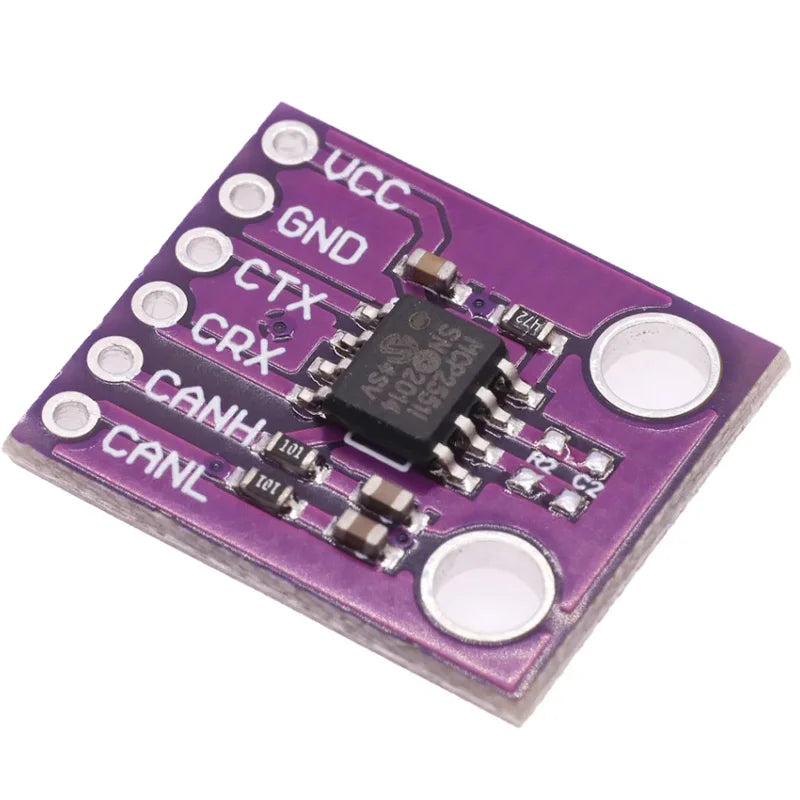

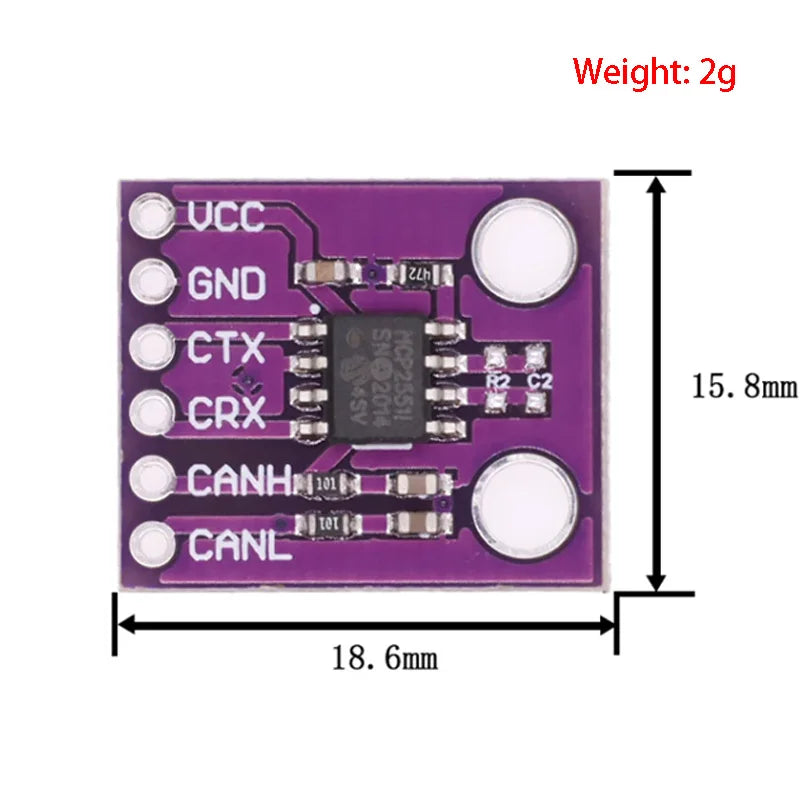

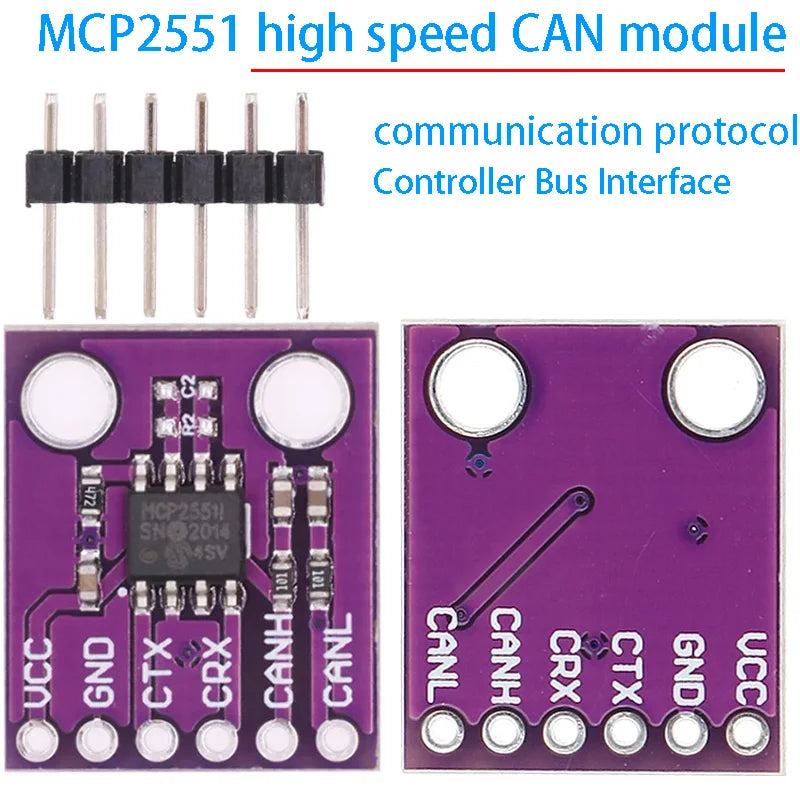

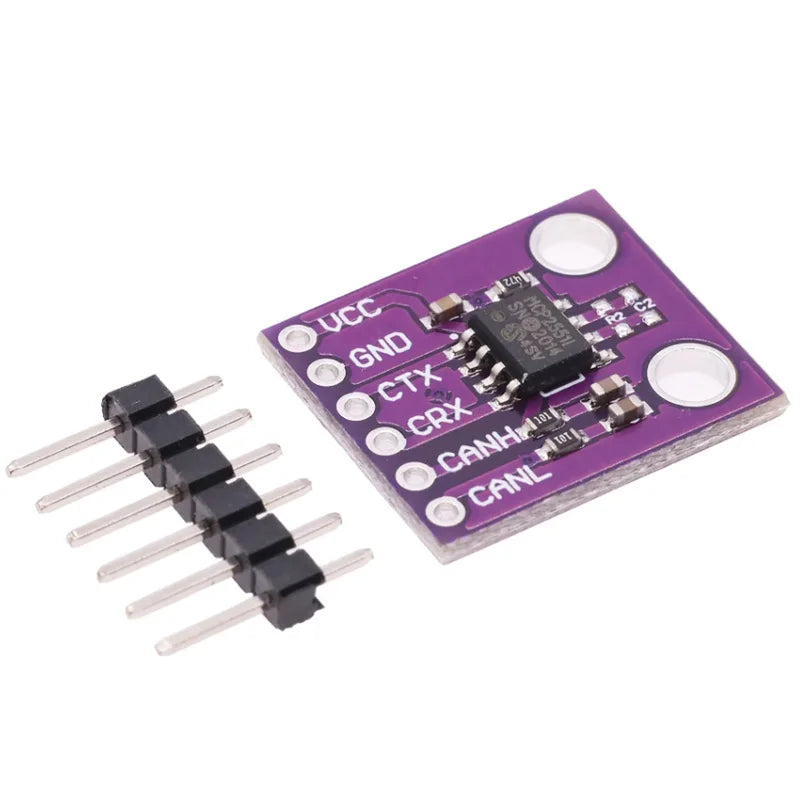

CJMCU-2551 is a fault-tolerant, high-speed CAN devices can be used as CAN protocolcontroller and the physical bus interface. MCP2551 provides differential receivecapability to the CAN protocol controller, which is fully in line with lSO-11898standards, including energy 24V requirements.

Typically, each node on the CAN system must have a device, the digital signal isconverted into CAN controller generates a signal for bus transport. lt also provideshigh voltage spikes between CAN controller and CAN bus joined the buffer, thesehigh-pressure spikes may be generated by an external device.

Support 1MB /S's run rate.

Meet the lSO-11898 standard physical layer requirements.

Suitable for 12V and 24V systems. Slope external control, reduce RFl.

Automatic detection TXD input ground fault.

Power-on reset and voltage brown-out protection.

Unpowered node or Brown will not affect CAN bus.

Low current standby operation.

* Up to 112 nodes can be connected
