SPECIFICATIONS

Application: Computer

Brand Name: Liludin

Condition: New

Dissipation Power: Standard

High-concerned chemical: none

Operating Temperature: -45 - 85℃

Origin: Mainland China

Package: DIP

Supply Voltage: 2.7V to 5.5V supply

Type: Logic ICs

is_customized: Yes

Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.

CJMCU-I2C DAC Breakout - MCP4725 module development board

The MCP4725 is a 12-channel buffered voltage output DAC with non-volatile memory (EEPROM) of. The user can configure the register bit (2) and DAC input data (12) stored in nonvolatile EEPROM (14-bit) memory. By setting the configuration register bits DAC can be configured as a normal mode or power-saving shutdown mode. The device uses a two-wire I2C-compatible serial interface, and a voltage range of 2.7V to 5.5V single supply.

Description: You've always wanted to output analog voltages from a microcontroller, the MCP4725 is the DAC that will let you do it The CJMCU-MCP4725 is an I2C controlled Digital-to-Analog converter (DAC) A DAC allows you to!. send analog signal, such as a sine wave, from a digital source, such as the I2C interface on the microcontroller. Digital to analog converters are great for sound generation, musical instruments, and many other creative projects!

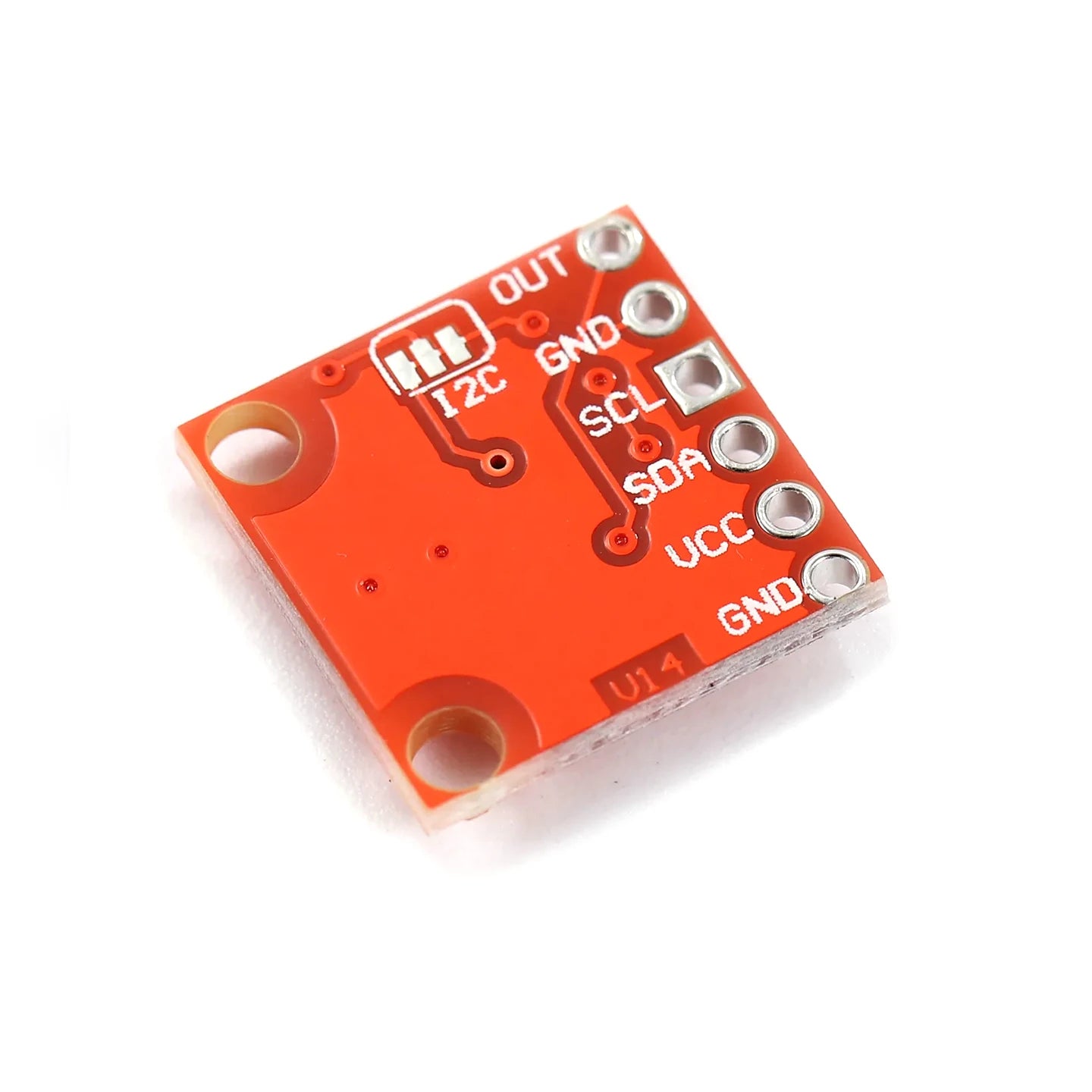

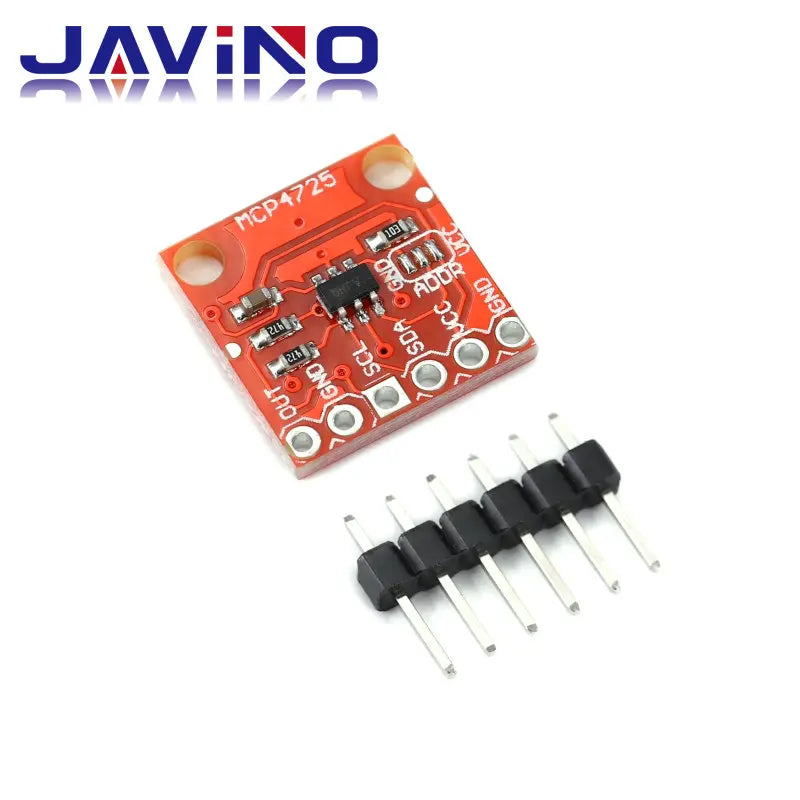

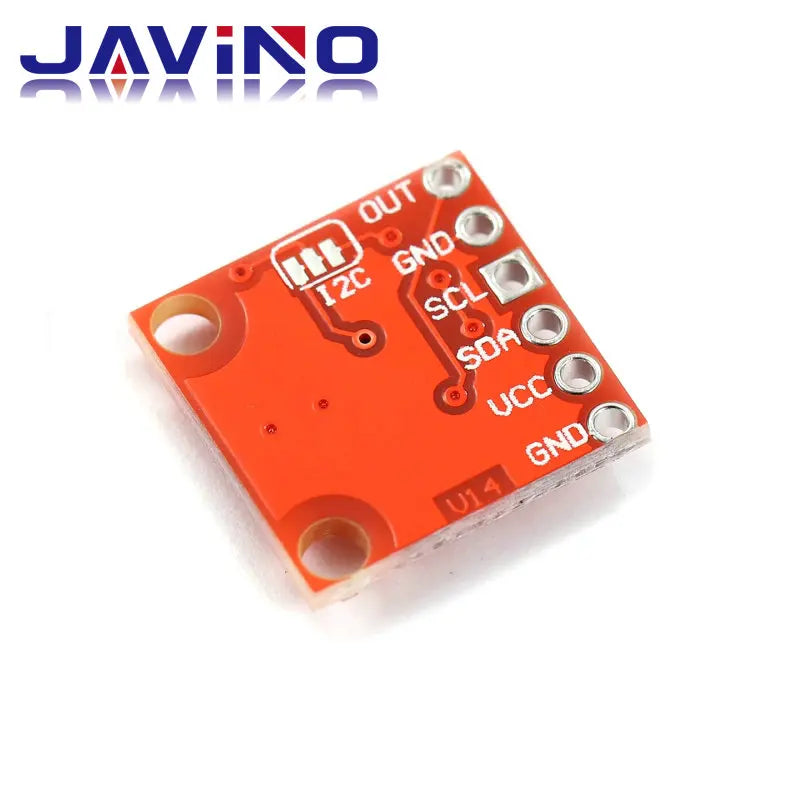

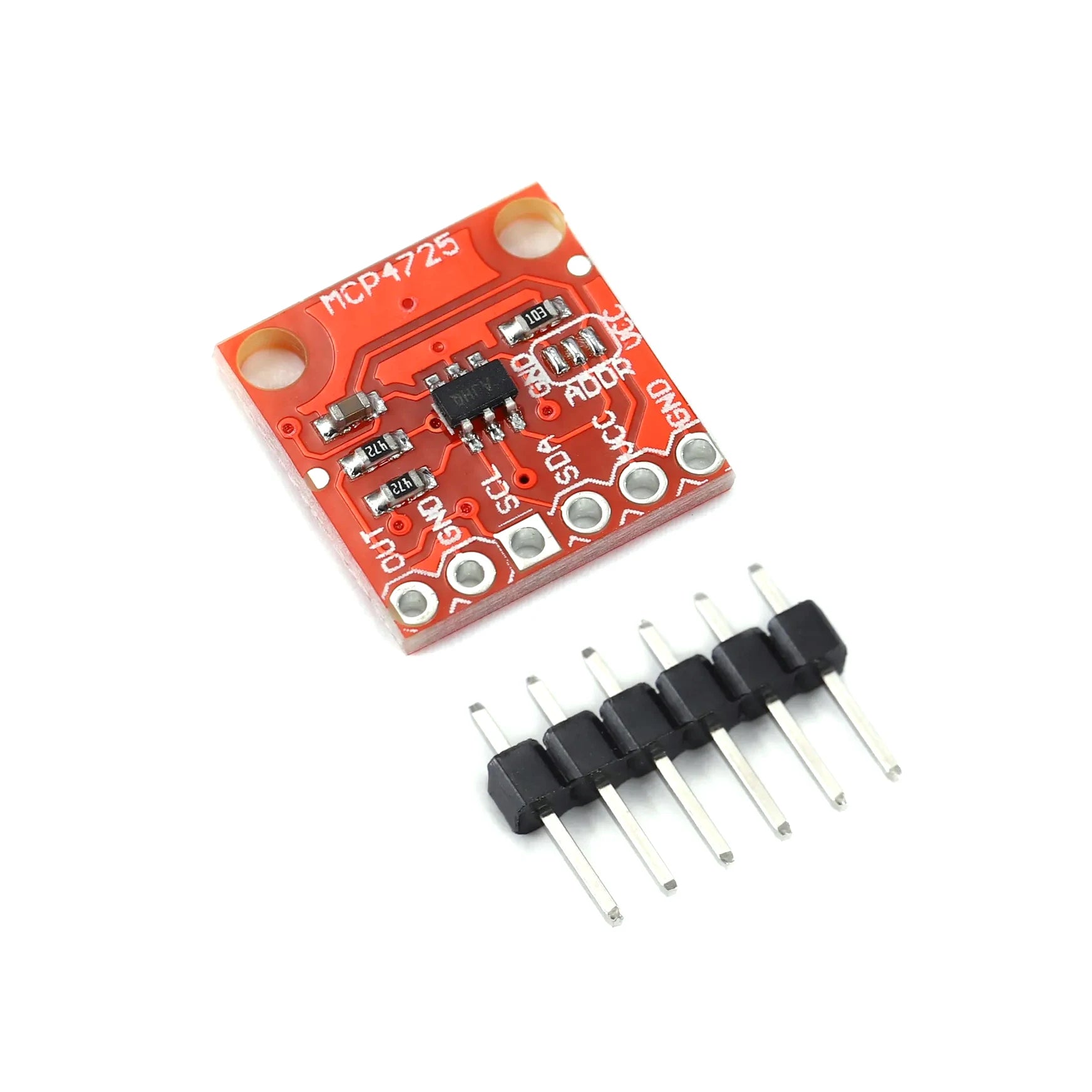

This version of the CJMCU-MCP4725 Breakout fixes a few issues with the board including the IC footprint, the I2C pinout, changes the overall board dimensions to better fit your projects, and a few more minor tweaks. This board breaks out each pin you will need to access and use the MCP4725 including GND and Signal OUT pins for connecting to an oscilloscope or any other device you need to hook up to the board. Also on board are SCL, SDA, VCC, and another GND for your basic I2C pinout. Additionally, if you are looking to have more than one MCP4725 on a bus, the pull-up resistors on this board can be disabled just check the Hookup Guide in the Documents section below for instructions and tips on doing this.

Features:

12-bit resolution

I2C Interface (Standard, Fast, and High-Speed supported)

Small package

2.7V to 5.5V supply

Internal EEPROM to store settings
