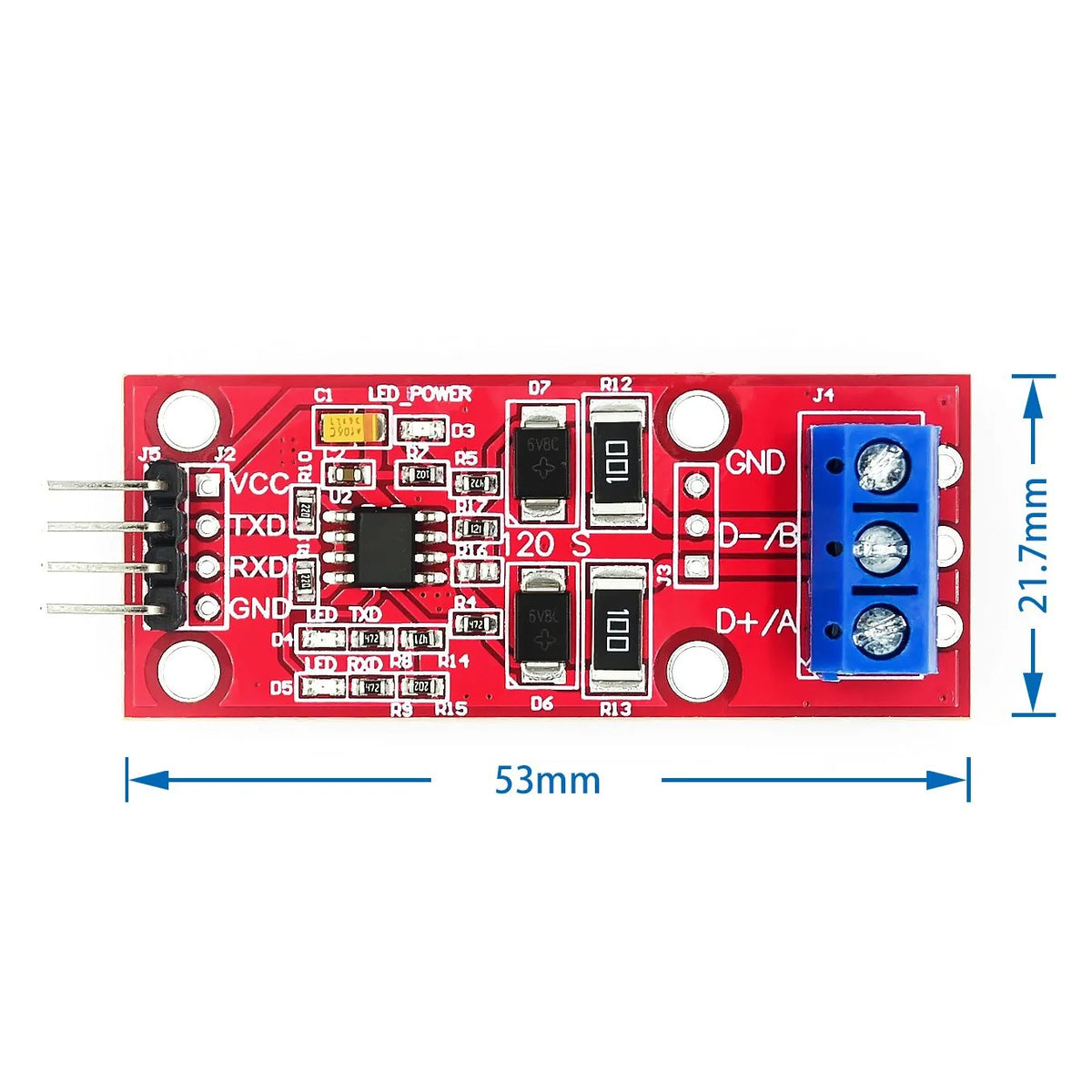

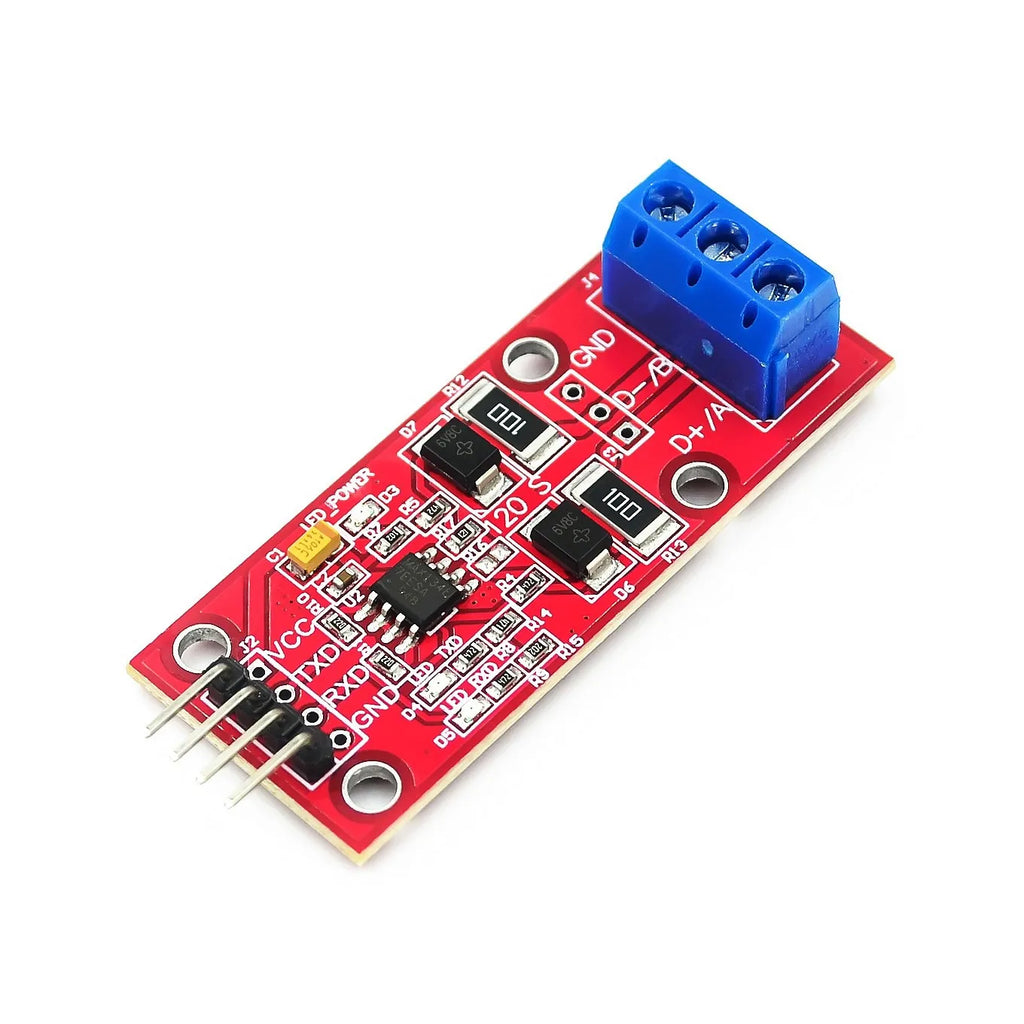

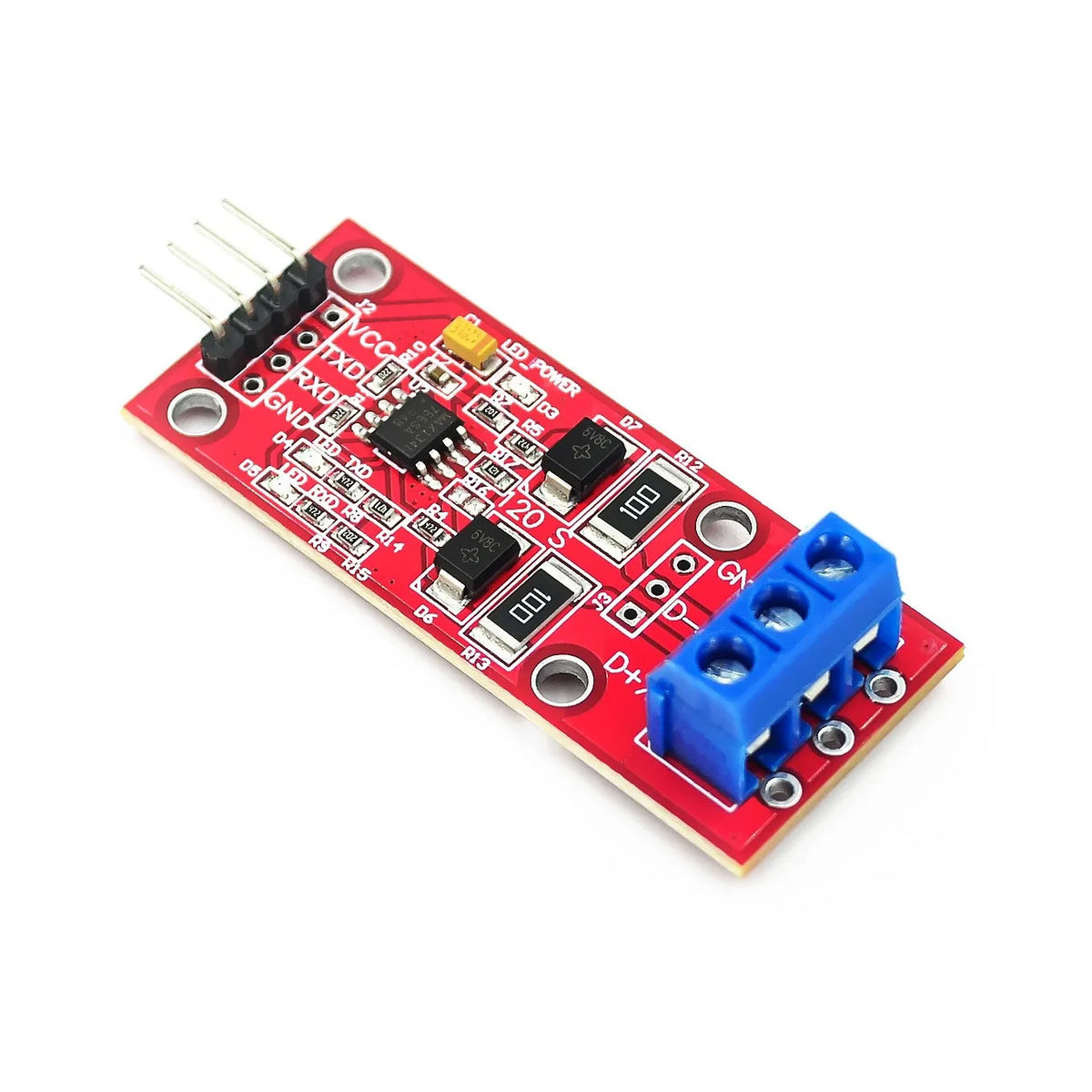

SPECIFICATIONS

This module features:

All the chips we guarantee are brand new imported industrial-grade chips, which can reach a distance of thousands of meters.

The ESD protection with plus or minus 15KV

3, chip driver is set rate, reduce EMI, and reduce caused by the improper matching cable terminal signal reflection, making the error-free signal transmission rate is as high as 500 KBPS.

A receiver that has a unit load of 1/4 is an impedance that supports multiple communication and allows for a bus that is connected to no more than 128 devices.

5, industrial-grade chips working temperature can reach to 40 ° to + 85 °.

6, this module can be hot plug, no other 485 chip heat plug is dead phenomenon.

The power supply is used with the tantalum electrolytic capacitor, and the double capacitor is used for high low-frequency power filtering

Using double transient suppression diode, the over-voltage protection performance is excellent

9, 10 Ω current protection resistance, patch designed to improve 485 signal integrity

It has terminals and welded lead holes, easy to debug and fixed wiring, and welding leads can improve the reliability of the signal

The RS485 and the TTL signal are all single-sided, ensuring the quality of the signal and improving signal integrity

Spread copper over large areas to prevent signal interference

It has 2.54 interval hole welded hole for your secondary development

It has the M3 screw hole which is quite commonly used now, and the installation is convenient and reliable

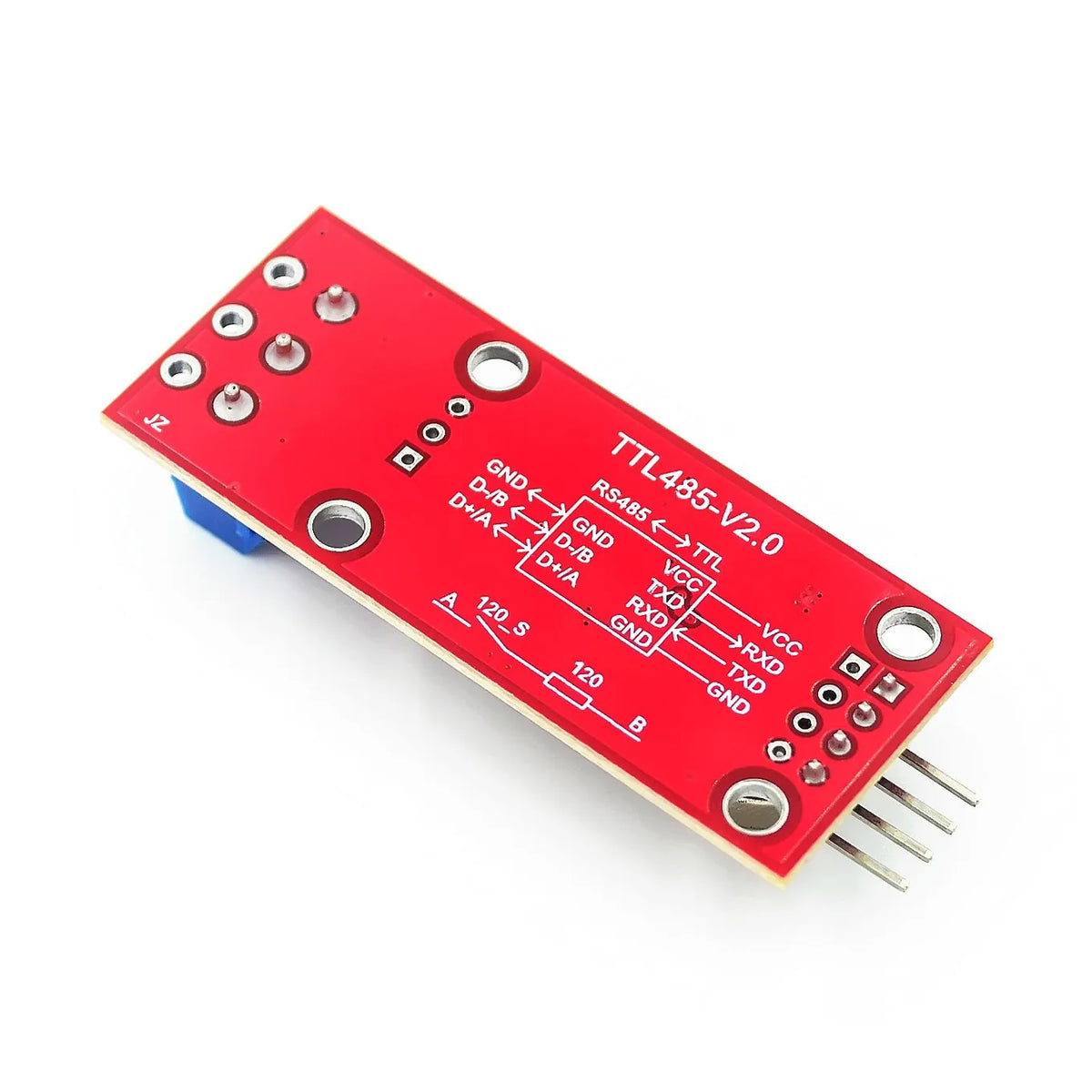

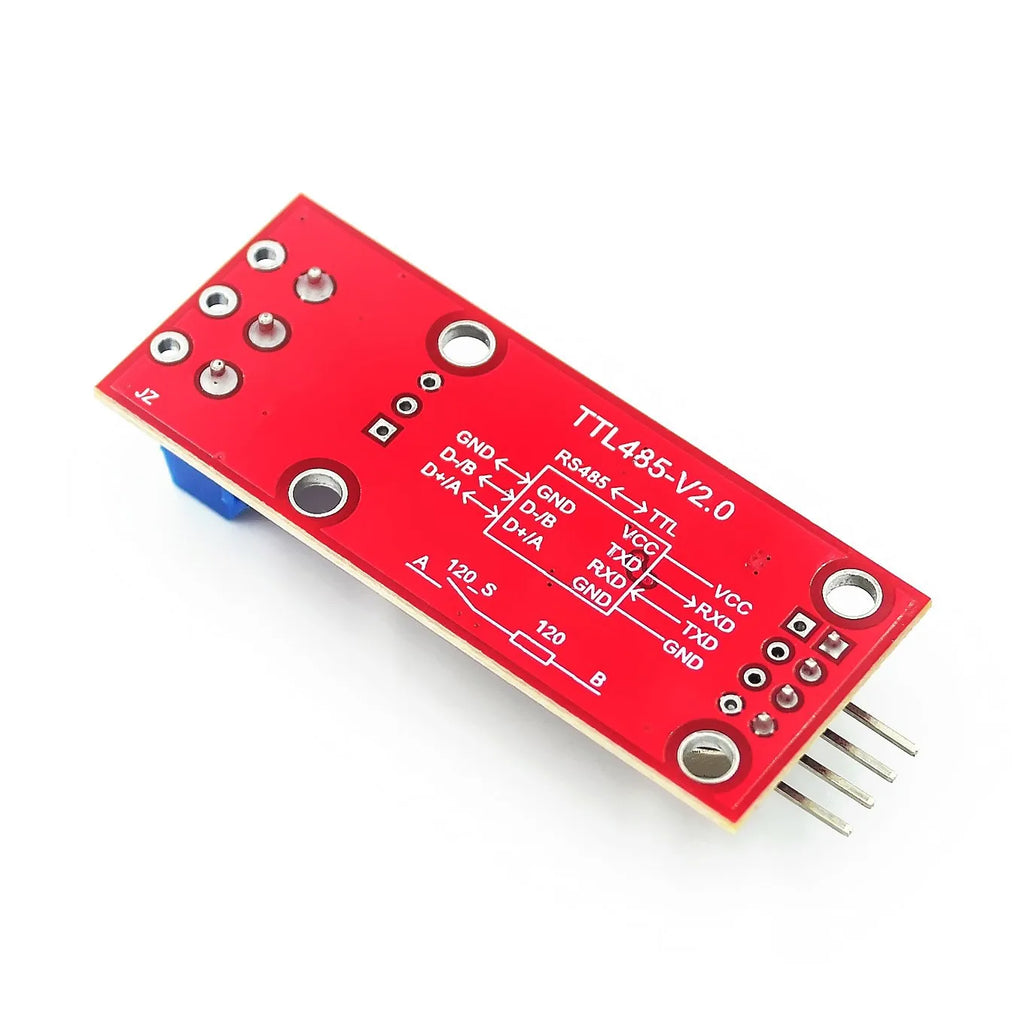

15, have 120 Ω termination resistor, can make short sub R16 can termination resistor

16, with power supply and RXD, TXD signal, receiving and receiving

The Angle pin is introduced to facilitate testing

Support 3.3 V and 5V signal control and compatibility
