Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Max. Forward Current: 150A

Max. Forward Voltage: 1000V

Max. Reverse Current: 150A

Max. Reverse Voltage: 1000V

Origin: Mainland China

Type: Rectifier Diode

Voltage: 220V

is_customized: Yes

semi_Choice: yes

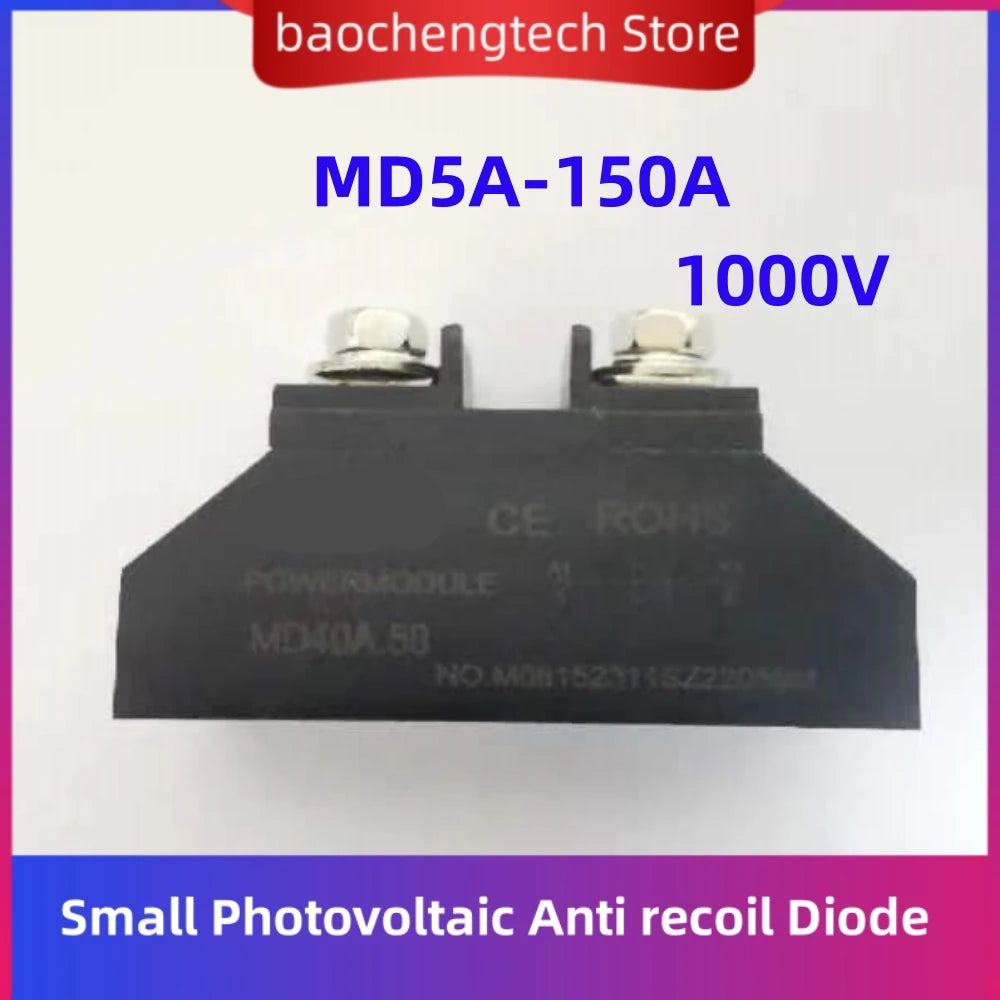

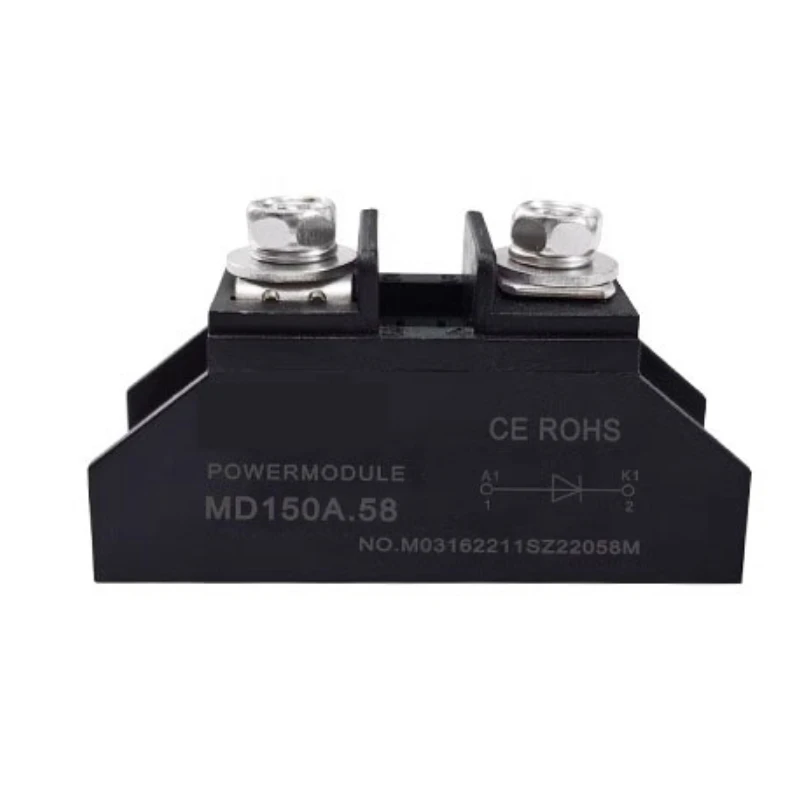

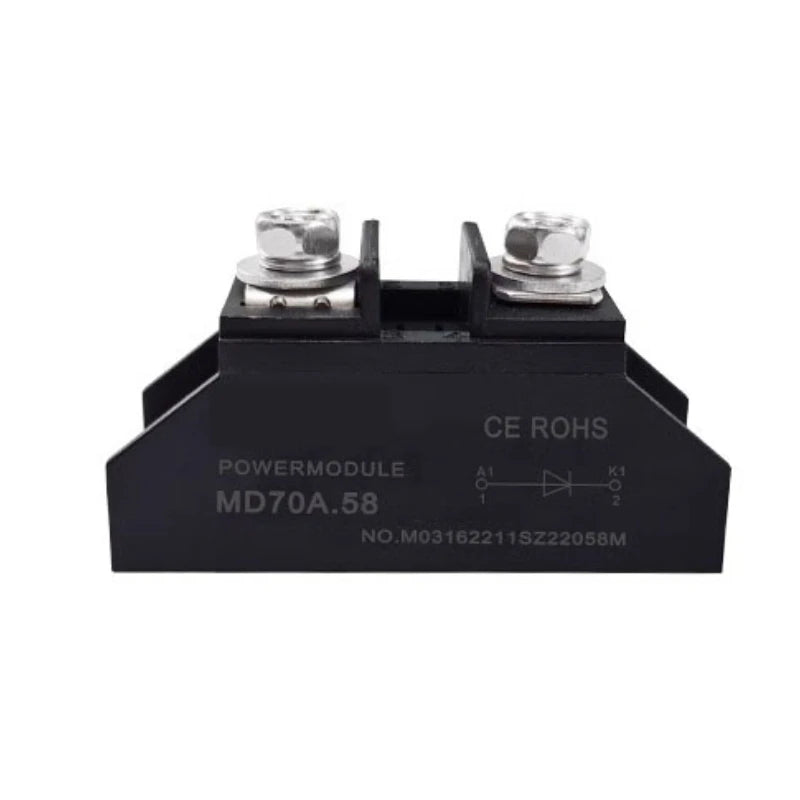

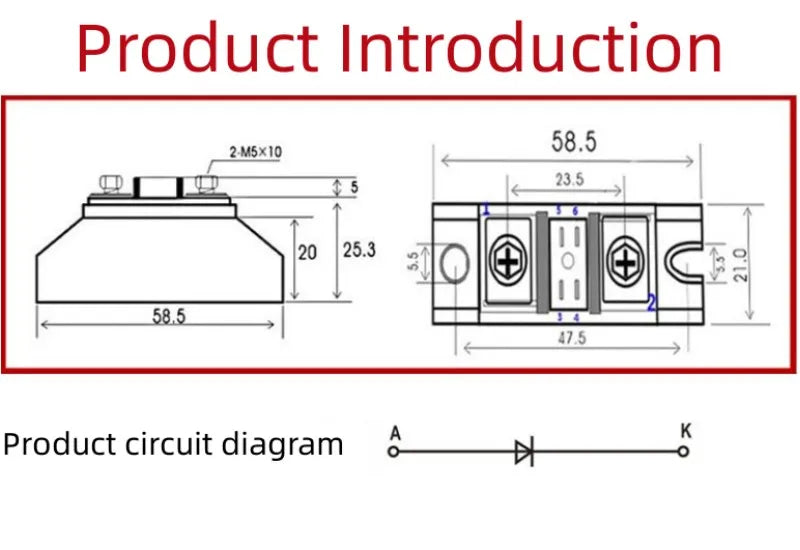

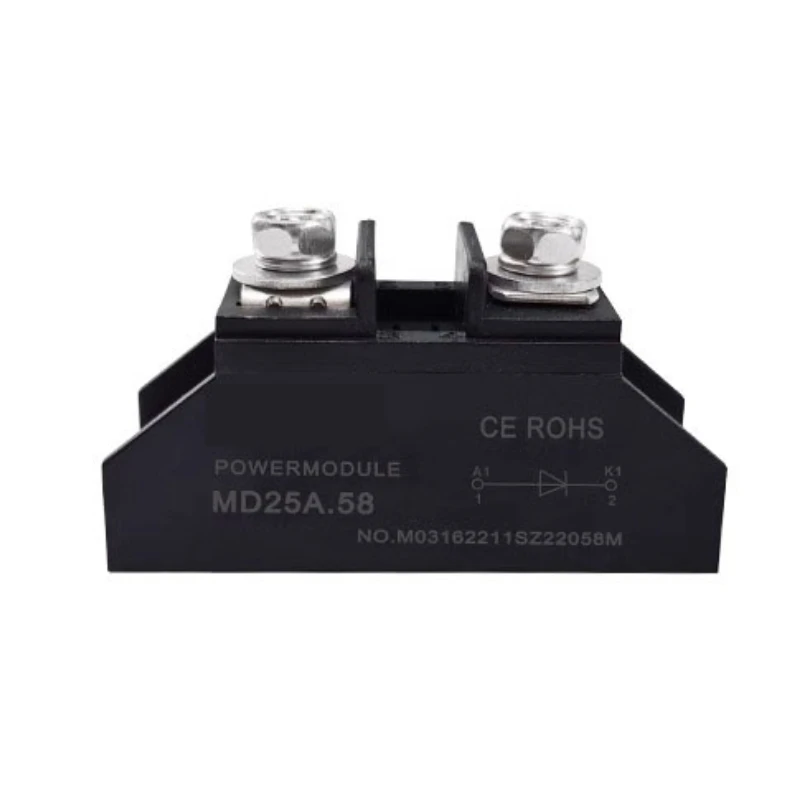

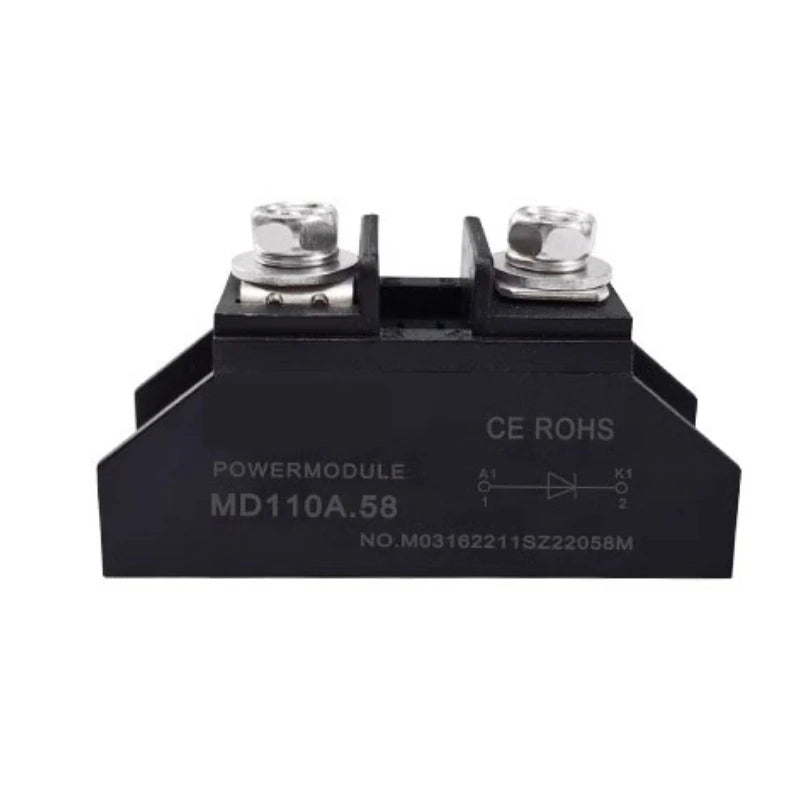

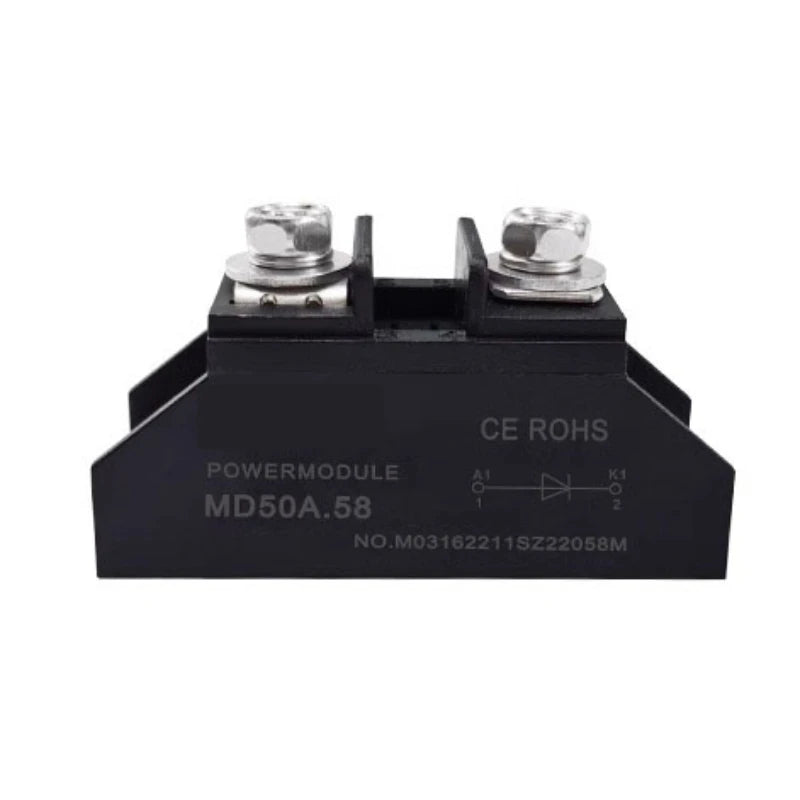

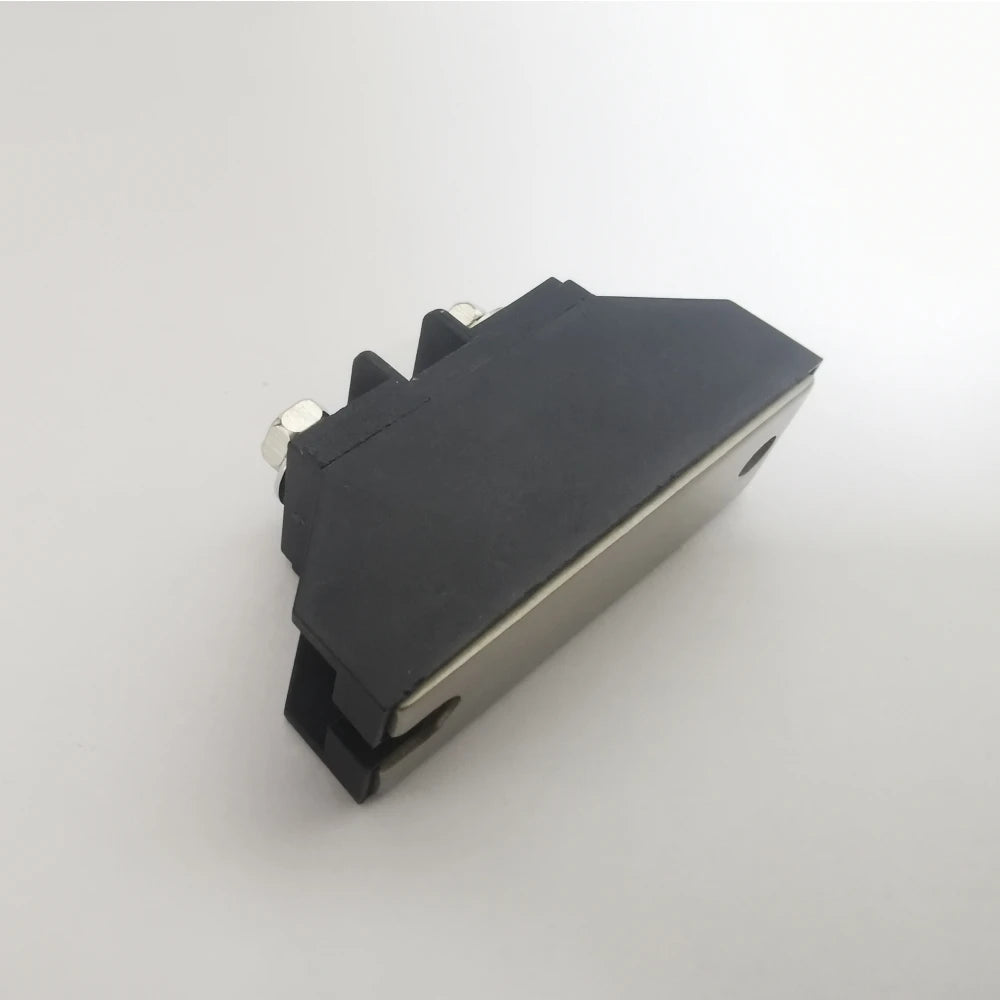

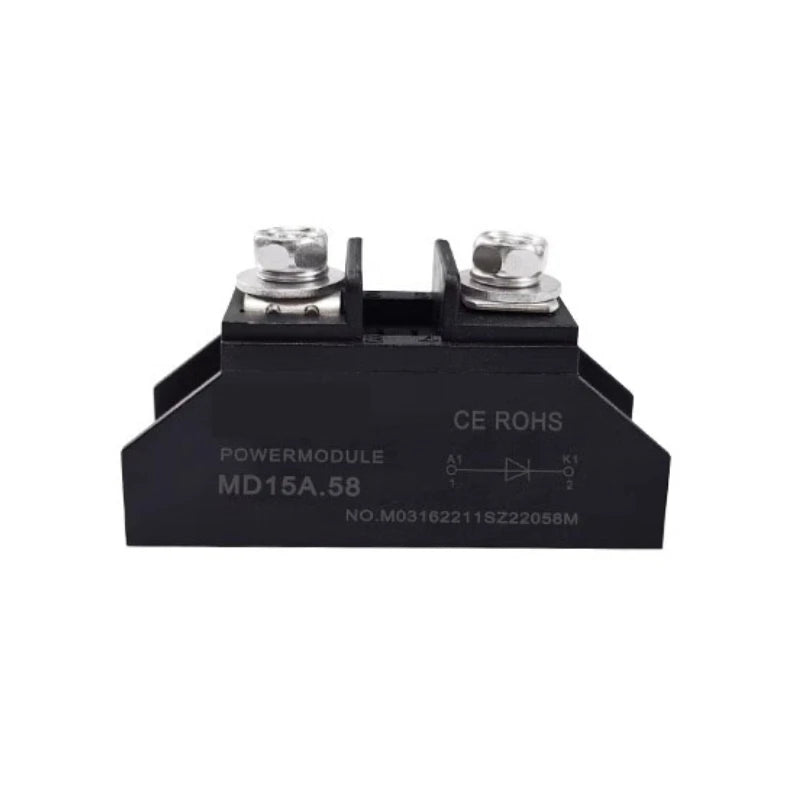

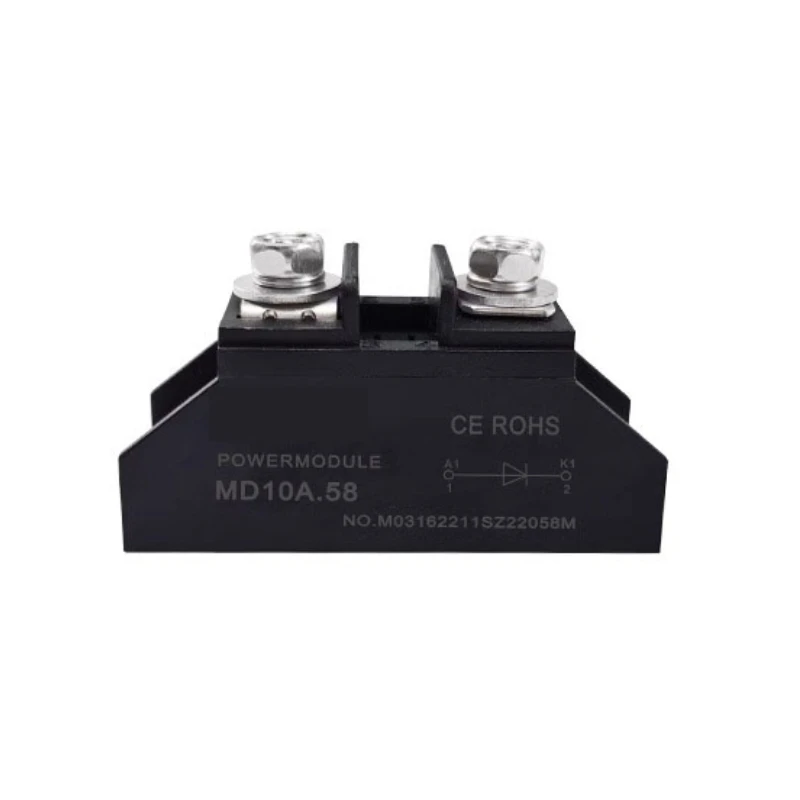

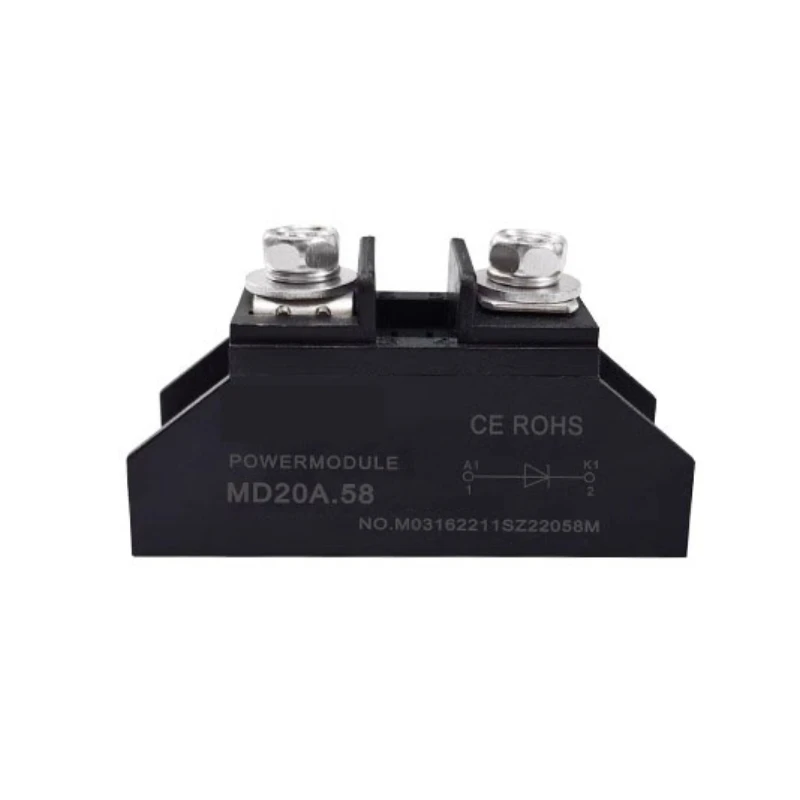

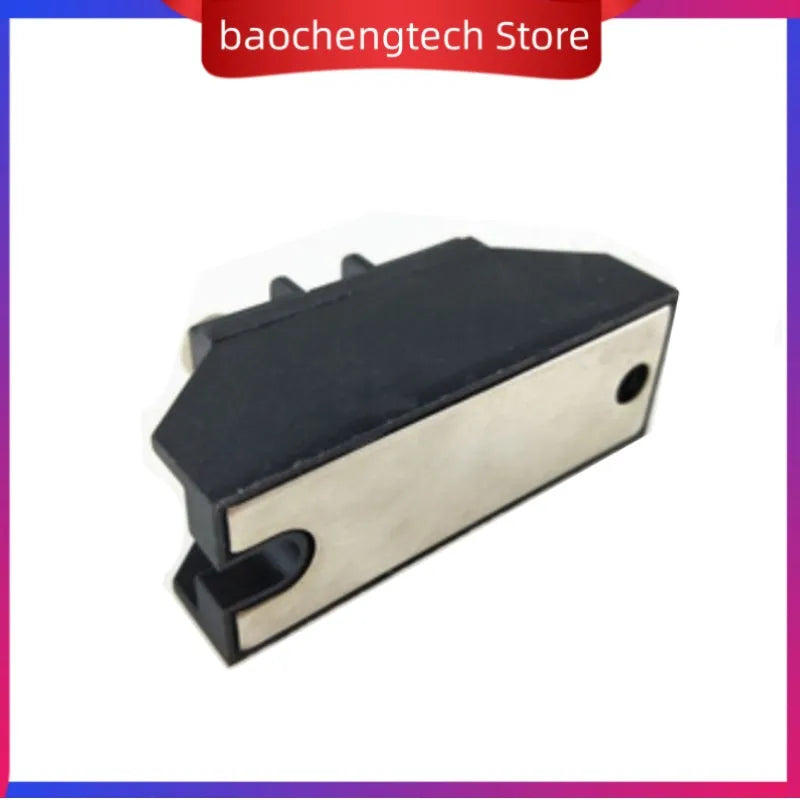

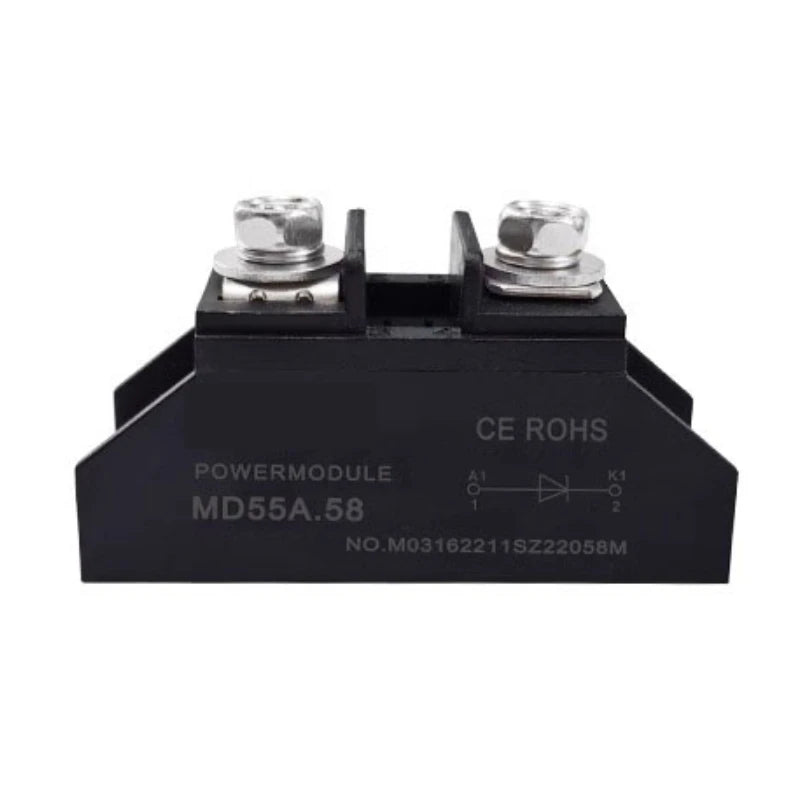

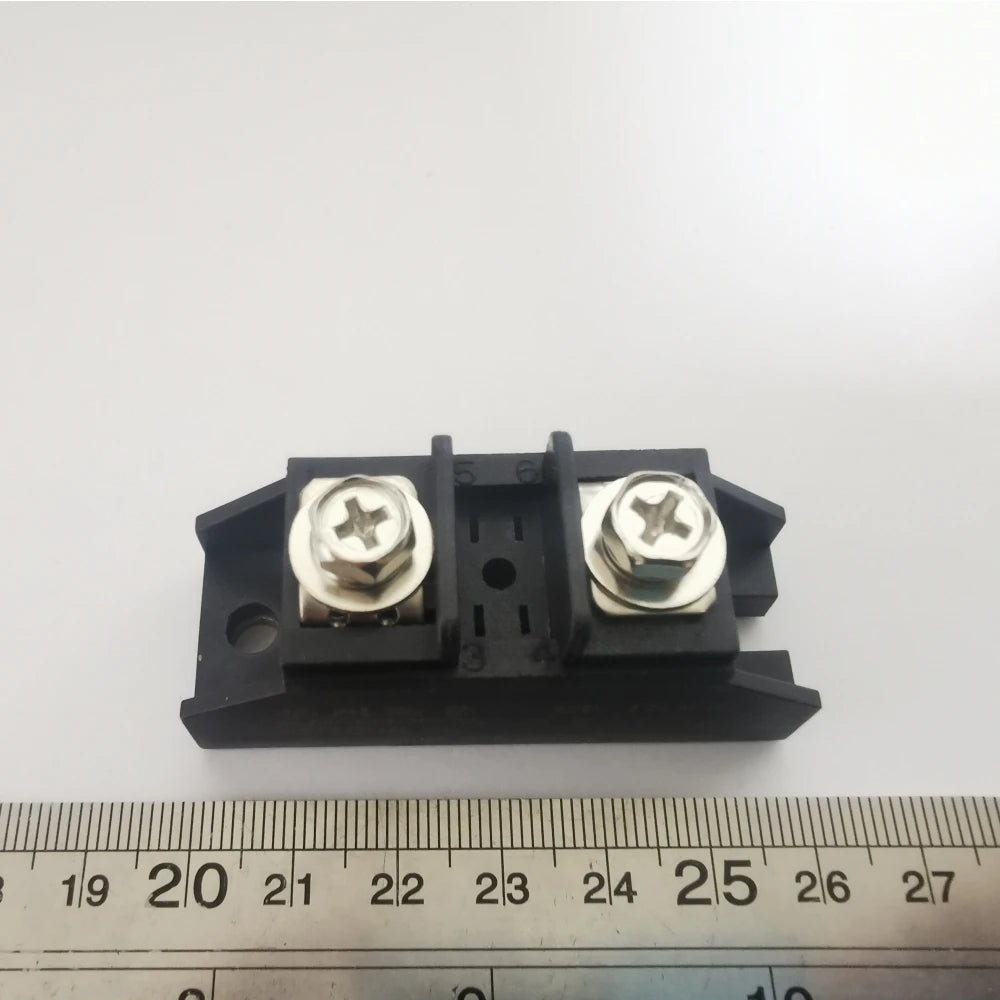

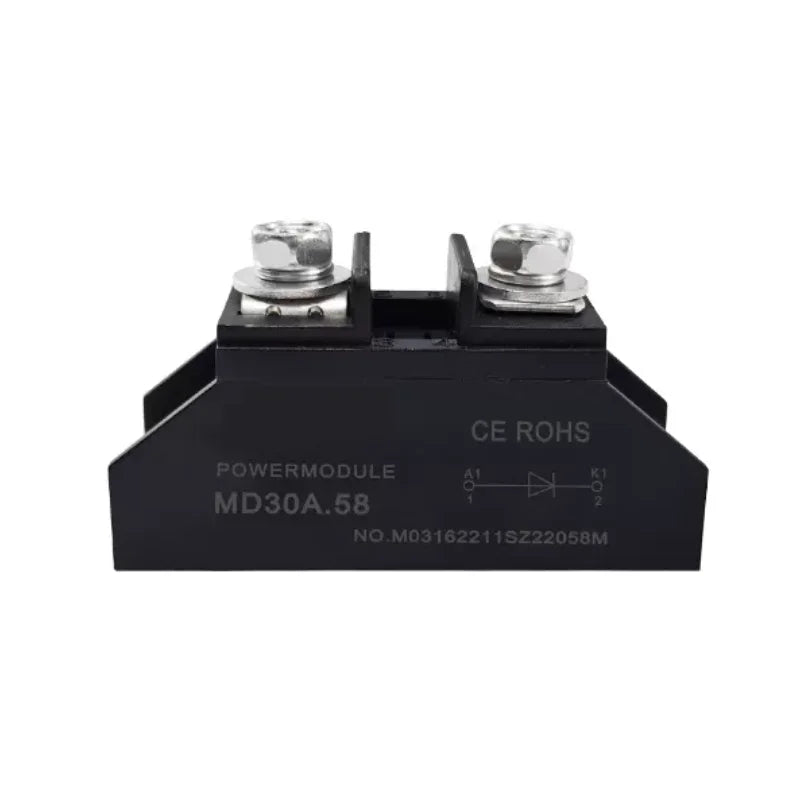

anti-reverse diode MD5A 10A 20A 25A 30A 40A 50A Afterflow 70A 100A 110A 150A 1000V Rectify M220.58 package

reminder

1. About product selection

The marked current of the power module is the average value of the on state, not the actual effective value of long-term operation. When selecting, sufficient margin should be left based on the actual working environment and conditions.

(1) Pure resistive load 2-2.5 times margin: actual current (A) × 2 (~2.5)=Module nominal current (A) (2) Inductive load 6-7 Signal margin: Actual current (A) × 6 (~7)=Module nominal current (A)

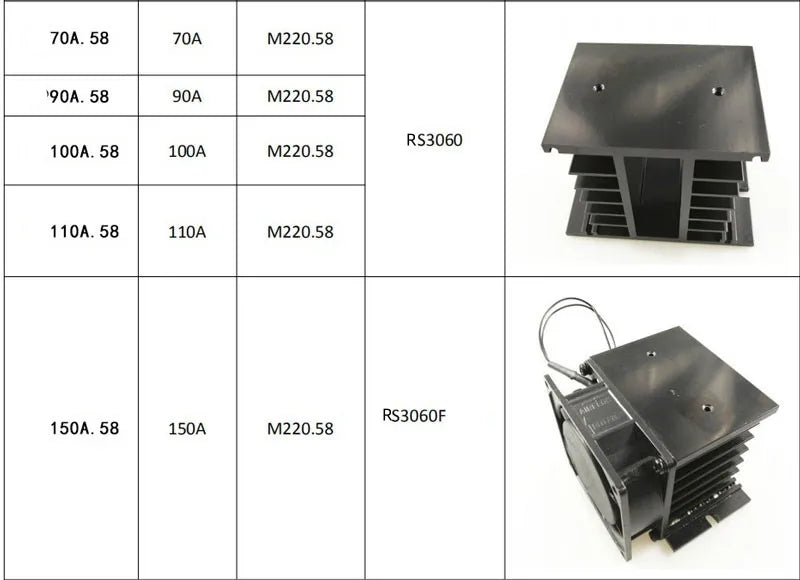

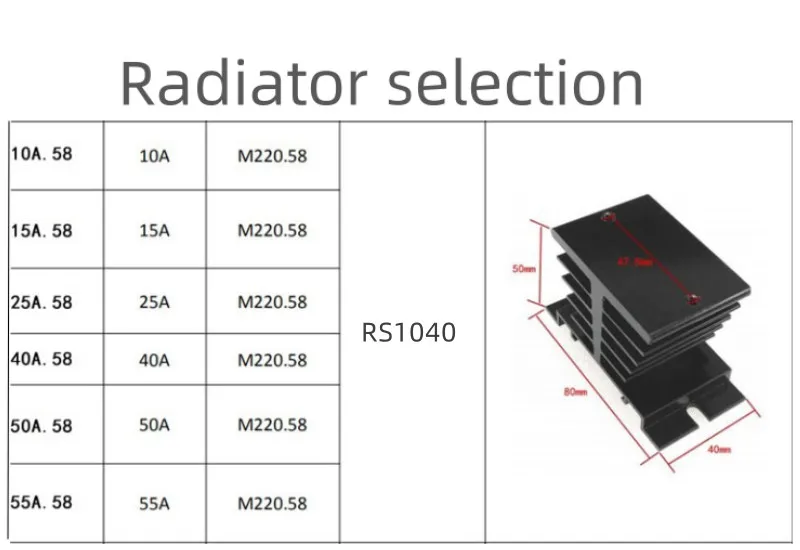

2. Radiator configuration

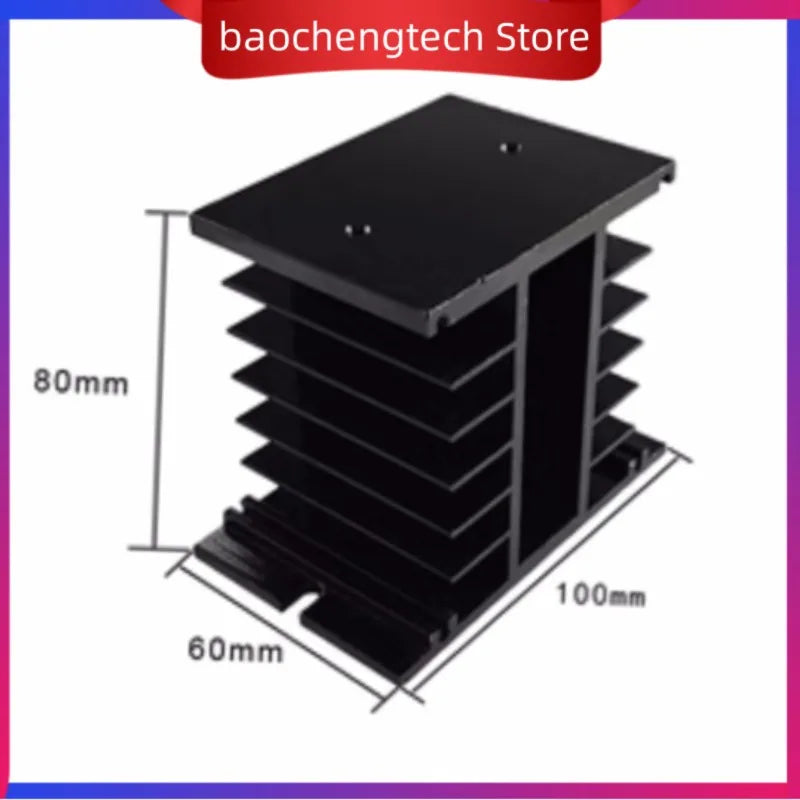

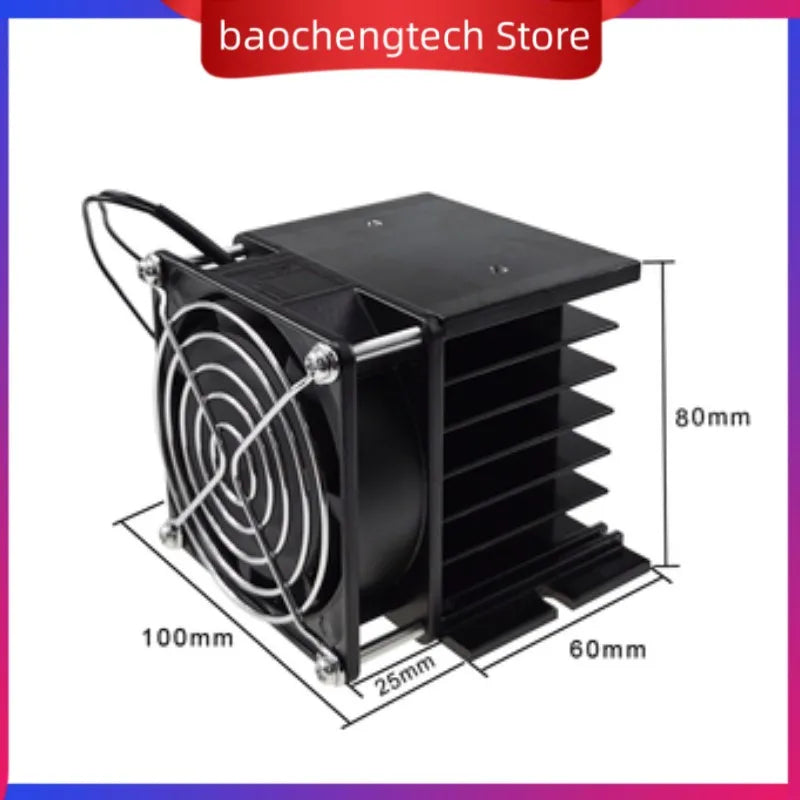

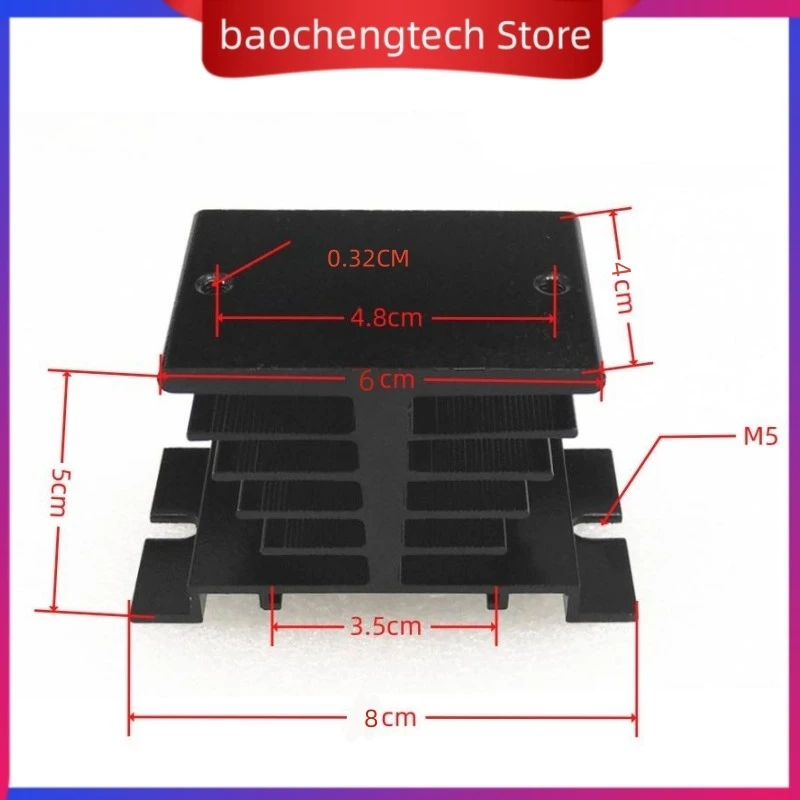

When the actual working current of the device is greater than 5A, please be sure to configure a suitable heat sink for use

3. Regarding the source of goods

Regular models are available in stock and can be sold directly. The default voltage of the product is 1000V. If you need customized orders for 12V, 24V, 600V, 1200, 1600V, or 1800V, please inform customer service of the order quantity and requirements, and confirm the delivery time with them. Mass customization with discounted prices. Thank you!
