SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Origin: Mainland China

semi_Choice: yes

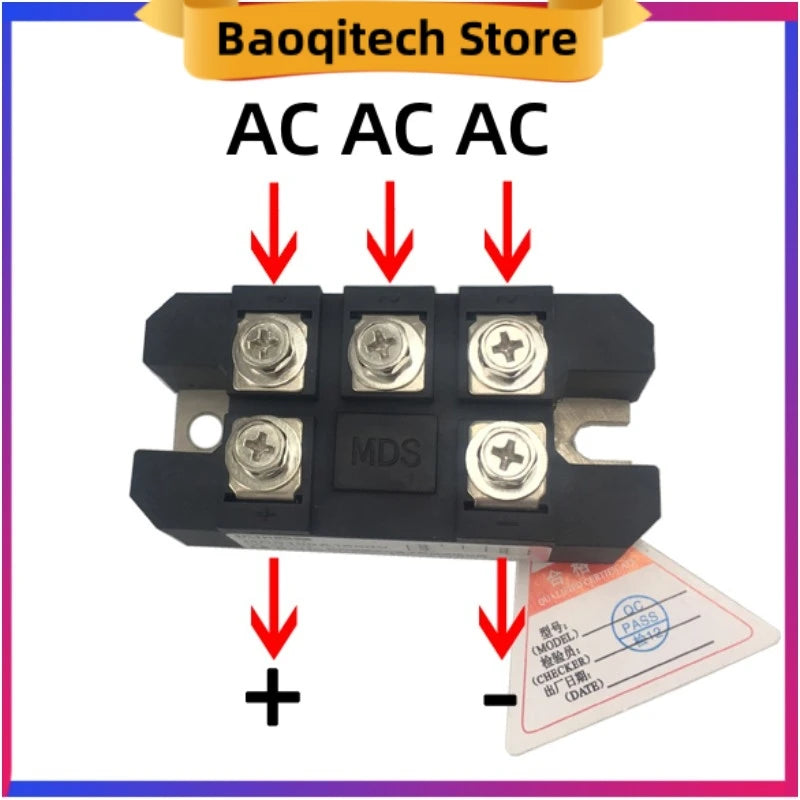

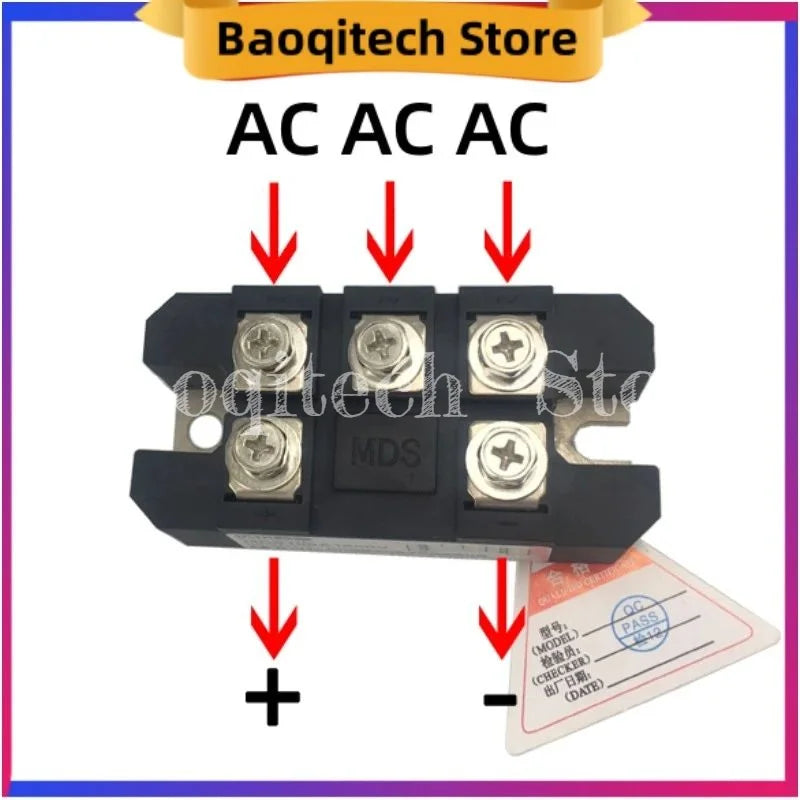

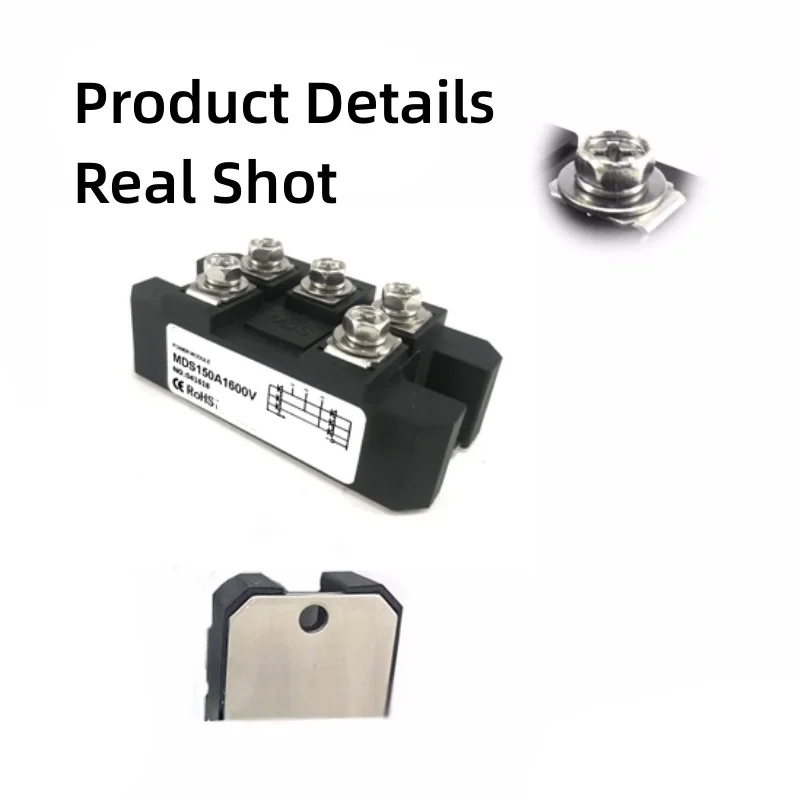

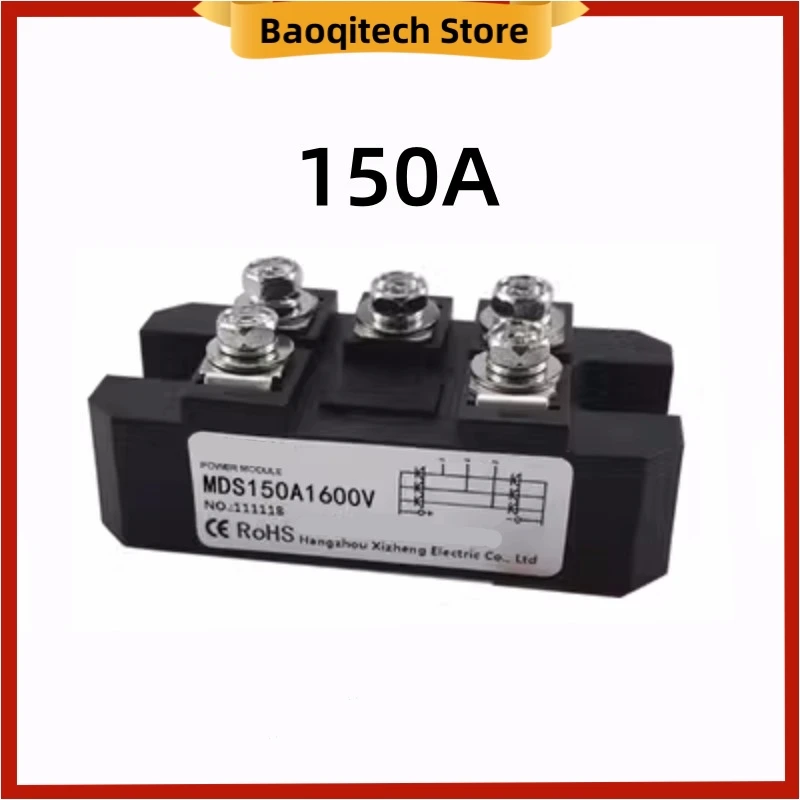

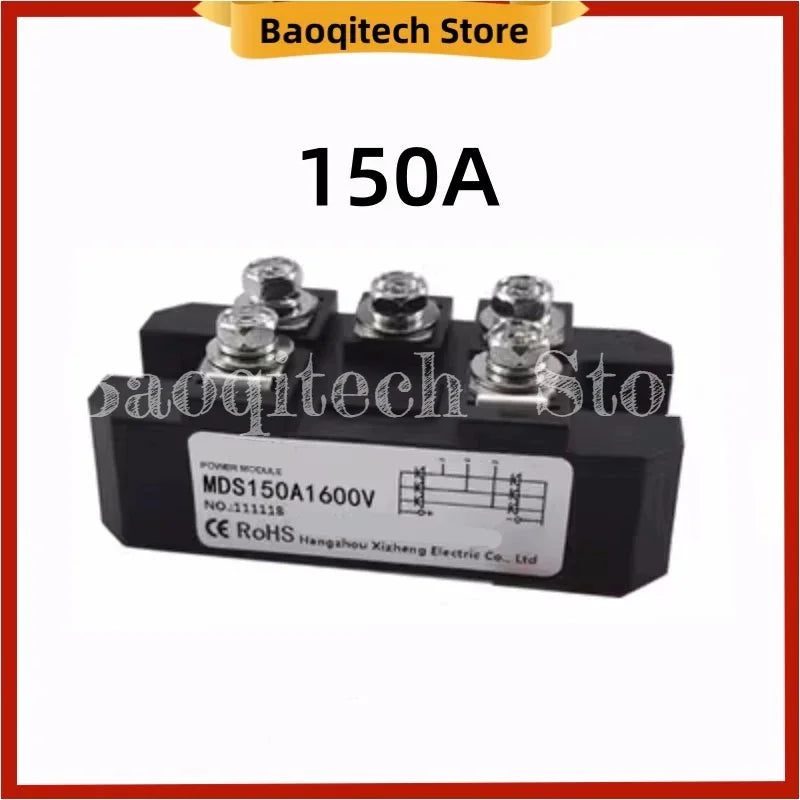

MD150A1600V Three phase rectifier bridge 12V 24V 36V 48V 220V 480V 600V AC-DC high-power module 150Amp 1600V

reminder

1. About product selection

The marked current of the power module is the average value of the on state, not the actual effective value of long-term operation. When selecting, sufficient margin should be left based on the actual working environment and conditions.

(1) Pure resistive load 2-2.5 times margin: actual current (A) × 2 (~2.5)=Module nominal current (A) (2) Inductive load 6-7 Signal margin: Actual current (A) × 6 (~7)=Module nominal current (A)

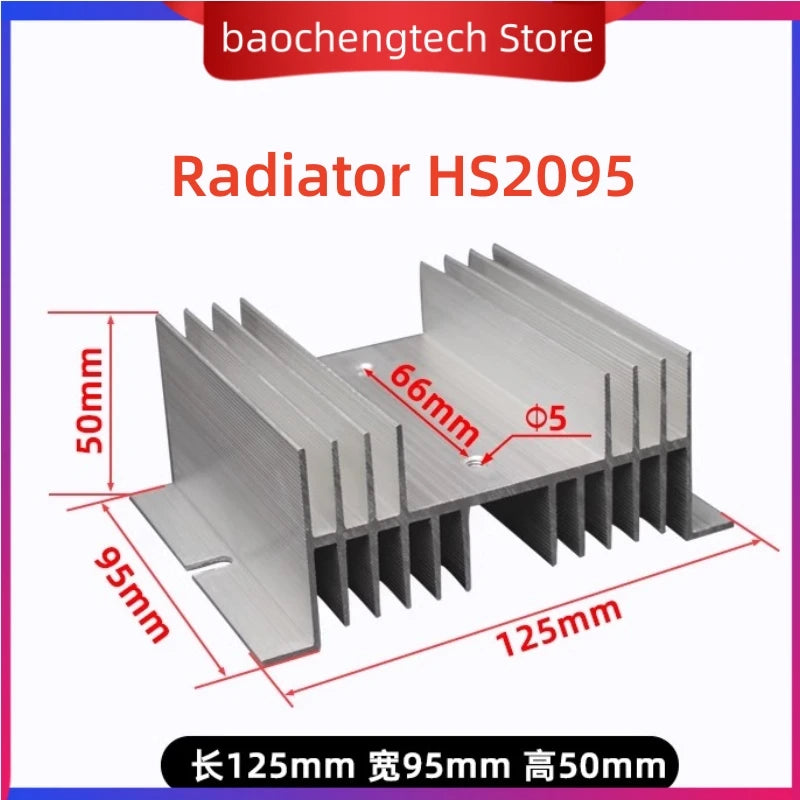

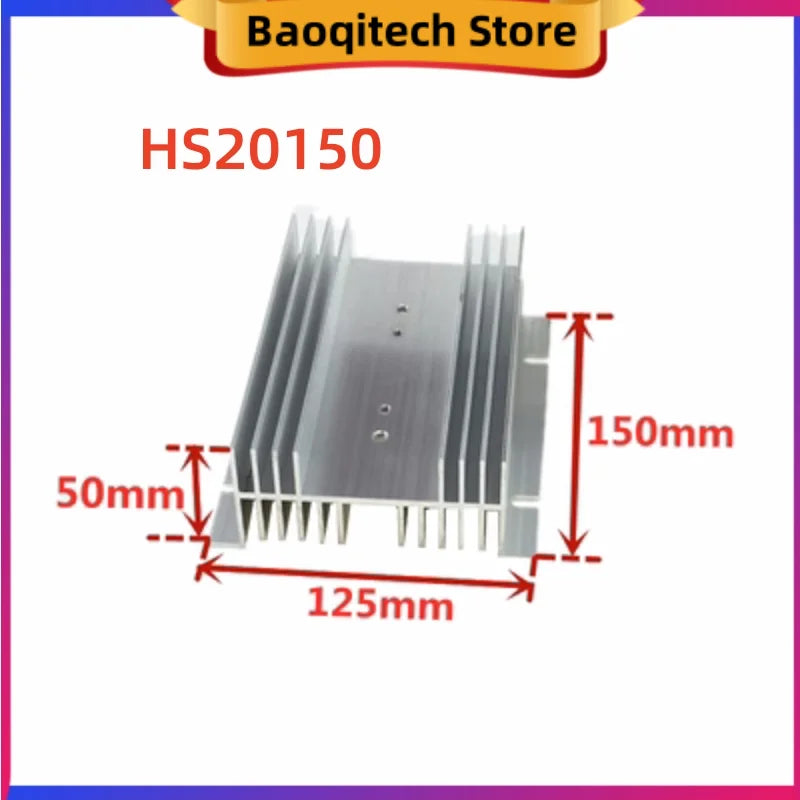

2. Radiator configuration

When the actual working current of the device is greater than 5A, please be sure to configure a suitable heat sink for use

3. Regarding the source of goods

Regular models are available in stock and can be sold directly. For bulk orders, please inform customer service of the quantity ordered and confirm the delivery time with them.
