SPECIFICATIONS
Accuracy Class: 0.5 class
Application: Industrial, IOT, Household, Electric Power
Basic Current: 600A 3000A 6000A
Brand Name: NONE
Communication: RS485 Serial/GPRS/WIFI/4G/Modbus TCP
Current transformer: BNC terminal Rogowski coil/ Split core 333mV CTs
Device application: Power analysis, Energy meter, Power monitor
Dimensions: L*W*D:21.5*13*6 CM
Display: 3.5 Inch TFT Screen Display
Display Type: Analog And Digital
Feature: Safety, Light Weight, Led Display, Eco-Friendly, Durable, Time Display
Frame Material: None
Frequency: 45...65 Hz
Harmonic: 51th in the mean time
High-concerned chemical: none
Installation Method: self-contained
Max. Current: 6000A
Measuring Energy Range: from 1A to 999999A
Model Number: Meatrol ME440 Power Quality Analyzer
Operating Temperature: -25℃ to +55℃
Optional service: Cloud server, 4G Gateway wireless communication
Origin: Mainland China
Output Voltage: 5V DC power supply
Phase: Three Phase
Place of Origin: Shanghai, China
Product type: 4G remote Power Quality Analyzer, Handheld Power data logger
Rated Current: 600A 3000A 6000A
Sampling rate: 8k samples per second

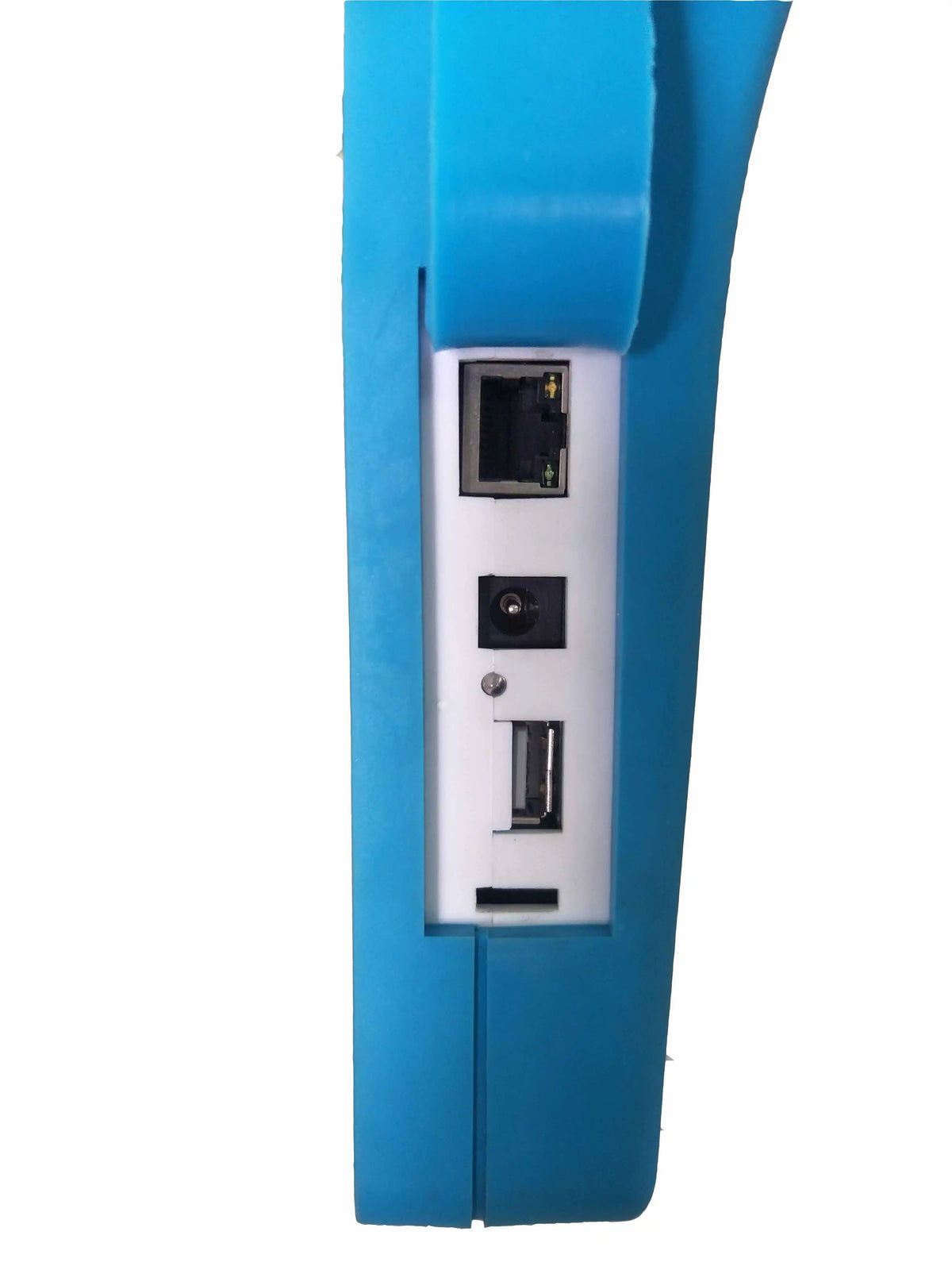

Storage: 16GB Memory,USB DISK download
Hello, my dear friend. Thank you very much for visiting my store. I'm Kaia from China. You can find the products you need in my store. If you can't find them or have any questions about the products you need, you can contact me via WhatsAppWeChat +86 15317807656 or email x3319593926@sina.com. Welcome! Some of the product prices in our store are incorrect and need to be renegotiated. Also, the inventory of some products is insufficient. Please confirm with the store before purchasing. We apologize for any inconvenience caused. Contact information: WhatsApp: +86 15317807656 Email: x3319593926@sina.com
|
|

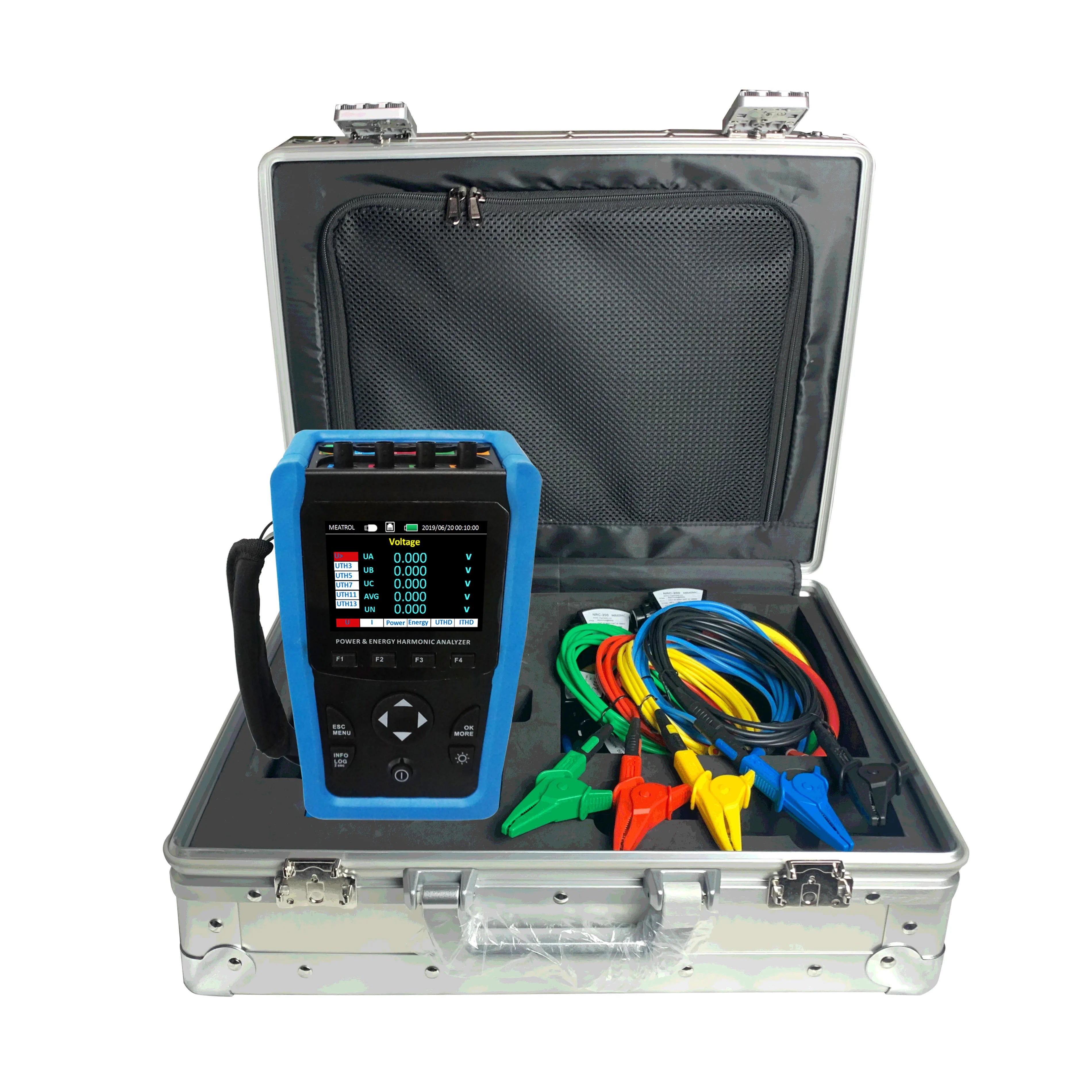

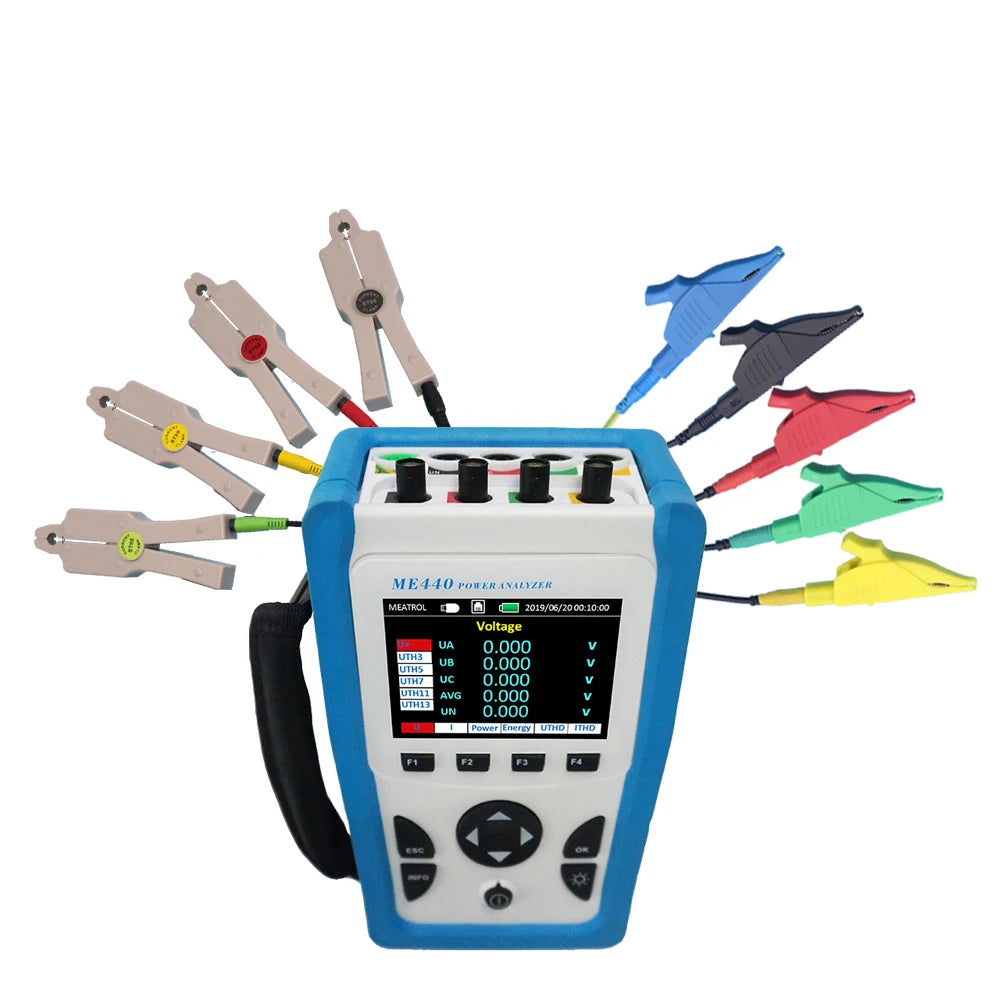

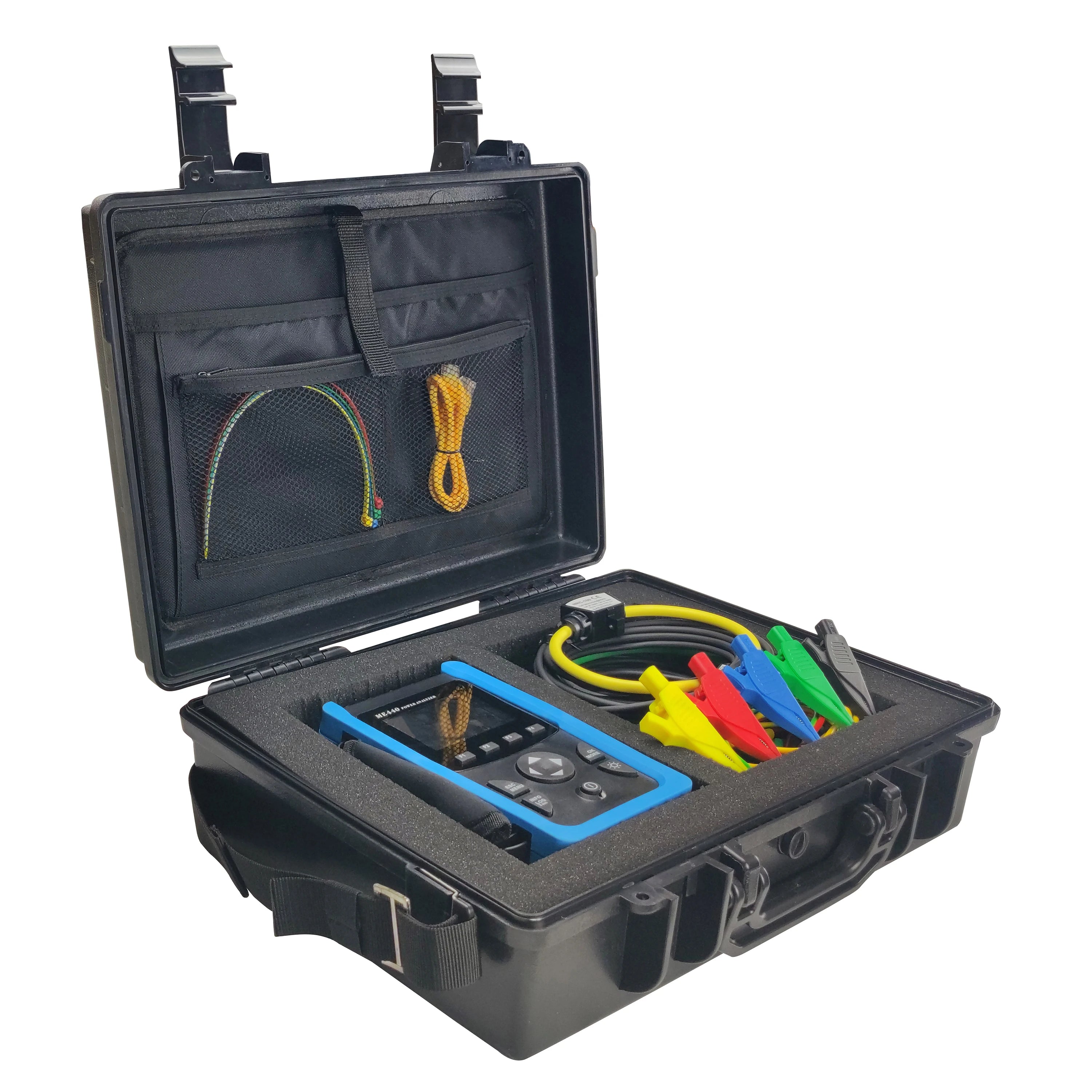

ME440 Handhold Power data logger
|
|
|
4pcs BNC terminal 333mV CT

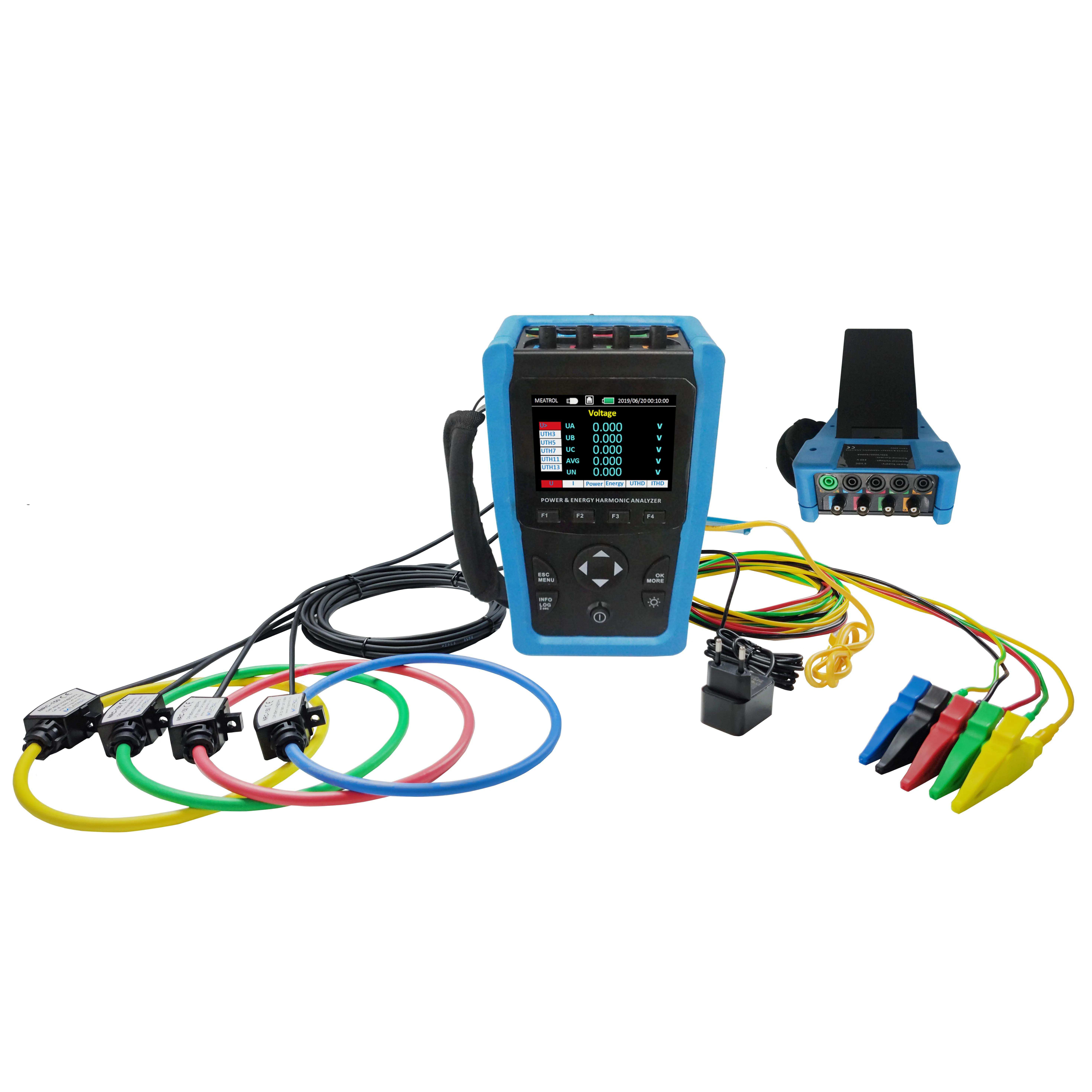

4pcs BNC terminal Rogowski coil
|
|
|
32GB Memory,USB DISK download
(save intervals 1mins default)
|
|
|

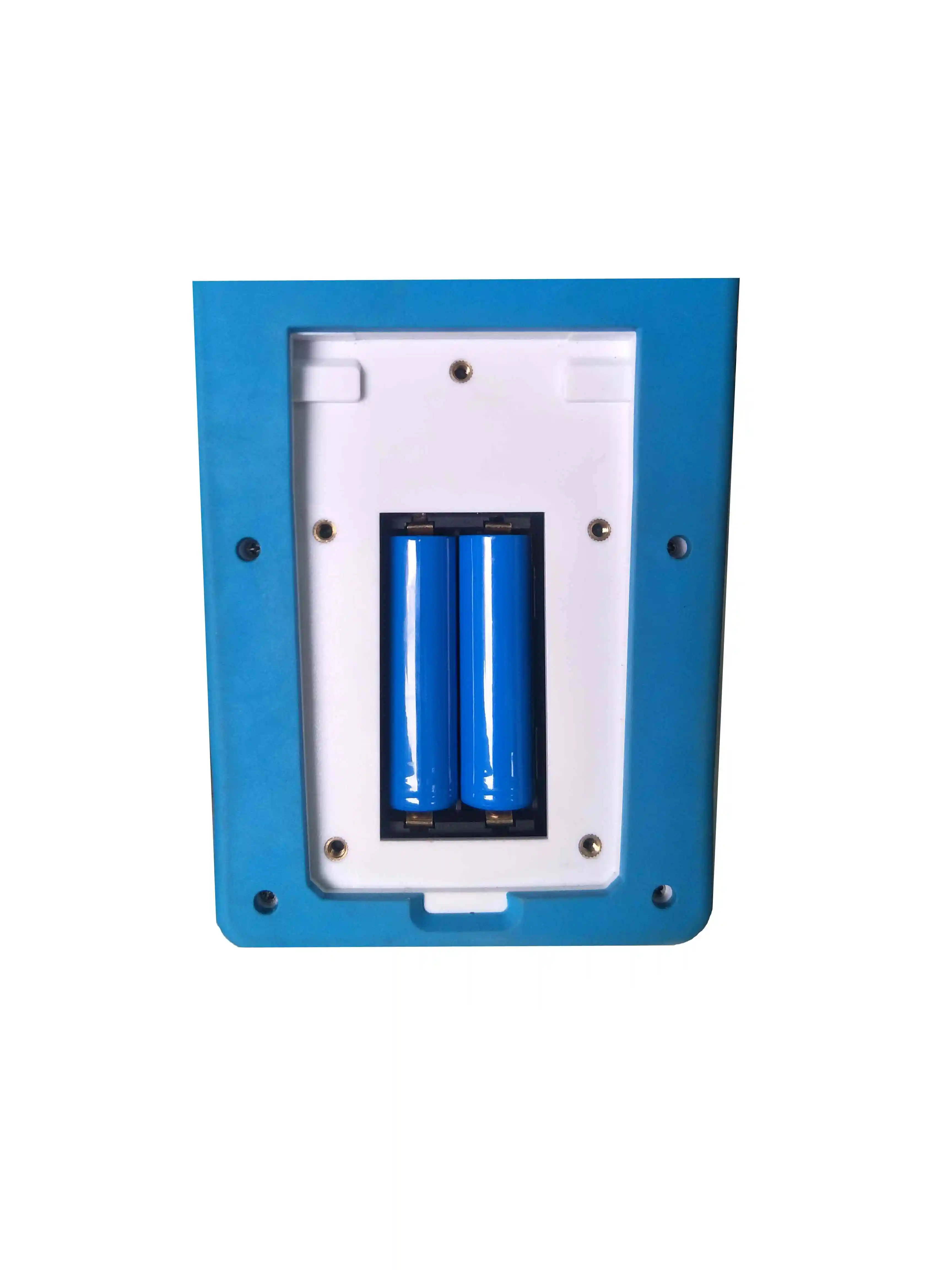

2*2900mAh PANASONIC lithium battery(wroking time: approx 10 hours)
Or 5V DC power supply(included adaptor)
|
|
|
Handheld;poly-phase;data logger;power analyzer
|
|
|
Power analysis
Data logger
|
|
|
External Rogowski coil
External CT(333mV only)
|
|
|
3.5 inch TFT screen display
|
|
|
8k samples per second
|
|
|
Harmonic
|
|
|
850g (with Accessory 2kgs)
|
|
|
±0.2% of reading
|
|
|
1Hz to 100kHz(-3dB)
|
|
|
-30 °C to 80 °C
|
|
|
-40 °C to 90 °C
|
|
|
IP68 / CE /EMC
|
Record data:
Current Harmonic, Voltage Harmonic
Voltage(V);UTHD(%);Current(A);ITHD(%);
Frequency(Hz);Power Factor; Current Demand(A);
Current Peak Demand(A)&Date;
(Each phase and Average)
Active Power(W) ;Reactive Power(Var);Apparent Power(Va) Active Energy(Wh);Reactive Energy(Varh);Apparent Energy(Vah)
(Each phase and Summary)
Total Active Power Deamnd(W)
Total Active Power Peak Deamnd(W)&Date
Total Reactive Power Deamnd(Var)
Total Reactive Power Peak Deamnd(Var)&Date
Total Apparent Power Deamnd(Va)
Total Apparent Power Peak Deamnd(Va)&Date
|
Rated current (3 level selectable)
|
600A(0.5% from 6A to 720A)
3000A(0.5% from 10A to 3600A)
6000A(0.5% from 20A to 7200A)
|
|

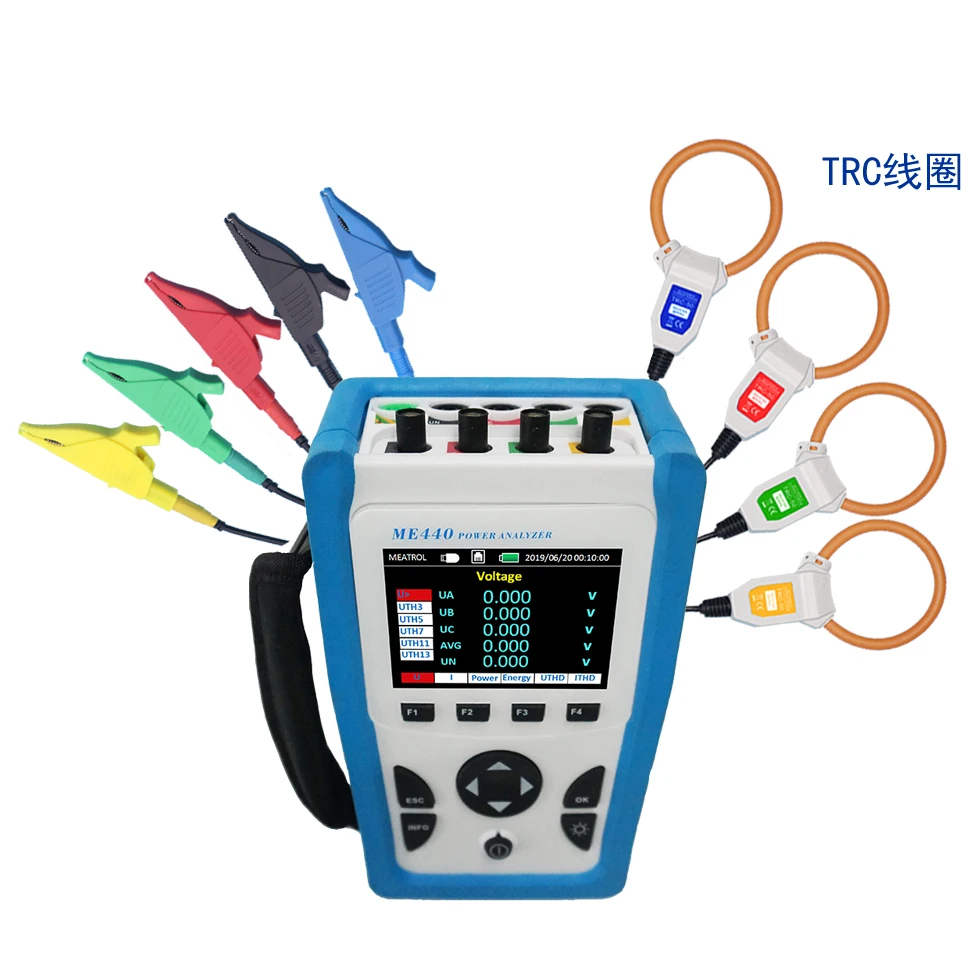

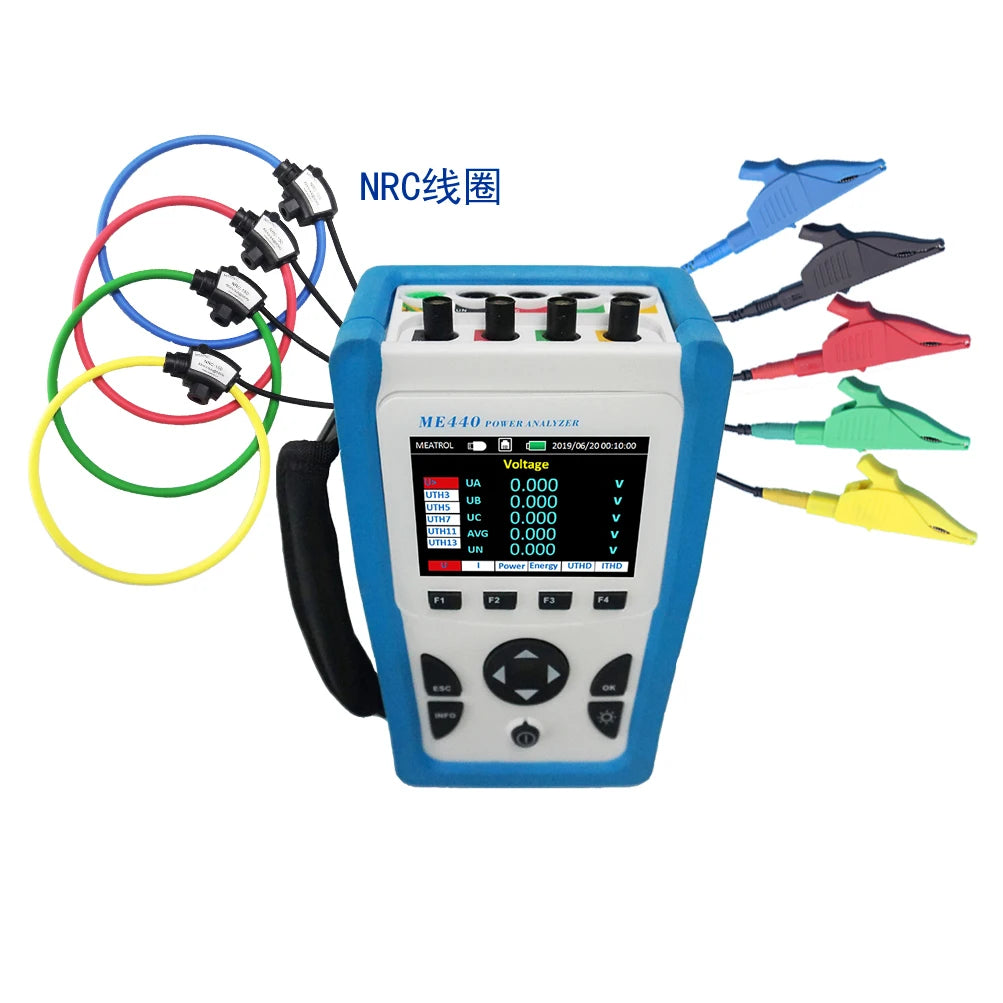

Rogwoski coil connect setting
|
600A
|
MRC-36
|
|
|
3000A
|

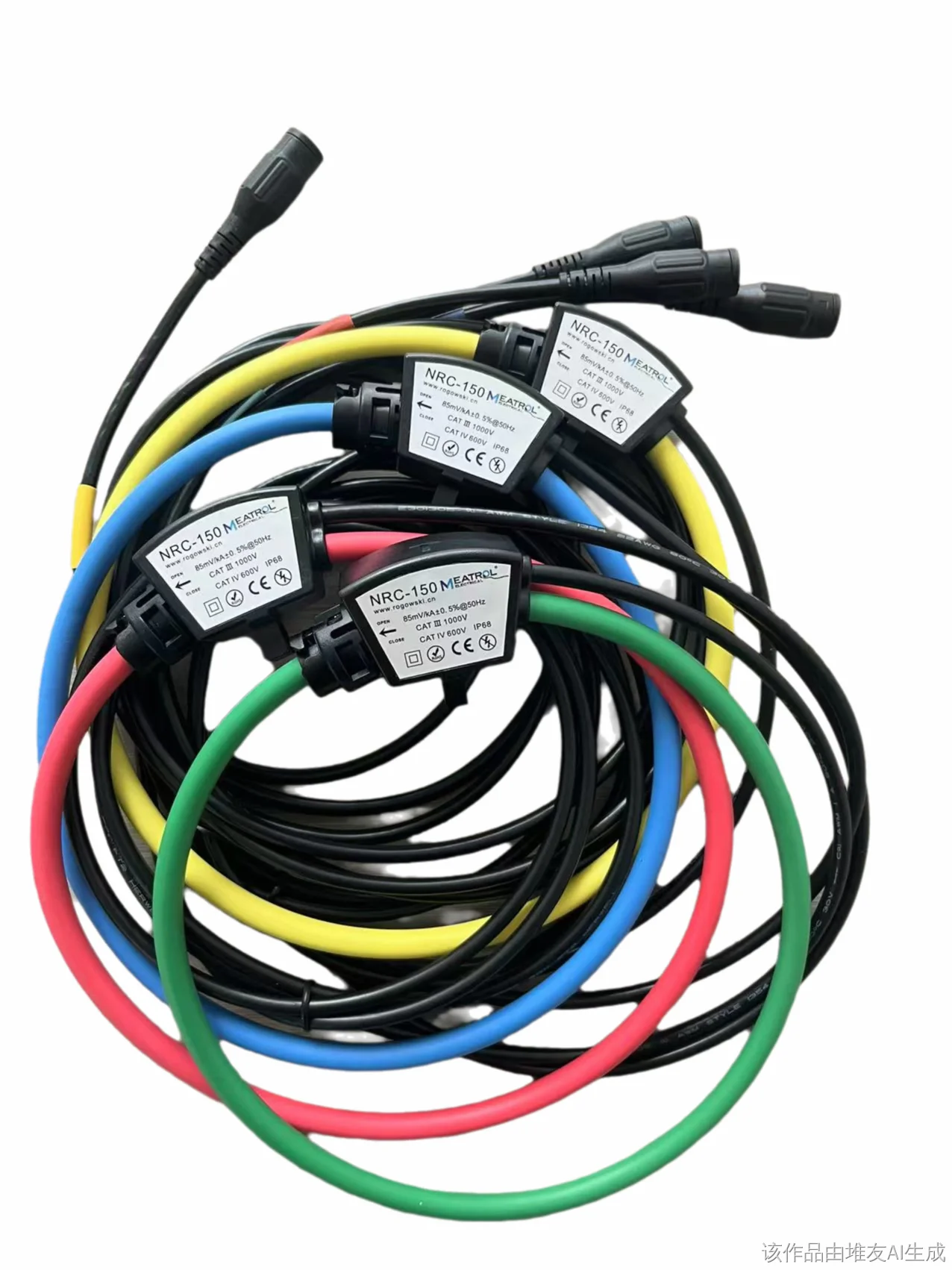

NRC-150 or Y-FCT-510
|
|
|
6000A
|

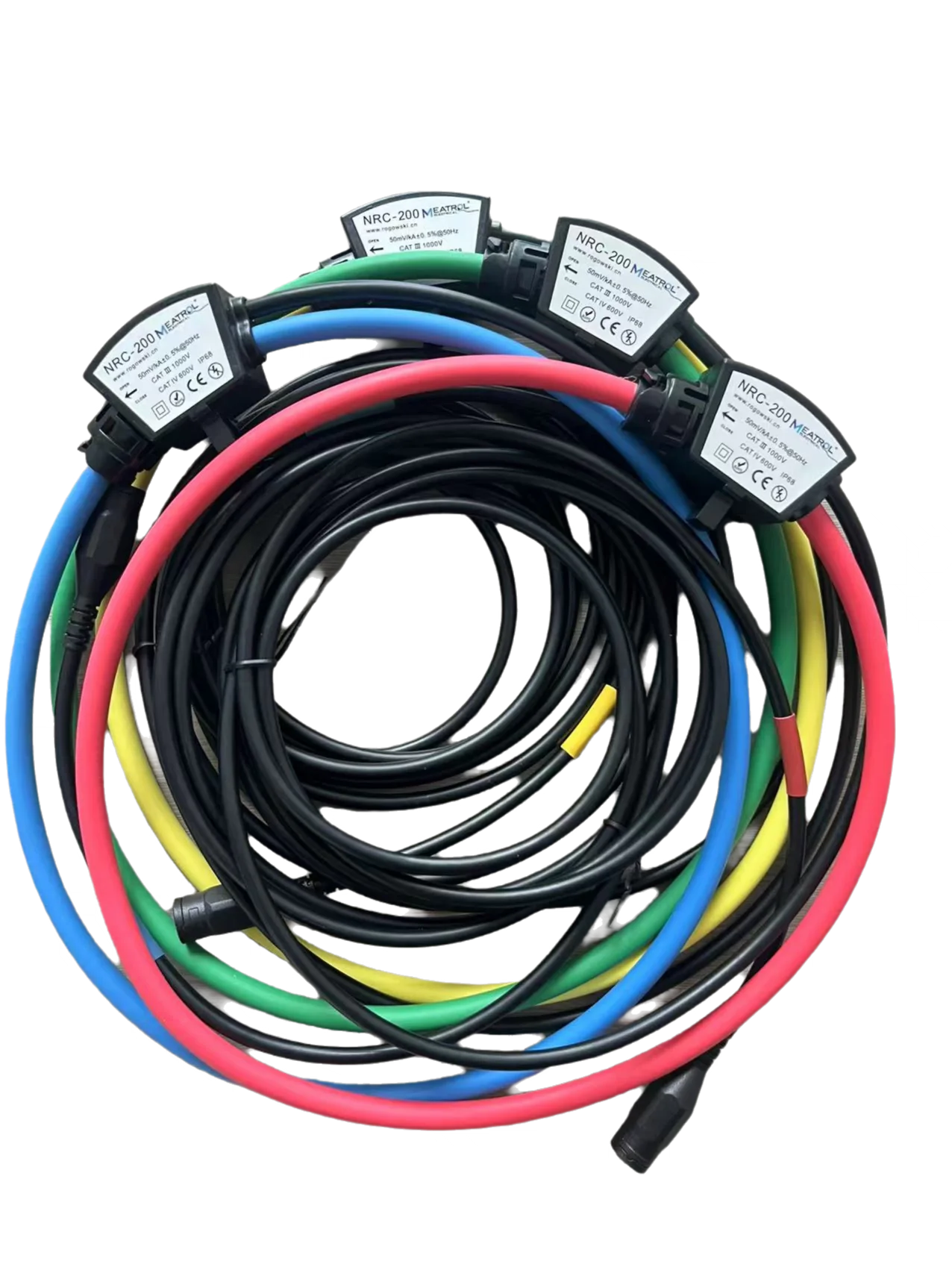

NRC-200 or Y-FCT-800
|
|

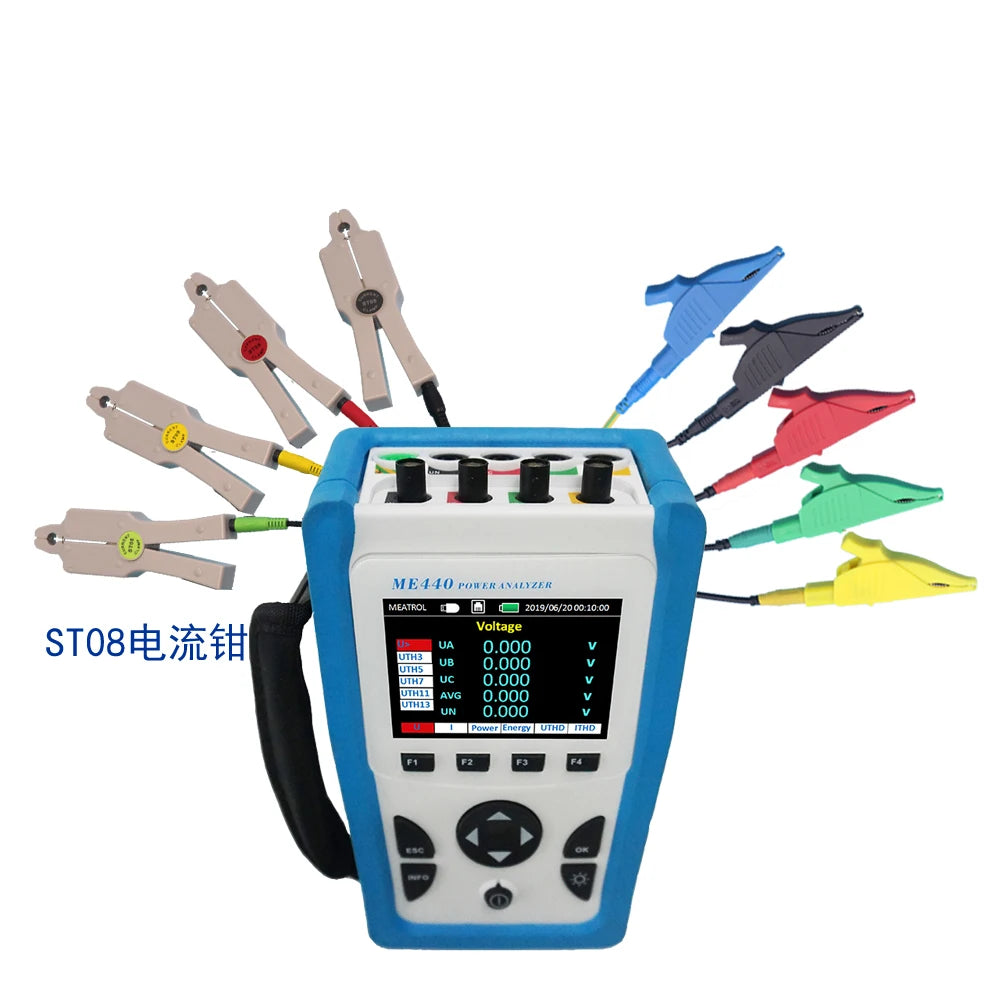

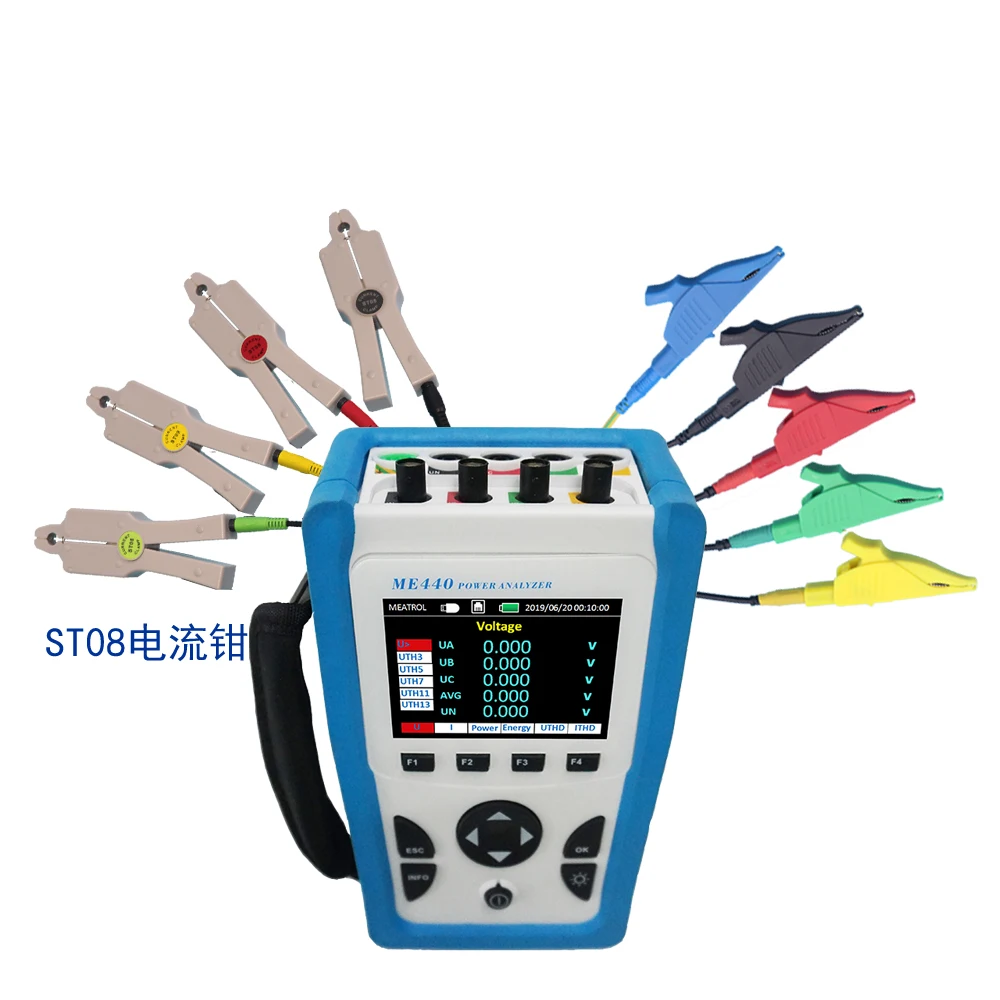

ST08 current clamp
|
5A
|
0.5% (100mA～5A) 1%(10mA～100mA)
|
|
|
10A
|
0.5% (100mA～10A) 1%(10mA～100mA)
|
|
CTs connect setting
|
Primary setting:
|
from 1A to 999999A
|
|
|
Secondary setting:
|
from 0.001mV to 707mV
|
|
Voltage
|
0.2% from 5 to 600V
|
|
|
Power factor
|
±0.005
|
|
|
Active/Apparent Power
|
IEC62053-22 Class 0.5
|
|
|
Reactive power
|
IEC62053-21 Class 2
|
|
|
Frequency
|
0.01% from 45 to 65Hz
|
|
|
Active energy
|
IEC62053-22 Class 0.5s
|
|
|
Reactive energy
|
IEC62053-21 Class 2
|
|
