SPECIFICATIONS

Application: Computer

Brand Name: AOKIN

Choice: yes

Condition: New

High-concerned chemical: none

Operating Temperature: -40+85

Origin: Mainland China

Package: SMD

Type: Voltage Regulator

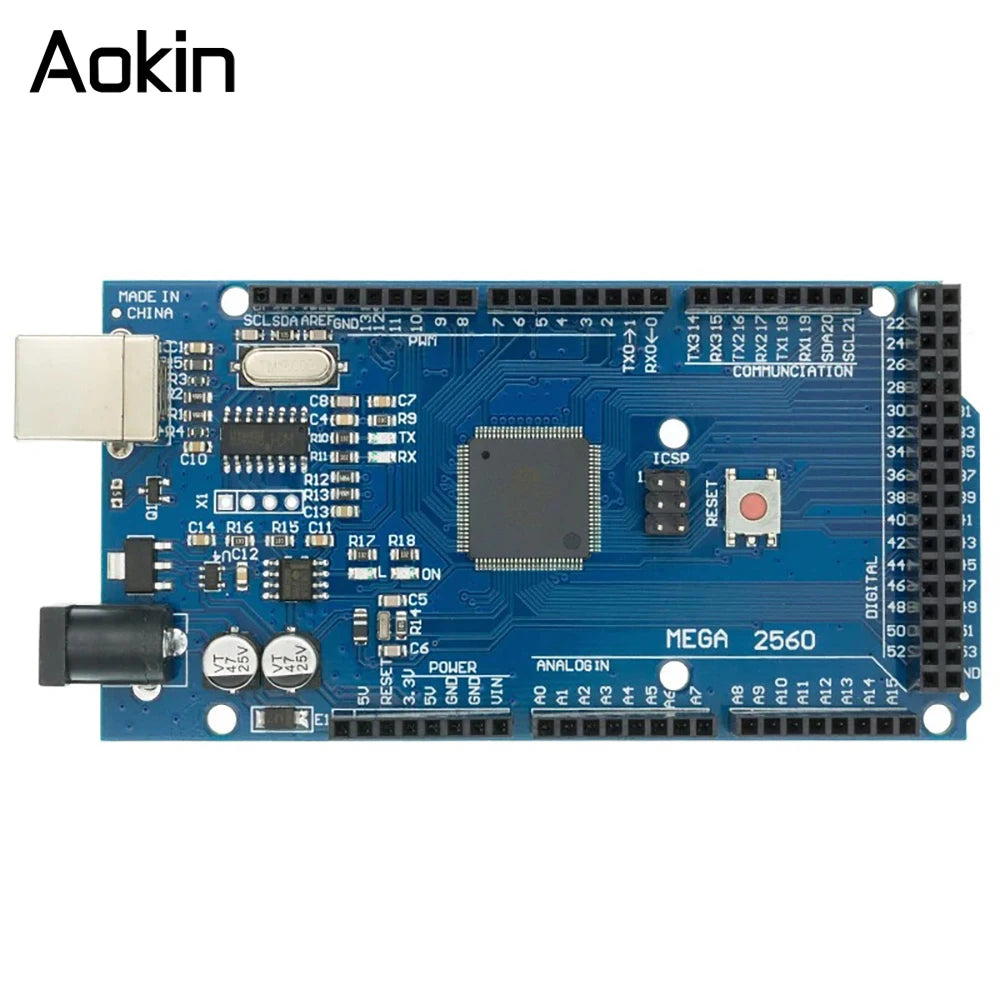

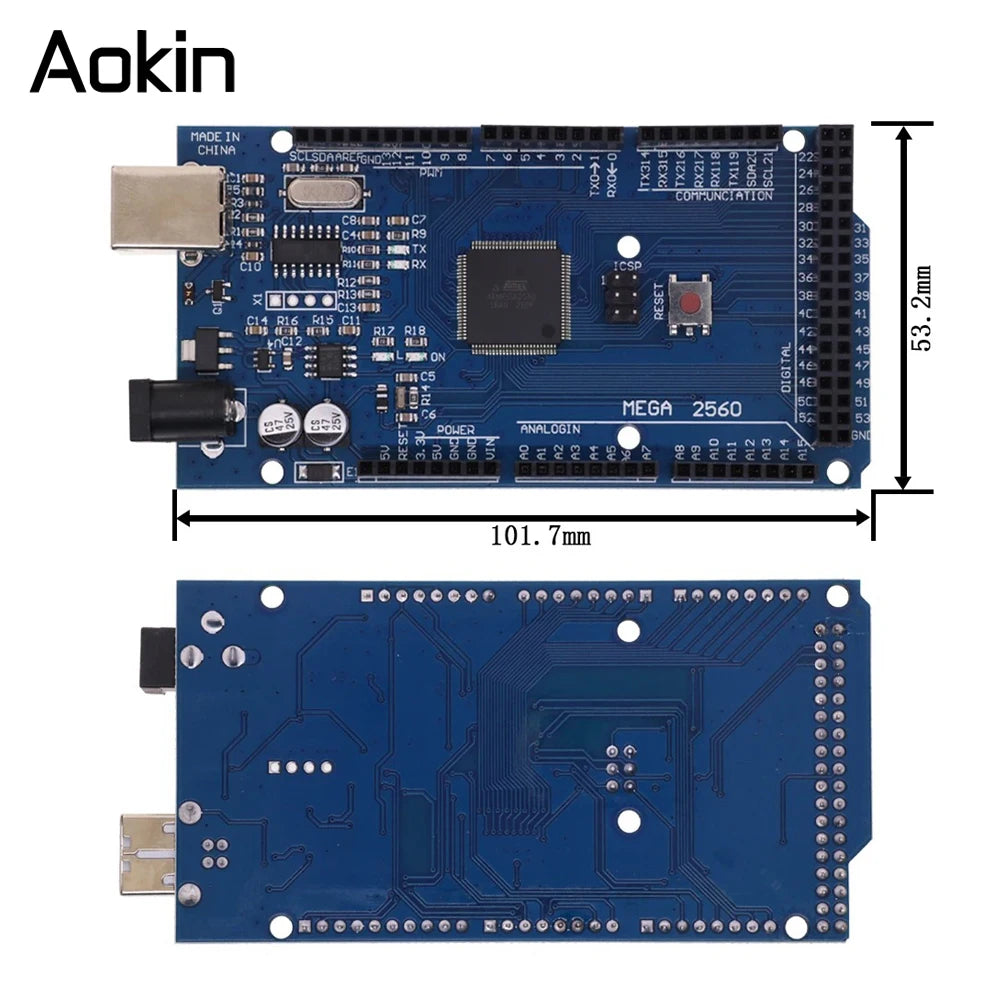

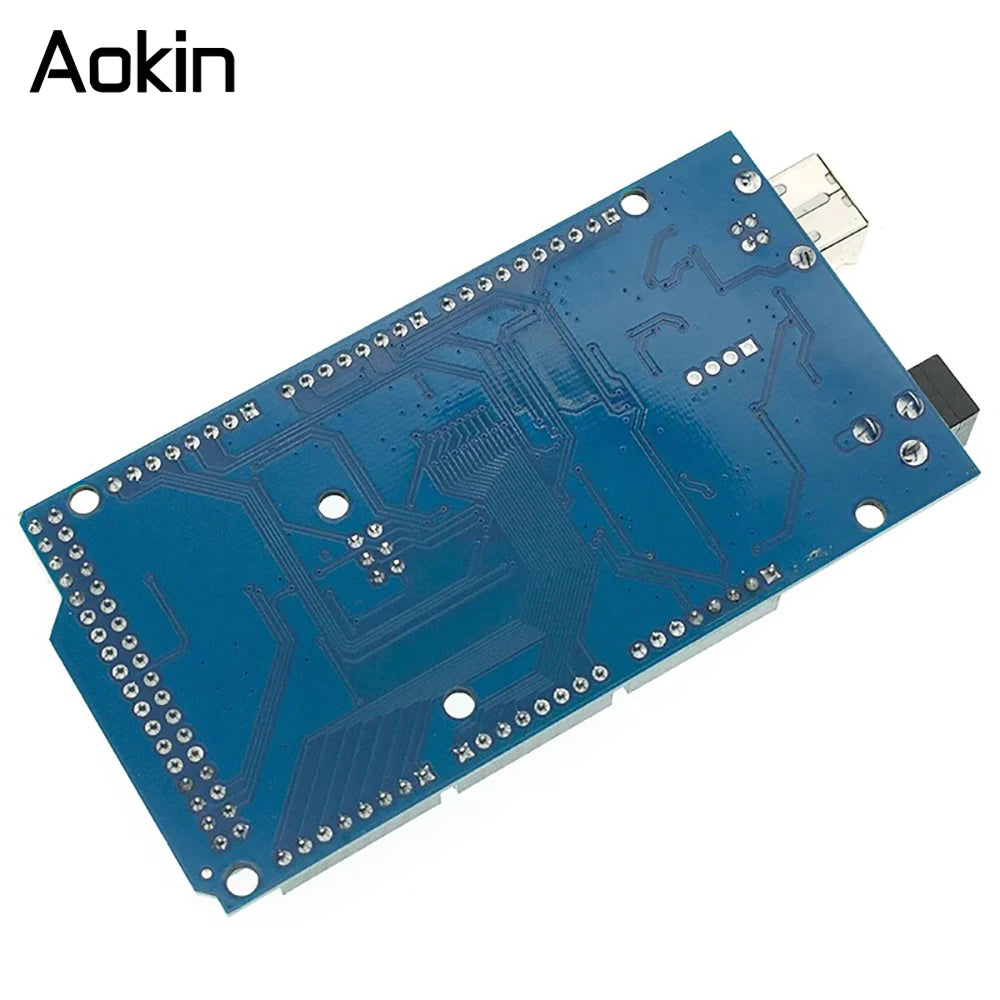

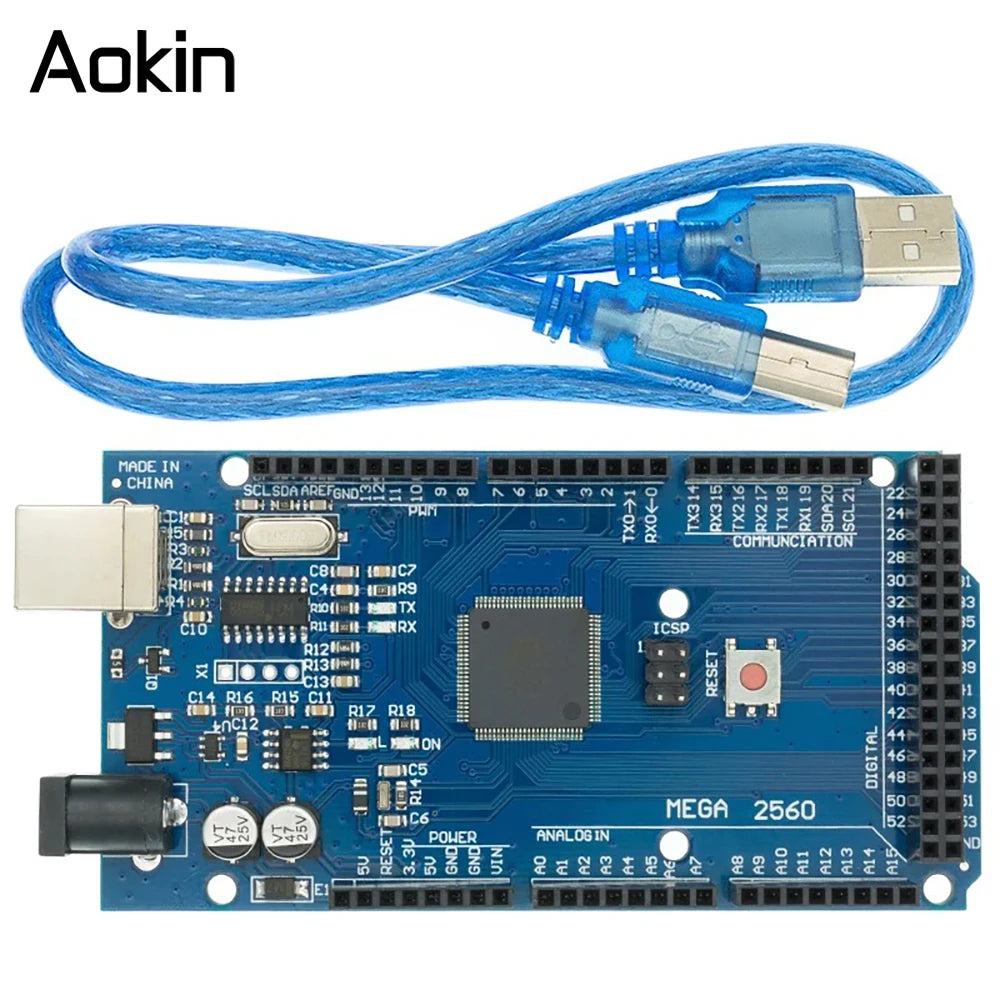

MEGA2560 R3

Product Description:

CH340G Replace ATMEGA16U2

Microcontroller:ATmega2560

Operating Voltage:5V

Input Voltage (recommended):7-12V

Input Voltage (limits):6-20V

Digital I/O Pins:54 (of which 15 provide PWM output)

Analog Input Pins:16

DC Current per I/O Pin:40 mA

DC Current for 3.3V Pin:50 mA

Flash Memory:256 KB of which 8 KB used by bootloader

SRAM:8 KB

EEPROM:4 KB

Clock Speed:16 MHz

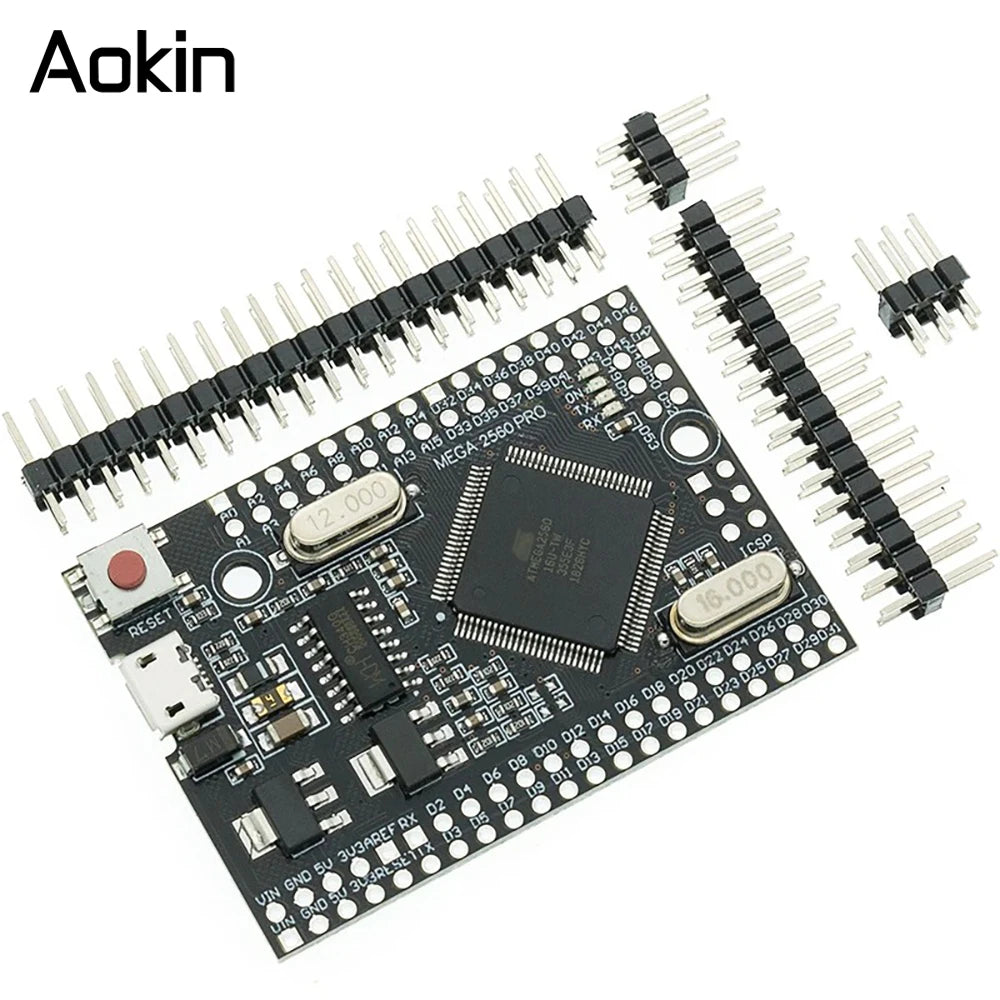

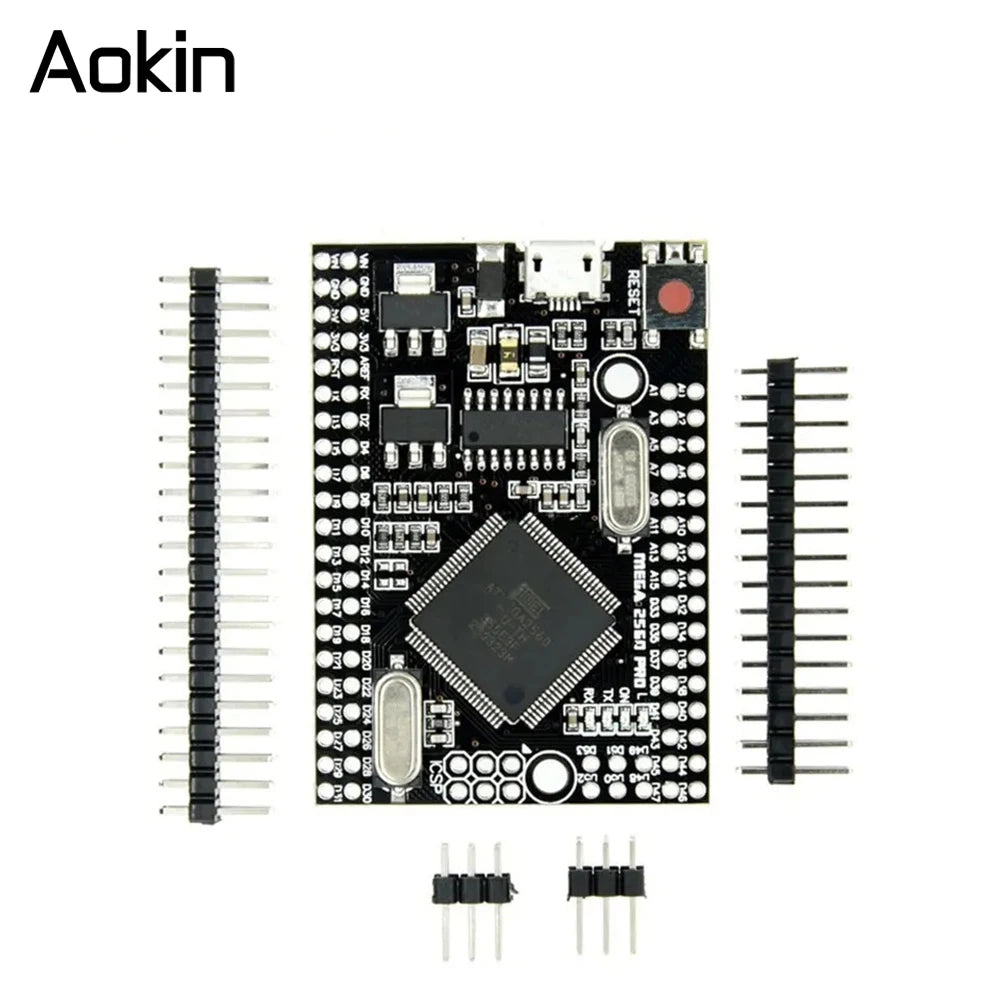

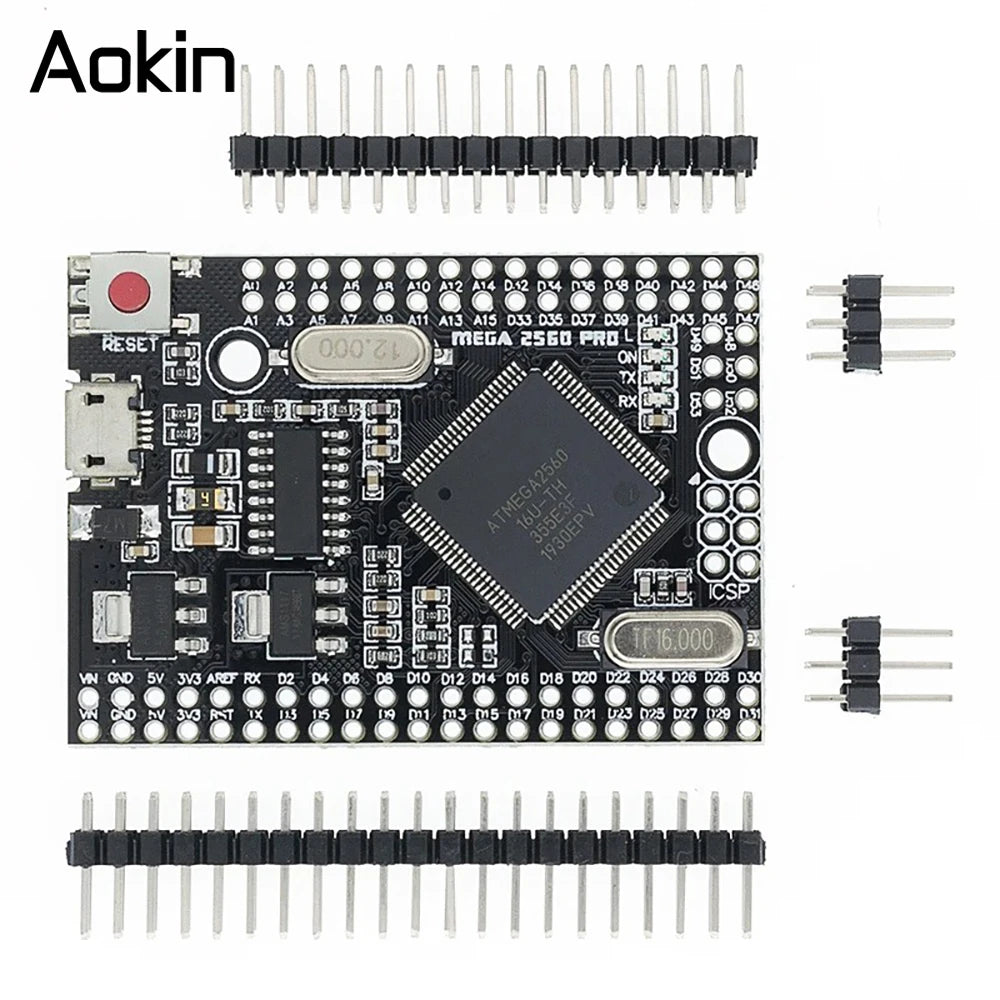

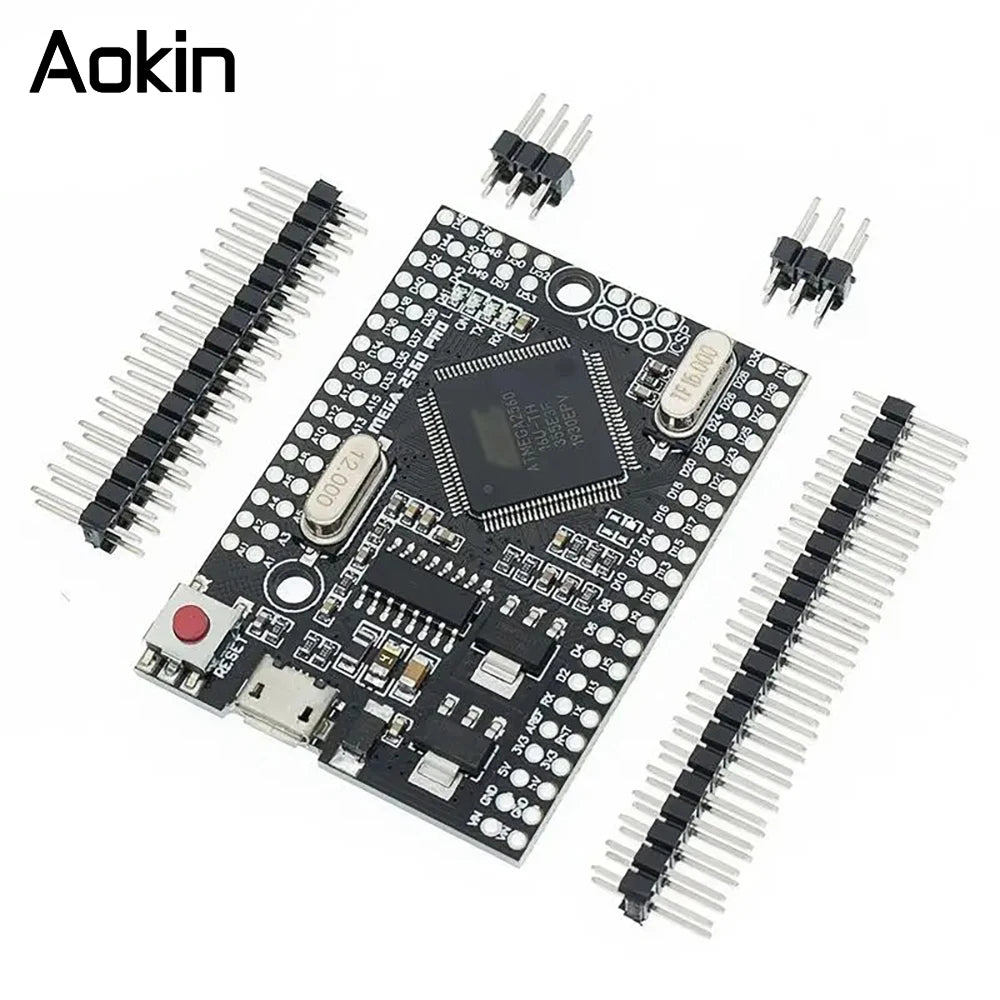

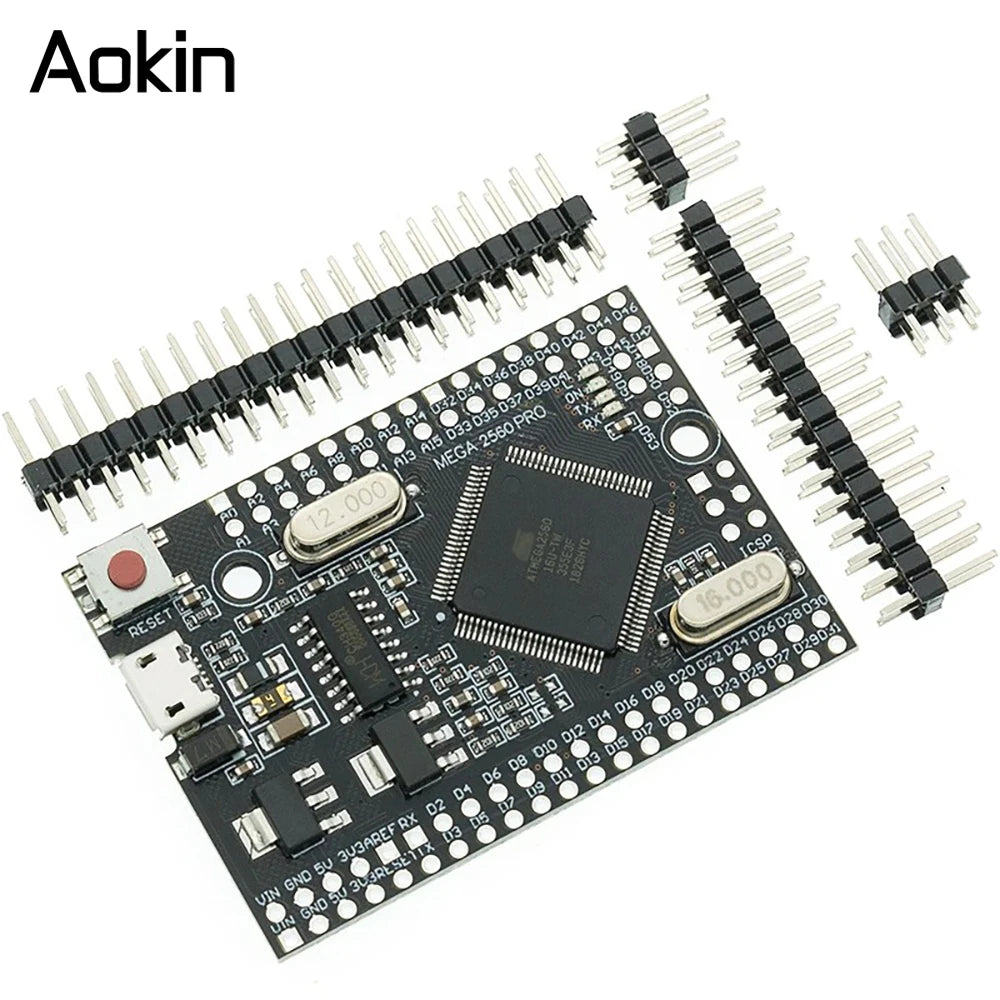

MINI MEGA2560 PRO

Product Introduction:

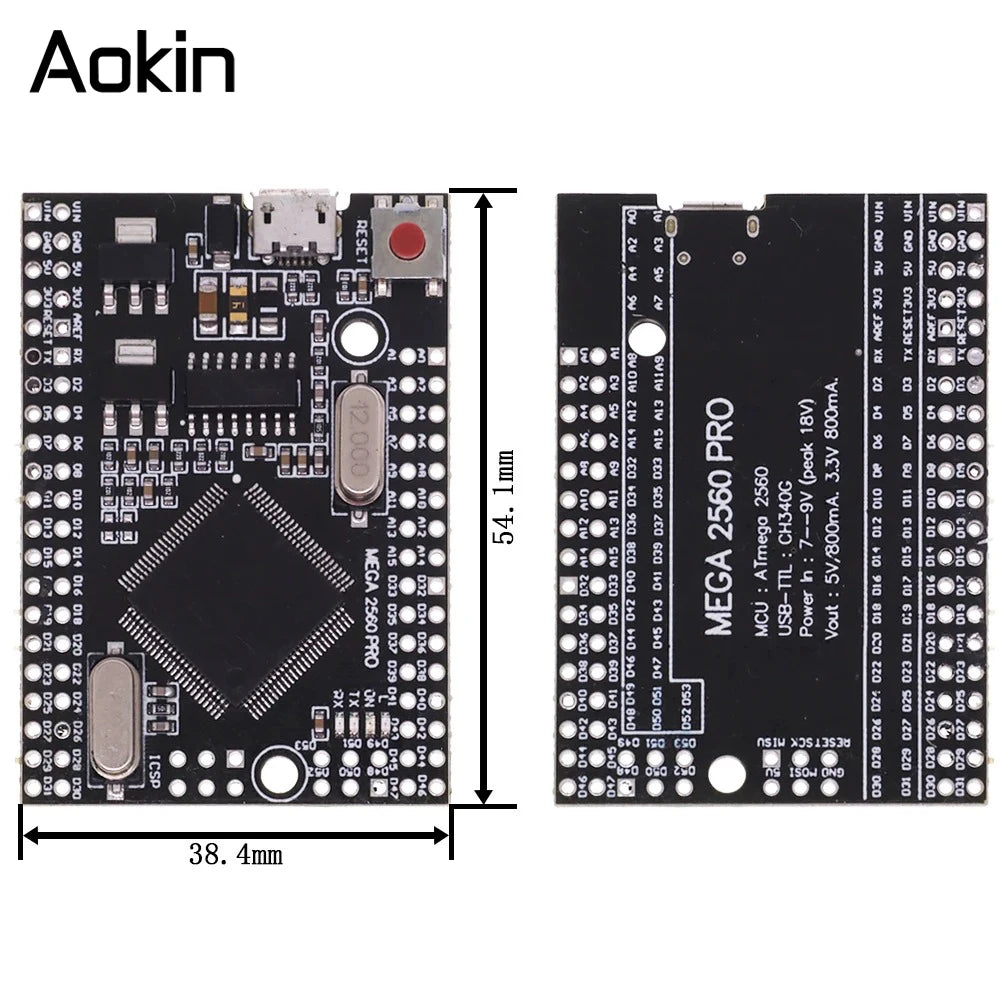

The circuit board has a compact size of 38x55mm. This is a great solution to make your final project on a welded prototype board.

The motherboard function is similar to the Arduino Mega 2560. It is an embedded motherboard, but it is also stable and uses the original chip ATmega2560 (16 MHz).

The board uses the chip CH340G as the converter UART USB. When working at a frequency of 12Mhz, provide stable data exchange results (requiring the installation of drivers to the computer).

You can power the circuit board or pins through the MicroUSB connector. The voltage regulator (LDO) can handle input voltages ranging from 6V to 9V (peak 18V) DC. The output current is 5V - approximately 800mA, 3.3V - approximately 800mA (please note that the higher the input voltage, the lower the output current). This will provide reliable motivation for most of your initial projects.

Main control chip: ATmega2560

Driver chip: CH340

Power output: 5V/800mA

Power input: 5V

External power input (VIN): 7-9V

Power consumption: 5V 220mA

Interface: MICRO

Main control chip crystal oscillator: 16M

Working voltage: 5V

Digital interfaces: 54

Analog interfaces: 16

Memory size: 256kb

RAM: 8Kb

ROM: 4Kb

Interface type: ISP

Working temperature: -40 ° to 85 °

Size: 38 * 54mm
