Mega2560 Pro Development Board Based On ATmega2560-16AU Chip and USB-UART CH340G Embedded board for Arduino

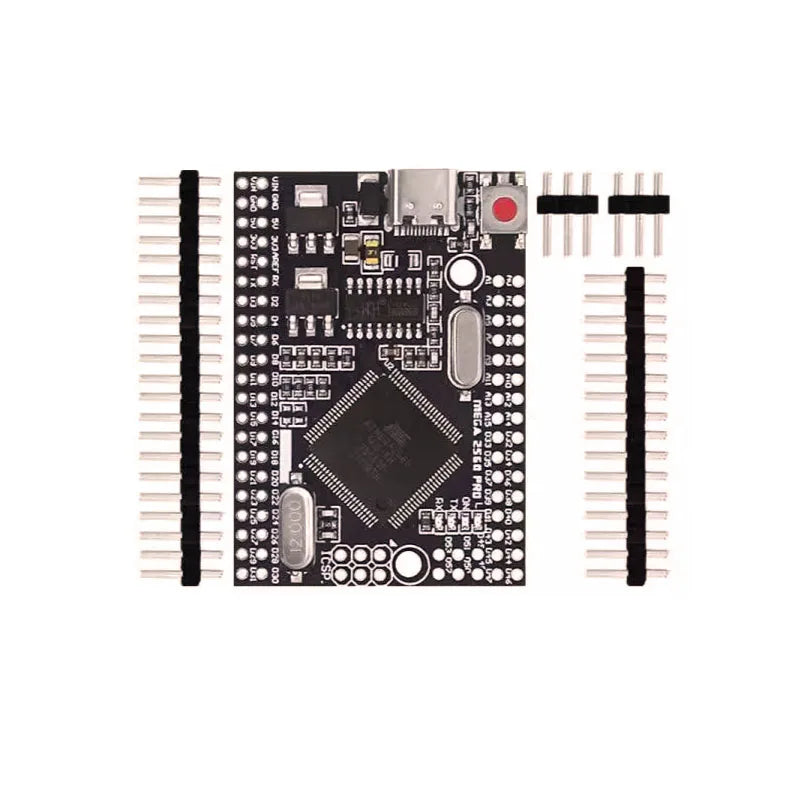

Mega2560 Pro Development Board

Product Introduction:

Embedded version of Mega 2560 CH340G / ATmega2560-compatible Arduino Mega 2560 motherboard. Built based on Atmel ATmega2560 microcontroller and USB-UART interface chip CH340.

The circuit board is compact, with dimensions of 38x55mm. This is an excellent solution that enables your final project to be fabricated on the prototyping board.

The motherboard functions similarly to Arduino Mega 2560. It is an embedded motherboard, but it is equally stable and uses the original chip ATmega2560 (16 MHz).

This board uses the chip CH340 as a UART-USB converter. When you operate at a frequency of 12 MHz, it provides stable data exchange results (a driver needs to be installed on the computer).

Mega PRO (Embedded) 2560 CH340 / ATmega2560 - Connects to the computer via a microUSB cable (almost suitable for all Android smartphones). Mr. / Ms.

You can power the circuit board or the pins through the MicroUSB connector. The voltage regulator (LDO) can handle input voltages ranging from 6V to 9V (peak 18V) in DC. The output current is 5V - approximately 800mA, 3.3V - approximately 800mA (please note that the higher the input voltage, the lower the output current). This will provide reliable power for most of your initial projects.
