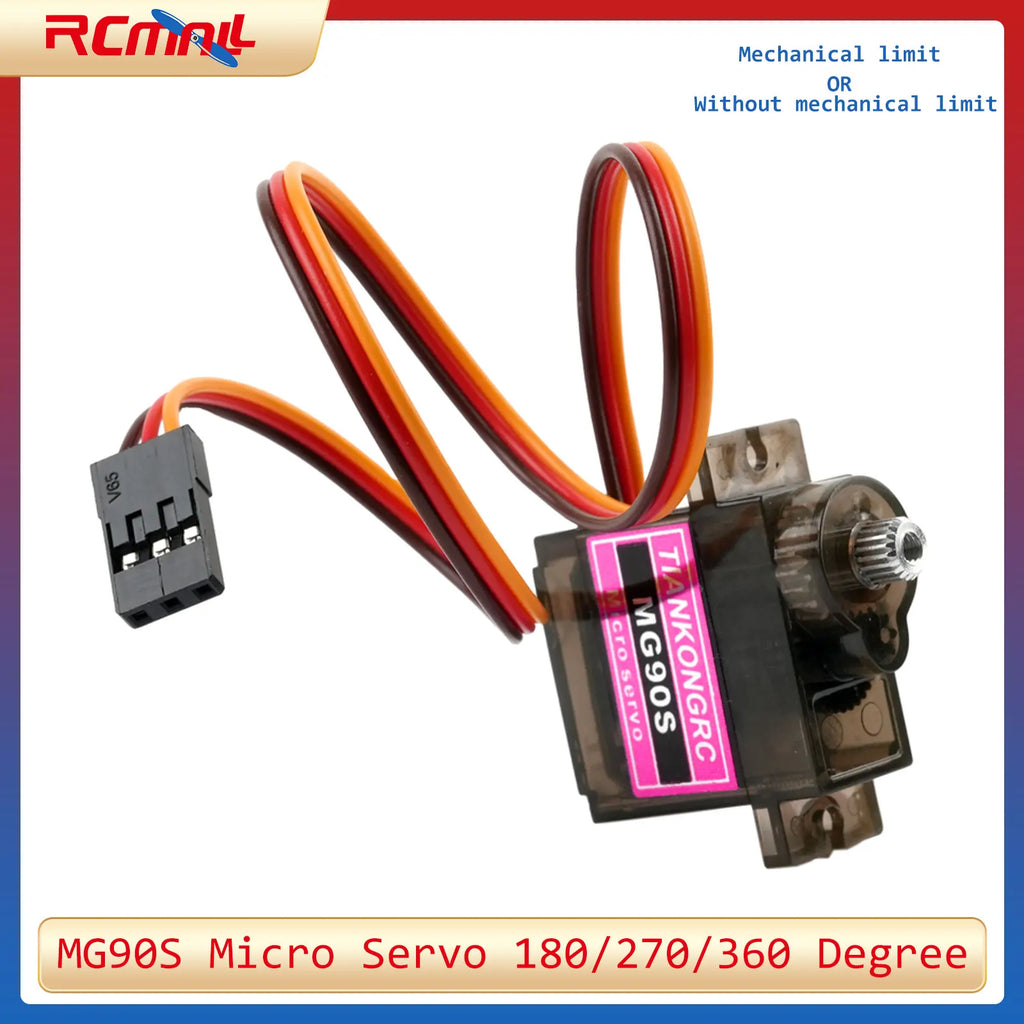

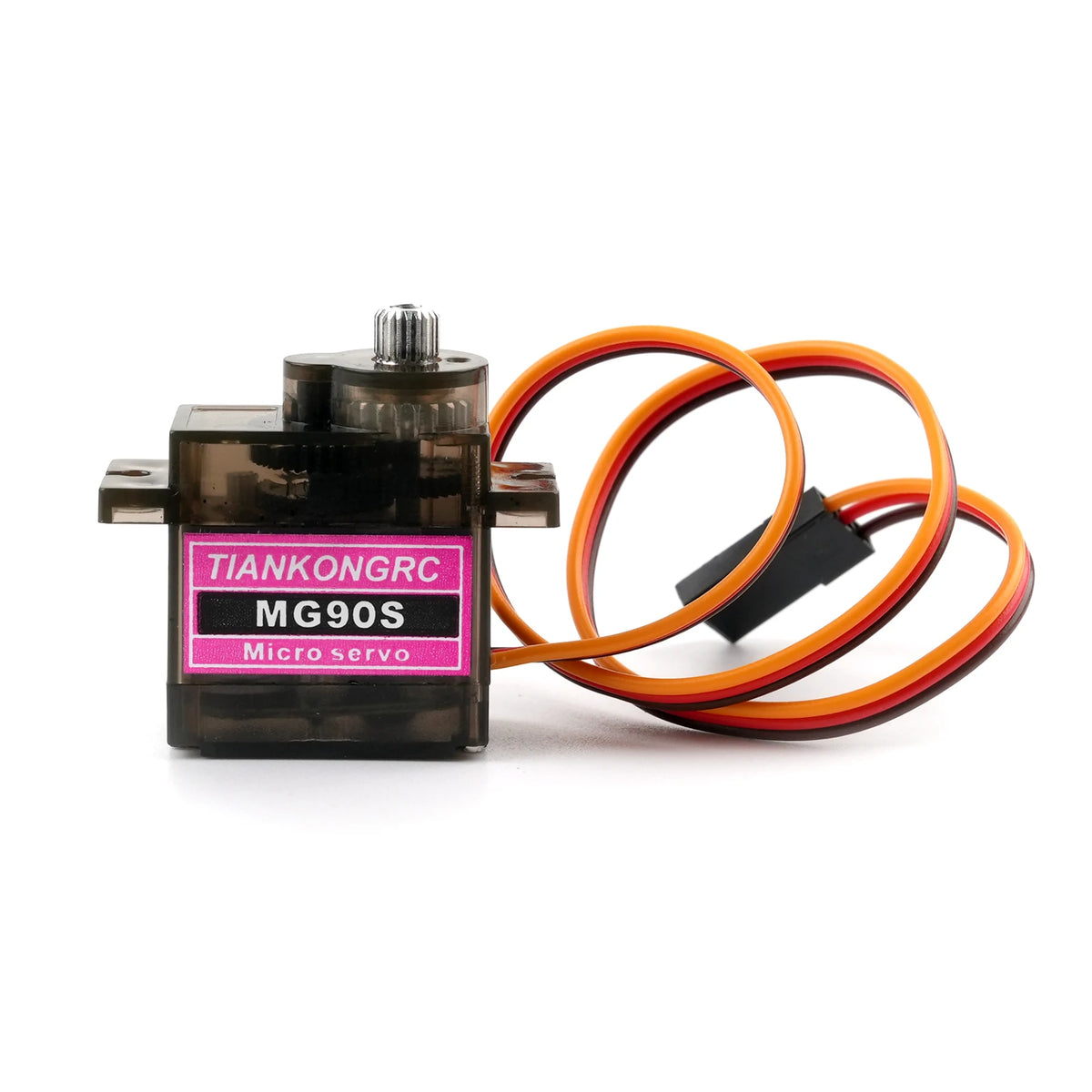

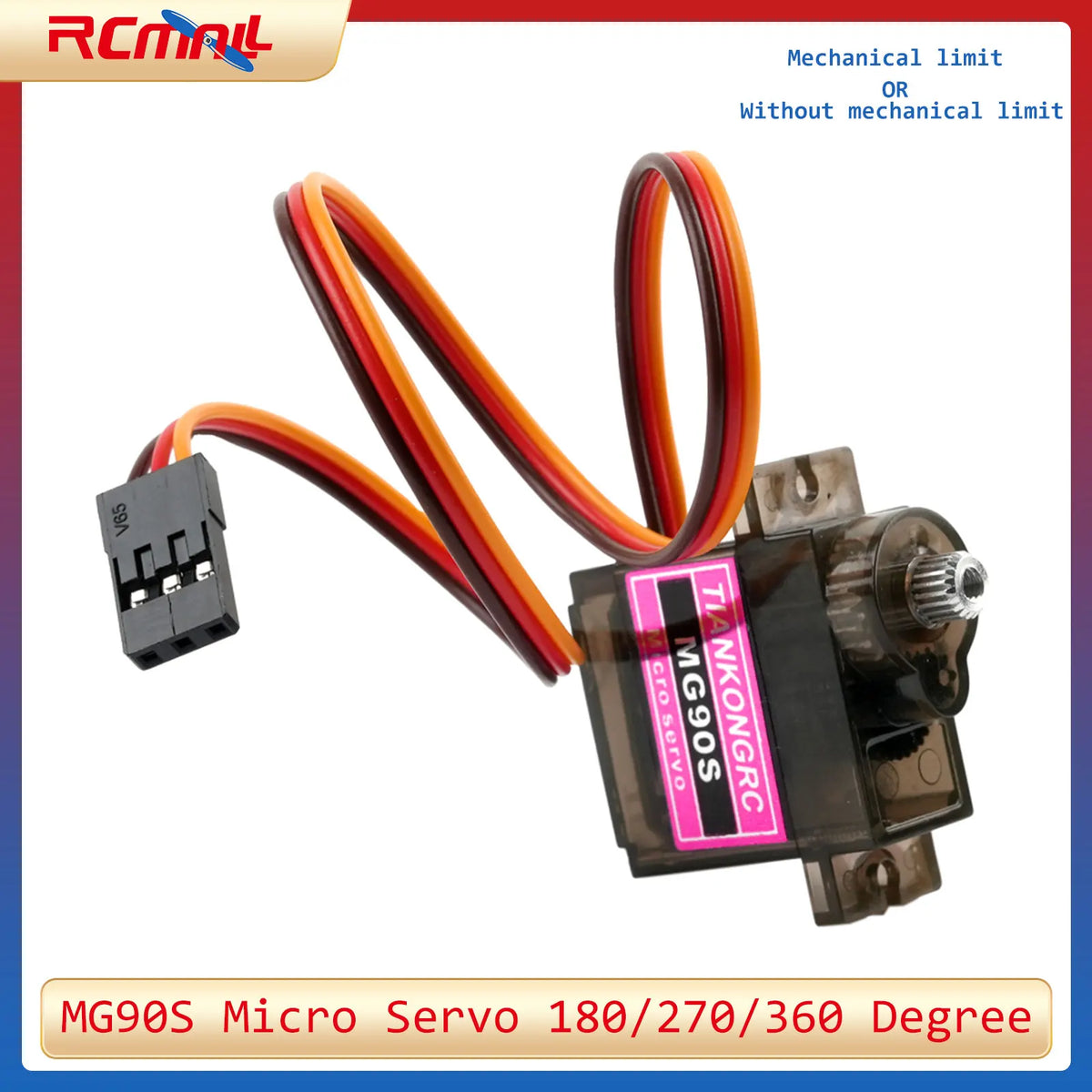

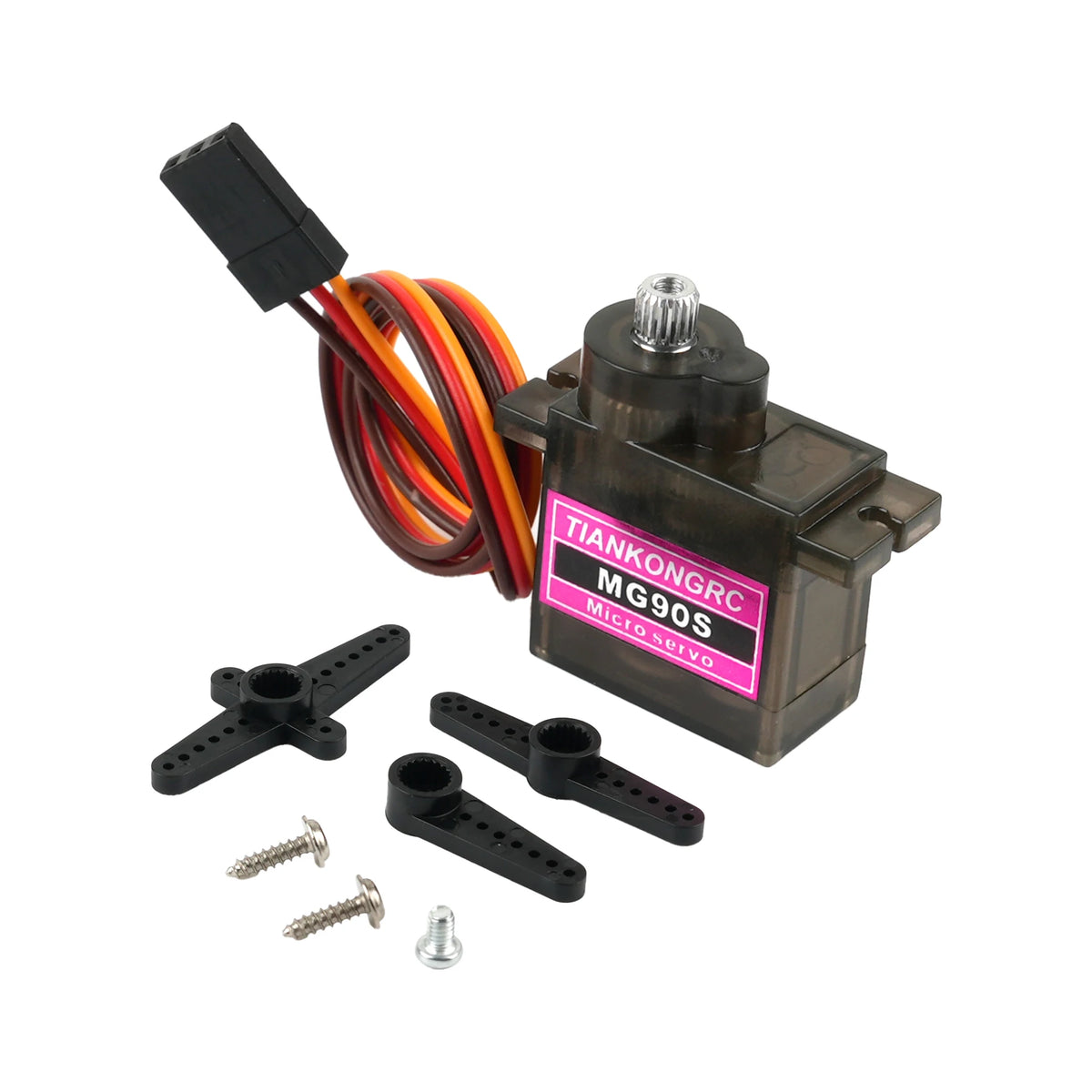

MG90S Micro Servo Metal /Plastic Gear 9g SG90 Enhanced Mini Servo Motor 180/270/360 Degree for Arduino RC Car Helicopter Drone
metal gear limit 180
$20.36
Sale price
$20.36
Regular price
$0.00
Skip to product information
MG90S Micro Servo Metal /Plastic Gear 9g SG90 Enhanced Mini Servo Motor 180/270/360 Degree for Arduino RC Car Helicopter Drone
$20.36
Sale price
$20.36
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: stemedu
Choice: yes
High-concerned chemical: none
Model Number: MG90S
Origin: Mainland China

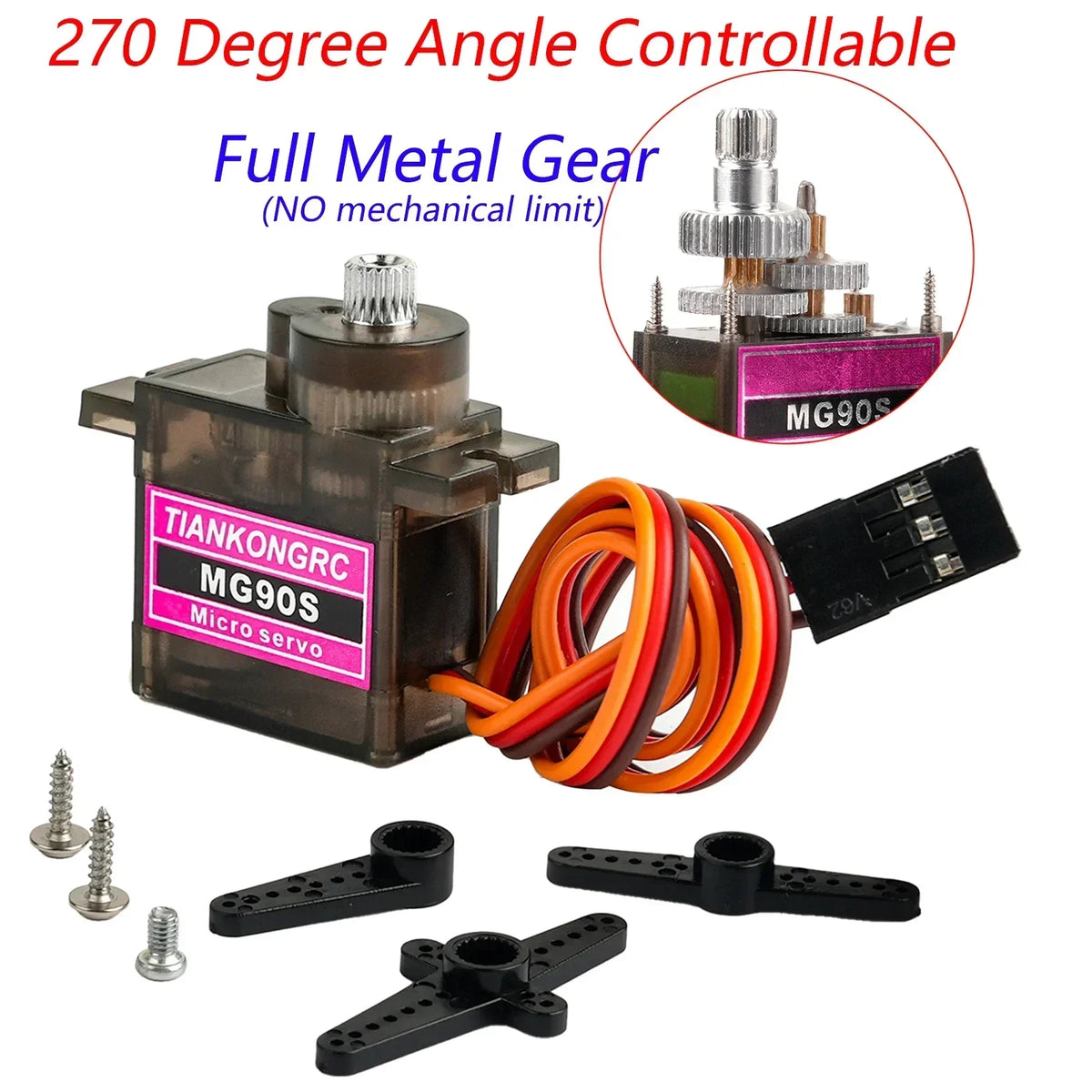

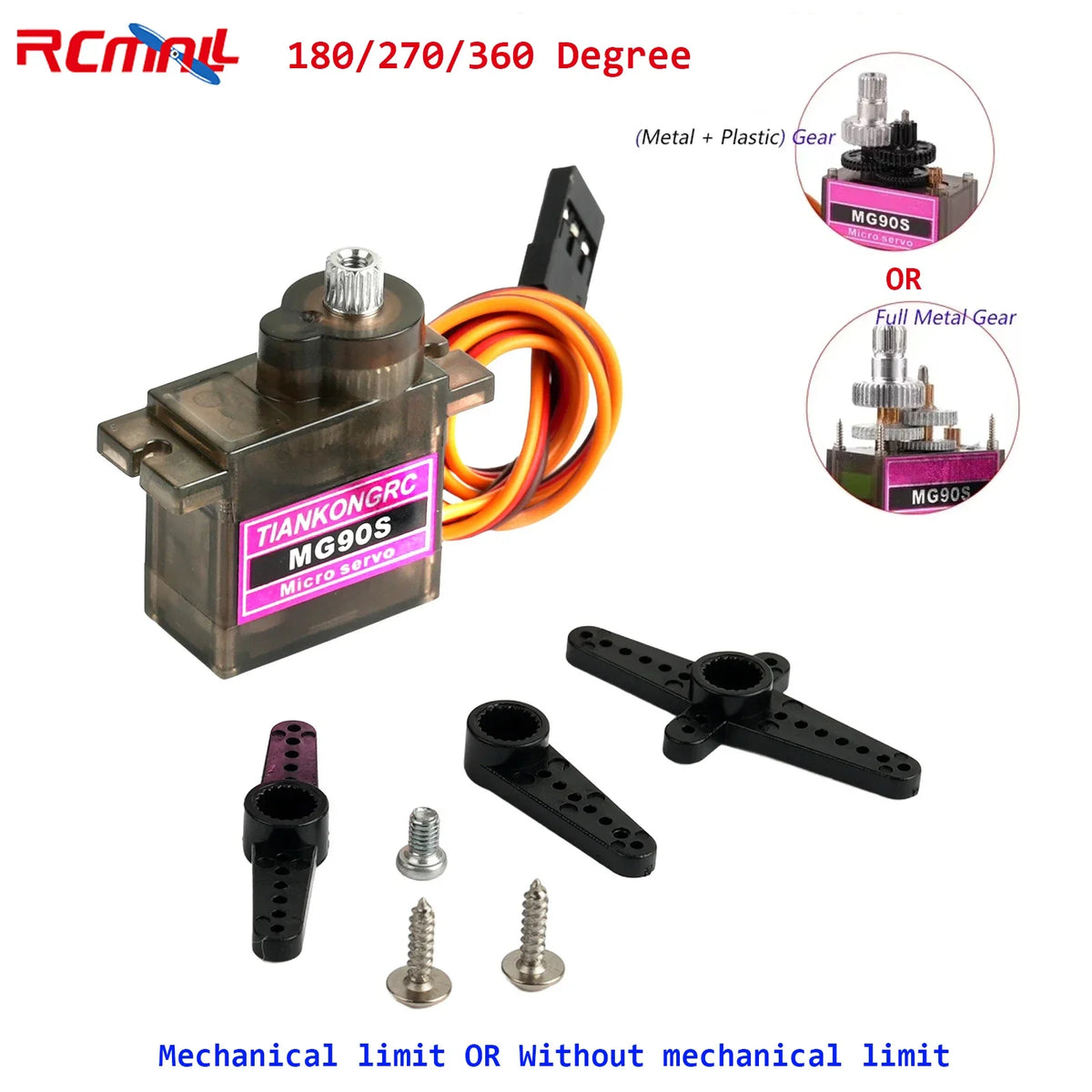

MG90S Micro Servo Motor 9g Full Metal Gear or (Plastic + Metal ) 180/270 Degree Angle Adjustable 360 Degree Continous Rotation SG90 Enhanced for Arduino RC Airplane Raspberry Pi
Features:
Structural Material: Aluminum metal teeth, coreless motor, double ball bearing
Please Note:
Please use the standard PWM control signal, the cycle is 20ms, the high level time is 0.5-2.5ms.

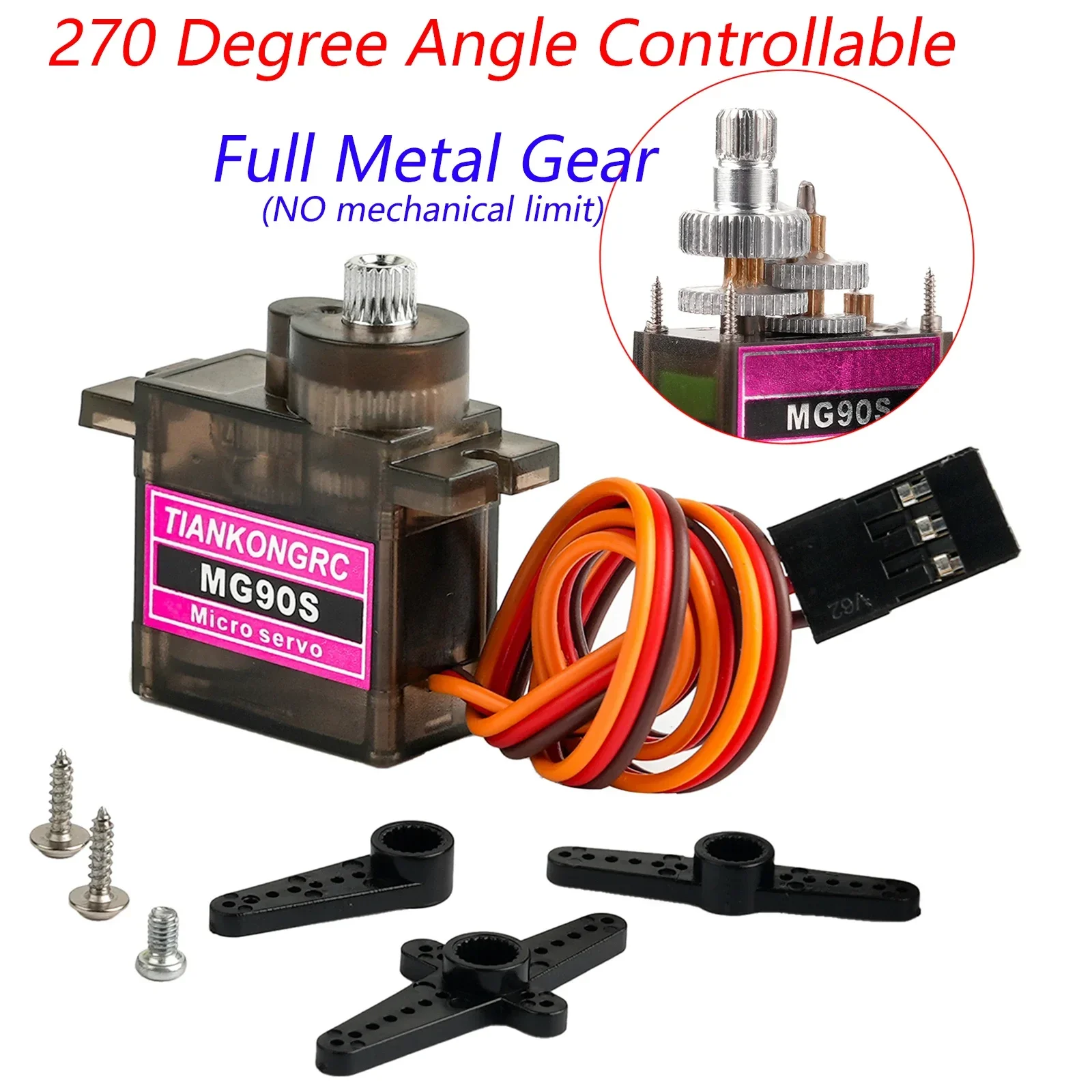

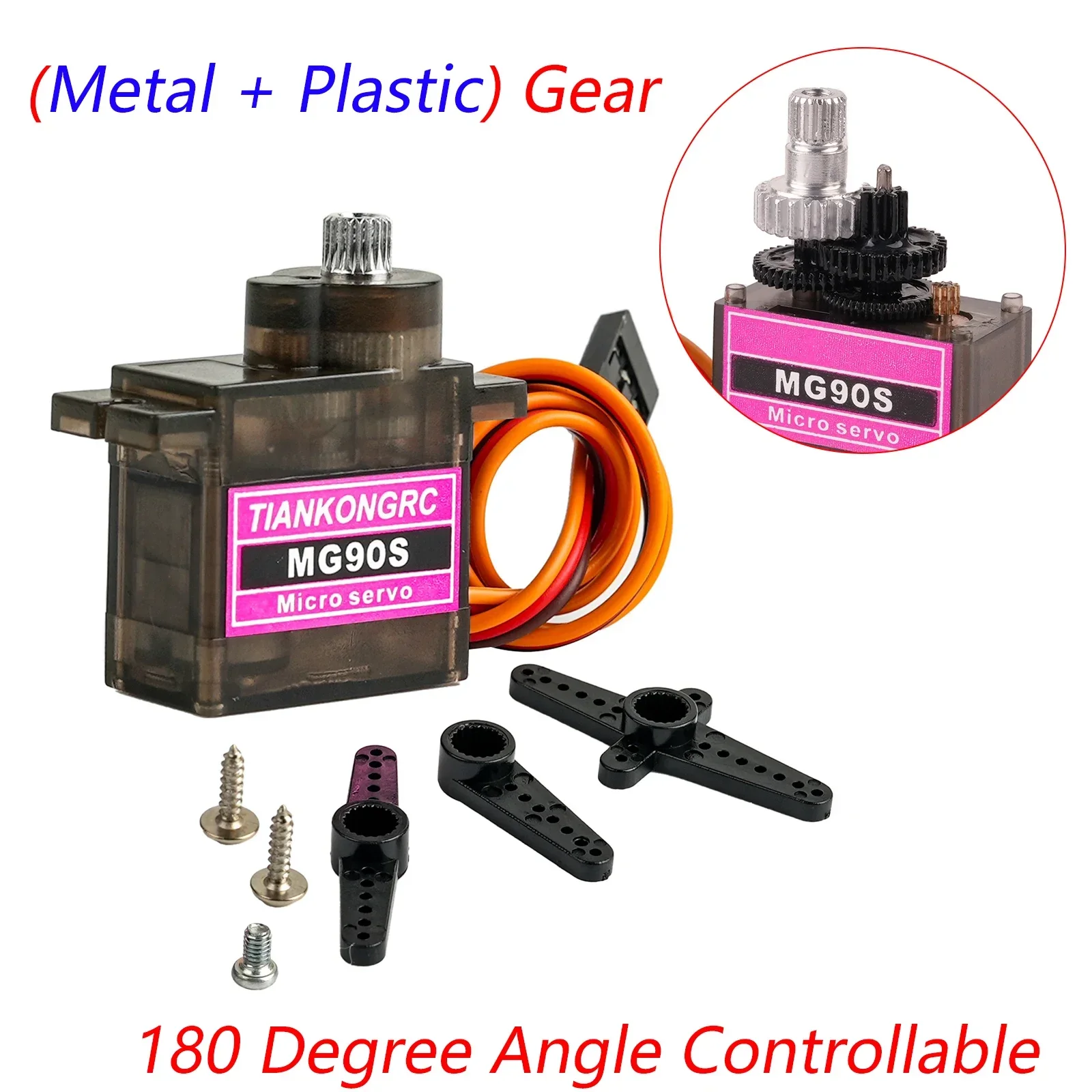

270 degrees and 180 degrees can stop at any angle, the angle is adjustable, PWM500-2500.

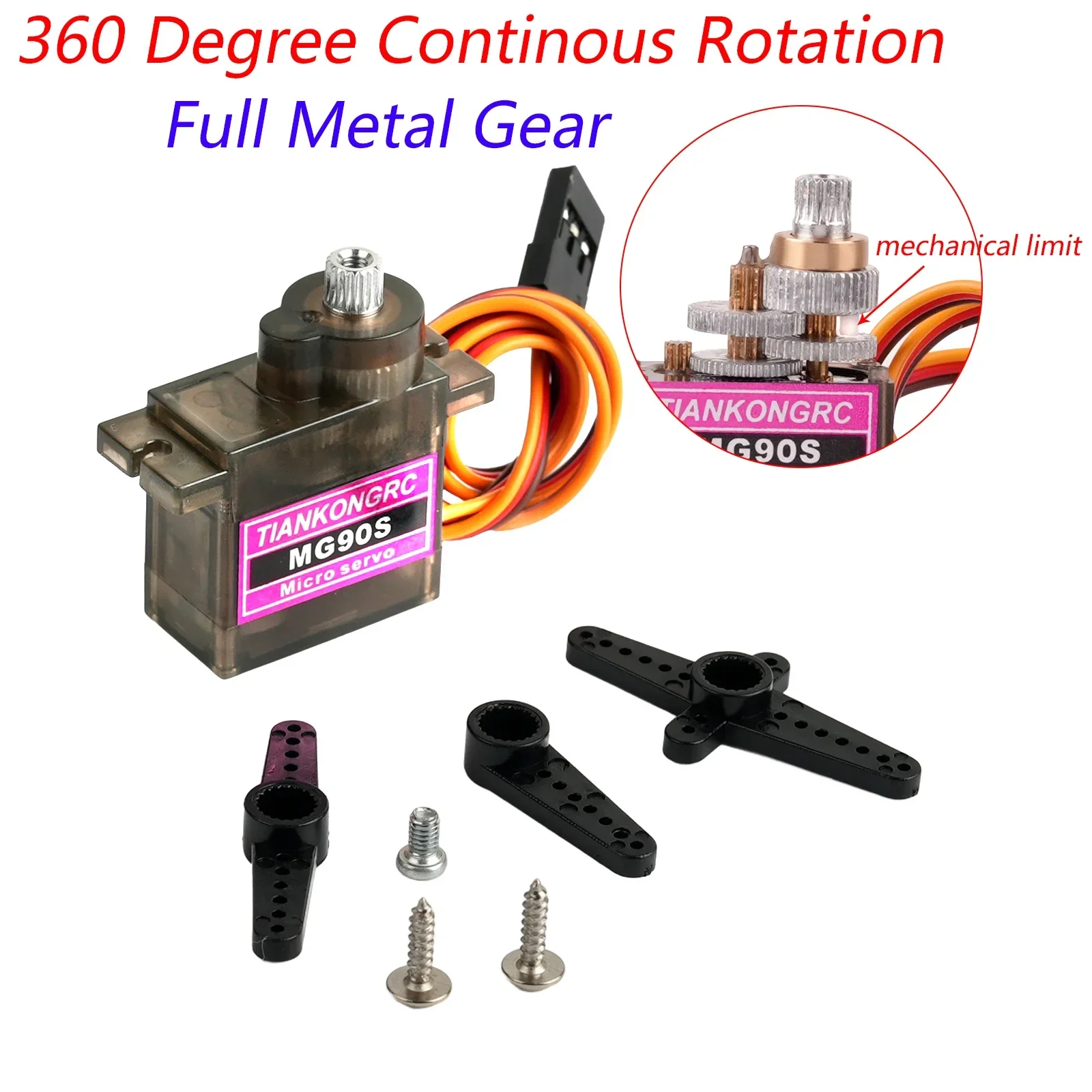

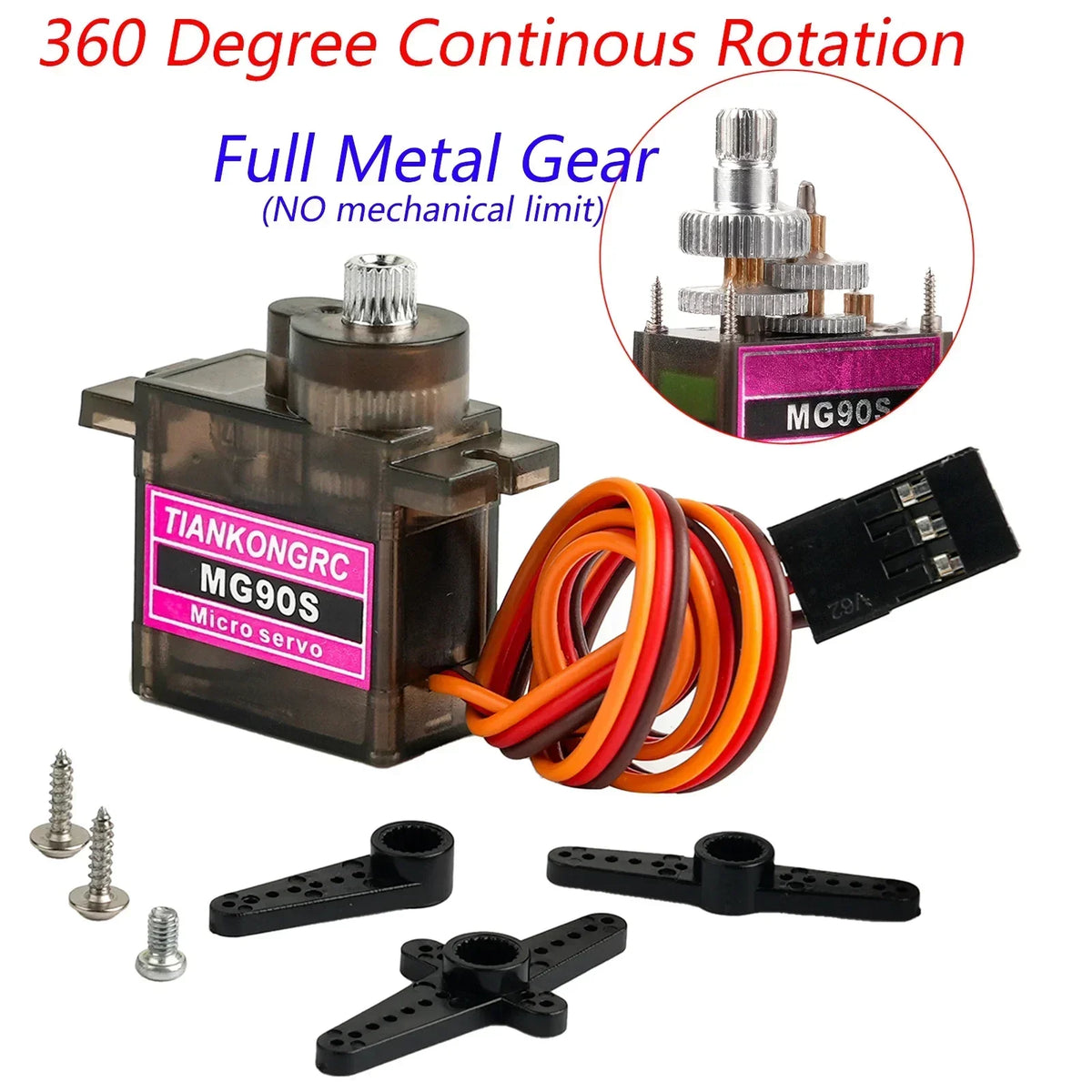

360 degrees is continuous rotation, the angle and speed cannot be controlled.
Specifications:

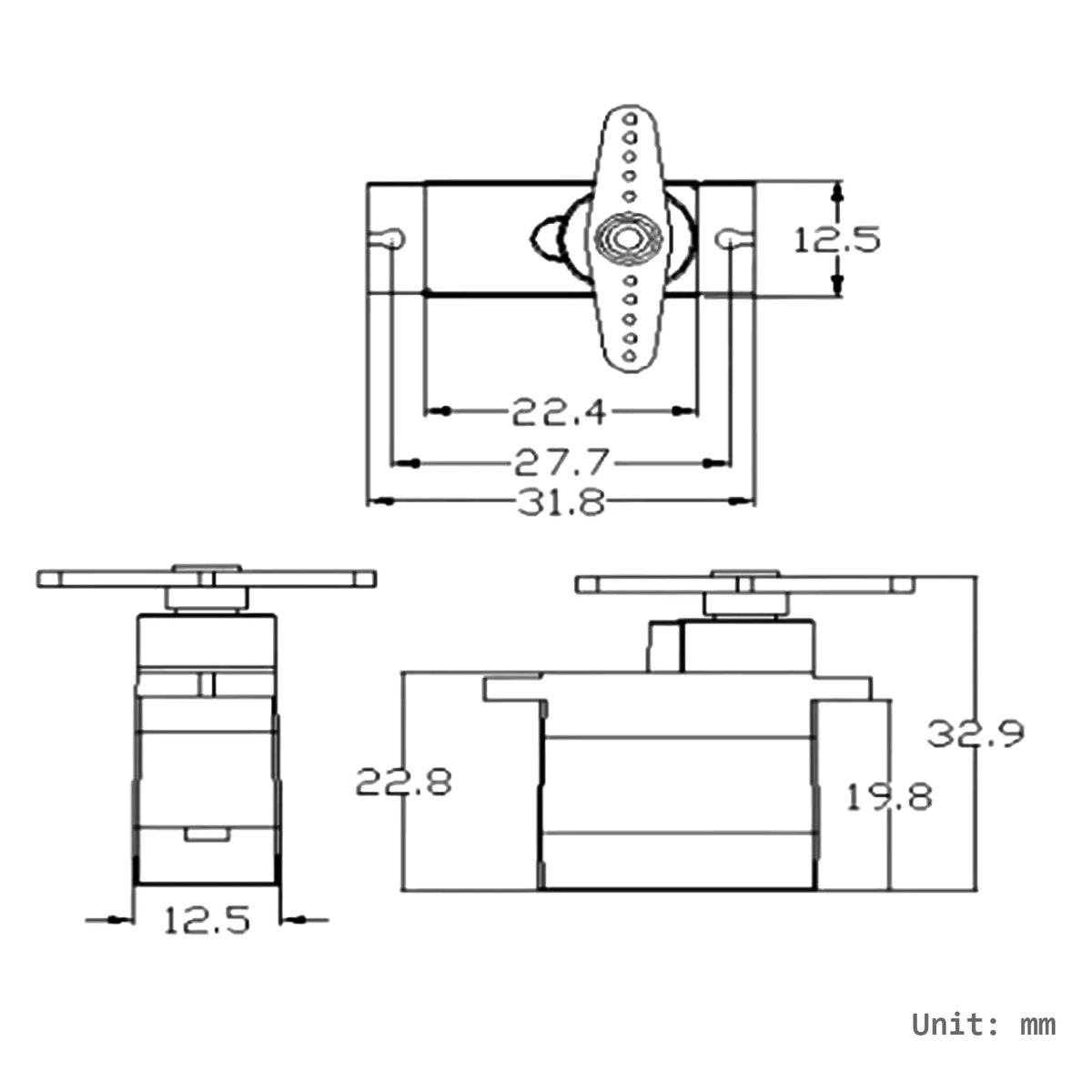

Size: 22.8mm(L) x 12.2mm(W) x 28.5mm(H)
Weight: 13.6 grams
Maximum angle: 90 degrees in each direction
Torsional moment: 2kg·cm
Working voltage: 4.8V
Operating speed: 0.11 seconds/ 60 degrees (4.8V)
The deadband setting: 5 μsec
Line Length: 300mm
Plug Type: JR, FUTABA General
Features:
Structural Material: Aluminum metal teeth, coreless motor, double ball bearing
Please Note:
Please use the standard PWM control signal, the cycle is 20ms, the high level time is 0.5-2.5ms.
270 degrees and 180 degrees can stop at any angle, the angle is adjustable, PWM500-2500.
360 degrees is continuous rotation, the angle and speed cannot be controlled.
Specifications:
Size: 22.8mm(L) x 12.2mm(W) x 28.5mm(H)
Weight: 13.6 grams
Maximum angle: 90 degrees in each direction
Torsional moment: 2kg·cm
Working voltage: 4.8V
Operating speed: 0.11 seconds/ 60 degrees (4.8V)
The deadband setting: 5 μsec
Line Length: 300mm
Plug Type: JR, FUTABA General
