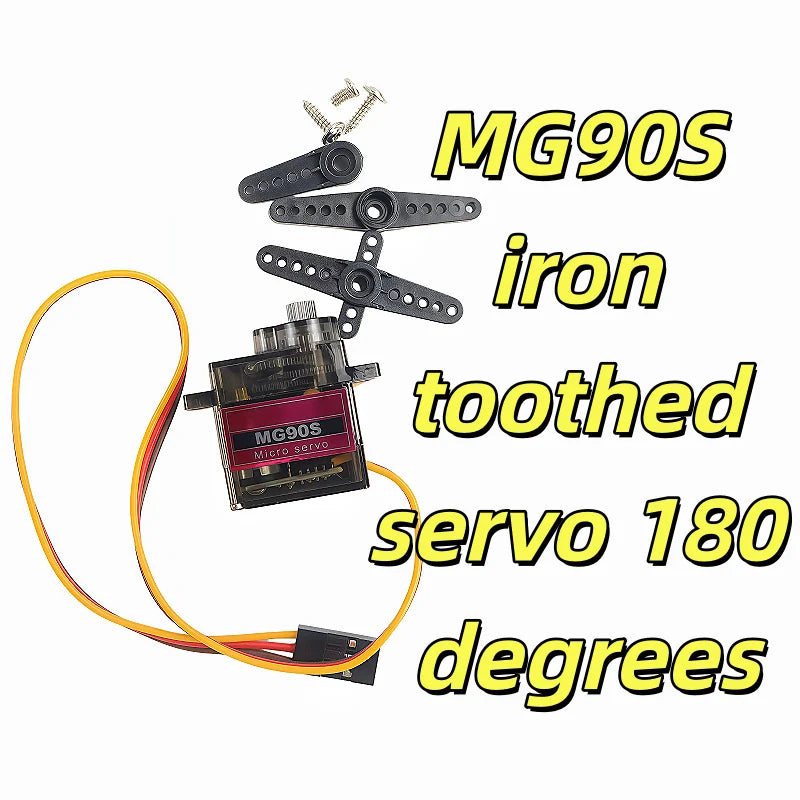

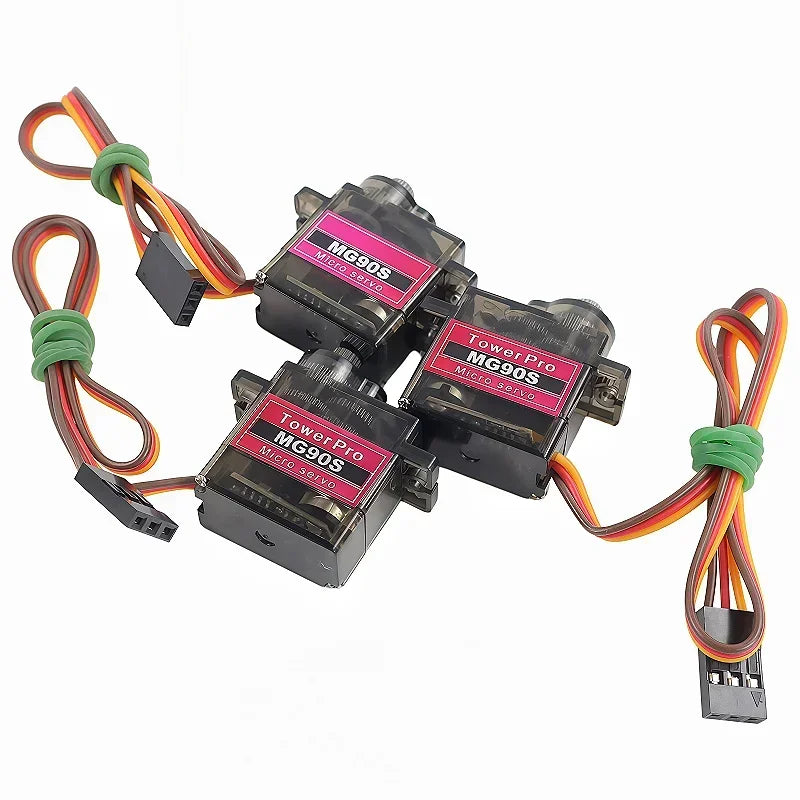

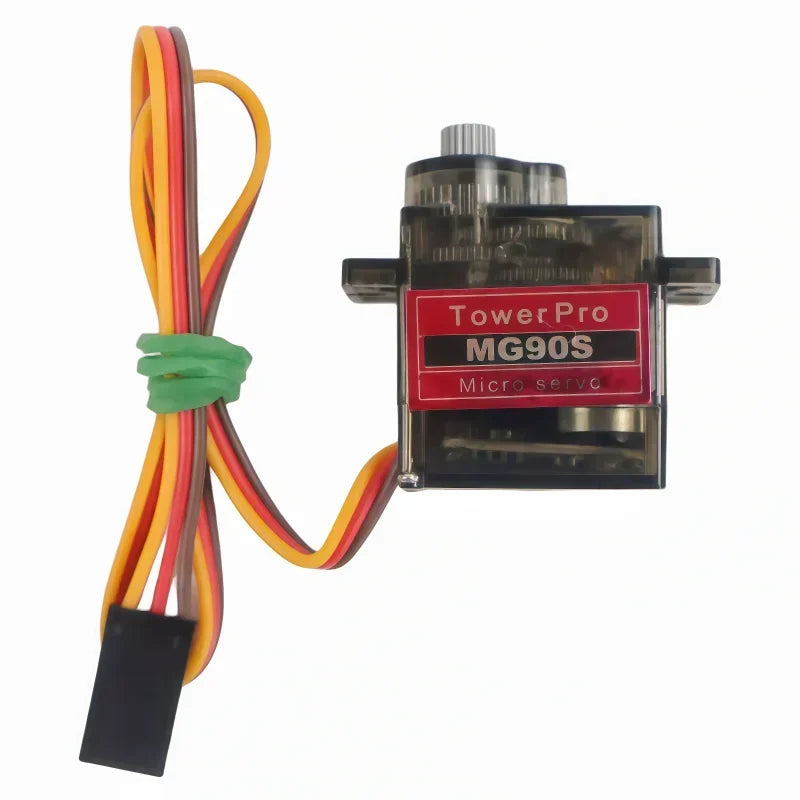

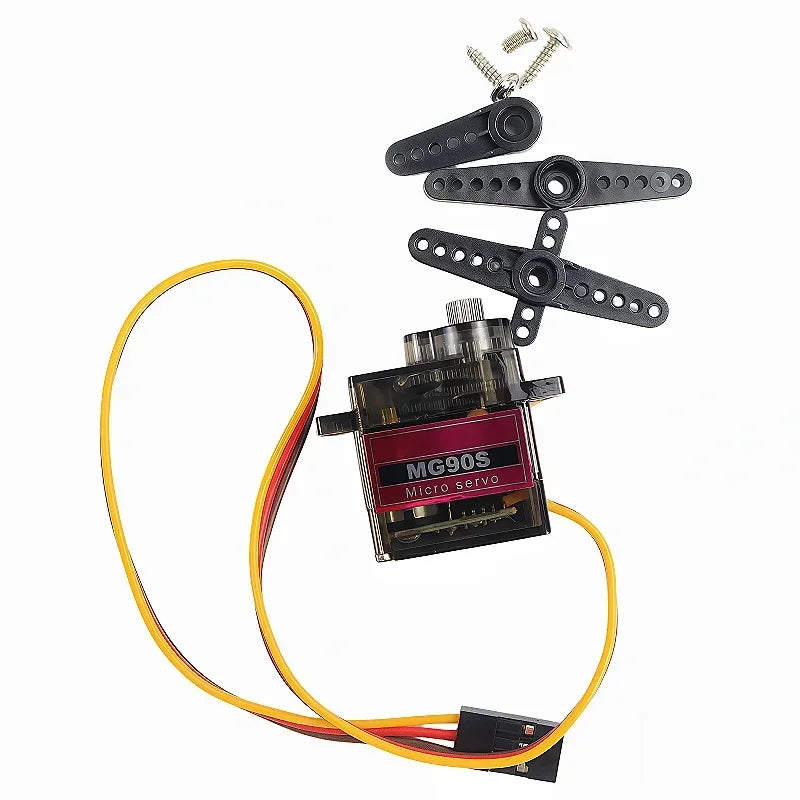

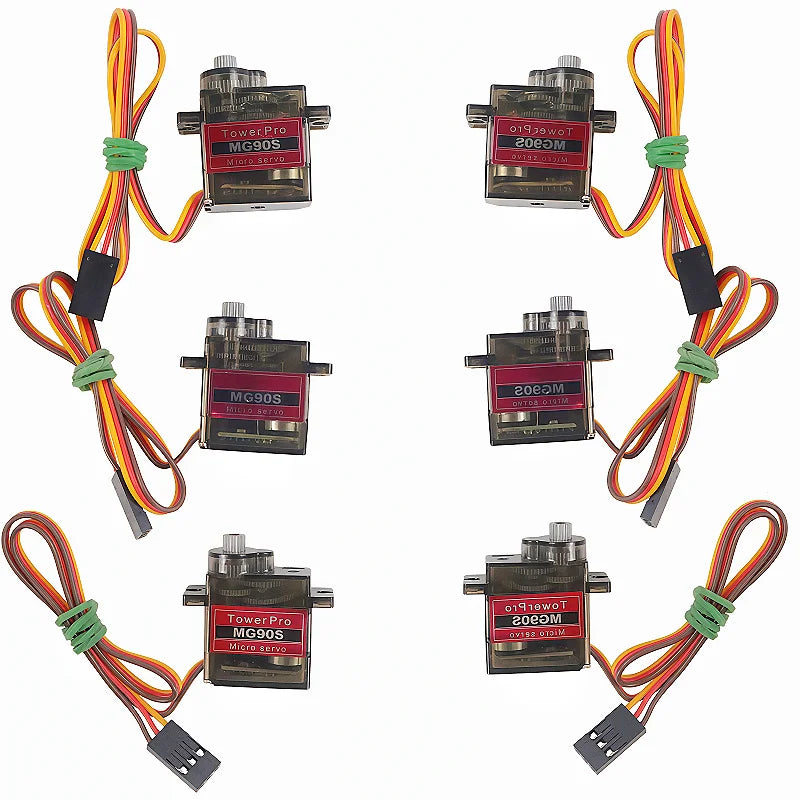

MG90S Servo 2/5/10 Pcs All Metal Gear 9g SG90 Upgraded Version For Helicopter Plane Boat Car RC Robot 180 360 Degree

MG90S Servo 2/5/10 Pcs All Metal Gear 9g SG90 Upgraded Version For Helicopter Plane Boat Car RC Robot 180 360 Degree

$21.84

$21.84 $0.00

Color 2pcs 180 Degree 10pcs 360 Degree 10pcs 180 Degree 2pcs 360 Degree 5pcs 180 Degree 1pcs 180 Degree 5pcs 360 Degree 1pcs 360 Degree

Voltage/Plug TypeNo plug

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Plastic

Origin: Mainland China

Recommend Age: 14+y

Attention：

If you are using RC car, ship,drones, and steering control, please choose a 180 degree servo.

360 degrees are continuous rotations and can only adjust speed, not angle.
The difference between 180 degrees and 360 degrees:
180 degree servo can control the angle
360 degree servo can only control forward, reverse, and speed
Driver logic:
180 degrees:
T=0.5ms ---- Rotate 0 °
T=1.Oms ---- Rotate 45 °
T=1.5ms ----Rotate 90 °
T=2.0ms ---- Rotate 135 °
T=2.5ms ---- Rotate 180 °

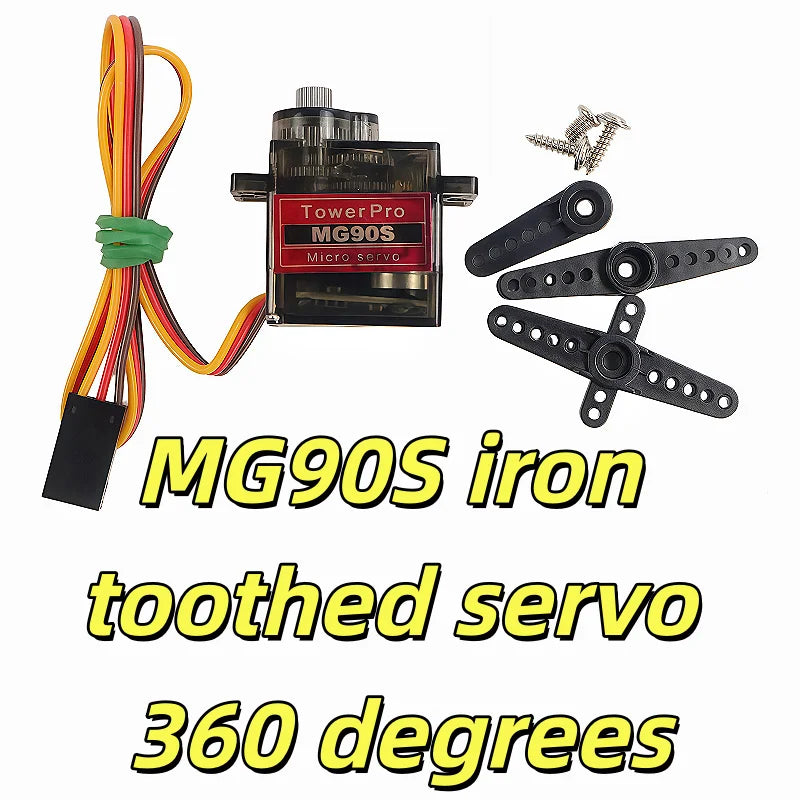

360 degrees:
T=0.5ms ---- Maximum forward rotation speed;
T=1.5ms ---- No rotation;
T=2.5ms ---- Maximum reverse speed;

Note:

1. The clothing is made of all metal gears, which means that the main shaft and gears are both made of iron.

2. 360 Degree Servo rotates continuously. If need to control the angle, plesae choose the option 180 Degree Servo

3. For 180 degree servo, some controllers can not control the angle accurately; please use a professional PWM Servo Controller to control the angle

Products Description:

For: Mini Car / Mini Ship / Helicopter & Airplane

Model: MG90S

Product Weight: ≈17G

Speed: 4.8V&0.10sec/60 degrees; 6.0V&0.09sec/60 degree

Torque: 4.8V&1.6KG-cm; 6.0V&1.8kg-cm

Voltage: 4.8V6.0V

Connector Wire Length 250mm
