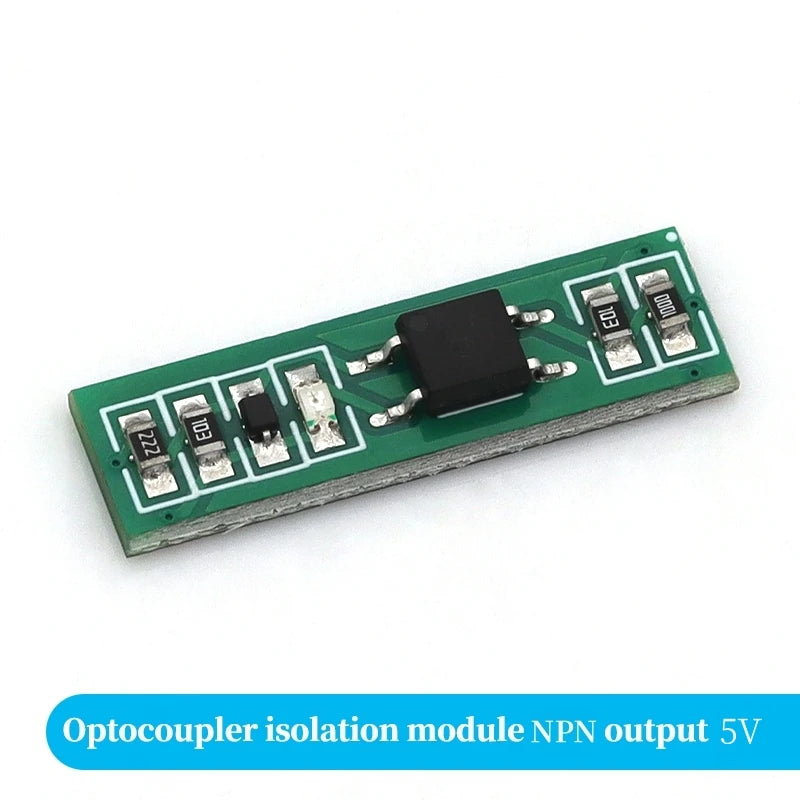

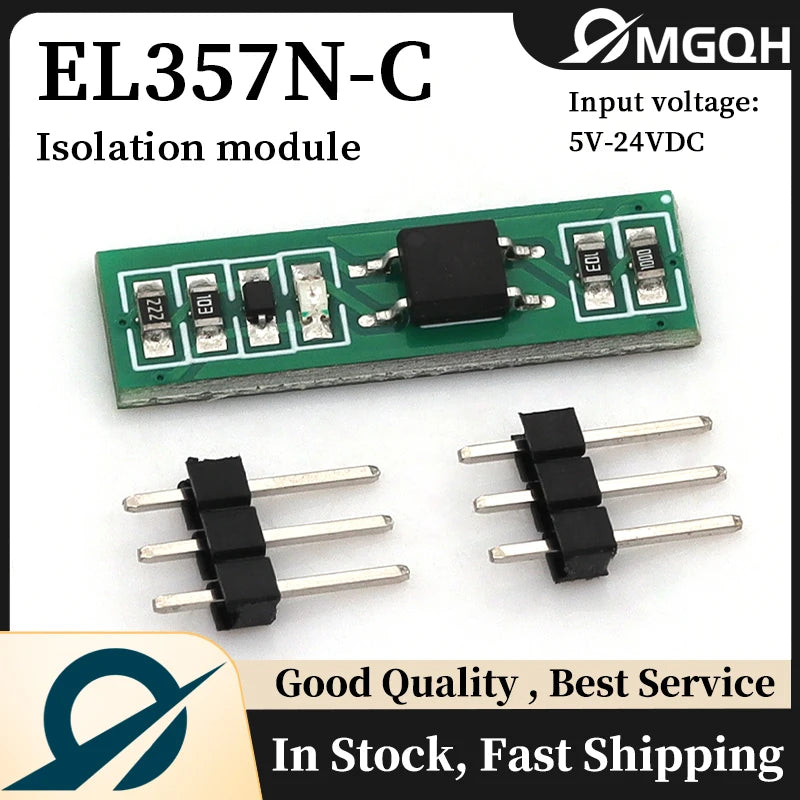

MGQH EL357N-C Optocoupler Isolation Module Signal Level Conversion 3.3V 5V 12V 24V NPN PNP
NPN output 5V / 5pcs
$19.62
Sale price
$19.62
Regular price
$0.00
Skip to product information
MGQH EL357N-C Optocoupler Isolation Module Signal Level Conversion 3.3V 5V 12V 24V NPN PNP
$19.62
Sale price
$19.62
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: MGQH
Choice: yes
Condition: New
High-concerned chemical: none
Operating Temperature: -45-+65
Origin: Mainland China
Package: SMD
Supply Voltage: 3.3V/5V/12V/24V
Type: Module
is_customized: Yes
semi_Choice: yes

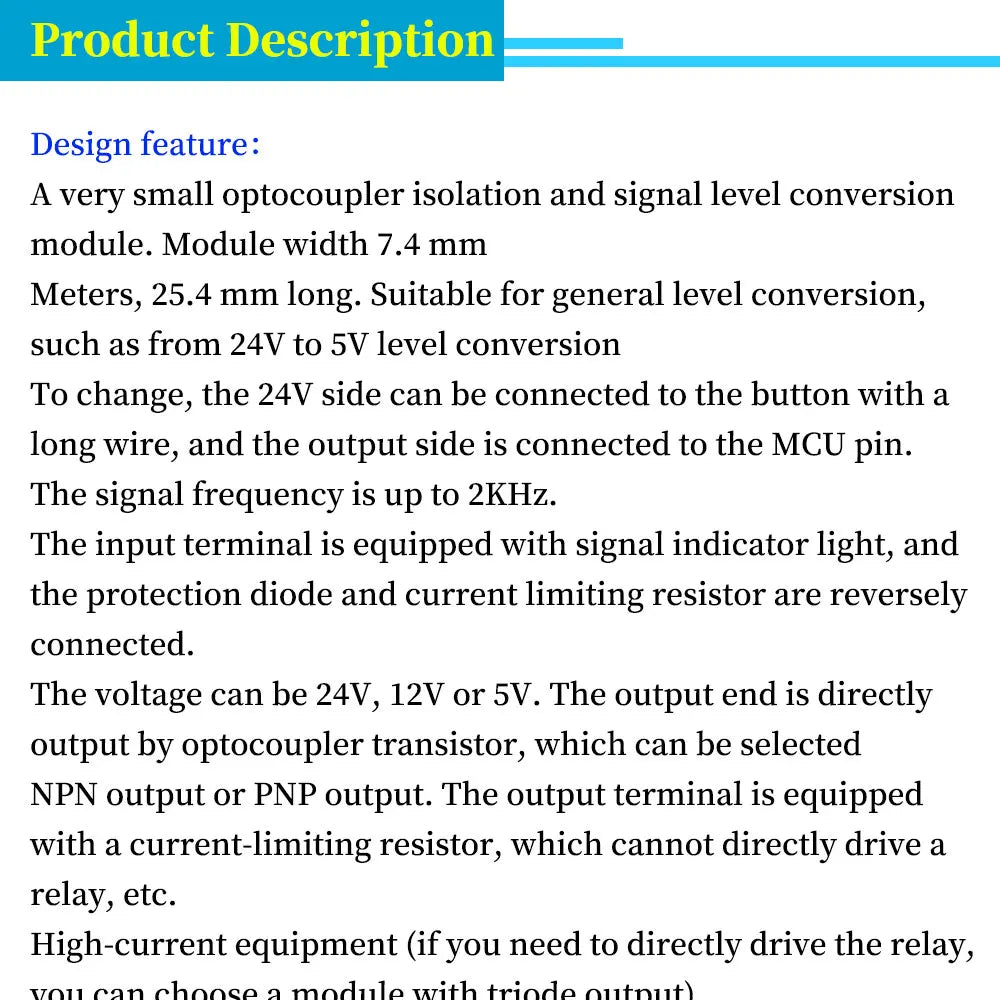

Design feature:

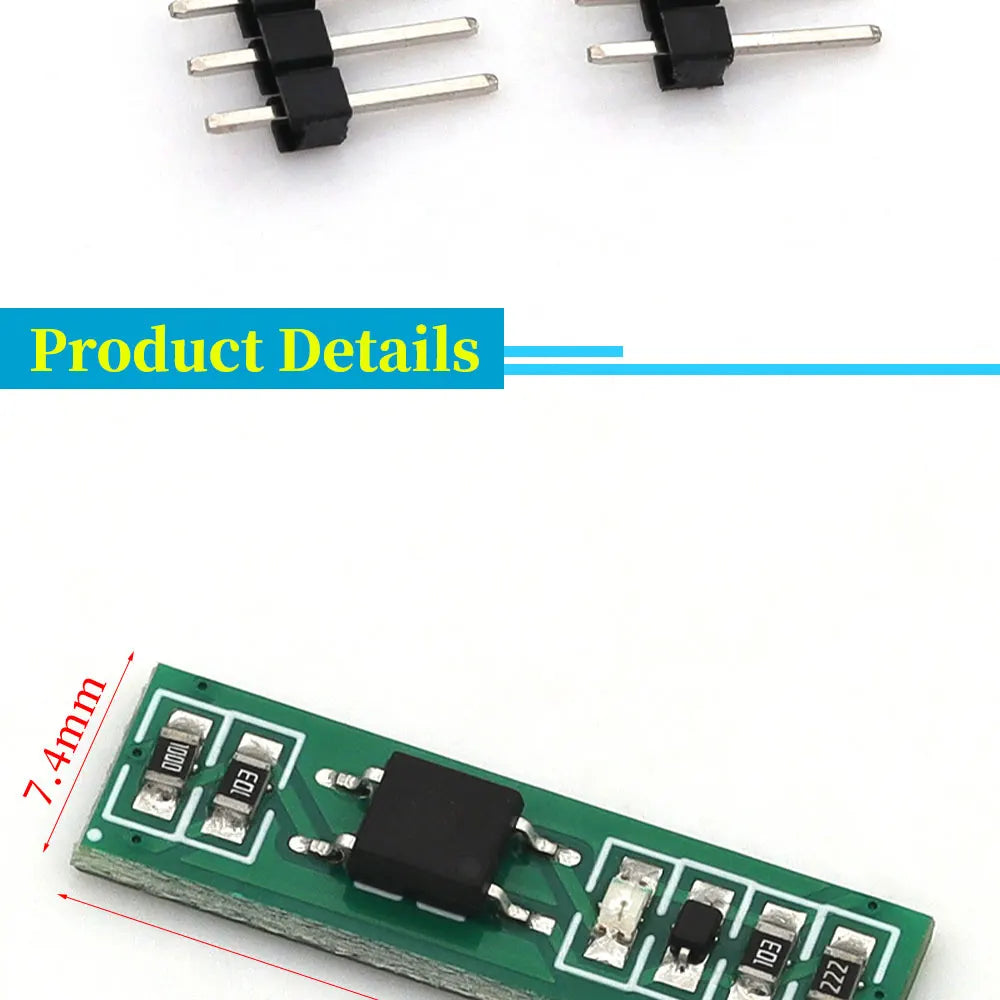

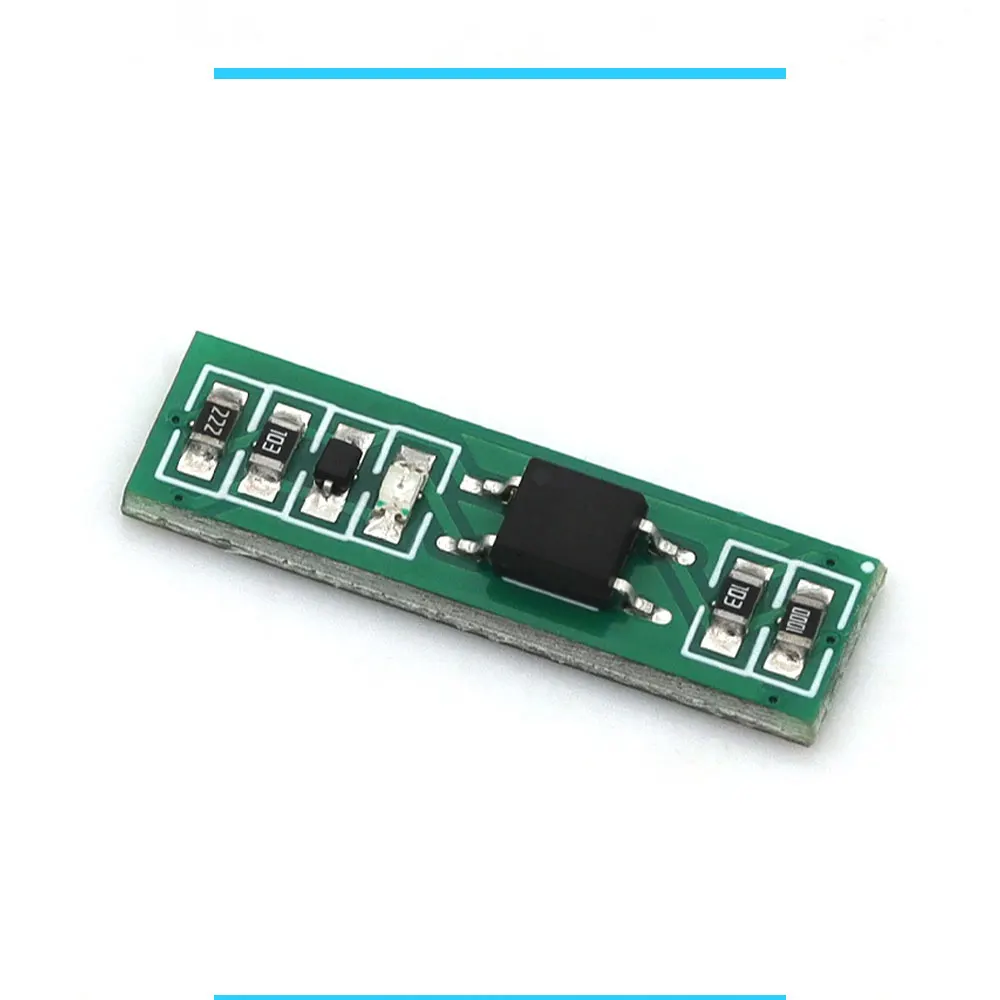

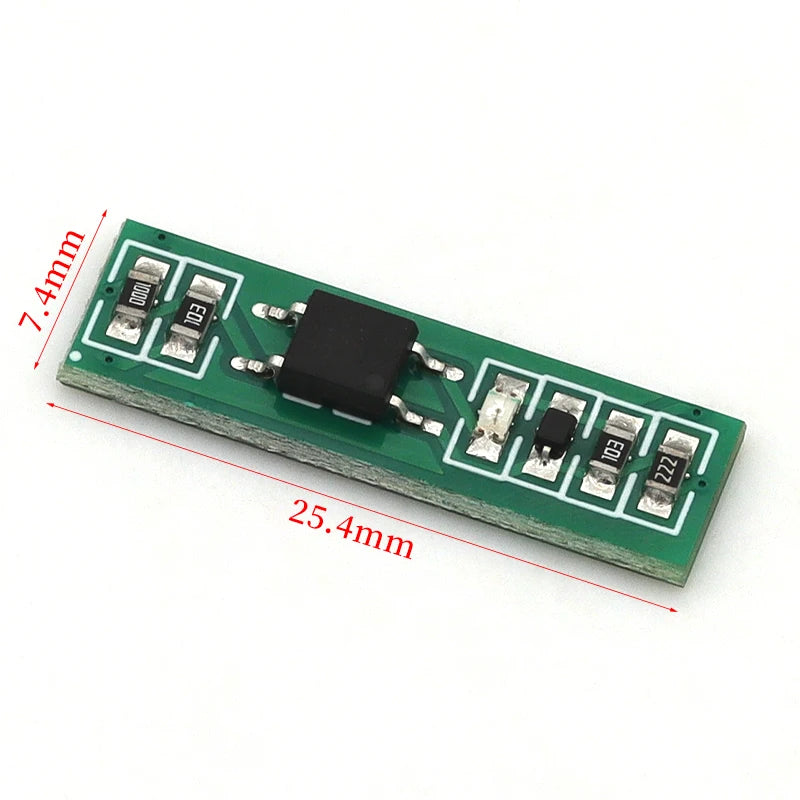

A very small optocoupler isolation and signal level conversion module. Module width 7.4 mm
Meters, 25.4 mm long. Suitable for general level conversion, such as from 24V to 5V level conversion

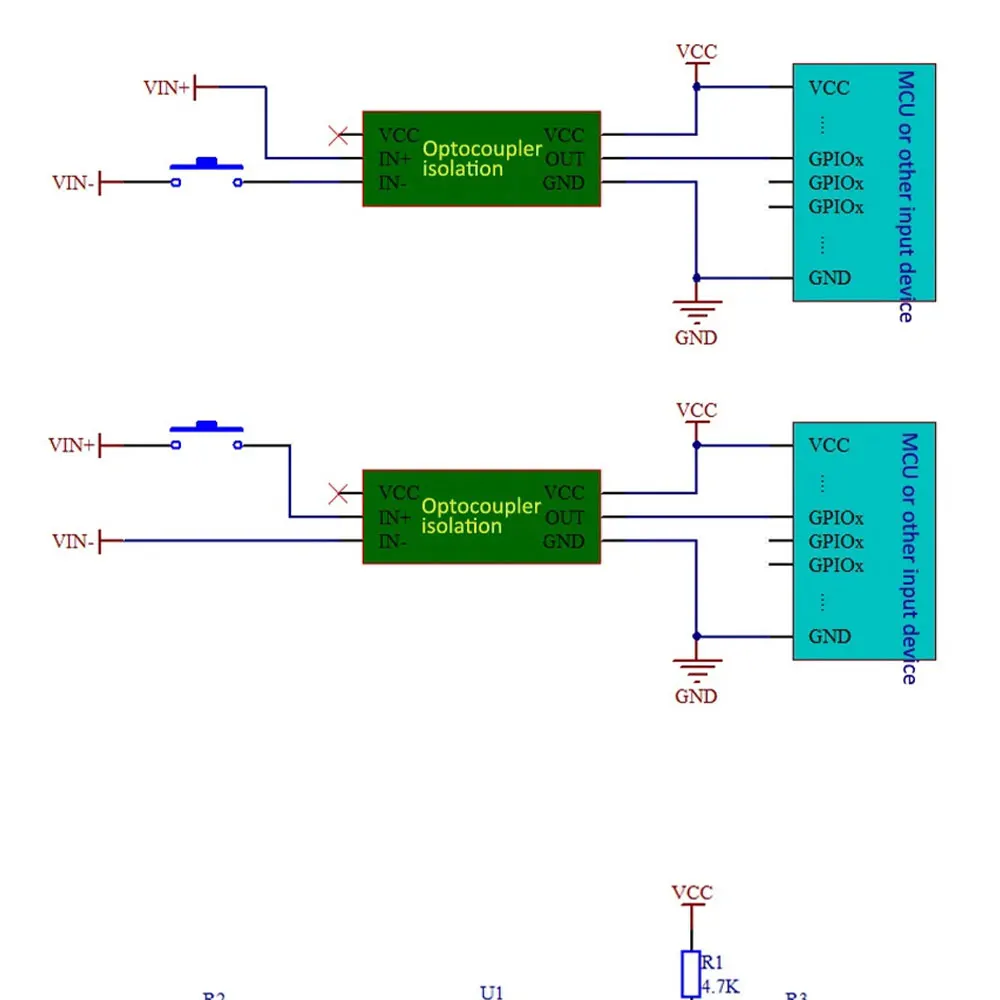

To change, the 24V side can be connected to the button with a long wire, and the output side is connected to the MCU pin.
The signal frequency is up to 2KHz.

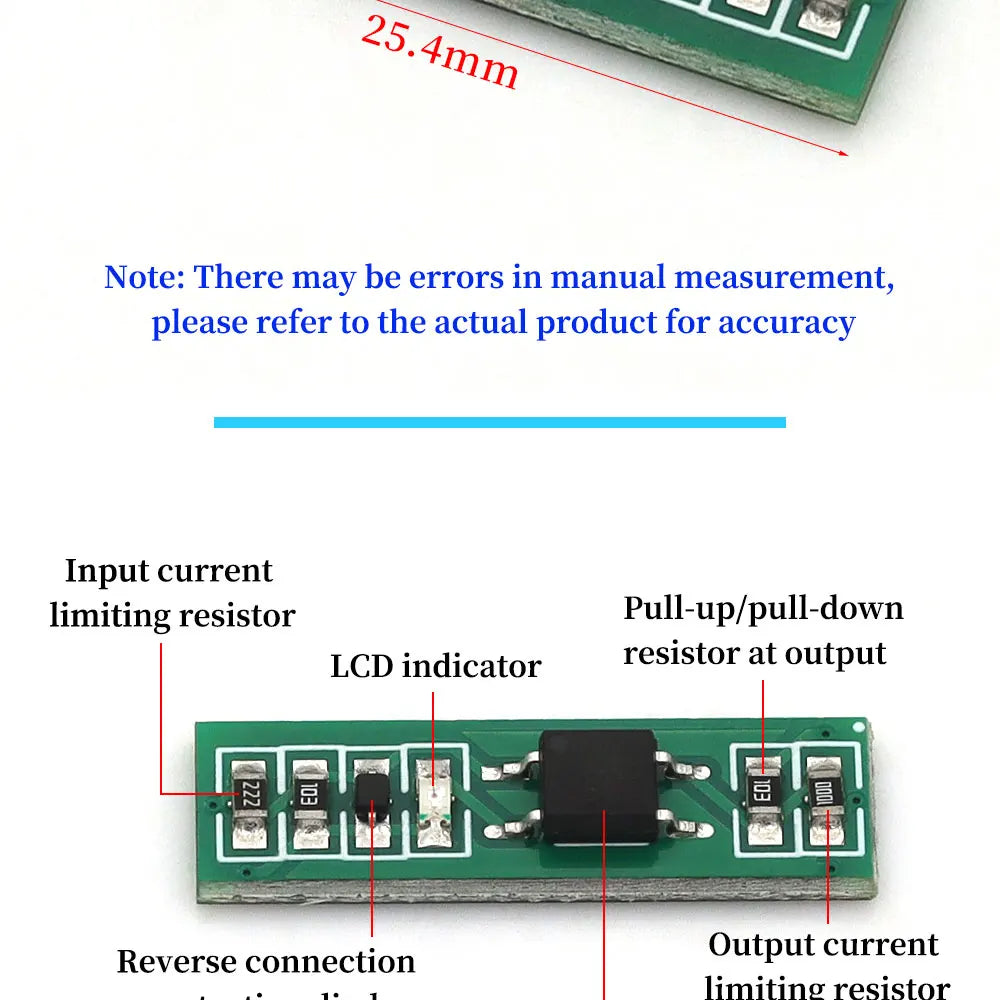

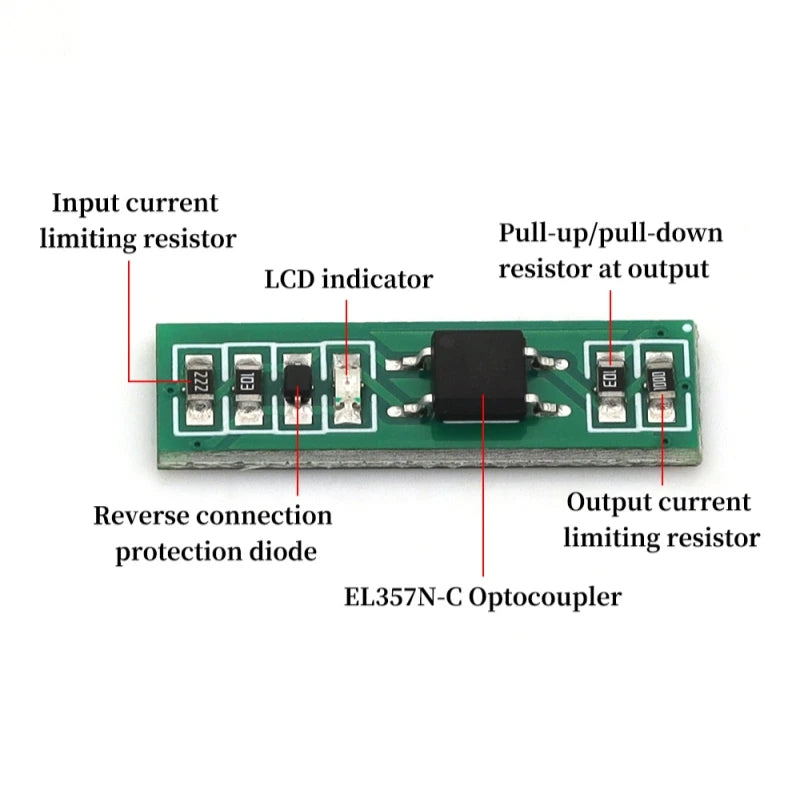

The input terminal is equipped with signal indicator light, and the protection diode and current limiting resistor are reversely connected.

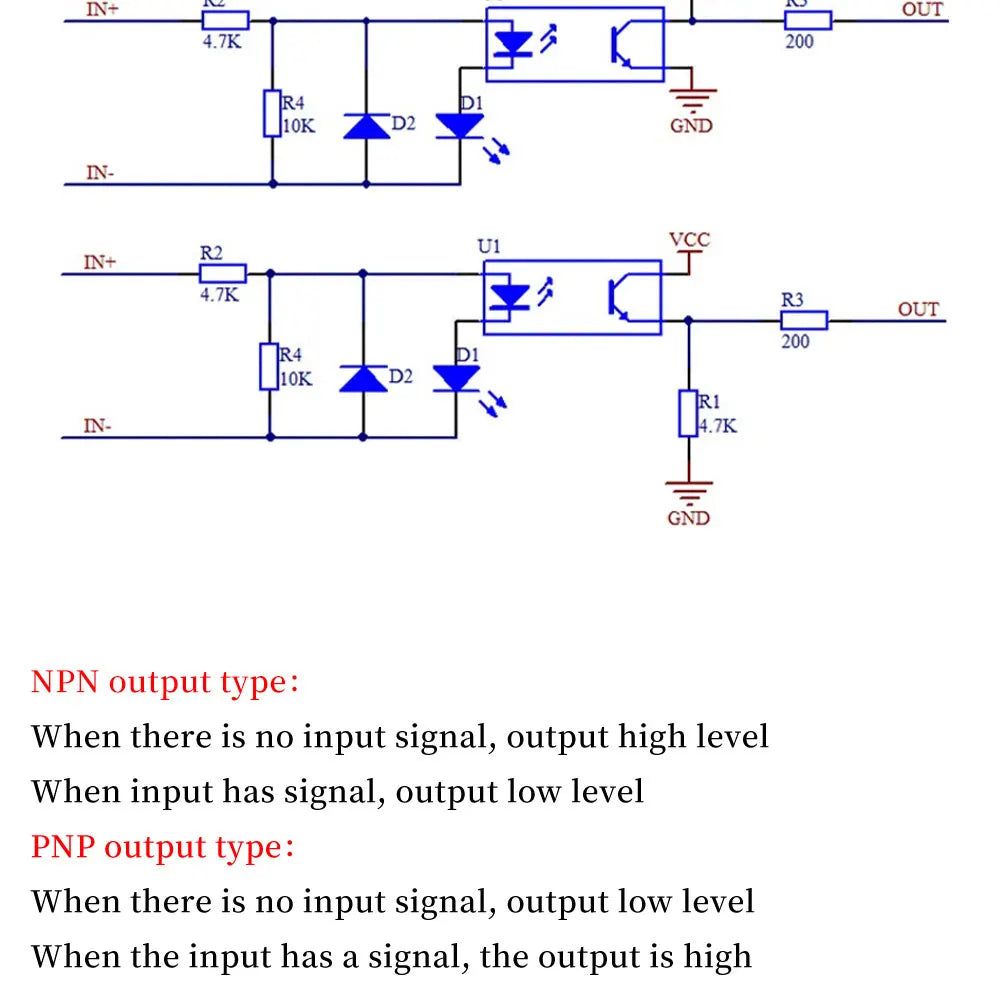

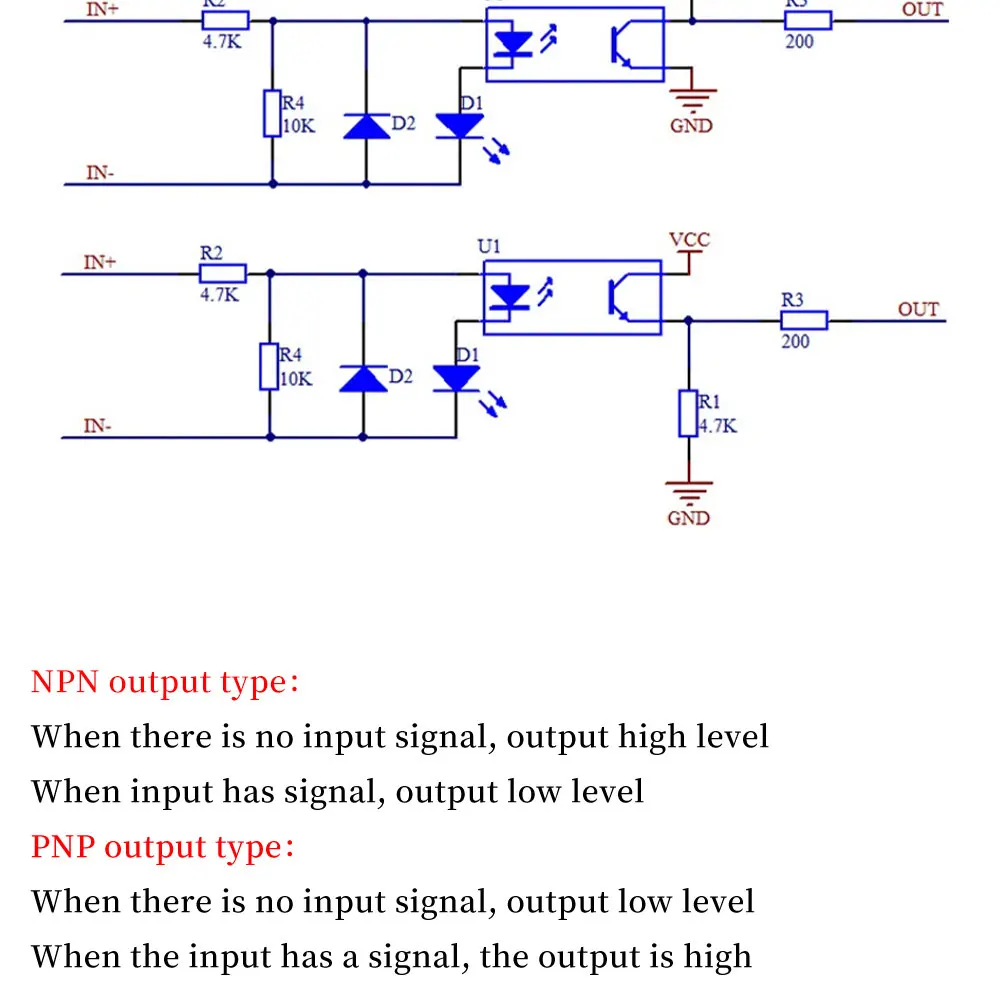

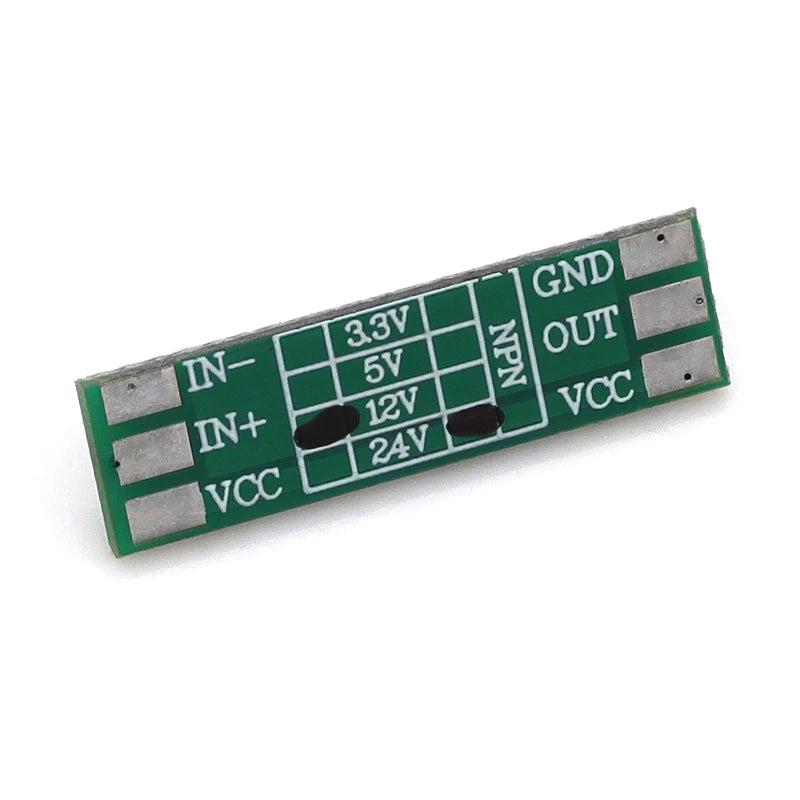

The voltage can be 24V, 12V or 5V. The output end is directly output by optocoupler transistor, which can be selected
NPN output or PNP output. The output terminal is equipped with a current-limiting resistor, which cannot directly drive a relay, etc.
High-current equipment (if you need to directly drive the relay, you can choose a module with triode output).

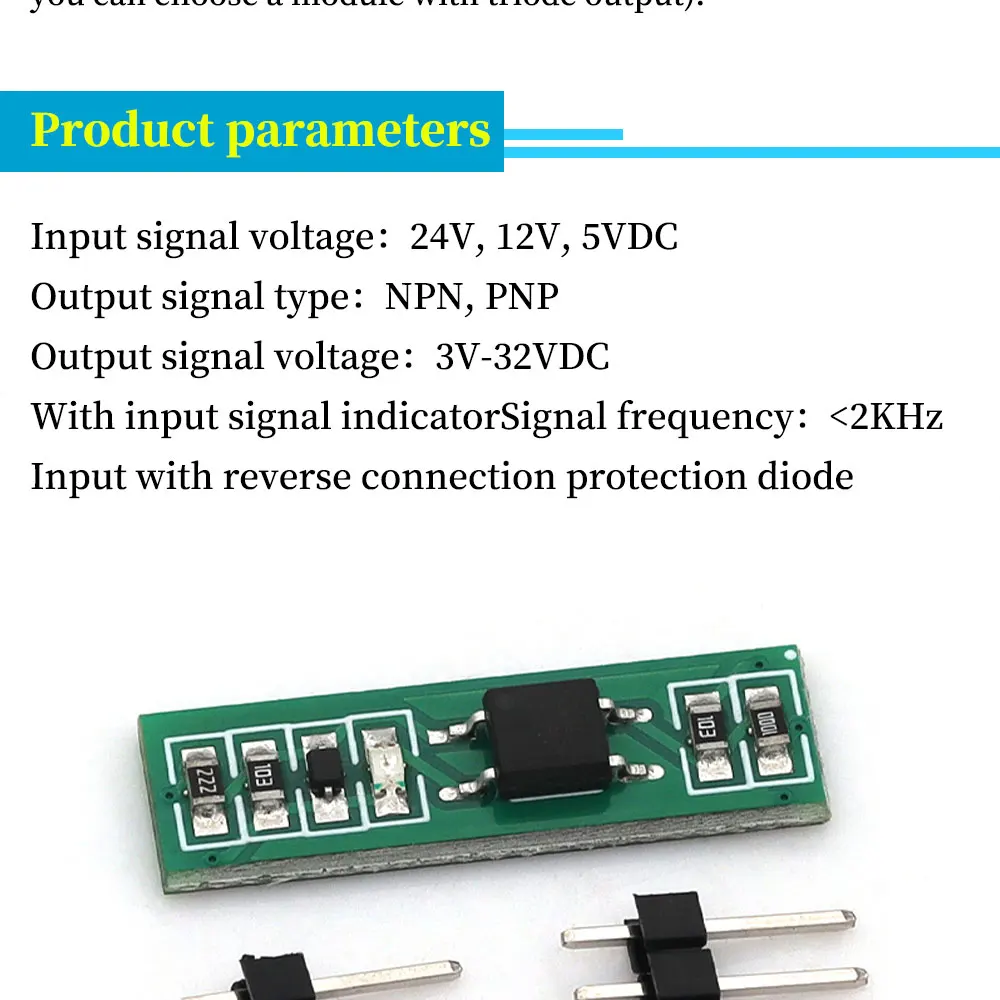

Product parameters:
Input signal voltage: 24V, 12V, 5VDC
Output signal type: NPN, PNP
Output signal voltage: 3V~32VDC
·With input signal indicator
Signal frequency: <2KHz
·Input with reverse connection protection diode
