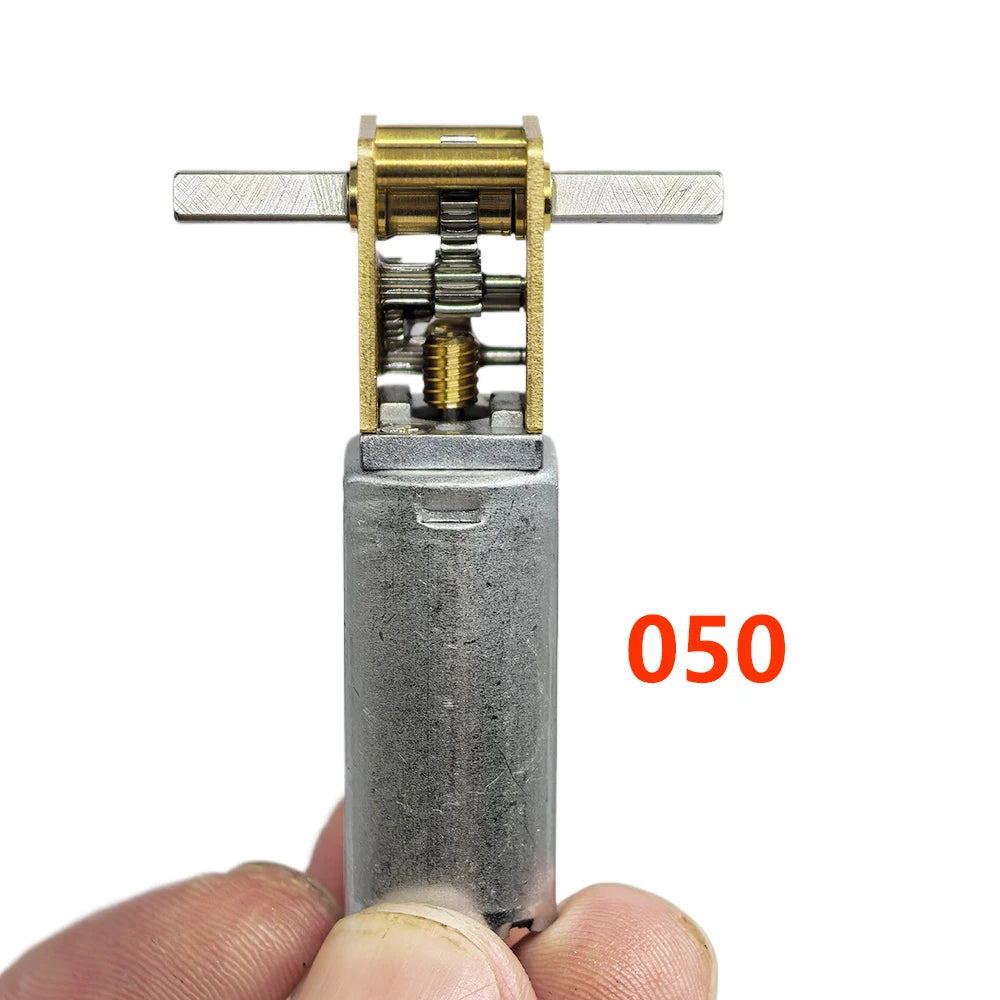

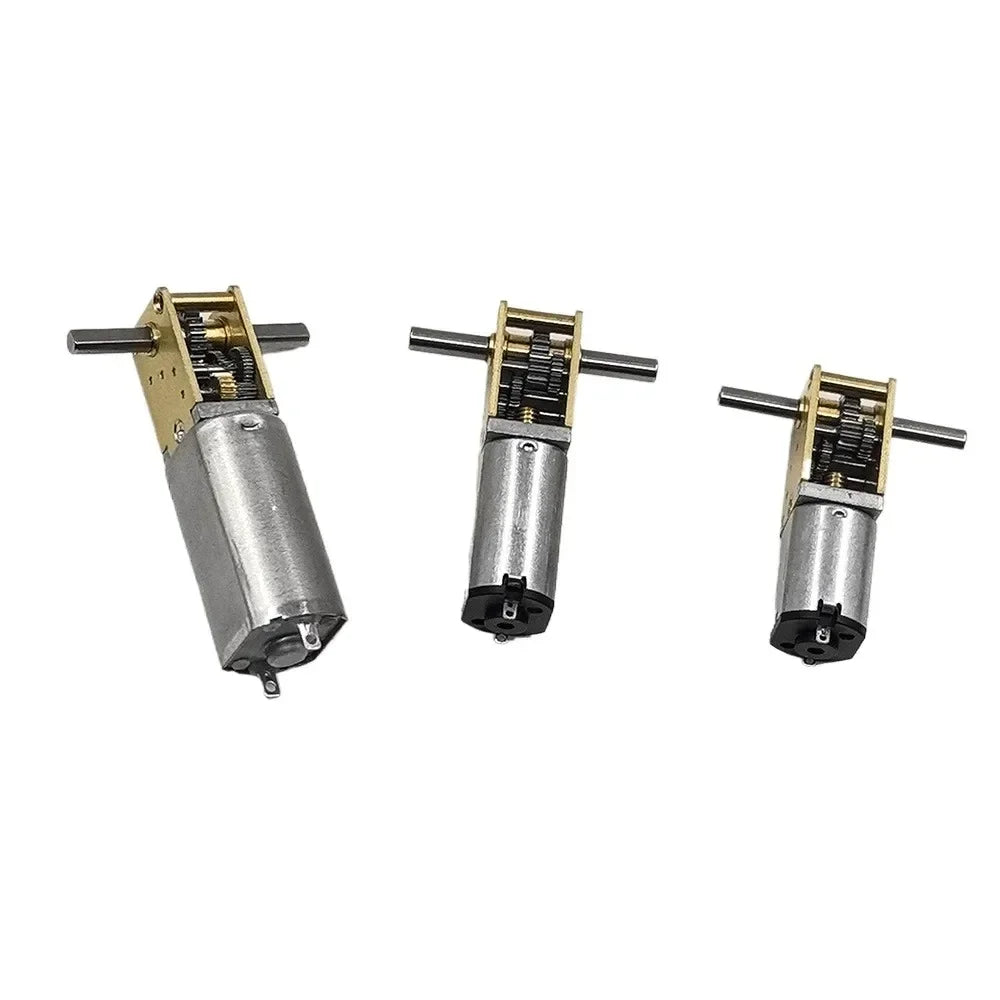

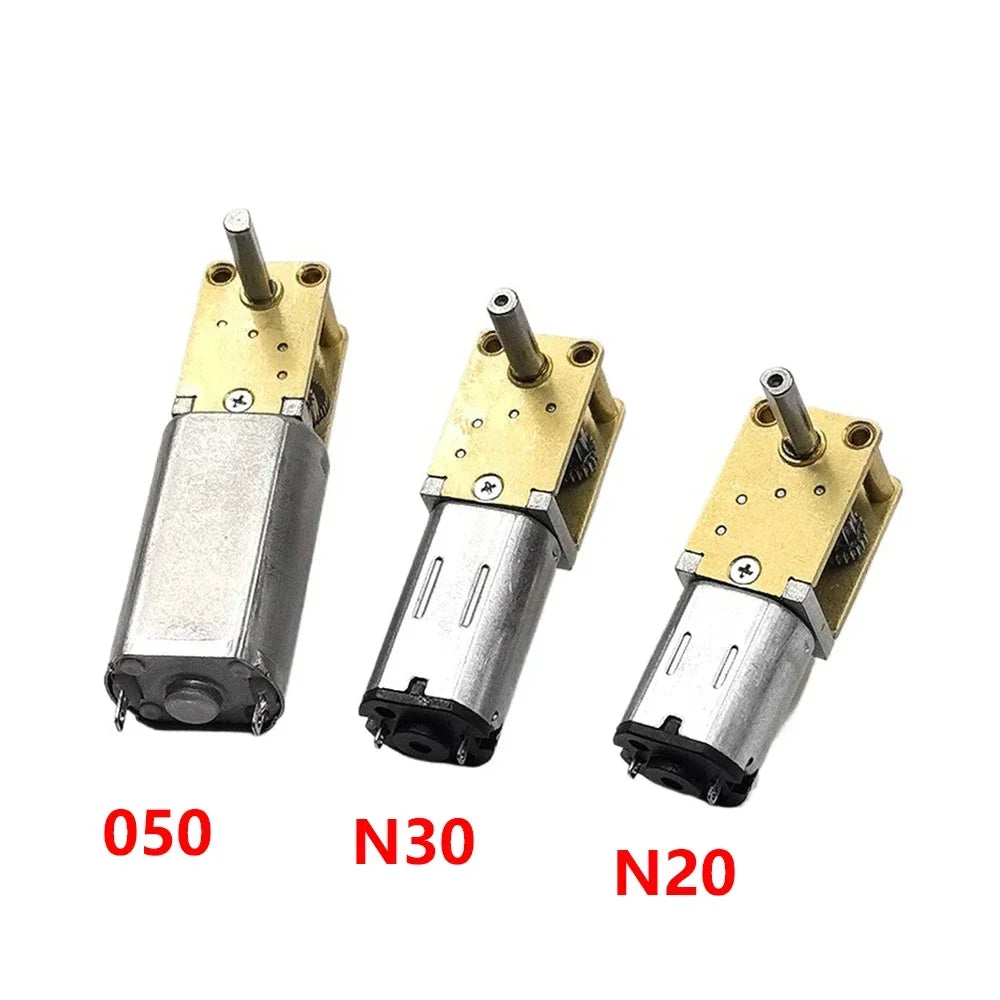

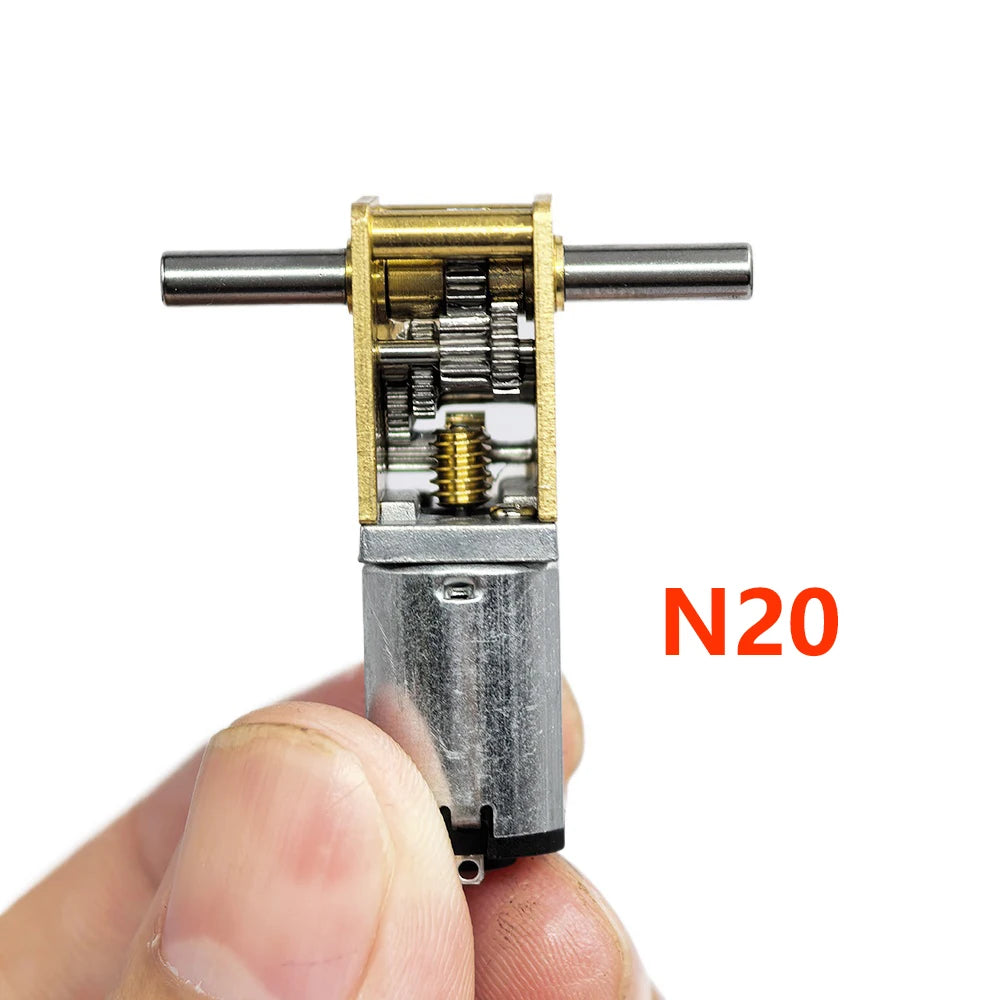

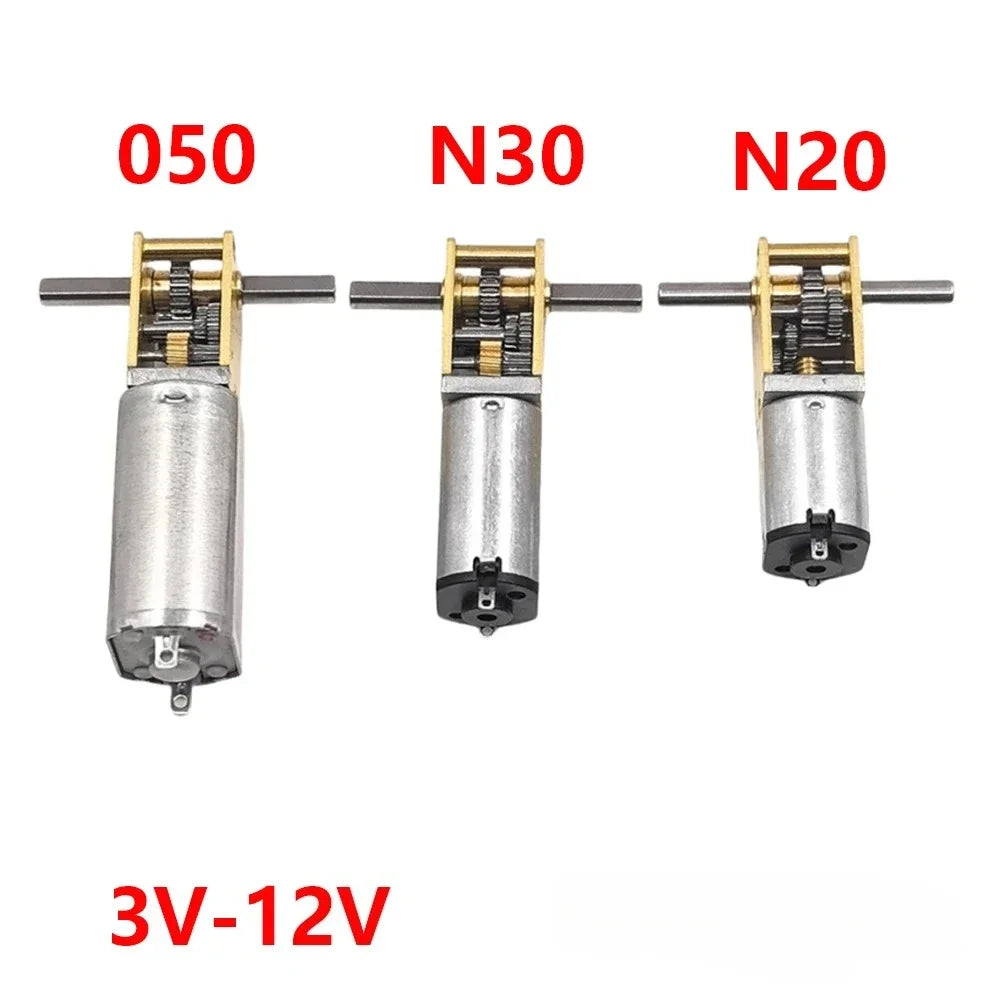

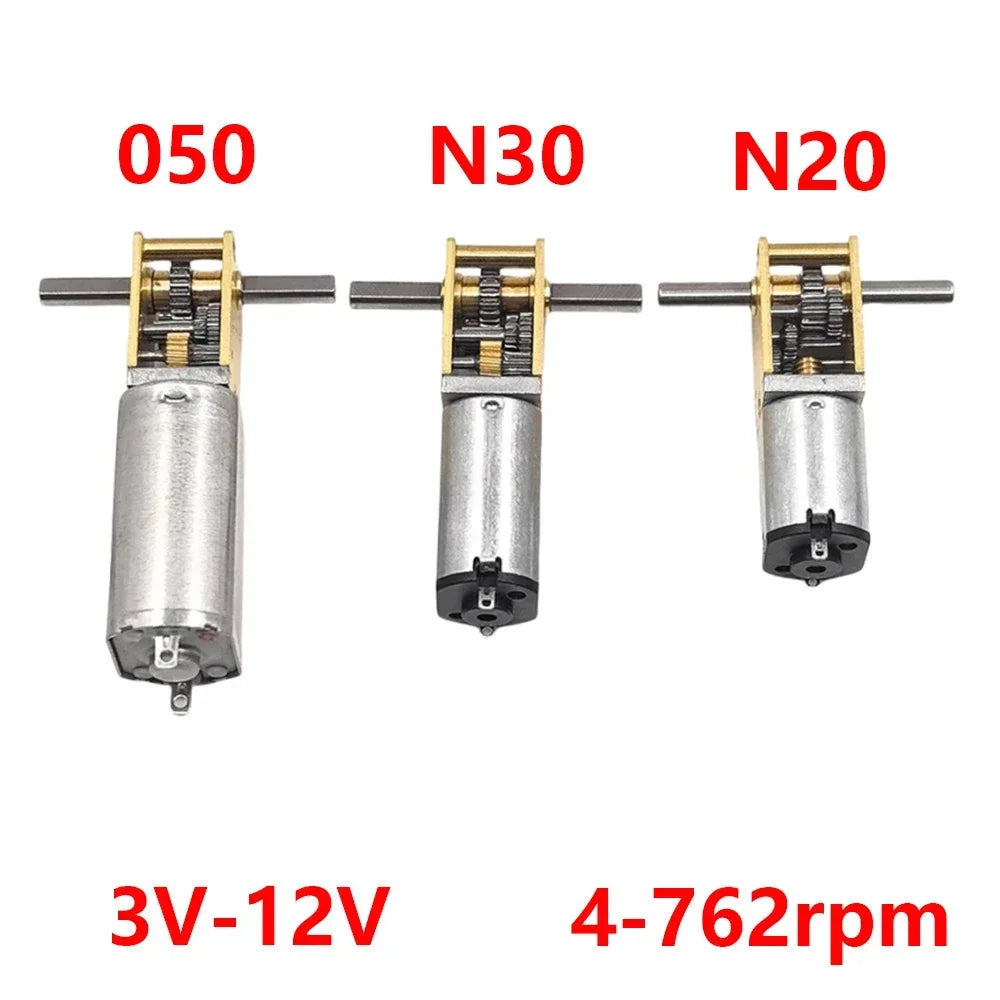

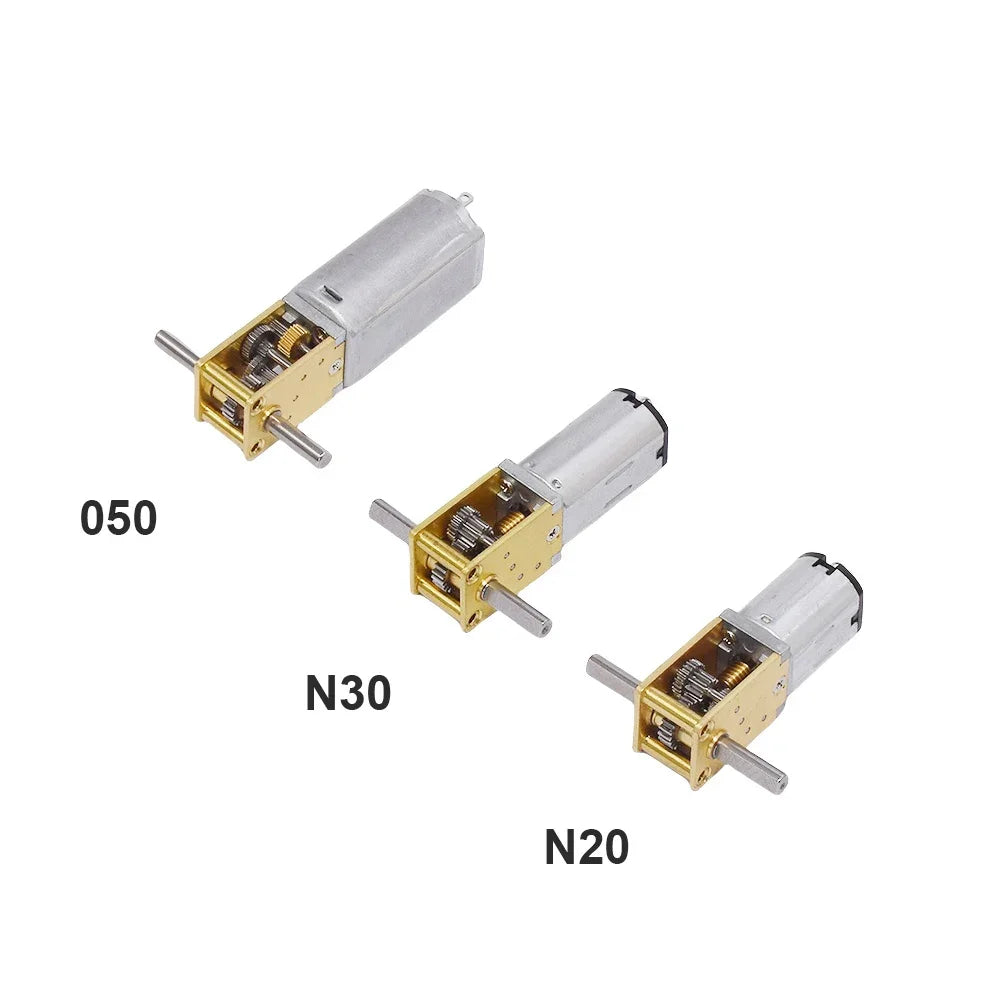

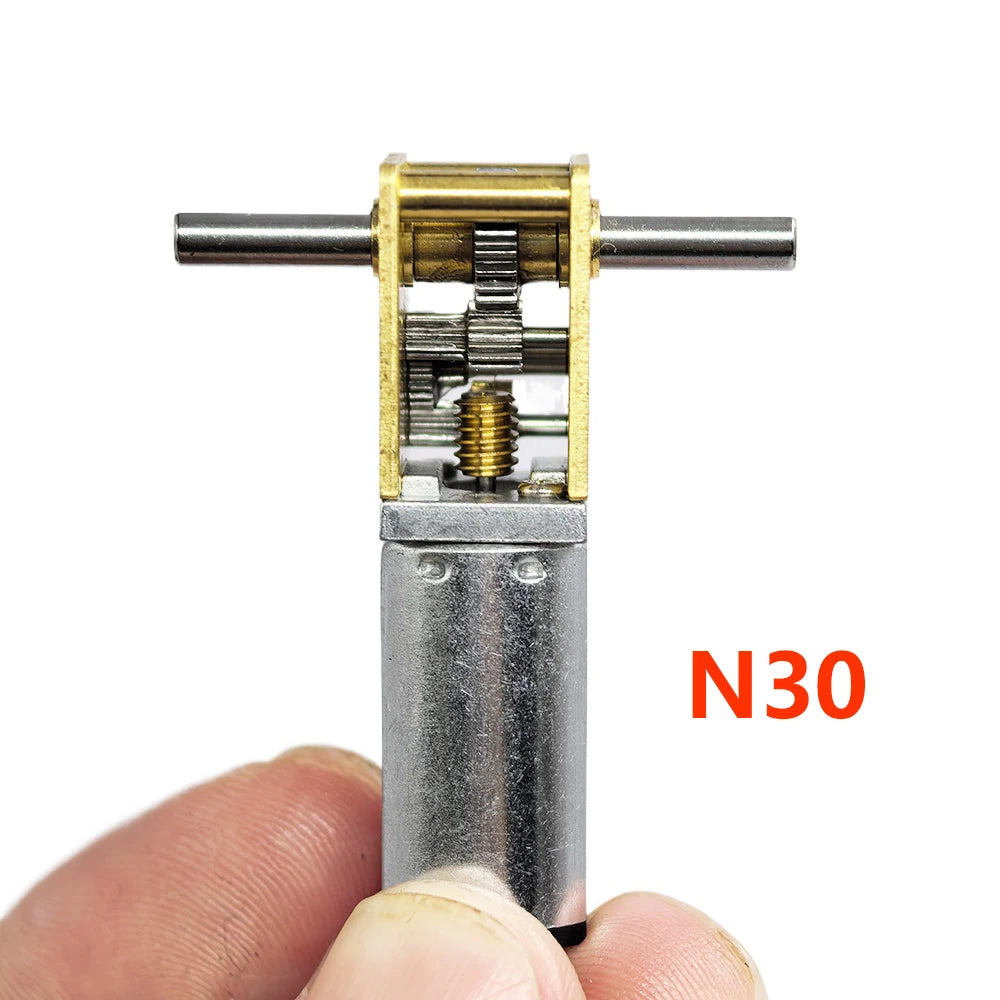

Micro 050/ N30/ N20 Worm Gear Motor DC 3V-12V 4RPM-381RPM Slow Speed Metal Gearbox T-shaped Dual Shaft Engine DIY Toy Car
(A) 4RPM-16RPM / DC 3V-12V / N20 Motor
$28.12
Sale price
$28.12
Regular price
$0.00
Skip to product information
Tips: if you need large quantity, please contact us, we can provide wholesale.
And if you also need customize this motor, please contant us.
Micro 050/ N30/ N20 Worm Gear Motor DC 3V-12V 4RPM-381RPM Slow Speed Metal Gearbox T-shaped Dual Shaft Engine DIY Toy Car
$28.12
Sale price
$28.12
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Country/Region of Manufacture: China
Current Type: DC
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: none
Nominal Rated Input Voltage: DC 3V-12V
Origin: Mainland China
Output Power: ＜18.65
Protect Feature: Drip-proof
Reversible/Non-Reversible: Reversible
Shaft Diameter: 3mm(2.5mm D Shaft)
Type: Micro Motor
semi_Choice: yes
Tips: if you need large quantity, please contact us, we can provide wholesale.
And if you also need customize this motor, please contant us.
Specification:
The applicable voltage of each motor is 3V-12V.
In this voltage range, the higher the voltage, the higher the speed, the greater the torque.
Model (A) has the slowest speed and the largest torque. Model (H) has the fastest speed and the smallest torque.
At the same speed, motor 050 has the highest torque, while motor N20 has the lowest torque.
Specification:
In this voltage range, the higher the voltage, the higher the speed, the greater the torque.
Model (A) has the slowest speed and the largest torque. Model (H) has the fastest speed and the smallest torque.
At the same speed, motor 050 has the highest torque, while motor N20 has the lowest torque.
Specification:
Reduction ration: A(1030:1), B(603:1), C(302:1), D(236:1), E(118:1), F(79:1), G(42:1), H(21:1)
Voltage range: 3V-12V
Weight: 24g(050), 15.5g(N30), 13g(N20)
Speed error: ±10%
Rotating speed: A＜B＜C＜D＜E＜F＜G＜H
Torque: A>B>C>D>E>F>G>H
Output Shaft length: 10mm(Dual Shaft)
Shaft diameter: 3mm(2.5mm D Shaft)
Package Include:
Motor x 1pc
