SPECIFICATIONS

Assembly Required: no

Brand Name: PremierCable

Certification: CE,RoHS,UL

Choice: yes

Current Rating: 5.0 A per contact

High-concerned chemical: none

Length: 1.5 meters

Model Number: PCM-HD-0212

Origin: Mainland China

Package: Yes

Pitch: 3.0 mm

Type: Extension Cable

Voltage Rating: 300V AC DC

semi_Choice: yes

The prices on the retail platform are all small batch retail prices. If you need more quantity or different specifications, please contact our online customer service or email us. The bulk quantity will have a very preferential unit price! Email: sales06@premier-cable.net

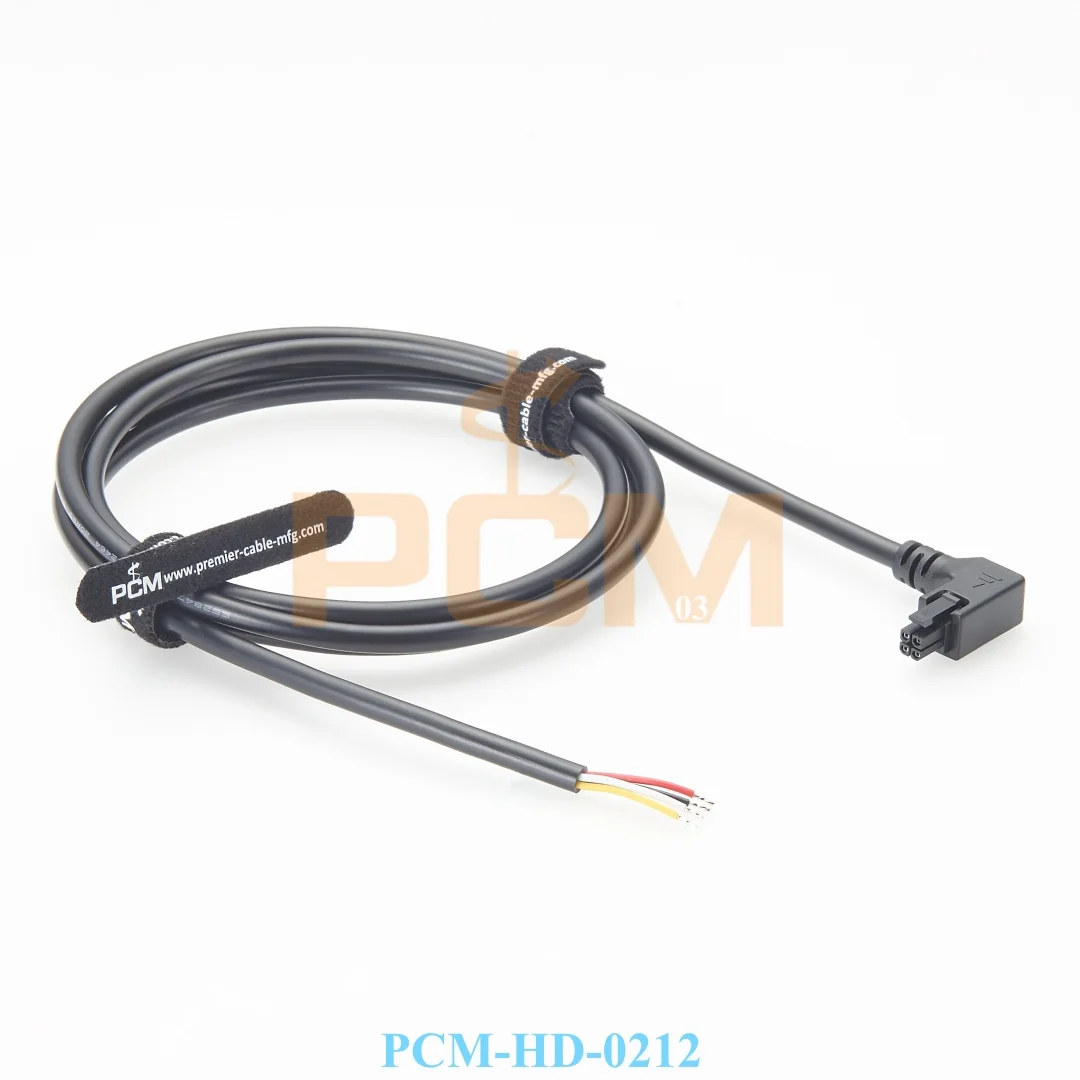

Premier Cable PCM-HD-0212 is a Molex Micro-Fit 3.0 4-Pin Right Angled Bend Cable Assembly , engineered for rightward routing in compact industrial, automotive, and communication devices .

This 90 degree right bend connector reduces cable congestion and mechanical stress, improves strain relief, and ensures reliable 5A per pin power and signal connections . Built with UL2464 20AWG stranded copper tinned wire and Molex 3.0mm dual-row connectors , it supports 300V AC/DC and –40°C to +105°C . Ideal for embedded controllers, robotics, IoT gateways, EV chargers, telecom devices, and industrial automation systems .

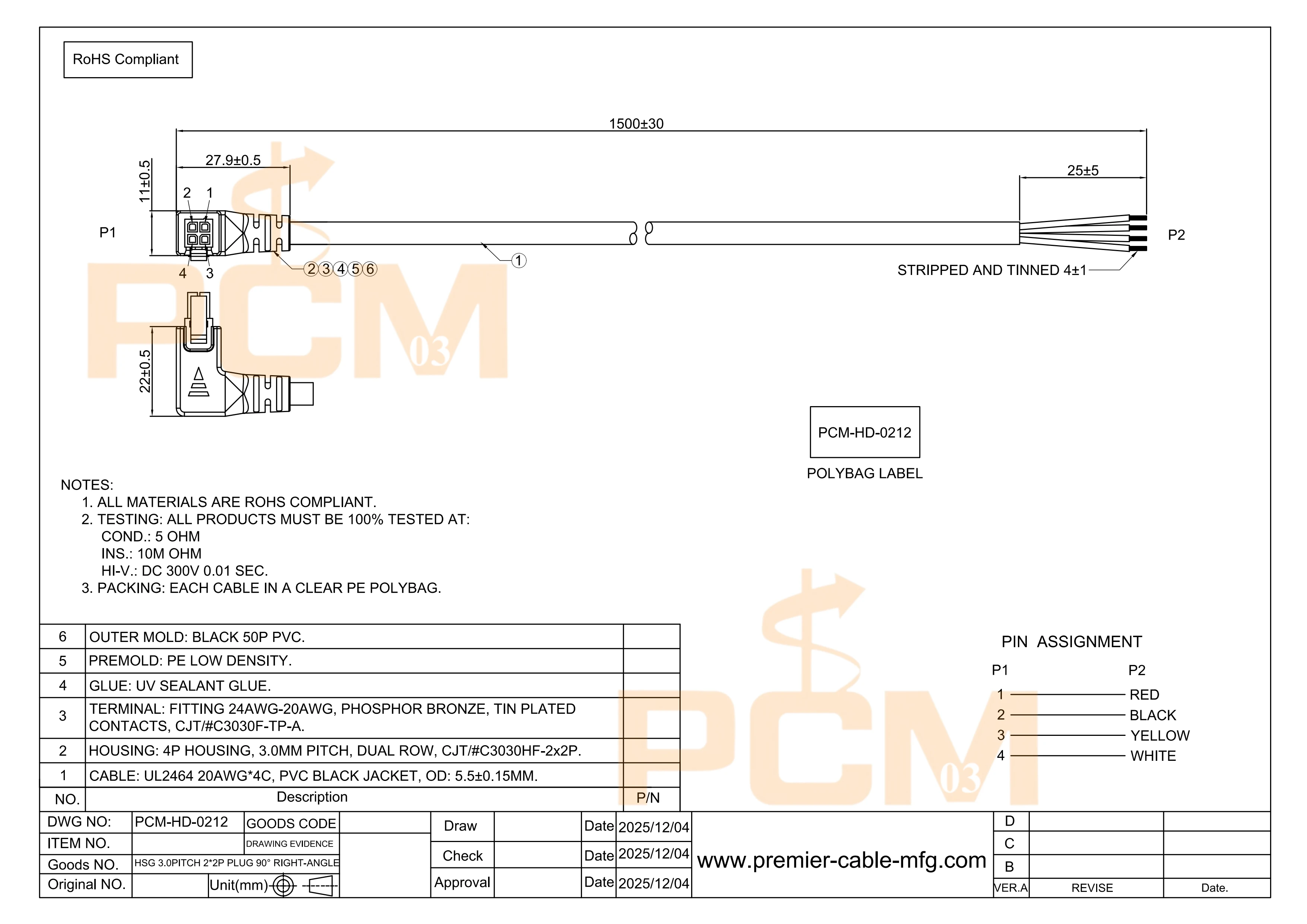

Specifications

1. Pitch : 3.0 mm

2. Length : 1.5 meters

3. Voltage Rating : 300V AC DC

4. Current Rating : 5.0 A per contact

5. Temperature Range : –40°C to +105°C

6. Connector : Molex Micro-Fit 4 circuits

7. Wire : UL2464 20AWG stranded copper, tinned ends

8. Mechanical : Right bend exit, reduces bend stress, improves cable routing
