Micro Limit Switch CNTD CMV10‑051C CMV10‑051C2 Hinge Short Roller Lever 10A 250VAC 1NO1NC Plastic Housing Travel Switch for Indu

Micro Limit Switch CNTD CMV10‑051C CMV10‑051C2 Hinge Short Roller Lever 10A 250VAC 1NO1NC Plastic Housing Travel Switch for Indu

$39.78

$39.78 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Material: ABS

Model Number: CMV10051C CMV10051C2

Origin: Mainland China

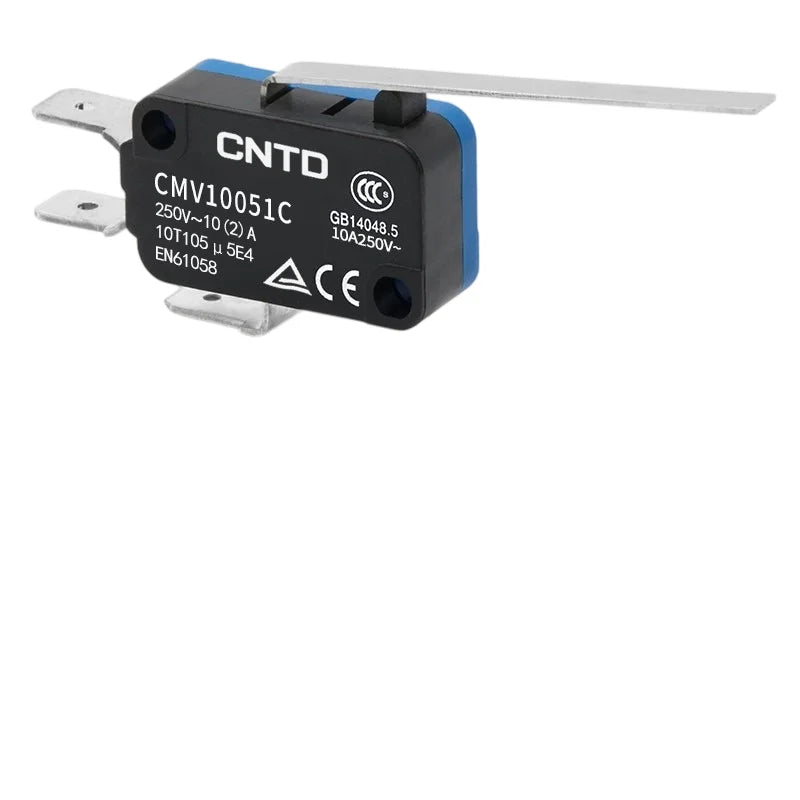

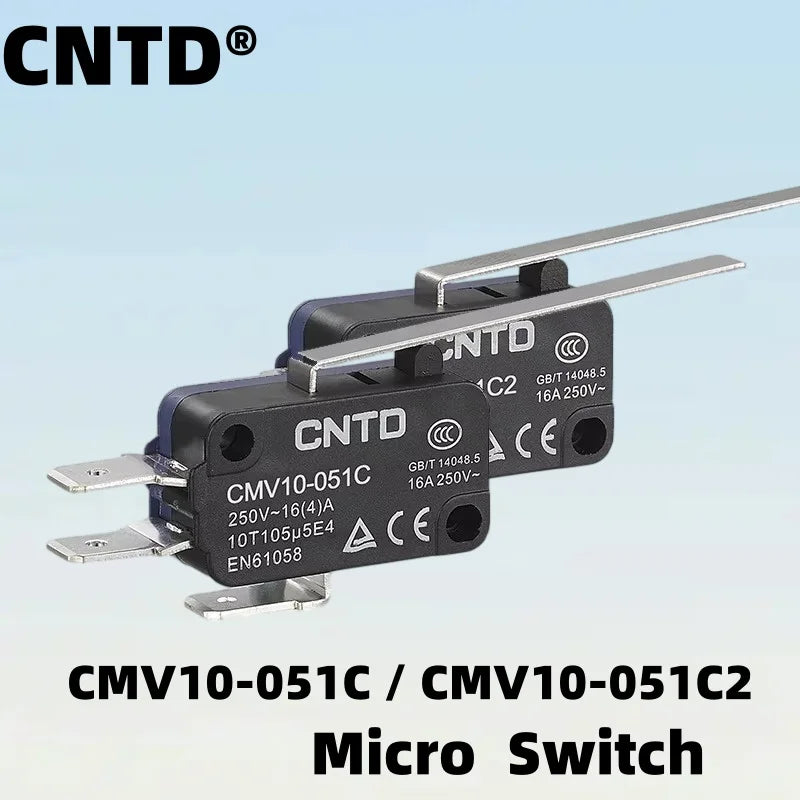

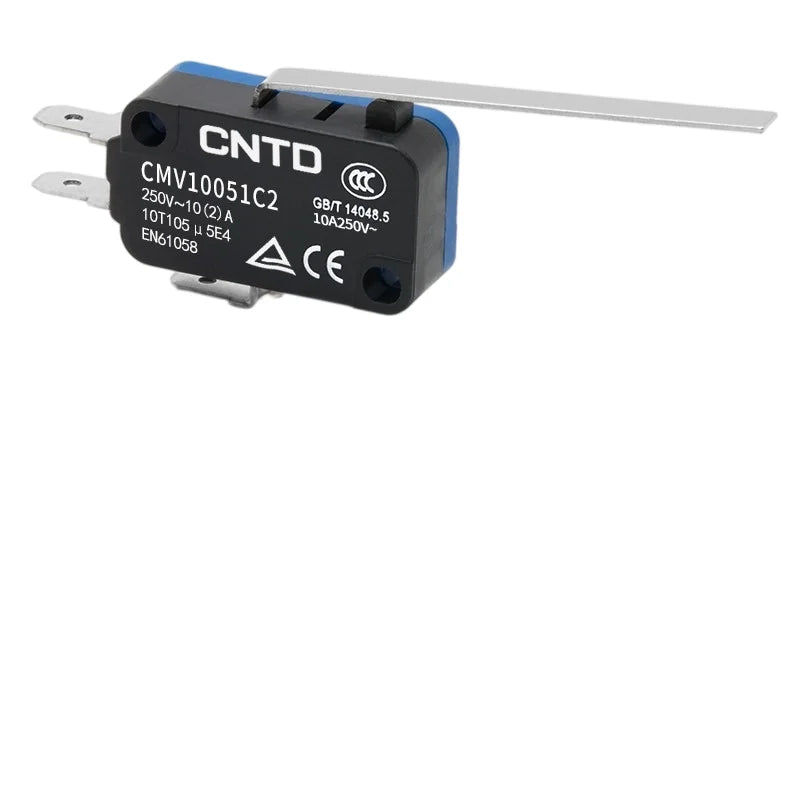

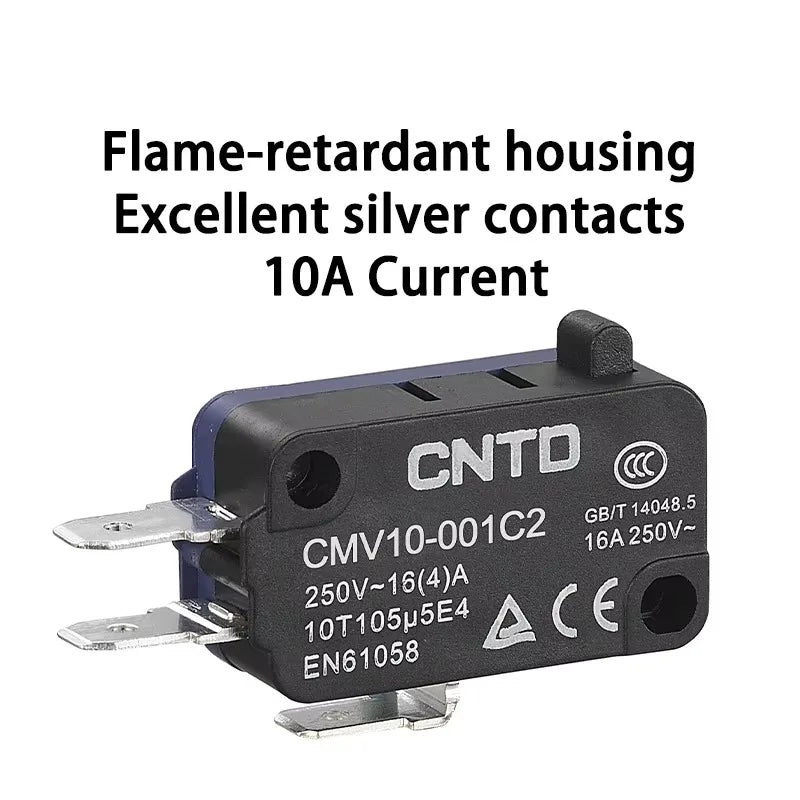

CNTD CMV10-051C / CMV10-051C2 Micro Limit Switch

CMV Series | Long Lever Type (with Long Back Strip) | 1NO/1NC Snap-Action | Miniature Micro Switch

Key Features

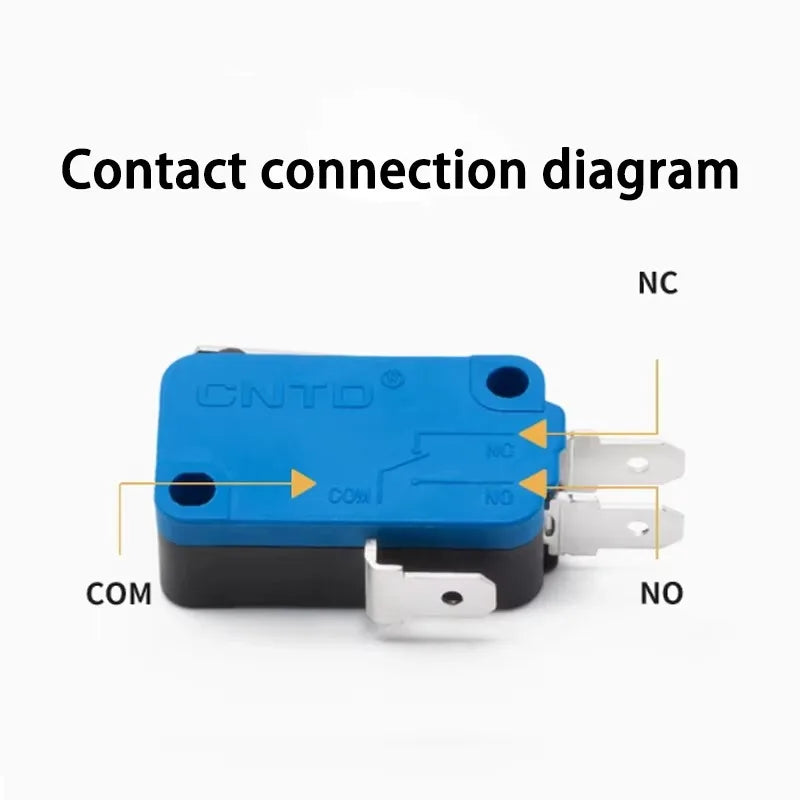

Snap-action SPDT Contacts – 1NO + 1NC snap-action contact form for flexible wiring in position-detection and signal-feedback circuits.
Long Lever Actuator – Long lever (with long back strip); operating force 0.69N, release force 0.06N, operating position 15.2 ± 3mm.

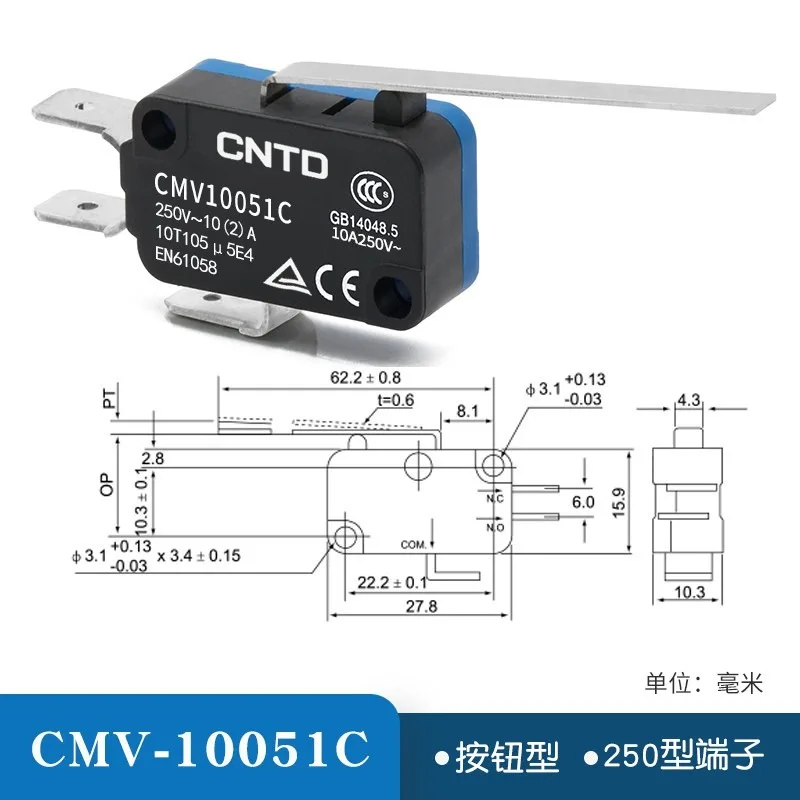

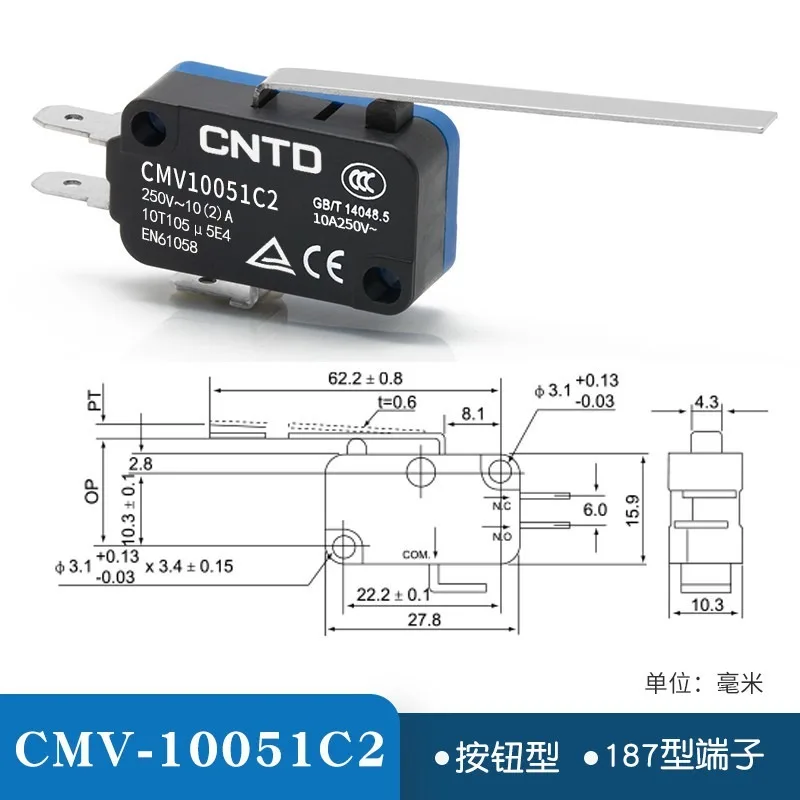

Two Terminal Versions – CMV10-051C: 250# terminal, t = 0.8; CMV10-051C2: 187# terminal, t = 0.5. Same switch body, different quick-connect terminals.

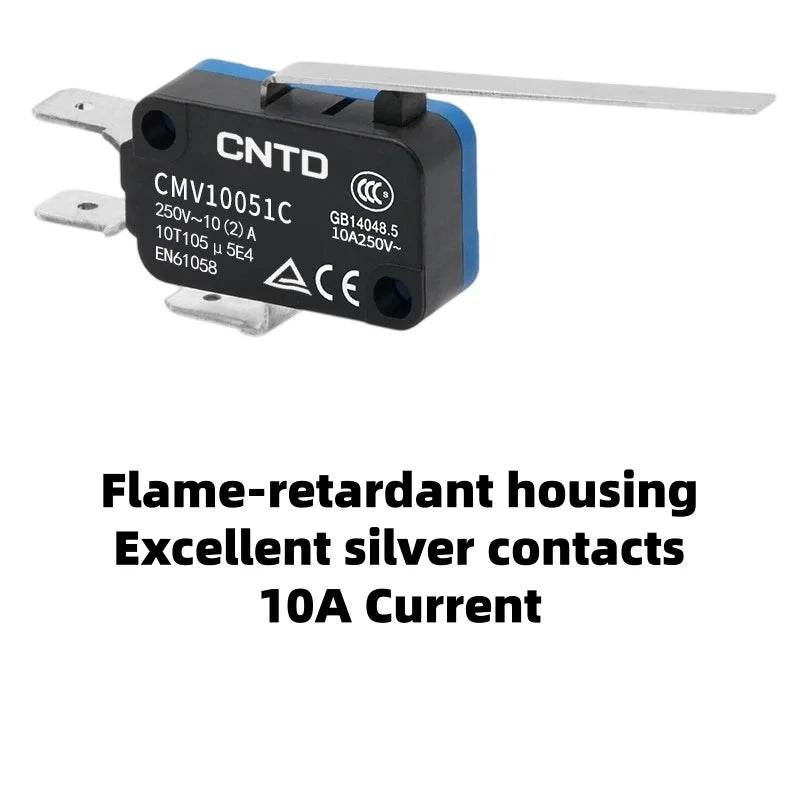

Thermoplastic Shell – Thermoplastic housing; from 10A or 16A, a wide variety, complete style, popular micro switch of the CMV Series.
Door Interlock & Current Blocking – It can be used for current blocking when the door is opened or closed, ideal for appliance doors and access panels.
10A / 250V AC-15 Rating – Rated insulation voltage Ui 380V, conventional free air thermal current Ith 10A; minimum applicable load DC 24V 10mA.

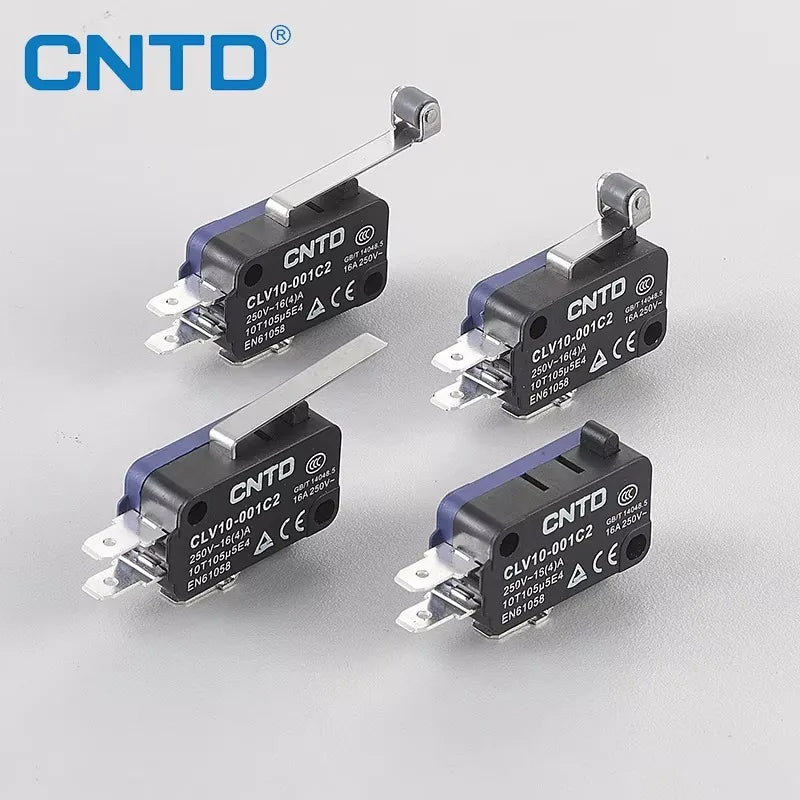

CCC / CE / TUV Certified – CCC: GB/T14048.5; TUV & CE: EN 60947-5-1. Various actuator styles available within the CMV Series.

Product Overview

The CNTD CMV10-051C and CMV10-051C2 are miniature snap-action micro limit switches from the CMV Series (horizontal limit switch family). Both models share the same long lever actuator (with long back strip) and 1NO + 1NC snap-action contacts, differing only in terminal type: the CMV10-051C uses a 250# terminal (t = 0.8) while the CMV10-051C2 uses a 187# terminal (t = 0.5). With a thermoplastic shell, they are popular micro switches suitable for current blocking when a door is opened or closed, and are widely used in household appliances, door interlocks, automation equipment and position-detection circuits.

Key Properties

Parameter	Value	Parameter	Value
Model	CMV10-051C / CMV10-051C2	Brand	CNTD
Rated Voltage	250V AC (Ui 380V)	Rated Current	10A (Ith)
Contact Configuration	1NO + 1NC Snap-action (SPDT)	Actuator Type	Long Lever (with long back strip)
Terminal Type	051C: 250# terminal, t=0.8; 051C2: 187# terminal, t=0.5	Material	Thermoplastic shell
Operating Speed	0.1 mm ~ 1 m/s (button type)	Operating Frequency	Electrical: 20 operations/min
Contact Resistance	25 mΩ max. (initial value)	Insulation Resistance	100 MΩ min. (at 500V DC)
Vibration	10 ~ 55 Hz, 1.5mm double amplitude	Ambient Temperature	-20 ~ +70°C (no icing)
Humidity	≤85% RH (general-purpose type)	Electrical Life	300,000+ operations
Origin	Zhejiang, China	Certification	CCC, CE, TUV
Application	Door interlock current blocking, household appliances, automation equipment, position detection

Detailed Specifications

Parameter	Value / Description
Operating Force (OF)	0.69N
Release Force (RF)	0.06N
Pretravel (PT)	9.0mm
Overtravel (OT)	2.0mm
Movement Differential (MD)	2.8mm
Operating Position (OP)	15.2 ± 3mm
Terminal Type	CMV10-051C: 250# Terminal, t = 0.8; CMV10-051C2: 187# Terminal, t = 0.5
Operating Speed	0.1 mm ~ 1 m/s (button type)
Operating Frequency	Electrical: 20 operations/min
Contact Resistance	Max. 25 mΩ (initial value)
Insulation Resistance	Min. 100 MΩ (at 500V DC max.)
Minimum Applicable Load	DC 24V 10mA or more
Rated Insulation Voltage (Ui)	380V
Rated Impulse Withstand Voltage (Uimp)	4kV
Conventional Free Air Thermal Current (Ith)	10A
Safety-Certified Ratings	AC-15: 10A / 250V; DC-13: CMV10-051C 0.3A / 220V, CMV10-051C2 0.3A / 250V (as stated on the respective official product pages)
Dielectric Strength	• Between current-carrying & non-current-carrying metal parts: 1500V AC, 50/60 Hz, 1 min • Between terminals of the same polarity: 1000V AC, 50/60 Hz, 1 min
Vibration	10 ~ 55 Hz, 1.5mm double amplitude
Shock	Mechanical durability: approx. 1,000 m/s² (~100G); Malfunction durability: approx. 200 m/s² (~20G)
Ambient Temperature	-20 ~ +70°C (no icing)
Humidity	≤85% RH (general-purpose type, +5 ~ +35°C)
Electrical Life	300,000+ operations (AC 240V / 3A resistive load); 50,000+ operations (AC 240V / 10A resistive load)
Certification Specifications	CCC: GB/T14048.5; TUV: EN 60947-5-1; CE: EN 60947-5-1

Note: Values are based on the official CNTD website (cntd.com) product pages for CMV10-051C and CMV10-051C2 (CMV Series). The complete ratings table is published as a downloadable PDF on the official pages; no IP rating is specified for the CMV10 Series on the official product pages. Please verify against the actual unit and supplied datasheet before installation or listing.
