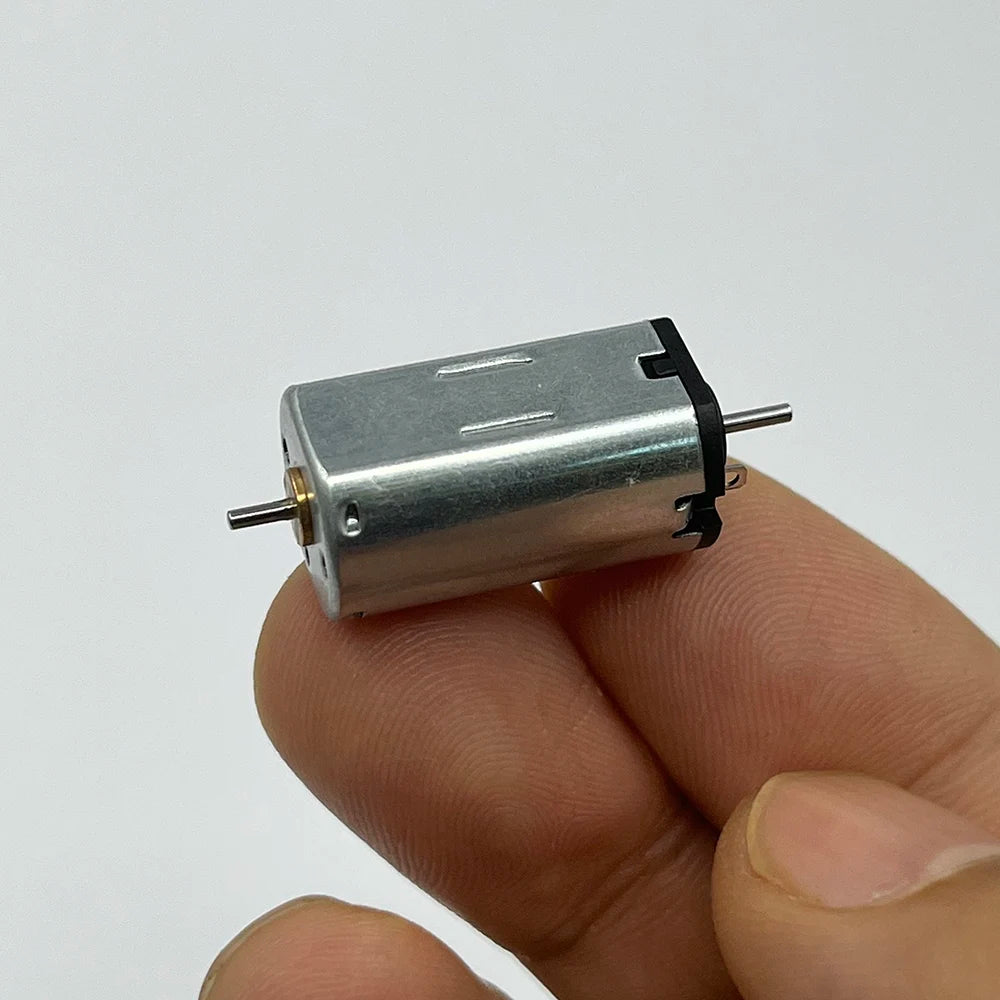

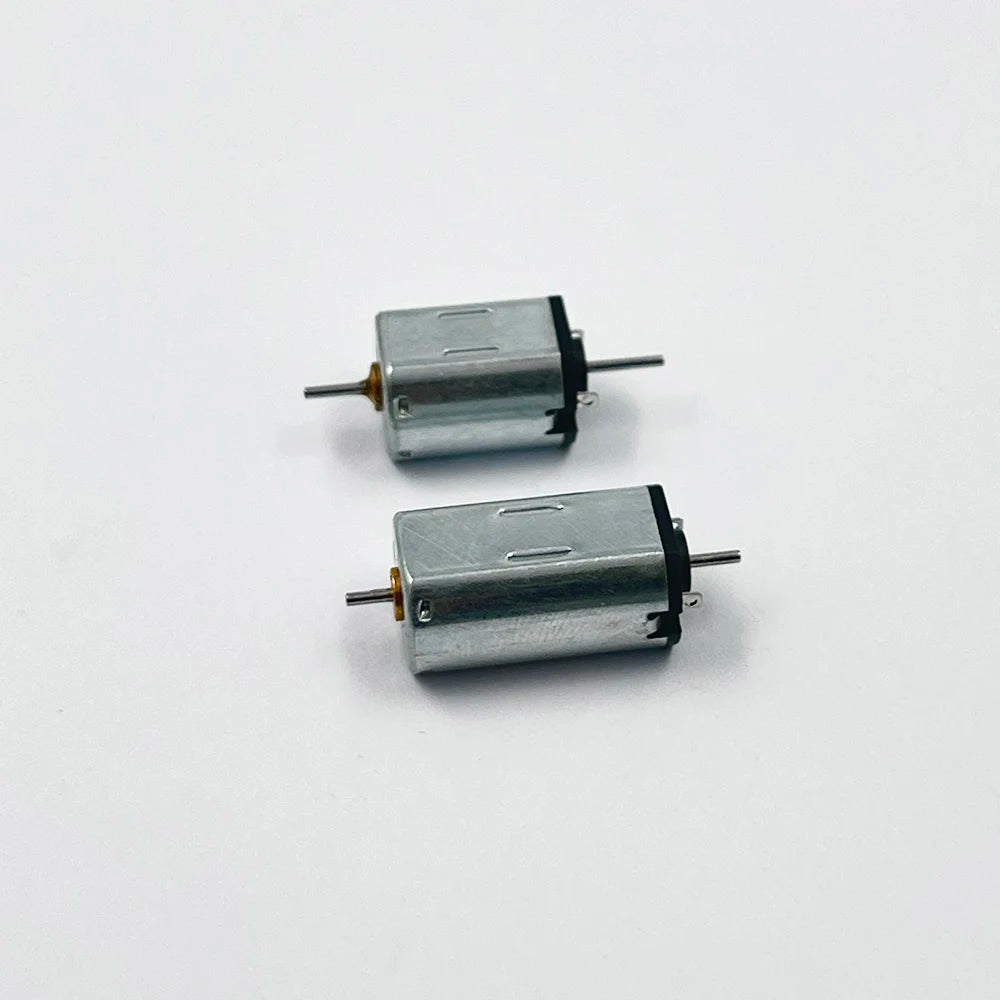

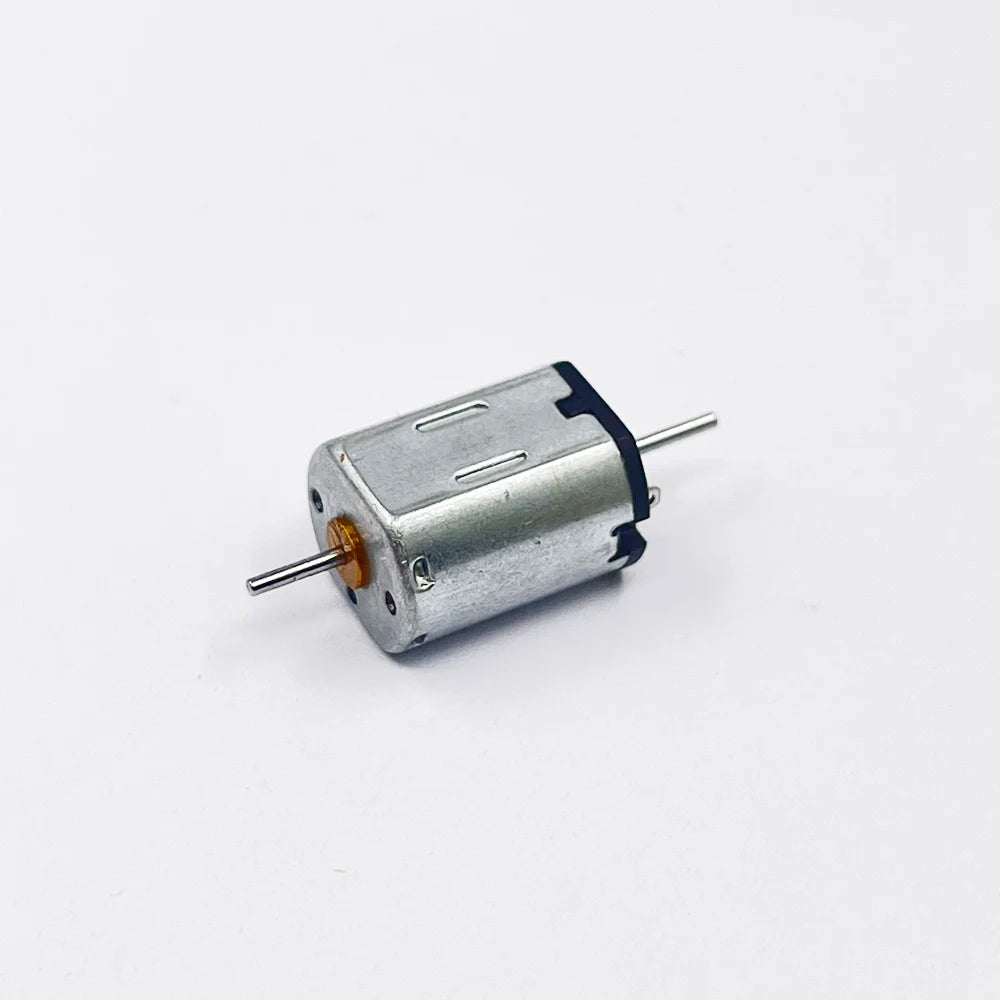

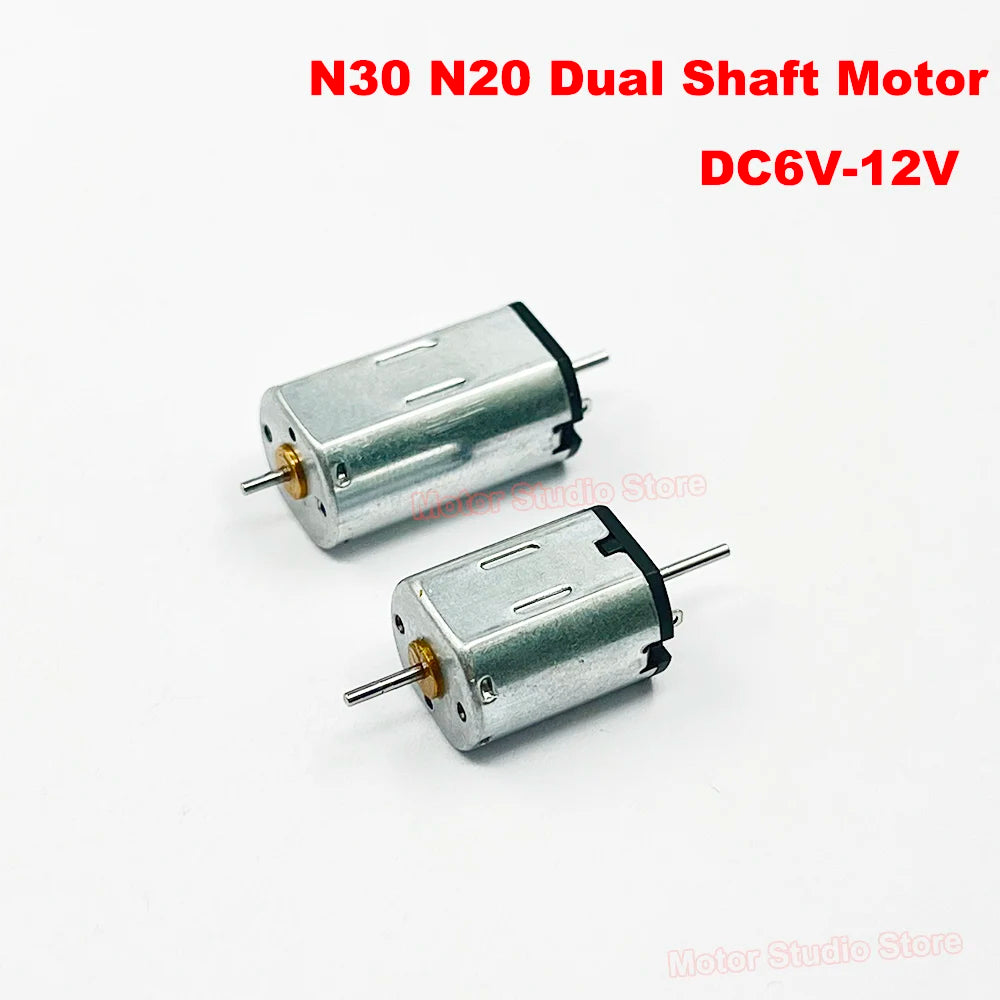

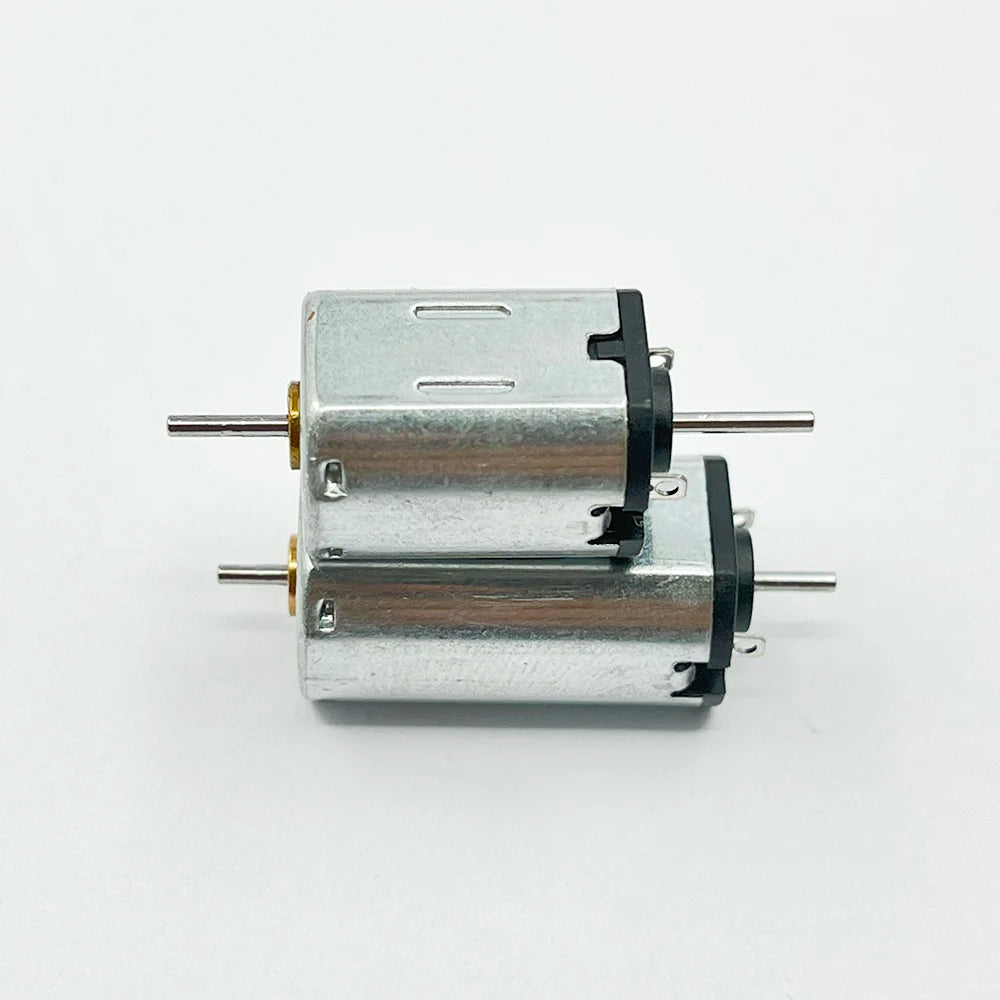

Micro N30 N20 Dual Shaft Motor DC 6V-12V High Speed Double Axis Engine DIY Toy Car Rail Train Model
N30 12V 20000RPM
$15.12
Sale price
$15.12
Regular price
$0.00
Skip to product information
Package:
Motor x 1
Micro N30 N20 Dual Shaft Motor DC 6V-12V High Speed Double Axis Engine DIY Toy Car Rail Train Model
$15.12
Sale price
$15.12
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: ROHS
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Country/Region of Manufacture: China
Efficiency: IE 1
Model: High Speed Mini DC Motor
Origin: Mainland China
Protect Feature: N
Type: Five Pole Rotor Motor,Micro Motor
Use: Toy Car
semi_Choice: yes
Specification:

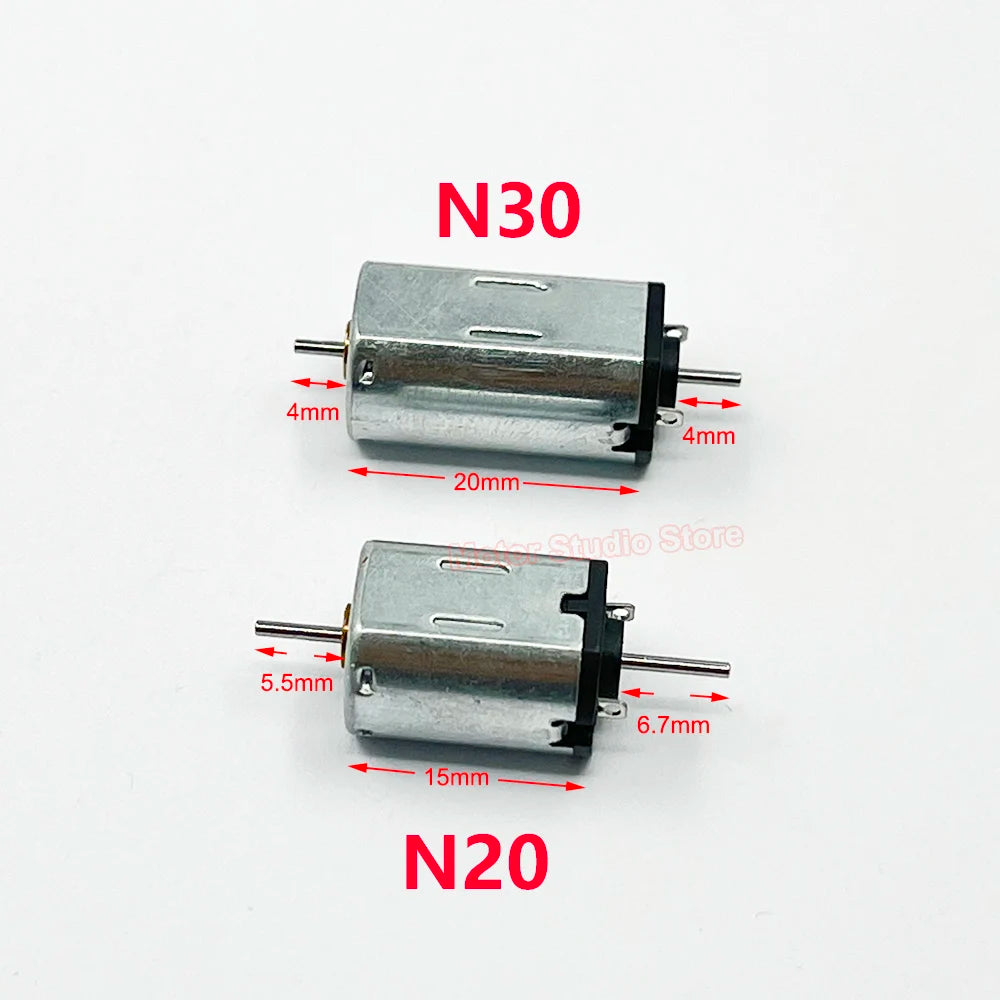

Model:N20 motor
Body length: 15MM
Body diameter: 12MM
Motor height: 10mm
Shaft diameter: 1MM
Shaft length: front 5.5mm(from panel), back 6.7mm back shaft
[Voltage]: 3.0V-12V
Voltage Speed (no load) Current
3.0V 4600rpm 15 ma
6V 10000 rpm 20ma
9V 15000rpm 25ma
12V 20000rpm 30ma
Model:N30 motor
Body length: 20MM
Body diameter: 12MM
Motor height: 10mm
Shaft diameter: 1MM
Shaft length: front 4mm(from panel), back 4mm back shaft
[Voltage]: 3.0V-12V
Version: 12V 15000RPM (no load about 13mA)
Body length: 15MM
Body diameter: 12MM
Motor height: 10mm
Shaft diameter: 1MM
Shaft length: front 5.5mm(from panel), back 6.7mm back shaft
[Voltage]: 3.0V-12V
Voltage Speed (no load) Current
3.0V 4600rpm 15 ma
6V 10000 rpm 20ma
9V 15000rpm 25ma
12V 20000rpm 30ma
Model:N30 motor
Body length: 20MM
Body diameter: 12MM
Motor height: 10mm
Shaft diameter: 1MM
Shaft length: front 4mm(from panel), back 4mm back shaft
[Voltage]: 3.0V-12V
Version: 12V 15000RPM (no load about 13mA)
Version: 12V 20000RPM (no load about 30mA)
Package:
Motor x 1
