SPECIFICATIONS

BLOX 6M GPS module has high sensitivity, low power consumption
and miniaturization. Its extremely high tracking sensitivity greatly
enlarges the coverage of its positioning. In the place where ordinary
GPS receiving module can not locate, such as narrow urban sky,
dense jungle environment, 6M can be high-precision positioning.
The high sensitivity, small static drift, low power consumption and
compact size of the module are ideal for applications such as PDAs,
vehicle monitoring, mobile phones, camcorders and other mobile
positioning systems in automotive and handheld applications.

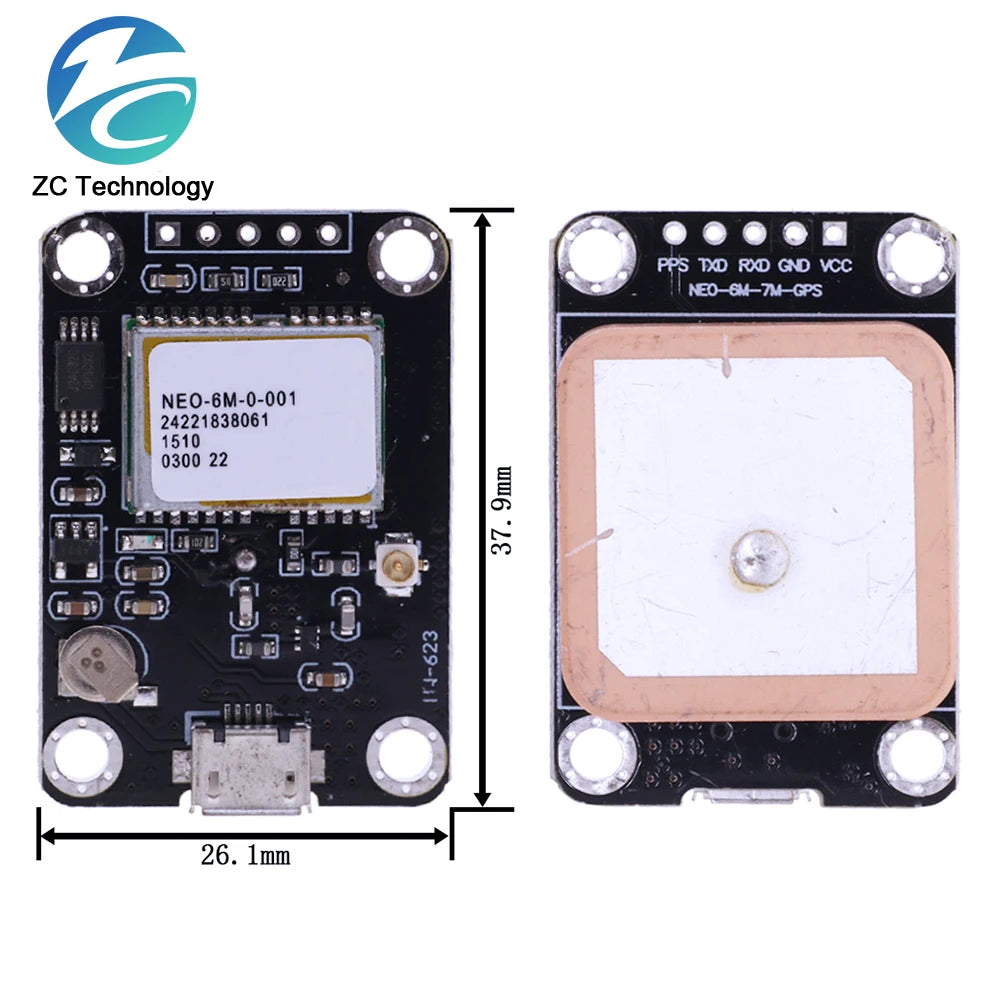

Module size: 37.9*26.1mm
Module parameters
1. Voltage Input voltage: 3.3-5.5V
Power consumption
Normal mode: 50mA
Power Saving Mode: 30mA
2. Temperature
Operating Temperature -40°C to +85°C
Storage temperature -55°C to +100°C
3. Pin descriptions and electrical connections

Module PPS feet connected to the red LED lights
On: Normal operation, but not positioned. Blinking: The positioning
was successful
4. Baud rate
The default baud rate for the module is 9600
5. Characteristic parameters

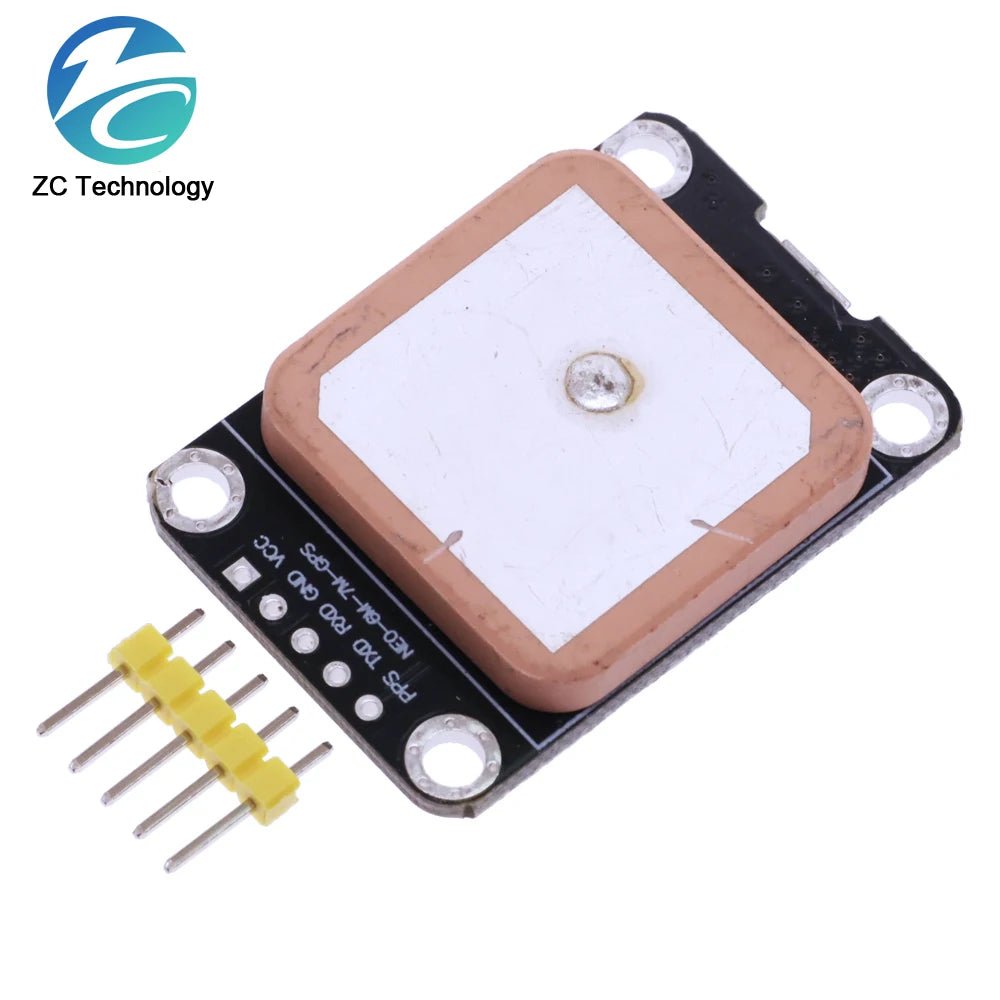

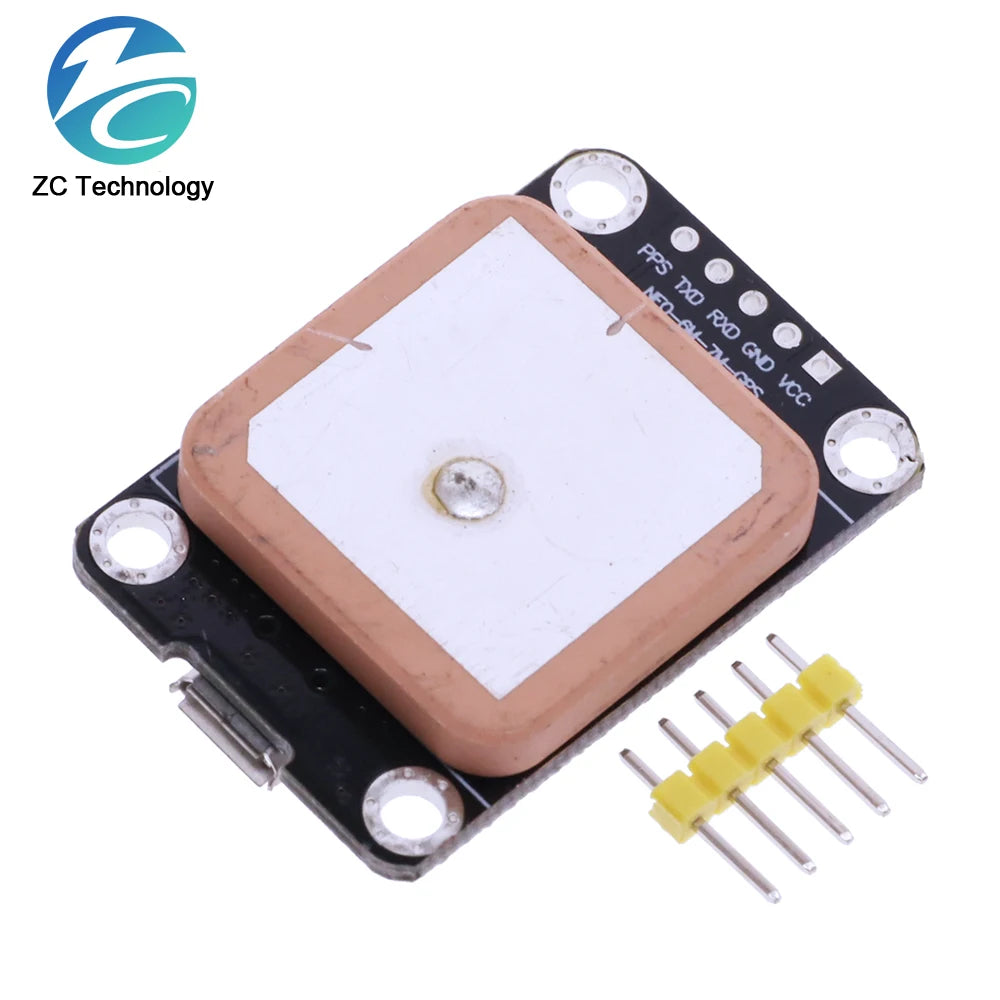

Module comes with ceramic antenna, another IPEX interface can be
connected to other active antenna
Module increases the RF amplifier circuit, is conducive to speed up
the search star
The module comes with rechargeable battery backup, you can
power-down to maintain ephemeris data
Module compatible with 3.3V / 5V level, easy to connect a variety of
microcontroller systems
