SPECIFICATIONS

Product Description

It is a motion sensing sensor designed based on X-band radar chip with a center frequency of 5.8GHz. The sensor is designed with a fixed frequency, directional transmitting and receiving antenna (1T1R), integrated with intermediate frequency demodulation, signal amplification and digital processing, and has the ability to set delay, adjustable sensing range and adjustable light intensity detection.This product has the advantages of not penetrating walls, anti-interference, small size, good suppression of clutter and high-order harmonics, high stability and consistency. It has a short initialization time and a quick detection mode. lt is easy to install in the lamp for testing. It is a microwave radar motion sensor designed with the latest digital technology. The sensor adopts digitally precisely calculated zero-crossing detection switch technology and has a strong impact current handling capability, which is far superior to traditional products. is compatible with a variety of loads, is not affected by temperature/humidity,oil smoke, water mist, etc., and is suitable for different application scenarios.Please refer to the detailed description below.

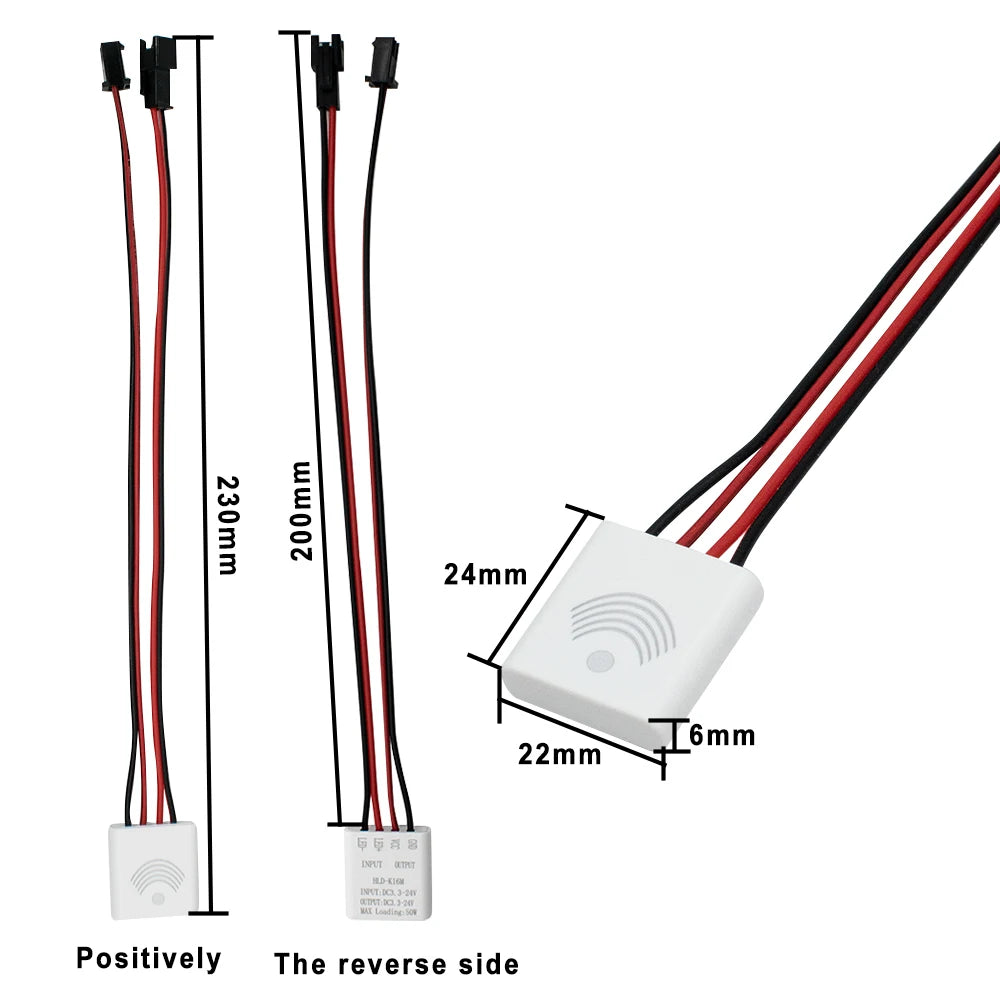

Product Parameter

Power supply:3.3-24VDC
Standby power:<0.005W
Maximum load:50W Max.(3.3-24VDC)
Microwave frequency:5.8GHZ±75MHZ
Microwave power:<2mW

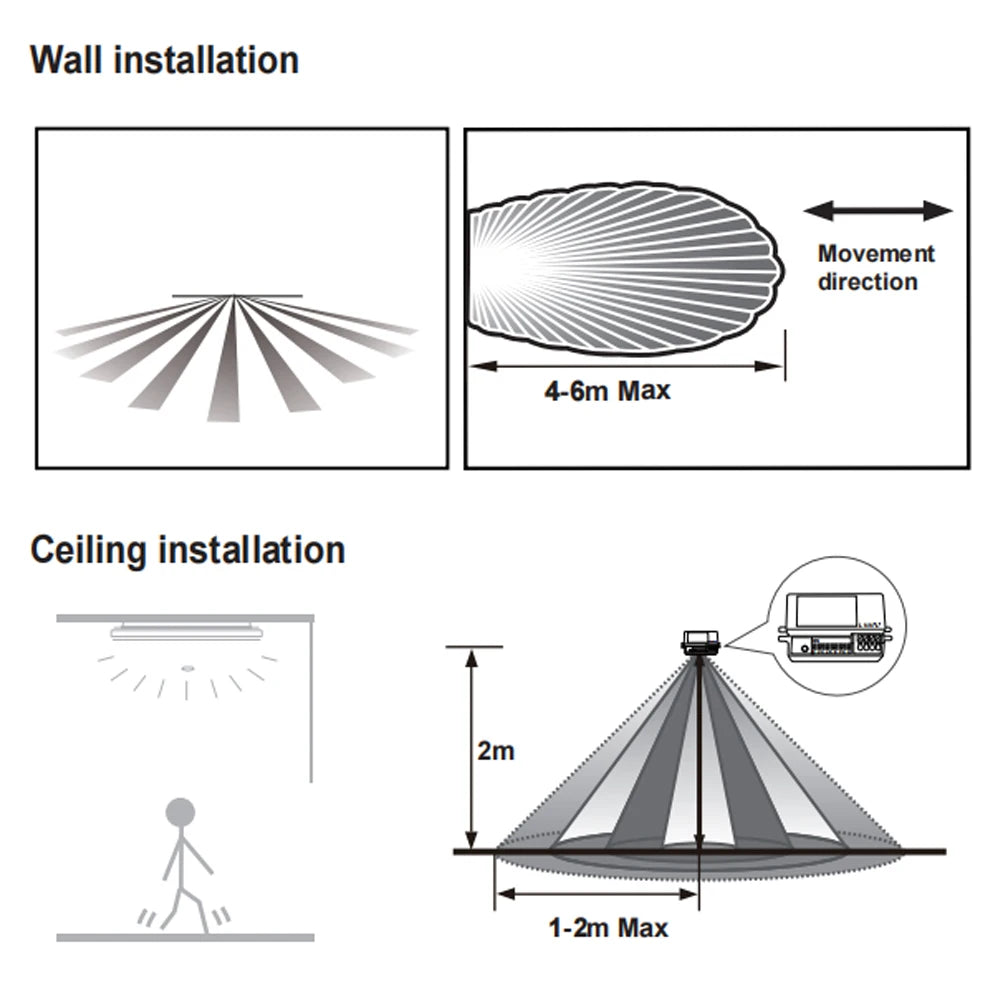

Detection angle: 110°-120°
Working temperature:-20-+80°℃
Working humidity:≤93%RH

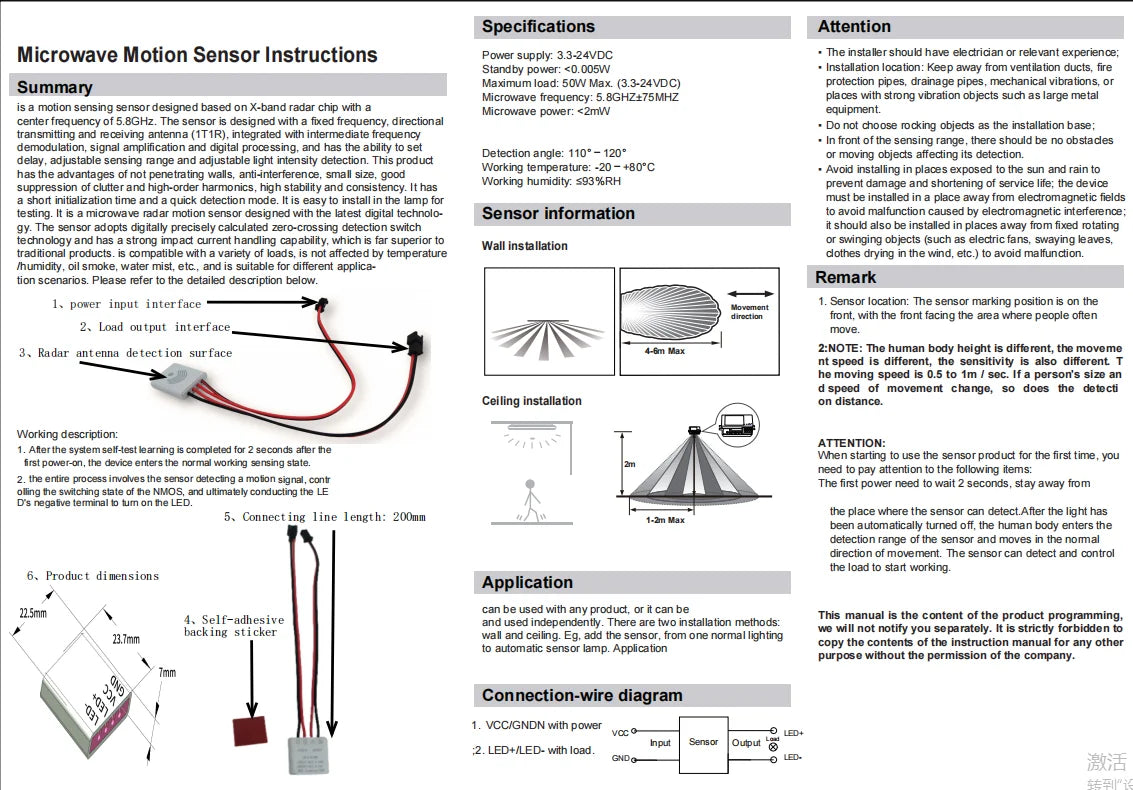

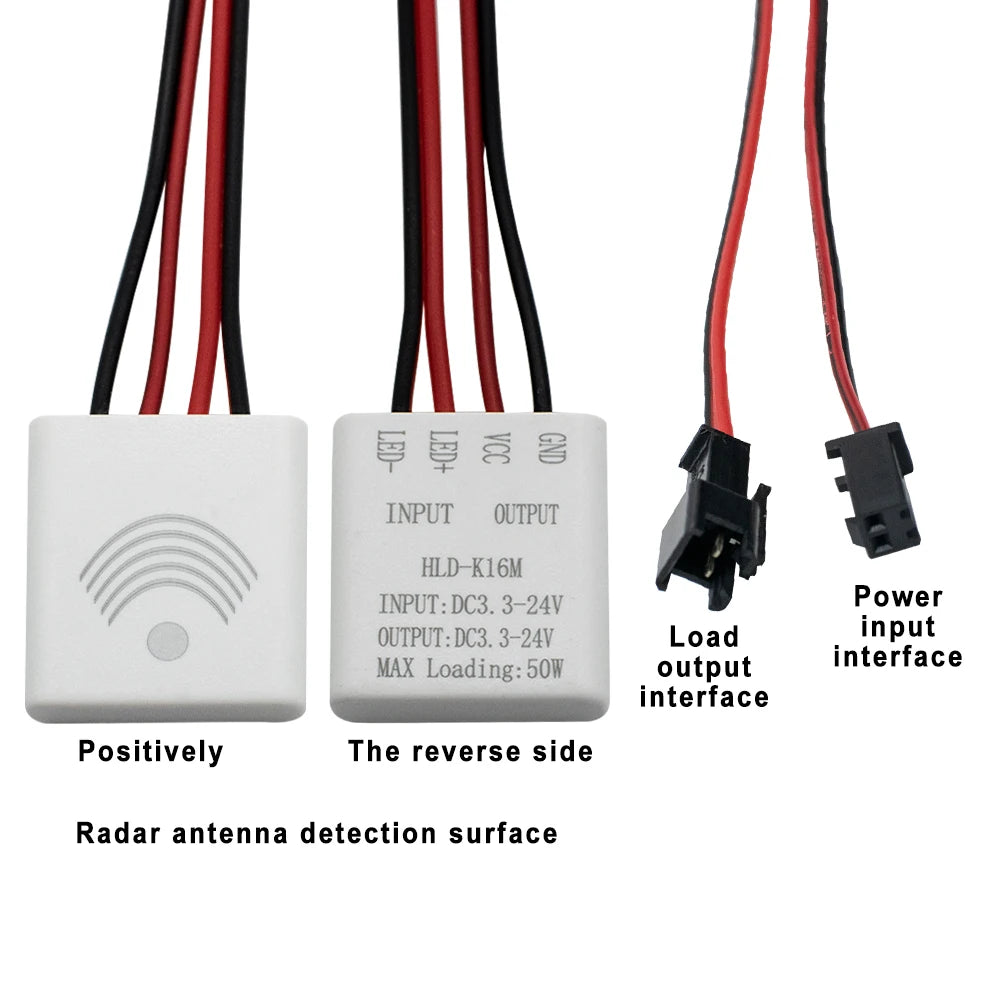

Working description:

1. After the system self-test learning is completed for 2 seconds after the first power-on, the device enters the normal working sensing state.
2. the entire process involves the sensor detecting a motion signal,controlling the switching state of the NMOS, and ultimately conducting the LED's negative terminal to turn on the LED.

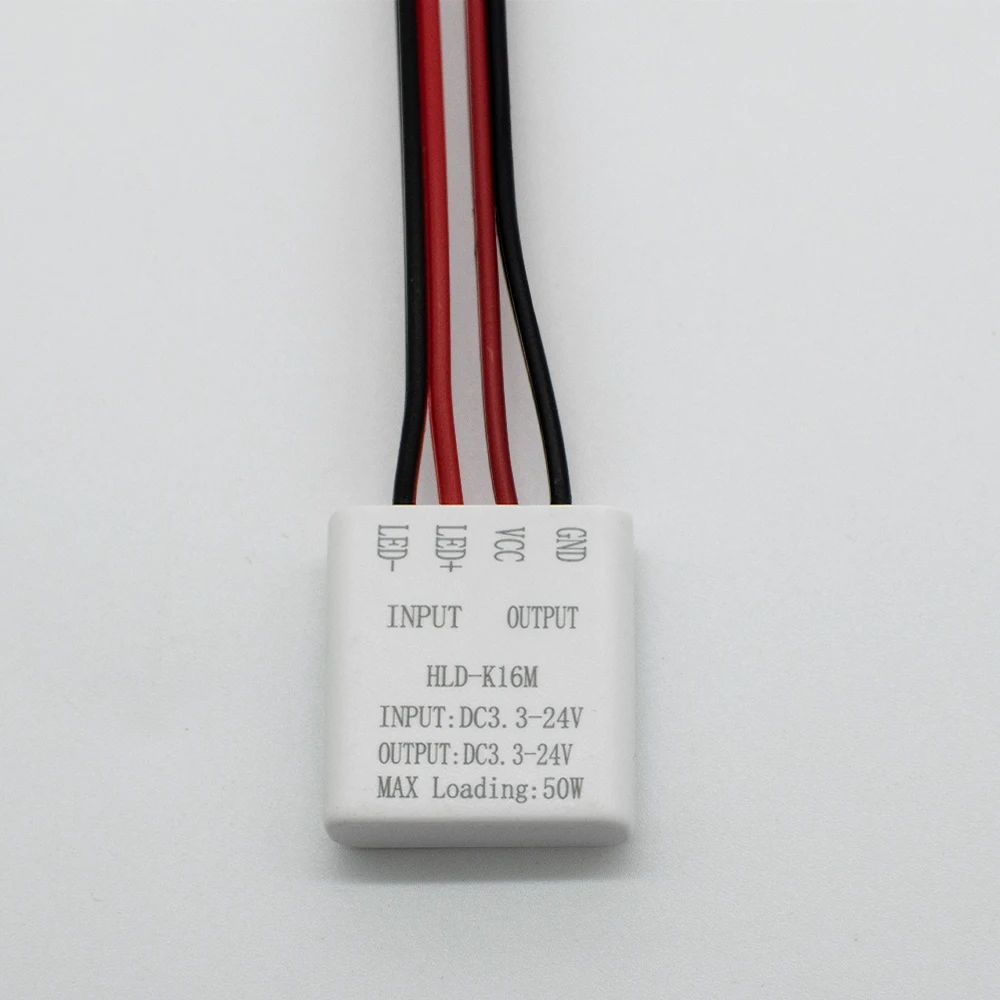

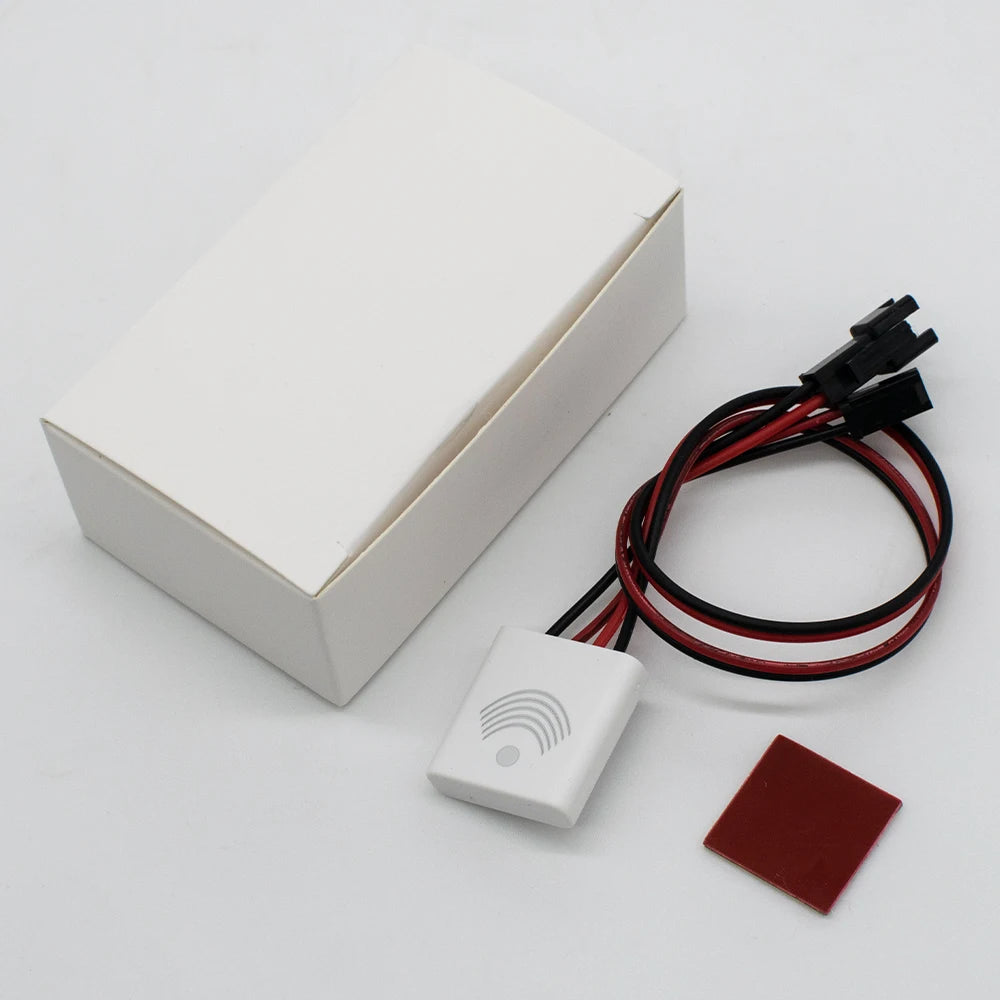

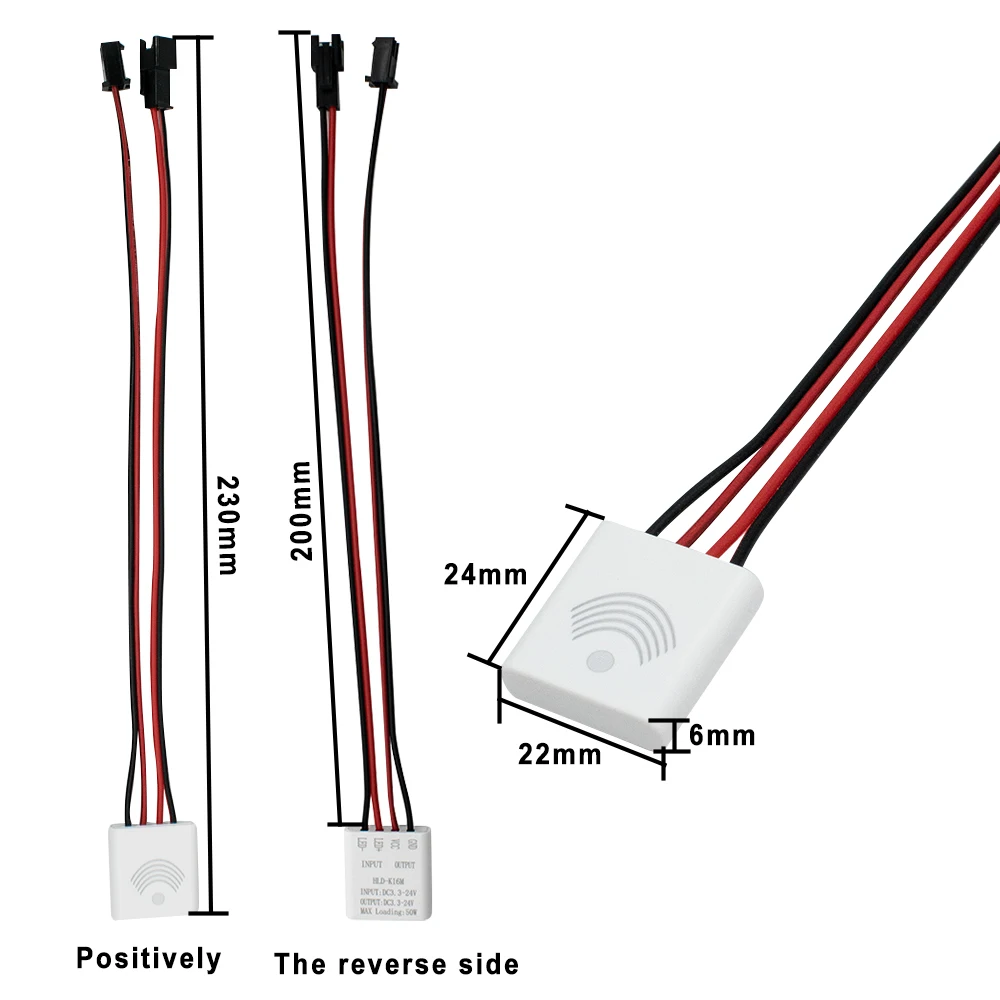

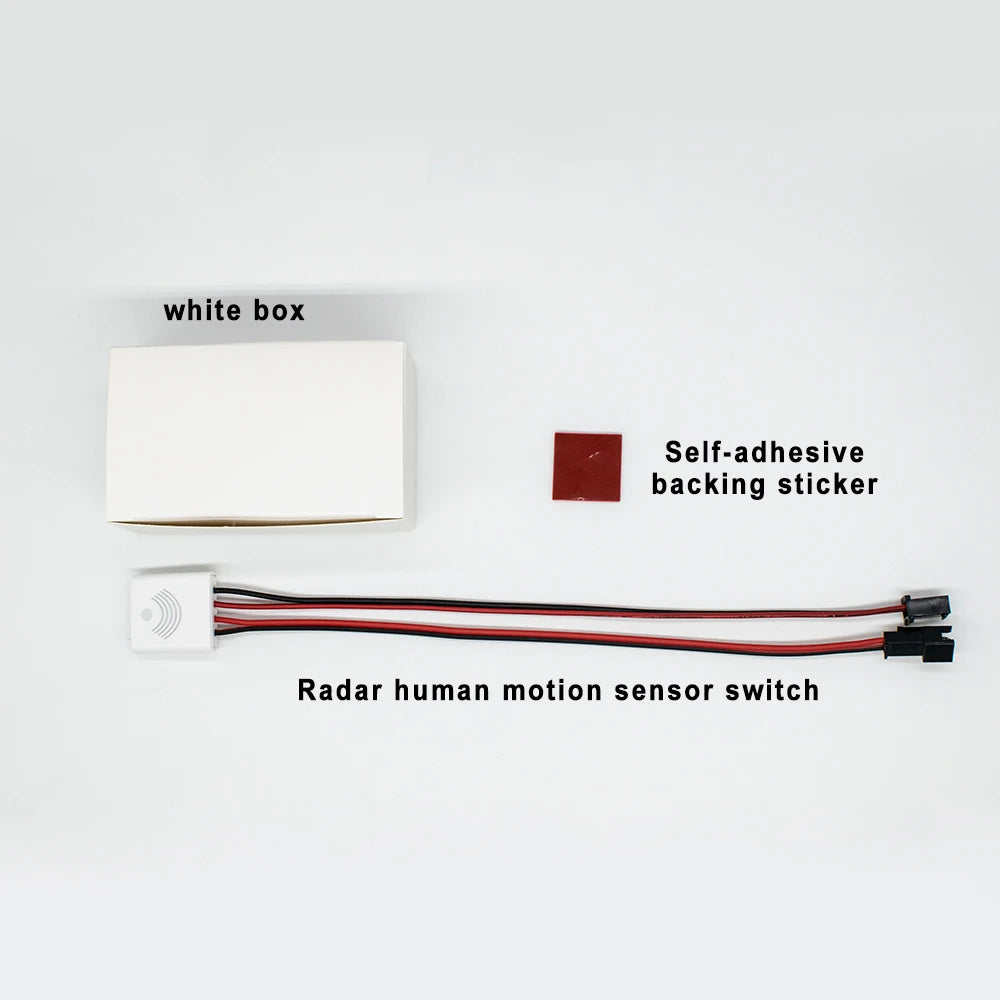

Include

1* Microwave Motion Sensor
1* Instructions
