Microwave Radar Sensor Module 5.8GHz DC 3.3V 5V 9V 12V 20W Voltage Output Switch Controller Human Body Induction Sensor

Microwave Radar Sensor Module 5.8GHz DC 3.3V 5V 9V 12V 20W Voltage Output Switch Controller Human Body Induction Sensor

$17.19

$17.19 $0.00

Description

SPECIFICATIONS

Brand Name: IS

Detection distance: 6 meters

Frequency: 5.8GHZ

High-concerned chemical: none

Material: Polymer

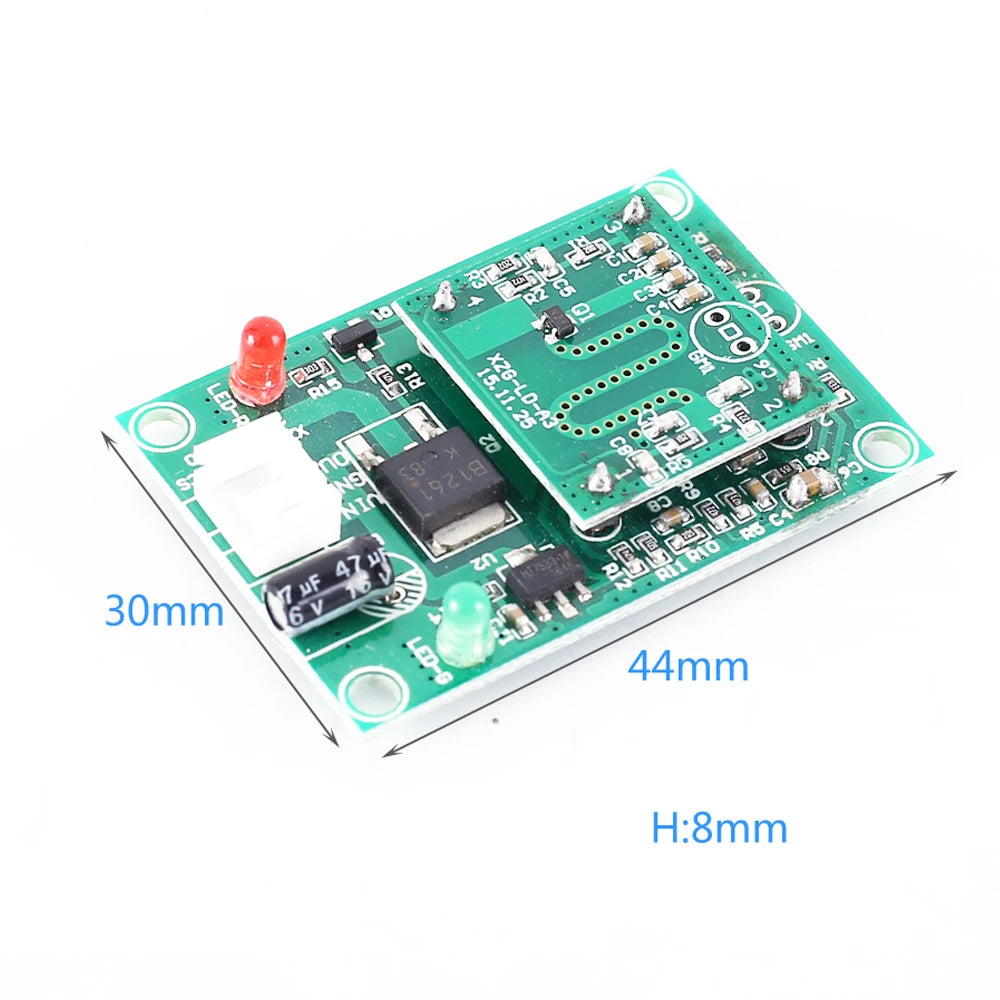

Module Size: 44*30*8mm

Origin: Mainland China

Output: Digital Sensor

Output power: 20W

Stand-by current: 4mA

Theory: Optical Sensor

Type: Biosensor

Use: Infrared Module

Working voltage: DC 3.3V~12V

is_customized: Yes

1.Description:

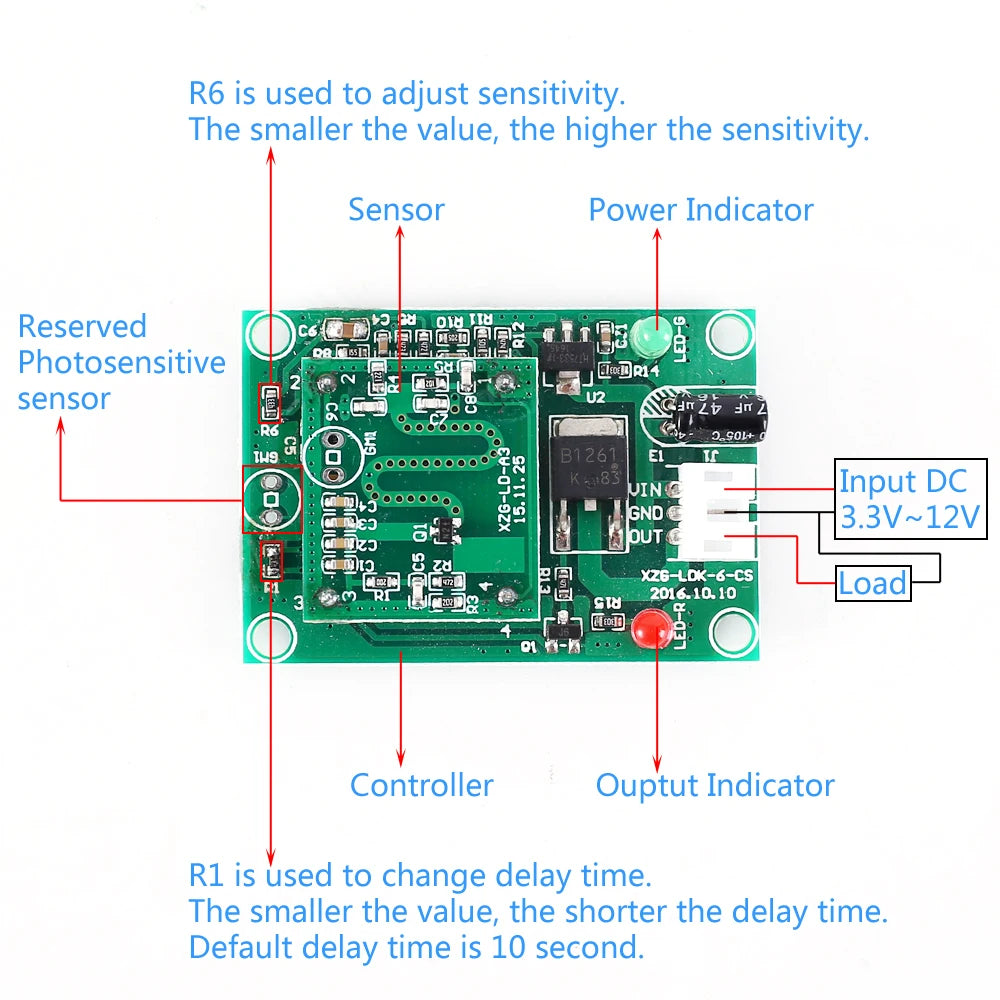

XZG-LDK-6-CS is a 5.8GHz microwave radar sensor module.It can output voltage as same to input and the maximum output current is 2A so it can directly drive LED and other load.

2.Feature:

1>.Non-contact detection and moving target detection.

2>.The module has a transmission frequency of 5.8GHz which can be widely used in commercial, industrial automatic control and other fields.

3>.Available in different frequency range standards: -UK, -F. Advanced low power PHEMT oscillator

4>.Independent transmit and receive paths for maximum gain and single channel operation.

5>.High sensitivity, high flexibility, low cost, working distance up to 6meter

6>.It is not affected by temperature, humidity, noise, airflow, dust, light, etc., and is suitable for harsh environments;

7>.Strong anti-radio frequency interference, stable performance; fast response and high sensitivity.

8>.The output power is only 5mW, which is not harmful to the human body;

9>.The range of long-distance detection can reach 6 meters.

10>.Small size and easy to install.

11>.Radar waves can penetrate non-metallic objects such as wood, glass, plastic, fiber fabric, etc., unless there are cement walls and metal plates that can be blocked.

12>.The best detection effect when a person or object moves toward the sensor!

3.Parameters:

1>.Model: XZG-LDK-6-CS

2>.Working voltage: DC 3.3V~12V

3>.Stand-by current: 4mA

4>.Detection angle: 360degree

5>.Detection distance: 6meters

6>.Output voltage:Same to input

7>.Output current:2A(Max)

8>.Output power:20W(Max but it can not more than 10W if drive LED lamp)

9>.Frequency: 5.8GHZ

10>.Delay time: 10 seconds

11>.Operating Temperature:-20℃~85℃

12>.Operating Humidity:5%~95%RH

13>.Module Size:44*30*8mm

4.Note:

1>.It is strictly forbidden to work with electricity to avoid malfunctions, wrong connections, burned out circuits or electric shocks; avoid touching the sensing surface of the probe with hands or tools during operation to prevent static electricity from damaging the module probe.

2>.Avoid installing in the sun and rain, to prevent damage or affect the service life.

3>.Try to install the place away from the magnetic field and the equipment that generates vibration to avoid malfunction.

4>.Try to install away from the movement of objects (like fans) to avoid malfunction

5>.The module can be installed by ceiling or by wall. The height of the wall is kept below 3 meters from the ground. When the height is more than 2 meters against the wall, the sensing surface of the module should form a depression angle with the detected area. The installation height is preferably less than 4 meters.

6>.the installation angle is different to the induction angle and the sensing distance will have a certain impact, please be sure to face the sensing area facing the detected area, the sensing surface should be able to vertically correspond to the area to be detected.

5.Applications:

1>.Automatic doors

2>.Automatic lights

3>.Elevators

4>.Advertising machines

5>.Security alarms

6>.Industrial automation

6.Package:

1>.1pc 5.8GHz DC 3.3V 5V 9V 12V Microwave Radar Sensor Module

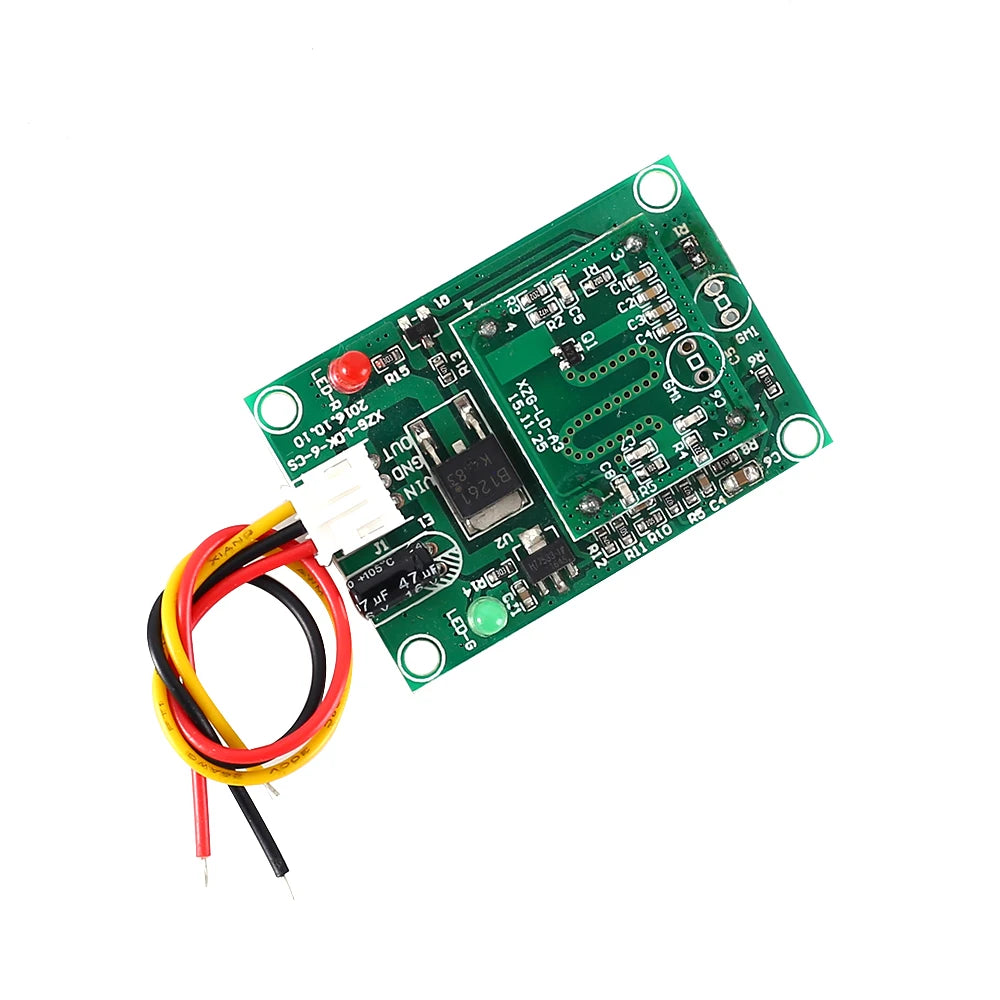

2>.1pc XH2.54-3P 100mm cable
