These are time-delay (slow-blow) fuses that withstand short-duration high inrush currents (surges) during equipment startup, preventing nuisance opening under normal conditions

• Model: ANS Fuse ( Bolt-Down Fuse )

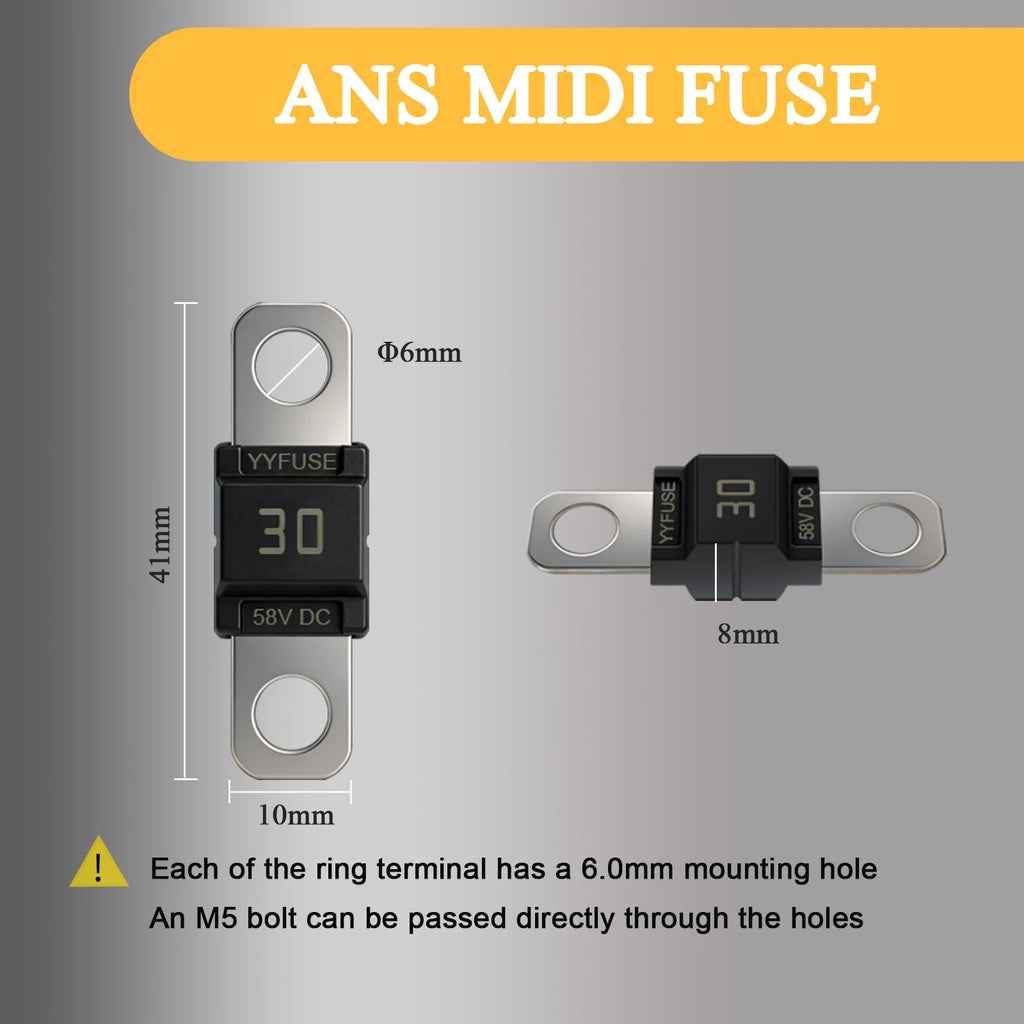

• Compact Size: 41mm × 10mm × 8mm

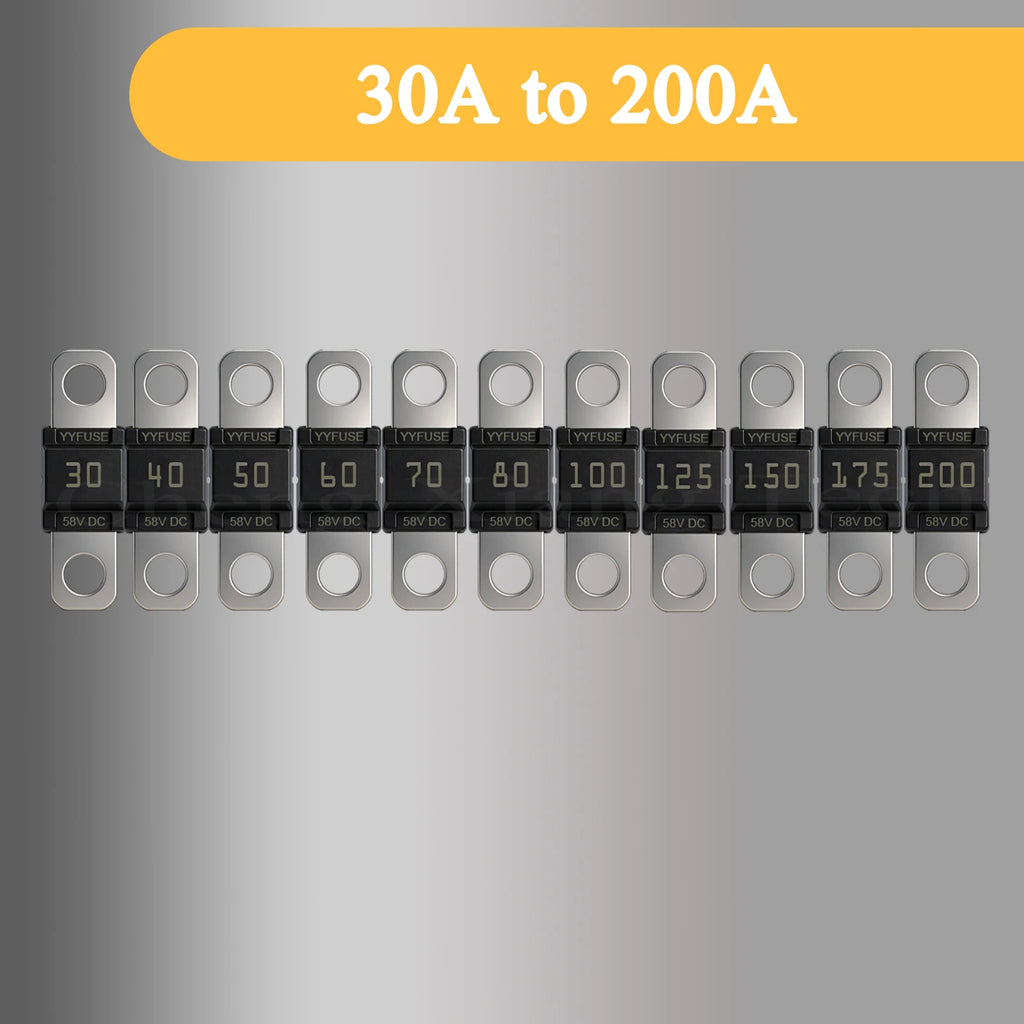

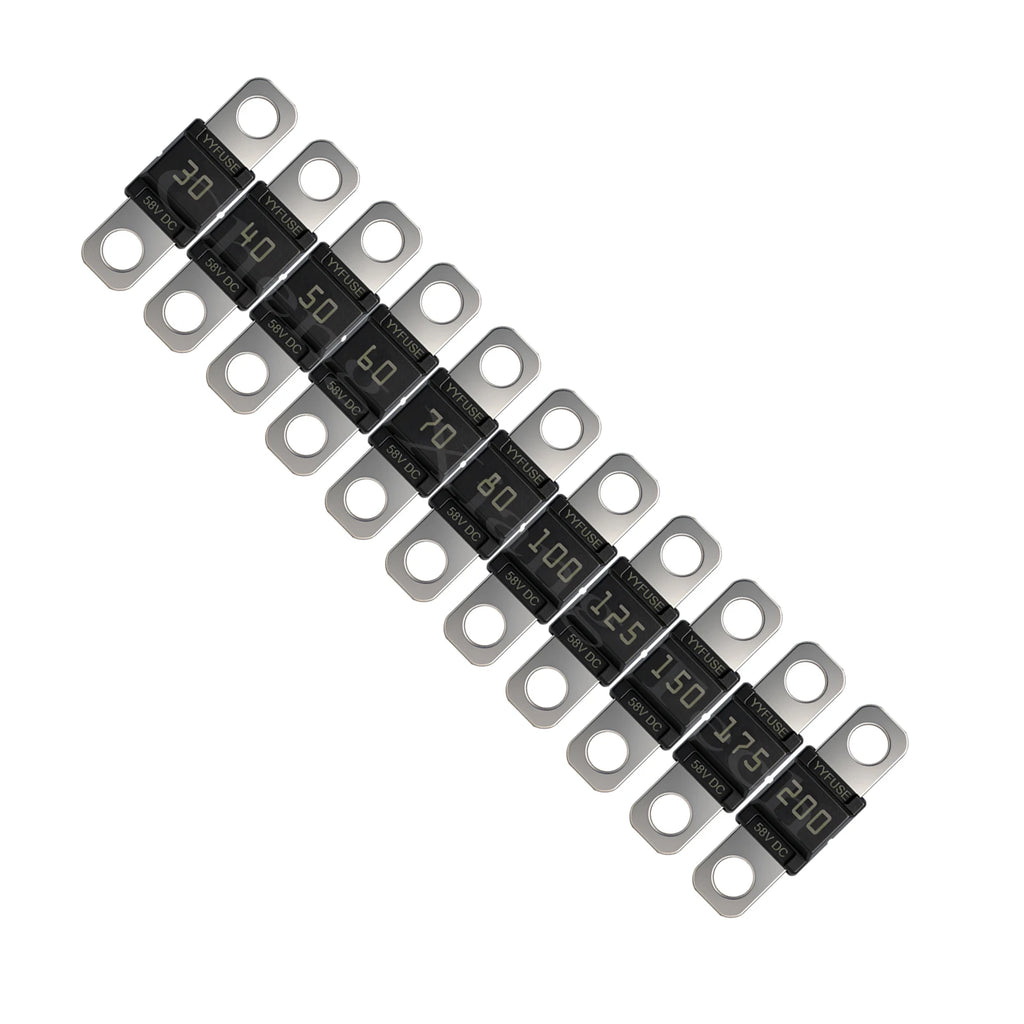

• Current range: 30A, 40A, 50A, 60A, 70A, 80A, 100A, 125A, 150A, 175A, 200A

• Voltage rating: 58VDC

• Terminal Hole Size: 6mm

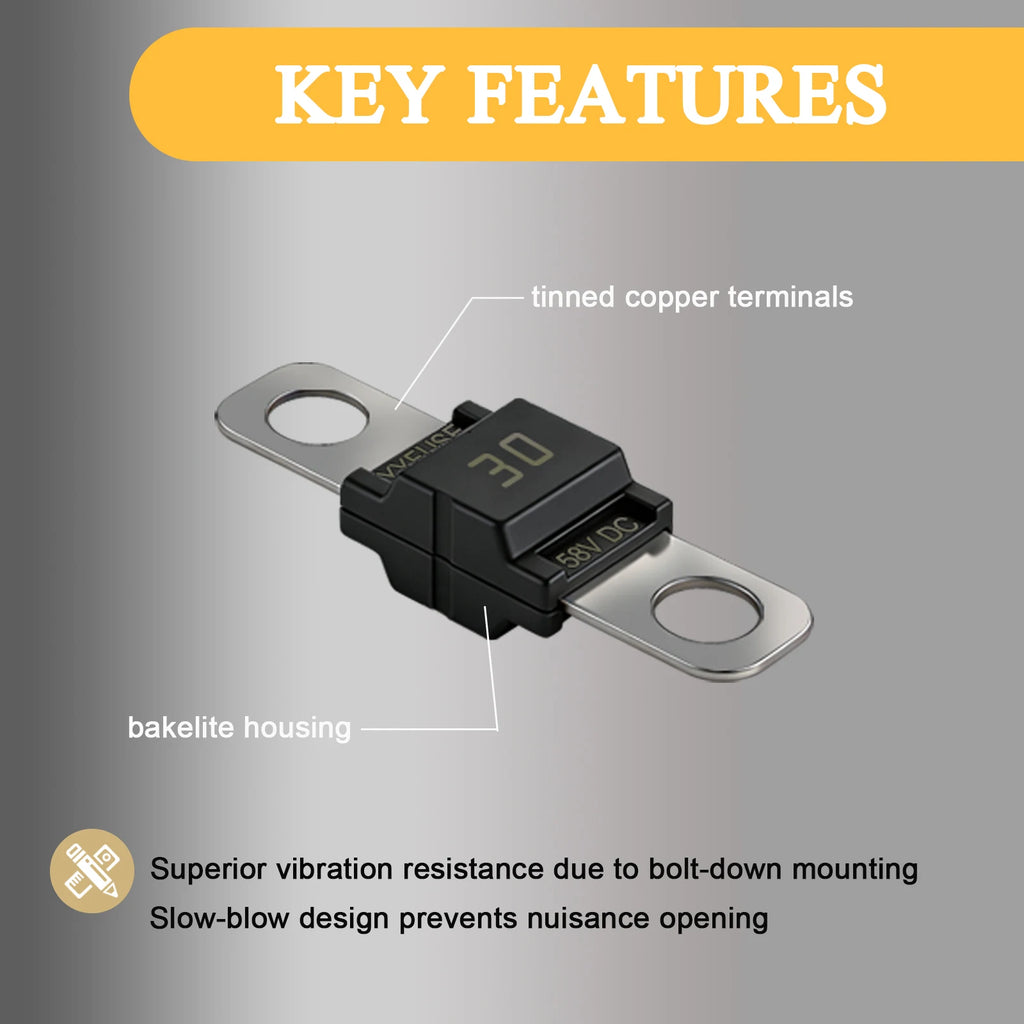

• Materials: Tinned Copper Terminals and bakelite housing

• Compatibility: M5 Threaded Stud and Hex Nuts

• Applications: Car audio systems, smaller DC power units, auxiliary circuits in EVs or solar systems

• ⚠️ Notes: Always replace with a fuse of the same ratings (current, voltage, and size)

Advantages over other fuses

• Small size saves space in low‑to‑medium current circuits

• Superior vibration resistance due to bolt‑down mounting

• Excellent heat dissipation for stable operation at high currents

• Reliable in harsh environments (dust, moisture, temperature extremes)

Two Main Mounting Methods: The ANS fuse can be installed in two main ways: direct mounting and mounting via a fuse holder

• Direct Mounting: Each of the fuse's two ring terminals has a 6.0mm mounting hole. An M5 bolt can be passed directly through the holes to secure the fuse to the equipment's terminal or busbar

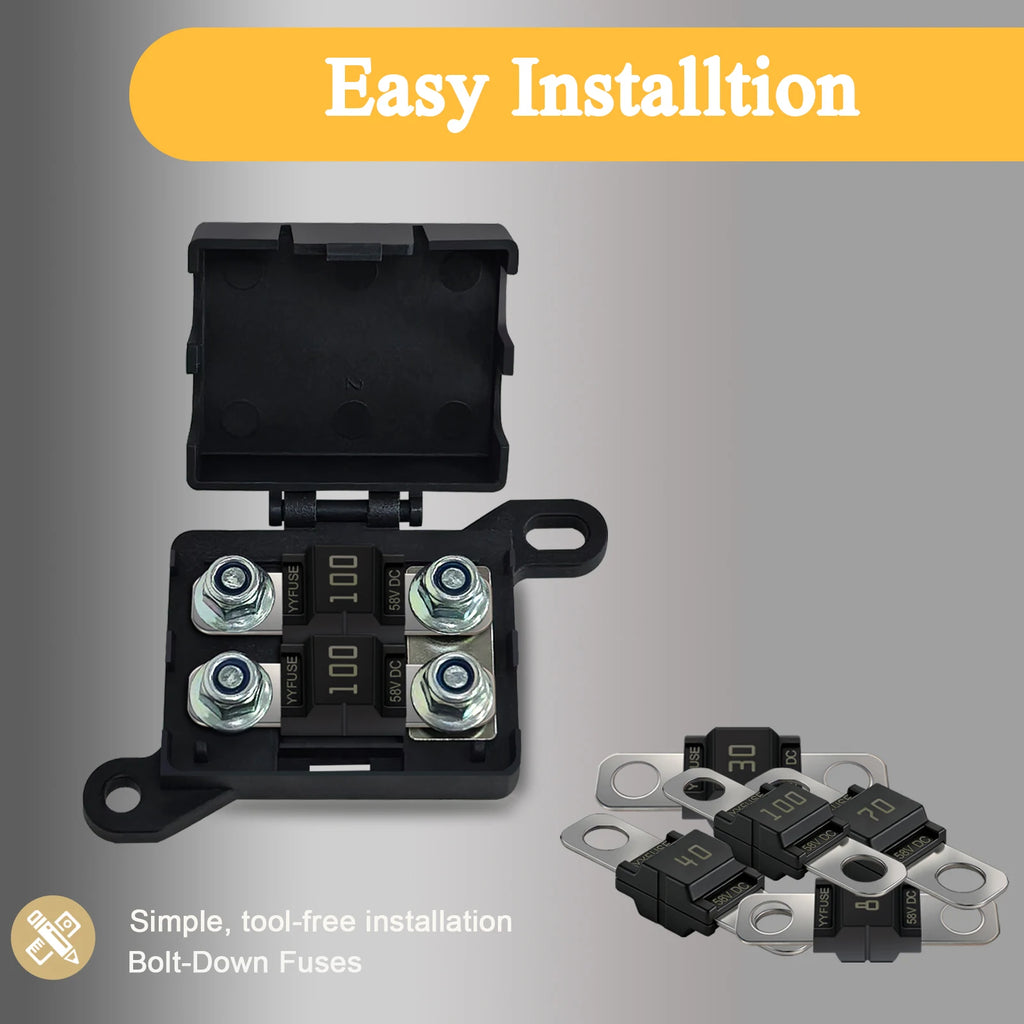

• Via Fuse Holder: The ANS fuse is inserted into a dedicated fuse holder, and the holder is then mounted to the equipment. This is the most common method.
