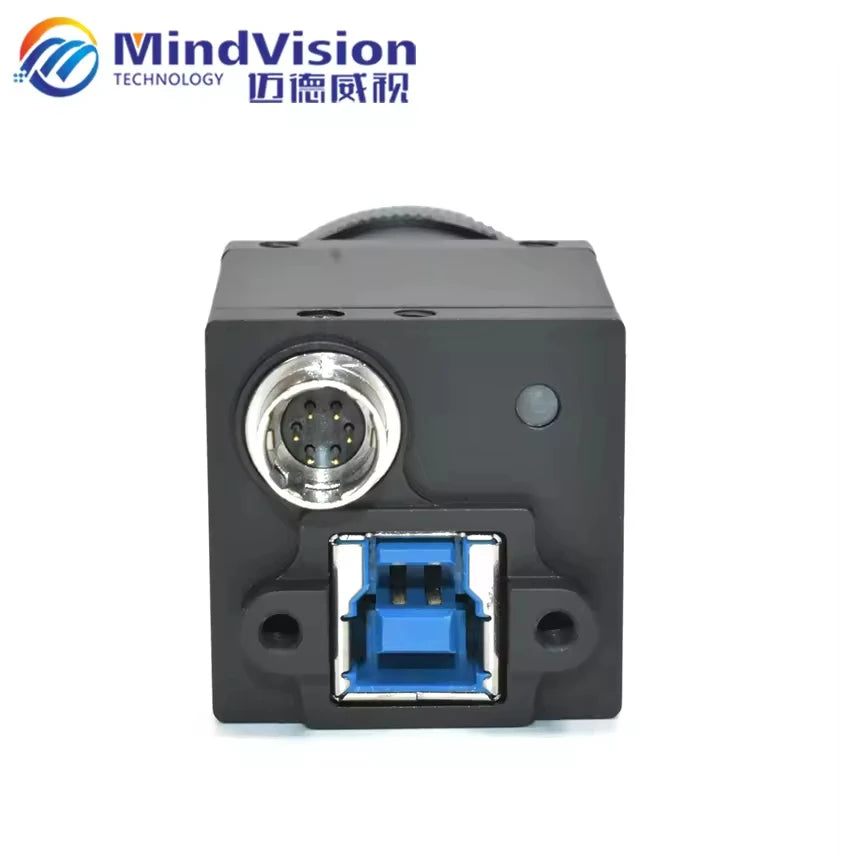

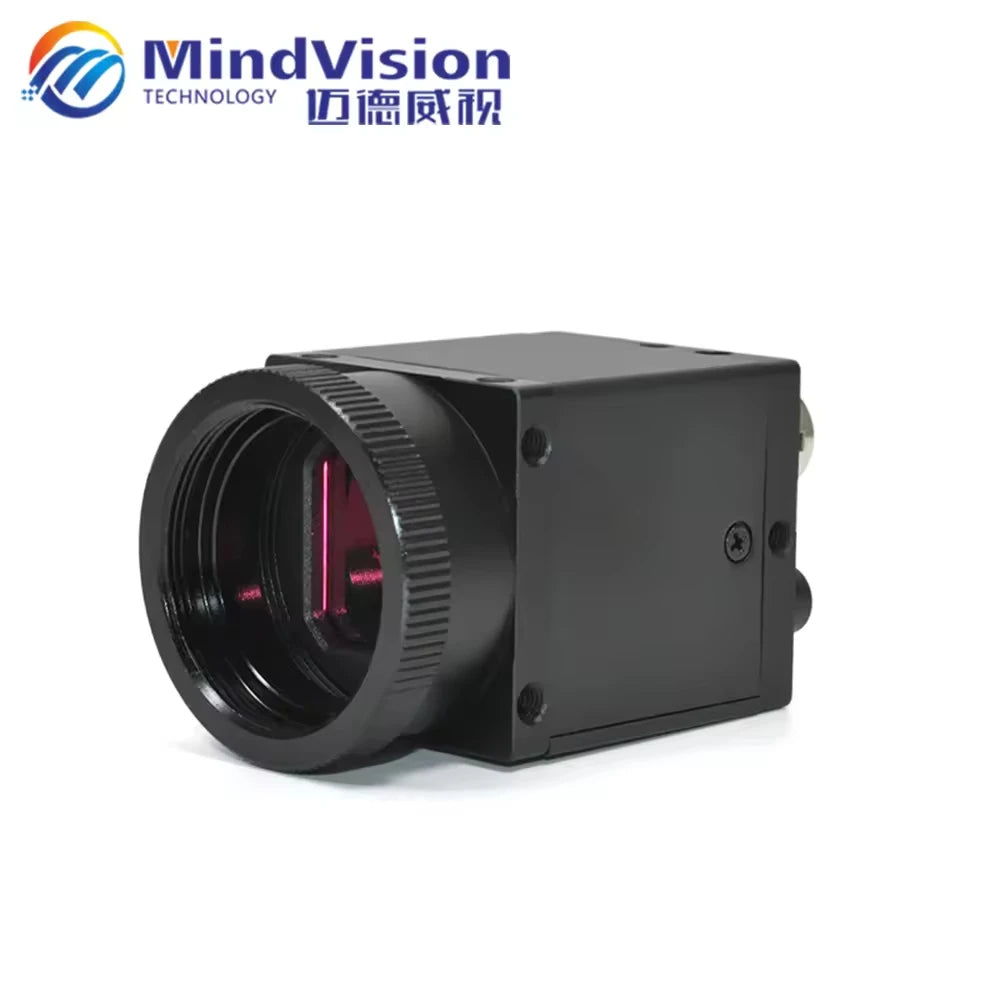

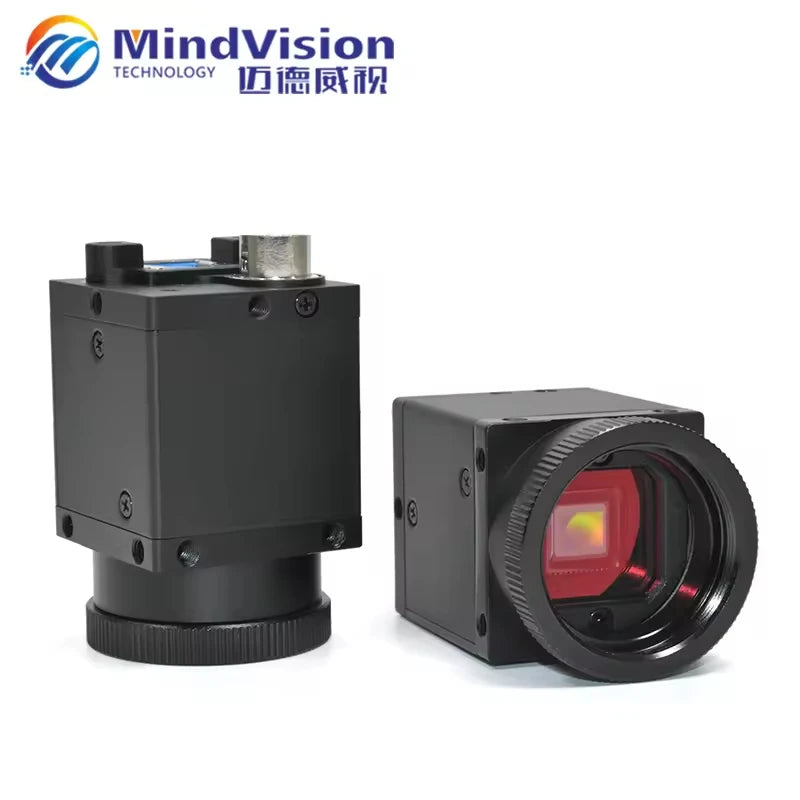

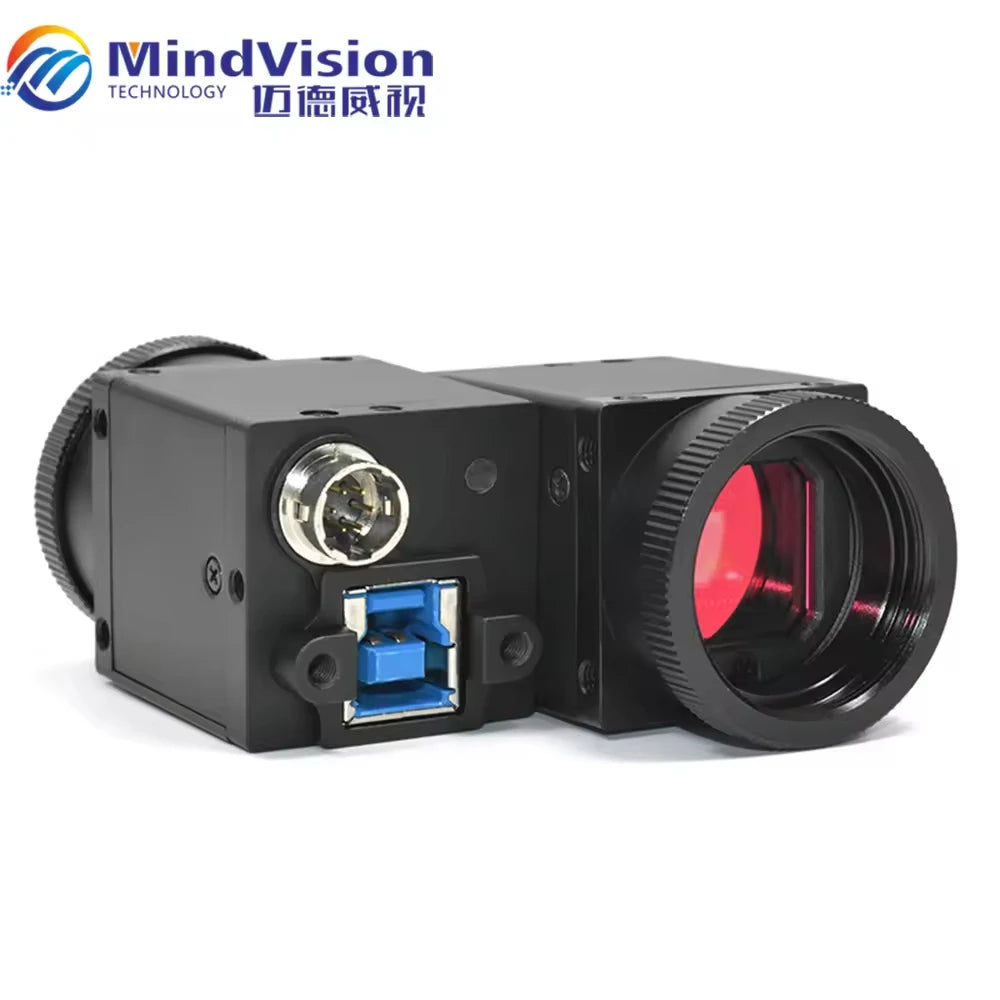

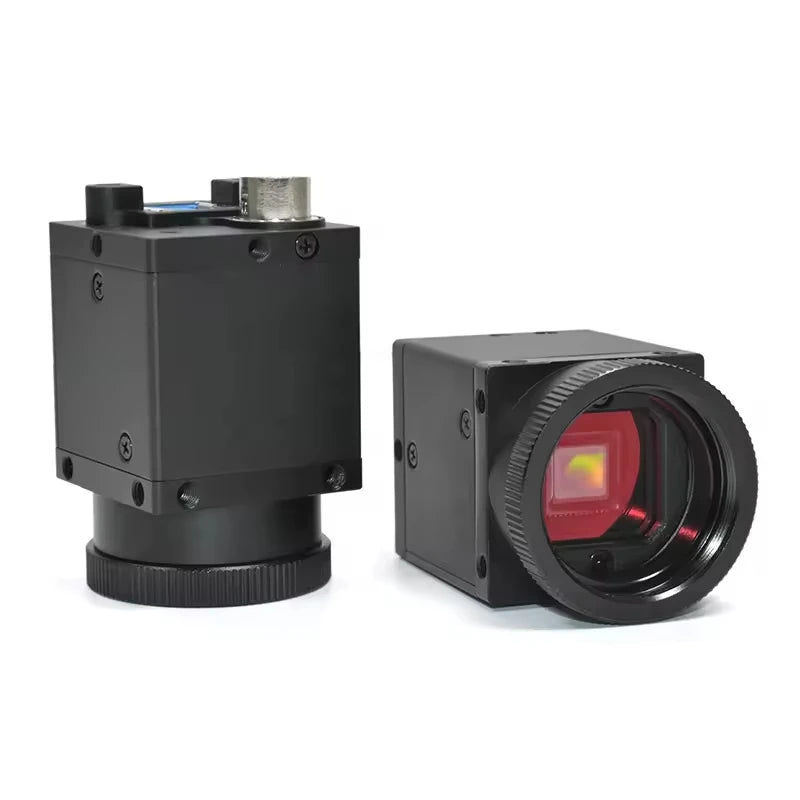

MindVision High Speed Industrial Camera USB3.0 790fps Vision Inspection CMOS Global Shutter Support SDK

MindVision High Speed Industrial Camera USB3.0 790fps Vision Inspection CMOS Global Shutter Support SDK

$780.00

$780.00 $0.00

Description

SPECIFICATIONS

Brand Name: NoEnName_Null

Frame rate: 160fps

High-concerned chemical: none

Interface: Gigabit RJ45

Model Number: MV-SUA33GC/M,MV-GE33GC/M

Origin: Mainland China

Pixel: 0.3MP

Pixel Size: 4μm

Product name: Gige Industrial Camera

Resolution: 640*480

Sensor: 1/5.6" CMOS

Shutter: Global Shutter

MindVision boasts a technical engineering team of over ten members who are proficient in English. Should you have any inquiries regarding machine vision camera selection, please feel free to share your requirements. Our engineers are dedicated to providing you with our utmost service.

●Support external trigger sync taking pictures● Programmable IO●A computer to connect multiple cameras to stable work●Support for 16bit grayscale and 48bit color lossless format output●Camera parameter archive is saved as a file.●Camera name can be modified to easily distinguish multiple cameras.●With a maximum of 16K bytes of data storage.●Support 8bit, 24bit, 32bit image format output.

Application
●Electronic 3C
●Automated semiconductor
●Logistics scanning code
●Intelligent transportation
●Biomedical
●Packaging and printing

Product Paramenters

Product Item	MindVision Industrial Camera usb 3.0 790fps High Speed Visual Inspection Support CMOS Global Shutter Camera
Model Number	MV-SUA33GC/M
Pixel	0.3MP
Resolution	640*480
Frame Rate(fps)	790fps
Color	Monochrome/Color
Sensor	1/5.6" OEM Sensor Rolling shutter CMOS
Pixel Size	4.0μm
Exposure Time(ms)	0.00124~20.7
Pixel depth	8bit
Lens Mount	Default CS-Mouth
GPIO	1 trigger input, 1 flash control output, 1 GPIO output
Data interface	USB3.0 interface
Frame Buffer	128M Bytes
User-defined data area	2K Bytes
Power Requirements	5V

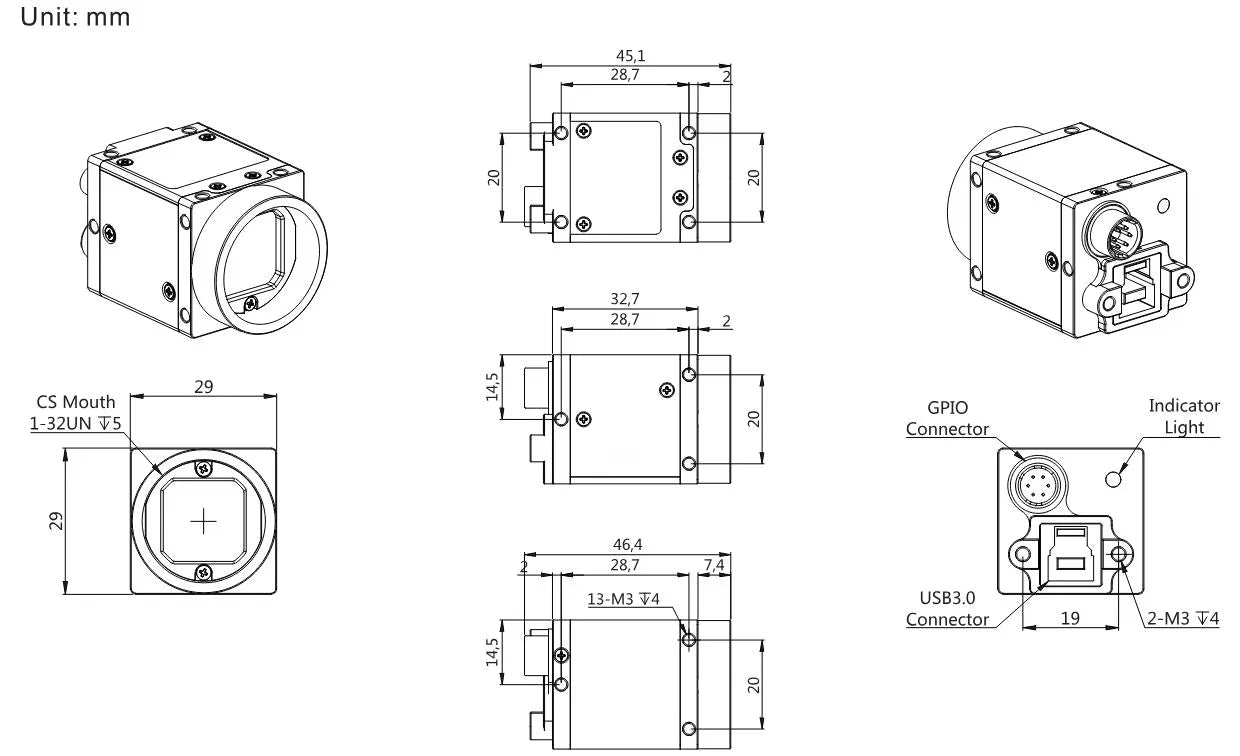

Dimensions	292932.7(mm)
Image output format	Color:Bayer8 Mono:Mono8
weight	＜75g
Operating temperature	0~50℃
Programming Language	C/C+ +/C #/VB6/VB.NET/Delphi/BCB/Python
Operating System	WINXP, WIN7 / 8/10 32 & 64-bit systems,Linux and ARM Linux &Android
Driver	DirectShow /Halcon/Labview/OCX/TWAIN
Other Functions	Support Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation,sharpness, color to mono, color temperature correction, anti-color, Color,trigger mode, frame rate control
