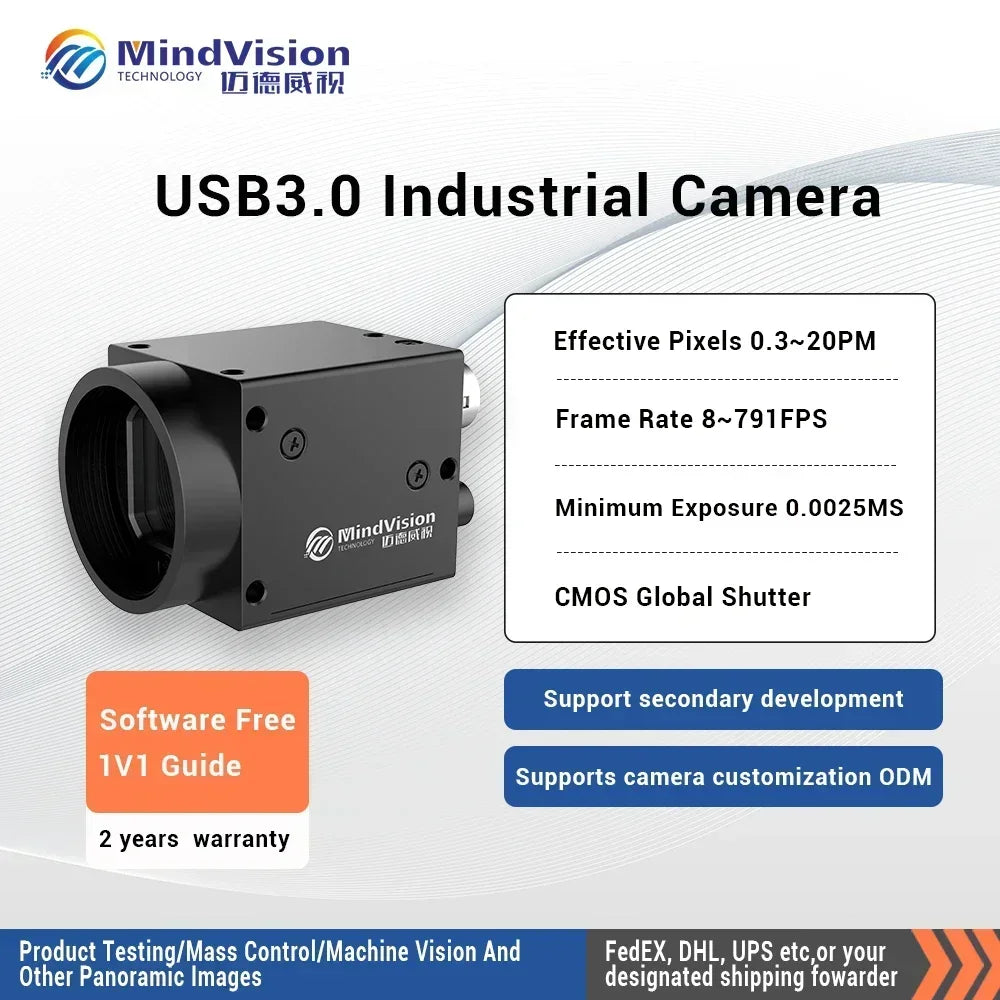

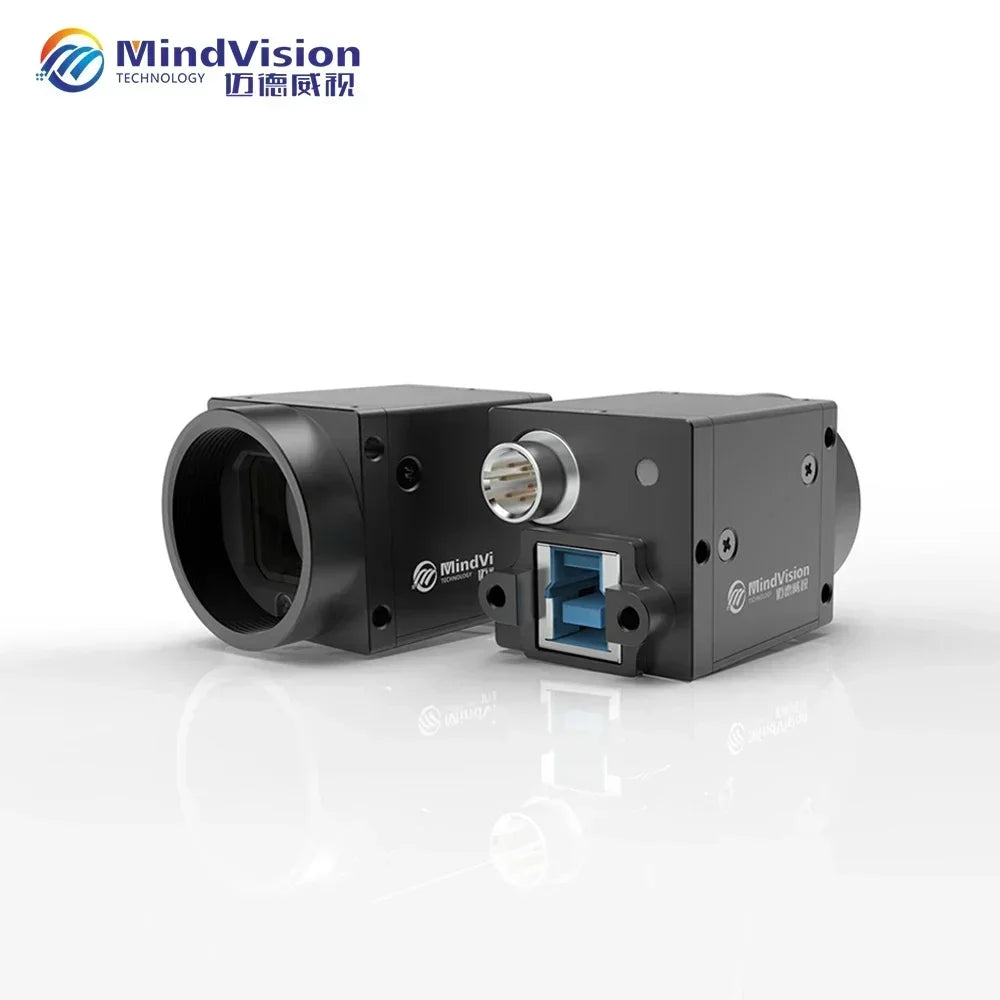

MindVision MV-SUA505GC/M 5MP USB3.0 industrial Camera machine vision Global shutter camera

MindVision MV-SUA505GC/M 5MP USB3.0 industrial Camera machine vision Global shutter camera

$1,512.52

$1,512.52 $0.00

Description

SPECIFICATIONS

Brand Name: NoEnName_Null

Effective pixel: 5MP

High-concerned chemical: none

Max resolution: 2592*2048

Model: MV-SUA505GC/M

Model Number: MV-SUA505GC/M

Name: USB3.0 Camera

Origin: Mainland China

Pixel size: 3.2um

Shutter mode: Global shutter

frame rate: 42.75fps

mini exposure time: 0.0113ms

sensor type: XGS5000

target size: 2/3''

USB3.0 Product Features :

1. The camera comes with programmable I0.

2.Support external trigger strobeto take photos synchronously.

3.Support 8bit to 12bit raw data output.

4. Fully compatible with GIGEcamera's SDKfor seamless replacement.

5.Multiple cameras on one computer can work stably withoutdroppingor losing frames for a long time.

6.SupportPCLinux system and ARMLinux system,available tobeintegrated into embedded devices.

7.Compatible with Vision protocol,seamlessly compatible with Halcon,VisionPro,Labview and other vision software.

Application Industry:

It is widely used in electronic 3C, automatic semiconductor, logistics codescanning, intelligent transportation, biomedicine, package printing, etc.

Package Incluede:

1 x Industrial Camera(No Include Lens)

1 xPower trigger cable

1 x USB3.0 A Male To B Male Cable

Model Specifications	MV-SUA505GC	MV-SUA505GM
Sensor	2/3"CMOS
Shutter type	Global shutter
Camera type	Color	Mono
Pixel size	3.2umx3.2um
Effective pixels	5MP
Resolution @frame rate	2592X2048MAX@42.75FPS
Exposure mode	Frame exposure
Signal to Noise Ratio	40dB
Dynamic range	68dB
GPIO	1 way optical isolation input,1 way optical isolation output;optional 3 inputs and 4 outputs
Output pixel width	12bit
AD width	12bit
Frame buffer	128M Bytes
Exposure time range	0.042~1376.2ms
Maximum gain(multiple)	8
User EEPROM	2K Bytes
Video output format	Bayer 8bit	Mono 8bit
Visual standard protocol	USB3.0 Vision V1.0, GenlCam
Lens interface	C/CS mount,provide with an adapter ring
Port	USB3.0
Power supply	5V/A viation headind power supply 12V
Power	<2.5W

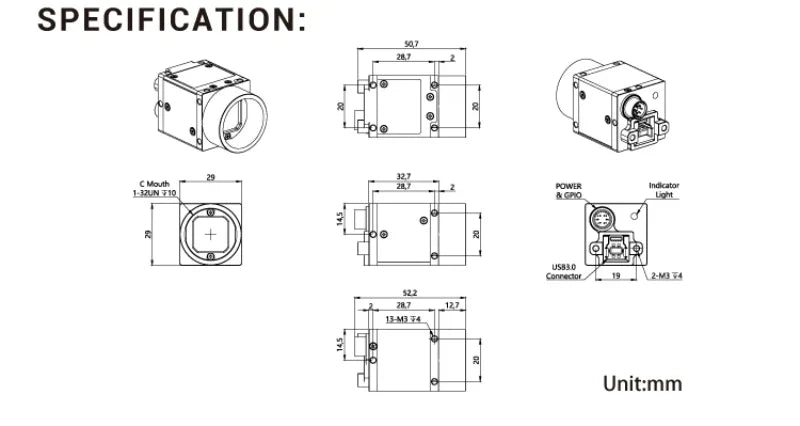

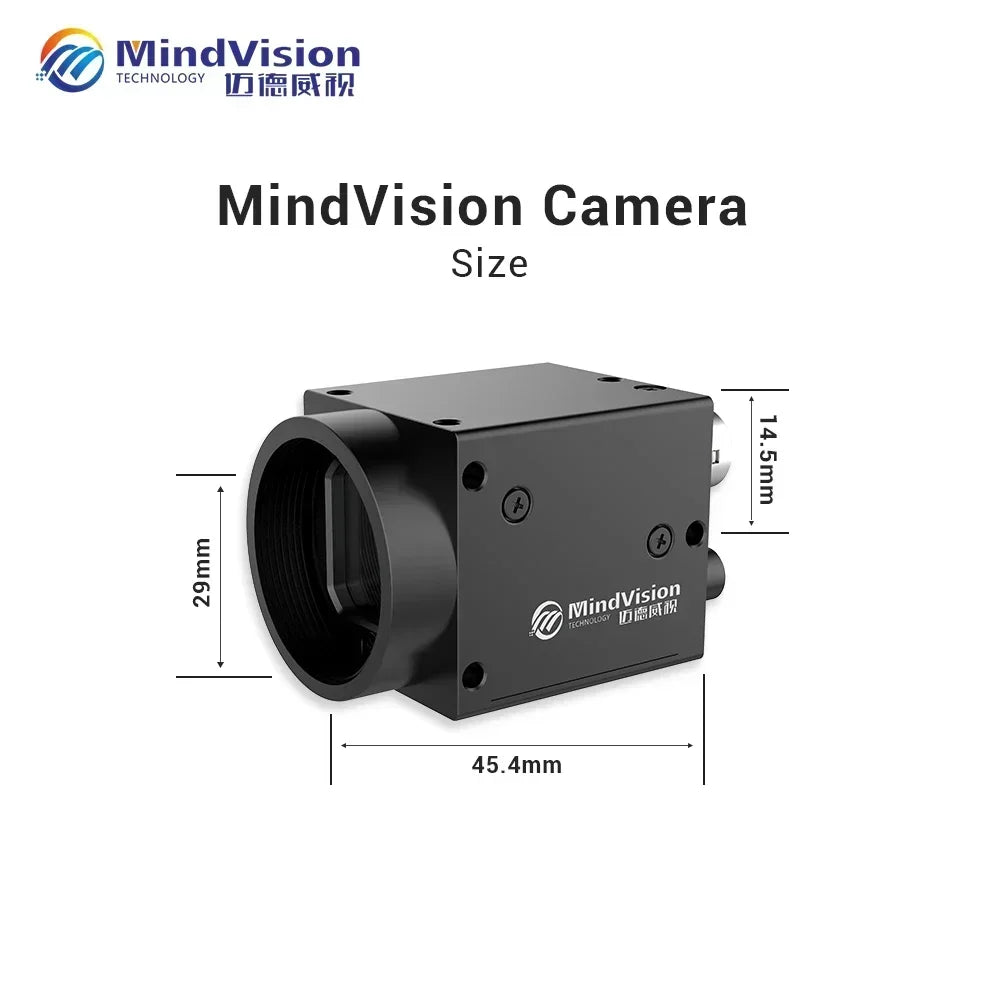

Boundary dimension	29(mm)X29(mm)X32.7(mm)(without lens and rearcase connectors)
Weight	<75g
Working temperature	0~50℃
Working humidity	20~80%(No Condensation)
Storage temperature	-30~60℃
Storage humidity	20~95%(No Condensation)
Operating system	WINXP,WIN7/8/1032&64-bit systems,Linux and ARM Linux drivers and Android platform drivers MACoS system
Drive program	Directshow componentsHalcon special components Labview dedicated drive OXC components TWAIN components
Programming language	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Support any size ROI custom resolution,contrast and gamma adjustment,saturation adjustment,white balance correction, black level correction,custom dead pointcoordinate correction,ISP image processing acceleration,3D noise reduction, custom LUT table,frame rate adjustment,custom camera name,etc.

FAQ

Q.Support after-sales?

A: Yes,We have 2 years warranty, Manufacturer quality support,any questions can contact us .

Q.What is the advantage of your industrial camera?

A:We have 10 years of rich experience and have a core R&D team,Our products are more stable than peers.

Q.What is the difference about CCD and CMOS?

A: CCD has a better image quality than CMOS, but the price and power is higher.CMOS sensor has the characteristics of high sensitivity and high integration.

Q.How to take photos with multiple cameras simultaneously?

A: As long as the trigger source is the same, you can take pictures synchronously.

Q.How to choose the shutter of industrial camera?

A: If you need to shoot still objects, we recommend that you choose a camera with a rolling shutter, which will be more cost-effective;If you need to shoot moving objects, global shutter camera much better for you.

Q.How to choose the color of industrial camera?

A: If you do size measurement without detecting the color of the image, you can choose monochrome camera. Monochrome camera transmits a grayscale image, which is more conducive to size measurement.If you need to identify product chromatic aberration, such as comparison, a color camera is suitable for you.

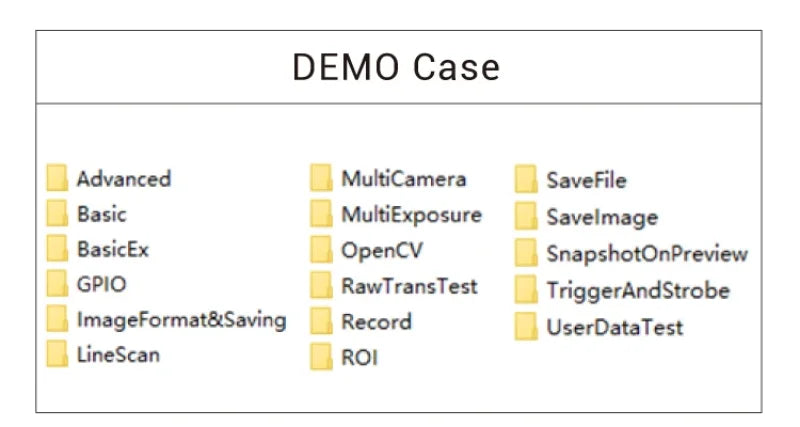

Q. Can you provide SDK?
A: Yes,we provide SDK,and it supports secondary development.
