SPECIFICATIONS

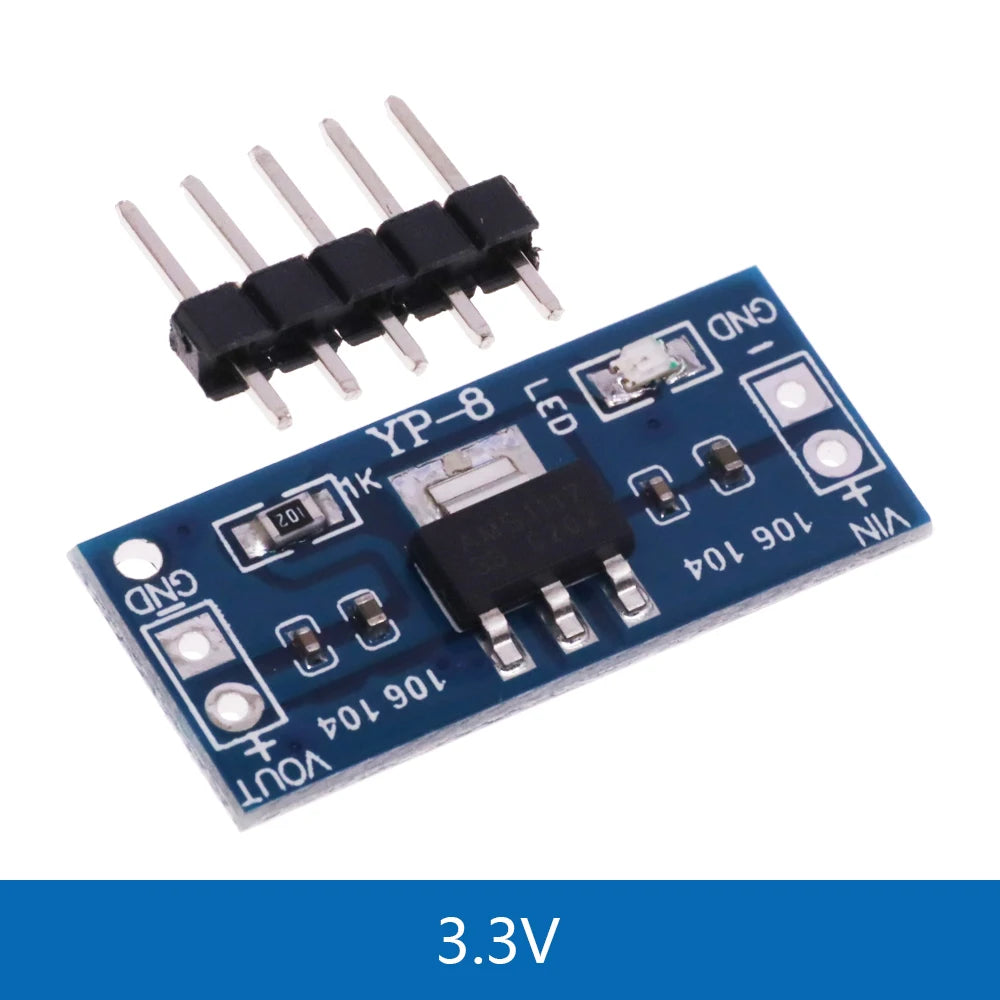

3V Design Background:

As electronics enthusiasts, you will not find a 3.3V power supply and tangled, is not an expansion interface for power supply are not enough and distress? Such experience, I believe that people will engage in electronic design often encountered. To facilitate that we can find a safe high-performance, ease of use, power regulator rich expansion interface module, the design of such a shop turn 3.3v 5v power regulator module, which applies to microcontroller project design and other needs 3.3V power supply electronic equipment. Meanwhile, some of the electrons can be extended to facilitate the design of the power.

A baby description

1 Input: DC 4.5V--7V (input voltage to output voltage must be greater than 1V or more.)

2 Output: 3.3V, 800mA (load current must not exceed 800ma)

3 pairs of panel design, layout, nice;

4 specially designed two pin mounting holes, can be directly fixed on the hole expansion board for experiments;

5 Input Output Using 2P single row pin header for easy connection;

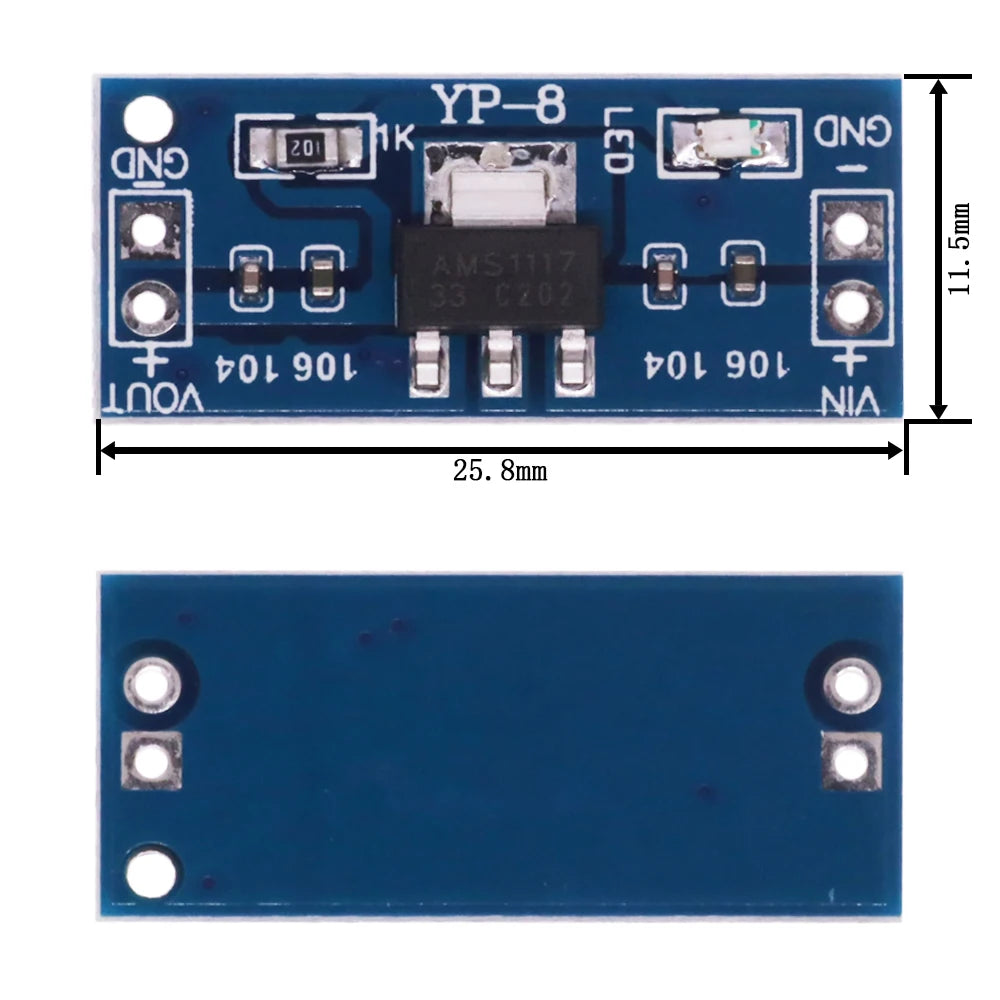

6 PCB board size: 2.5cm * 1.1cm

7 with power indicator light (red)

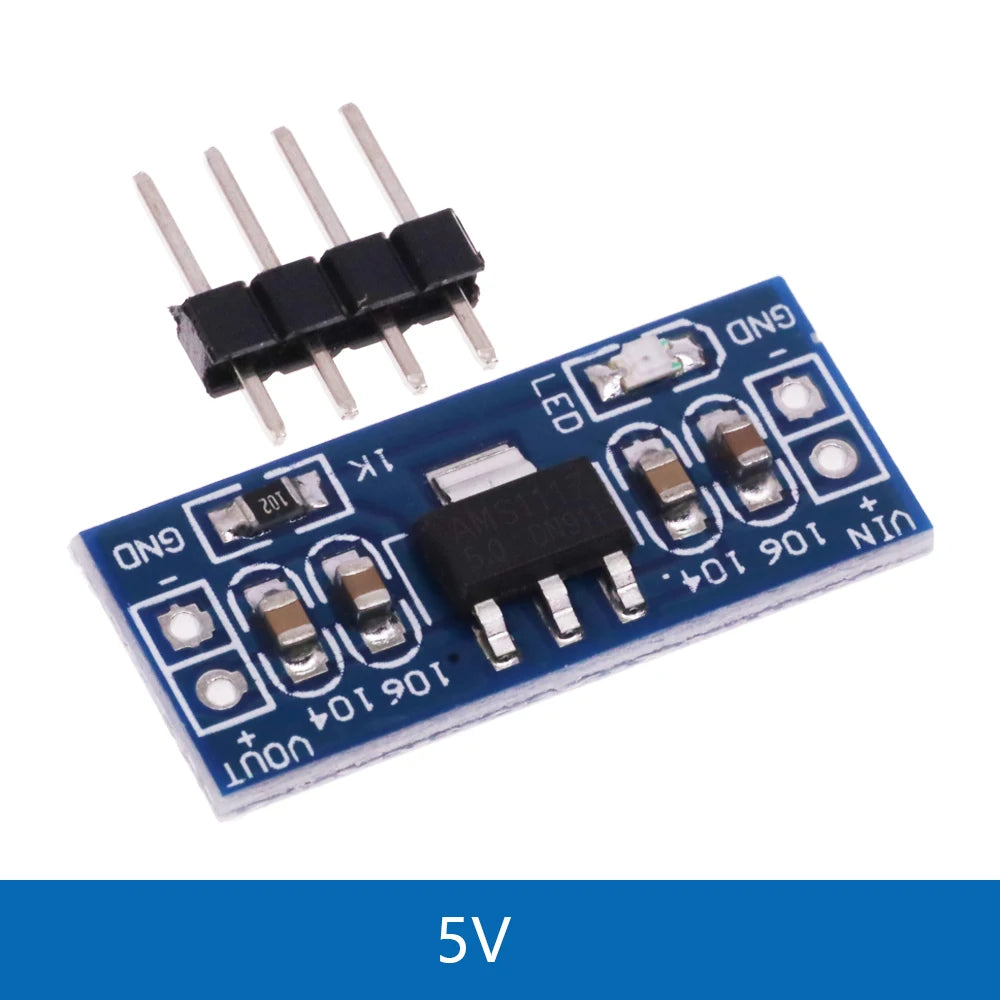

5V Design Background:

As electronics enthusiasts , you are not 'll find a 5.0V power supply and tangled, is not the will to power is not enough to expand the number of interfaces and distress ? Such experience , I believe that people will engage in electronic design often encountered . To facilitate that we can find a safe high performance , ease of use , power regulator rich expansion interface module , shop designed in such a 5v power regulator module, which applies to single-chip design projects that require electronic equipment 5V supply . Meanwhile , some of the electrons can be designed to facilitate the expansion of power .

A description of the baby

1 Input : DC 6V - 12V ( input voltage must be higher than the output voltage to 1V or more. )

2 Output : 5.0V (+-0.05v error ), 800mA ( load current must not exceed 800ma)

Three pairs of panel design, layout nice ;

4 specially designed two pin mounting holes , can be directly fixed on hole board for extended experiments ;

5 input and output using 2P single row pin for easy connection ;

6 PCB board size : 2.5cm * 1.1cm

7 with power indicator light ( red )
