Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Commutation: Brushless

Construction: Permanent Magnet

Continuous Current(A): 0.16 A

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: none

Maximum no-load speed: 18200 RPM

Model Number: Mini 1623 Brushless Motor

Origin: Mainland China

Output Power: ＜18.65

Protect Feature: Explosion-proof

Type: Micro Motor

Use: Home Appliance

Voltage: DC12V

semi_Choice: yes

Tips: If you need large quantity, we can provide wholesales for you. Thanks

Tips: The product may be updated constantly, the color and appearance may be changed, please don't mind. And take a consideration before place the order if you have request for color or appearance.

Specification:

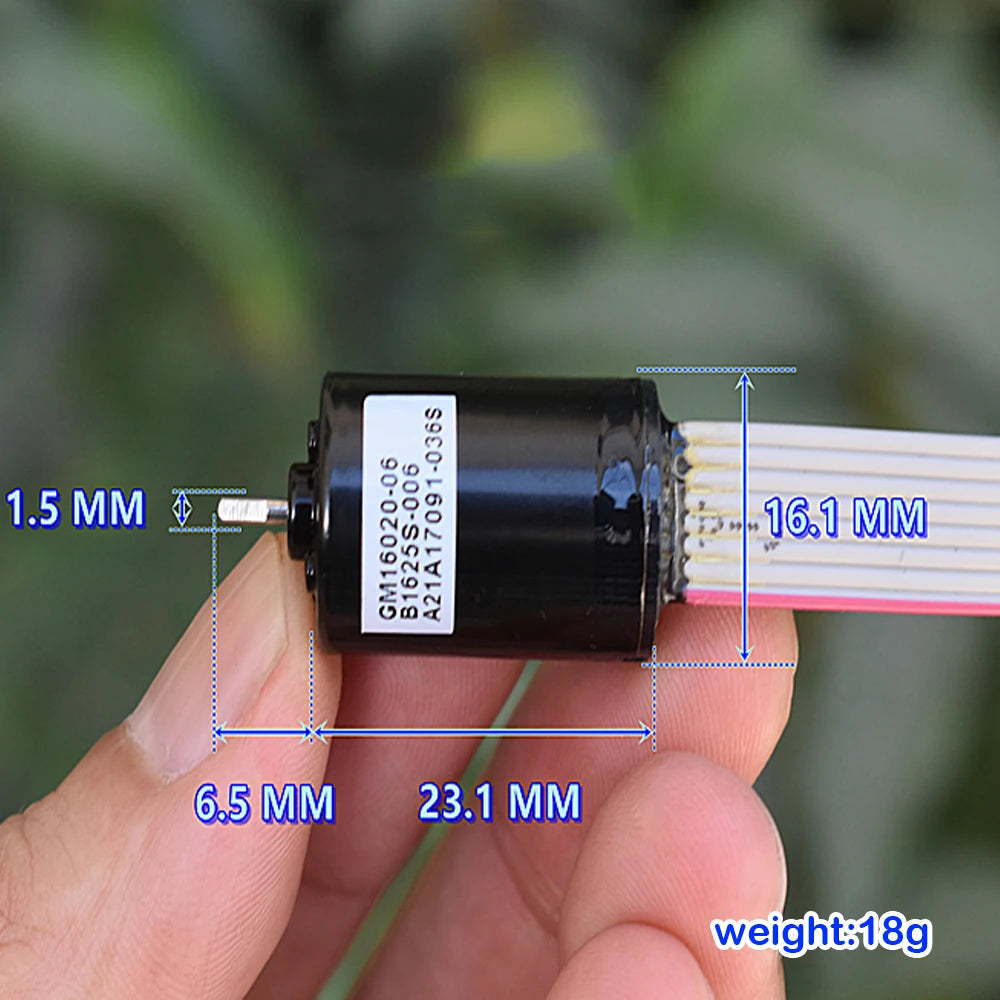

Outer diameter of motor: 16 MM
Motor length: 23 MM
Motor shaft diameter: 1.5 mm (with flat position of 1.25 mm)
Output shaft length: 6.5 MM
Motor wire length: 60 MM
Motor weight: 18 g
Motor type: three-phase brushless motor (requires an additional driver to operate)
Voltage: DC12V
Maximum no-load speed: 18200 RPM
No load current: 0.16 A


Package Include:
1PCS *  Motor
