Mini 7-Type N20 Full Metal Gear Motor DC 6V-12V 60RPM Slow Speed Inverted Shaft Micro Gearbox Gear Reducer Motor DIY Robot Toy
$22.80
Sale price
$22.80
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CCC,ce,CCC,ce
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: none
Model Number: Mini N20 Gear Motor
No-load speed: 60RPM
Origin: Mainland China
Output Power: ＜18.65
Protect Feature: Explosion-proof
Rated voltage: DC 12V
Type: Gear Motor
Use: Home Appliance
semi_Choice: yes
Specification:
The N20 reduction motor with exquisite workmanship, same direction inverted output shaft, all metal gears, suitable for voltage of DC12V and speed of 60 revolutions per minute, is suitable for smart devices that require large torque in small spaces, such as smart robots, smart furniture, smart focusing systems, micro smart robotic arms, and telescopic gimbals.
1.Model: Mini N20 Gear Motor

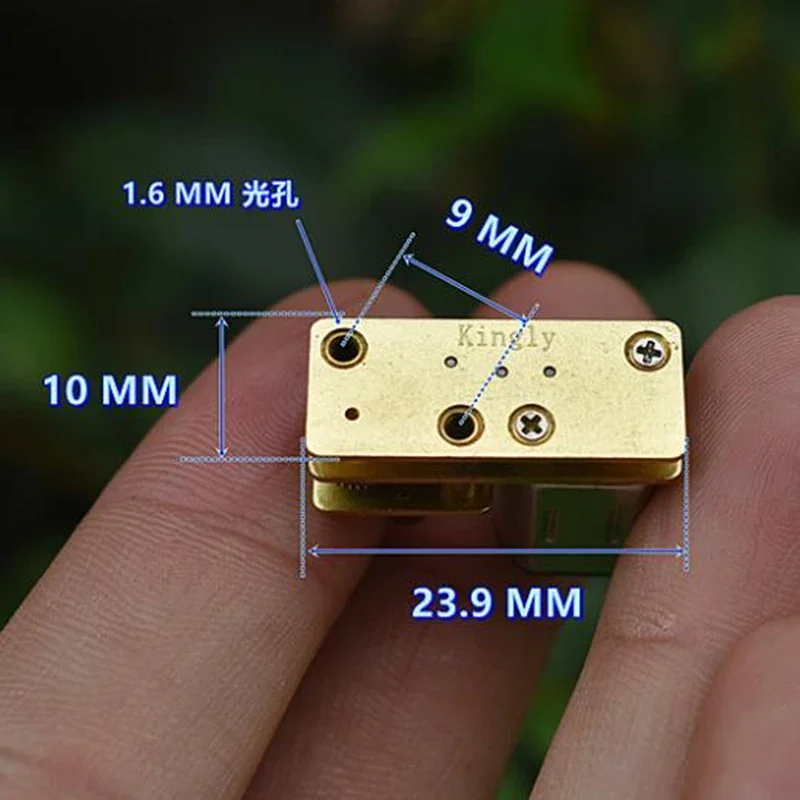

2.Gearbox size: 10mm*23.9mm
3.Output shaft diameter: 2.9mm (1.9mm)
4.Output shaft length: 4.5mm
5.Weight: 12g
6.Rated voltage: DC 12V
7.No-load current: 15mA
8.No-load speed: 60RPM
9.Working torque: 0.18 KG.cm
10.Stall torque: 1.5 KG.cm
=========================
Package List:
Gear Motor x 1PCS
