SPECIFICATIONS

AC Voltage: 4V/40V/400V/450V

Battery Included: Yes

Brand Name: HoldPeak

Choice: yes

DC Voltage: 400mV/4V/40V/400V/450V

DIY Supplies: Electrical

Dimensions: 4.25x2.12x0.47

Display Type: Digital Display

Function 1: Diode Test

Function 2: Auto Ranging

Function 3: Auto Power Off

Function 4: AC Measurement

Function 5: DC Measurement

Function 6: Resistance Measurement

Function 7: Audible Continuity Buzzer

HOLDPEAK Model: HP-4201

High-concerned chemical: none

LCD Display: 4000 Counts

Measuring Resistance Range: 400Ω-400MΩ

Model Number: 4201

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

semi_Choice: yes

✅【Easy to Operate】-Small but compact ohm-volt meter, measures DC&AC voltage: 1mV~450V, Resistance: 100mΩ~40MΩ in high degree of accuracy, professionally designed for DIYers and mechanics in low voltage applications, circuit properties measurement.

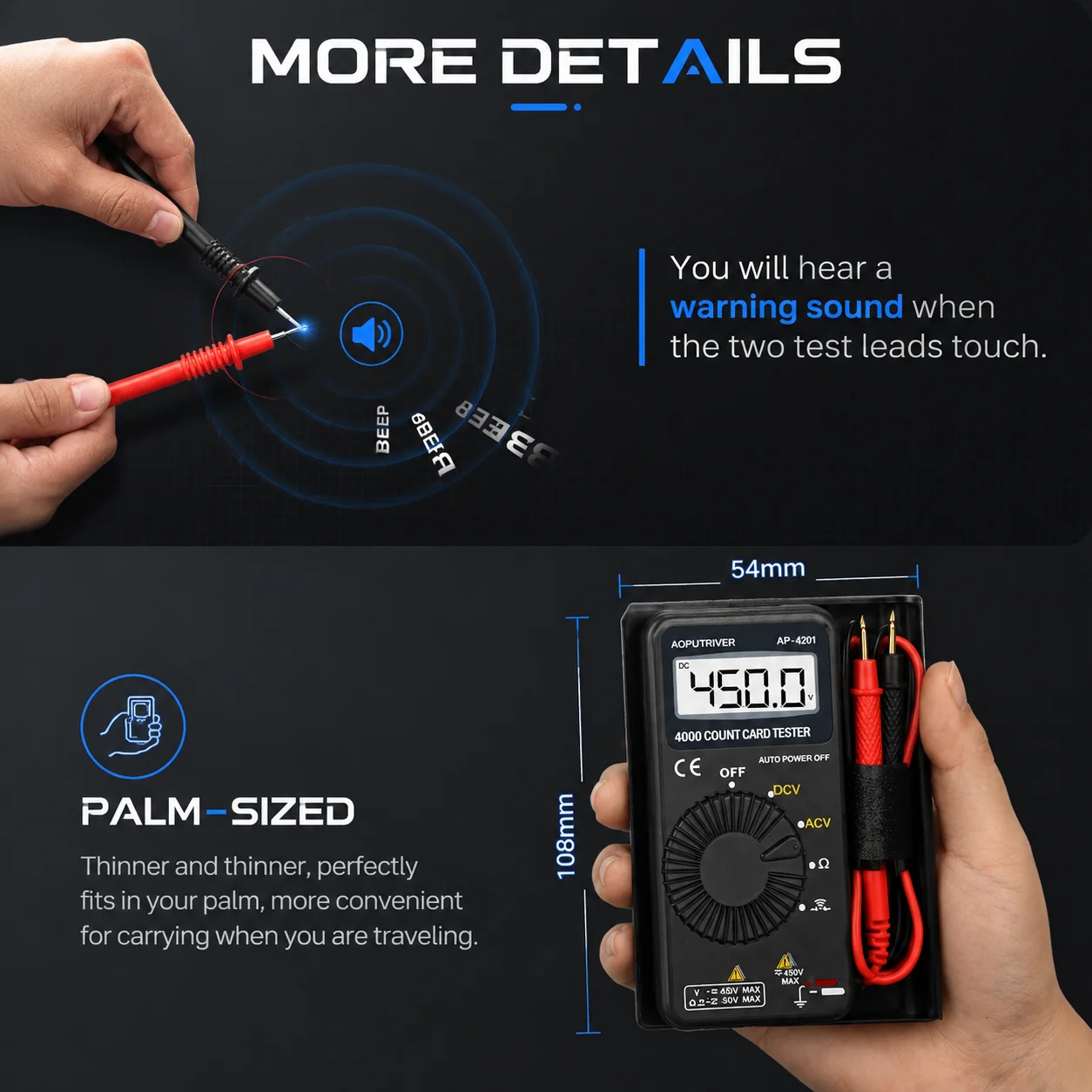

✅【Audible Continuity】-Installed with continuity buzzer, you can easily carry out continuity test in dim or dark conditions with “beep” sounds. Function switch rotates smoothly for easy proper functions selection.

✅【Portable Multitester】-Comes with high quality leather protective case, keep your avometer and test leads in good order when not use. Small size perfectly fits your jeans pocket, convenient to carry everywhere.

✅【Longer Service Life】-Automatically shut off after 15 minutes no operation, save battery and provide longer service-life. Low battery indicator appears to remind of battery replacement, avoiding unexpected accident when taking measurement.

✅【We’ve Got You Covered】-4000 counts LCD displays clear digit readings, entry instrument for electrician, hobbyist and homeowner. 12 months product quality warranty and life-time technical support. Shop with confidence!

Product Parameter:

Weight: 0.24Ib

Dimension: 4.25x2.12x0.47''

LCD Display: 4000 Counts

Range Select: AUTO Ranging

Resistance: 400Ω~400MΩ ±(2.0~10% of rdg + 5 digits)

AC Voltage: 4V/40V/400V/450V ±(2.3% of rdg + 5 digits)

DC Voltage: 400mV/4V/40V/400V/450V ±(1.3% of rdg+2 digits)

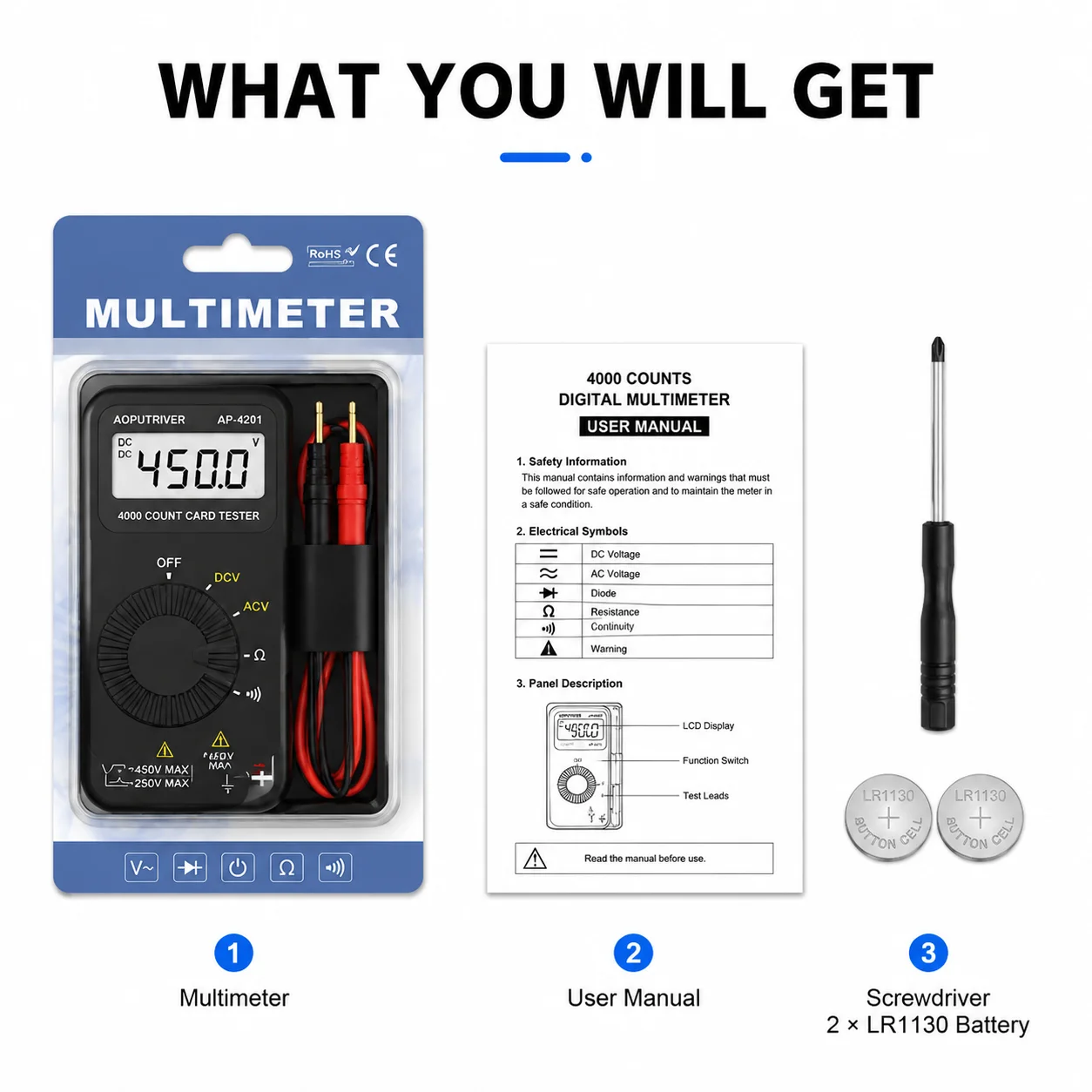

Package Included:

1* User Manual

1* Protective Case

1* 4201 Digital Multimeter
