SPECIFICATIONS

Assembly Required: no

Brand Name: PremierCable

Certification: RoHS

Choice: yes

Connector A: Mini-Fit Jr. 4.2 Receptacle Housing, Dual Row, 8 Circuits, Compatible With Molex 39-01-2080

High-concerned chemical: none

Length: 1.5M/4.92FT

Model Number: PCM-0882

OD: 8MM

Origin: Mainland China

Package: Yes

Type: Cable Adapter

Wire Gauge: 18AWG*8C; UL2464 PVC Jacket

semi_Choice: yes

Specifications:

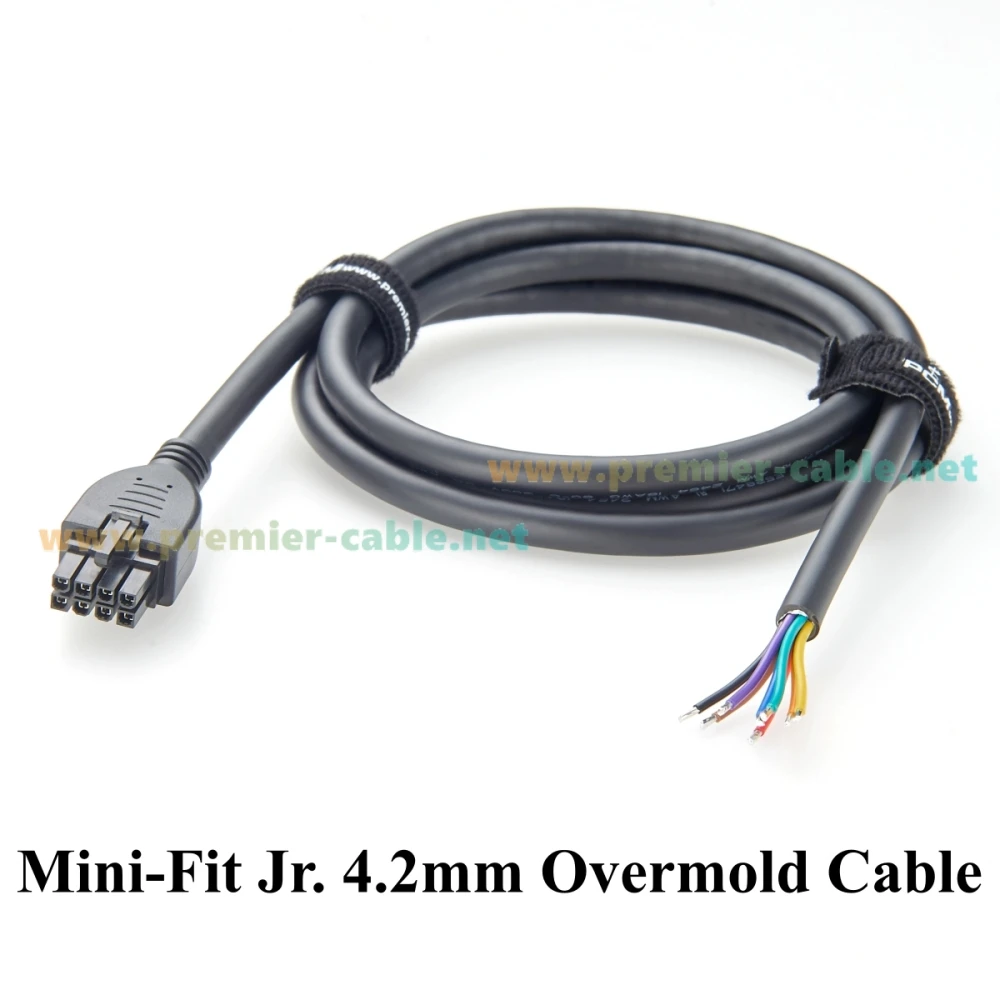

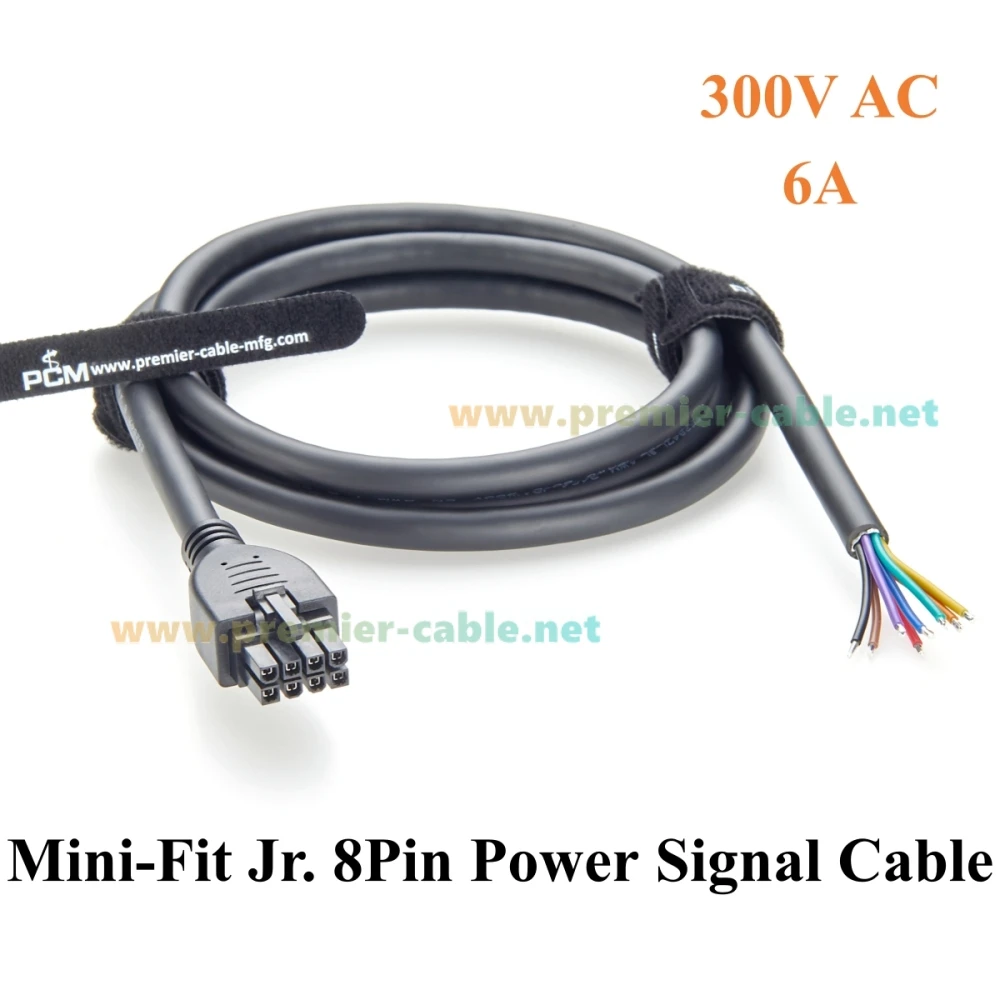

Product Name: Mini-Fit Jr. 39-01-2080 8 Circuits Power & Signal Cable

Connector A: Mini-Fit Jr. 4.2 Receptacle Housing, Dual Row, 8 Circuits, Compatible With Molex 39-01-2080

Length: 2M/6.6FT

Cable Type: 18AWG*8C; UL2464 PVC Jacket

OD: 8MM

Voltage Max: 300V AC

Current Max: 6A

Feature:

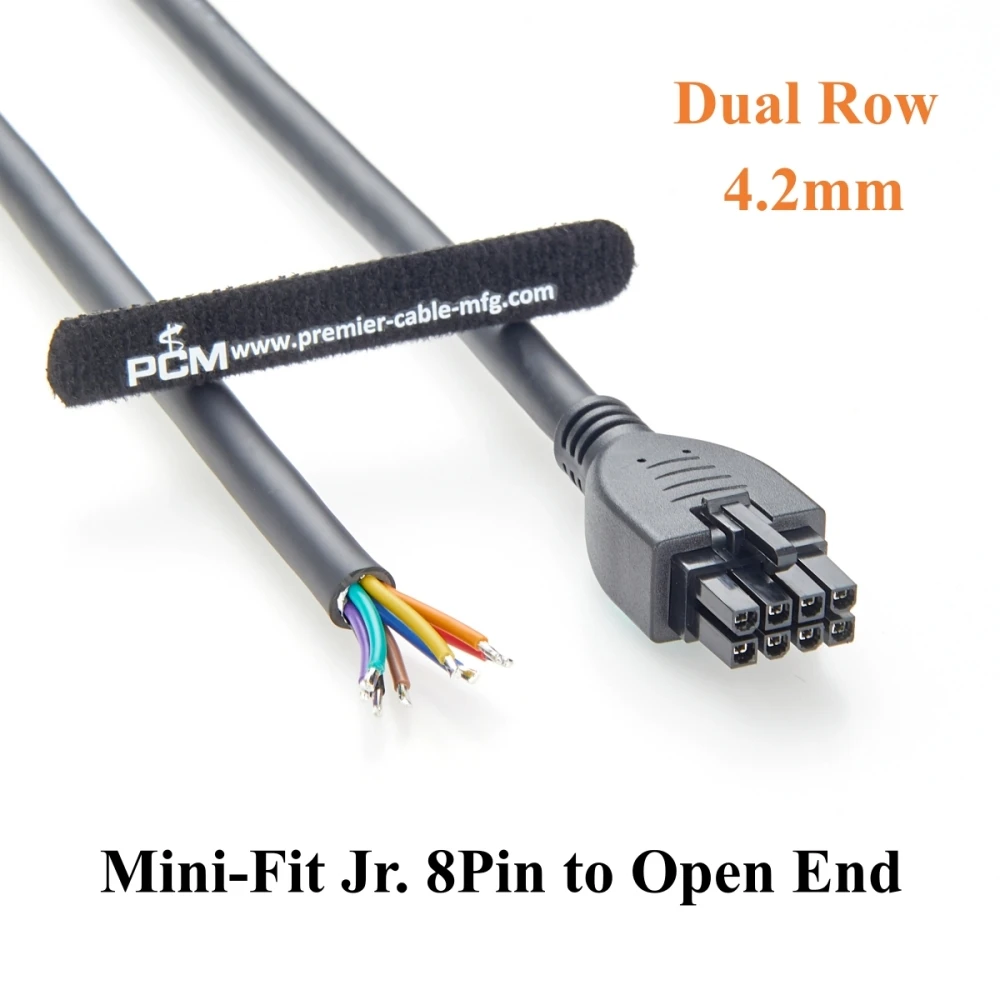

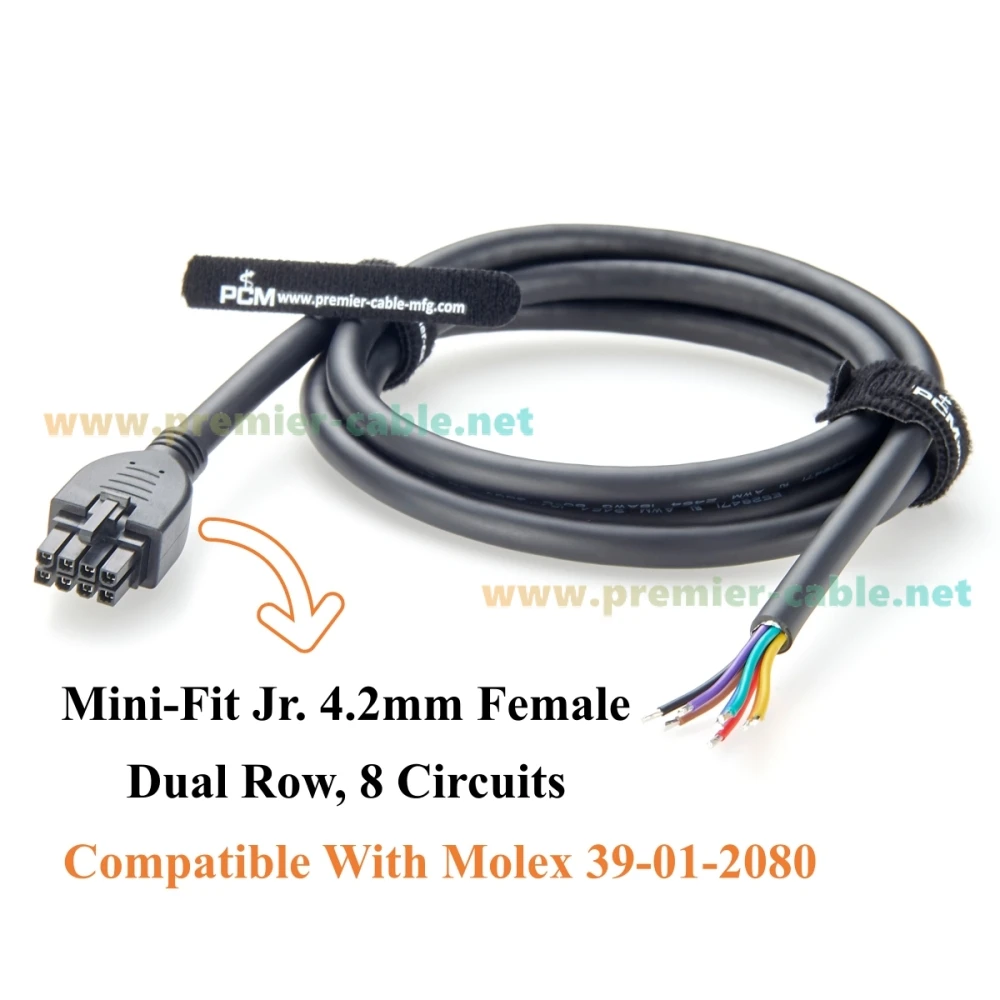

✔Mini-Fit Jr. 4.2mm Standard Connector – The Cable Features Mini-Fit Jr. 4.2 Female Receptacle Housing, 4.2mm Pitch, Dual Row, 8 Circuits, Compatible With Molex 39-01-2080.

✔Open-End Design – The Mini-Fit Jr. 4.2mm Overmolded Cable Assembly Comes with Open-ended Wires Providing maximum flexibility for custom integration and DIY projects. allows users to freely solder, crimp, or connect the wires to PCB board, power module, or terminal block according to their own design needs.

✔6A/300V Max – Mini-Fit Jr. 4.2mm Open End Wire Assembly, 18AWG 8-Conductor Stranded Tinned Copper Wires, Durable UL2464 PVC Jacket, Providing safe and stable power and signal transmission, Supports up to 6A per Contact and 300V AC.

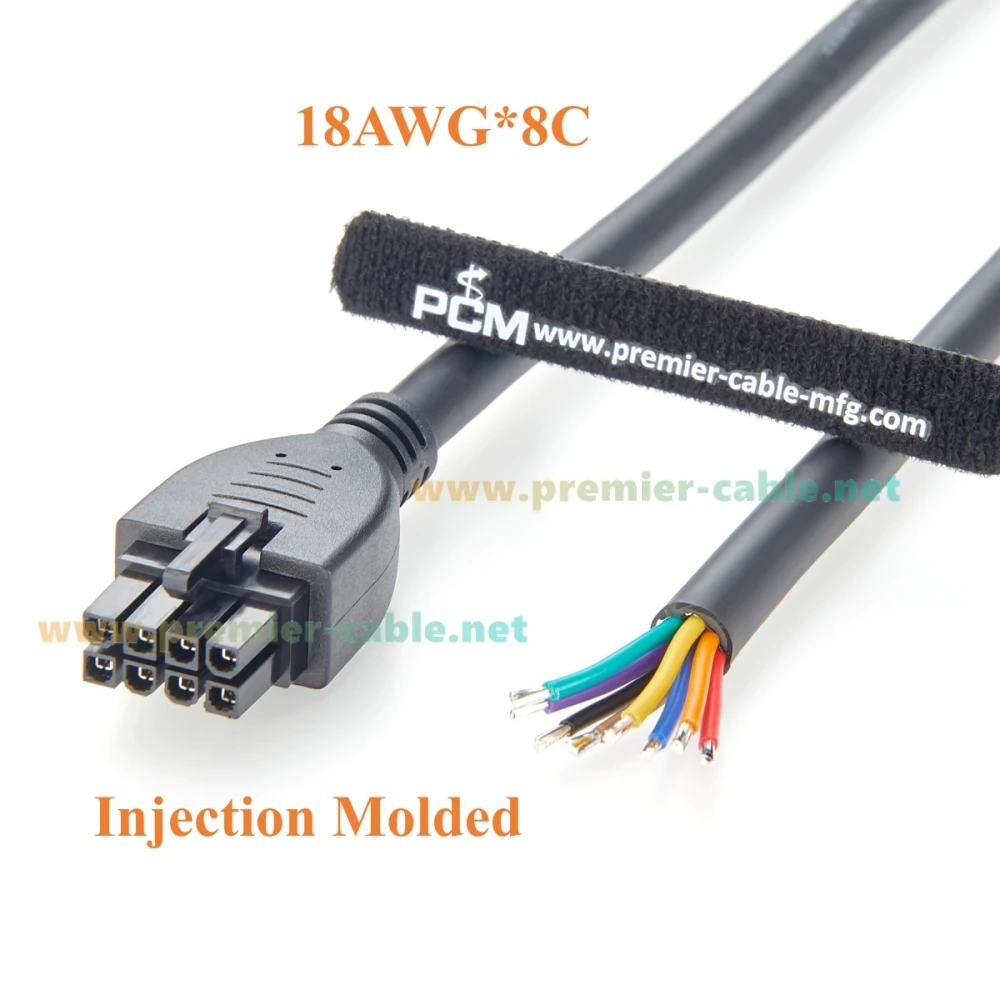

✔Overmolded – The Mini-Fit 8 Pin Female Socket is injection molded, offers excellent durability and strain relief, provides stronger tensile strength, vibration resistance, and fixation capabilities.

✔Application – Mini-Fit Jr. 8 Circuits Powers Signal Cable, for Power Distribution, Wire-to-Board, Wire-to-Wire, Signal Transfer, Robotics, Servers, Data Center, Industrial Control Systems, PLC, I/O Modules, LED Fixtures, Light Strips, 3D Printers, Relays, CNC Machines, DIY electronics and so on.

Product Display
