Overview

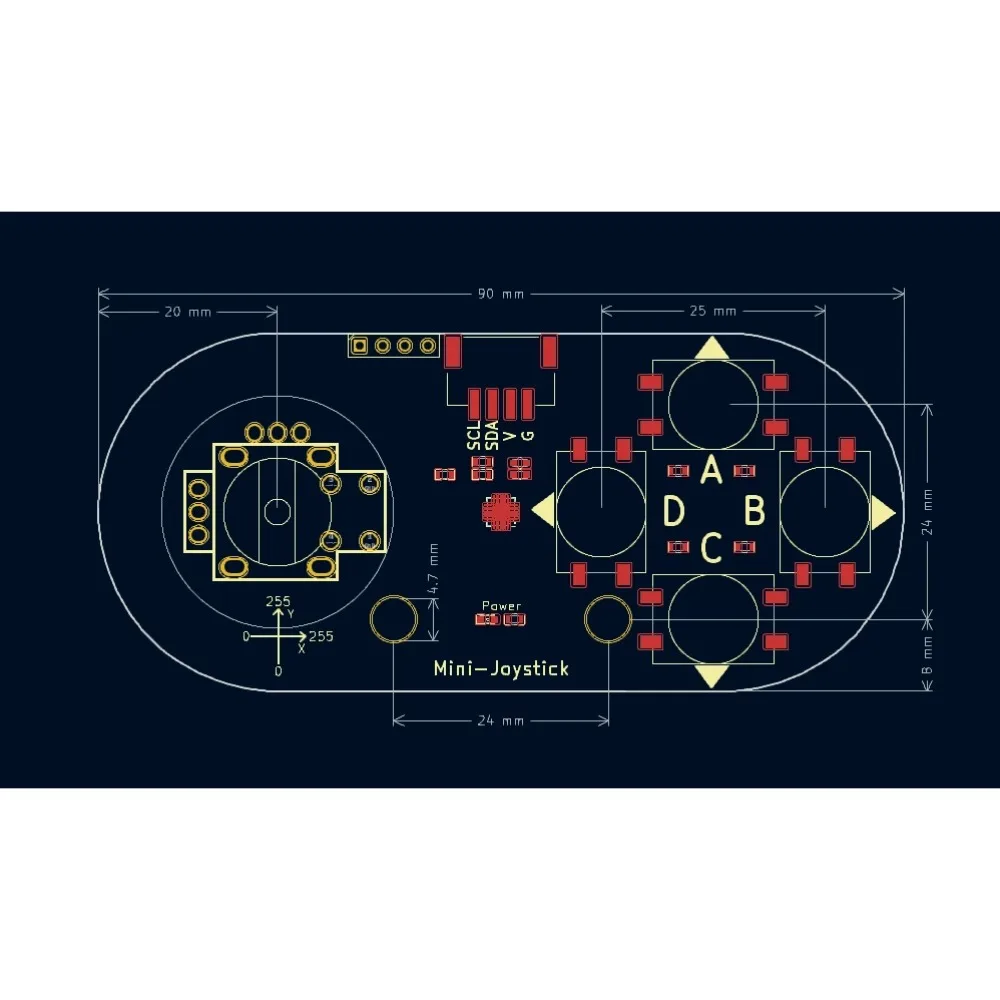

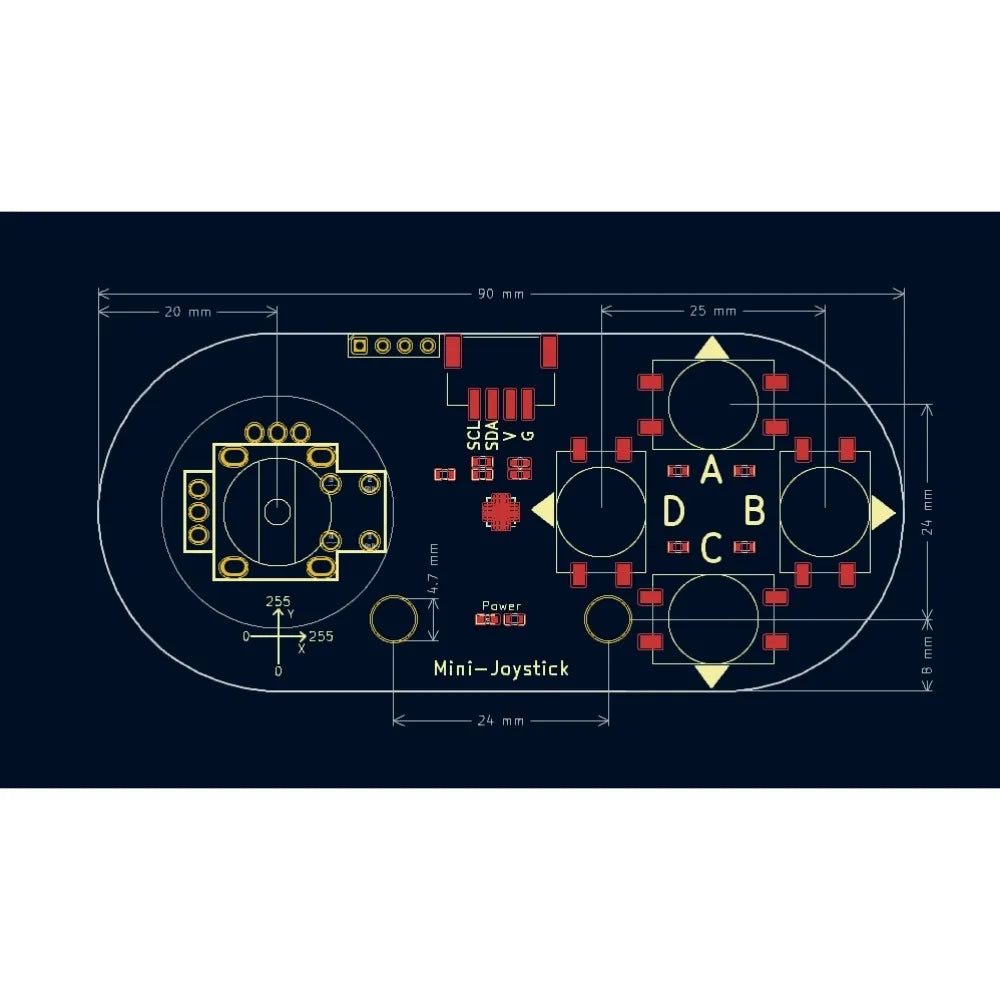

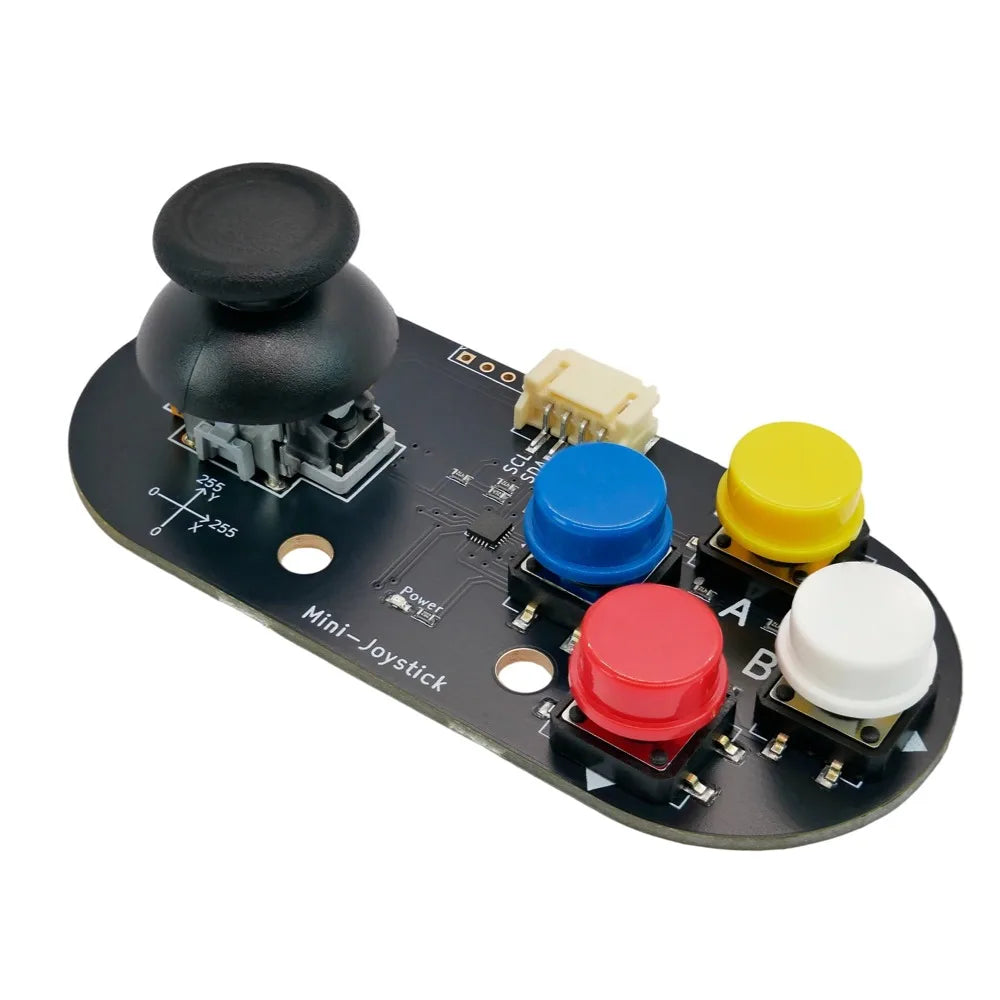

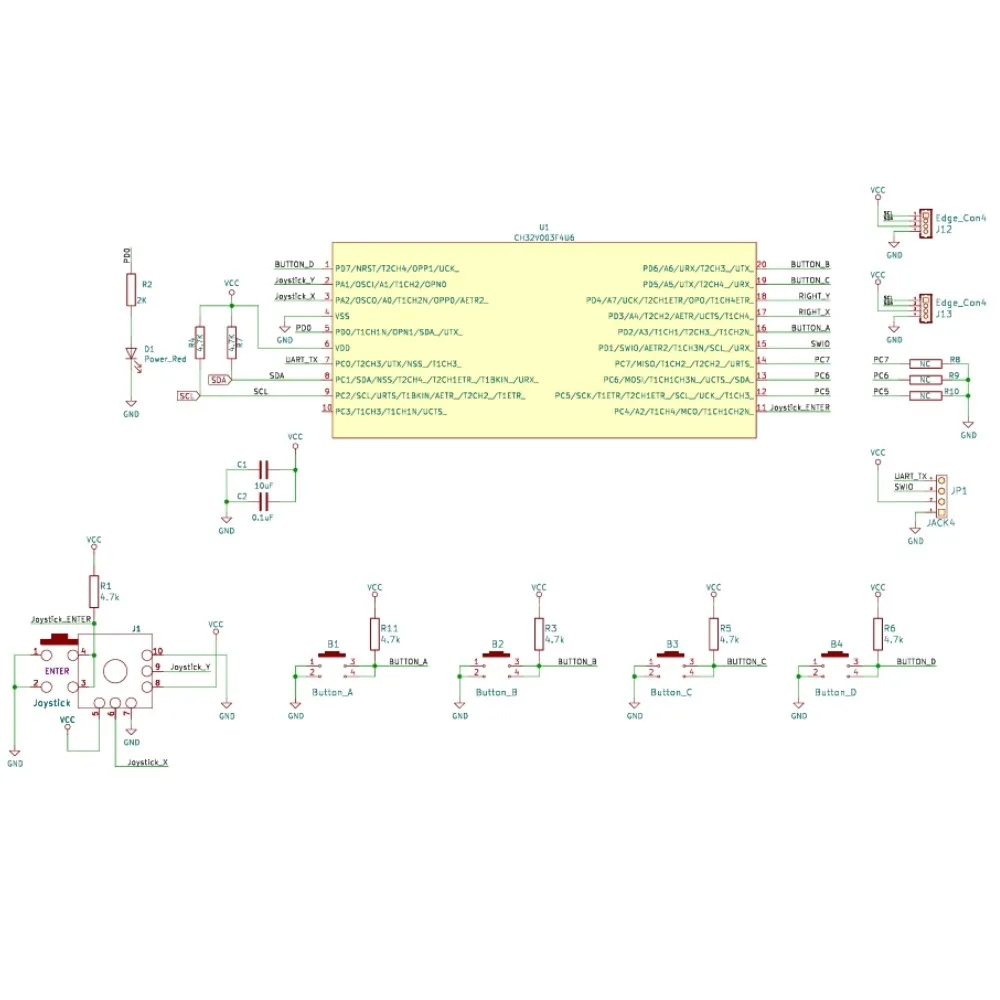

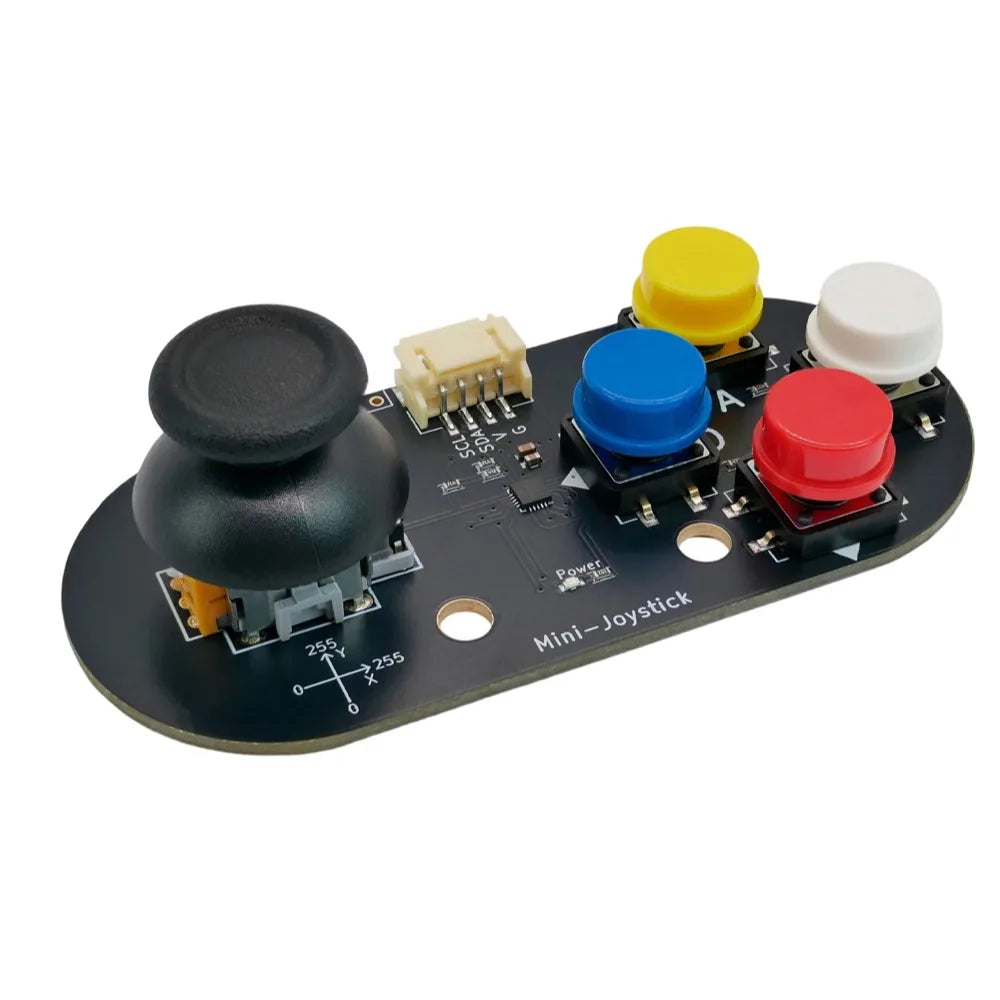

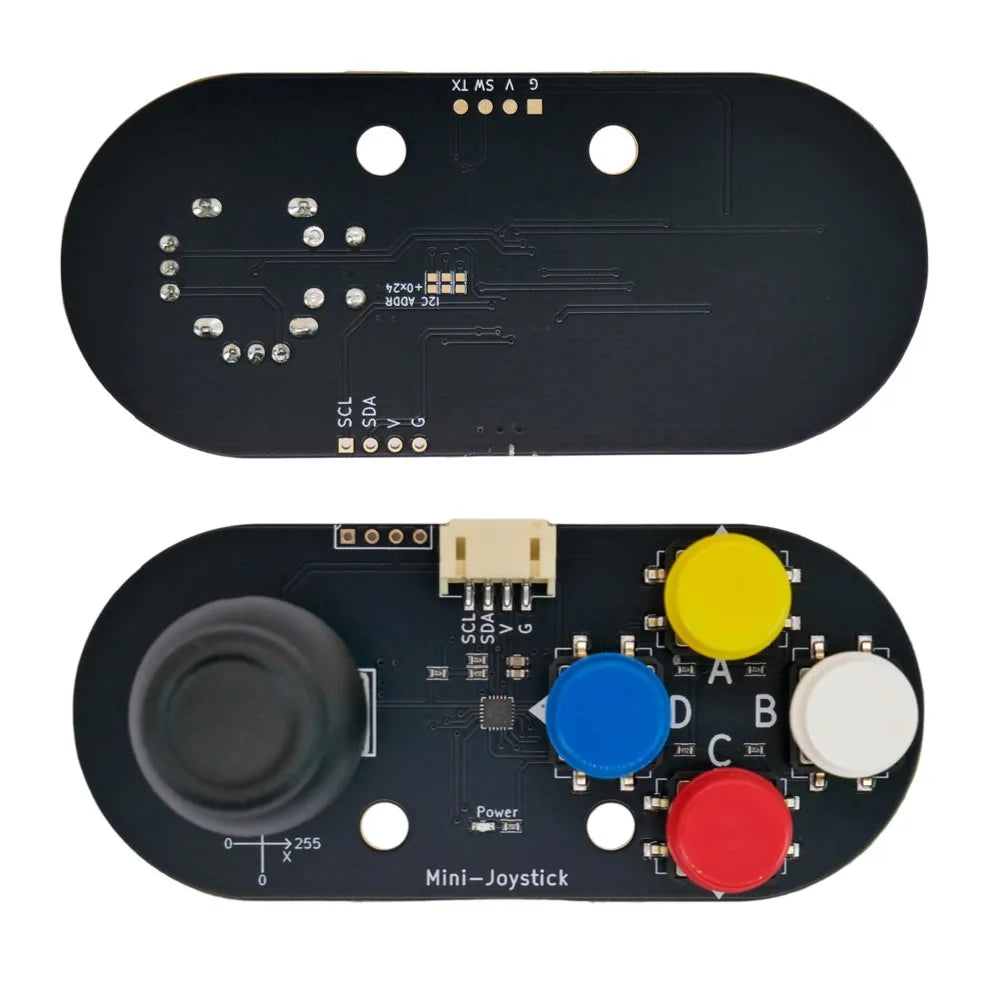

This module integrates a dual‑axis thumbstick (X/Y) and 5 buttons (A, B, C, D, and center OK). The built‑in MCU reads the analog voltages from two potentiometers via ADC, outputting 0~255 analog values (center at 128) for precise direction detection. All 5 buttons support multiple states including press, release, single‑click, double‑click, and long‑press. The module communicates via I2C (default address 0x5A), requiring only two signal lines to save I/O pins. An onboard PH2.0 4‑pin anti‑reverse connector ensures easy and safe wiring.

Specifications

●Supply Voltage: 3~5V

●Communication: I2C (default address 0x5A, hardware‑adjustable)

●Joystick Output: X‑axis and Y‑axis analog values 0~255 (center 128)

●Number of Buttons: 5 (A, B, C, D, OK)

●Button States: Press, release, single‑click, double‑click, long‑press, etc. (8 states total)

●Connector: PH2.0 4‑pin anti‑reverse

●Compatible with: Arduino, ESP32, micro:bit, and more

Package

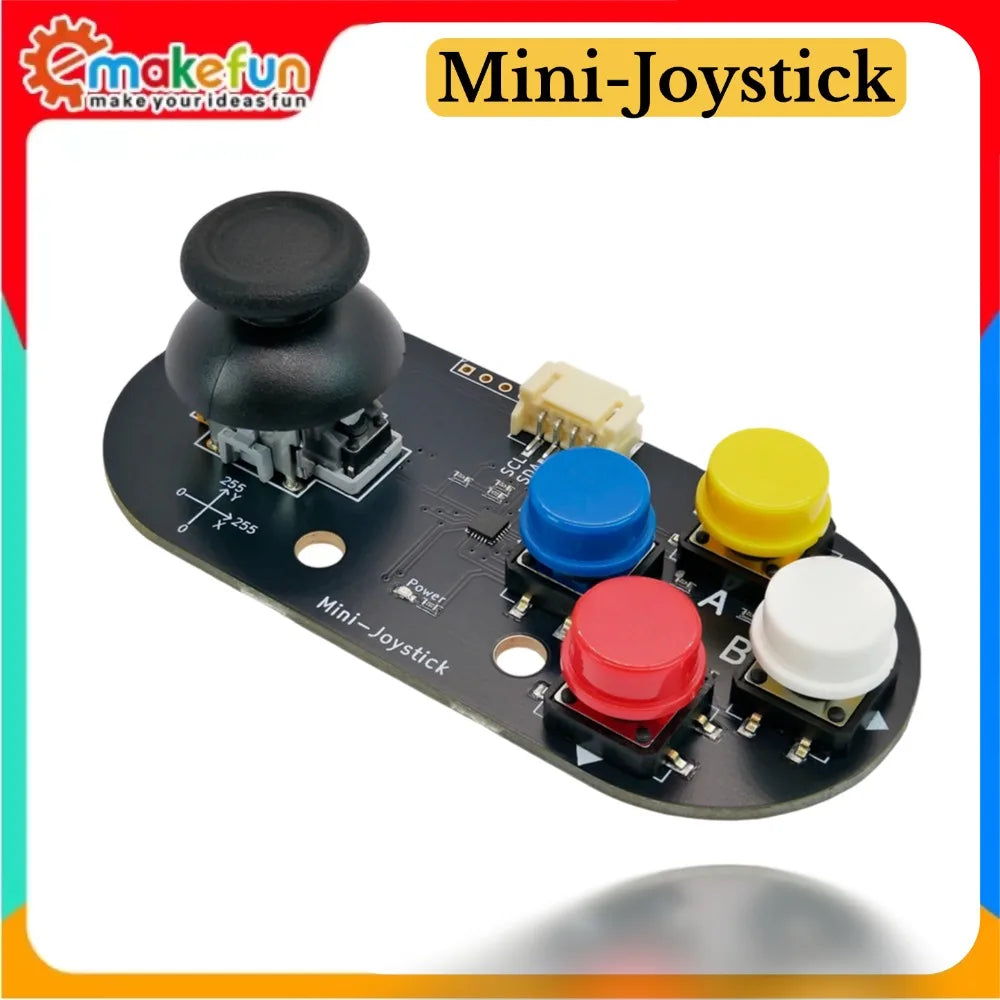

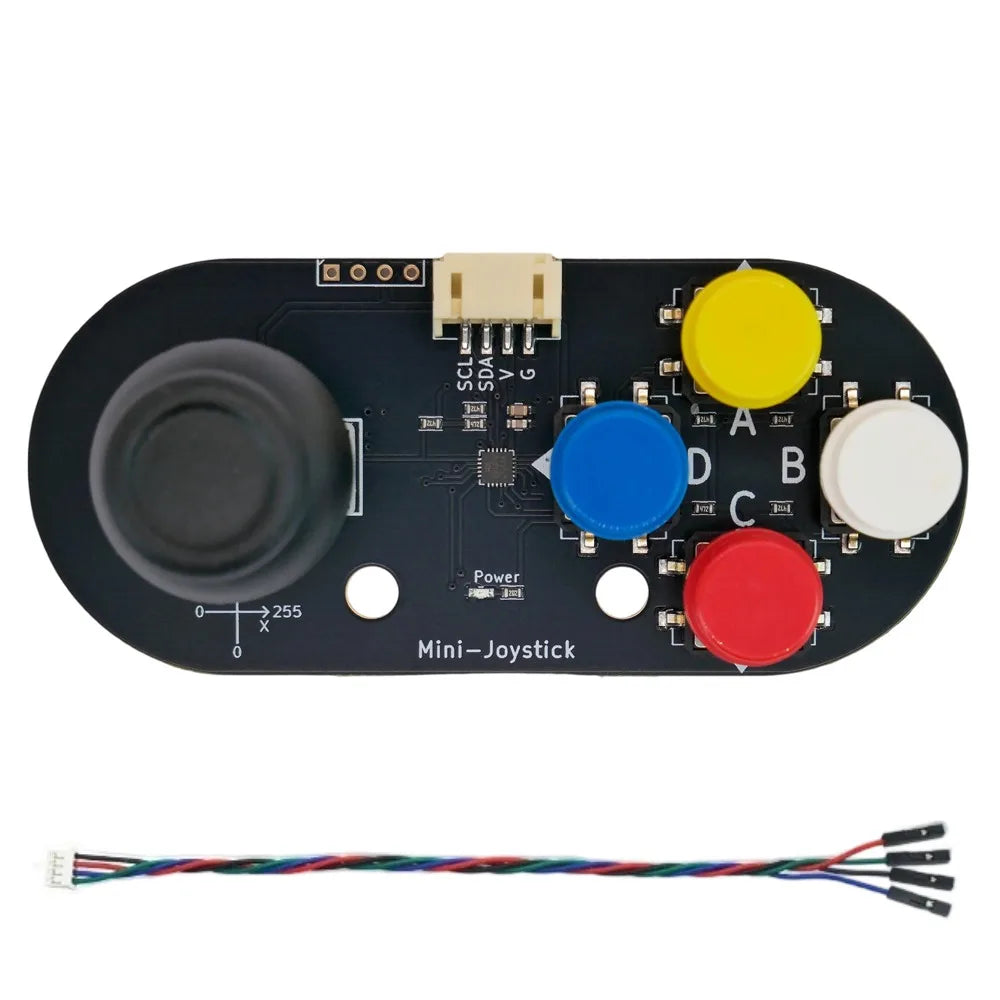

1*Mini‑Joystick Module

1*4Pin PH2.0 to Dupont Cable
