SPECIFICATIONS

Application: Electric Toy

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: 1.5A

High-concerned chemical: none

Operating Temperature: MX1508 Mini Dual Channel

Origin: Mainland China

Package: SOP

Supply Voltage: 2 Way PWM Speed Controller Dual H-Bridge Replace Stepper

Type: Drive IC

is_customized: Yes

p{margin-block-start: 0; margin-block-end: 0}

Mini L298N Motor Driver Module 6-Pack - Power Your Smart Cars and Robots!

--- Key Features & Benefits (Bullet Points) ---

💪 Dual Channel Power: Independently control two DC motors or one bipolar stepper motor simultaneously, perfect for robot cars and multi-motor projects.

🔋 Strong 1.5A Drive Capacity: Each channel delivers 1.5A continuous current (2.5A peak), capable of driving a wide range of small to medium-sized DC motors.

🎛️ Precise PWM Speed Control: Use PWM (Pulse Width Modulation) signals from your Arduino or microcontroller to easily and precisely control the speed of each motor.

🛡️ Built-in Safety Protections: Features thermal shutdown protection and built-in flyback diodes to prevent damage from voltage spikes and motor stall conditions.

📐 Compact & Efficient Design: Its ultra-small size (25x21mm) and low power consumption make it ideal for space-constrained and battery-powered applications.

--- Description ---
The Compact Powerhouse for Your Motor Control Projects

This mini L298N module packs the functionality of the classic L298N driver into a tiny, efficient package. It's the perfect bridge between your microcontroller's logic signals and the higher power needs of motors, enabling you to build interactive robots, smart cars, and automated DIY creations with ease.

--- How to Wire & Use ---

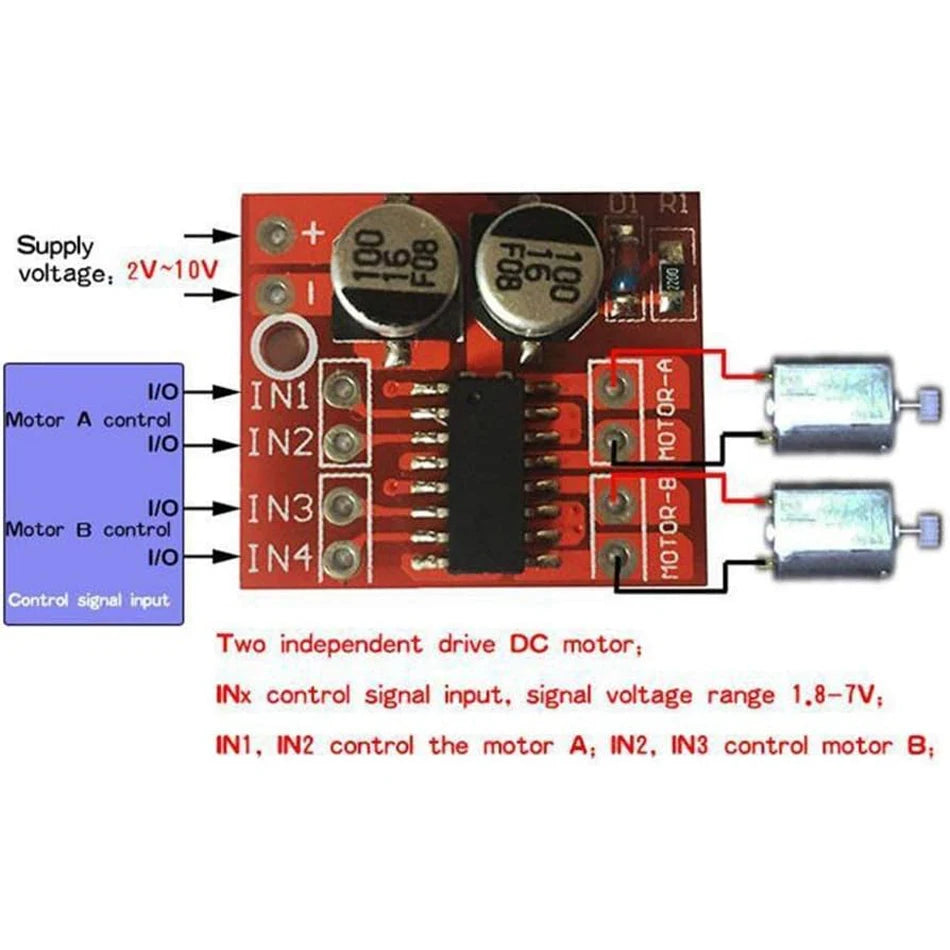

Power Supply (VM): Connect to 2V - 10V DC to power the motors.

Logic Voltage (VCC): Connect to 3.3V or 5V to power the module's internal logic.

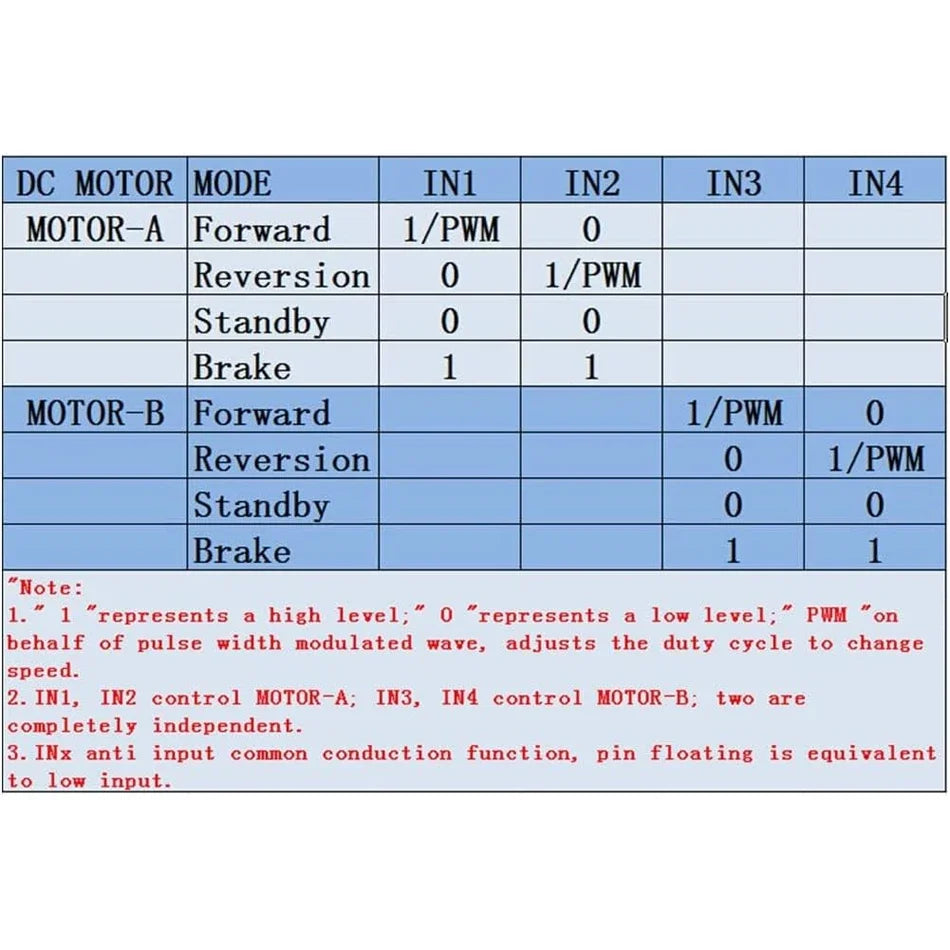

Control Pins (IN1, IN2, IN3, IN4): Connect to your microcontroller's digital pins to control direction.

Speed Pins (ENA, ENB): Connect to PWM pins for speed control. If jumpered, the motor runs at full speed.

--- ⚠️ Critical Usage Notes ---

Polarity Warning: NEVER reverse the motor power supply (VM) polarity, as this will instantly destroy the module!

Current & Voltage Limits: Do not exceed the 10V input voltage or 2.5A peak current per channel to prevent damage.

Heat Management: Although it has thermal protection, the chip will get warm under high load. Ensure adequate ventilation.

--- Specifications ---

Motor Supply Voltage (VM): 2V - 10V DC

Logic Voltage (VCC): 1.8V - 7V (3.3V/5V compatible)

Drive Current: 1.5A per channel (continuous)

Peak Current: 2.5A per channel (max)

Control Signal: TTL compatible

Driver IC: L298N

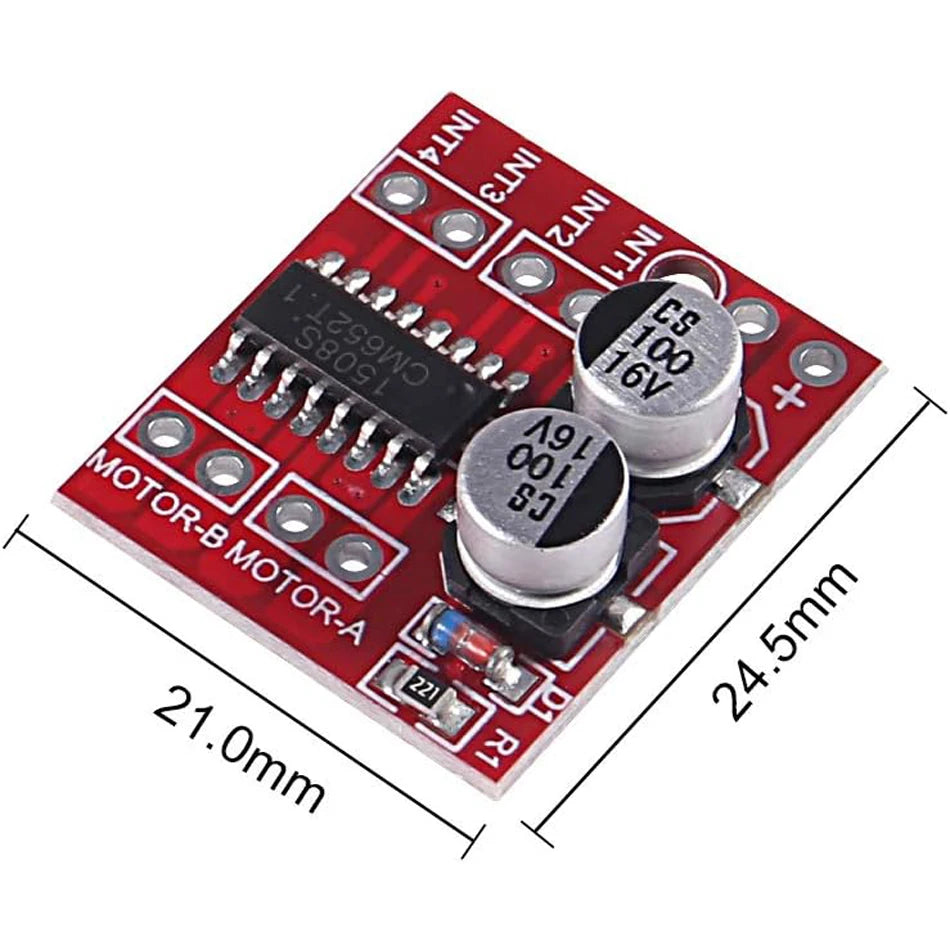

Size: 24.7mm x 21mm x 5mm

--- Package Included ---

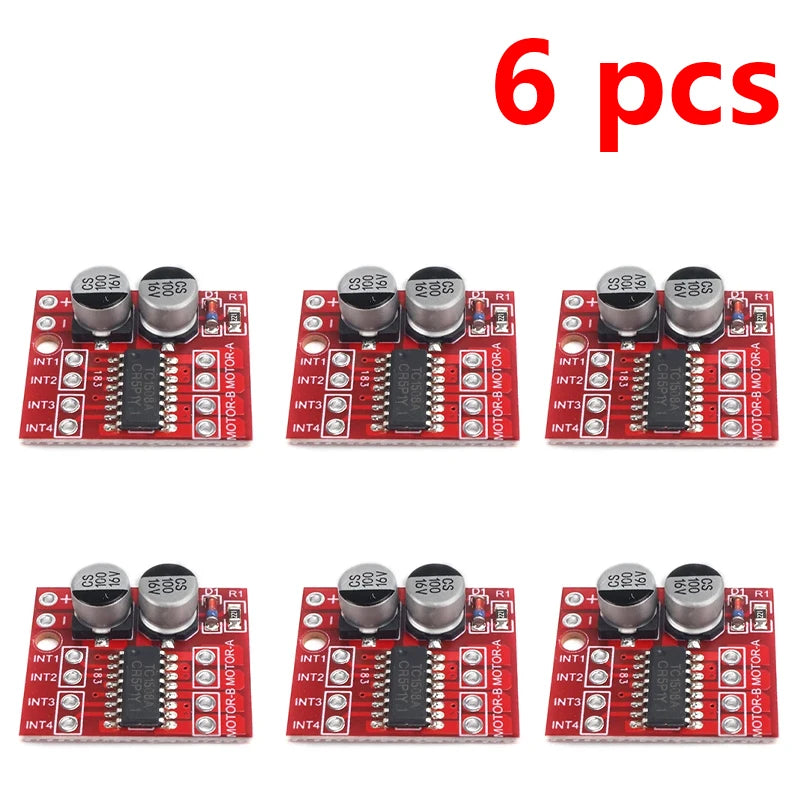

6 x Mini L298N Motor Driver Modules
