SPECIFICATIONS

Application: H-Bridge Replace Stepper

Brand Name: FSXSEMI

Choice: yes

Condition: New

Dissipation Power: H-Bridge Replace Stepper

High-concerned chemical: none

Operating Temperature: H-Bridge Replace Stepper

Origin: Mainland China

Package: H-Bridge Replace Stepper

Supply Voltage: H-Bridge Replace Stepper

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

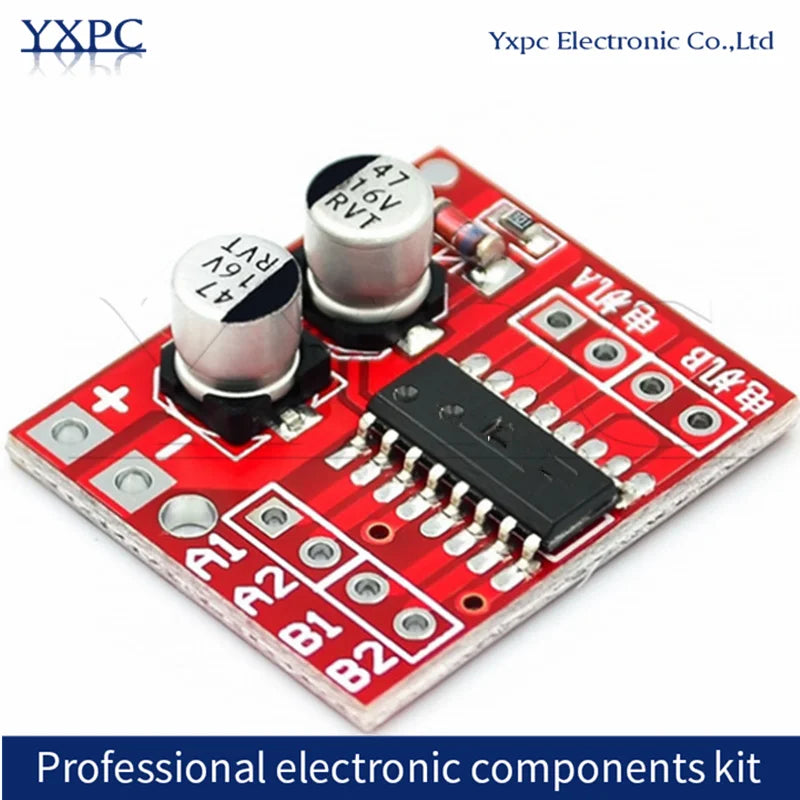

Product parameters:
The module supply voltage 2V-10V.
Signal input voltage 1.8-7V.
Single Operating current 1.5A, peak current up to 2.5A, low standby current (less than 0.1uA).
Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction.
Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about motor stall.
Product size: 24.7 * 21 * 5mm (length, width, height), ultra-small size.
The mounting hole diameter: 2 mm.

Attention:
1. Power positive and negative reversed will certainly cause damage to the circuit.
2. Output is shorted to ground or output short circuit, and the motor stall, the chip will heat protection, but in the near or exceeding 10V voltage and peak current is greater than 2.5A situation can also cause chip burned.
