SPECIFICATIONS

Application: Computer

Brand Name: UICPAL

Condition: New

Model Number: MINI Logic Analyzer Module

Origin: Mainland China

Package: DIP

Type: Module

is_customized: Yes

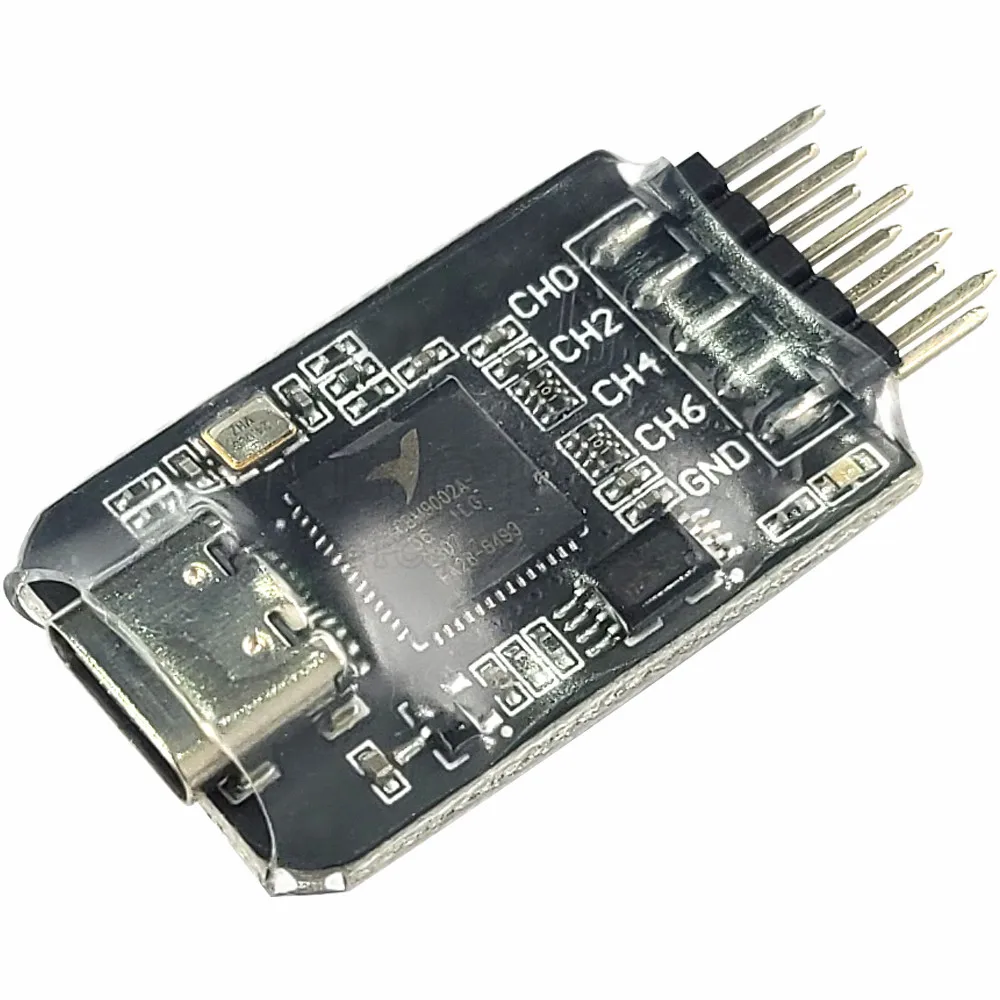

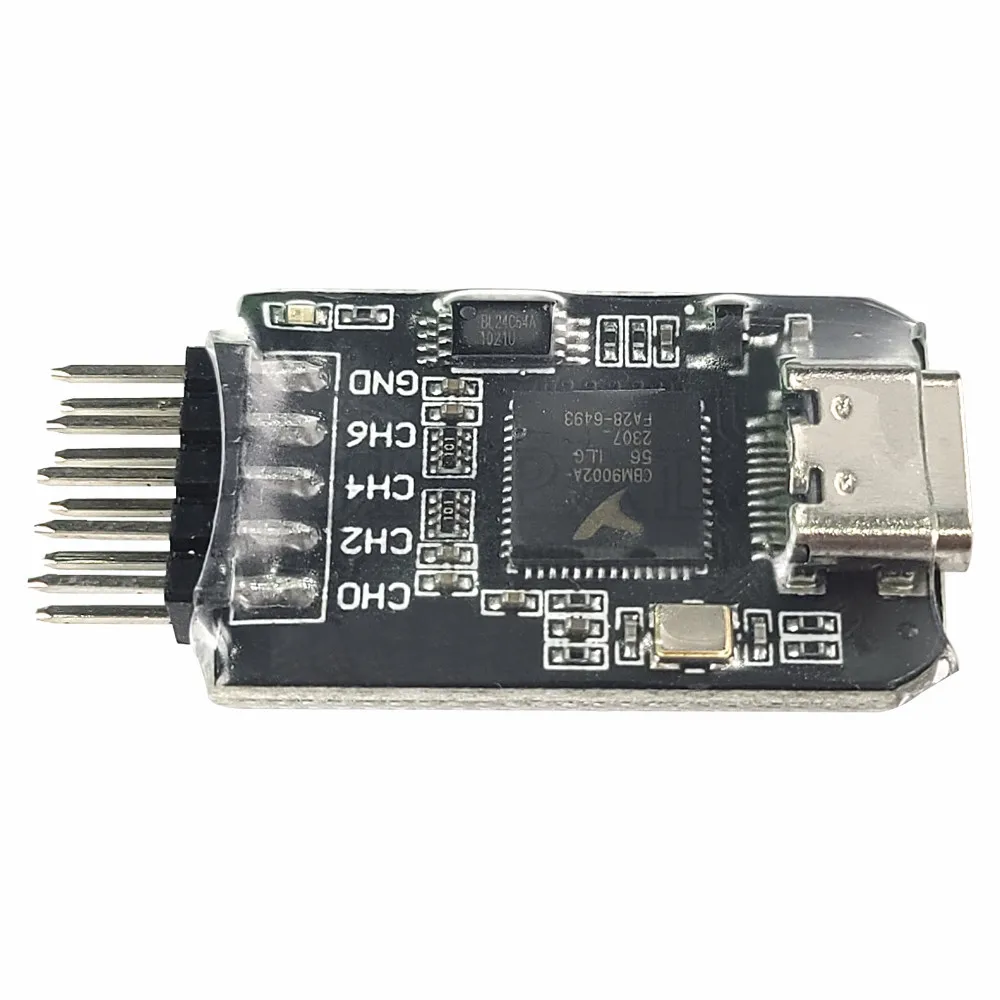

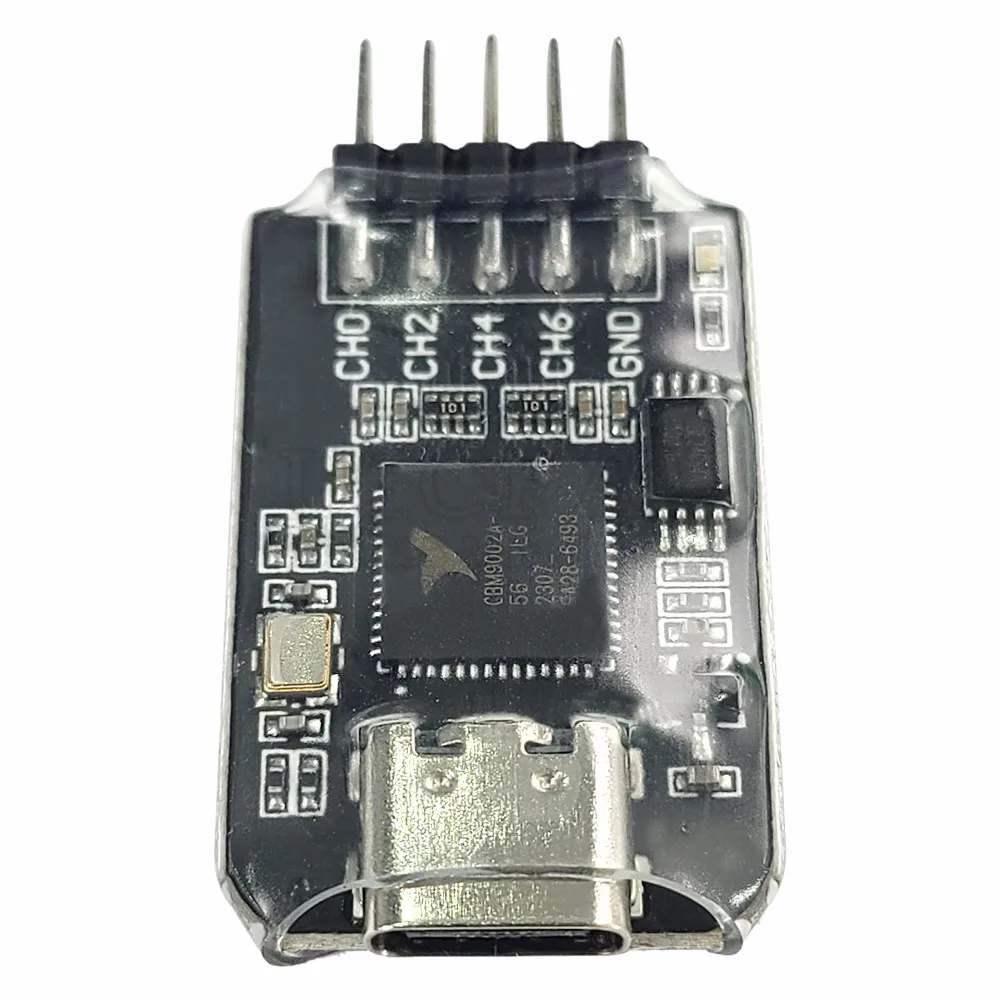

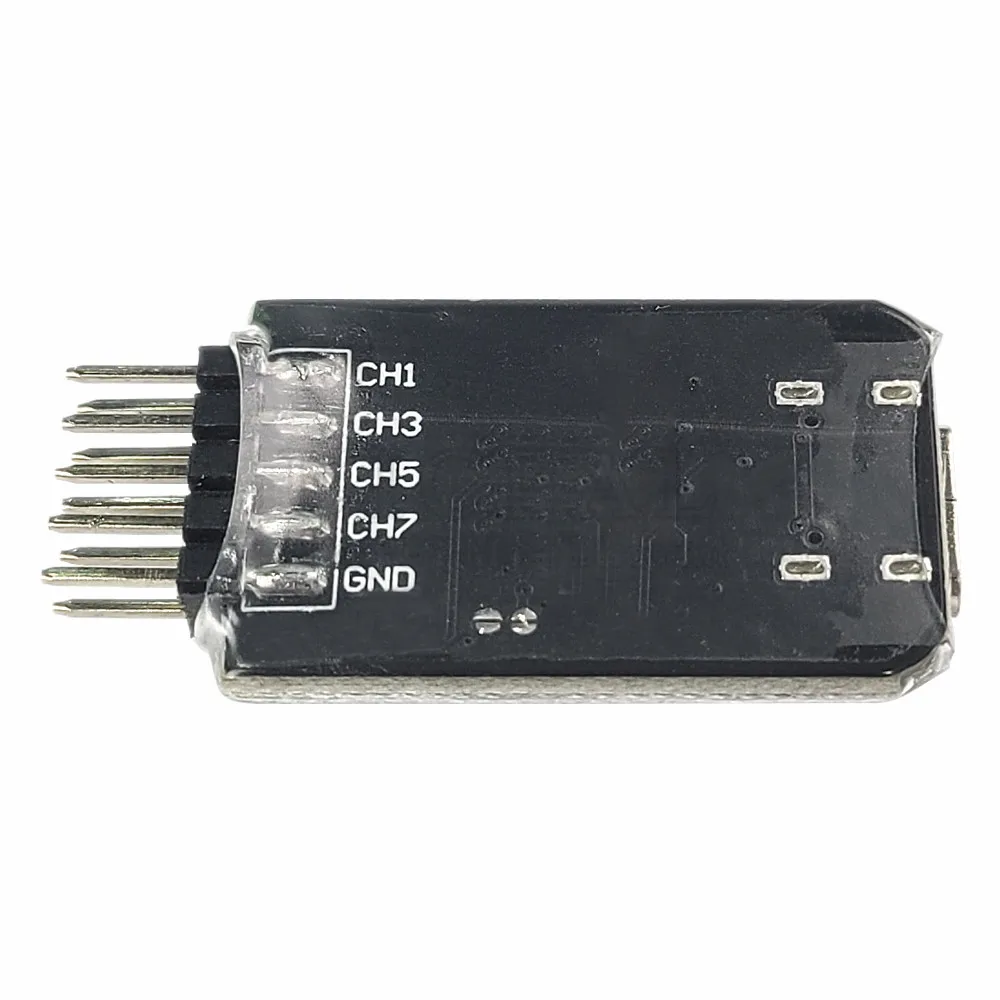

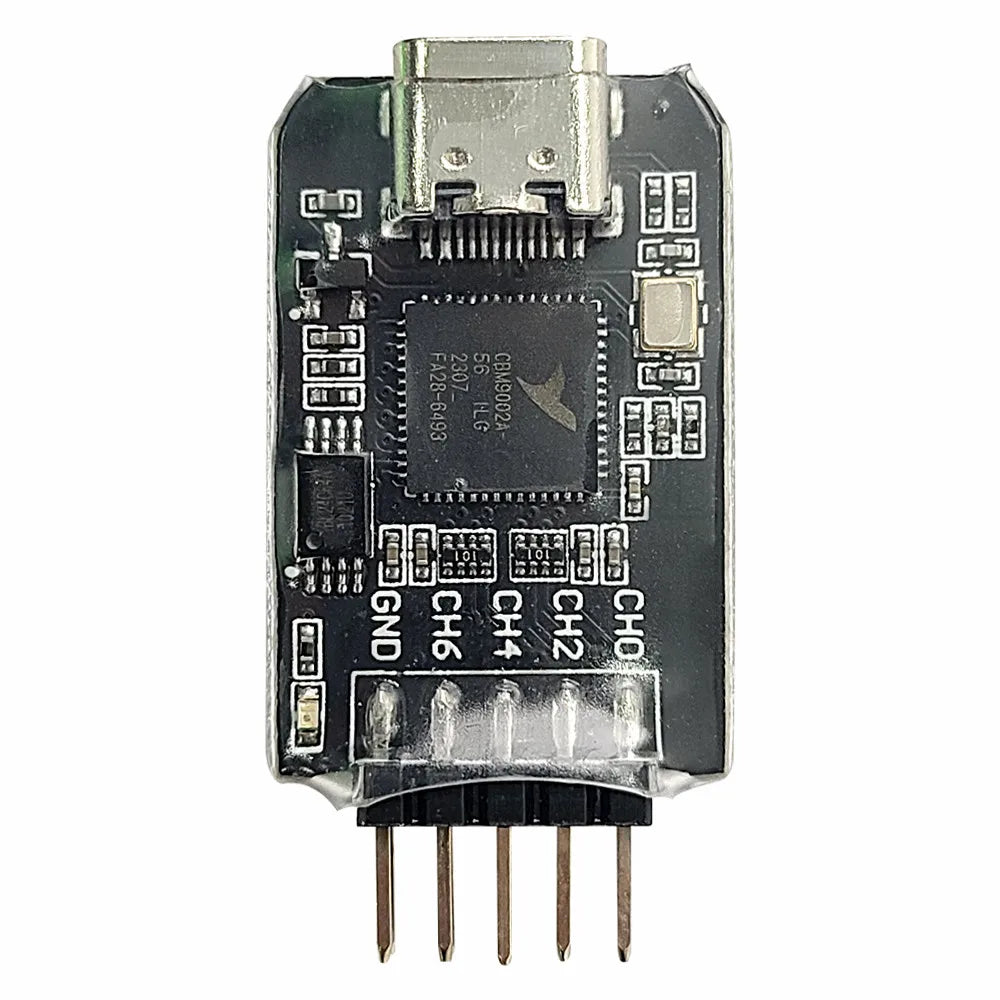

MINI Logic Analyzer Module for Linux Win7/10 Microcontroller ARM FPGA Debugging Tool 16-24MHz Sampling 8 Channels USB TYPE-C

Product Name:Mini Nano DLA Logic Analyzer Software Environment:PulseView
Sampling channels:8 channels
Sampling Frequency:Maximum 24 Mhz
Operating system: windows, linux, mac
Logic level:low level [-0.5v, 0.8V], high level [2v, 5.25v]
Product size:71.5mm*23.6mm*14.2mm

Hardware open source, provide hardware schematic

Software open source, provide firmware source code, can compile their own firmware
Upper computer open source . Currently on the market logic analyzers, generally using cracked host computer software, the use of some legal risks. Nano-dla relying on the open source community, the use of open source pulse field of view host computer, feature-rich, support for more than 100 kinds of protocol resolution, free and open source, easy to use and more powerful.

Support up to 24 Mhz sampling rate, 8 channels can be sampled simultaneously, can meet the daily development work use

Expenses input voltage [-0.5v, 5.25v], where the low level is [-0.5v, 0.8V], high level is [2v, 5.25v].

Support for use under Windows/Linux/Mac platforms

Note 1: This logic analyzer sampling rate supports up to 16-24MHz, can sample up to 3MHz signal (sampling rate needs to be at least 5 times more than the original signal, generally recommended 10 times the sampling rate, in order to better restore the original signal), the maximum sampling rate of 24MHz, but not all PCS can be achieved, after measurement, Linux can sample at 24MHz, most Windows (win7/win10) can sample at 16MHz, the highest sampling rate and the operating system /USB controller /USB bus status /USB driver are related

Note 2: Android apk is provided, but because there are too many mobile phone models on the market, each mobile phone manufacturer has its own set of Android code to maintain, and the kernel and driver construction methods are also different, so there is no guarantee that the mobile phone can be used normally, so it is only provided to customers to try.
