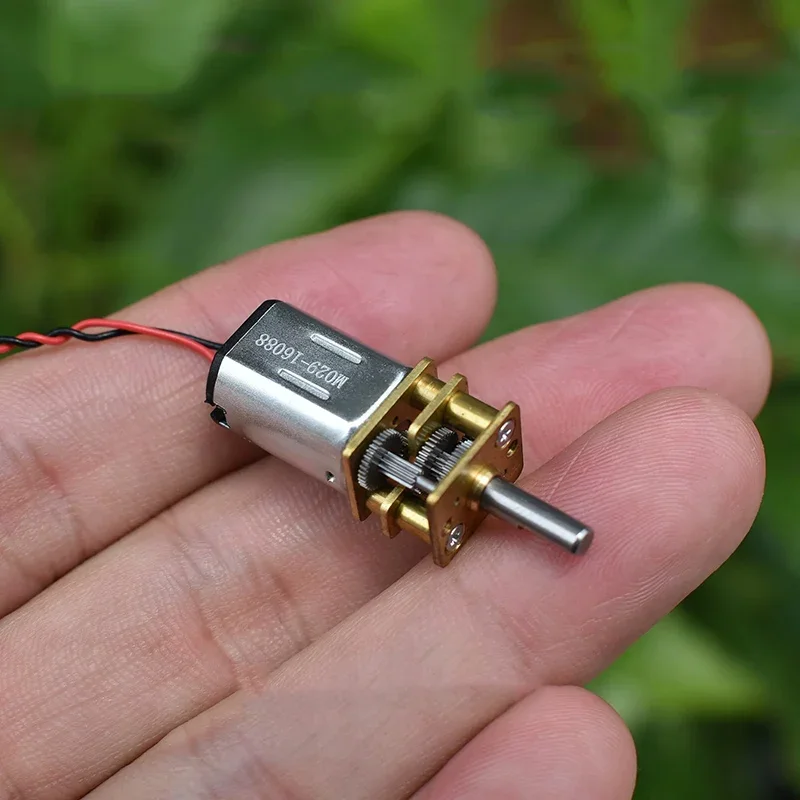

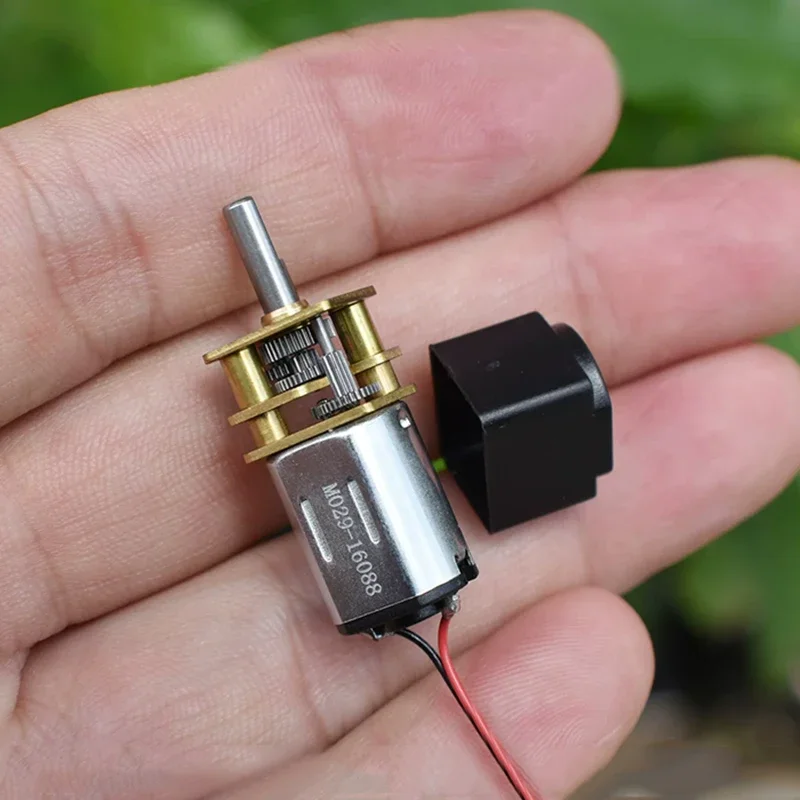

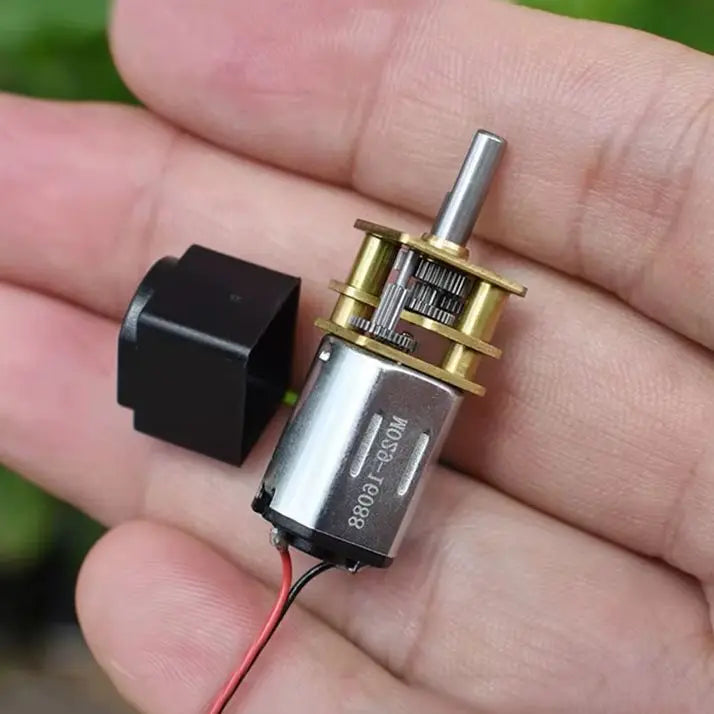

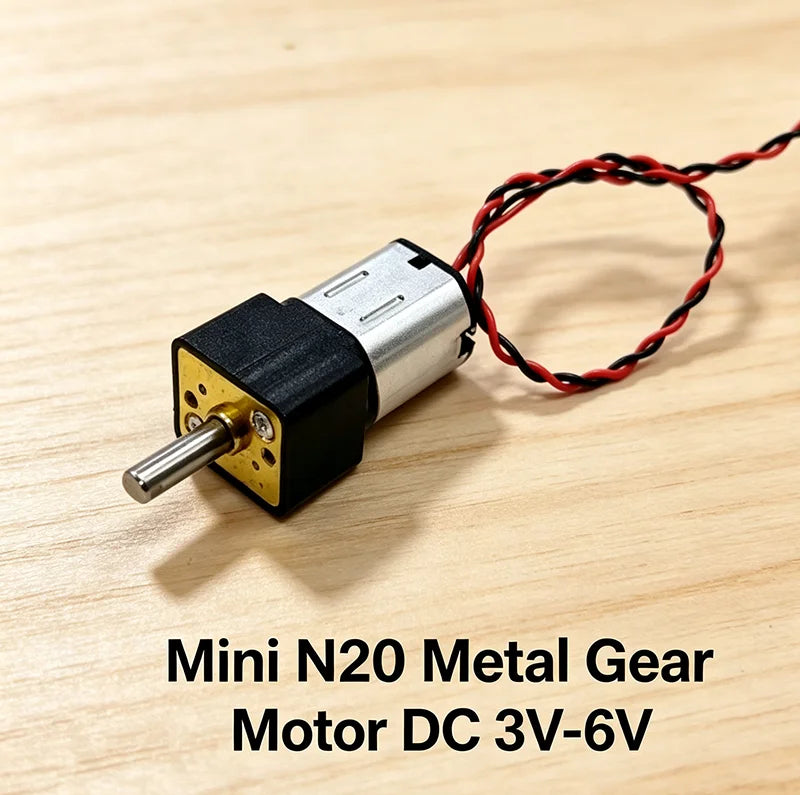

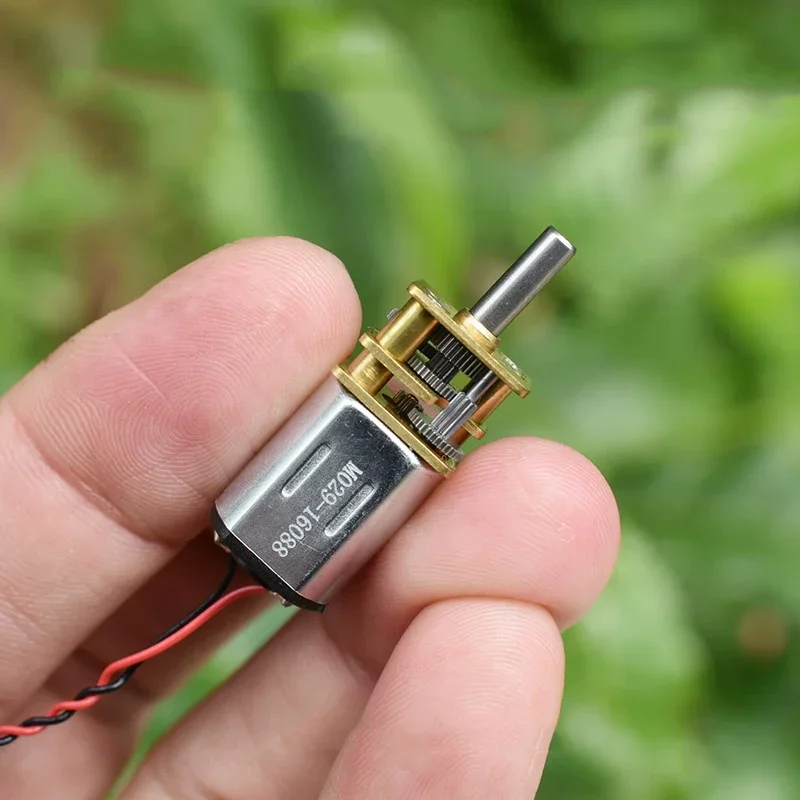

Mini N20 Metal Gear Motor DC 3V-6V 5V 170RPM Slow Speed DIY Robot Hobby Toy Model
170 / 5V / Other
$19.84
Sale price
$19.84
Regular price
$0.00
Skip to product information

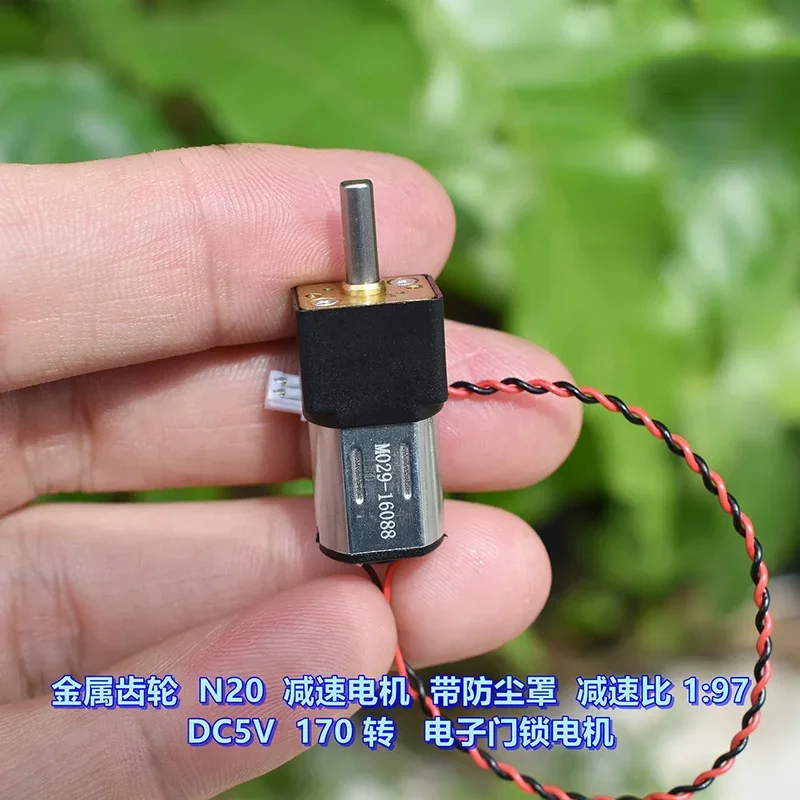

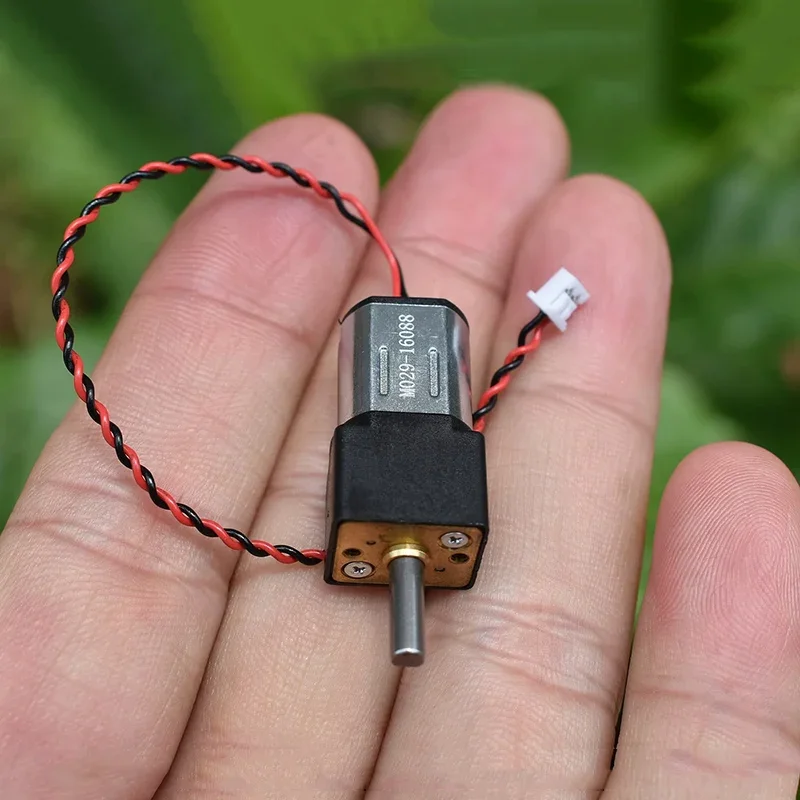

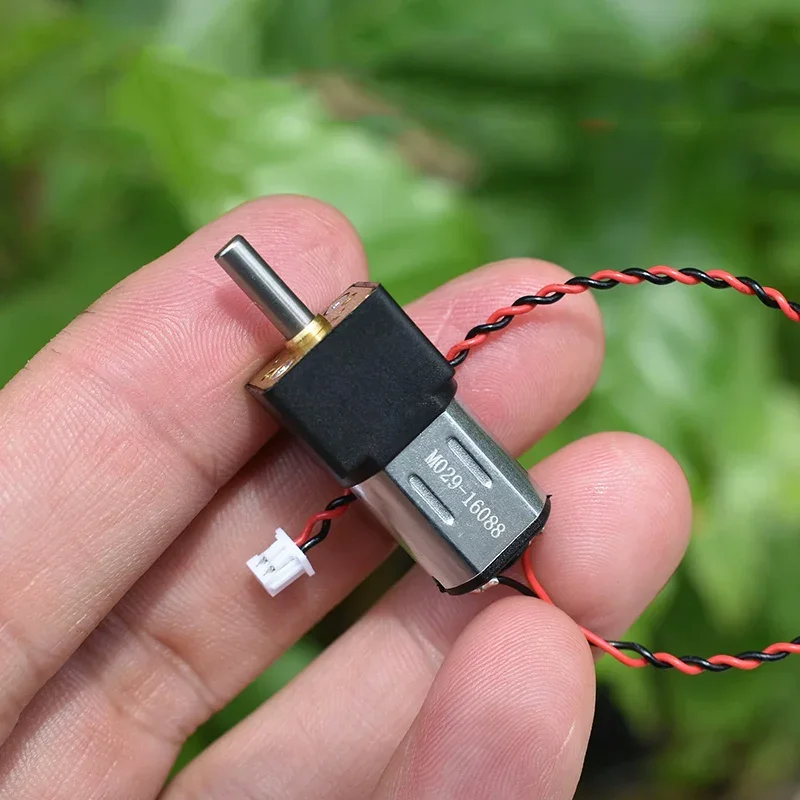

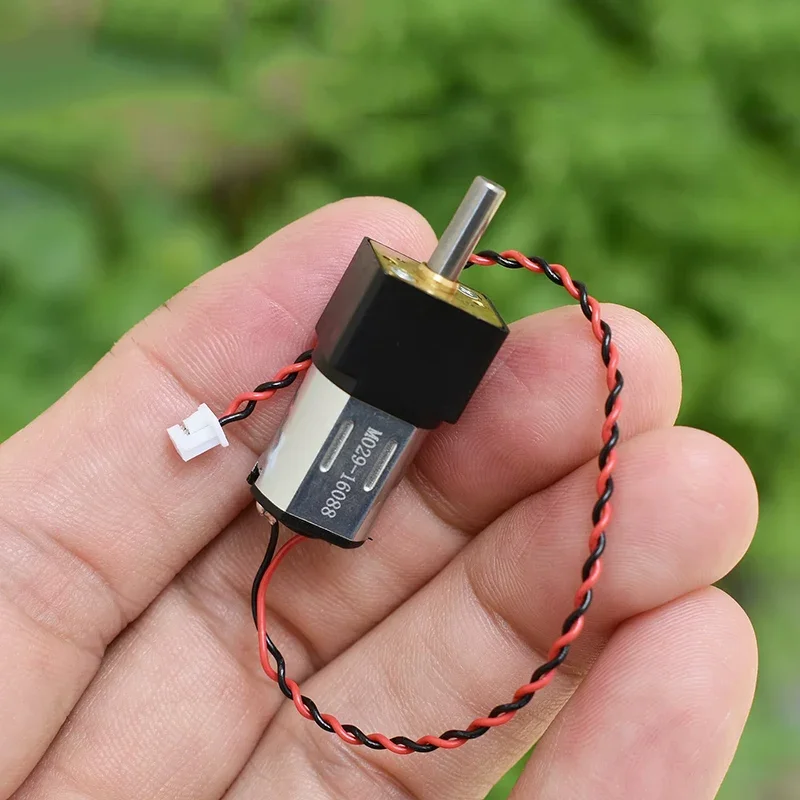

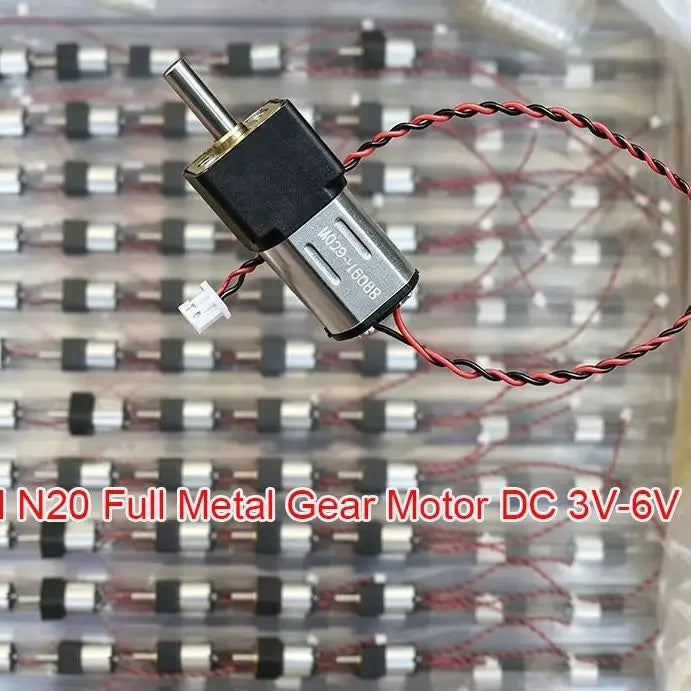

Mini N20 Metal Gear Motor DC 3V-6V 5V 170RPM Slow Speed DIY Robot Hobby Toy Model
$19.84
Sale price
$19.84
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No

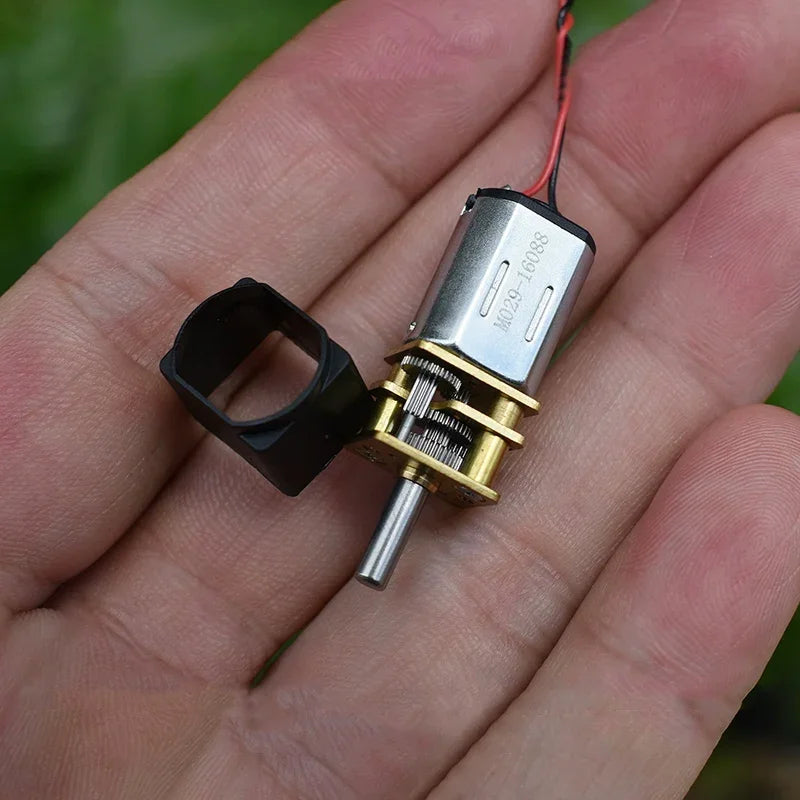

Gear ratio: 1:97
High-concerned chemical: none
Model Number: GA12-N20 Gear Motor
No-load speed: 170RPM
Origin: Mainland China
Output Power: ＜18.65
Output shaft diameter: 3mm (D shaft 2.45mm)
Protect Feature: Explosion-proof
Rated voltage: DC 5V
Suitable voltage: DC 3V-6V
Type: Gear Motor
Use: Home Appliance
semi_Choice: yes
Specification:
1.Model: GA12-N20 Gear Motor

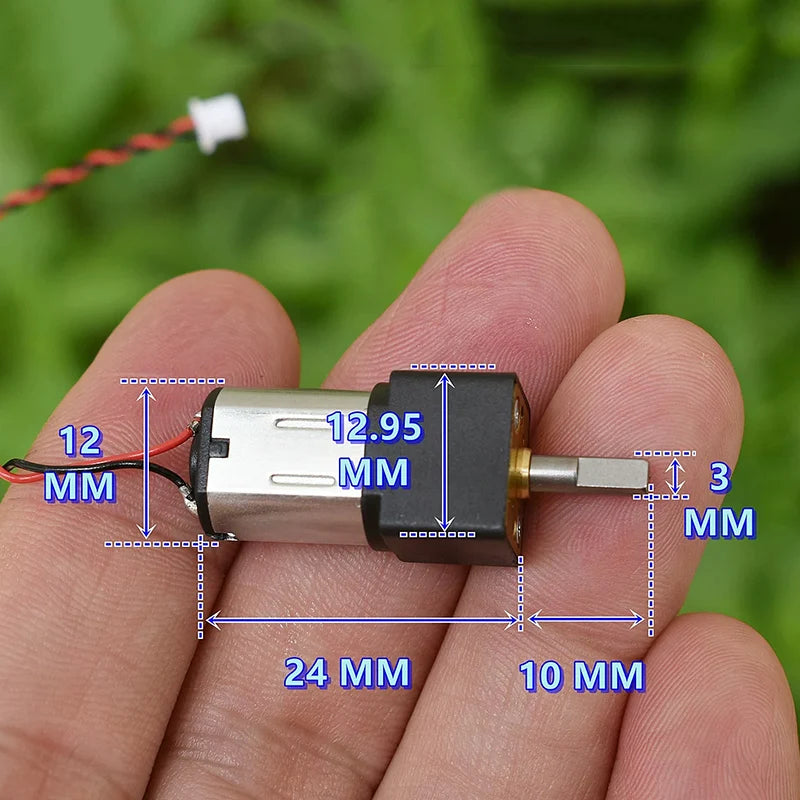

2.Motor size: 10mm*12mm*15mm
3.Gearbox size: 10mm*12mm

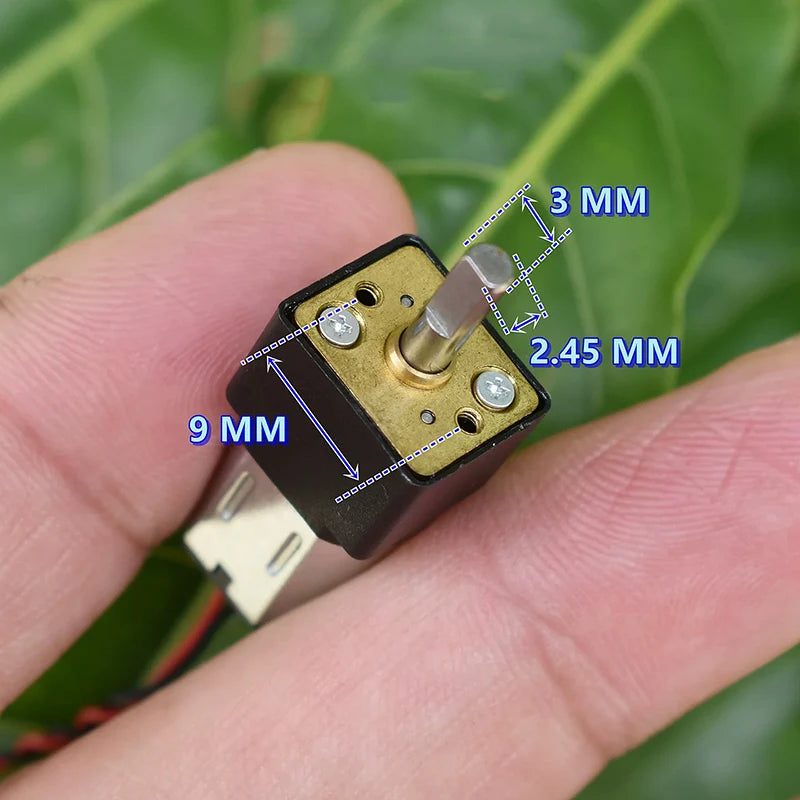

4.Output shaft diameter: 3mm (D shaft 2.45mm)
5.Output shaft length: 10mm
6.Gear ratio: 1:97
7.Weight: 10.3g
8.Rated voltage: DC 5V
9.No-load speed: 170RPM
10.Suitable voltage: DC 3.0V-6.0V
11.Test data:
Voltage:3.0V Current:36mA No-load speed:105RPM
Voltage:3.7V Current:36mA No-load speed:130RPM
Voltage:4.2V Current:38mA No-load speed:148RPM
Voltage:5.0V Current:42mA No-load speed:170RPM
Voltage:6.0V Current:48mA No-load speed:212RPM
=========================
Package List:
Gear Motor x 1PCS
