SPECIFICATIONS

Specification:

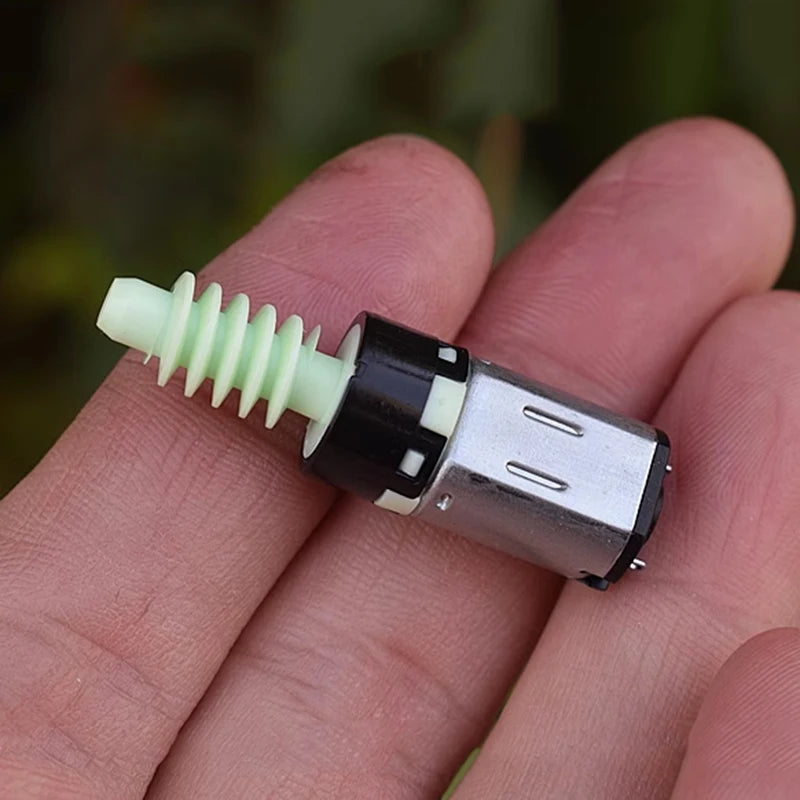

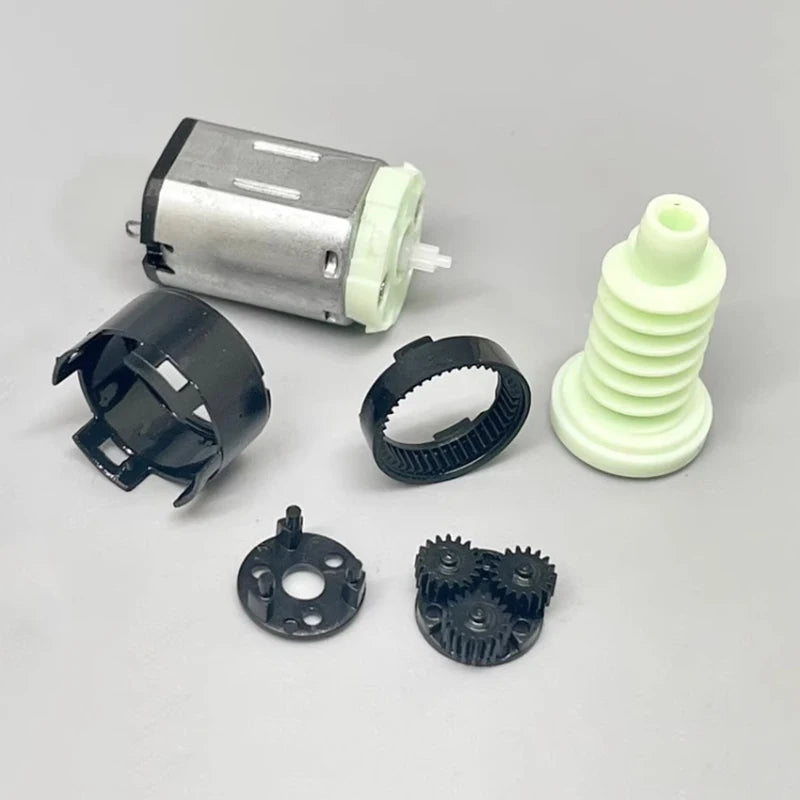

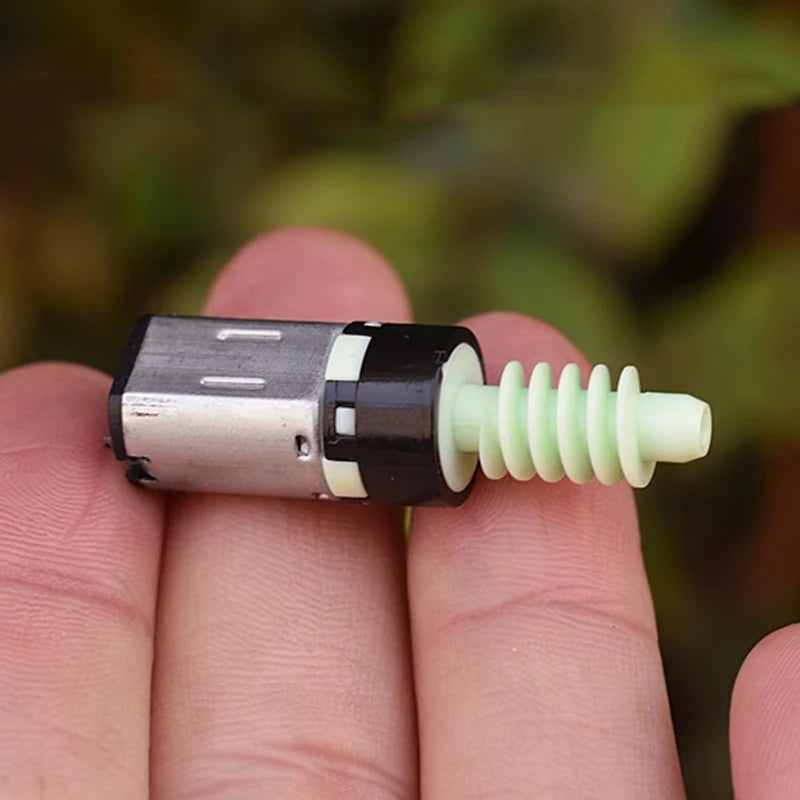

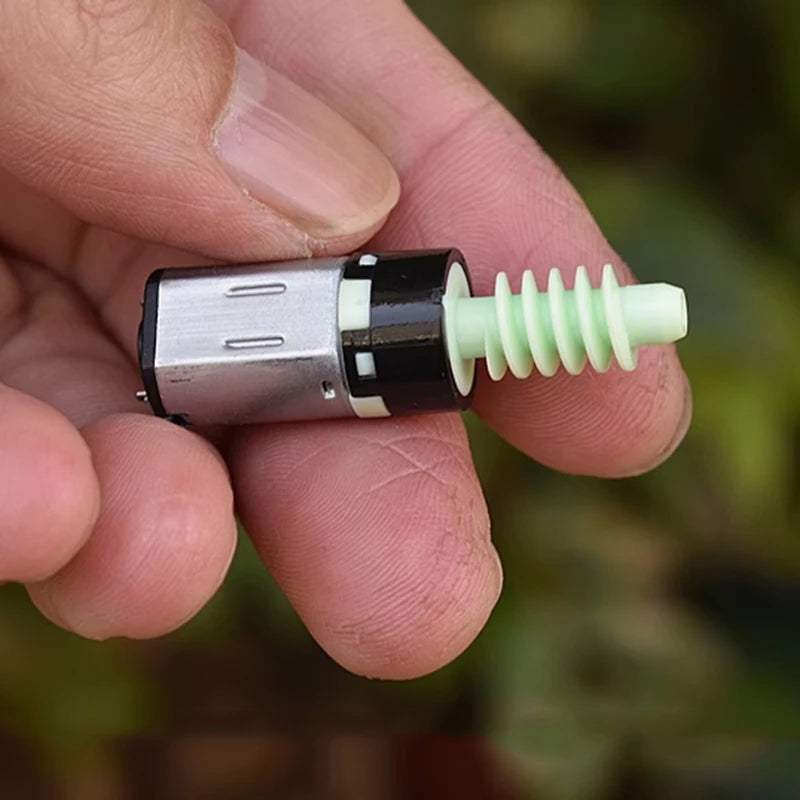

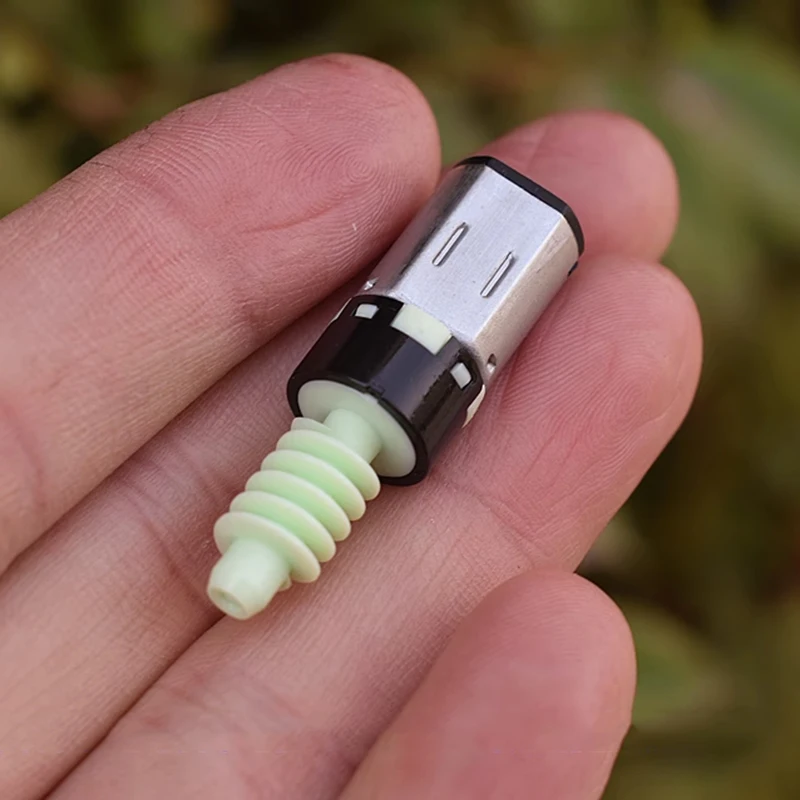

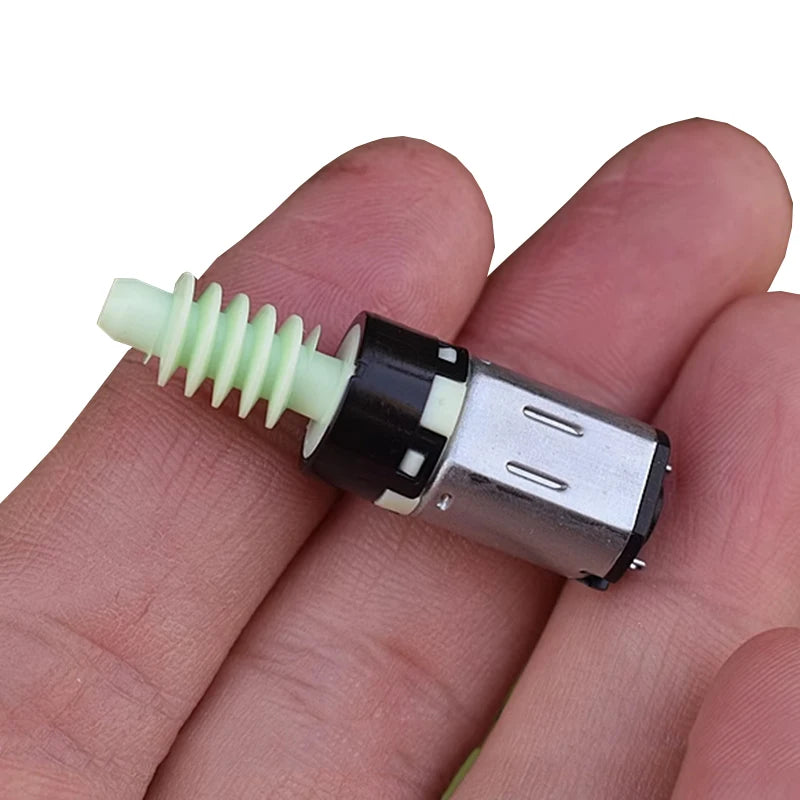

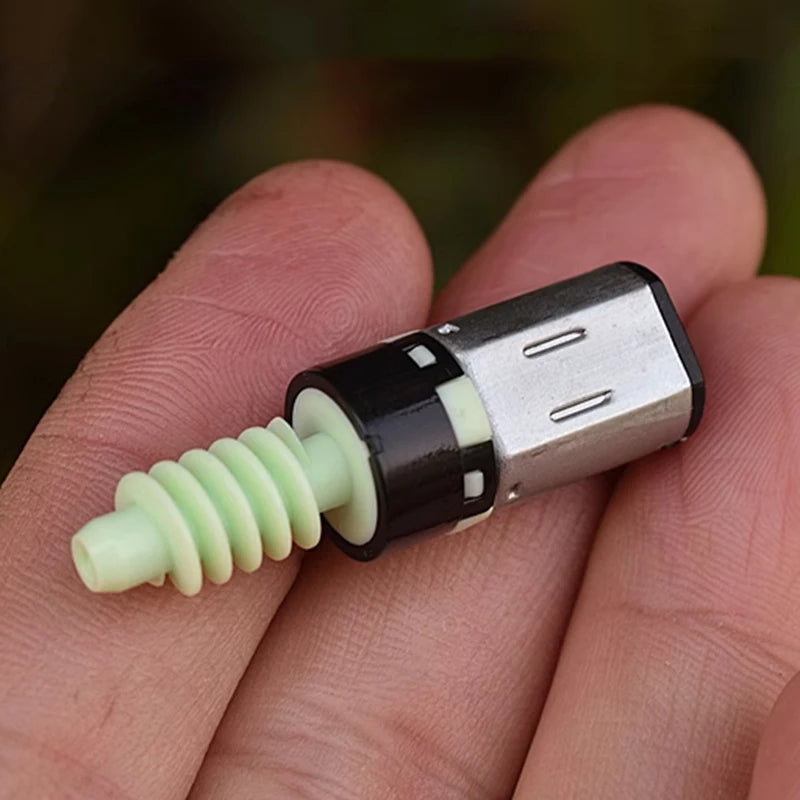

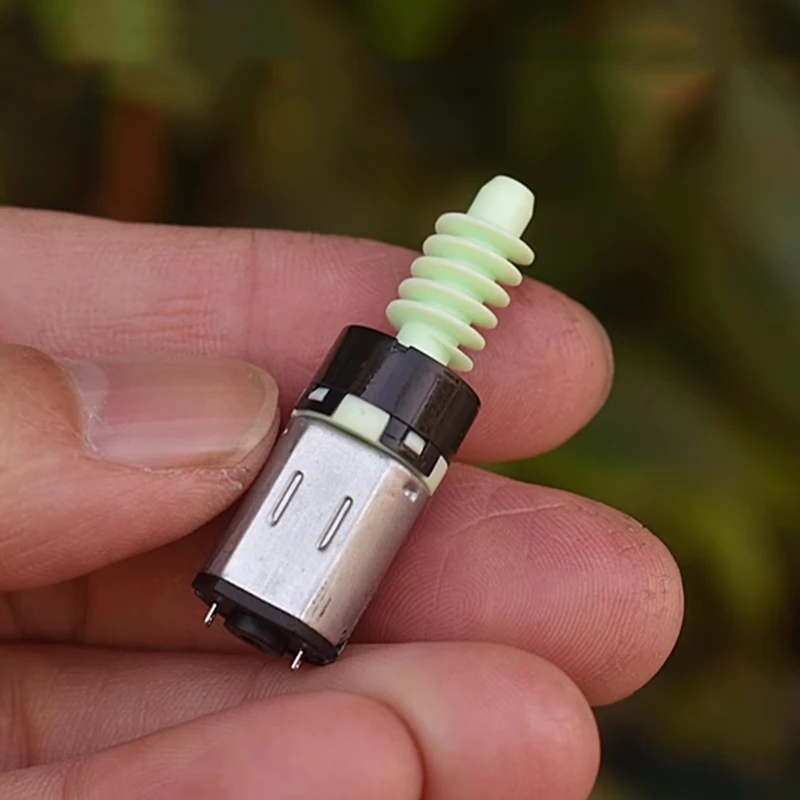

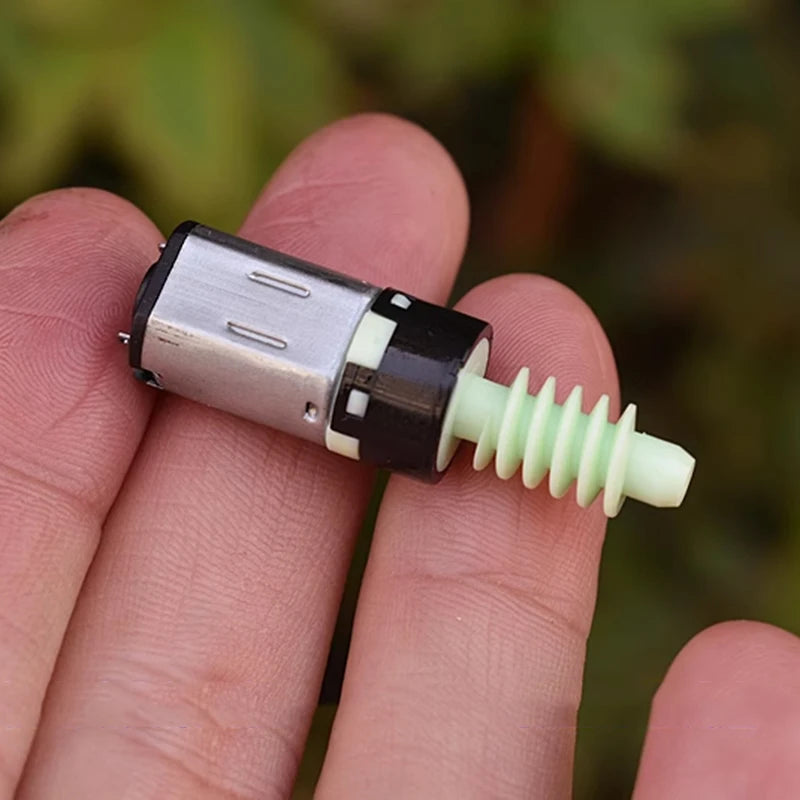

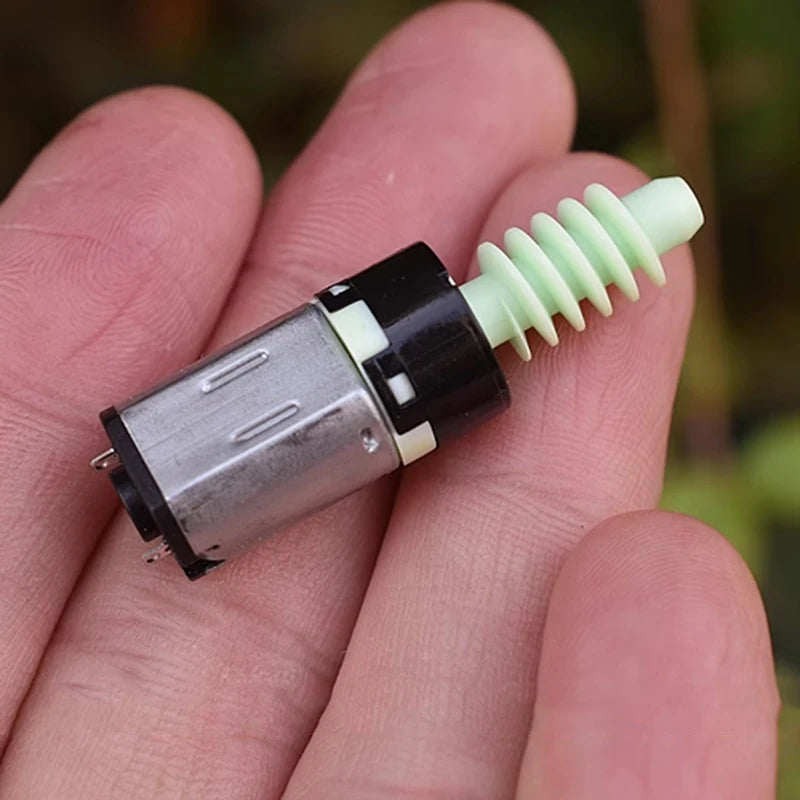

Micro 12mm planetary gear motor. The motor adopts a N20 motor with precious metal brushes and a planetary gearbox with a first stage planetary gear, with a reduction ratio of approximately 1:120.

The suitable voltage for the motor is DC 5V-6V, and the output speed after reduction is about 107-130 rpm.

The motor operates with a soft sound and strong torque. The output shaft of this reduction motor is in the shape of a worm, which is designed to be used to drive the motor on a car mounted electric phone holder.

1.Model: GM10120 Mini N20 Plantary Gear Motor

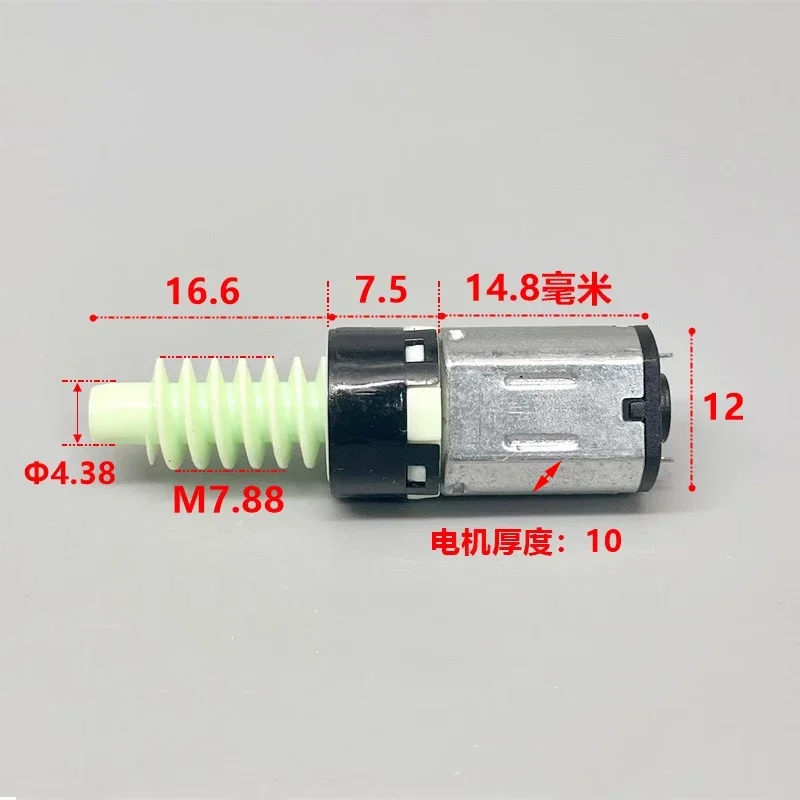

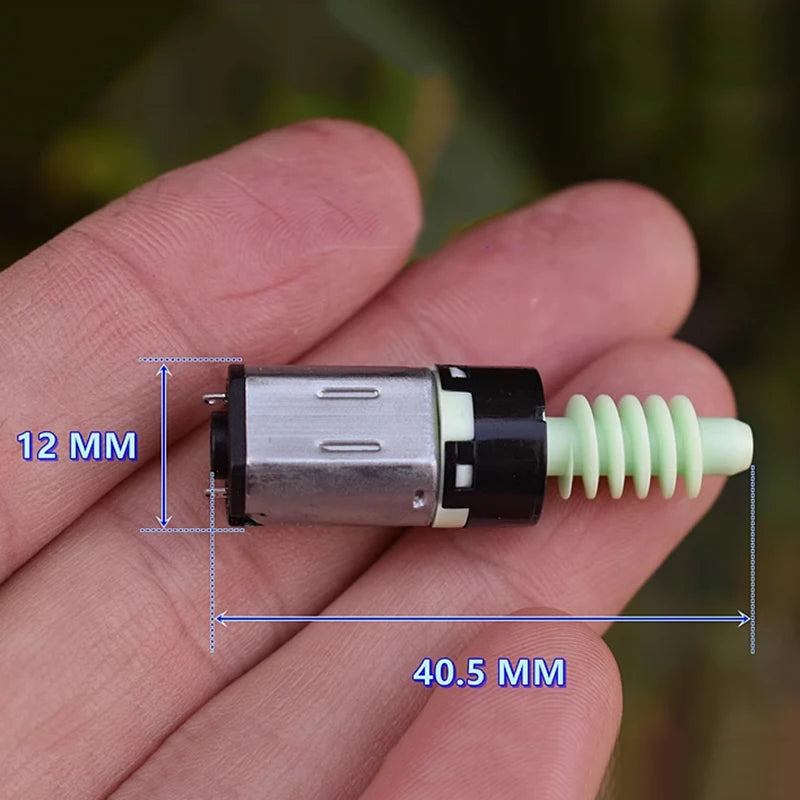

2.Motor size: 12mm*10mm*14.8mm

3.Gearbox size: 12mm*7.5mm

4.Worm gear shaft length: 16.6mm

5.Gear ratio: 1:120

6.Weight: 8g

7.Suitable voltage: DC 3.0V-6.0V

8.Test data:

   Voltage:3.0V   No-load current:20mA   No-load speed:60RPM

   Voltage:3.7V   No-load current:22mA   No-load speed:79RPM

   Voltage:5.0V   No-load current:24mA   No-load speed:107RPM

   Voltage:6.0V   No-load current:30mA   No-load speed:130RPM

=========================

Package List:

Gear Motor x 1PCS
