SPECIFICATIONS

Specification: ATMEGA328P-1 is Mini interface
ATMEGA328P-2 is Mini interface
ATMEGA328P-3 is Mini interface
Nano mini Set is Mini interface =ATMEGA328P mini interface+wire+Nano Expansion Board
------------------------------------------------------------
ATMEGA328P is TYPE-C interface
ATMEGA328P-4 is TYPE-C interface
 ATMEGA328P-4 is TYPE-C interface

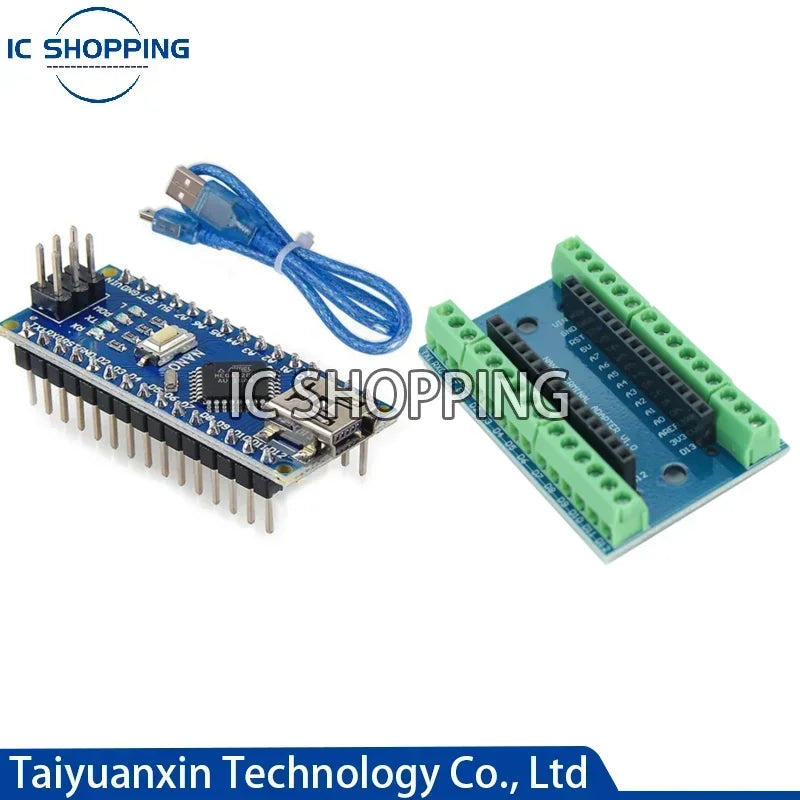

Nano type Set is TYPE-C interface = ATMEGA328P TYPE-Cinterface+Nano Expansion Board

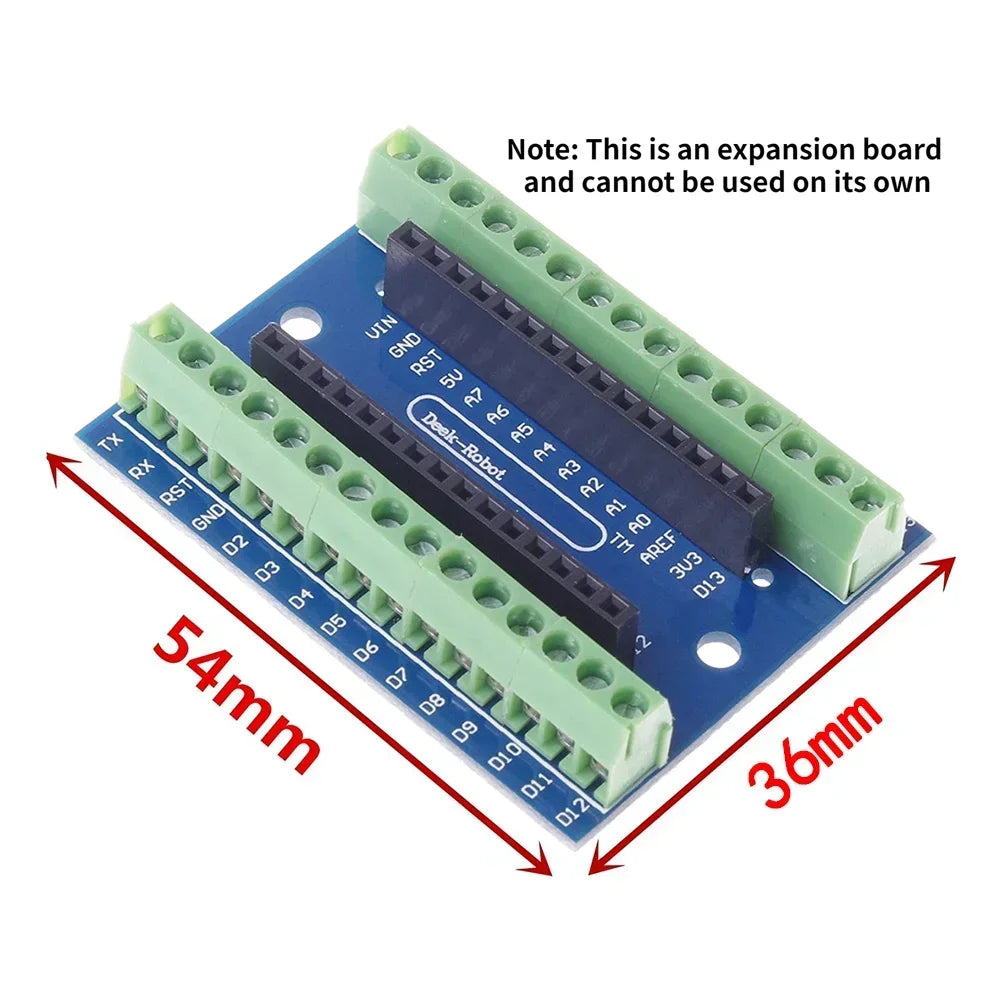

Expansion Board: Expansion Board: Expansion board only, nano v3.0 development board not included
-------------------------------------------------------------------------------------
Instructions:

1. Downloaded IDE

Download link: http://arduino.cc/en/Main/Software (copy and open)

2. Download the USB chip driver


3. Plug in the NANO development board, the driver will be installed automatically

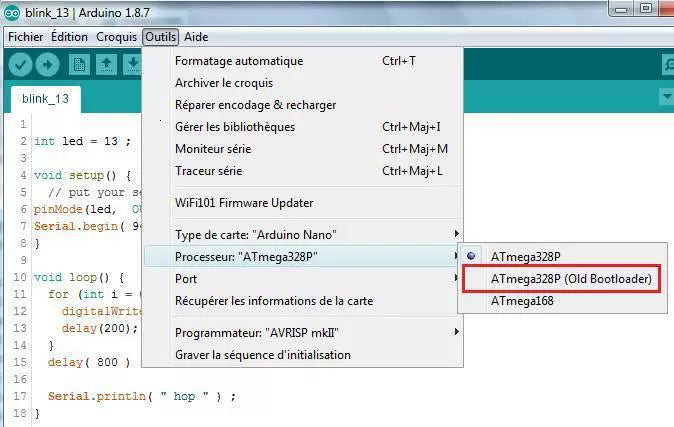

4. Select the board NANO in die

5. Select the COM port, this can be queried in my computer, the port in your uno development board just now


6. It is best to choose first, the routine program that comes with arduino, burn it in



Circuit diagram reference
Nano3.0 http://arduino.cc/en/uploads/Main/ArduinoNano30Schematic.pdf
Hardware design file (Eagle file)
Nano3.0 http://arduino.cc/en/uploads/Main/ArduinoNano30Eagle.zip

Test tutorial: https://xwdz.lanzous.com/ipVwgdoljda
