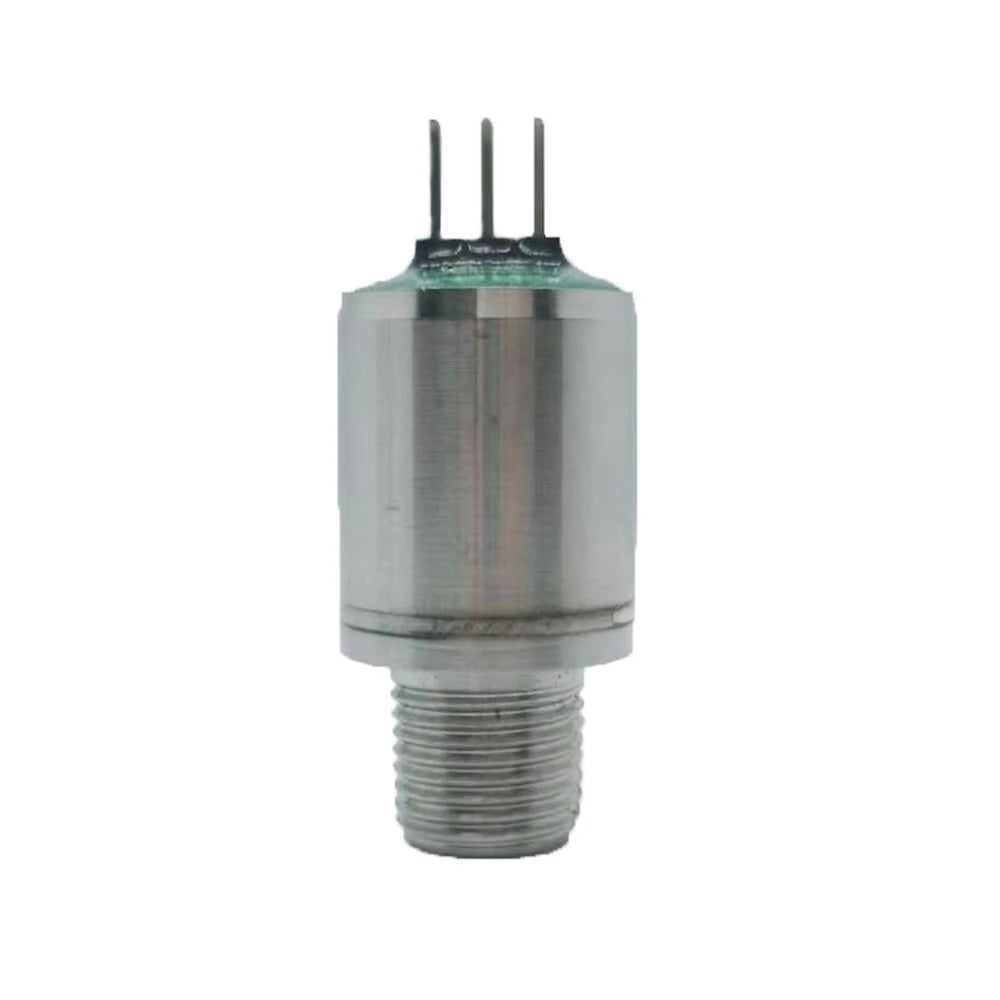

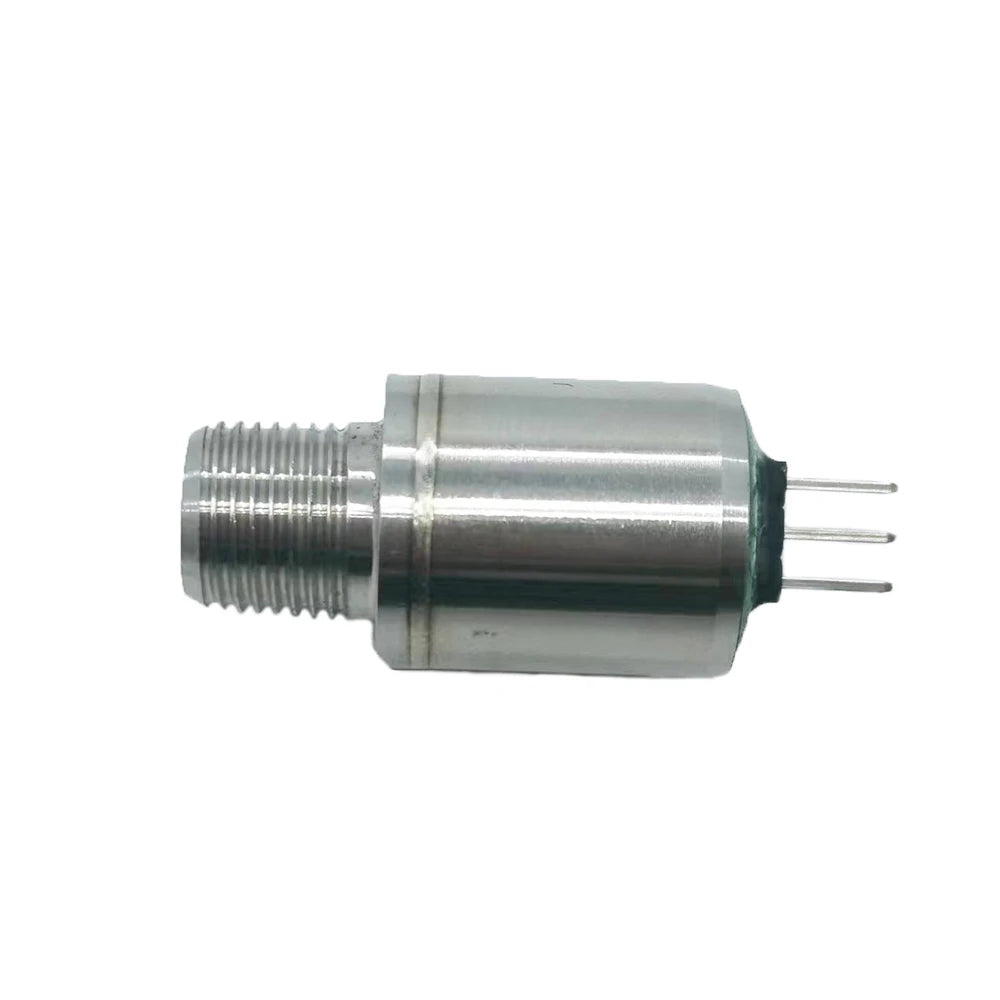

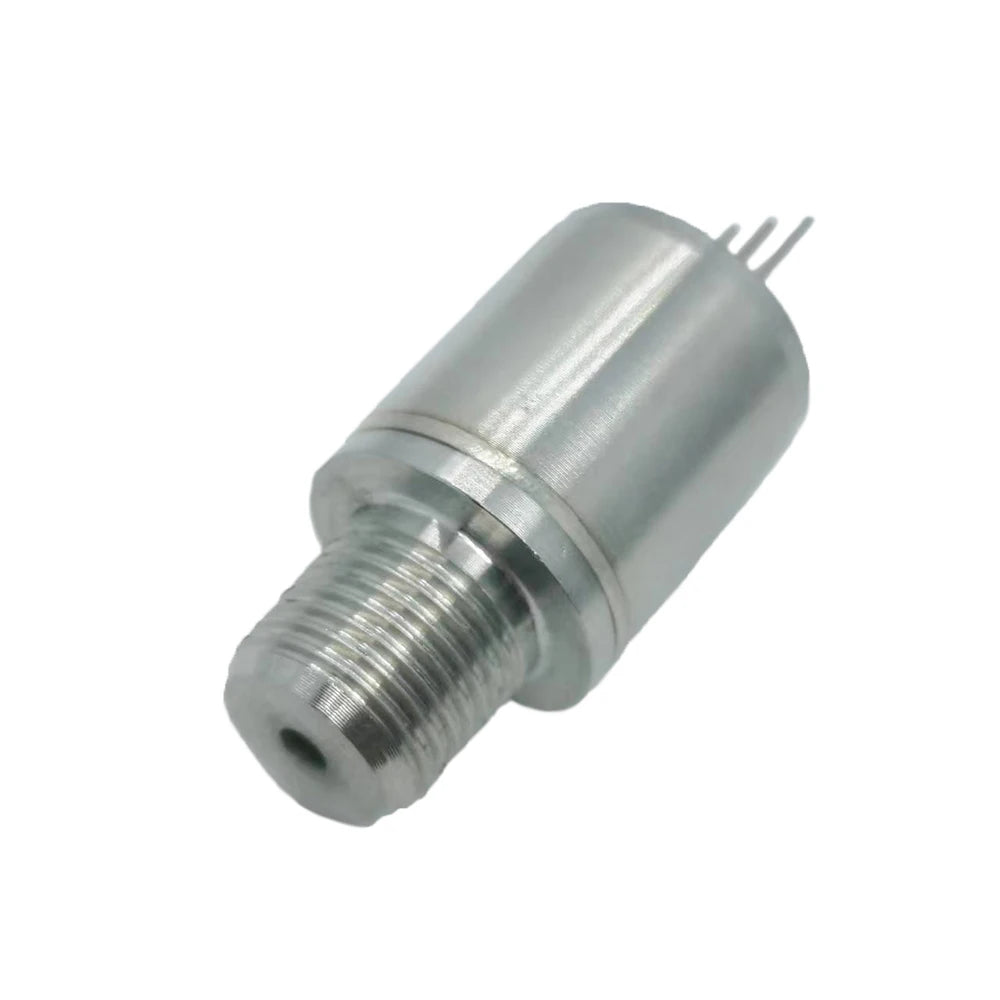

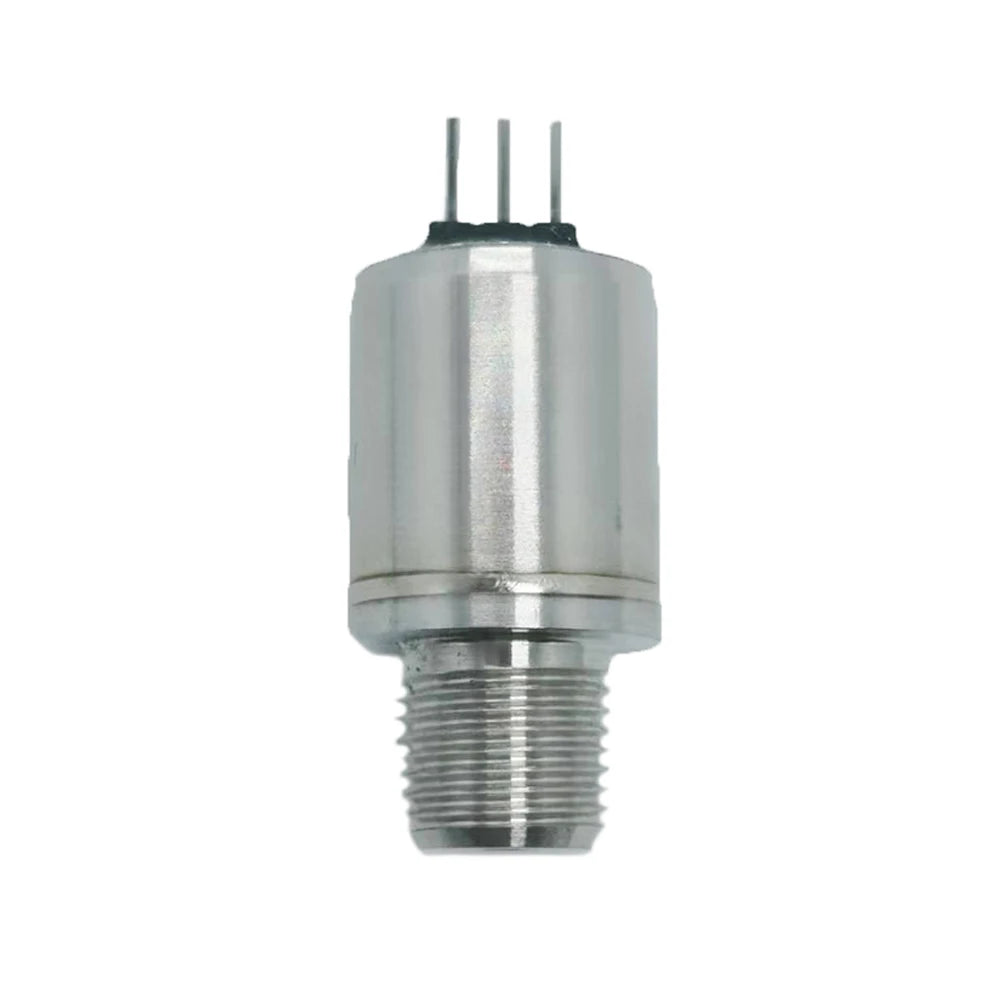

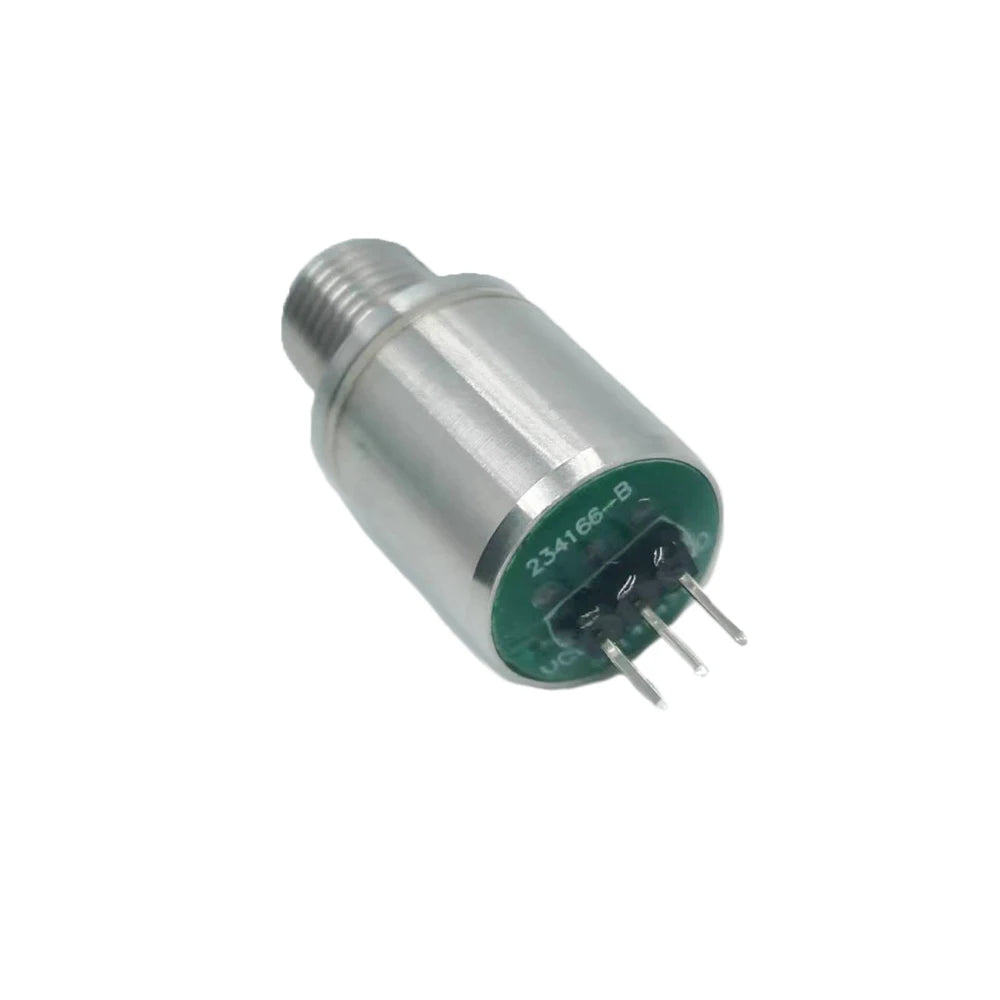

Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor

Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor

0.5-4.5V / China Mainland / 0-0.5Mpa
$79.92
$79.92 $0.00
Skip to product information
Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
  • Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
Mini Pressure Transmitter Built-in Devices IoT Industry SS304 NPT1/8 1% 5-12V 0.5-4.5V,3.3V for I2C 0.4-2.4V 1.2Mpa Small Sensor
$79.92
$79.92 $0.00
Color
Ships FromChina Mainland
Measuring Range
Description

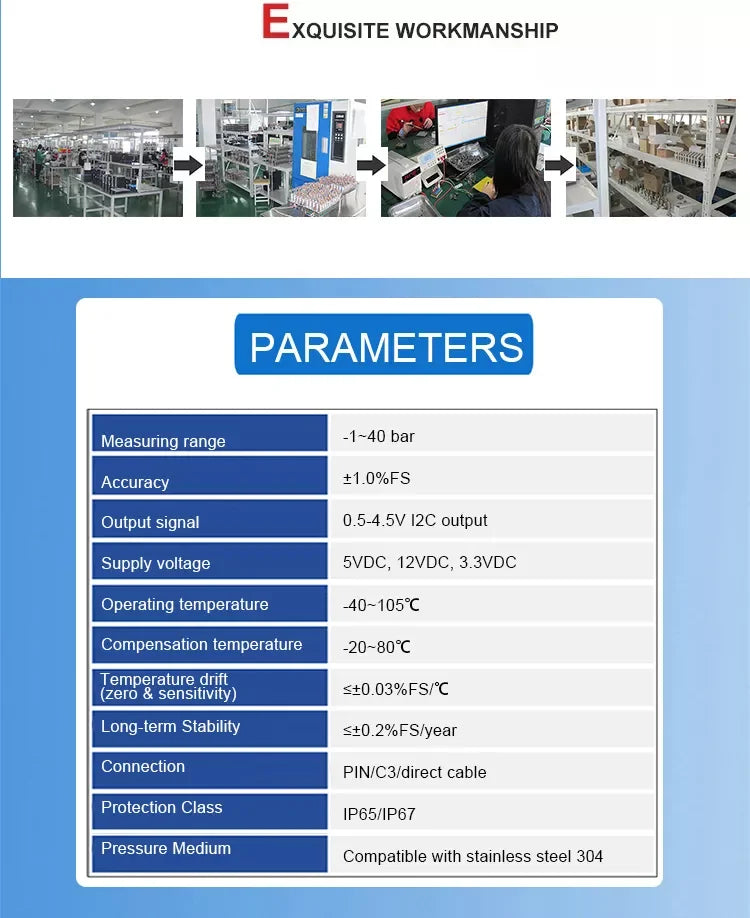

SPECIFICATIONS

Accuracy: ±1.0%FS

Battery Included: no

Brand Name: XIDIBEI

Certification: CE,RoHS

Compensation temperature: -20~80℃

Connection: PIN/C3/direct cable

Customized support: OEM

High-concerned chemical: none

Long-term Stability: ≤±0.2%FS/year

Max Measuring Range: 59 Bar & Under

Measuring range: -1~40 bar

Model Number: XDB316-1,XDB316-1

Operating temperature: -40~105℃

Origin: Mainland China

Output signal: 0.5-4.5V, I2C

Supply voltage: 5VDC, 12VDC, 3.3VDC

Temperature drift(zero & sensitivity): ≤±0.03%FS/℃

Warranty: 1.5 years
