SPECIFICATIONS

Brand Name: NONE

Condition: New

Origin: Mainland China

Type: Module

Type

electronic module

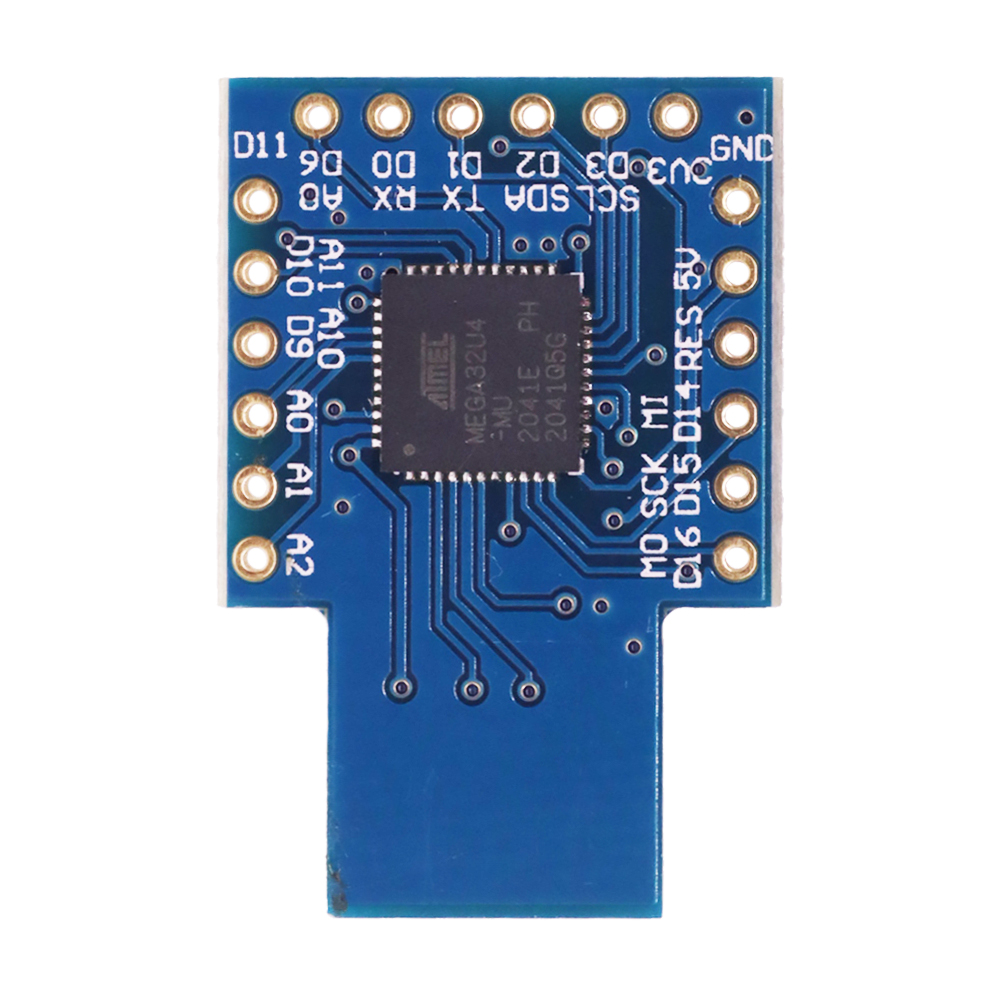

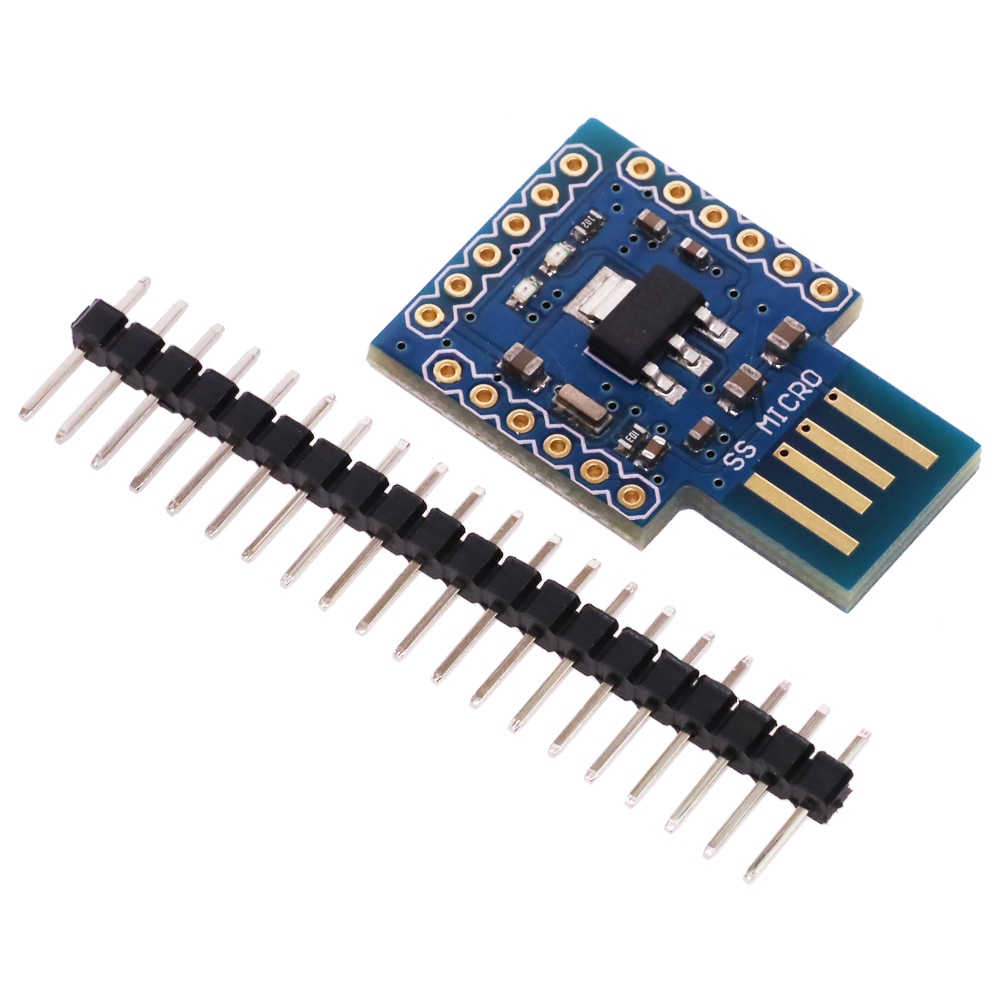

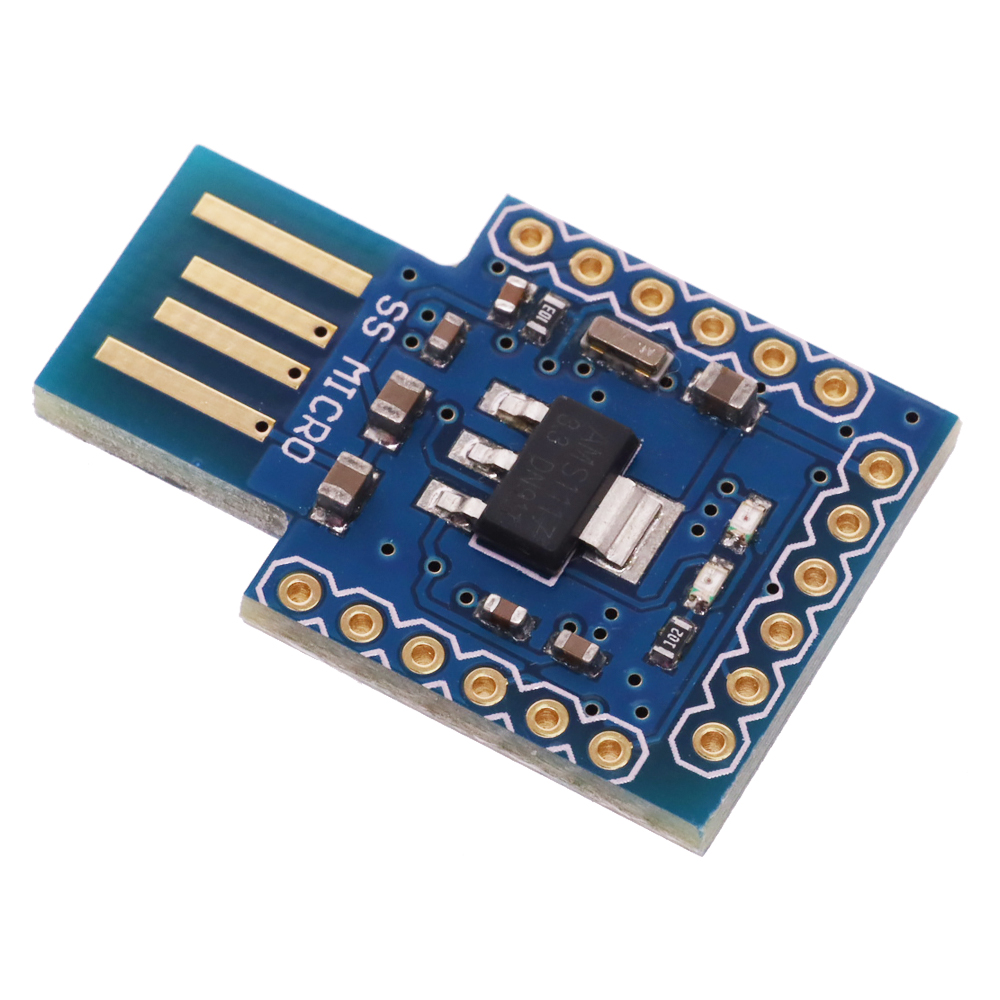

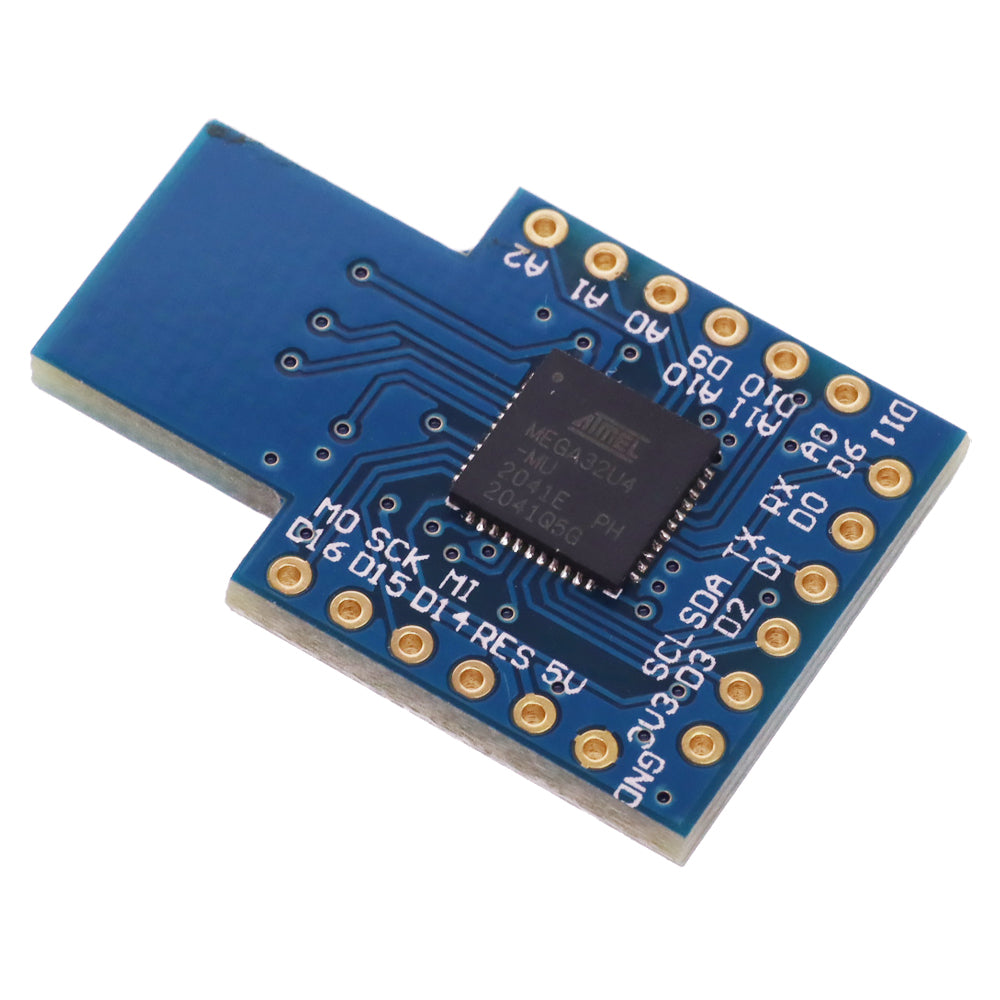

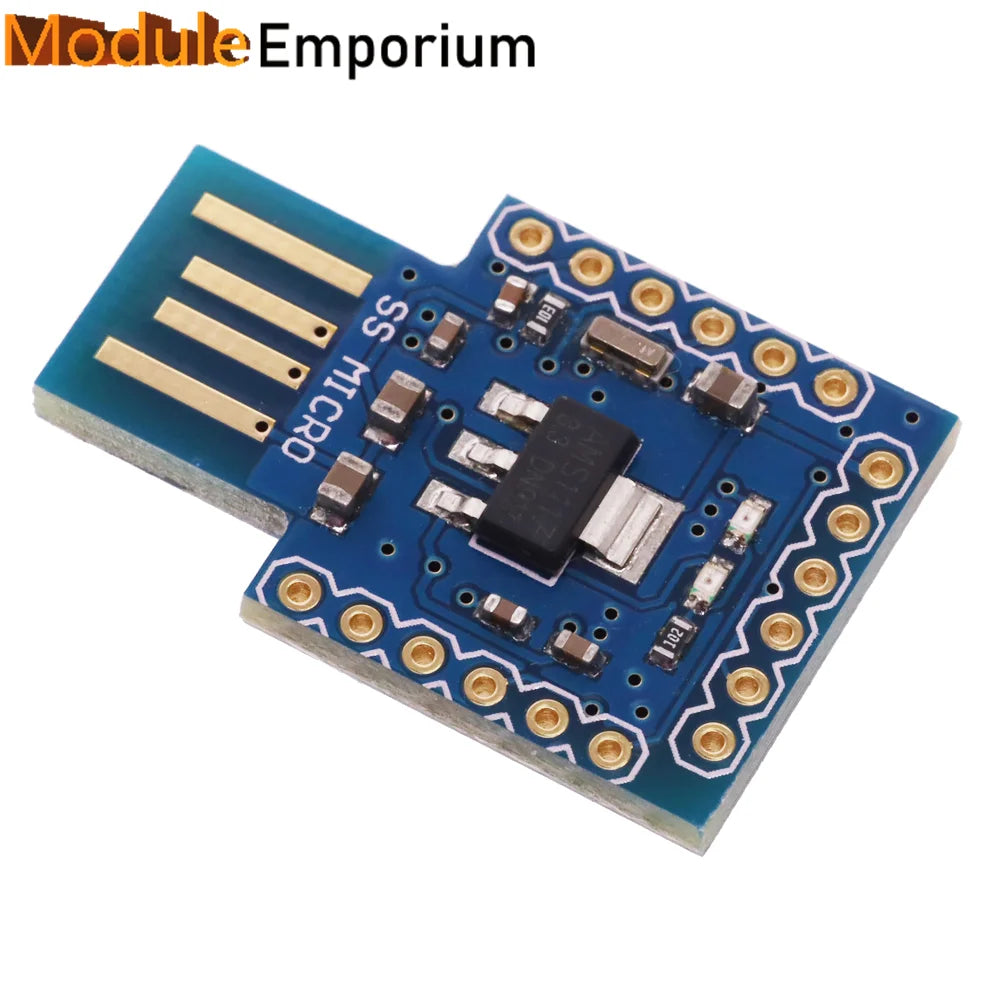

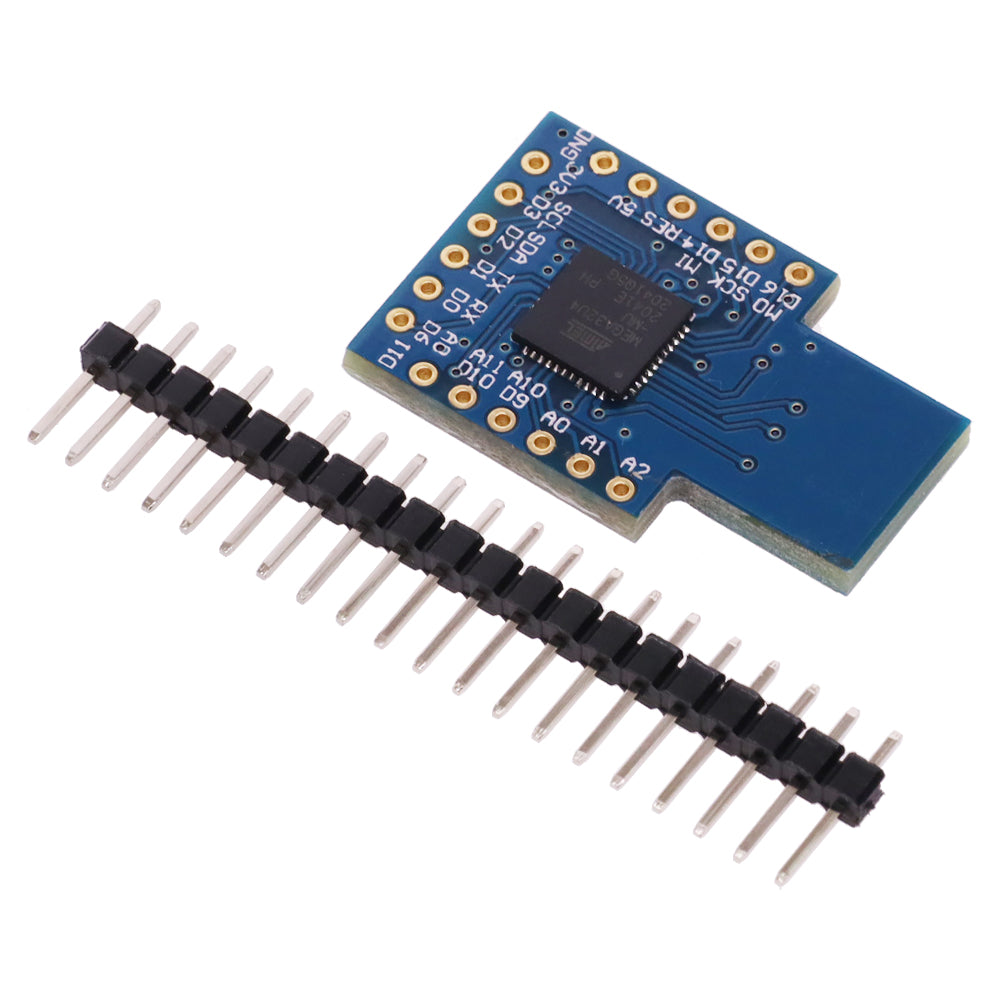

SS Micro is a microcontroller board based on the ATmeag32U4. It has 14 general purpose digital input / output pins (of which 5 can
be used as PWM outputs,6 can be used as analog inputs). On board there is 16Mhz oscillator and a PCB-based USB-A type connector.
In addition to an independent power supply a 3.3V output,its power output without affecting the operation of the MCU,the output
power depends on the USB port power supply capacity,but not higher than the maximum 1.5A. The board has been burning the Ard uino
bootloader,so it is compatible with the Ard uino IDE.
Although it's small,but it has a rich interface such that it is not only the traditional controller functions,as well as
implemented on a computer mouse,keyboard functions,serial functions,and can directly communicate with the computer.
Master: ATmega32u4
Operating voltage: 5V
Digital IO Number: 14
PWM output number: 5
Analog input Number: 6
Other peripherals: USB,UART,I2C,SPI,3.3V Power Supply Output
IO driving force: 40mA
Flash: 32KB (ATmega32u4) where 4KB occupied by Ard uino bootloader
SRAM: 2.5 KB (ATmega32u4)
EEPROM: 1 KB (ATmega32u4)
Frequency: 16Mhz

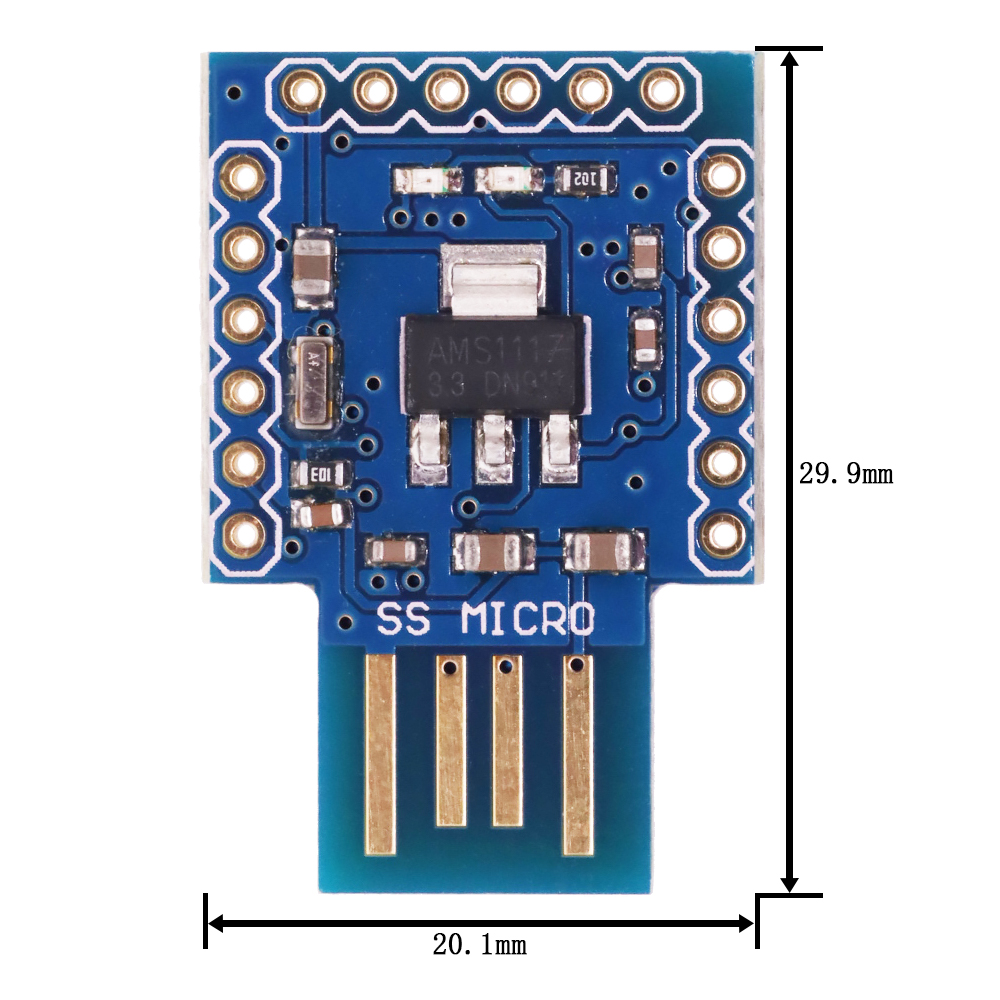

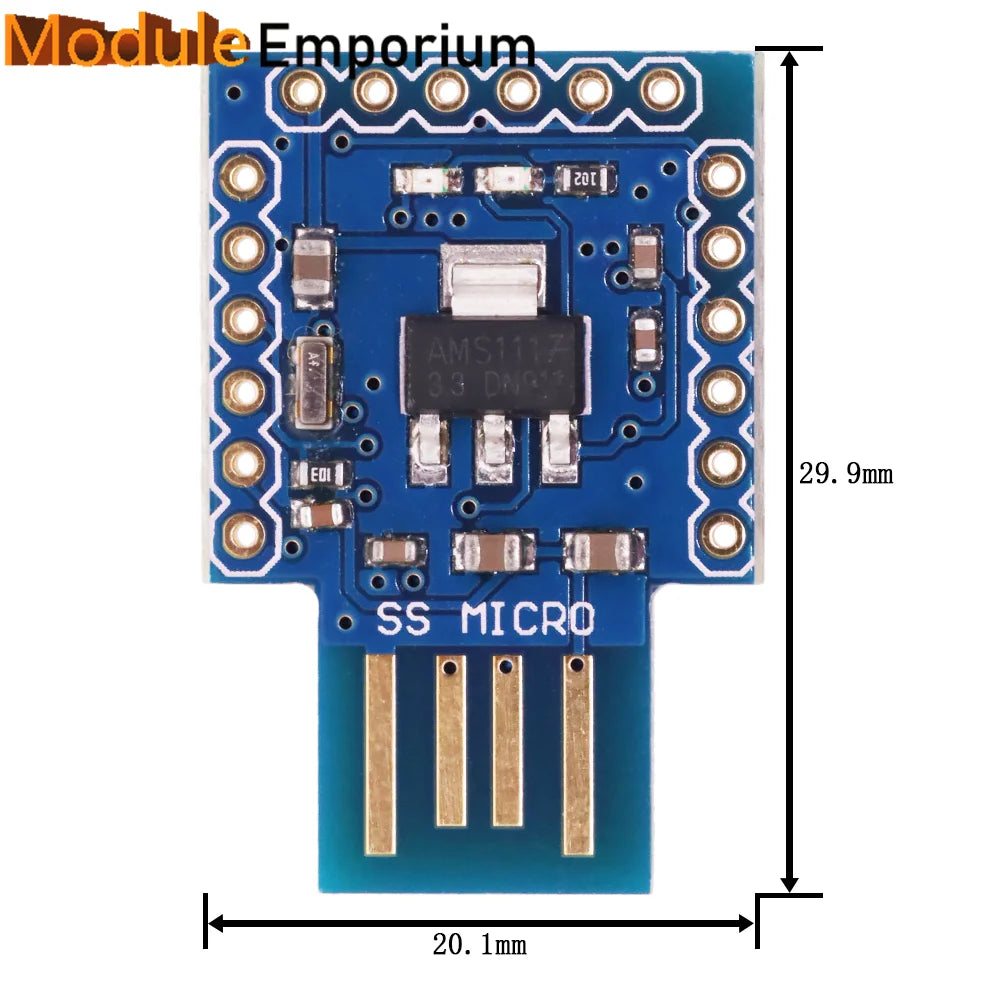

Width: 800mils (20.3mm)
Length: 1200mils (30.5mm)
Weight: 2.5g (does not include packaging and accessories)
