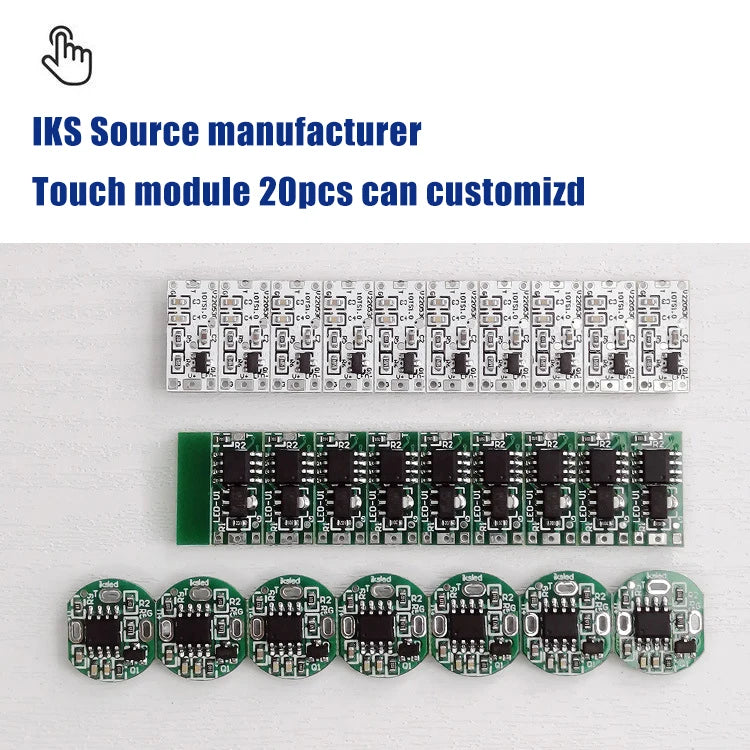

Mini Touch Switch Sensor Dimmable Switch Button Smart Home Switch Controller for DC3.7-24V Closet Corridor LED Strip Customized

Mini Touch Switch Sensor Dimmable Switch Button Smart Home Switch Controller for DC3.7-24V Closet Corridor LED Strip Customized

$7.97

$7.97 $0.00

Description

SPECIFICATIONS

Brand Name: IKSLED

Certification: CCC,ce,EMC,FCC,ROHS

Current: 3A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Touch sensor

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

M: dimmer switch

M2: touch smart switch

Material: Aluminium alloy

Max current: 4A

Model: Dimmable Sensor Switch

Model Number: Touch sensor

Name: Touch sensor switch

Origin: Mainland China

Size: 13*15mm,16*7mm

Switch Type: Touch On/Off Switch

Type: led dimmer

Voltage: DC 3.7V 5V 12V 24V

Warranty: 1 year

default dimming mode: no-limit

dimmable: keep touch can dimming

We,IKS already Focus on develop and research led industry OVER 10years.

We must support the good quality and best servie,for the aluminum we have many kinds

for you to choose,welcome to inquire wholesale price and customized

Specification:

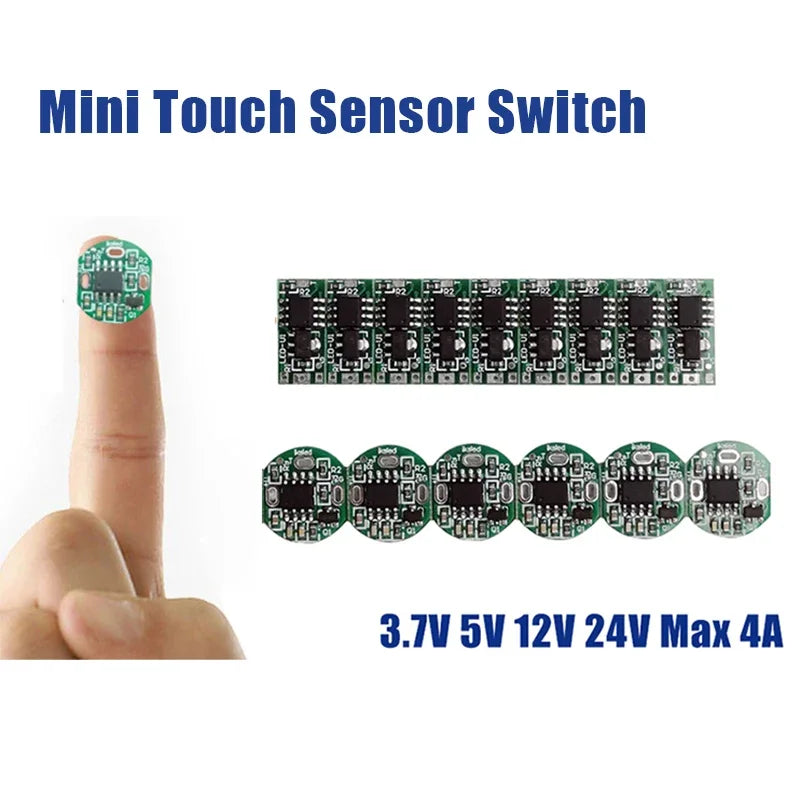

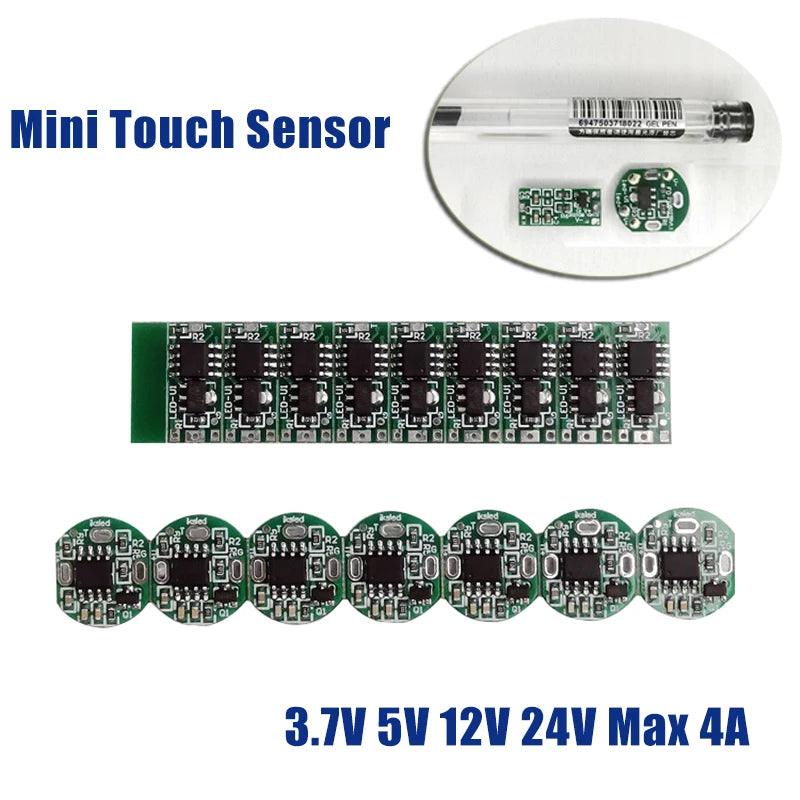

★Voltage:constant voltage DC3.7V, 5V, 12V, 24V
(The constant current with an output of 10V~30V do not match)
★Current:Max is 4A
★Function description:

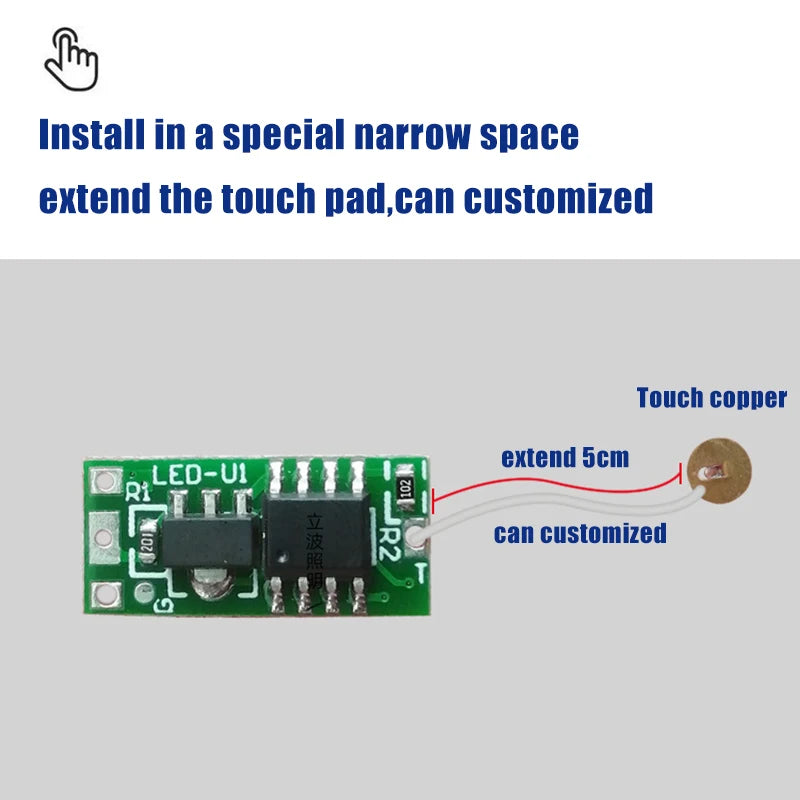

①The touch cooper can be extended, up to 20cm
②Touch switch: short press to turn on/off the light
③Dimming function: stepless dimming,
④With memory function

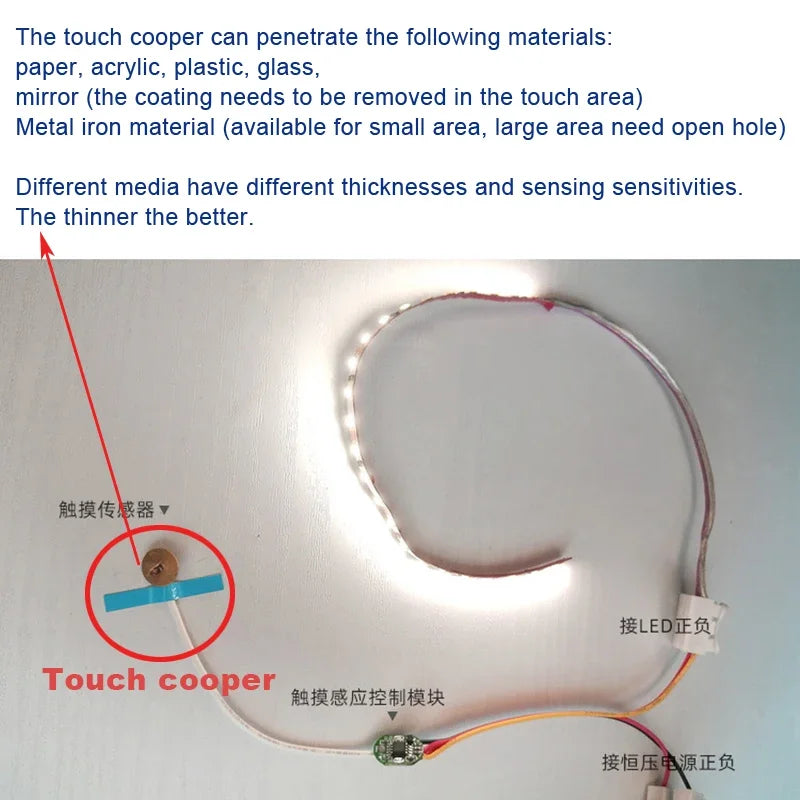

★Isolation medium: The touch cooper can penetrate the following materials: paper, acrylic, plastic, glass, mirror (the coating needs to be removed in the touch area),
Metal iron material (only available for small area, large area needs open hole),
Touch distance: Different media have different thicknesses and different sensing sensitivities. The thinner the sensitivity, the better.

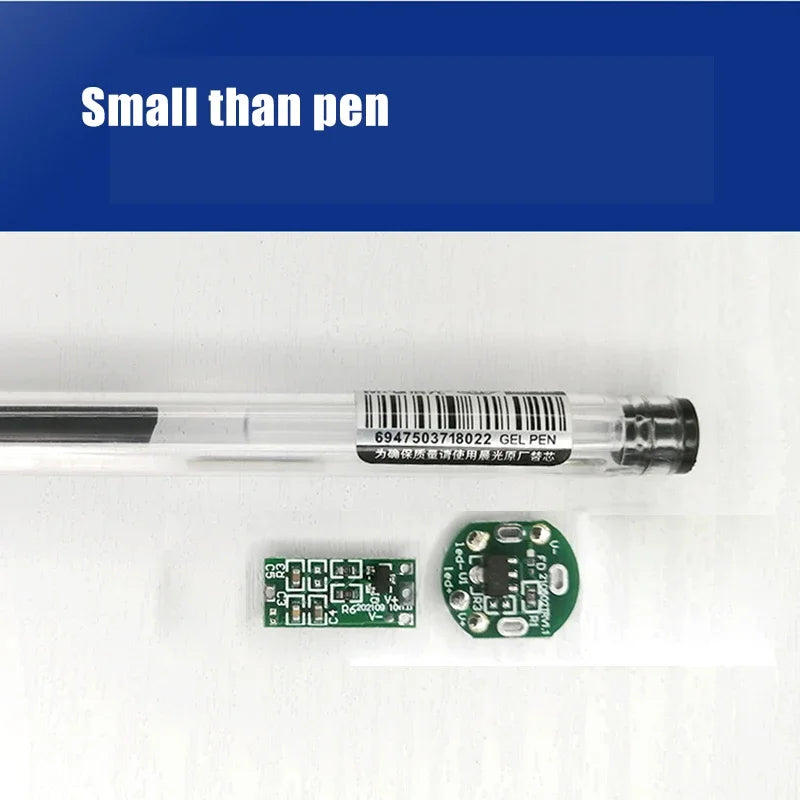

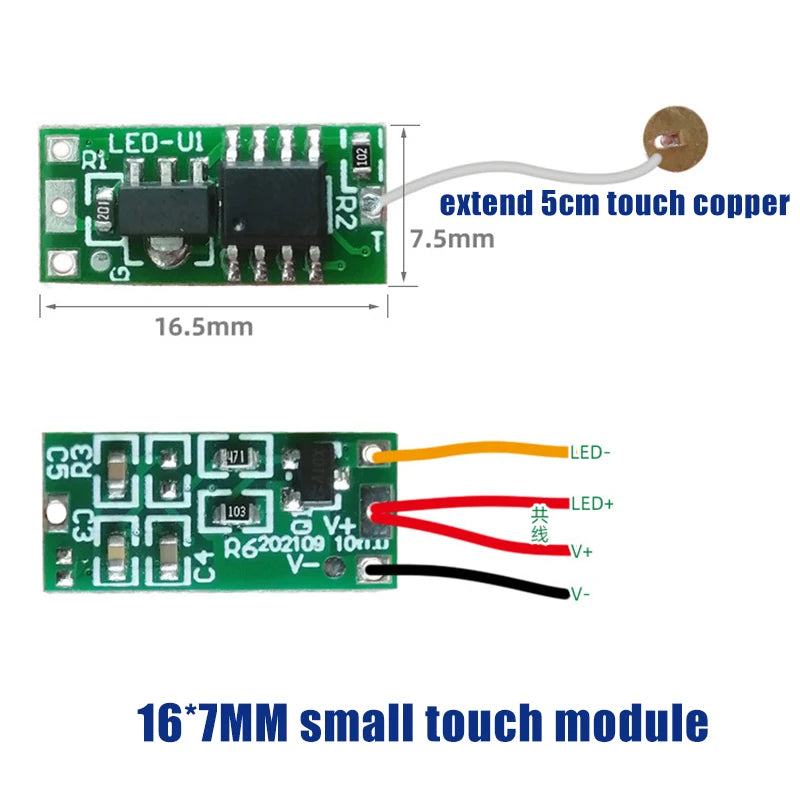

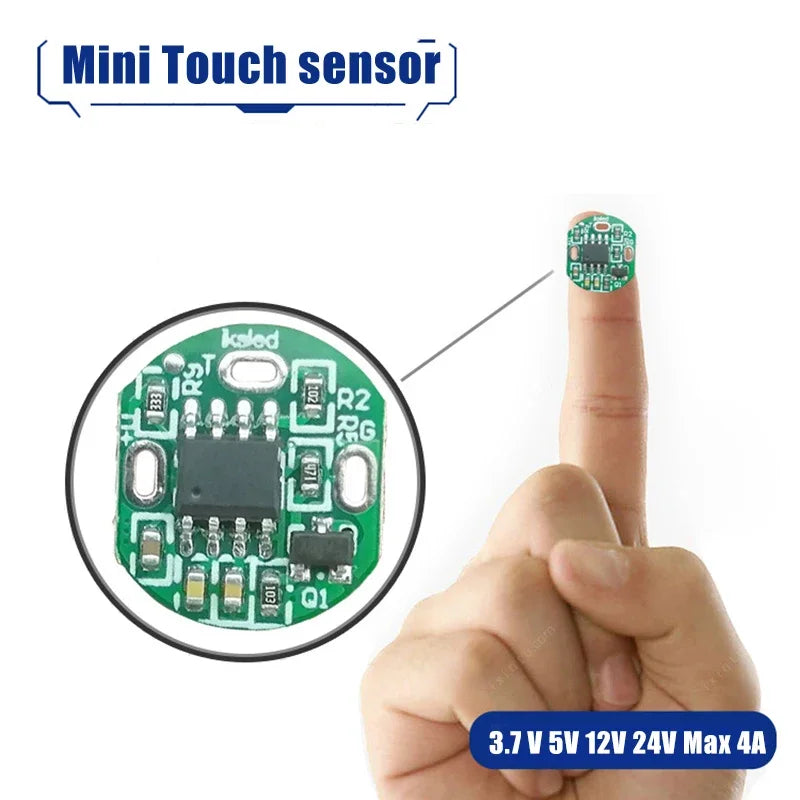

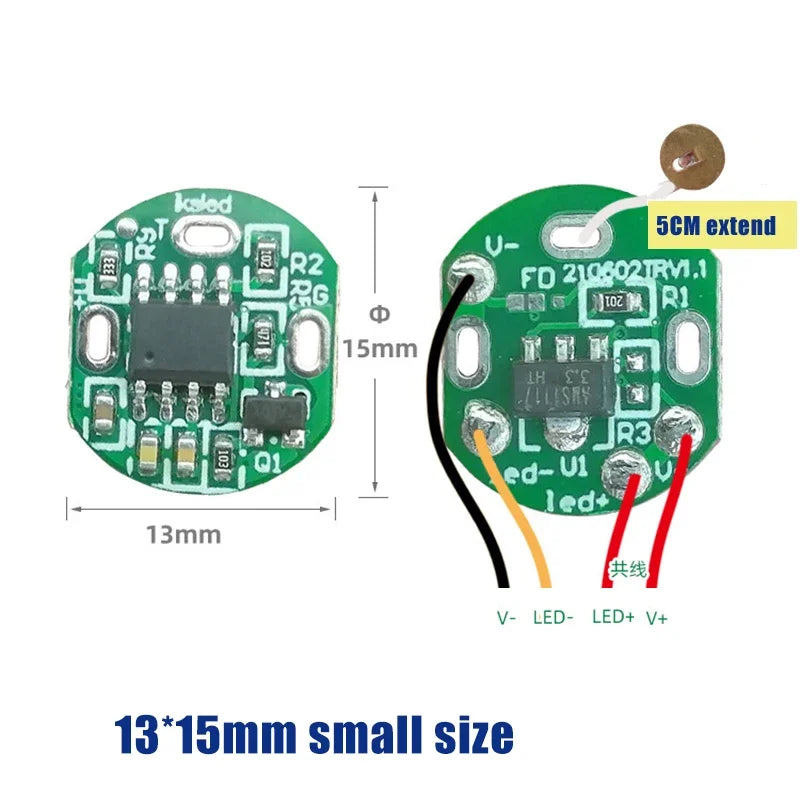

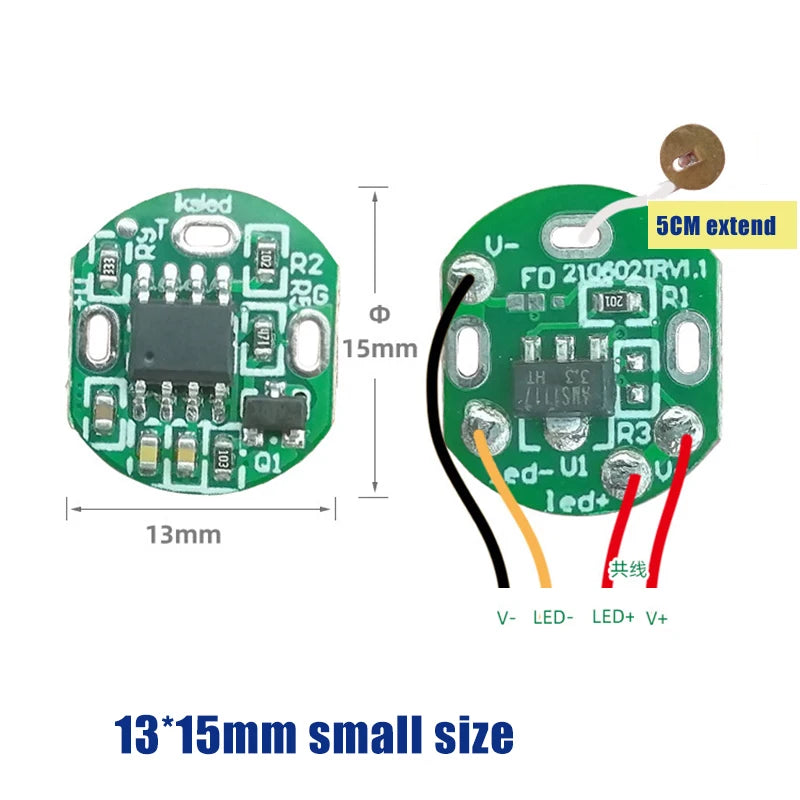

★Size:15*13* 4mm,16.5* 7.5*4mm
★Product application range:
LED desk lamp, 3D night light, rattan ball light, copper wire light, cool light, plant light, photo frame light, low voltage light strip, light bar, LED light board, light string... electrical equipment for low voltage constant voltage power supply etc.
★Installation precautions:

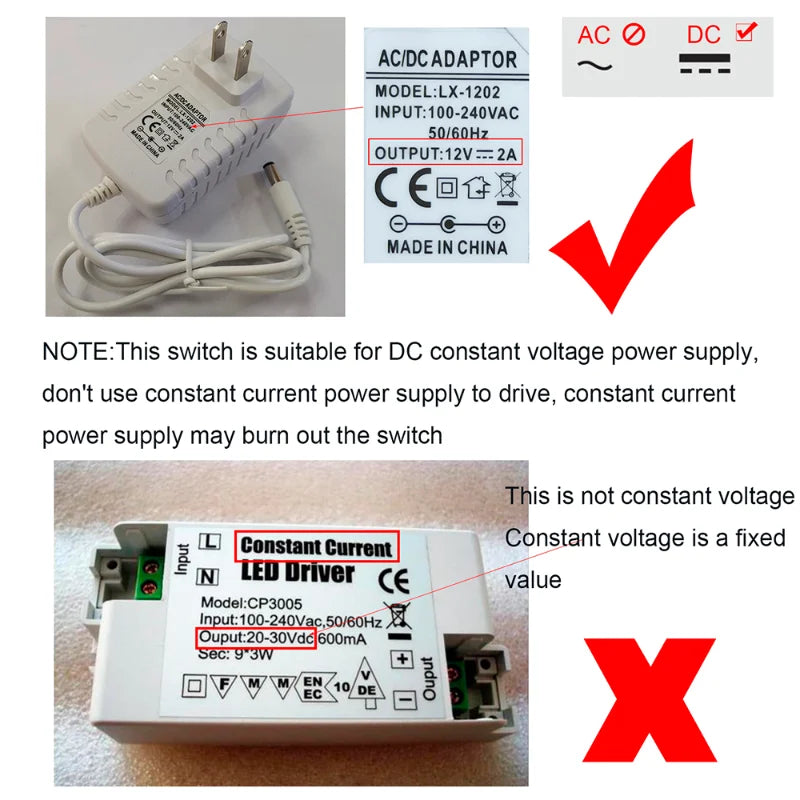

1.Not suitable for constant current drive power supply or lamps with other integrated circuits.
2. Max 4A.
3. Pay attention to the wiring problem, whether the wiring of the input and output terminals is reversed, and whether the positive and negative poles are connected correctly.
3. Pay attention to the problem of touching the medium material. For example, there is no problem during the test, but it will not work after installing the product. Most of it is because it is installed on the lamp with the iron shell.
The large area of the iron shell has a shielding effect, and the sensitivity needs to be adjusted separately.
