SPECIFICATIONS

Battery Included: no

Brand Name: MI·SOL

Certification: CE

Electronic: No

High-concerned chemical: none

Model Number: WH57TRMR

Origin: Mainland China

Power Type: None

Semi-finishedproduct: No

Style: Wall Hanging

Theory: Temperature Transmitter

Use: Outdoor

Features:

Lightning Detector

* Wireless frequency: 433Mhz

* Detects lightning bolts and storms within 25 miles (40 kilometers)

* High or low sensor sensitivity selectable to meet different requirements.

* Wireless range up to 330 feet (100 meters) in open areas

* Transmits readings every 79 seconds

* Easy installation includes hanging hole

* Power: 2X1.5V AA batteries(not included)

* Sensor Size: 123x42x14mm

* Working temperature: 0~50°C(32~122℉)

* It can pair with a GW1200 Wi-Fi Gateway, Weather Station Console (HP2551/HP3500/HP3501)

Note:

1.Once lightning strikes detected, the led light will flash once.

2.NiMh rechargeable batteries are prohibited using on this device. Li-ion battery (non-rechargeable) is recommended.

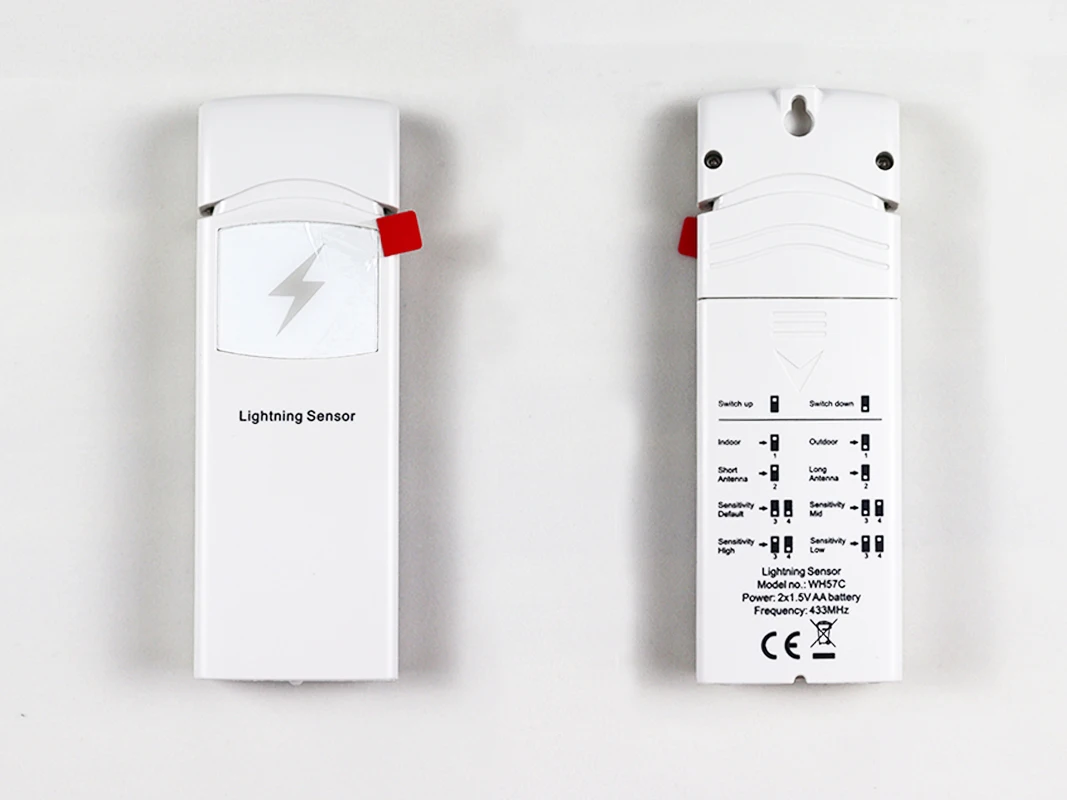

3.Please use the default setting with all the 4 black switches in Down Position

4.Installed outdoor in free open area for better detection. If false triggering detected, please move around the sensor until no false lightning detected.

5. Indoor use is not allowed!!

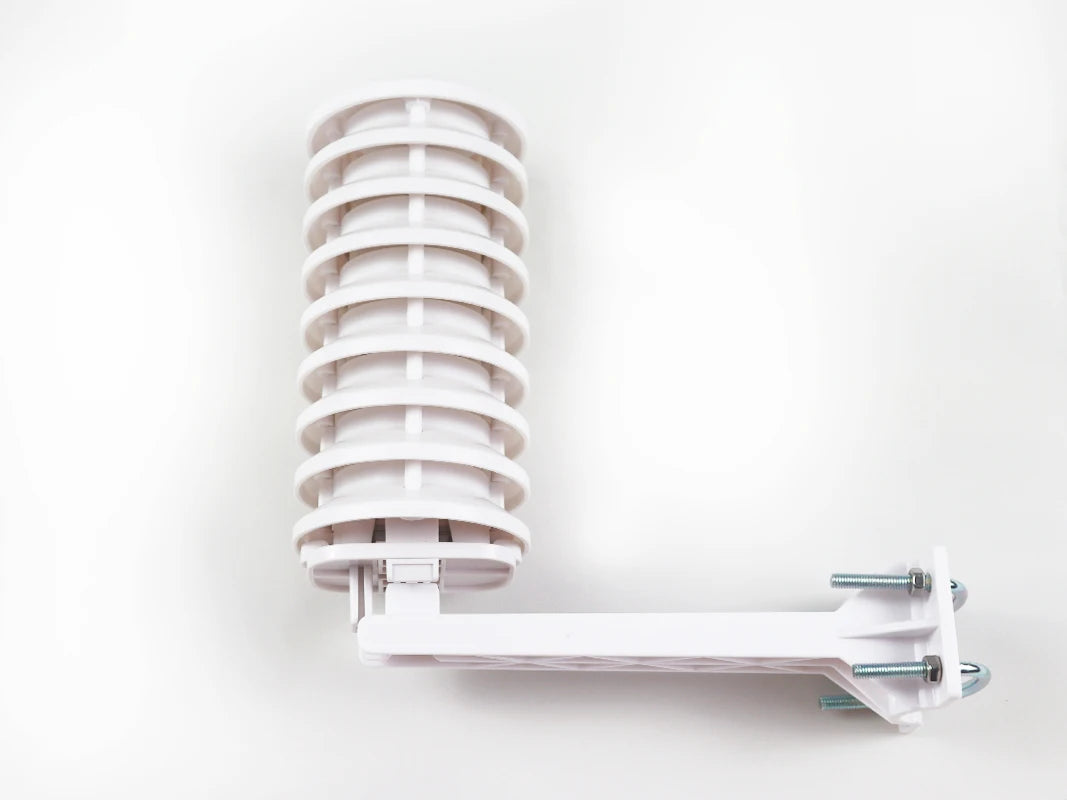

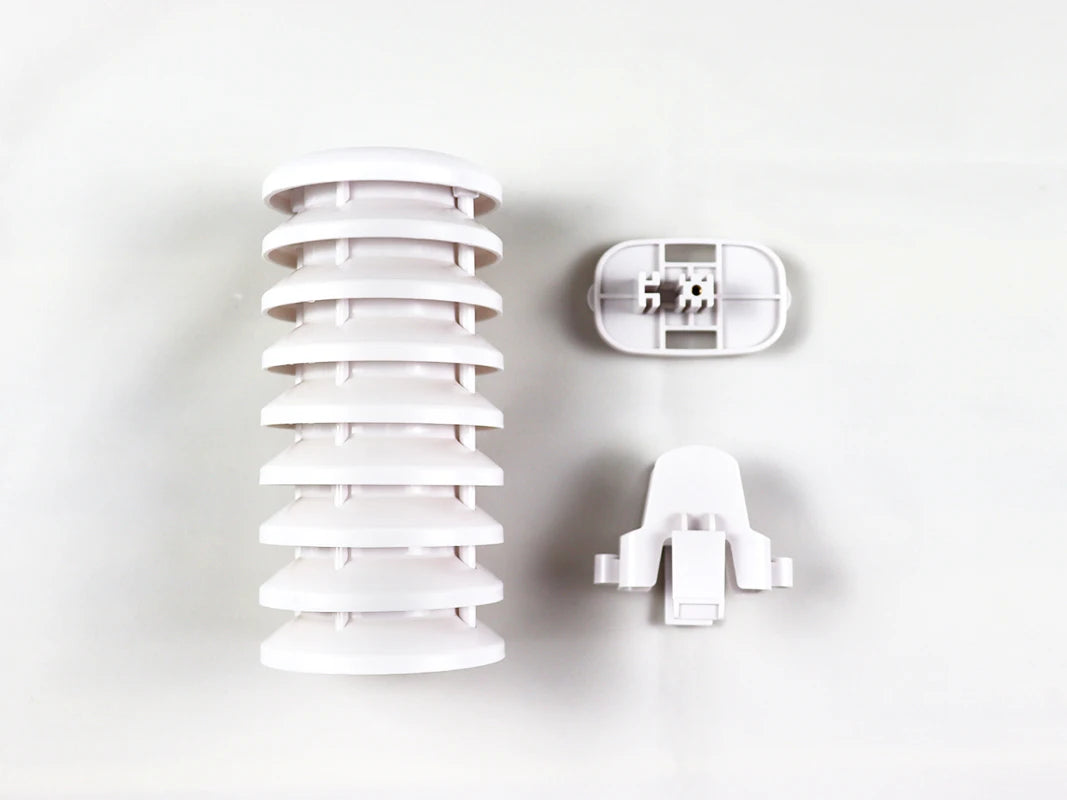

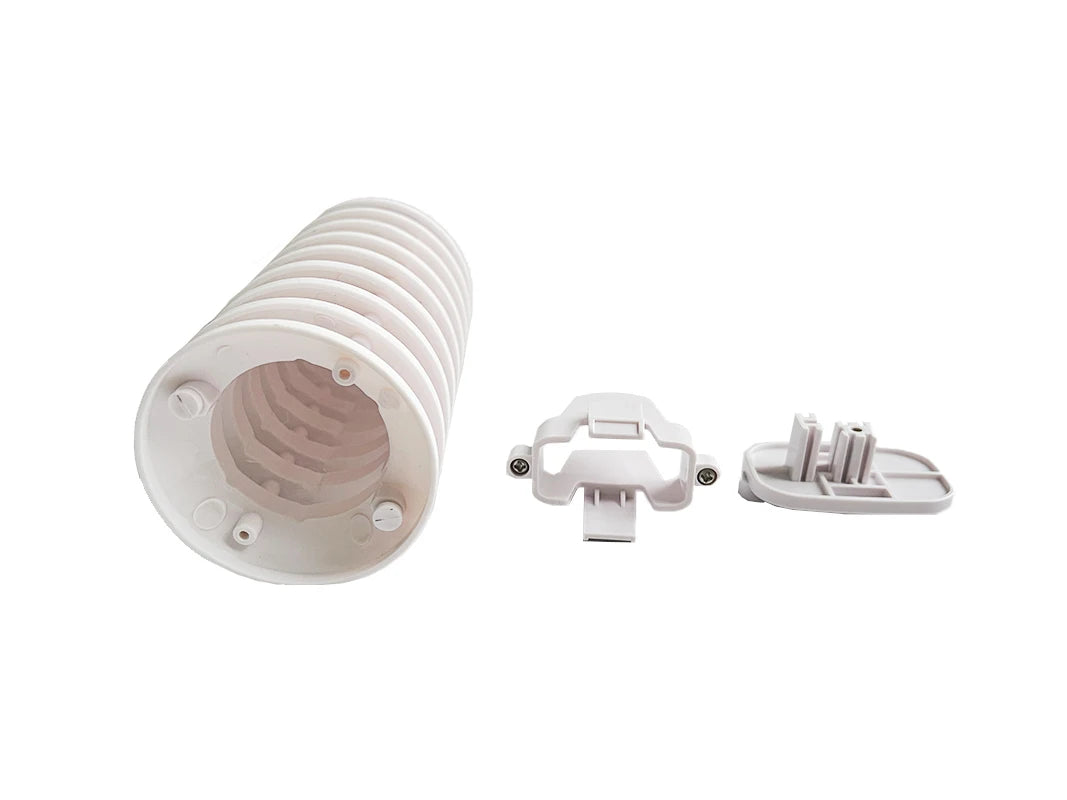

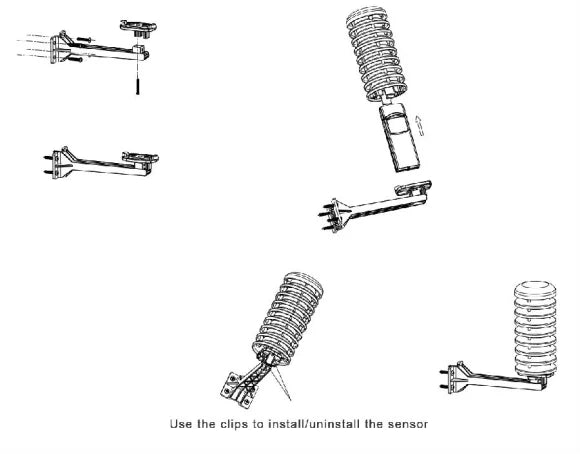

Solar radiation shield

* This solar radiation shield is designed to protect temperature sensor from sunlight and allows airflow through the shield to enhance the accuracy of daytime temperature readings.

* Material: ASA

* Color: White

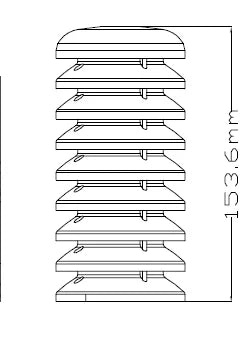

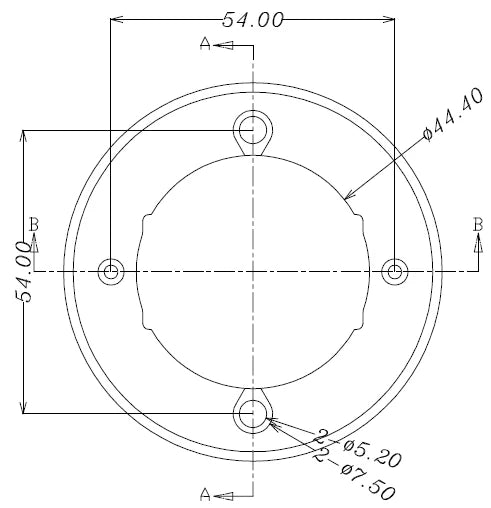

* Shield length: 15.4cm; External diameter: 7.3cm; Internal diameter: 4.4cm

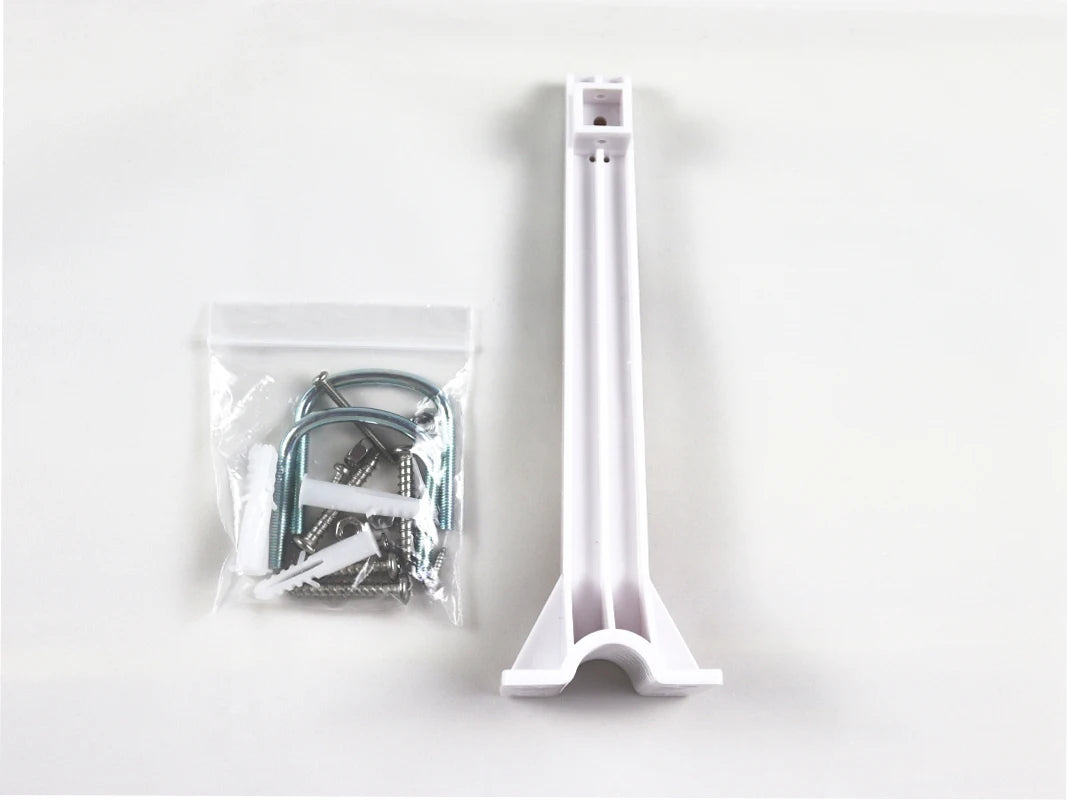

* Mounting arm length: 17.2cm; mounting hole diameter:20mm

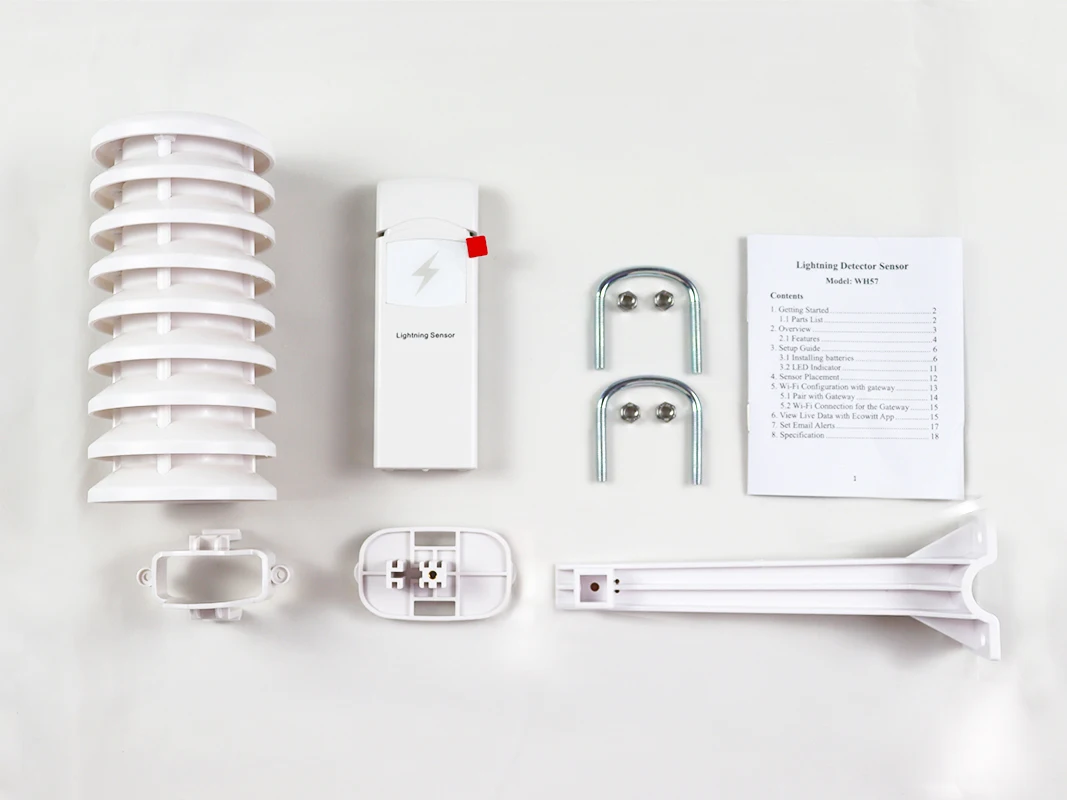

Package list:

* Solar Radiation shield x1

* Mounting arm x1

* Lightning sensor x1

Delivery Term:

Buyer, as the importer, is responsible for paying the customs clearance cost or related TAX for the importation.
