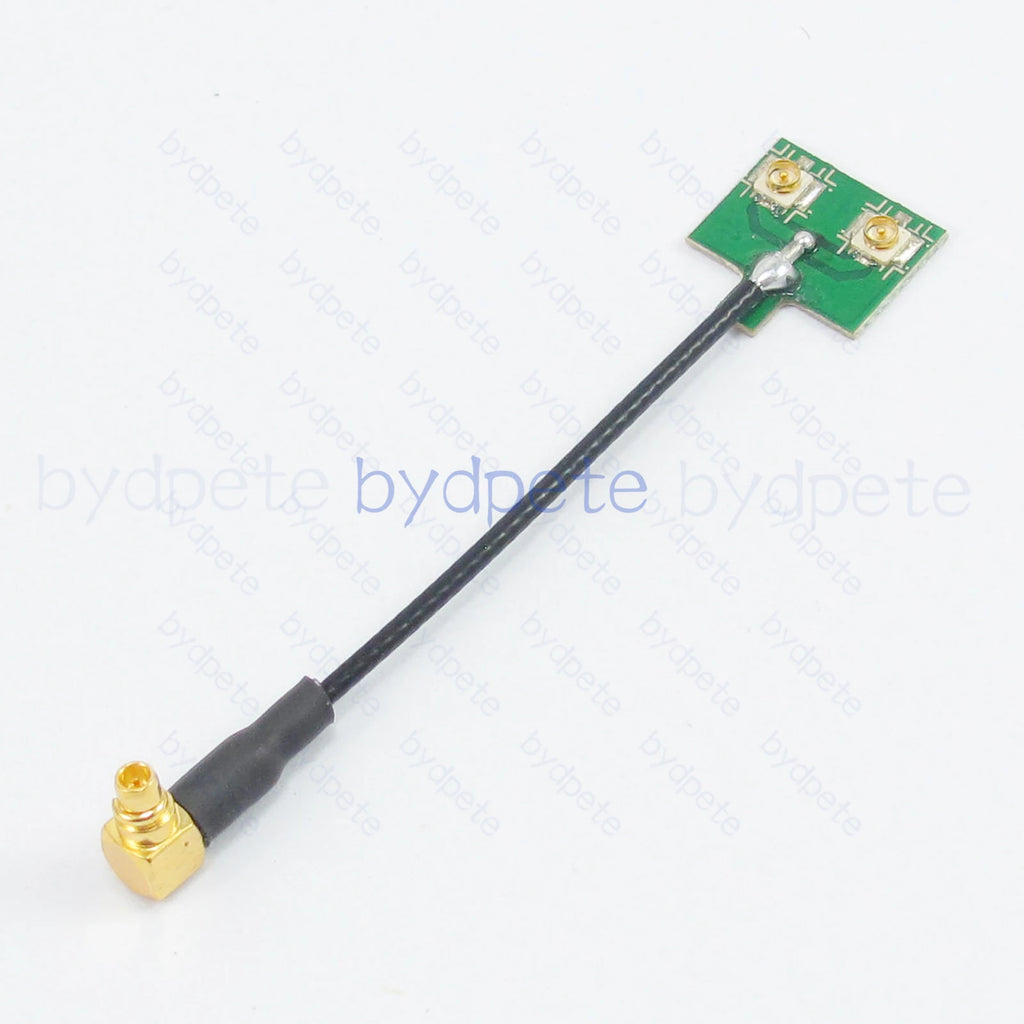

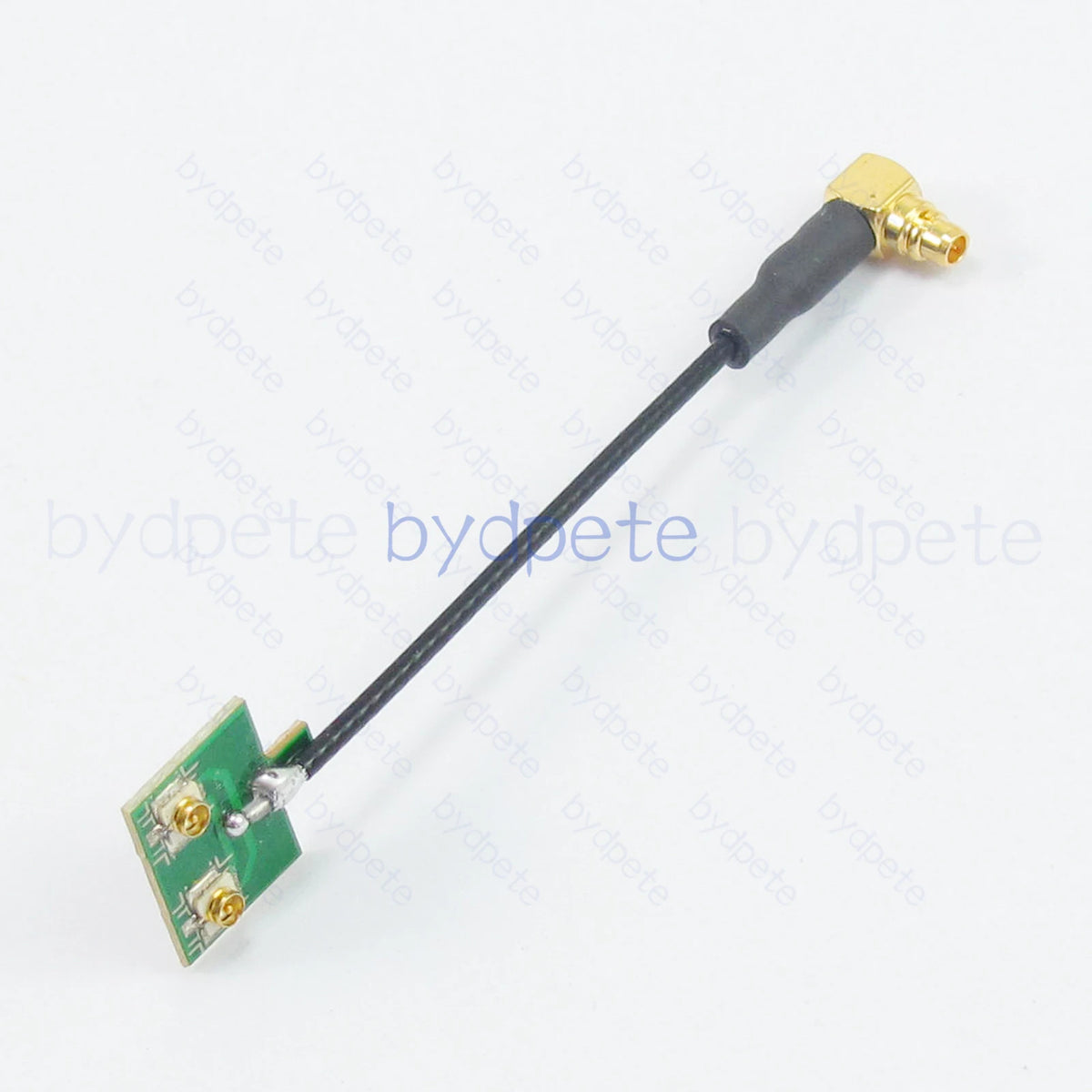

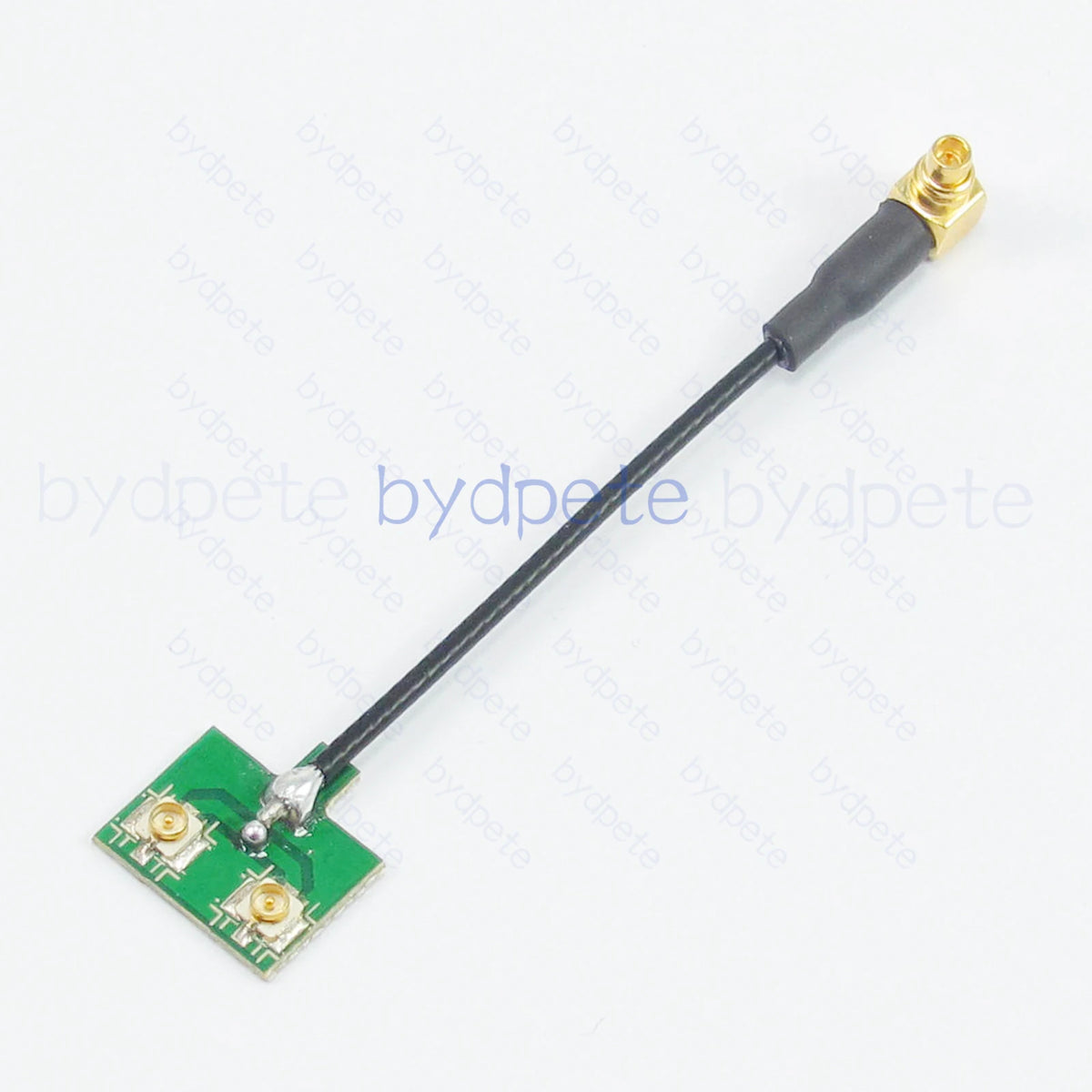

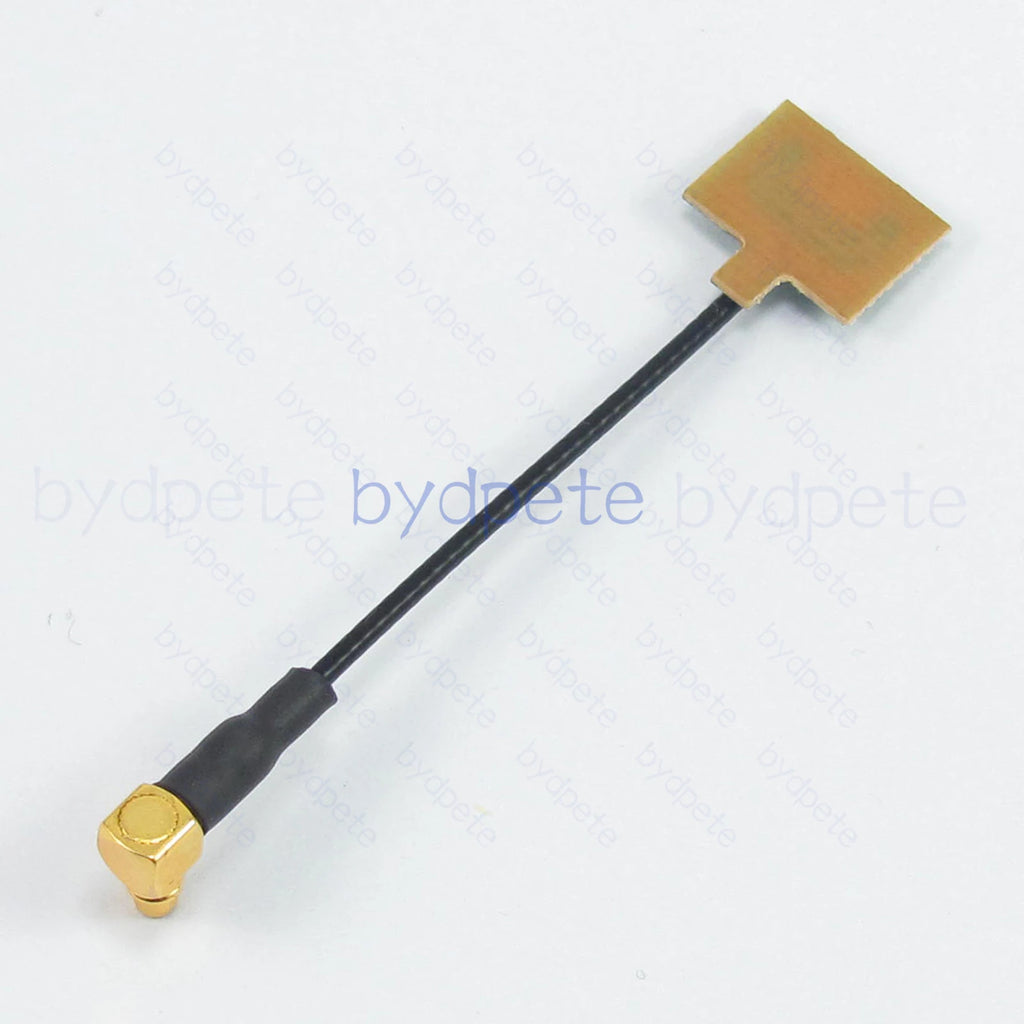

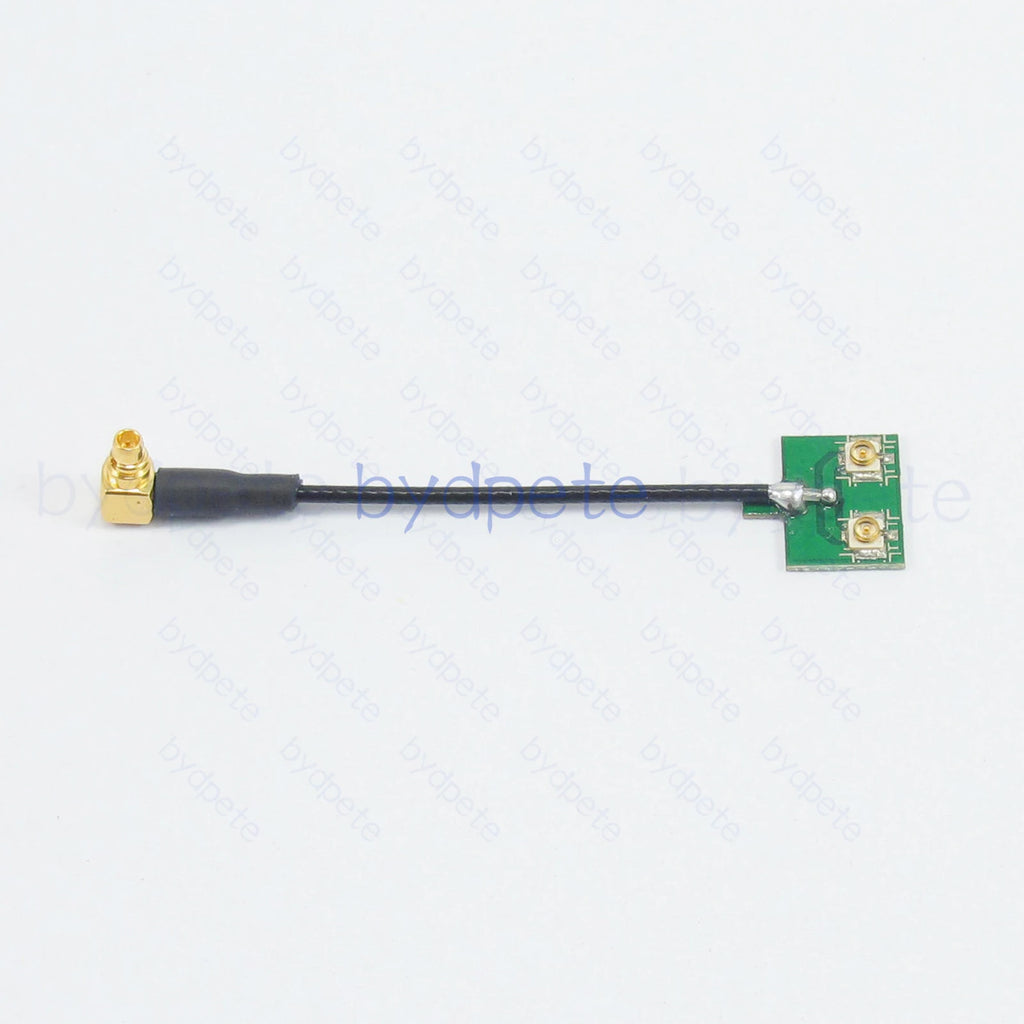

MMCX Male Plug Y Type Splitter Cable to 2x IPX UFL Socket SMD PCB 1.37mm RF Coaxial Kable 50ohms Adapter

MMCX Male Plug Y Type Splitter Cable to 2x IPX UFL Socket SMD PCB 1.37mm RF Coaxial Kable 50ohms Adapter

$20.36

$20.36 $0.00

Description

SPECIFICATIONS

Brand Name: bydpete

Certification: NONE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: TC2501xUFLF2xMMCXMR

Origin: Mainland China

Voltage: 24V

电压: 1V 2V 4V 5V 12V 12V 等或自定义

Search E.g. : Input SMA N and click Search button , then you can find out All items for " SMA and N Cable " .

* Parts Name : MMCX male plug Y Type Splitter Cable to 2x IPX UFL Socket SMD PCB IPX1 1.37mm RF

* Specifications :
* Plating: gold plated contacts, nickel-plated, real teflon insulator
* Mounting: machined brass construction crimped soldered cable mount
* Salt spray test: > = 24 hour -48 hours, enhanced corrosion resistance
* Operating frequency: with highest quality,> = 2.4Ghz 3Ghz 5Ghz 6Ghz 12Ghz 18Ghz...
* Technical characteristics
* Temp. range: -65 ~ +165 (PE cable -55 ~ +85)
* Impedance: 50 ohm

* Connector A : 1pcs MMCX male plug right angle connector ( center is male pin )
* Connector B : 2pcs U.FL SMD on PCB ( center is male pin )
* Cable -- type: OD 1.37mm diameter RF Pigtail Coax 50ohm Cable

* Cable Length: Customized by buyer .this item is 2inch ( 5cm ) long cable , if you want customize others length , please leave a message in the order , we will make and ship out the customize length cable . )

There are 4 kinds of : IPX SMD SMT Solder on PCB Mount Socket Jack Female connector ( outside is copper circle and center is plug male pin ):

* A : U.FL IPX1 : A=2.0mm B=0.50mm Height=1.31mm

* B : MHF3 IPX3 : A=1.4mm B=0.40mm Height=0.84mm

* C : MHF4 IPX4 : A=1.5mm B=0.45mm Height=0.61mm

* D : MHF5 IPX5 : A=1.4mm B=0.35mm Height=0.56mm

* Package included:

* 1 x Y Type Splitter Cable 1x MMCX male plug right angle ( center is male pin ) to 2x U.FL SMD on PCB ( center is male pin with OD 1.37mm diameter RF Pigtail Coax 50ohm Cable 2inch 5cm long
