SPECIFICATIONS

Brand Name: RAK

High-concerned chemical: none

Origin: Mainland China

Type: Lora Module

Request Quote for Custom WisBlock Module

Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

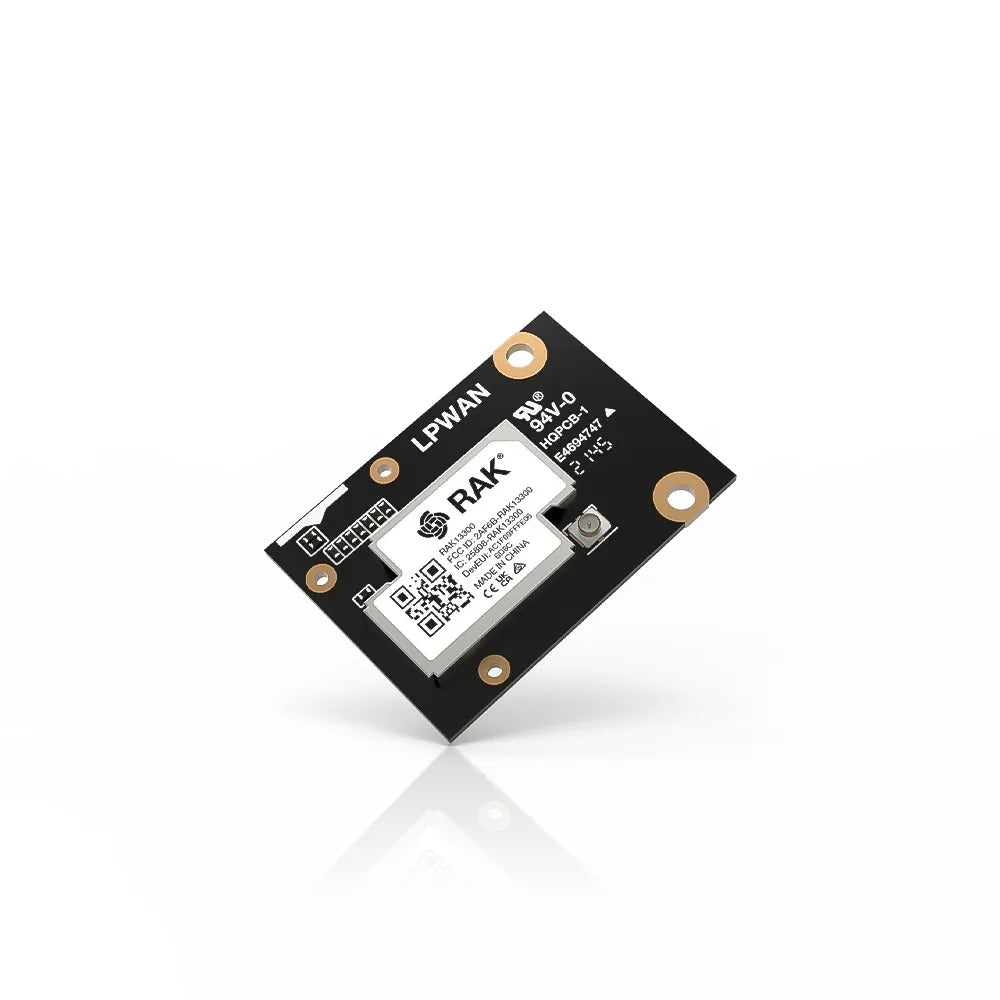

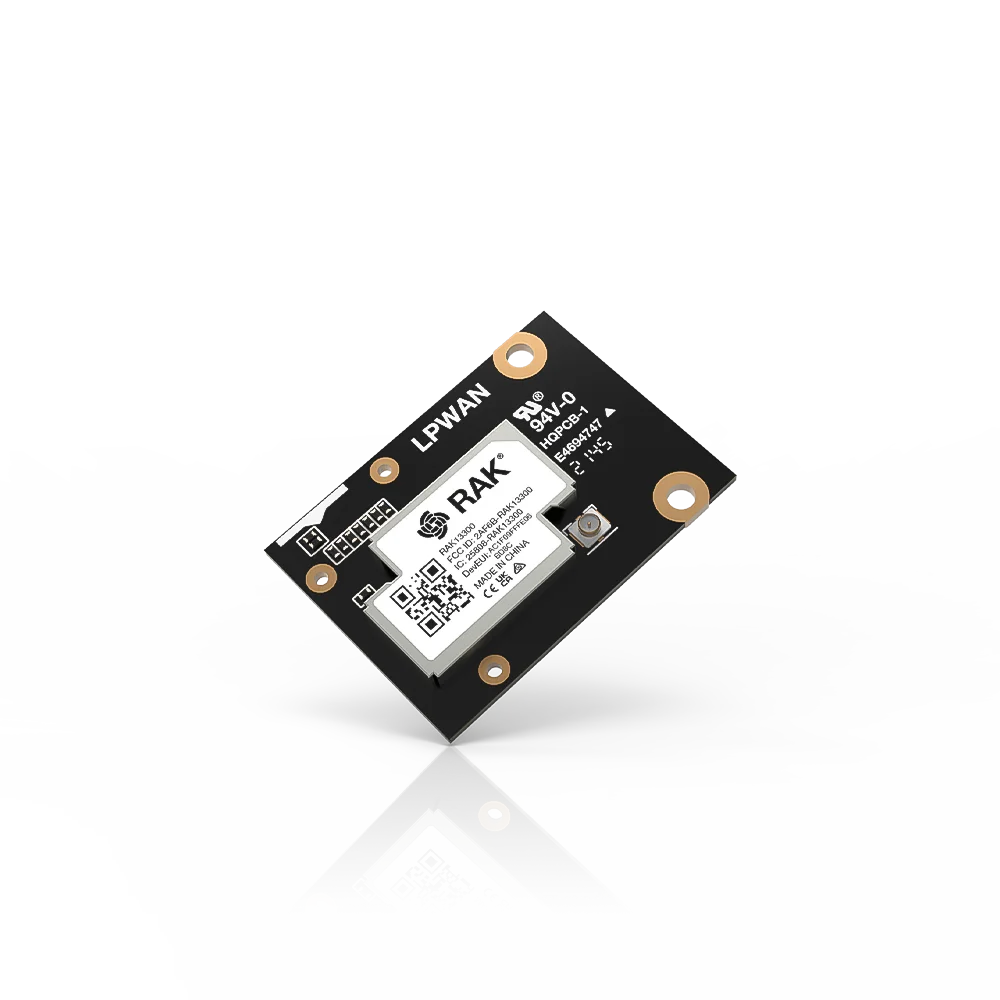

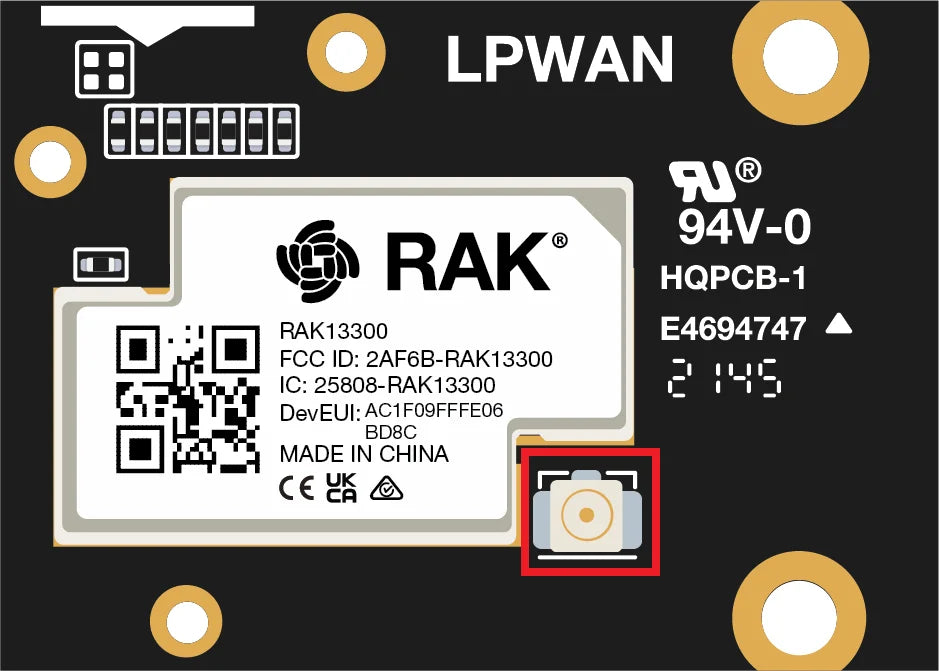

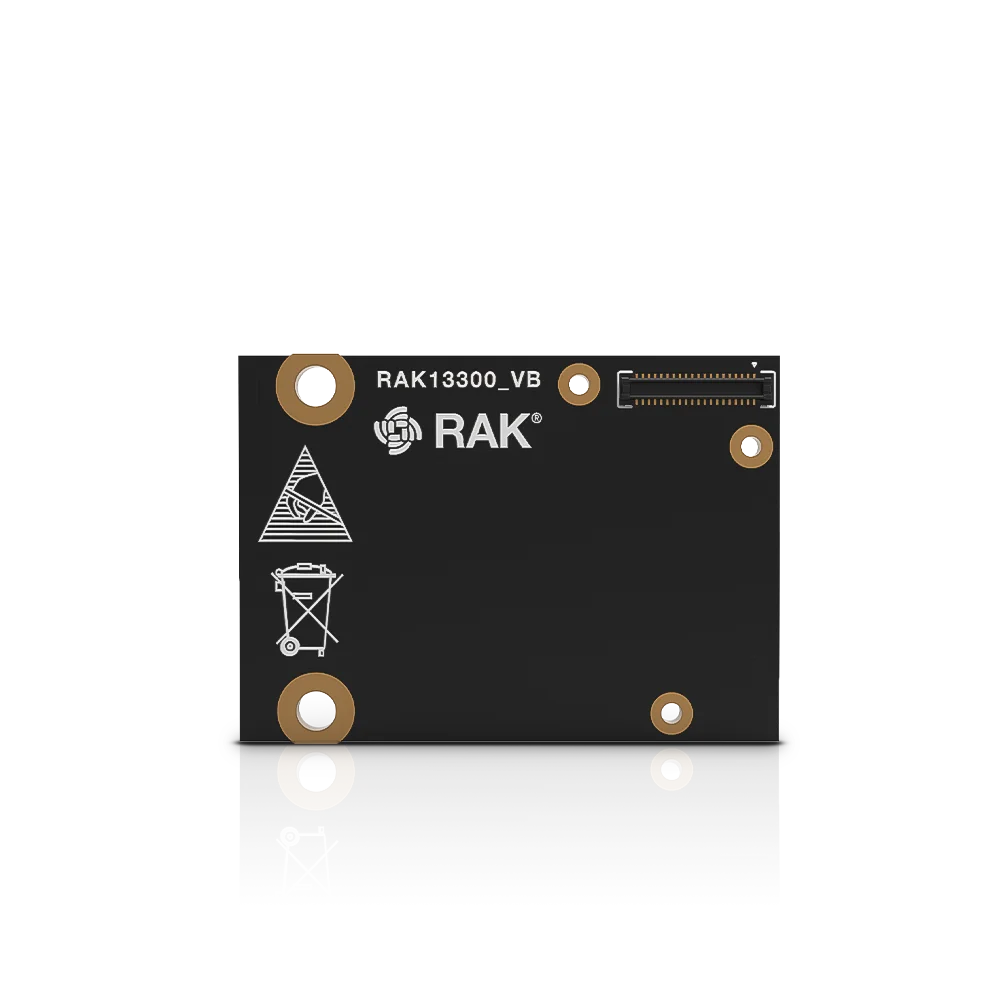

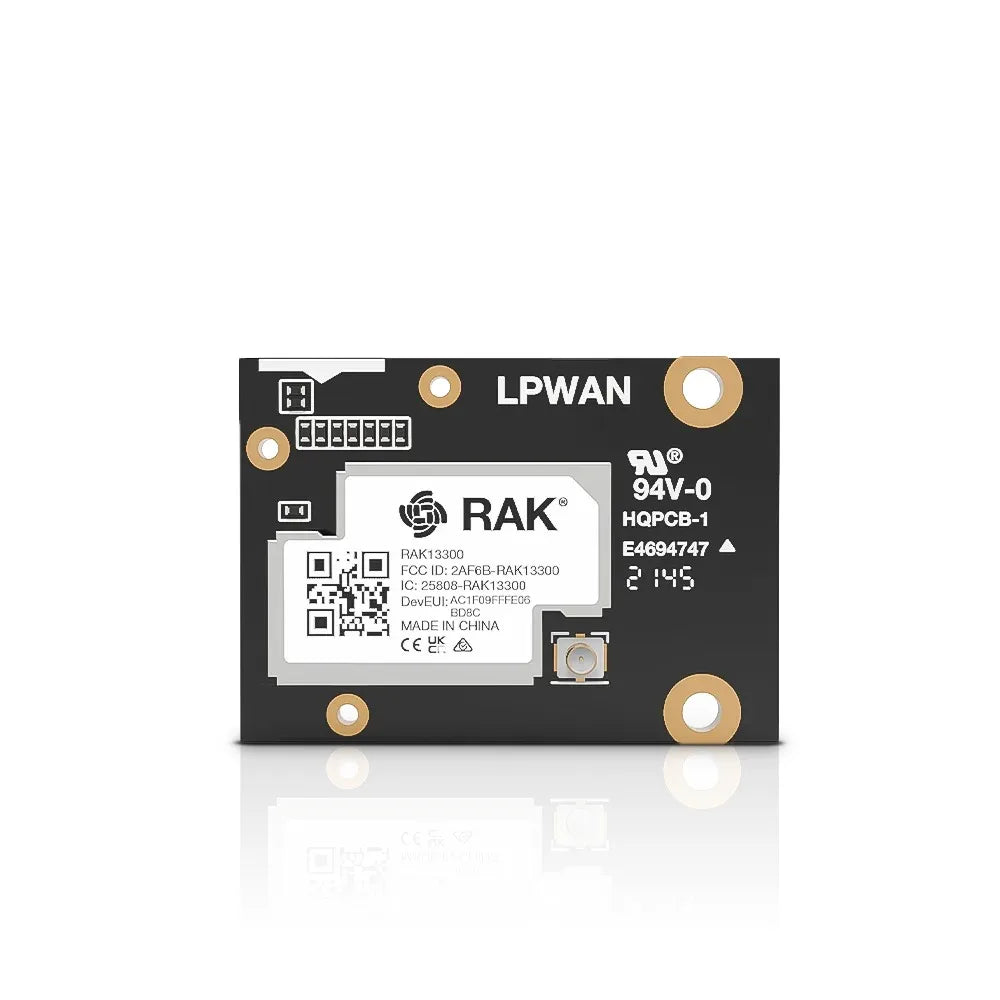

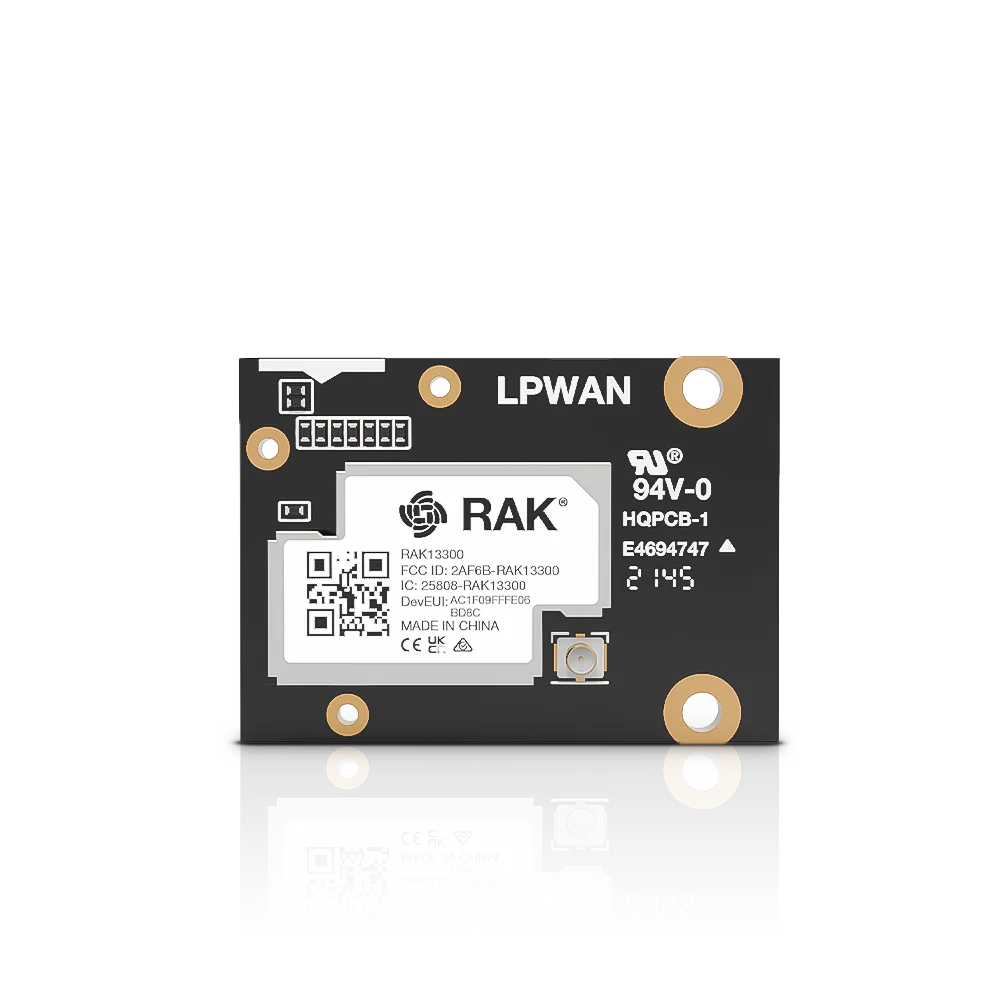

RAK13300 is based on Semtech SX1262 Module for LoRa and LoRaWAN applications. This module gives WisBlock Core with no built-in LoRa chip LPWAN capabilities by simply connecting it to the IO slot of WisBlock Base board. For example, this module extends the WiFi and Bluetooth capability of the RAK11200 Core to have LoRa/LoRaWAN communications.

Product Features

• Based on SX1262 LoRa chip.


• LoRaWAN compliant


• Supports bands: IN865, EU868, AU915, US915, KR920, RU864 and AS923

• LoRaWAN Activation by OTAA/ABP


• LoRa Point to Point (P2P) communication


• Ultra-Low Power Consumption


• Supply Voltage: 2.0 V ~ 3.6 V


• Temperature Range: -40° C ~ 85° C


• Size: 25mm x 35mm


Package Inclusion

• LoRa antenna

Documentation

• RAK13300 Quick Start Guide

• Datasheet

• WisBlock Quick Start Guide

• WisBlock Source Code Repository(opens new window)

• 40-Pin Male Connector 3D file(opens new window)

• WisBlock Sensor Tutorial
