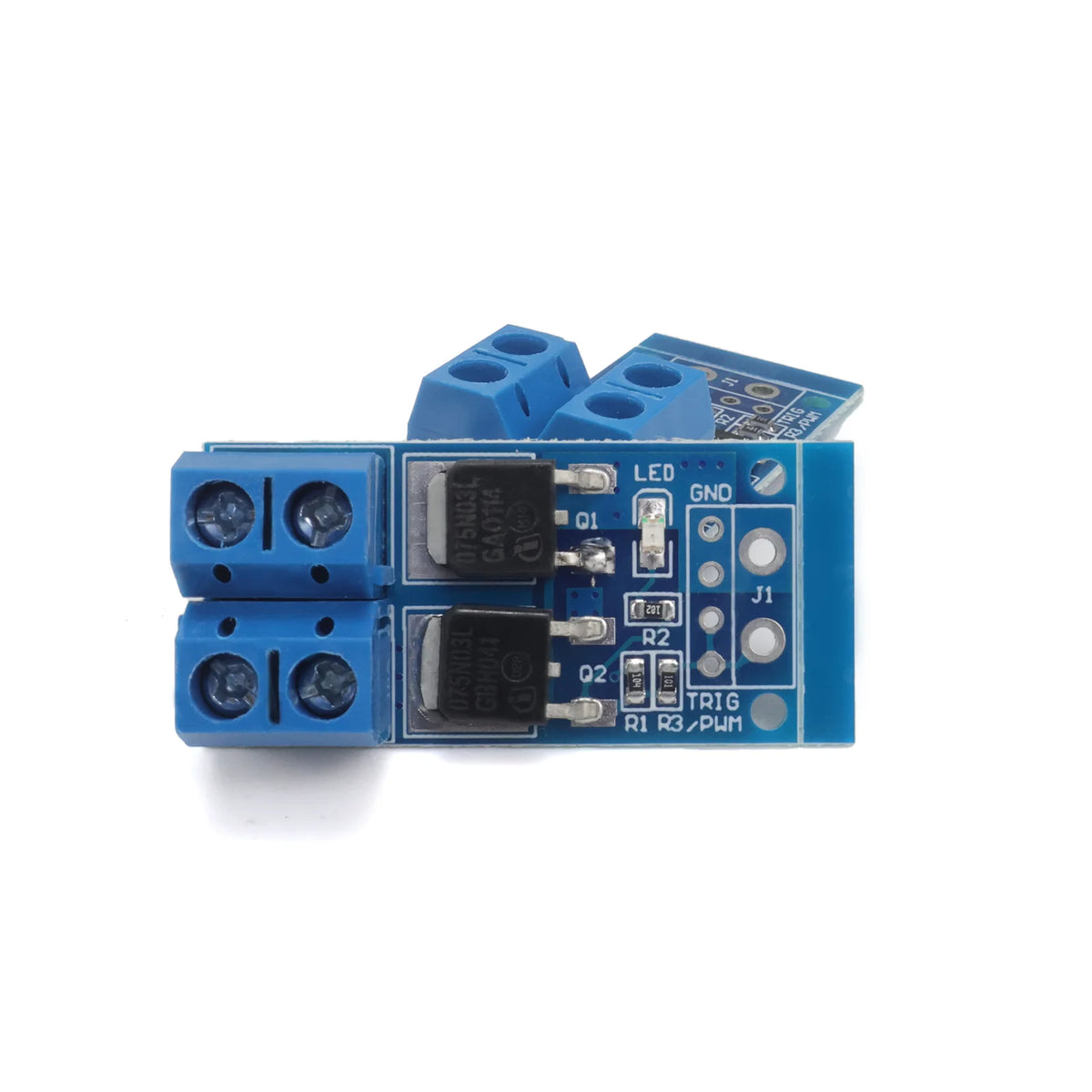

High Power Electronic Switch! MOSFET Trigger Switch Drive Module – 15A 400W Continuous Output, 5V-36V Wide Voltage, PWM Control. Perfect for Arduino Motor Speed Control & LED Dimming!

Key Features & Benefits

💪 15A 400W High Power: Dual MOSFET in parallel – low RDS(on), 15A continuous current at room temperature, 400W power. With heatsink, up to 30A.

🔋 Wide Voltage Range: Operating voltage DC 5V-36V – compatible with 5V, 12V, 24V systems.

🎛️ PWM Signal Support: 0-20kHz PWM input – precise motor speed and LED brightness control.

🔌 Multiple Trigger Sources: Signal voltage DC 3.3V-20V – direct connection to MCU I/O, PLC, DC power supply.

🛡️ Long Lifespan: Contactless switch – unlimited switching cycles. Operating temperature -40℃ to +85℃.

🧩 Compact Size: Only 34×17×17mm – easy to integrate.

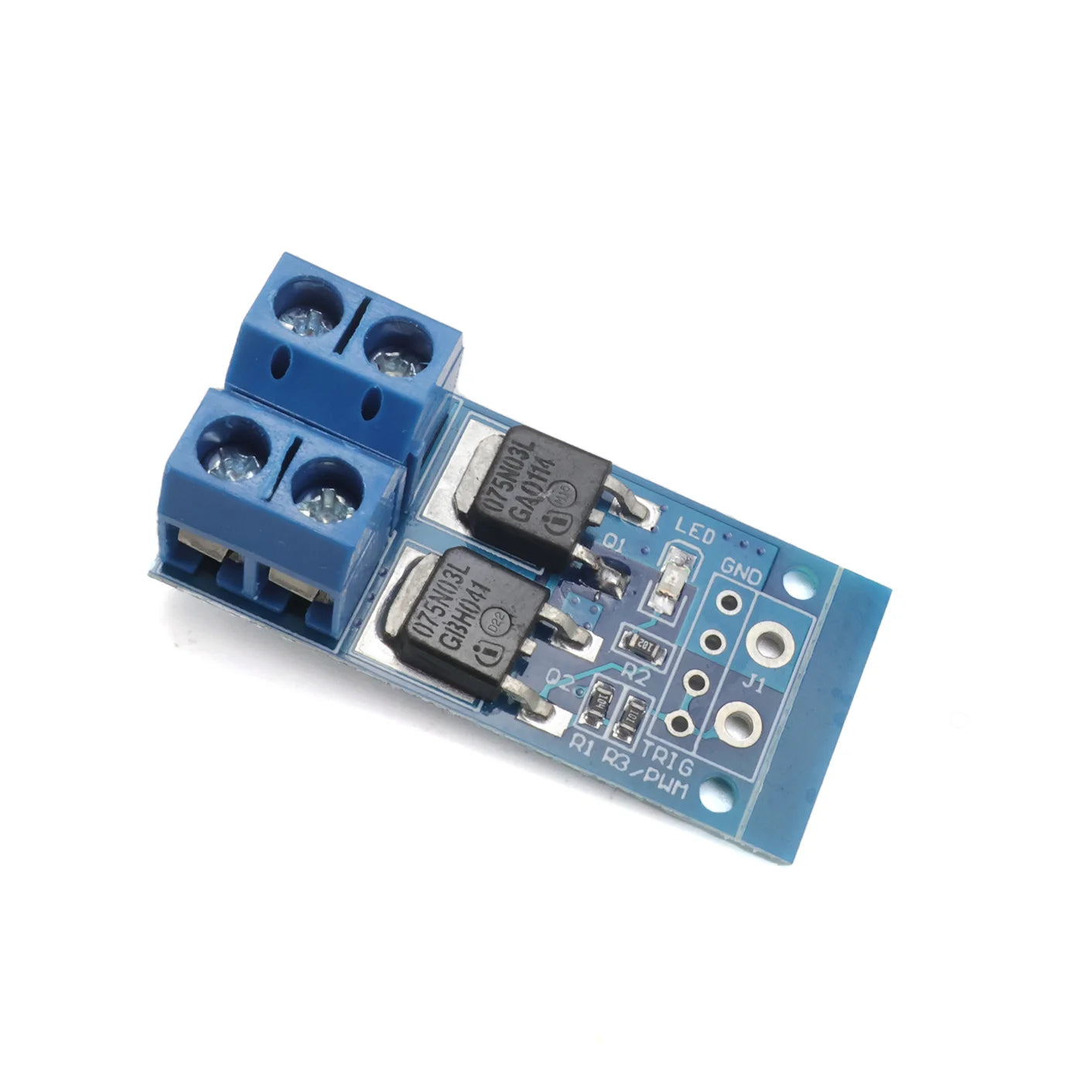

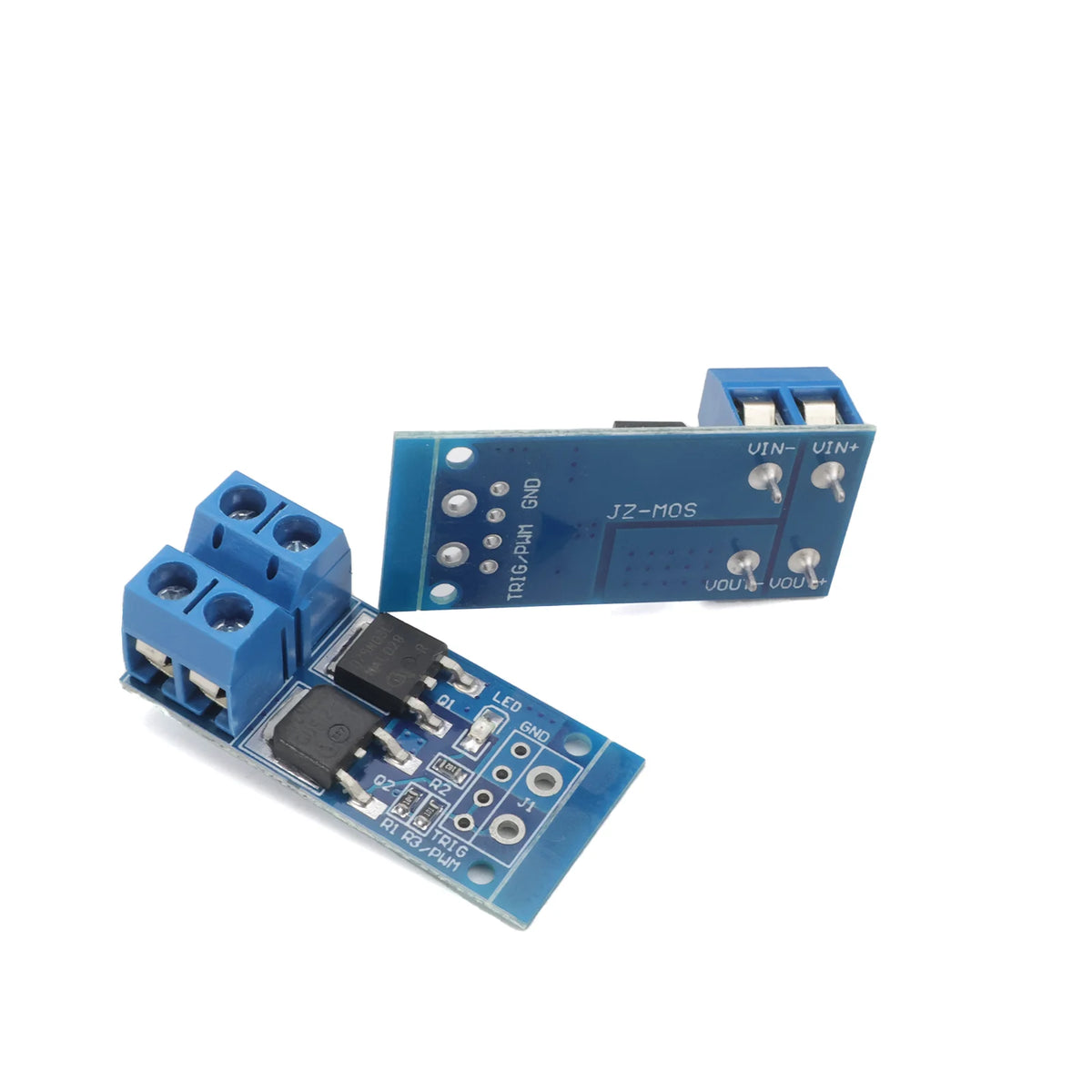

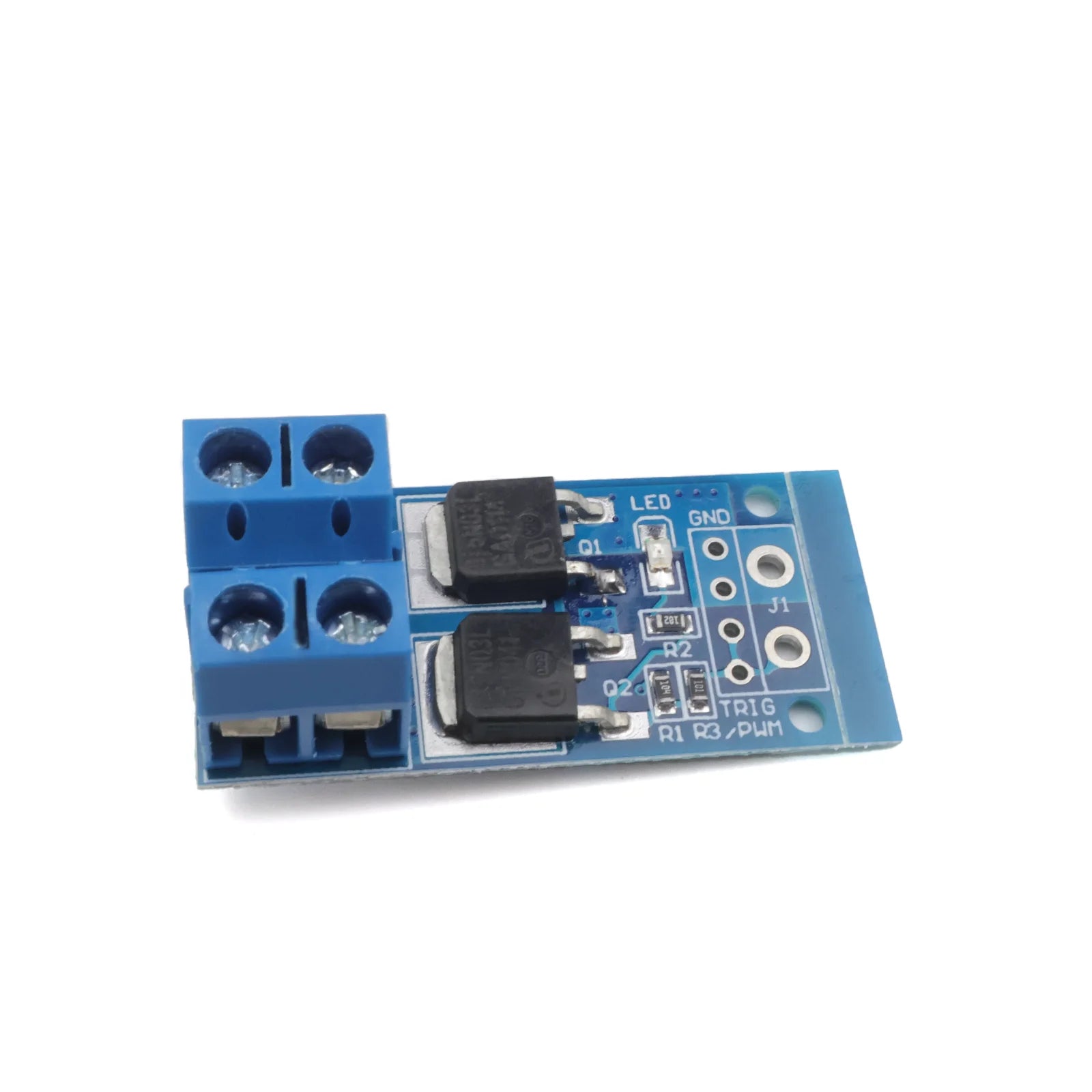

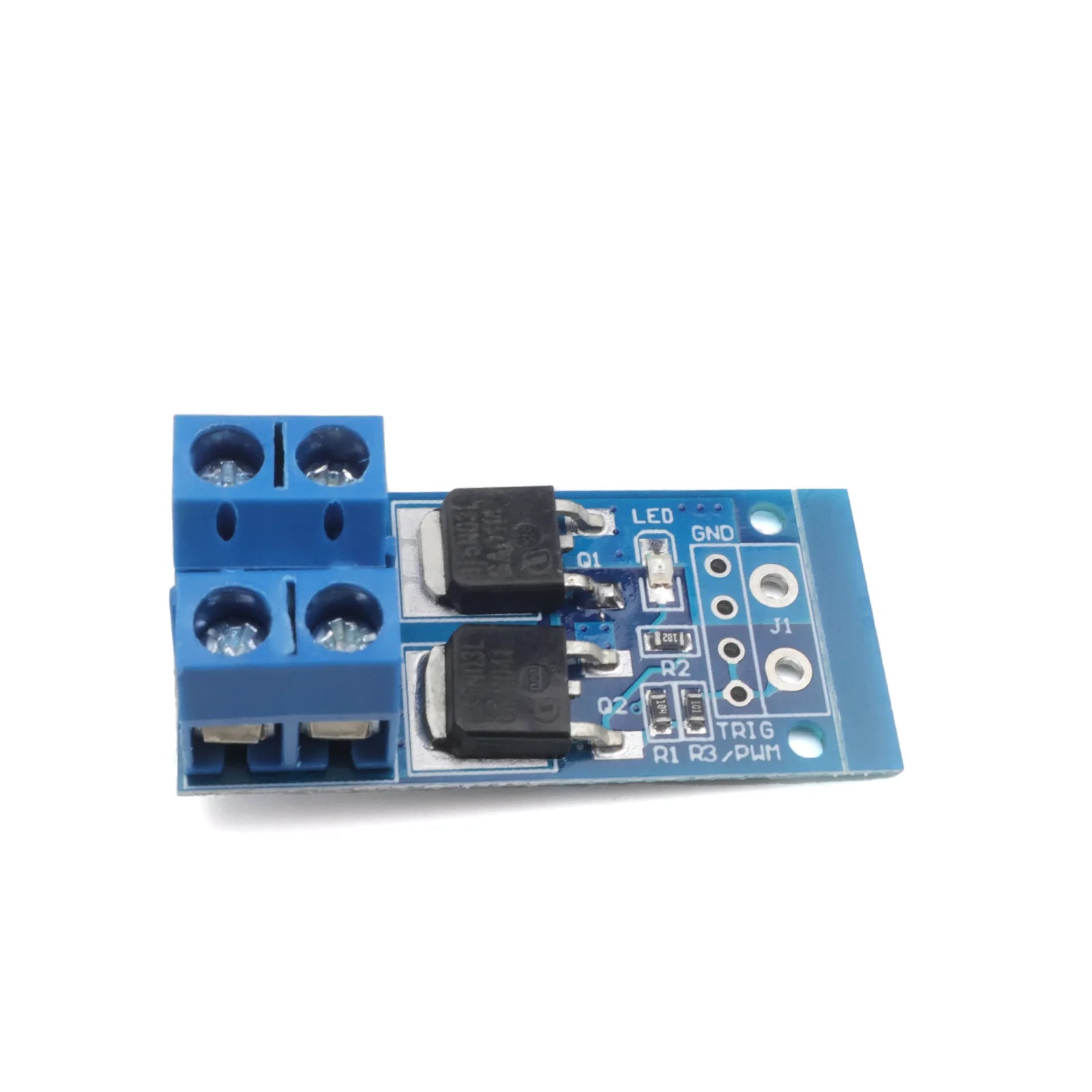

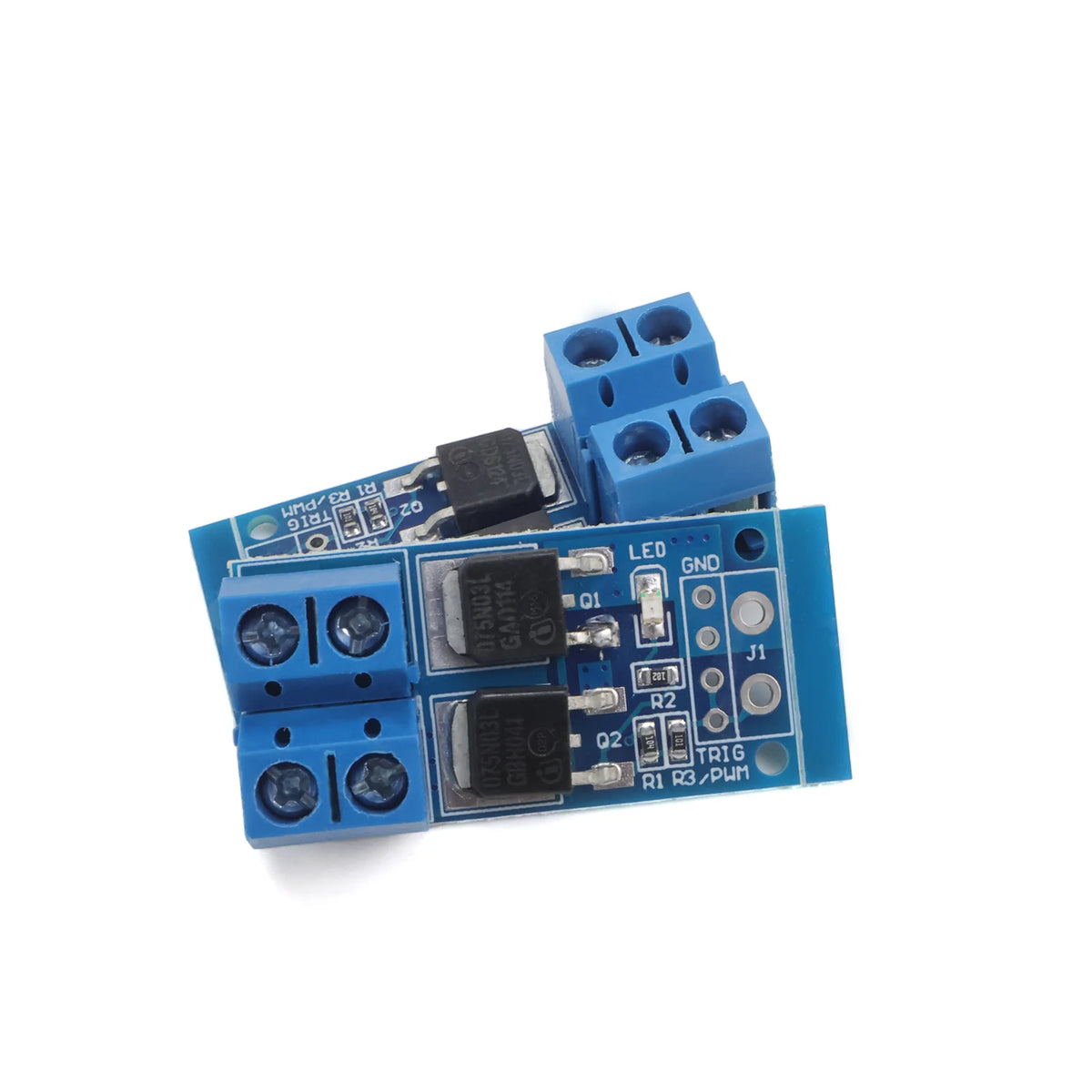

Product Description

Need to control high-power motors, LED strips, or solenoid valves without bulky relays? This MOSFET trigger switch drive module is the perfect solution. Dual MOSFET parallel design delivers 15A continuous current (400W) at room temperature – up to 30A with heatsink. Operating voltage DC 5V-36V, supports 0-20kHz PWM input. Direct connection to Arduino, ESP32, or other MCU I/O for motor speed control, LED dimming, and solenoid valve switching. Contactless design ensures unlimited switching life. Ideal for automation control and DIY projects.

⚡ Quick Start Guide & Important Tips

🔹 What It Does & What You Need
✅ This module does:

Controls high-power DC devices (motors, LED strips, solenoid valves, pumps)

Supports PWM speed/dimming control (0-20kHz)

15A continuous output (30A with heatsink)

Operating voltage DC 5V-36V, signal voltage DC 3.3V-20V
❌ This module does NOT: Control AC devices, support high-frequency switching >20kHz, include heatsink
🔧 You will need: Control signal source (Arduino/PLC/DC power), load device, DC power supply (5-36V)
📦 Package includes: MOSFET Trigger Switch Module × (as per SKU quantity)

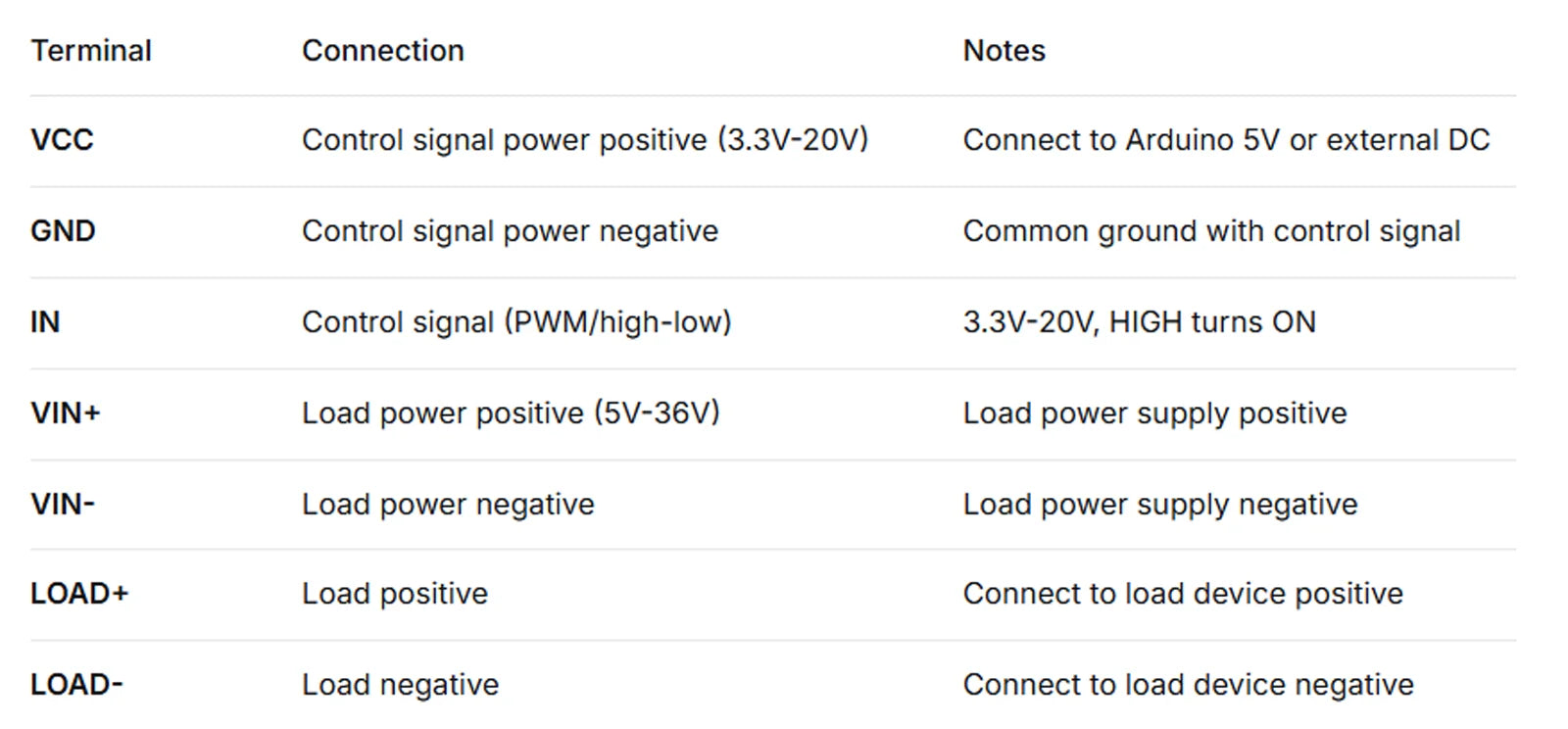

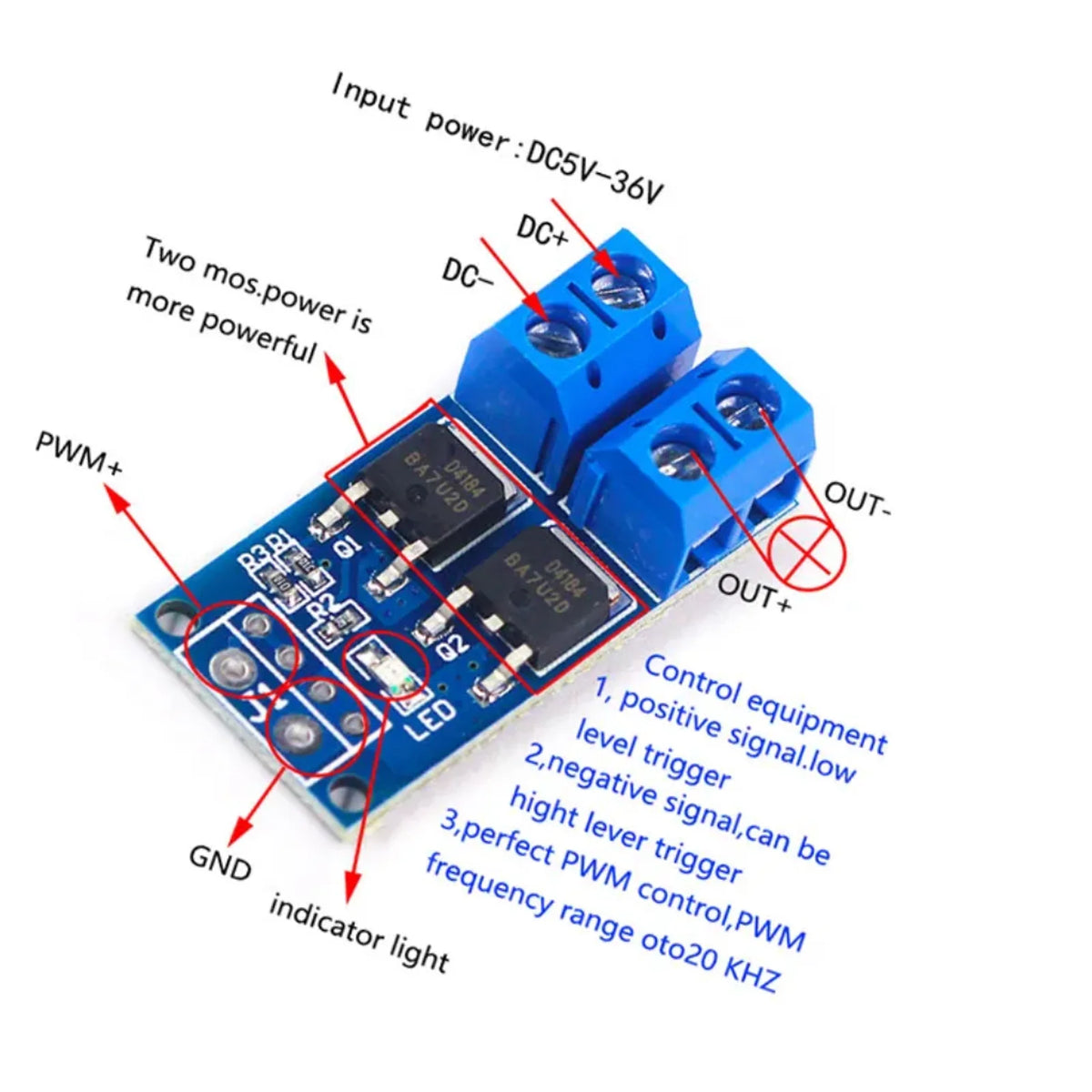

🔹 Wiring & Usage in 3 Steps

⚠️ Critical Warnings:

Isolated Power: Control side (VCC/GND) and load side (VIN+/VIN-) are isolated. They require separate power supplies.

Current Limit: 15A continuous at room temperature, 30A peak. Add heatsink for high-current applications.

PWM Frequency: Supports 0-20kHz. Higher frequencies increase switching losses and heat.

Polarity: Reverse polarity on load side may damage module. Control side polarity correct is sufficient.

Inductive Loads: For motors, solenoids, add a flyback diode (e.g., 1N4007) across the load to prevent back-EMF damage.

🔹 Common Questions

❓ Why is the module getting hot?
Heat is normal under high current. Solutions: 1) Add heatsink; 2) Ensure ventilation; 3) Reduce load current; 4) Keep PWM frequency below 20kHz.

❓ Do control side and load side need common ground?
No. The module has opto-isolation – control and load sides are electrically isolated. Control signal only needs VCC/GND loop.

❓ Can I drive this directly with Arduino?
Yes. Arduino's 5V output can directly drive the IN pin. Connect VCC to Arduino 5V, GND to Arduino GND.

❓ Can it control AC devices?
No. This module is for DC loads only. For AC control, use solid-state relays or AC contactors.

❓ What if PWM frequency is too high?
Switching losses increase with frequency. Above 20kHz, heat increases significantly. Recommended: 1-10kHz.

Specifications

Control Side Voltage: DC 3.3V – 20V

Load Side Voltage: DC 5V – 36V

Output Current: 15A continuous at room temperature, 30A with heatsink

Output Power: 400W (at 15A), up to 720W (at 30A)

PWM Frequency: 0 – 20kHz

Trigger Signal: HIGH = ON (3.3V-20V)

Output Type: MOSFET low-side switch

Lifetime: Unlimited switching cycles

Operating Temperature: -40℃ ~ +85℃

Module Dimensions: Approx. 34mm × 17mm × 17mm

Note: Due to manual measurement, please allow 1-3mm error. Color may vary slightly due to monitor differences. Please refer to the actual product
